Sony Xperia C S39h Quick reference guide

Pelican White Paper
White paper
June 2013
XperiaTM C
S39h
Note: Screen images are simulated.

White paper | Xperia™ C
2 July 2013
This document is published by Sony Mobile
Communications AB, without any warranty*.
Improvements and changes to this text
necessitated by typographical errors,
inaccuracies of current information or
improvements to programs and/or equipment
may be made by Sony Mobile Communications
AB at any time and without notice. Such changes
will, however, be incorporated into new editions
of this document. Printed versions are to be
regarded as temporary reference copies only.
*All implied warranties, including without
limitation the implied warranties of
merchantability or fitness for a particular
purpose, are excluded. In no event shall Sony or
its licensors be liable for incidental or
consequential damages of any nature, including
but not limited to lost profits or commercial loss,
arising out of the use of the information in this
document.
This White paper is published by:
Sony Mobile Communications AB,
SE-221 88 Lund, Sweden
www.sonymobile.com
© Sony Mobile Communications AB, 2009-2013.
All rights reserved. You are hereby granted a
license to download and/or print a copy of this
document.
Any rights not expressly granted herein are
reserved.
First released version (July 2013)
Publication number: 1273-6856.1
Purpose of this document
Sony Mobile Communications product White papers are intended to give an overview of a product and
provide details in relevant areas of technology.
Document history
Sony Mobile Developer World
For the latest technical documentation and development tools, go to www.sonymobile.com/developer.
Version
June 2013 First released version Version 1
July 2013 Second released version Version 2
July 2013 Third released version Version 3

White paper | Xperia™ C
1 July 2013
Table of contents
Product overview ..........................................................................................................2
Xperia™ C highlights .............................................................................................2
Facts – dimensions, weight, performance and networks ......................................4
Categorised feature list ..........................................................................................6
Technologies in detail ...................................................................................................8
Device-to-device communications (local) .............................................................8
Bluetooth™ wireless technology ........................................................................8
Wi-Fi® .................................................................................................................9
Messaging ...........................................................................................................10
MMS (Multimedia Messaging Service)..............................................................10
Email .................................................................................................................10
Positioning – location based services .................................................................11
Provisioning (OMA CP) ........................................................................................11
Multimedia (audio, image and video) ...................................................................12
Synchronisation (OMA DS, EAS) .........................................................................13
Web browser .......................................................................................................14
Memory in Android™ Device ...............................................................................15
Trademarks and acknowledgements ..................................................................19

White paper | Xperia™ C
2 July 2013
Product overview
Xperia™ C highlights
• Dual SIM smartphone with 5-inch qHD display
• 8MP camera with Exmor R® for mobile and HDR
• Take stunning self-portraits using a voice-guide
• Powerful 1.2 GHz Quad-core processor with 1GB RAM
• “WALKMAN” app with Sony audio enhancement technology and integrated services
Big screen entertainment
From awesome film clips to beautiful vacation memories, whatever you’re watching, the 5-inch 540 x 960
qHD display on the Xperia™ C creates a viewing experience aimed to give you goose bumps. Together
with a powerful 1.2 GHz Quad-core processor and 1GB of RAM, this smartphone offers super-fast
performance as well as astonishing graphics.
Beautiful images, always…
The Xperia™ C was created using the same expertise and components as leading Sony cameras. It
comes with an 8 MP camera with Exmor R® for mobile, which lets you take great pictures, even in
challenging light conditions. And with HDR, your subject looks as bright as you remember, even when
back lit. The Xperia™ C also has a dedicated camera key that can use to shoot from a locked screen as
well as a fast-capture function that goes from sleep to snap in under one second.
Capture and share the most beautiful version of you
Want your picture taken by a professional? Well, with the Xperia™ C you’ll get pretty close. Switch on the
self-portrait function and the intelligent voice guide will tell you where to move, making sure your face fits
the frame perfectly. This way, you take pictures using the main camera, meaning the quality will always be
superb. But wait, there’s more. You can turn on Beauty mode and make that portrait absolutely flawless.
For a picture perfect you – every time.
Music to lose yourself in
Can’t live without the sound of the latest music in your ears? The “WALKMAN” app lets you customise
your music experience to a new level. Create playlists and enjoy crisp and clear sound quality with
ClearAudio+ mode*, which includes Sony’s unique audio enhancement technologies. Combine with your
favourite music service, and get the music experience you so rightfully deserve.
* Requires ClearAudio+ certified headset.

White paper | Xperia™ C
3 July 2013
A better way to handle your calls – dual SIM cards
With dual SIM cards, it’s easier to separate work from play – and handle calls more cost-efficiently. You
can simply switch between SIM cards anytime with a simple touch. Or make the switch happen
automatically: just preset which SIM card to use at specific times of the day. You can also customise each
SIM card separately. Choose a formal ring signal during office hours, then go for a more casual one at
home.
NOTE: Screen images are simulated.

White paper | Xperia™ C
4 July 2013
Facts – dimensions, weight, performance and
networks
Operating system Google™ Android™ 4.2.2 (Jelly Bean)
Processor 1.2 GHz MTK6589 quad-core
GPU IMG SGX544
Size 141.5 x 74.15 x 8.88 mm
Weight 153 grams

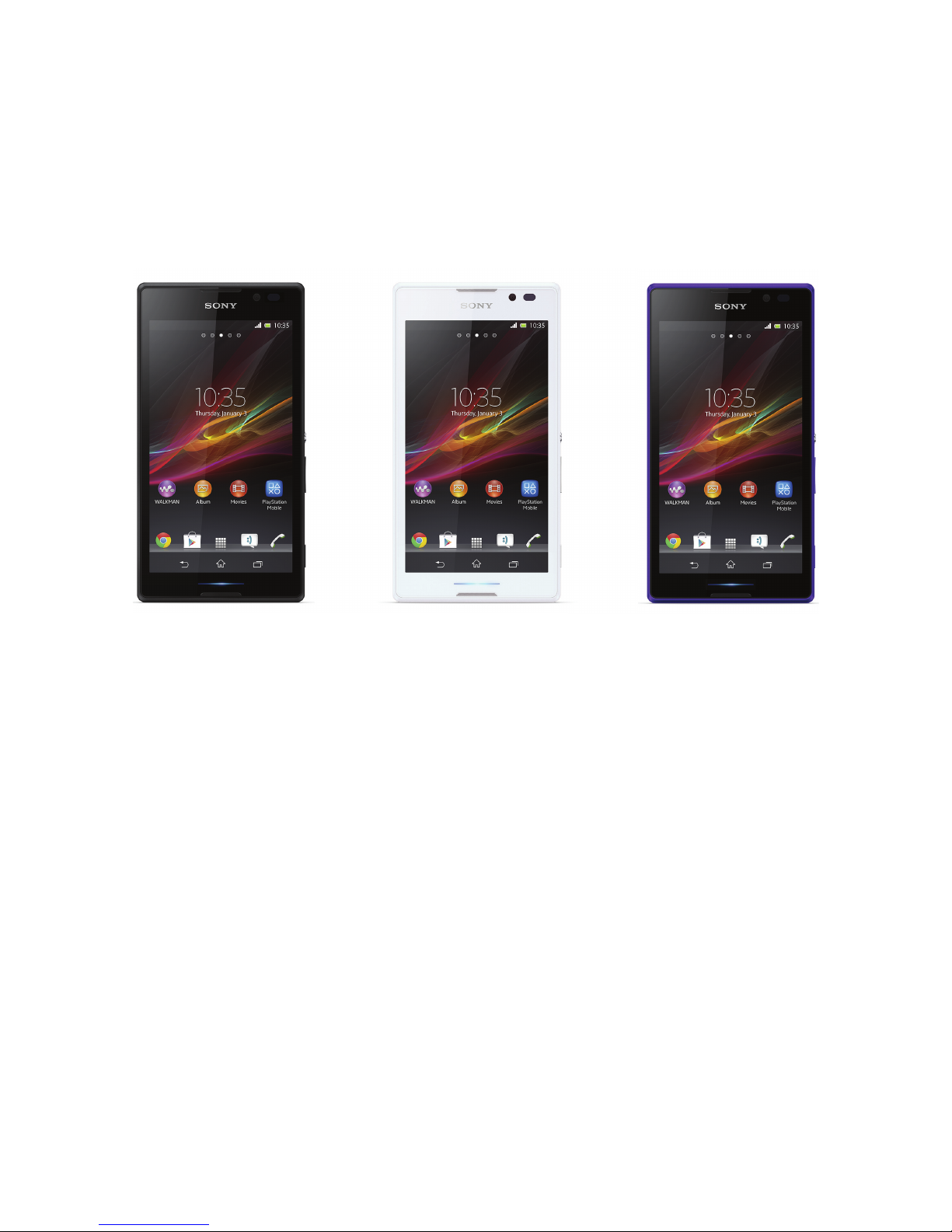

Available colours Black
White
Purple
Main screen
Colours 16,777,216 colour TFT
Resolution 960x540 pixels
Size (diagonal) 5 inches
Scratch-resistant Yes -Touch panel cover glass (Schott 2nd source)
Input mechanisms
Text input On-screen QWERTY keyboard, 12-key input
Touch screen Capacitive
Touch gesture Yes – multi-touch, up to 4 fingers supported
Handwriting recognition Yes
Memory
RAM 1 GB
Flash memory Up to 4 GB*
Expansion slot microSD™ card, up to 32 GB
Camera
Camera resolution 8 MP
Digital zoom 4x
Photo flash Yes – Pulsed LED
Video recording Yes – Full HD 1080p
Front camera Yes – VGA
Sensors
Accelerometer Yes
Ambient light sensor Yes

White paper | Xperia™ C
5 July 2013
* Memory comprises approximately 1.2 GB of firmware, plus 2.0 GB of “Internal Storage” for downloaded
applications, music, pictures and movies, and some application data. For more details about memory, see
“Memory in Android™ Device” on page 15.
** Values are according to GSM Association Battery Life Measurement Technique as performed in con-
trolled laboratory conditions. Actual time may vary.
NOTE: Battery performance may vary depending on network conditions and configurations, and phone
usage.
NOTE: All performance metrics are measured under laboratory conditions.
Proximity sensor Yes
Magnetometer Yes
Networks
S39h UMTS HSPA+ 900 (Band VIII), 2100 (Band I) MHz
GSM GPRS/EDGE 900, 1800, 1900 MHz
Data transfer speeds
GSM GPRS Up to 85.6 kbps (download). Up to 85.6 kbps (upload).
GSM EDGE Up to 237 kbps (download). Up to 237 kbps (upload).
UMTS HSUPA (upload) Up to cat 7 (11.5 Mbps)
UMTS HSDPA (download) Up to cat 24 (42 Mbps)
Talk time (GSM) Up to 10 hours 3 min.**
Standby time (GSM+GSM) Up to 588 hours**
Talk time (UMTS) Up to 10 hours 3 min.**
Standby time (UMTS+GSM) Up to 605 hours**
Music listening time Up to 53 hours 59 min.**
Video playback time Up to 10 hours 32 min.**
Battery (Removable) 2390 mAh, typical
2330 mAh, minimum

White paper | Xperia™ C
6 July 2013
Categorised feature list
* This service is not available in all markets.
Camera
8 megapixel camera
4x digital zoom
Auto focus
Face detection
Flash/Photo flash
Front-facing camera (VGA)
Geotagging
Self-timer
Send to web
Smile Shutter™
Video stabiliser
Sweep Panorama
Touch capture
Touch focus
Video light
Video recording (Full HD 1080p)
Music
3D Surround Sound (VPT)
Album art
Bluetooth™ stereo (A2DP)
ClearAudio+
Clear bass
Clear Phase™
Clear stereo
Dynamic normalizer
Manual equalizer
PlayNow™ service*
TrackID™ music recognition*
“WALKMAN” application
xLoud™ Experience
Internet
Bookmarks
NeoReader™ barcode scanner*
Web browser (WebKit™)
Communication
Call list
Conference calls
Speakerphone
Video chat ready
Messaging
Conversations
Email
Handwriting recognition
Instant messaging
Multimedia messaging (MMS)
Predictive text input
Text messaging (SMS)
Design
Auto rotation
Illumination effect
On-screen 12-key keyboard
On-screen QWERTY keyboard
Picture wallpaper
Screen capturing
STAMINA mode
Touch screen
Voice input
Wallpaper animation

White paper | Xperia™ C
7 July 2013
* This service is not available in all markets.
Entertainment
3D games
Media browser
Motion gaming
Radio (FM radio with RDS)
Video streaming
Organiser
Airplane mode
Alarm clock
Calculator
Calendar
Contacts
Document readers
eCompass™
Notes
Setup guide
Stopwatch
Timer
World clock
Connectivity
3.5 mm audio jack (CTIA)
Bluetooth™ 4.0 wireless technol-
ogy
Media Transfer Protocol support
Micro USB support
Native USB tethering
Media Go™*
PC Companion
Play Anywhere™
Screen mirroring
Smart Connect
Synchronisation via SyncML™
Synchronisation with computer
Synchronisation via Microsoft®
Exchange ActiveSync®
USB High speed 2.0 support
USB mass storage
Xperia Link™
Wi-Fi®
Wi-Fi Direct™
Wi-Fi® Hotspot functionality

White paper | Xperia™ C
8 July 2013
Technologies in detail
NOTE: The information outlined below is general and levels of compliance to standards and specifications
may vary between products and markets. For more information, contact Sony Developer World or your
Sony contact person where applicable.
Device-to-device communications (local)
Bluetooth™ wireless technology
More information:
www.sonymobile.com/developer
www.bluetooth.com
Bluetooth™ profiles supported Advanced Audio Distribution Profile v1.2
Audio/Video Remote Control Profile v1.3
Generic Attribute Profile Client/Server over LE
Handsfree Profile v1.6 (Wide-band speech)
Headset Profile v1.2
Human Interface Device Profile v1.0
Object Push Profile v1.2
Personal Area Networking Profile v1.0
FTP v1.2 (server role)
DUN 1.1
Core version and supported
core features
Version 4.0
Connectable devices Products supporting at least one of the profiles above.
BT4.0 accessories generally require installation of a sup-
porting application.
