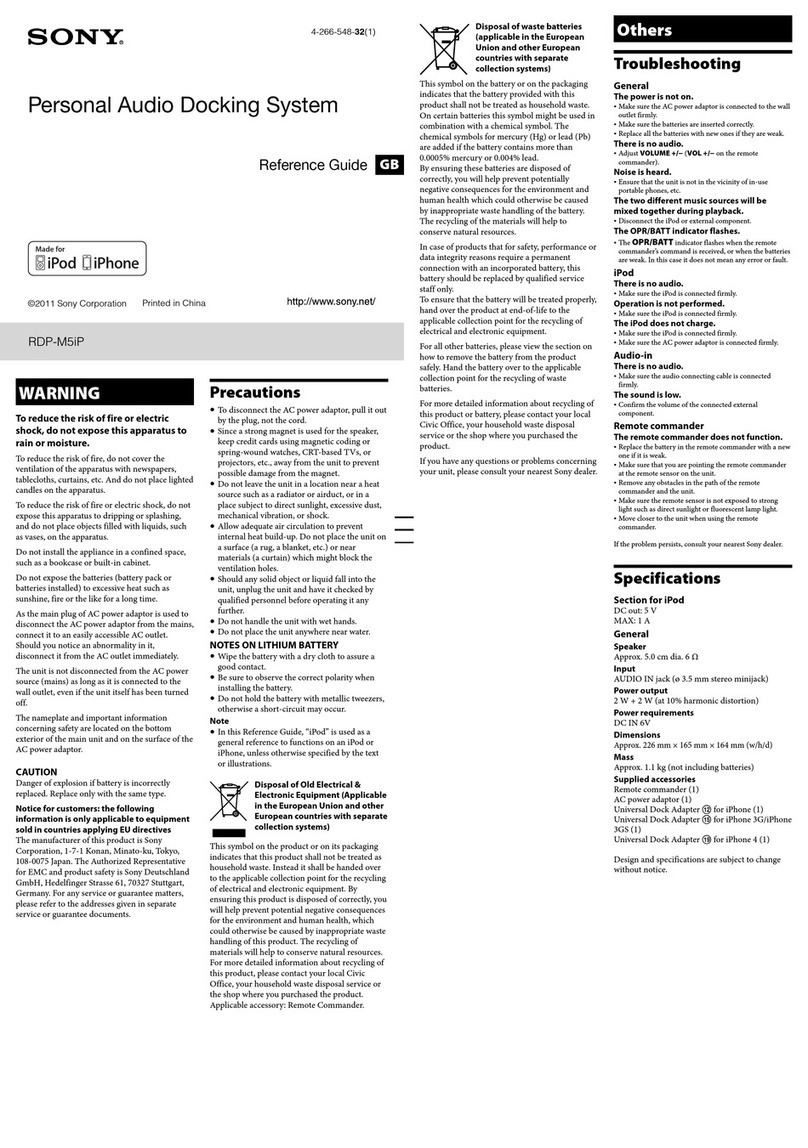

Sony RDP-M5iP User manual

Sony Personal Audio Docking System
Model RDP-M5iP
User Manual
Prepared By: Lorraine McGee
Date: 2013/04/14
For: TWR2004

i

ii
Table of Contents
Getting Started with the Sony Personal Audio Docking System...... 1
Using the Sony Personal Audio Docking System ...........................................2
Identifying the Views of the Sony Personal Audio Docking System..............2
Using the Sony Personal Audio Docking System User Manual .....................4
Identifying Symbols...........................................................................................4
Getting Help .......................................................................................................5
Configuring a Power Source ................................................................ 6
Using an Electrical Power Source....................................................................6
To use an electrical power source.......................................................................................7
Using a Battery Power Source..........................................................................7
To use a battery power source.............................................................................................8
Attaching and Charging your iPod and iPhone................................ 10
Attaching your iPod.........................................................................................10
To attach your iPod.............................................................................................................11
Attaching your iPhone.....................................................................................12
To attach your iPhone.........................................................................................................12
Charging your iPod..........................................................................................13
To charge your iPod............................................................................................................14
Charging your iPhone......................................................................................14
To charge your iPhone .......................................................................................................14
Operating the Sony Personal Audio Docking System Manually..... 15
Powering on the System .................................................................................15
To power on the System.....................................................................................................16

iii
Playing your Music ..........................................................................................16
To play your music..............................................................................................................17
Pausing/Un-pausing your Music.....................................................................18
To pause/un-pause your music..........................................................................................18
Adjusting the Volume for your Music.............................................................18
To adjust the volume for your music.................................................................................19
Powering off the System.................................................................................20
To power off the System.....................................................................................................20
Operating the Sony Personal Audio Docking System Remotely.... 21
Powering on the System .................................................................................21
To power on the System.....................................................................................................22
Playing your Music ..........................................................................................23
To play your music..............................................................................................................24
Selecting a Track to Play from your iPod or iPhone .....................................24
To select a track to play from your iPod or iPhone..........................................................25
Pausing/Un-Pausing your Music ....................................................................27
To pause/un-pause your music..........................................................................................28
Adjusting the Volume for your Music.............................................................28
To adjust the volume for your music.................................................................................29
Powering off the System.................................................................................30
To power off the System.....................................................................................................30
Troubleshooting .................................................................................. 32
Configuring a Power Source...........................................................................33
Attaching and Charging your iPod or iPhone................................................34

iv
Operating the Sony Personal Audio Docking System Manually ..................35
Operating the Sony Personal Audio Docking System Remotely..................36
FAQs ..................................................................................................... 37
Glossary ............................................................................................... 39
Index ..................................................................................................... 40

1
Getting Started with the Sony Personal Audio Docking System
The Sony Personal Audio Docking System (hereinafter called “the System”), is an electronic
audio system used to attach your iPod or iPhone to in order to listen to music stored on your
iPod or iPhone. You can do the following with the System:
•Listen to music stored on your iPod or iPhone (using the System’s built-in speakers)
•Use an electrical power source or a battery power source
•Charge your iPod or iPhone
•Operate the System manually or remotely (using the remote commander)
You get the following accessories with the System:
•Remote commander
•AC power adapter
•Universal dock adapter (12) for iPhone
•Universal dock adapter (15) for iPhone 3G/iPhone 3GS
•Universal dock adapter (19) for iPhone 4
You can use the following iPod and iPhone models with the System:
•iPod touch 4th generation
•iPod touch 3rd generation
•iPod touch 2nd generation
•iPod touch 1st generation
•iPod nano 5th generation (video camera)
•iPod nano 4th generation (video)
•iPod nano 3rd generation (video)
•iPod nano 2nd generation (aluminum)
•iPod 5th generation (video)
•iPod classic
•iPhone 4
•iPhone 3G and 3GS
•iPhone

2
Using the Sony Personal Audio Docking System
You require either an iPod or an iPhone and either batteries or a 120 volt AC electrical outlet
to use the System.
Identifying the Views of the Sony Personal Audio Docking System
Figure 1 - Front View of the System
Figure 2 - Back View of the System

3
Figure 3 - Top View of the System
Figure 4 - Bottom View of the System

4
Using the Sony Personal Audio Docking System User Manual
This user manual is an introductory manual to instruct new owners on how to use the System
to listen to music stored on their iPod or iPhone. The user manual does not include
instructions on how to use an iPod or an iPhone.
The user manual is organized into the following main sections:
•Getting Started with the Sony Personal Audio Docking System
•Configuring a Power Source
•Attaching and Charging your iPod or iPhone
•Operating the Sony Personal Audio Docking System Manually
•Operating the Sony Personal Audio Docking System Remotely
•Troubleshooting
•FAQs
•Glossary
•Index
The above-noted main sections all have sub-sections, which provide more information for the
procedures that follow. Under each sub-section are instructional steps to perform that
specific procedure.
Identifying Symbols
Throughout this user manual you will see the three symbols noted below. Please take note of
the meaning of each symbol before proceeding.
This icon is used to indicate a good tip (an alternative way to do the procedure).
This icon is used to indicate a note (additional information explaining an aspect of the
procedure).
This icon is used to indicate caution (a warning against damage to the System).

5
Getting Help
This manual contains a troubleshooting section and an FAQ section where you can get
additional help.
The troubleshooting section contains help on:
•Configuring a Power Source
•Attaching and Charging your iPod or iPhone
•Operating the Sony Personal Audio Docking System Manually
•Operating the Sony Personal Audio Docking System Remotely
The FAQ section answers the following questions:
•How do I replace one of the universal dock adapters if one of them gets damaged?
•How long do batteries usually last for the System?
•How long does the battery for the remote commander last?
•If I use rechargeable batteries in the System, does the System recharge these batteries?
If you encounter problems with the System not covered by either the Troubleshooting or FAQ
sections of this user manual, you can contact Sony’s technical support at:
Telephone Number: 1-888-862-9212
You can also search the FAQs on the following site, or send an email to Sony’s technical
support from the following site:
http://www.justanswer.com/sip/sony?r=ppc|ga|4|Computer+%2D+Top+Brands|Sony+%2D
+1&JPKW=sony%20help&JPDC=S&JPST=&JPAD=11041920300&JPMT=b&JPNW=g&JPA
F=txt&JPCD=20120207&JPRC=1&JPOP=Darren_Andrew9sec_Trans&gclid=CI_d9c-
R9bUCFcme4AodN30AxA

6
Configuring a Power Source
This section of the user manual tells you about the different power sources available for use
with the System, how to configure each power source, and how you can use each power source
to your benefit.
There are two power sources available for use with the System–an electrical power source and
a battery power source. Configuring an electrical power source allows you to use the System
anywhere there is an electrical outlet. Configuring a battery power source allows you to use
the System anywhere. Using an electrical power source enables you to use the System for a
longer period of time, as you are not limited by the life of the batteries. Using a battery power
source, however, allows you the freedom to go anywhere you want with the System (e.g., you
can listen to your music in the backyard or anywhere there is no electrical power outlet).
The purpose of this section is to show you how to configure each power source. You will learn
about:
•Using an electrical power source
•Using a battery power source
Using an Electrical Power Source
Using an electrical power source is a procedure that shows you how to configure an electrical
power source for the System. The procedure provides you with step-by-step instructions and
graphics to help you learn how to complete this task. Using an electrical power source enables
you to use the System from any room in your home that has a 120 volt electrical power outlet–
helping you save money on battery costs.

7
To use an electrical power source
1) Looking at the back of the System, plug the female end of the AC power adapter into
the DC IN 6V jack on the back of the System. See Figure 5 below.
Figure 5 - AC Power Adapter
2) Plug the prong end of the AC power adapter into a 120 volt electrical power outlet. See
Figure 5 above.
The System is now configured to use an electrical power source.
If you are using an electrical power source with the System, ensure that the System is
unplugged from the electrical power outlet during a lightning storm to prevent damage to the
System.
Using a Battery Power Source
Using a battery power source is a procedure that shows you how to configure a battery power
source for the System. The procedure provides you with step-by-step instructions and
graphics to help you learn how to complete this task. Using a battery power source enables
you to configure the System to use it anywhere you want–providing portability for your music
system.
DC IN 6V
Jack
Prong
End
Female
End
AC Power
Adapter

8
To use a battery power source
1) Looking at the back of the System, lay the System on its front so the bottom panel is
exposed.
You see a left battery cover and a right battery cover, which cover the two battery
enclosures.See Figure 6 below.
Figure 6 - Battery Covers and Outer Clips
2) Push in on the outer clips for each battery cover.See Figure 6 above.
3) Pull off the battery covers for each battery enclosure.
You see the inside of the battery enclosures.
Left Battery
Cover
Right Battery
Cover
Outer Clip Outer Clip

9
4) Line up the batteries according to the + symbols inside the battery enclosure.See
Figure 7 below.
Figure 7 - Inside the Battery Enclosure
The System requires four Sony AAA/LR03 alkaline batteries or four Sony NH-AAA
rechargeable batteries. The batteries are not supplied with the System.
5) Insert the batteries into both battery enclosures.
6) Line up each battery cover over its battery enclosure.
7) Push in on each battery cover to snap it back into place.
The System is now configured to use a battery power source.
If you are using a battery power source with the System, do not expose the System to
excessive heat such as sunshine, fire, or the like for long periods of time–doing so could cause
the System to catch on fire or cause other damage to the System.
To be able to use a battery power source with the System, you have to ensure that the AC
power adapter is disconnected from the back of the System.
To preserve the life of the batteries, remove the batteries from the System when you are
using an electrical power source.
+ Symbol
+ Symbol

10
Attaching and Charging your iPod and iPhone
This section of the user manual tells you how to attach an iPod or iPhone to the System, how
to charge your iPod or iPhone using the System, and how you can use this to your benefit.
Attaching your iPod or iPhone to the System allows you to listen to music stored on your iPod
or iPhone through the System’s built-in speakers–eliminating the need to wear ear buds.
Charging your iPod or iPhone while it is attached to the System ensures that your iPod or
iPhone is always charged and ready for use without the System. For example, if you lose your
USB to AC adapter for your iPod or iPhone, you can just attach the iPod or iPhone to the
System to charge it–enabling you to continue using your iPod or iPhone independent of the
System.
The purpose of this section is to show you how to attach and charge both an iPod and iPhone.
You will learn about:
•Attaching your iPod
•Attaching your iPhone
•Charging your iPod
•Charging your iPhone
Attaching your iPod
Attaching your iPod is a procedure that shows you how to attach your iPod to the System
(without using a universal dock adapter). The procedure provides you with step-by-step
instructions and graphics to help you learn how to complete this task. Attaching your iPod to
the System enables you to access the music stored on your iPod, so you can listen to your
music using the System’s built-in speakers.

11
To attach your iPod
1) Looking at the front of the System, line up your iPod with the docking tray connector in
the middle of the docking tray–ensuring your iPod is at the same angle as the docking
tray connector. See Figure 8 below.
Figure 8 - Docking Tray Connector
2) Push your iPod down onto the docking tray connector.
3) Ensure that your iPod is securely fastened (e.g., that your iPod is pushed down all the
way and doesn’t move around).
Your iPod is now attached to the System.
A universal dock adapter does not come with the System, but you can contact the
manufacturer of your iPod to obtain one. If your iPod does not come with a universal dock
adapter, you can still attach your iPod to the System without using one (as shown in the
procedure above).
If you have a universal dock adapter that came with your iPod, follow the procedure
under “To attach your iPhone” to attach your iPod to the System.
Docking Tray
Connector
Docking
Tray

12
Attaching your iPhone
Attaching your iPhone is a procedure that shows you how to attach your iPhone to the System
(using a universal dock adapter). The procedure provides you with step-by-step instructions
and graphics to help you learn how to complete this task. Attaching your iPhone to the
System enables you to access the music stored on your iPhone, so you can listen to your music
using the System’s built-in speakers.
To attach your iPhone
1) Select one of the three universal dock adapters for the type of iPhone you have (see the
note below for details).
There are three universal dock adapters that come with the System–one for an iPhone,
one for an iPhone 3G/iPhone 3GS, and one for an iPhone 4. On the underside of each of the
universal dock adapters is a number to indicate which universal dock adapter goes with which
type of iPhone. The iPhone uses universal dock adapter number 12, the iPhone 3G/iPhone
3GS uses universal dock adapter number 15, and the iPhone 4 uses universal dock adapter
number 19.
2) Looking at the front of the System, line up the universal dock adapter with the docking
tray (the docking tray connector fits through the opening in the middle of the universal
dock adapter).
3) Push the universal dock adapter down into the docking tray until you hear it click into
place.

13
The universal dock adapter is now in place. See Figure 9 below.
Figure 9 - Universal Dock Adapters and Docking Tray Connector
4) Line up your iPhone with the docking tray connector in the middle of the docking tray.
See Figure 9 above.
5) Push your iPhone down onto the docking tray connector.
6) Ensure that your iPhone is securely fastened (e.g., that your iPhone is pushed down all
the way and doesn’t move around).
Your iPhone is now attached to the System.
Charging your iPod
Charging your iPod is a procedure that shows you how to charge your iPod using the System.
The procedure provides you with step-by-step instructions to help you learn how to complete
this task. Charging your iPod using the System enables you to charge your iPod if you have
lost your USB to AC adapter for your iPod.
Universal Dock
Adapter in
Docking Tray
Docking Tray
Connector
Universal
Dock Adapters

14
To charge your iPod
1) Attach your iPod to the System (see “To attach your iPod” for detailed instructions).
2) Power on your iPod (see the manufacturer’s instructions for your iPod).
3) Power on the System either manually or remotely (see “To power on the System” under
either “Operating the Sony Personal Audio Docking System Manually” or “Operating
the Sony Personal Audio Docking System Remotely”).
Your iPod begins charging.
If the battery in your iPod is low, charge the iPod using the System for a couple of hours
before playing your music through the System–this will prevent any interruptions.
Charging your iPhone
Charging your iPhone is a procedure that shows you how to charge your iPhone using the
System. The procedure provides you with step-by-step instructions to help you learn how to
complete this task. Charging your iPhone using the System enables you to charge your iPhone
if you have lost your USB to AC adapter for your iPhone.
To charge your iPhone
1) Attach your iPhone to the System (see “To attach your iPhone” for detailed
instructions).
2) Power on your iPhone (see the manufacturer’s instructions for your iPhone).
3) Power on the System either manually or remotely (see “To power on the System” under
either “Operating the Sony Personal Audio Docking System Manually” or “Operating
the Sony Personal Audio Docking System Remotely”).
Your iPhone begins charging.
If the battery in your iPhone is low, charge the iPhone using the System for a couple of
hours before playing your music through the System–this will prevent any interruptions.

15
Operating the Sony Personal Audio Docking System Manually
This section of the user manual tells you about the basic operations that are available
operating the System manually, how to perform each operation, and how each operation can
be used to your benefit.
Operating the System manually allows you to perform basic operations such as: powering on
the System, playing your music, pausing/un-pausing your music, adjusting the volume for
your music, and powering off the System. You can transfer music to your iPod or iPhone from
CDs that you have bought or you can download music from the Internet onto your iPod or
iPhone. Using the System to play music stored on your iPod or iPhone gives you a lot more
options than just playing music from a CD source. You can play your music using the System
without having to use ear buds–reducing the chances of hearing loss. You can pause your
music, if you are interrupted. You can adjust the volume according to your situation (e.g., if
you are in the same room with the System, you can keep the volume low–if you are in a
different room from where the System is located, you can increase the volume to meet your
needs).
The purpose of this section is to show you how to use the System manually to perform basic
operations. You will learn about:
•Powering on the System
•Playing your music
•Pausing/un-pausing your music
•Adjusting the volume for your music
•Powering off the System
Powering on the System
Powering on the System is a procedure that shows you how to manually power on the System.
The procedure provides you with step-by-step instructions and graphics to help you learn how
to complete this task. Powering on the System enables you to start using the System to enjoy
your music.
