PMW-10MD Full HD
Medical Grade
Camera System
The PMW-10MD Full HD Medical Grade camera system combines
outstanding image quality with the convenience of a built-in HD recorder.
Its compact size and remote head design allow for simple integration into
a wide variety of medical and scientific applications.
The camera is equipped with 3 one half-inch (1920 x 1080)ExmorTM CMOS sensors, each
delivering over 2 million pixels. Although small in size, the PMW-10MD delivers a superb video
image, excellent sensitivity of F10, and a remarkable signal to noise ratio of 54 dB. Combine
these specifications with a high horizontal resolution of 1,000 TV lines and a wide dynamic
range of 450%, the PMW-10MD stands out as one of the best camera systems available for
medical applications.
• Compact camera head measures approximately 1.4" x 1.77" x 1.96"
• Designed for mounting above the OR table or on a surgical microscope
using optional lenses and optical adapters
• DVI-D Output support 1080/59.94P and 1080/50P
• Built-in recorder features two modes HQ 1920 x 1080 @ 35Mbs or
SP 1440 x 1080 @ 25Mb/s
SONY55343_PMWSpec Sheet 5/5/09 2:57 PM Pa e 1

©2009 Sony Corporation. All rights reserved. Reproduction in whole or in part without written permission is prohibited. Features and
specifications are subject to change without notice. All non-metric weights and measures are approximate. Sony, Exmor, SxS are
trademarks of Sony. ExpressCard is a trademark of PCMCIA.
Caution: Federal (USA)law restricts this device to sale by or on the order of a physician or other appropriately licensed medical professional.
Caution: See product labeling for indications, contraindications, warnings, cautions and directions for use.

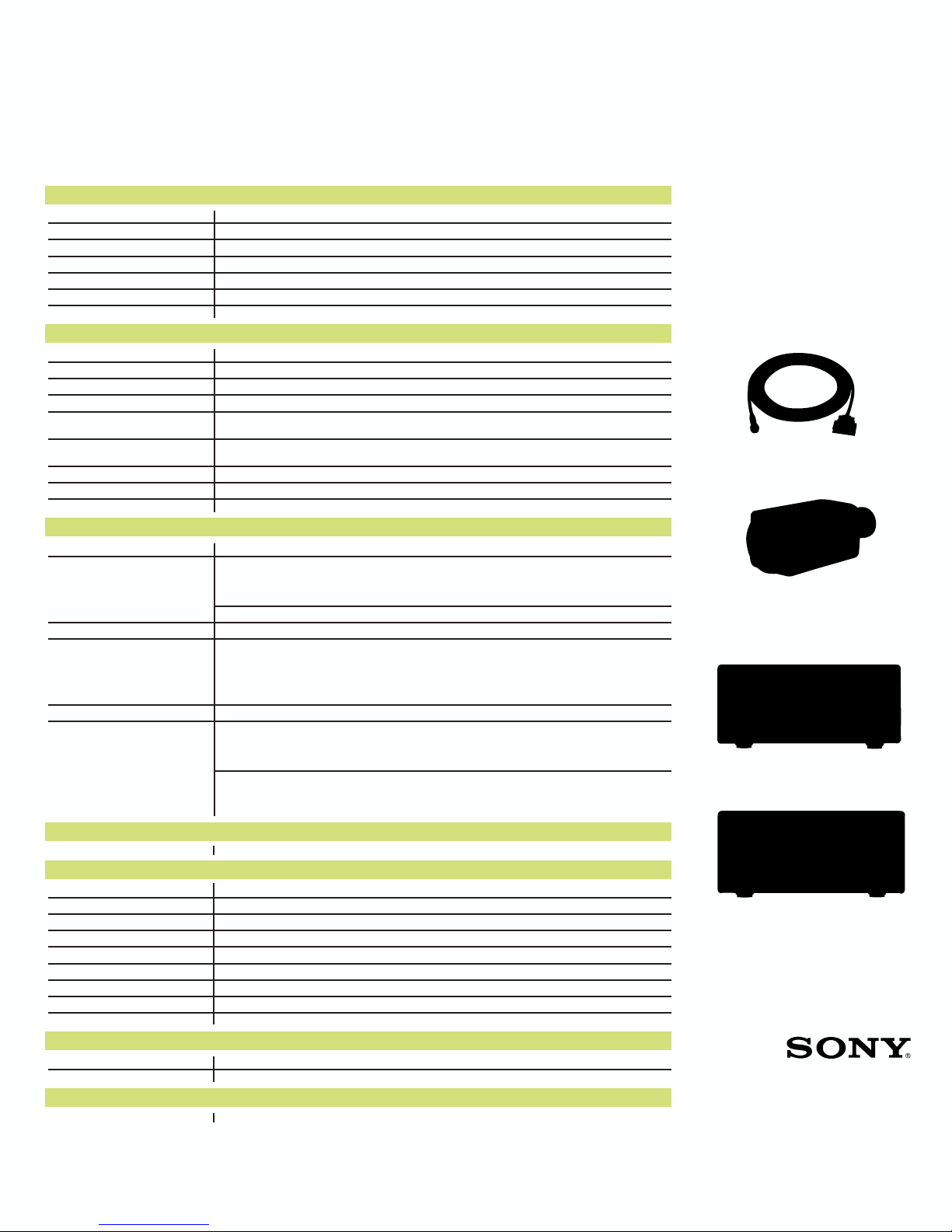

Specifications
General
Power Requirements AC 100 to 240 V, 50/60 Hz
Power Consumption 20W Approx.
Operating Temperature +32 to +104° F (0 to +40° C)
Dimensions (W x H x D) Camera Head Unit: 35 x 45 x 50mm Approx.
Camera Control Unit: 200 x 88 x 240mm Approx.
Weight Camera Head Unit: 100g Approx.
Camera Control Unit: 2.5kg Approx.
Camera
Pickup Device 3-chip 1/2-inch type Exmor Full HD CMOS
Effective Picture Elements 1920 x 1080
Lens Mount C mount
Optical System F2.2 prism system
Sensitivity F10 (typical)( 1920 x 1080/59.94i mode)
(2000 lx, 89.9% reflectance)
Minimum Illumination 0.14 lx (typical) (1920 x 1080/59.94i mode, F2.2, +21 dB gain,
with 64-frame accumulation)
S/N Ratio 54 dB (Y) (typical)
Horizontal Resolution 1000 TV Lines
Gain 0 to 21dB
Recording
Recording Format
Video MPEG-2 Long GOP
HQ mode: VBR, maximum bit rate: 35 Mb/s, MPEG-2 MP@HL
SP mode: CBR, 25 Mb/s, MPEG-2 MP@H14
Audio Linear PCM (2ch, 16-bit, 48kHz)
Recording Frame Rate
NTSC Setting HQ mode: 1920 x 1080/59.94i
SP mode: 1440 x 1080/59.94i
PAL Setting HQ mode: 1920 x 1080/50i
SP mode: 1440 x 1080/50i
Recording/Playback Time
HQ Mode Approx.100 min. with SBP-32 (32 GB)memory card
Approx. 50 min. with SBP-16 (16 GB)memory card
Approx. 25 min. with SBP-8 (8 GB)memory card
SP Mode Approx. 140 min. with SBP-32 (32 GB)memory card
Approx. 70 min. with SBP-16 (16 GB)memory card
Approx. 35 min. with SBP-8 (8 GB)memory card
Still Image Recording
Recording Format PEG 1920 X 1080
Signal Input/Output
MIC Input Stereo mini-jack (x1
)
Composite Output BNC (x1
)
S-Video Output mini DIN 4-pin (x1
)
Component Output D-Sub 15-pin (x1
)
DVI-D Output DVI connector 19-pin (x 1)
HD SDI Output BNC (x2
)
EXT SYNC Input BNC (x1
)
FS,TRIG IO Stereo mini-jack (x 1)
Remote D-sub 15-pin (x1)
Media Slot
Type ExpressCard/34 (x 2)
Interface ExpressCardTM compatible
Accessory
Camera Cable CCMC-T05, T10, T15, T20 (One cable is required for system operation.)
Sony Elec ronics Inc.
1 Sony Drive
Park Ridge, NJ 07656
www.sony.com/medical
Optional Accessories
• SBP-32/16/8 SxSTM Pro
Memory Cards
• CCMC-T20/15/10/05
Camera Cables
• Kowa-LMZ 856MD
Short distance HDTV Lens
• SBAC-US10 SxS Memory Card
USB Reader/Writer
Camera Cables: CCMC-T05,
CCMC-T10, CCMC-T15, CCMC-T20
Kowa Lens: LMZ-856MD
PMW-10MD Front Panel
PMW-10MD Rear Panel
