SDM-N50R
Multiscan®Computer Display
Ultra Slim LCD panel
utilizing Sony's media
engine technology. This
advanced display provides
superior images with
outstanding onscreen
colors all in a sleek,space-
saving design.
15.0" Flat Panel - TFT LCD technology is combined with anti-
glare coating for high contrast images.
Gigabit Video Interface (GVIF™) - Reduces desktop clutter by
using only one cable to carry the audio, video and power
between the display and the media engine, which can be
stored away out of sight.
Advanced User Sensors - Light sensor automatically adjust
panel brightness to optimal room level and motion sensor
saves power when user steps away.
Premium Stereo speakers - Built unobtrusively into the stand
with bass boost and wide sound to deliver exceptional audio.
Dual Inputs - HD15 inputs provide flexibility and support for
multiple computer applications.
Multi View Pivot Stand - Adjusts to multiple positions to
provide optimal viewing angle and maximum comfort.

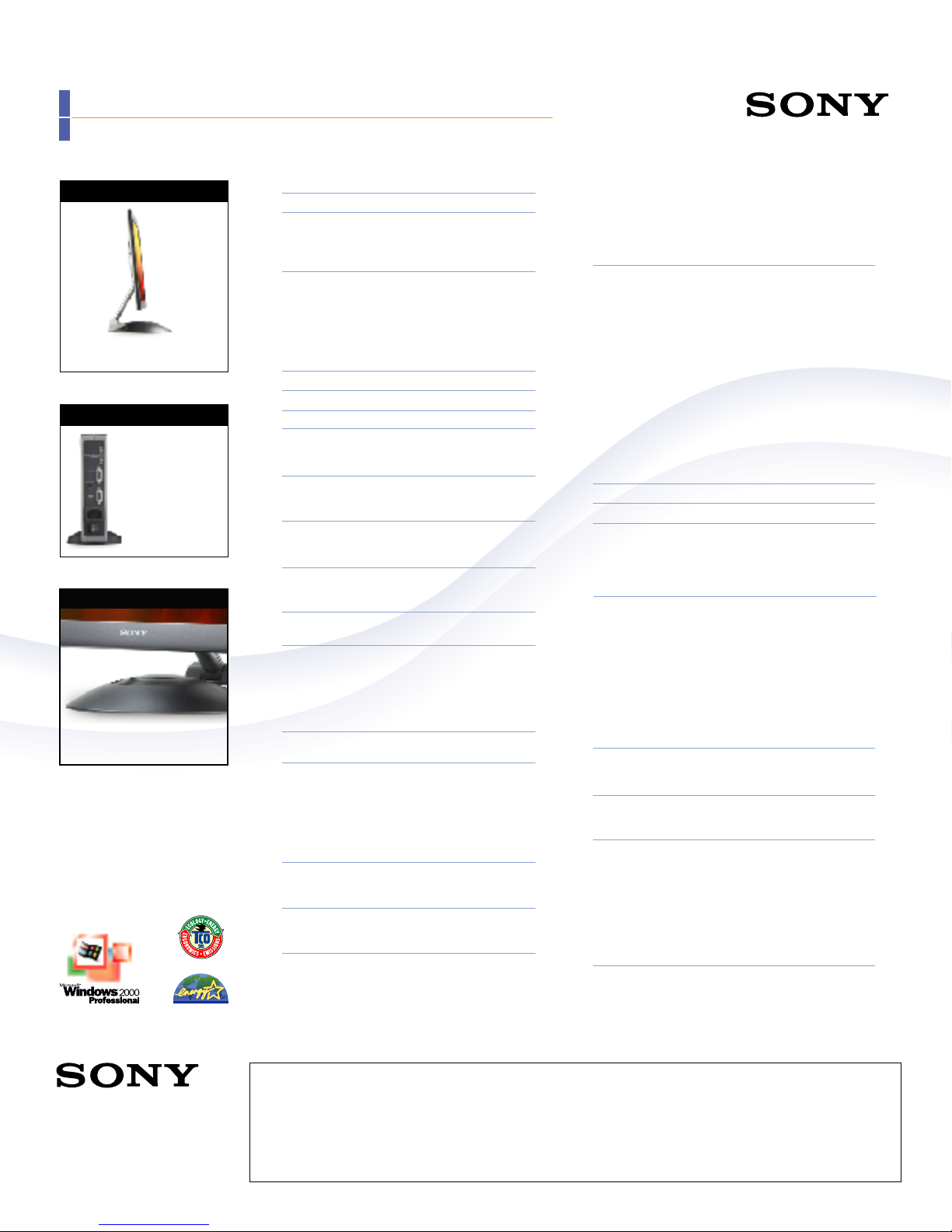

N-Series LCD

Power Management:
Normal Operation 35 W typ.
 Low Power Mode  8 W max.
 Stand by    3 W max.
 Suspend    3 W max.
 Active Off   3 W max.
Regulation and Standard Compliance
 Safety Regulations: UL1950, cUL
   EN60950 EMKOS
 Human Factor: ISO9241-3,7,8
 CE mark:   EN55022
   EN55024  
   EN60001-3-2/-3-3
 EMI  FCC Class B
   IC Class B
 ELF/VLF  MPR-II (TUV Ergonomic Mark)
   TCO 95
 Power Management International Energy Star
   NUTEK Spec 803299
 Designed for  PC99,Windows® 95,98,2000
   Macintosh® Compatible
 Plug and Play DDC-2B
Tilt Range  0° to ±90
Height Range  0" to ± 3"
Front Panel User Controls
Power Switch,Menu Button
 Brightness,Contrast Button
 Volume
 Input Select
On Screen Display Controls
Phase, Pitch, Image Center
 Color Temperature, Backlight Control
 Option (OSD Position)
 Power Save
 Multi-Language (Eng., Fre., Spa., Ital., Ger., Jap.)
 Menu Lock,Volume, Reset
 Light Sensor, User Sensor
 Zoom
 Bass Boost
 Wide Stereo
Operating Conditions
Temperature: 41° to 95° F (5° to 35° C)
 Relative Humidity: 10% to 80% (Non-Condensing)
Storage Conditions
Temperature: -4° to 140°F (-20° to 60°C)
 Relative Humidity: 5% to 95% (Non-Condensing)
Supplied Accessories
AC Power Cord
 User's Manual (Eng., Fre., Spa., Ital., Ger.)
 Windows® Monitor Information Disk/Utility Disk
 Macintosh® Utility Disk, MAC Adapter
 GVIF System Connector Cable
 HD15 ~ HD15 Video Signal Cable
 Audio Cable
 Warranty Card
Limited Warranty
Parts and Labor: 3 years
Sony Electronics Inc.
16765 West Bernardo Drive
San Diego, California 92127
For more information: 1.800.352.SONY
Web address: http://www.sony.com/displays
Computer Interface: The computer industry lacks standards, and therefore, there are a multitude of varying software packages and add-on hardware options. This display is not manufactured to any specific software, and Sony does not
and cannot make any warranty or representation with respect to the performance of this product with any particular software packages and/or non-Sony add-on hardware option except those mentioned in this document. Sony hereby
disclaims any representations or warranty that this product is compatible with any combination of non-Sony products you may choose to connect. While Sony representatives or Sony authorized dealers may be able to assist you and
may make recommendations, they are NOT authorized to vary or waive this disclaimer. Purchasers must determine for themselves the suitability and compatibility of the hardware and software in each and every particular instance.
©2001 Sony Electronics Inc. All rights reserved. Reproduction in whole or in part without written permission is prohibited. Sony, the Sony logo, Multiscan, Digital FlexRes, Auto ImageSet and Zero Footprint Design™ are trademarks
of Sony. Microsoft, the Windows Logo and Windows are registered trademarks of Microsoft Corporation. Mac and Macintosh are trademarks of Apple Inc. All other trademarks are property of their respective owners. Features and
specifications are subject to change without notice. Non-metric weights and measurements are approximate.
This monitor is Energy Star Compliant when used with a computer equipped with VESA Display Power Management Signaling (DPMS). As an International Energy Star Partner, Sony Corporation has determined that this product
meets the International Energy Star Program for energy efficiency. The Energy Star emblem does not represent EPA endorsement of any product or service. Screen images are simulated.
SDM-N50R
Multiscan®Computer Display
Printed in the USA - (11/01/01)
Model  SDM-N50R
Color  Dark Gray and Silver
Viewable Image Size
Diagonal 15.0”
 Horizontal 12.0”
 Vertical  9.0”
LCD Panel
LCD Type  a-Si TFT Active Matrix
 Native Resolution 1024 x 768
 Color Filters  RGB Vertical Stripes
 Pixel Pitch  0.297mm
 Screen Treatment Anti-Glare/Hard Coating
 Colors  16.19 Million
Native Resolution 1024 x 768
Luminance  250 cd/m2
Contrast Ratio  300:1
Viewing Angle
Horizontal  140
 Vertical  120
Scan Range
Horizontal  30kHz - 61kHz
 Vertical  48Hz - 85Hz
Preset Timings
Factory   20
 User Adj   25
Response Tiime
Rise Time  10 ms
 Fall Time  35 ms
Color Temperature Presets
5000, 6500, 9300 (default) Kelvin
Video Signal Inputs
 Video Input Analog RGB 0.7 Vp-p ±10%,  
  Positive,75 ohms (typ)
 Sync Input Separate HD/VD TTL, Polarity Free
  Polarity free, Ext. Composite
 Sync on Grn 0.3 Vp-p ± 10%,Negative

Input Connectors
HD15 x 2
Audio Inputs / Outputs
 Input Connector Stereo Minijack
 Headphone Connector Stereo Minijack
 Audio Input 0.5V RMS
 Impedance 47k ohms
 Headphone Output 15mW x 15mW
 Speaker Output 2W x 2W
Display Dimensions (WxHxD)
 14.0" x 13.6 x 7.3" (LCD Display)
 1.8" x 7.1" x 7.1" (Media Engine)
Display Weight
 6.6 lbs. (Display)
 1.7 lbs.(Media Engine)
Power Requirements
 100-240VAC, 50/60Hz
• Multiple
Computer Support
• Dual HD15 inputs
Dual Inputs
D227
• Multimedia & Internet Content
• Free's up valuable desktop space
Premium Stereo Speakers
cyan magenta yellow black
Ultra Slim Styling
• Maximize desktop space
• Multi View Pivot Stand
