COLOR REAR VIDEO PROJECTION
SERVICE MANUAL
AX1
CHASSIS
MODEL NAME REMOTE COMMANDER DESTINATION CHASSIS NO.
9-965-947-02
KDP-51WS550
RM-Y192 US/CND SCC-M11CA
KDP-57WS550
RM-Y192 US/CND SCC-M11AA
KDP-65WS550
RM-Y192 US/CND SCC-M11BA
Self Diagnosis
Supported model
KDP-65WS550 RM-Y192

— 7 —
KDP-51WS550/57WS550/65WS550
SELF-DIAGNOSTIC FUNCTION
The units in this manual contain a self-diagnostic function. If an error occurs, the STANDBY/TIMER LED will automatically begin to ash. The number
of times the LED ashes translates to a probable source of the problem. A denition of the STANDBY/TIMER LED ash indicators is listed in the
instruction manual for the user’s knowledge and reference. If an error symptom cannot be reproduced, the Remote Commander can be used to review
the failure occurrence data stored in memory to reveal past problems and how often these problems occur.
Diagnostic Test Indicators
When an error occurs, the STANDBY/TIMER LED will ash a set number of times to indicate the possible cause of the problem. If there is more than
one error, the LED will identify the rst of the problem areas.
Results for all of the following diagnostic items are displayed on screen. If the screen displays a “0”, no error has occurred.
�
�
�
�
�
�
�
�
�
� �
�
�
�
�
�
�
�
�
�
�
�
�
�
�
�
�
�
�
�
�
� �
�
�
�
Self Diagnosis
Supported model

— 8 —
KDP-51WS550/57WS550/65WS550
Display of Standby/Timer LED Flash Count
Release of TIMER STAND BY indicator blinking
The TIMER/STANDBY indicator blinking display is released by turning OFF the power switch on the TV main unit or removing the plug from the power.
Self-Diagnosis Screen Displays
In cases of malfunctions where it is not possible to determine the symptom such as when the power goes off occasionally or when the screen
disappears occasionally, there is a screen display on whether the malfunction occurred or not in the past (and whether the detection circuit operated or
not) in order to allow conrmation.
Screen Display Method
Quickly press the remote command button in the following order from the standby state.
Display Channel 5 Sound Volume* _ Power ON
*Note that this differs from entering the service mode (sound volume + )
Numeral “0”
means that no fault was detected.
Numeral “1”
means a fault was detected one
time only.
SELF DIAGNOSIS
2: +B OCP 0
3: +B OVP 0
4: VSTOP 0
5: AKB 1
6: LOWB 0
7: H-STOP 0
8: AUDIO 0
9: ZCD 0
10: HV PROT 0
101: WDT 24
Self-Diagnosis Screen Display
The results display is not automatically cleared. In case of repairs and after repairs, check the self-diagnosis screen and be sure to return the results
display to “ 0 ”.
If the results display is not returned to “ 0 ” it will not be possible to judge a new malfunction after completing repairs.
Method of Clearing Results Display
1. Power off (Set to the stand by mode.)
2. Display Channel 5 Sound Volume + Power ON (Service Mode)
3. Channel 8 ENTER (Test reset = Factory preset condition)
Method of Ending Self Diagnosis Screen
When ending the self-diagnosis screen completely, turn the power switch OFF on the remote commander or the main unit.

— 9 —
KDP-51WS550/57WS550/65WS550
Self-Diagnosis Function Operation
+B overcurrent (OCP)
Occurs when excessive current ows through R6812. The increase in voltage across Q6803 causes it to turn on which sends a high signal to the
micro.
+B overvoltage (OVP)
IC6801 detects +B OVP condition and turns on Q6802. This sends a high signal to the micro and also shuts down the AC relay.
V-STOP
Occurs when an absence of the vertical deection pulse is detected by pin 56 of IC0401 (MA Board). Power supply will shut down when waveform
interval exceeds 2 seconds.
White Balance Failure
If the RGB levels* do not balance within 2 seconds after the power is turned on, this error will be detected by IC0401. TV will stay on, but there will be
no picture.
*(Refers to the RGB levels of the AKB detection Ref pulse that detects 1K).
Low B OCP/OVP
Occurs when set 5V is out.
Horizontal Deection Stopped
Occurs when either:
1) a +B overcurrent is detected (Q6803), or
2) IC0401 (MA Board) is damaged.
Self-Diagnosis Block Diagram
3
1
2
R5104 R5105
R5125
Q5018
RY600
Q6102
Q6105
Q6108
D6122
D6803
D6505
D6121
R6812
D6805
R6803
IC6801 Q6802
1K-PROT2
+B OCP
+BVOP
5V
+B OCP
21
34
IC5007
VDY-
CRT
IC0401
Y/C JUNGLE
SCL
SDA
AKB
VPROT
HPROT
IC0001
MAIN MICRO
MA
CLKO
DATO
AC RLY
LOW B ERR
OVP
OCP
STR
STBY-LED
STBY-LED
P_SW(-)
IC6201
5V
+B
+B +B
BM
MA
D
D
A
2
14
57
56
58
53
52
28
31
69
43
44
45
48
O
IO

— 20 —
KDP-51WS550/57WS550/65WS550
2-11. ADJUSTABLE SERVICE DATA LISTS
Only the Adjustable registers are shown in the initial data list.
A complete set of the Initial data, Fixed and Adjustable, can be downloaded at: http://www-ec.sdp.sel.sony.com/padics/Model_Data_List.htm
Initial data can is also available in an Excel format. Please contact Nita Wardlaw at [email protected].com with your request.

— 21 —
KDP-51WS550/57WS550/65WS550

— 22 —
KDP-51WS550/57WS550/65WS550

— 23 —
KDP-51WS550/57WS550/65WS550

— 24 —
KDP-51WS550/57WS550/65WS550

— 25 —
KDP-51WS550/57WS550/65WS550

— 26 —
KDP-51WS550/57WS550/65WS550

— 27 —
KDP-51WS550/57WS550/65WS550

— 28 —
KDP-51WS550/57WS550/65WS550

— 29 —
KDP-51WS550/57WS550/65WS550
2-11-1. ID MAP TABLE

— 36 —
KDP-51WS550/57WS550/65WS550
2-15.AUTO REGISTRATION ERROR CODES
If an error code is displayed after the set has been correctly adjusted, check the following items: position, tilt and sizing. If any of these adjustments
are off, even slightly, the auto-registration pattern will not hit the four sensors properly. This occurs when the internal generator patterns are being
ashed on the screen for the sensors to read. Therefore, auto registration (called auto convergence) cannot operate properly, causing an error code to
be displayed. In order for this function to operate properly, position, tilt and size must be adjusted properly.
ERROR CODE LIST
* In the case of multiple errors, last error is displayed.

— 37 —
KDP-51WS550/57WS550/65WS550
• ERROR CODE SCREEN DISPLAY
Error codes in normal (customer) mode are not
displayed. You must enter PJE service mode to see
the error code.
In service mode, the error will be displayed in
text format.
SENSOR POSITIONS
2-16.AUTO REGISTRATION DIAGNOSTICS
The TEST service item (PJE #136) can be used to determine if a sensor or sensor amplier is working properly. It can also be used to check pattern
positions.

— 44 —
KDP-51WS550/57WS550/65WS550
5-3. BLOCK DIAGRAMS
VIDEO SIGNAL FLOW BLOCK DIAGRAM

— 45 —
KDP-51WS550/57WS550/65WS550
POWER SUPPLY
1
2
4
3
CN6900
D6712
PH6900
2P
POWER SUPPLY
RECT-
RECT+
18
DRIVER
VD
1V SENSE
F/B
16
IC6900
CONV.
Q6900
15
VS
14
VB
Q6901
CONV.
12
VG(H)
VG(L)
10
VC2
VC1 8
9
OCP
2
D6909
IC6902
+9
+5
GND
CN6902
1
3
4
T6900
PIT
TO A CN6012
11
9
3
2
1
8
7
6
PRIGND
PRIVCC
2
1
CN6901
2P
TO D CN6401
1
2
5
D6907
10
D6910
+9
5
4
7
GND
GND TO ATSC MODULE
G2
IC6901

— 46 —
KDP-51WS550/57WS550/65WS550
MUTE & BLANKING CONTROL BLOCK DIAGRAM WITH MAJOR SIGNAL-FLOW
Main
Tuner
Sub
Tuner
Master MicroPF-Engine
MID MCP
CCP2
YCT
Audio
Proc.
Audio
SW
Video SW
Monitor Out
Monitor Mute
Audio
(VAR/FIX)
CRT
Speaker
Amp.
Speaker Mute
Audio Mute Mute
IIC
Port Control
Audio
Video
Legend:

— 47 —
KDP-51WS550/57WS550/65WS550

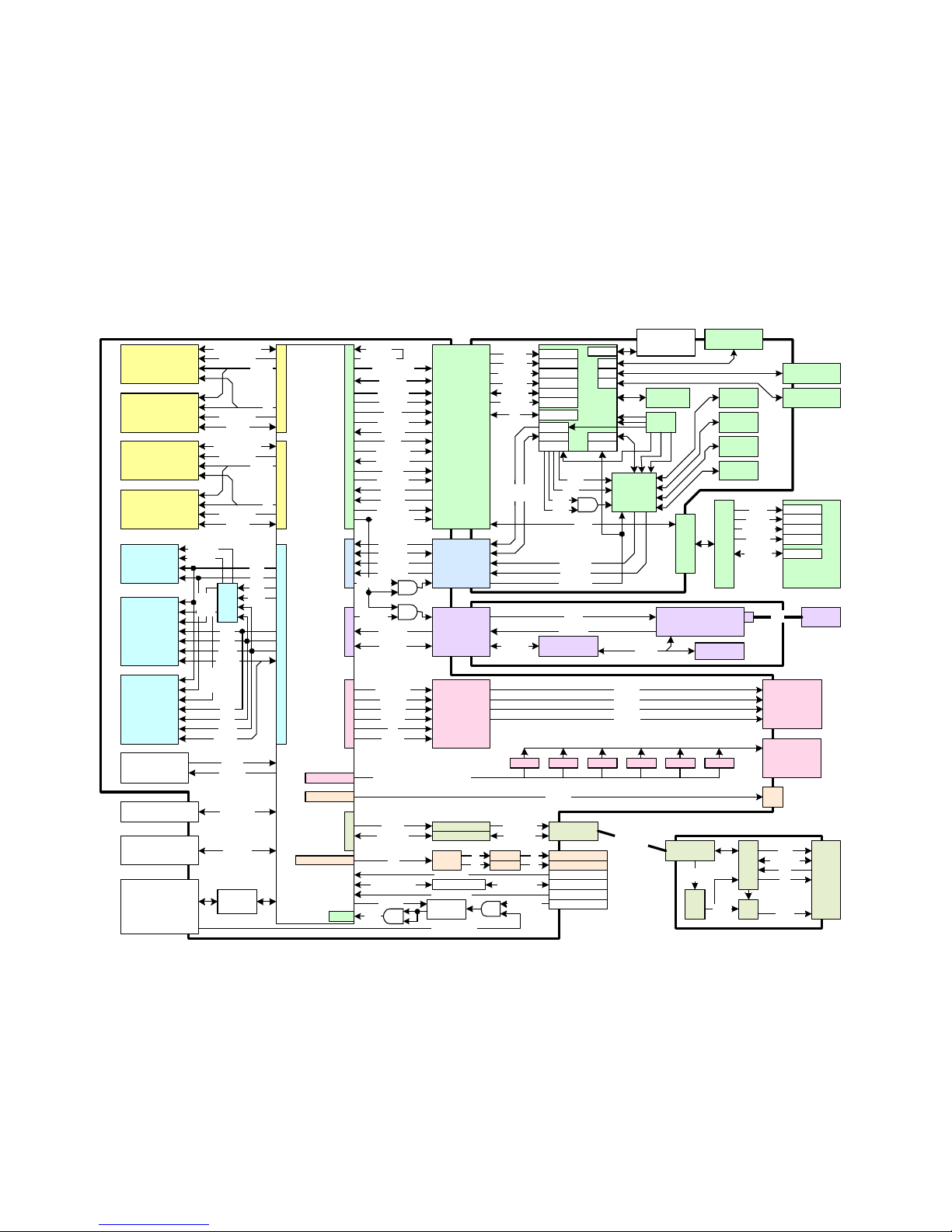

DDR-SDR A M
[ 16MB ]
DDR-SDR A M
[ 16MB ]
DDR-SDR A M
[ 16MB ]
DDR-SDR A M
[ 16MB ]
Parallel
NAND Flash
[16MB]
Serial
NAND Flash
[256KB]
X'tal
[24.576MHz]
/Rese t
PCI
Connector
TS/656/I2S
Connector
UART(Hos t )
UART for Debug
Grant
TMDS
Driver
DVI
Connector
(HDMI )
Universal FE
ATi
Xilleon225
Front End
Connector
Level Shift
3.3V I2C 5V I2C
Serial TS
Reset
Serial TS
656 Vi d e o
Serial TS
I2S Aud i o
Serial TS
3.3V I2C
AD[0:31]
RESETOUTb
PCICLK
CLKOUT[1:3]
CBEb[0:3]
FRAM Eb
IRDY
DEVSELb
STOPb
PAR
INTROUTb
INTRb[0:2]
IDSEL
SERRb
PERRb
GNTb[0:3]
3.3V [Txd,R x d ]
3.3V UART
3.3V Gr a n t
ANT-SWRF
REQb[0:2]
DATA[0:11]
CLK[+/-]
HSYNC
VSYNC
DE
CTRL3
i.Link[Upper]
i.Link [Lower]
i.Link[Front]
TX0[+/-]
TX1[+/-]
TX2[+/-]
TXC[+/-]
LPFLPF LPF LPF LPF LPF
Analog
vi deo
connector
E-O
S/P-DIF
Protect
PowerCont. USB(A )
Connector
Enabl e
USB[+/-] USB[+/-]
+5V / GND
S/PDIF
3.3V Reset
DA C
I2S LPF
Lt
Rt
Audio Lt
Audio Rt
Lt
Rt
LPF
Y(G)/Pb(B)/Pr(R) & Y/C & CVBS
USB(B )
Connector
USB Cab le
MS
I/F MS
Slot
CLK
Data[0:3]
INS
BS
SW +3.3V
+5V
Reg. +3.3V
A[0:14 ]
D[0:7], D[24:31]
D[8:23]
/DM0, /DM3
etc
/DM1, /DM2
A[0:14 ]
D[0:7], D[24:31]
D[8:23]
/DM0, /DM3
etc
/DM1, /DM2
Port A Port B
PCI BUS D.Video out
DAC out
S/PDIF
USB1.1
D.Audio out
ROMSCK
AD[0:7]
BE0
/WP
ALE 0
Parallel
NAND Flash
[16MB]
SEL
CLK
/WE
/RD
/CS0
/ROM CS
/NFCE1
ALE 0
/WP
AD[0:7]
Flash I/F
TS/656 I/F Front End
EJTAG I/F
for Debug
/WDOG WD/RS T
/RST
/EJTAG_Reset
/AC-INT
3.3V /AC-INT
Level Shift 5V [Txd,R x d ]
X'tal In
X'tal Out
IDE I/F for Debug
[33MHz / 3.3V] 3.3V ID E
BUS
Switch
iCES
AD[21] IDSEL
EXT_PCI
[ Ethernet ]
AD20 IDSEL
GNTb1 GNT
REQb1 REQ
CLKOUT2 CLK
AD[0:31]
AD[0:31]
PCI
RST_FE
RST_iCES
CLKOUT[0]
GNTb0 GNT
CLKOUT1 CLK
REQb0 REQ
AD[0:31]
AD[0:31]
EXT-PC I
Connector
ALL
PCI Adapter [Q1]
DV
Decoder
TP1
TP0
TP2
HSDI0
HSDI1
HSDI2
Syn c
Error
Valid
P.TS
656 Video
S.TS
S.TS
I2S Aud i o
RST_iCES
PCI_RST RST host
Rese t
UART1
SDRAM
[2MB]
Flash
[1MB]
Audio
PLL
Video
PLL
SDRAM
[16MB]
CLK
JTAG I/F
JTAG
QM
QH
QT
QI
etc
Etc...
BE0
/
NFCE0
NVM[32K]
Q MODULE
