Sony VPH-G70VRU User manual

Operating Instructions
3-865-369-11 (2)
Multiscan Projector
1998 by Sony Corporation
VPH-G70VRU
VPH-G70VRM

2Warning
WARNING
For the customers in Canada
This Class A digital apparatus complies with Canadian ICES-
003.
For the customers in the United Kingdom
WARNING
THIS APPARATUS MUST BE EARTHED
IMPORTANT
This wires in this mains lead are coloured in accordance with
the following code:
Green-and-Yellow: Earth
Blue: Neutral
Brown: Live
As the colours of the wires in the mains lead of this
apparatus may not correspond with the coloured markings
identifying the terminals in your plug proceed as follows:
The wire which is coloured green-and-yellow must be
connected to the terminal in the plug which is marked by the
letter E or by the safety earth symbol Y or coloured green or
green-and-yellow.
The wire which is coloured blue must be connected to the
terminal which is marked with the letter N or coloured black.
The wire which is coloured brown must be connected to the
terminal which is marked with the letter L or coloured red.
Voor de klanten in Nederland
• Dit apparaat bevat een Li-ion batterij voor memory back-
up.
• De batterij voor memory back-up van het geheugen is
bevestigd op IC308 van plaat YB.
• Raadpleeg uw leverancier over de verwijdering van de
batterij op het moment dat u het apparaat bij einde
levensduur afdankt.
• Gooi de batterij niet weg, maar lever hem in als KCA.
• Bij dit product zijn batterijen geleverd.
Wanneer deze leeg zijn, moet u ze niet
weggooien maar inleveren als KCA.
The socket-outlet should be installed near the equipment
and be easily accessible.
To prevent fire or shock hazard, do not
expose the unit to rain or moisture.
To avoid electrical shock, do not open the
cabinet. Refer servicing to qualified
personnel only.
This symbol is intended to alert the user
to the presence of uninsulated
“dangerous voltage” within the product’s
enclosure that may be of sufficient
magnitude to constitute a risk of electric
shock to persons.
This symbol is intended to alert the user
to the presence of important operating
and maintenance (servicing) instructions
in the literature accompanying the
appliance.
For the customers in the USA
Note
This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own
expense.
Warning
You are cautioned that any changes or modifications not
expressly approved in this manual could void your authority
to operate this equipment.

Warning 3
AVERTISSEMENT
ACHTUNG
Pour les utilisateurs au Canada
Cet appareil numérique de la classe A est conforme à la
norme NMB-003 du Canada.
La prise doit être près de l’appareil et facile d’accès.
Für Kunden in Deutschland
Dieses Produkt kann im kommerziellen und in begrenztem
Maße auch im industriellen Bereich eingesetzt werden. Dies
ist eine Einrichtung, welche die Funk-Entstörung nach
Klasse B besitzt.
Die Steckdose muß nahe bei diesem Gerät angebracht
und leicht zugänglich sein.
Afin d’éviter tout risque d’incendie et d’électrocution, ne
pas exposer l’appareil à la pluie ou à l’humidité.
Pour éviter tout risque de décharge électrique, ne pas
ouvrir le boîtier. Confiez l’entretien uniquement à un
personnel qualifié.
Um Feuergefahr und die Gefahr eines eiektrischen
Schlages zu vermeiden, darf das Gerät weder Regen
noch Feuchtigkeit ausgesetzt werden.
Im Geräteinneren befinden sich Teile, die unter
gefährlich hoher Spannung stehen. Das Gehäuse darf
nicht geöffnet werden. Überlassen Sie die Wartung nur
geschultem Fachpersonal.
ADVERTENCIA
Para prevenir el riesgo de incendios o de electrocución,
no exponga la unidad a la lluvia nia la humedad.
Para evitar descargas eléctricas, no abra la unidad. En
caso de avería, solicite el servicio de personal
cualificado únicamente.
ATTENZIONE
Per evitare il pericolo di incendi o scosse elettriche, non
esporre l’apparecchio alla pioggia o all’umidità e non
aprirlo.
Per eventuali riparazioni, rivolgersi esclusivamente a
personale qualificato.

4Warning

Warning 5

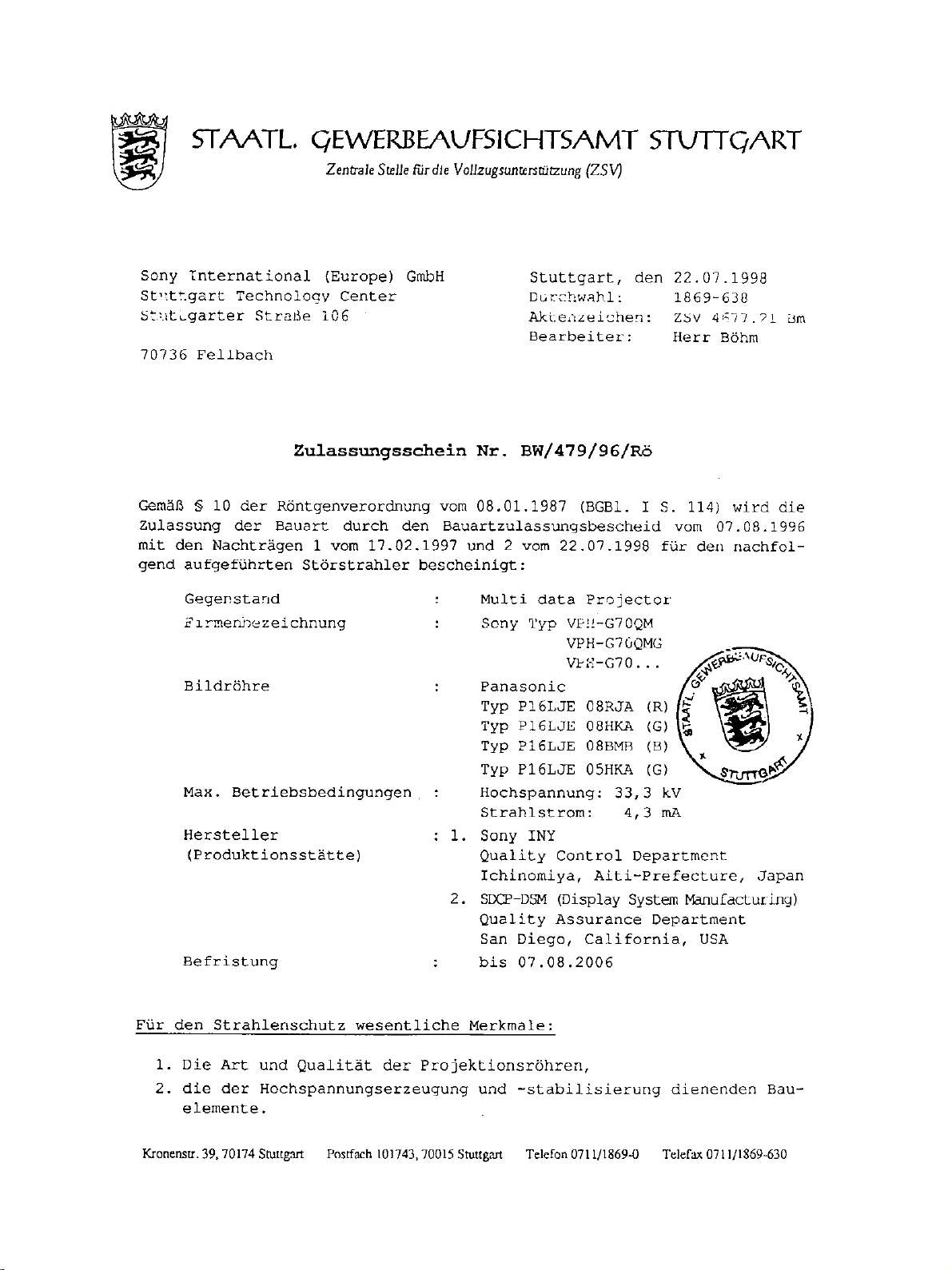

Die geforderte Stückprüfung hat ergeben, daß die gemessene Ortsdosis-Leistung unter dem
im Prüfungsschein Nr. 6.22-S 1227 der PTB genannten Wert von 0,2 µSv/h liegt.

6Warning

Warning 7
Table of Contents
Overview
Precautions ........................................................................ 8
Features............................................................................ 10
Location and Function of Controls................................ 12
Front ......................................................................................12
Rear .......................................................................................14
Remote Commander/Control Panel ......................................16
Projecting
Projecting ......................................................................... 20
Adjusting the Picture ...................................................... 23
Adjusting the Size and Shift of the Picture ................... 24
SIZE Adjustment...................................................................24
SHIFTAdjustment ................................................................24
Blanking Adjustment.............................................................25
Centering Adjustment ..................................................... 26
Adjustments and settings using the menu
Using the Menu................................................................ 28
The INPUT SELECT Menu............................................... 30
The PIC CTRL (Picture Control) Menu ........................... 31
The INPUT SETTING Menu ............................................. 33
The SET SETTING Menu ................................................. 36
The INPUT INFO (Information) Menu ............................. 39
The OPTION Menu ........................................................... 40
Installation/connection examples
Installation Examples...................................................... 41
Installation 1: Floor Installation Using Front Projection
Flat Screen .......................................................................42
Installation 2: Ceiling Installation Using Front Projection
Flat Screen .......................................................................43
Connection Examples ..................................................... 44
Connecting Directly to the Projector ....................................44
Using the Signal Interface Switcher......................................45
Maintenance / Other
Troubleshooting............................................................... 46
Specifications .................................................................. 47
Index ................................................................................. 50

8Overview
Overview
Overview
Precautions
On safety
•Check that the operating voltage of your unit is identical with the voltage
of your local power supply. If voltage adaptation is required, consult with
qualified Sony personnel.
•Should any liquid or solid object fall into the cabinet, unplug the unit and
have it checked by qualified personnel before operating it further.
•Unplug the unit from the wall outlet or set the MAIN POWER switch to
OFF if it is not to be used for several days.
•To disconnect the cord, pull it out by the plug. Never pull the cord itself.
•The wall outlet should be near the unit and easily accessible.
•The unit is not disconnected from the AC power source (mains) as long
as it is connected to the wall outlet, even if the unit itself has been turned
off.
On installation
•When the projector is mounted on the ceiling, the Sony PSS-70 Projector
Suspension Support must be used for installation. Read the installation
manual of the PSS-70 carefully, since the ceiling should be reinforced for
safety.
•Allow adequate air circulation to prevent internal heat build-up. Do not
place the unit on surfaces (rugs, blankets, etc.) or near materials (curtains,
draperies) that may block the ventilation holes. Leave space of more than
30 cm (12 inches) between the wall and the projector. Be aware that room
heat rises to the ceiling; check that the temperature near the installation
location is not excessive.
•Do not install the unit in a location near heat sources such as radiators or
air ducts, or in a place subject to direct sunlight, excessive dust or
humidity, mechanical vibration or shock.
•To avoid moisture condensation, do not install the unit in a location
where the temperature may rise rapidly.

Overview 9
Overview
•Fans are installed inside the projector to prevent internal heat build-up.
The fans produce a humming noise when the power is switched on, which
is normal. Should the noise sound abnormal, please consult qualified
Sony personnel.
On illumination
•To obtain the best picture, the front of the screen should not be exposed
to direct lighting or sunlight.
•Ceiling-mounted spot lighting is recommended. Use a cover over
fluorescent lamps to avoid lowering the contrast ratio.
•Cover any windows that face the screen with opaque draperies.
•It is desirable to install the projector in a room where floor and walls are
not of light-reflecting material. If the floor and walls are of reflecting
material, it is recommended that the carpet and wall paper be changed to
a dark color.
On cleaning
•To keep the cabinet looking new, periodically clean it with a soft cloth.
Stubborn stains may be removed with a cloth lightly dampened with a
mild detergent solution. Never use strong solvents, such as thinner,
benzene, or abrasive cleansers, since these will damage the cabinet.
•Avoid touching the lens. To remove dust on the lens, use a soft dry cloth.
Do not use a damp cloth, detergent solution, or thinner.
CRT burns
When a static picture of a VCR or a computer is displayed for more than
about an hour, a CRT burn may result. This means that an after-image
impression of the static picture remains on the screen even after the picture
has changed. If it is necessary to display the same static picture for more
than an hour, we recommend that you set the CONTR (contrast) control to
the lowest setting.
Also, when a picture of different size is displayed beyond a certain length
of time, an after-image impression of the frame of the smaller picture may
be burnt on the screen (such as displaying a 16:9 wide size picture on a 4:3
screen). To avoid this, we recommend that you use the same picture size
when possible. However, if it is necessary to use a different picture size,
set the CONTR (contrast) control and the BRT (brightness) control of the
smaller picture to the lowest setting possible. This will minimize the risk
of creating an after-image impression.
If the CRT burns, it must be replaced. In this case, refer to the warranty
provided with this unit. Consult your Sony dealer or Qualified Service
Personnel.
On repacking
Save the original shipping carton and packing material; they will come in
handy if you ever have to ship your unit. For maximum protection, repack
your unit as it was originally packed at the factory.

10 Overview
Overview
Features
1) NTSC4.43 is the color system used when playing back a video recorded on NTSC on a NTSC4.43 system VCR.
..........................................................................................................................................................................................................
Multiscan projector
This projector accepts and automatically detects horizontal scanning
frequencies between 15 kHz and 110 kHz and vertical scanning
frequencies between 38 Hz and 150 Hz.
In addition to high-resolution pictures from computers, you can also
project pictures from teletext decoders, VCRs and video cameras.
High resolution and brightness
A newly developed 8-inch electromagnetic focus CRT, a hybrid Sony
HACC (High-resolution Aspherical and Color Corrected) lens and a wide-
range cathode/G1 dual-drive video output circuit are incorporated in the
projector to provide a sharp and bright high-quality picture with the high
resolution of 1700 ×1200 pixels and the high light output of 200 lumen.
High contrast
The adoption of the optical coupling technologies, double-focus lens
system and an anti-reflection coating gives a fine-detail and sharp picture
with improved contrast in corners and screen center.
Easy operation — remote commander, on-screen display
Adjustments such as input selection, picture control and centering
adjustment can be remotely controlled from both the front and rear of the
projector with the supplied remote commander. You can also use the
commander as a wired remote control by connecting it to the projector
with the supplied remote control cable.
Compatible with various color systems
NTSC, PAL, SECAM, NTSC4.431) or PAL-M color system can be selected
automatically or manually.
Flexible setup
You can project a 60- to 300-inch picture (120-inch standard) with this
projector. The projector can be set up on the floor or ceiling, for front or
rear projection to suit the installation location, surrounding illumination,
usage, etc.

Overview 11
Overview
Illuminated control panel/remote commander keys
The key names on the remote commander and the control panel of the
projector can be illuminated for easy access in a dark place by pressing the
LIGHT button.

12 Overview
Overview
How to use the adjusters
While lifting the projector, turn the adjusters to adjust
the height so that the projector becomes level.
Note
Be careful not to let the projector down on your
fingers.

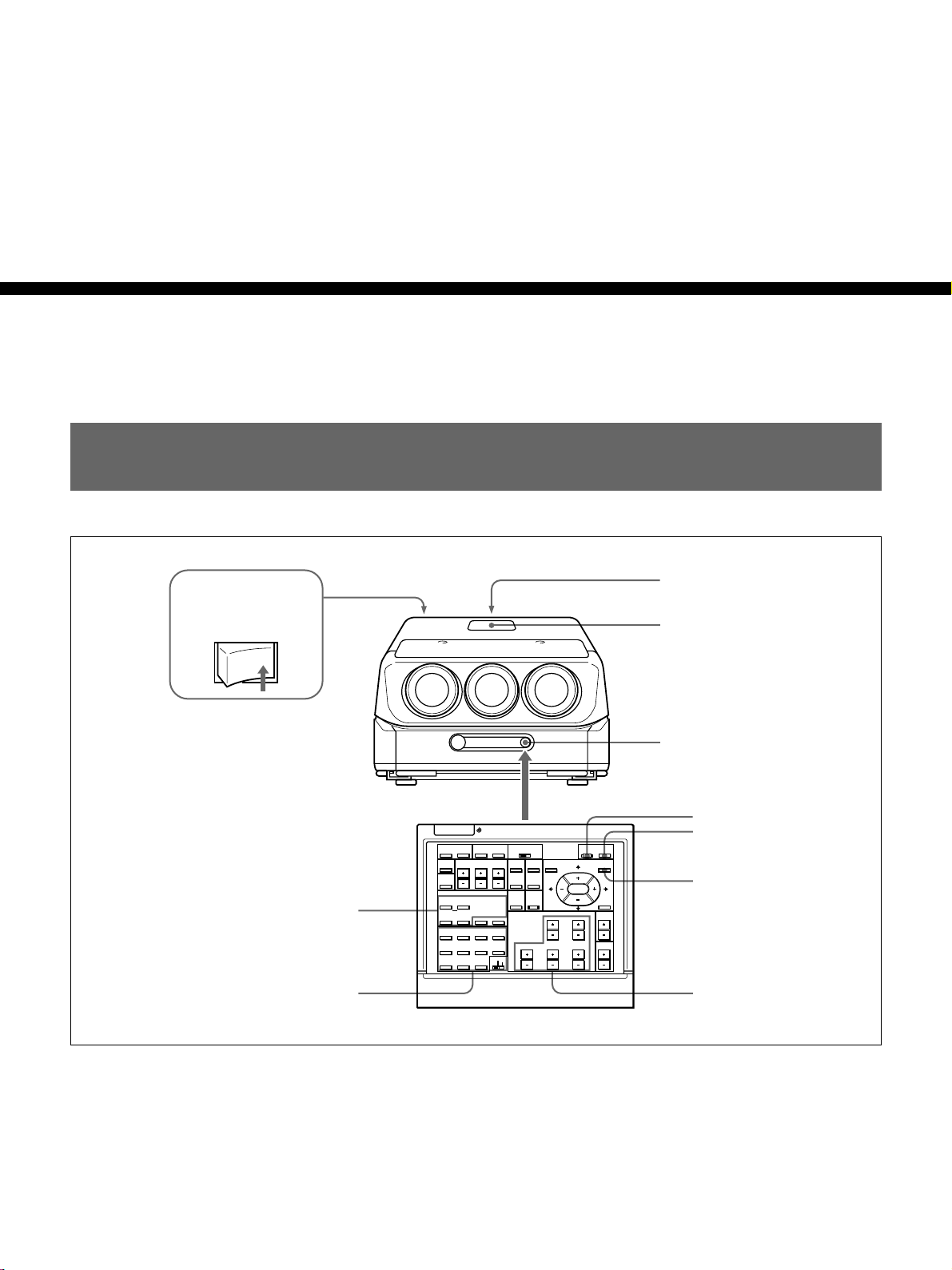

Location and Function of Controls
Front
How to open the control
panel cover
To raise
the projector
To lower
the projector
123 4
56 7
1Blue lens
2Green lens
3Red lens
4Control panel cover
The control keys are inside the cover.
The locations and functions of the control keys are the
same as those of the remote commander.
For details, see “Remote Commander/Control Panel” on
page 16.
5Handles
Used for carrying the projector. The handles are
located on the front, rear, left and right sides.
6Front remote control detector
7Adjusters
Used to keep the projector level if it is installed on an
uneven surface (equipped with four adjusters).

Overview 13
Overview

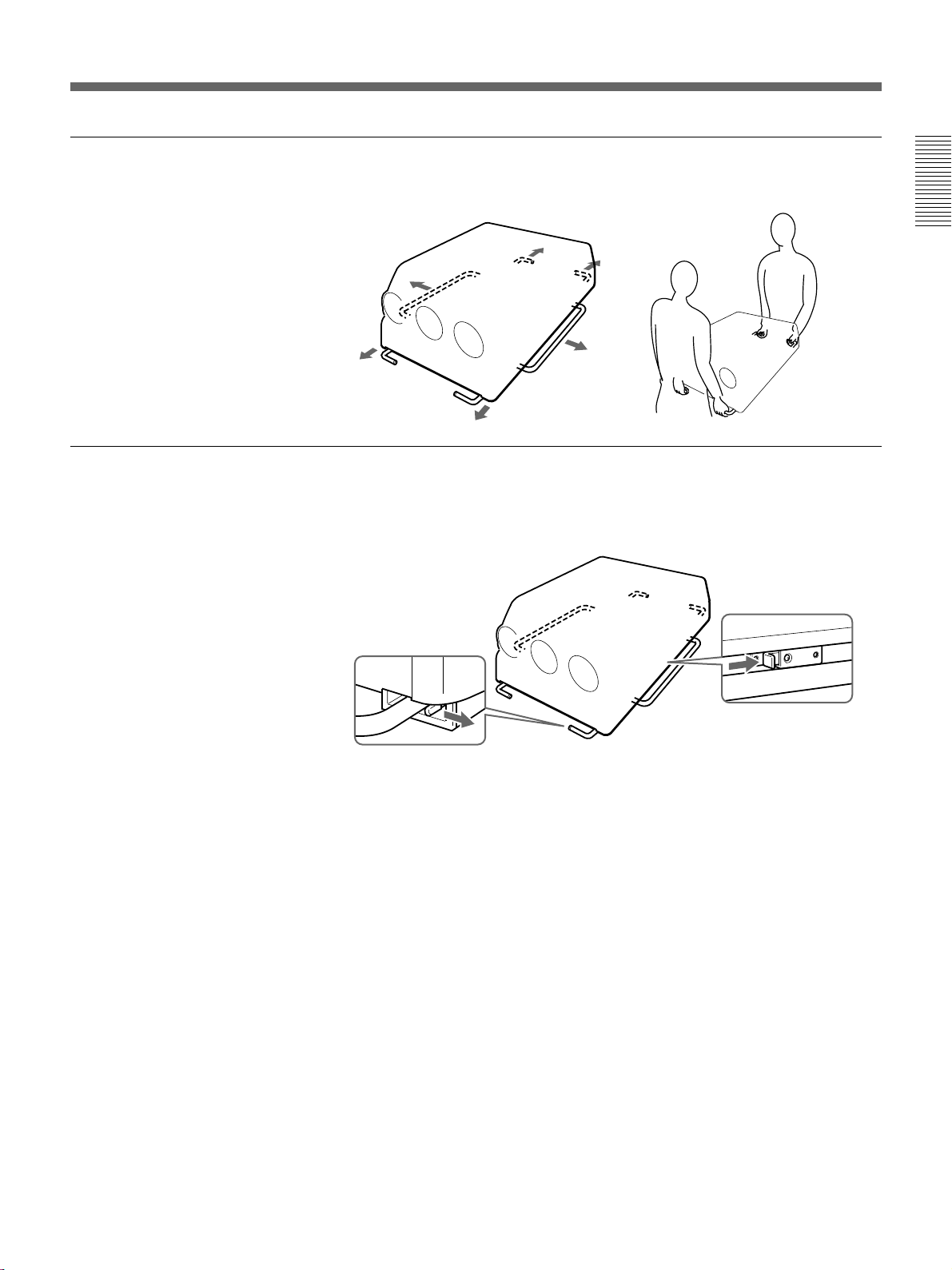

Using the handles
Pull out the front and rear handles or the side handles.
Putting away the handles
Push the handle release lever under each handle. The handle is
automatically retracted.

14 Overview
Overview

IR
POWER
STANDBY
AC IN
MAIN POWER
ONOFF
100~120V 15A 250V
200V~240V T6.3A 250V
R-Y
R
PR
G
Y
B-Y
B
PB
SYNC
HD
VD
INPUT A
ABL LINK
OUT
IN
TRIGGER
IN
PLUG IN
POWER
OUT
REMOTE
INDEX
RS-422A
CONTROL S
!º
!¡
!™
!£
12 3 4
56 7 8 9

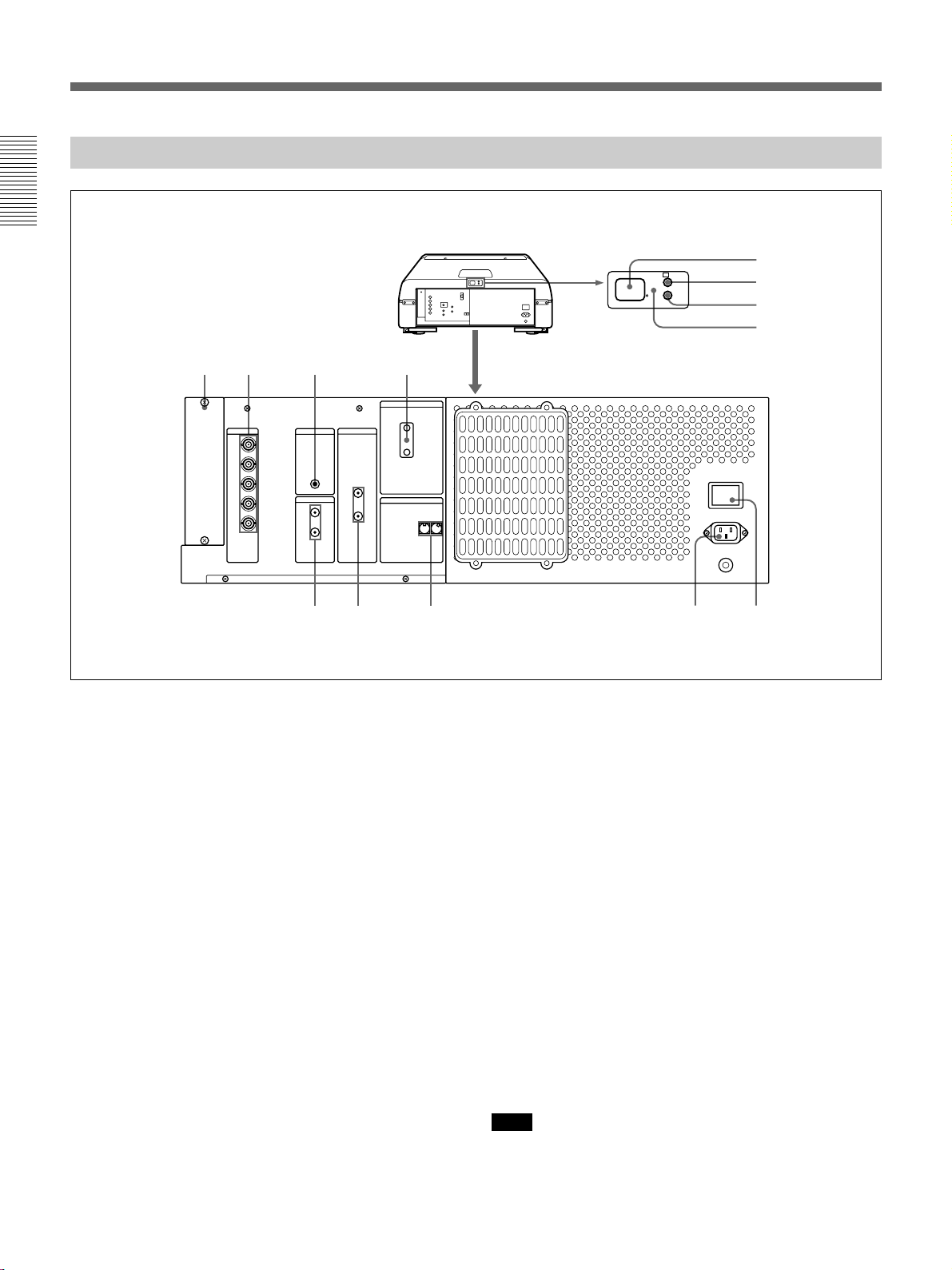

Rear
1Signal interface board attachment part (INPUT
B)
Attach an optional signal interface board IFB-40, IFB-
1000, etc.
2INPUT A connectors (BNC type)
R/R-Y/PR, G/Y, B/B-Y/PB, SYNC/HD, VD
connectors: Connect to the outputs of a computer or a
video camera. According to the connected
equipment, the RGB (R, G, B), component (R-Y,
G, B-Y) or HDTV (PR, Y, PB) signal is selected.
3TRIGGER connector (minijack)
When the projector is turned on, 12 V is output and
when it is turned off, 0 V is output. However, the
connector is not used as the power source since the
power is not output.
4RS-422A REMOTE connector (D-sub 9-pin)
Used to expand the system connections using the RS-
422A interface.
Before using the connector, loosen the two screws to
remove the cap.
Location and Function of Controls
5ABL (Automatic Brightness Limiter) LINK IN/
OUT jacks (minijack)
When connecting multiple projectors, connects the
ABL LINK OUT jack to the ABL LINK IN jack on
another projector. You can synchronize the brightness
limiting point among the projectors, allowing to make
the whole screen brightness uniform.
6CONTROL S jacks
IN/PLUG IN POWER (5 V) jack (stereo minijack):
Connects to the CONTROL S OUT jack of other
Sony equipment. Also connects to the CONTROL
S OUT jack of the supplied remote commander
with the supplied remote control cable (stereo
cable) to be used as a wired remote control. In this
case, this jack supplys 5 V to the remote
commander as power source.
OUT jack (stereo minijack): Connects to the
CONTROL S IN jack of other Sony equipment.
Note
When using this jack, the remote control detector on
the projector does not function.

Overview 15
Overview
7INDEX NO. switches
When multiple projectors are connected, set the index
number of each projector.
To display the index number on the screen, press the
NORMAL key, and the ENTER key on the remote
commander.
Note
If you set the index number to “00,” the projector does
not operate.
8AC IN socket
Connect the supplied AC power cord.
9MAIN POWER switch
0Error code window
An error code lights up when an operational error
occurs.
!¡ POWER indicator
Lights in green when the power is turned on.
!™ uSTANDBY indicator
Lights in orange when the MAIN POWER switch is
turned on. Once in the standby mode, you can turn the
projector on and off with the remote commander.
!£ Rear remote control detector

16 Overview
Overview
Remote Commander/Control Panel
!º
!¡
!™
!£
!¢
!∞
!§
!¶
!•
!ª
@º
@¡
@™
1234 67895
PIC ON
AUDIO OFF
PATTERN
FOCUS
ZOOM SHIFT
NORMAL
MUTING STATUS
LCD LENS CONTROL
ON
COMMAND
OFF
SIZE
SHIFT
RGB
R
B
CENT
ON
OFF
POWER
MEMORY
MENU
VIDEO SELECT
INPUT SELECT
A D
BC
BLKG RESET
1
423
58
67
9
INDEX
0(ALL)
SECOND
SWITCHER/INDEX
SWITCHER
ENTER
POSITION
BRIGHT CONTR
PICTURE CONTROL
HUE COLOR
SHARP VOLUME
LIGHT
VIDEO/S VIDEO
@£
Location and Function of Controls
The locations and functions of the keys on the remote
commander are the same as those on the control panel
of the projector. (Only the remote commander is
equipped with the transmission indicator and the
COMMAND ON/OFF switch.)
The remote commander may be used as a wired or
wireless remote control.
Note
The VOLUME +/– !¢, INPUT SELECT VIDEO,
SELECT VIDEO/S VIDEO, C and D !¶, AUDIO
MUTING @¡ and LCD LENS CONTROL @™ keys do
not function with this projector.
1LIGHT button
Illuminates the key indicators.
The key indicators turn off if you press the LIGHT
button again.
If you do not press any key for more than 30 seconds,
the indicators also turn off automatically.
If the COMMAND 6switch on the remote
commander is set to OFF, only the COMMAND
switch is illuminated.
When the remote commander is connected to the
CONTROL S IN/PLUG IN POWER jack of the
projector via the remote control cable, the power is
supplied to the remote commander from the projector.
2Transmission indicator (only for the remote
commander)
Lights each time you press a key. If it does not light,
replace the batteries with new ones.
3STATUS ON/OFF key
Press OFF to eliminate the on-screen display.
Press ON to restore the on-screen display.
Note
The menus and warning messages appear even if the
OFF key is pressed.

Overview 17
Overview
4RGB SHIFT key
Enters the shift adjustment mode for the input signal.
Next adjust the position of the picture using the four
arrow keys. The picture shifts in the direction of the
arrow on the pressed key.
Press the MEMORY key 8to store the adjusted value
and display the adjusted picture.
5RGB SIZE key
Enters the size adjustment mode for the input signal.
Next adjust the size of the picture using the four arrow
keys.
B: to reduce horizontal size
b: to expand horizontal size
V: to expand vertical size
v: to reduce vertical size
Press the MEMORY key 8to store the adjusted value
and display the adjusted picture.
6COMMAND ON/OFF switch (only for the
remote commander)
No key on the remote commander except the LIGHT
button 1function when this switch is set to OFF. This
saves the battery power.
7CENT R/B keys
Enter the centering adjustment mode of the red and
blue.
R: Press to enter the red centering adjustment mode.
B: Press to enter the blue centering adjustment mode.
Perform the centering adjustment using the four arrow
keys.
8MEMORY key
Stores various adjusted data into memory.
9POWER ON/OFF keys
Turn on and off the projector when the MAIN
POWER switch on the projector is set to ON.
0Menu operation keys
Used for various adjustment functions and for menu
operations.
MENU: Displays the main menu. Press it again to
turn off the menu.
Arrow keys: Adjusts the value or selects the item in
the menu.
ENTER: Stores the settings in the menu.
!¡ RESET key
Resets the adjusted levels to the factory preset or
service adjusted levels.
!™ POSITION +/– keys
Select the position to be adjusted on the screen in
blanking adjustment mode.
Also, set V SHIFT to WIDE or NARROW in the RGB
input signal’s SHIFT adjustment mode.
!£ PICTURE CONTROL keys
Adjust the picture conditions: CONTR (contrast),
BRIGHT (brightness), COLOR, HUE and SHARP
(sharpness).
!¢ VOLUME +/– keys
These keys do not function with this projector.
!∞ SWITCHER/INDEX select switch
Selects the function of the SWITCHER/INDEX keys.
Set to SWITCHER to select the input from the PC-
1271/1271M Signal Interface Switcher.
Set to INDEX to assign the index number of each
projector when multiple projectors are used.
!§ SWITCHER/INDEX keys
When the SWITCHER/INDEX select switch is set
to SWITCHER
When the PC-1271/1271M switcher (not supplied) is
connected to the projector via the IFB-40 Signal
Interface Board (not supplied) installed to the
projector, press a number key (1 – 8) to select the input
from the switcher. The number key 9 does not
function.
To select the input from the second switcher (when the
SINGLE/SECOND/OTHER switch on the switcher is
set to SECOND), press a number key between 1 and 8
within two seconds after pressing the SECOND key.
When the SWITCHER/INDEX select switch is set
to INDEX
When multiple projectors are connected, select the
index number, which is set with the INDEX NO.
switch on the rear panel, of the projector to be
adjusted. Press a number key (1 – 9) to designate the
index number, then press the ENTER key. When
adjusting all the projectors simultaneously, press the 0
(ALL) key, then the ENTER key.

18 Overview
Overview
!¶ INPUT SELECT keys
Select the input signal.
A: The RGB, component or HDTV signal input from
the INPUT A connectors of the projector
B: The signal input from the INPUT B section when
the optional interface board other than the IFB-40
is installed
VIDEO, SELECT VIDEO/S VIDEO, C, D: These
keys do not function with this projector.
!• BLKG (blanking) key
Enters the blanking adjustment mode.
You can adjust the blanking with the four arrow keys.
!ª PATTERN key
Displays the internal test patterns of the projector.
Each press of the key displays CROSS HAIR, HATCH
(9 ×9), ME and COLOR BAR patterns, sequentially.
@º NORMAL key
Erases the test pattern or cancels the various
adjustment modes.
@¡ MUTING keys
PIC (picture): Cuts off the picture. To restore the
picture, press the key again.
AUDIO: This key does not funcion with this projector.
@™ LCD LENS CONTROL keys
These keys do not function with this projector.
@£ CONTROL S OUT jack (only for the remote
commander)
Connects to the CONTROL S IN/PLUG IN POWER
jack on the projector for wired remote control
application.
Location and Function of Controls

Overview 19
Overview
IN
PLUG IN
POWER
OUT
CONTROL S
Notes on wireless remote control operation
•Be sure that there is nothing to obstruct the infrared
beam between the remote commander and the
projector.
•The operation range is limited. The shorter the
distance between the remote commander and the
projector, the wider the angle within which the
remote commander can control the projector.
•The remote control detectors on the projector do not
operate when the remote commander is being used as
a wired remote control. If you wish to use the remote
commander as a wireless remote control, be sure to
remove the connecting cable from both the remote
commander and the projector.
Connecting the remote commander to the
projector
Rear of the projector
CONTROL
S OUT
Be sure to install
the battery from
the ’side.
CONTROL S IN
Remote control cable (supplied)
Battery installation
1Push to open the lid.
2Install the three R6 (size AA) batteries (supplied)
with the correct polarity.
3Replace the lid.
Notes on batteries
•Be careful that the battery orientation is correct when
inserting batteries.
•Do not mix old battery with new one, or different
types of batteries.
•If you do not intend to use the remote commander for
a long time, remove the batteries to avoid damage
from battery leakage. If a battery has leaked, remove
the batteries, wipe the battery compartment dry and
replace the batteries with new ones.

Projecting
20 Projecting
PIC ON
AUDIO OFF
PATTERN
FOCUS
ZOOM SHIFT
NORMAL
MUTING STATUS
LCD LENS CONTROL
ON
COMMAND
OFF
SIZE
SHIFT
RGB
R
B
CENT
ON
OFF
POWER
MEMORY
MENU
VIDEO SELECT
INPUT SELECT
A D
BC
BLKG RESET
1
423
58
67
9
INDEX
0(ALL)
SECOND
SWITCHER/INDEX
SWITCHER
ENTER
POSITION
BRIGHT CONTR
PICTURE CONTROL
HUE COLOR
SHARP VOLUME
LIGHT
VIDEO/S VIDEO
ONOFF
MAIN POWER
1, 6
2
6
5
4
Front remote control detector
MENU key
SWITCHER/INDEX select switch
and number keys
uSTANDBY indicator/
POWER indicator/
Rear remote control detector
Control panel (inside the cover)
Projecting
Projecting
1Press the MAIN POWER switch on the rear of the projector.
The uSTANDBY indicator lights in orange and the projector goes
into the standby mode.
