Sony VPL-CX21 User manual

2-682-487-12 (1)
Data Projector
Operating Instructions
© 2006 Sony Corporation
VPL-CX21
VPL-CS21

2
Table of Contents
Overview
Features .............................................. 3
Location and Function of Controls .... 4
Top/Front/Left Side ...................... 4
Rear/Right Side/Bottom ............... 4
Control/Connector Panel .............. 5
Remote Commander ..................... 6
Projecting the Picture
Installing the Projector ....................... 8
Connecting the Projector ................... 9
Connecting a Computer ................ 9
Connecting a VCR ..................... 10
Projecting ......................................... 11
Turning Off the Power ..................... 14
Convenient Functions
Selecting the Menu Language .......... 15
Security Lock ................................... 16
Other Functions ................................ 17
Off & Go Function ..................... 17
Effective Tools for Your
Presentation ............................. 18
Adjustments and Settings
Using a Menu
Using a MENU ................................ 19
The Picture Menu ............................. 21
The Signal Menu .............................. 22
About the Preset Memory No. ... 23
The Function Menu .......................... 24
The Installation Menu ...................... 26
The Setup Menu ...............................28
The Information Menu .....................29
Maintenance
Replacing the Lamp ..........................31
Cleaning the Air Filter ......................33
Others
Troubleshooting ................................34
Messages List ..............................37
Specifications ...................................39
Index .................................................43

3
Features
Overview
BOverview
Features
High brightness, high picture
quality
High brightness
Adopting Sony's unique new optical system
that incorporates newly developed LCD
panels provides a high-efficiency optical
system. It allows the 165 W Ultra High
Pressure lamp lamp to give a light output of
2100 ANSI lumen.
High picture quality
VPL-CX21: Three super-high-aperture
0.63-inch XGA panels with approximately
790,000 effective pixels, produce a
resolution of 1024 × 768 dots (horizontal/
vertical) for RGB input, and 750 horizontal
TV lines for video input.
VPL-CS21: Three super-high-aperture 0.63-
inch SVGA panels with approximately
480,000 effective pixels, produce a
resolution of 800 × 600 dots (horizontal/
vertical) for RGB input, and 600 horizontal
TV lines for video input.
Compact and lightweight
The projector is light because the weight is
only about 2 kg, and the body is designed to
be thin. This makes the projector convenient
for carrying.
Easy setup and simple operation
Advanced Intelligent Auto-setup
function with auto focus adjustment
Simply press the power key, and the
projector automatically performs the setups
required before use. The projector corrects
the V Keystone, adjusts the focus
automatically, detects a signal, and sets
optimum conditions for projection.
Powered zoom/focus equipped
The projector is equipped with a powered
zoom and powered focus lens, allowing you
to adjust the size and focus of an image with
the Remote Commander away from the
projector.
Short focal lens
The projection distance is very short,
approximately 2.3 m (7.6 feet), when
projecting an 80-inch image, which allows
projection on a larger screen even in a
limited space.
Off & Go feature
The cooling fan built into the projector will
work even after the power is turned off and
the power cord is disconnected. This enables
you to move the projector to another location
immediately after turning it off.
Security Functions
Security lock
This function makes it possible to prevent
projection of a picture on the screen unless
the required password is entered when the
projector is turned on.
Panel key lock
This function locks all the keys on the
control panel of the projector, allowing use
of the keys on the Remote Commander. This
prevents the projector from operating
incorrectly.
About Trademarks
• Adobe Acrobat is a trademark of Adobe
Systems Incorporated.
• Windows is a registered trademark of
Microsoft Corporation in the United States
and/or other countries.
• VGA, SVGA, XGA and SXGA are
registered trademarks of the International
Business Machines Corporation, U.S.A.
• Kensington is a registered trademark of
Kensington Technology Group.
• Macintosh is a registered trademark of
Apple Computer, Inc.
• VESA is a registered trademark of the
Video Electronics Standard Association.
• Display Data Channel is a trademark of the
Video Electronics Standard Association.

4Location and Function of Controls
Location and
Function of Controls
aFront remote control detector
bLens
cPowered tilt adjuster
dVentilation holes (exhaust)
eSpeaker
fSecurity lock
Connects to an optional security cable
(from Kensington).
Web page address:
http://www.kensington.com/
gRear remote control detector
hVentilation holes (intake)/Lamp
cover
iAdjusters (hind pad)
Turn the appropriate adjuster to the right
or left for minor tilt adjustment of the
projected picture.
jVentilation holes (intake)
kControl/Connector Panel
For details, see “Control/Connector
Panel” on page 5.
lVentilation holes (intake)/Air
filter cover
• Do not place anything near the
ventilation holes as this may cause
internal heat build-up.
• Do not place your hand near the
ventilation holes as this may cause
injury.
• To maintain optimal performance, clean
the air filter every 500 hours.
For details, see “Cleaning the Air
Filter” on page 33.

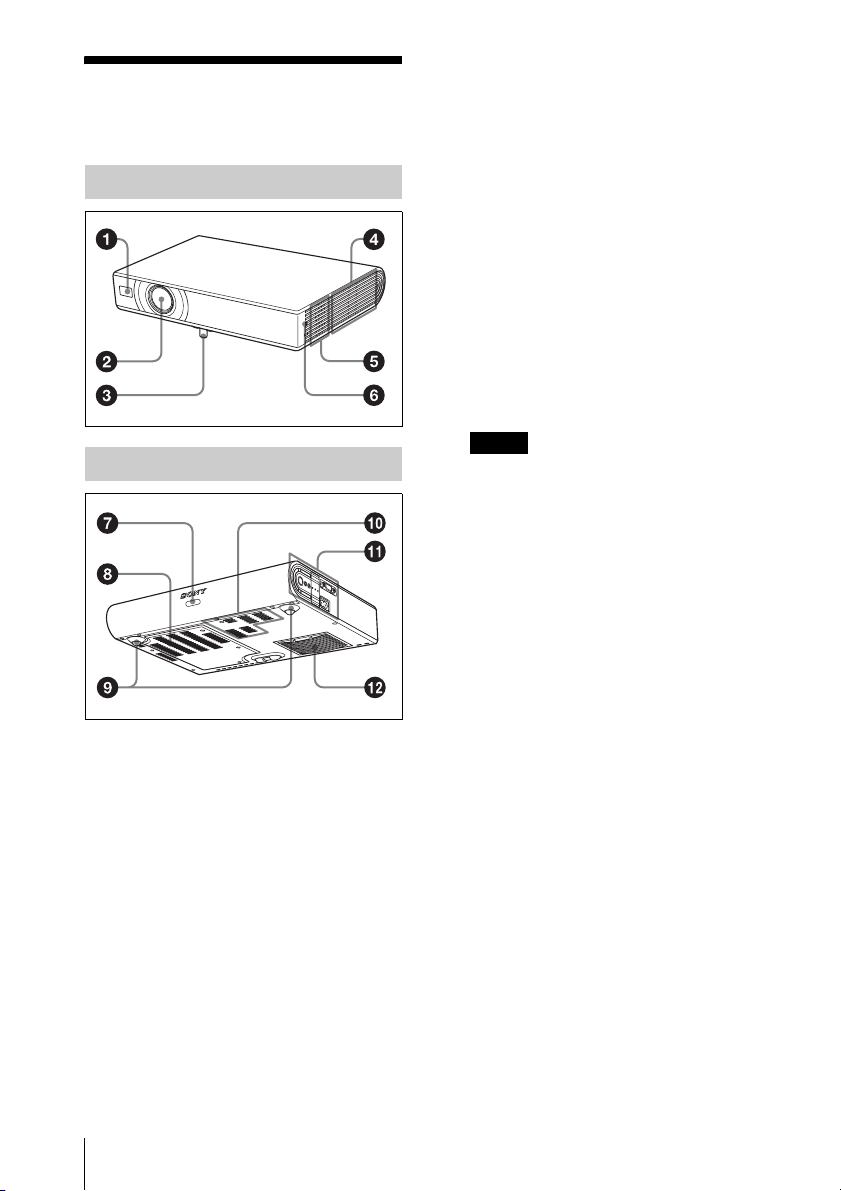

Top/Front/Left Side
Rear/Right Side/Bottom
Notes

5
Location and Function of Controls
Overview
aZOOM +/– key
Adjusts the picture size.
bINPUT key
c?/1(On/Standby) key
Turns on the projector when the
projector is in standby mode. The ON/
STANDBY indicator around the ?/1key
flashes in green until the projector is
ready to operate.
dTILT adjustment key
Adjusts the tilt of the projector.
For details, see “Projecting” on
page 11.
eON/STANDBY indicator (located
around the ?/1key)
Lights up or flashes under the following
conditions:
– Lights in red when the AC power cord
is plugged into a wall outlet. Once the
projector is in standby mode, you can
turn it on with the ?/1key.
– Lights in green when the power is
turned on, and when it is ready to
operate.
– Flashes in green from the projector is
turned on until the projector is ready to
operate. Also, flashes in green while
the cooling fan is running after the
power is turned off with the ?/1key.
The fan runs for about 45 seconds after
the power is turned off.
For details, see page 14.
fFOCUS +/– key
Adjusts the picture focus manually.
gAUTO FOCUS key
Adjusts the picture focus automatically.
hStatus indicators
• POWER SAVING
Lights when the projector is in power
saving mode.
• TEMP (Temperature)/FAN
Lights or flashes under the following
conditions:
– Lights when the temperature inside
the projector becomes unusually
high.
– Flashes when the fan is broken.
• LAMP/COVER
Lights or flashes under the following
conditions:
– Lights when the lamp has reached
the end of its life or reaches a high
temperature.
– Flashes when the lamp cover or air
filter cover is not secured firmly.
For details, see page 36.
iAUDIO/VIDEO connector
Connects to the audio output and video
output, or S video output (Y/C video
output) of the video equipment or the
computer.

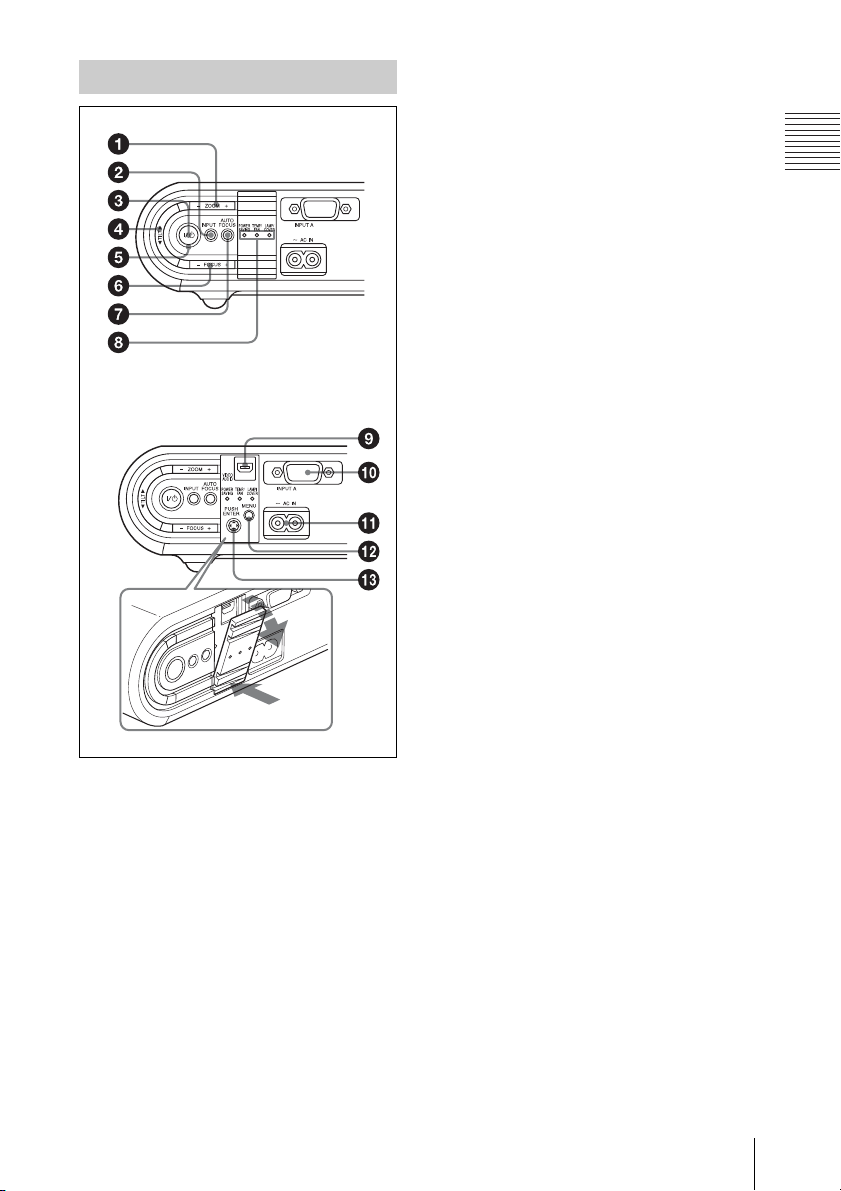

Control/Connector Panel
Open the cover to use the AUDIO/
VIDEO IN connector.
Push

6Location and Function of Controls
jINPUT A connector (HD D-sub
15-pin, female)
Inputs a computer signal, video GBR
signal, component signal, or DTV signal
depending on the connected equipment.
Connects to the output connector of
equipment using the supplied cable or an
optional cable.
For details, see “Connecting a
Computer” on page 9 and “Connecting
a VCR” on page 10.
kAC IN socket
Connects the supplied AC power cord.
lMENU key
Displays the on-screen menu. Press
again to clear the menu.
mENTER/Arrow (v/V/b/B) keys
Used to enter the settings of items in the
menu system, select a menu, or make
various adjustments. Press the center of
the key when you use this key as the
ENTER key.
The keys that have the same names as those
on the control panel function identically.
aINPUT key
bAPA (Auto Pixel Alignment) key
Automatically adjusts a picture to its
clearest while a signal is input from a
computer.
For details, see “Smart APA” in “The
Function Menu” on page 24.
cKEYSTONE (Trapezoidal
distortion correction)/TILT key
Adjusts the tilt of the projector, or the
trapezoidal distortion of the image
manually. Each time you press this key,
the Tilt menu and the V Keystone menu
are displayed in turn. Use the arrow keys
(v/V/b/B) for adjustment.
dLENS key
Each time you press the key, the
adjustment menu is displayed alternately
between Lens Focus and Lens Zoom.
eAUTO FOCUS key
fRESET key
Resets the value of an item to its factory
preset value or returns the enlarged
image to its original size. This key
functions when the menu or a setting
item is displayed on the screen.
gFREEZE key
Freezes the projected picture. To cancel
the frozen picture, press the key again.
hPIC MUTING key
Cuts off the picture. Press again to
restore the picture.
iD ZOOM (Digital Zoom) +/– key
Enlarges the image at a desired location
on the screen.
jInfrared transmitter
k?/1(On/Standby) key
lv/V/b/B(Arrow) keys
mENTER key
nMENU key
oVOLUME +/– keys
Remote Commander
APA
FREEZE
KEY
STONE /TILT
LENS
AUTO
FOCUS
PIC
MUTING
AUDI O
MUTING
INPUT
ENTER
RESET
D ZOOM VOLUME
MENU
1
2
3
4
5
6
7
8
9
0
qa
qs
qd
qh
qf
qg

7
Location and Function of Controls
Overview
pAUDIO MOTING key
Press to temporarily cut off the audio
output from the speaker. Press again or
press the VOLUME + key to restore the
sound.
Before using the Remote
Commander
Pull out the clear film from the lithium
battery holder.
To replace a battery
1Release the lock of the lithium battery
holder by picking it, and pull out the
holder from the Remote Commander.
2Install the lithium battery.
3Put the lithium battery holder back
into the Remote Commander.
Notes on the lithium battery
• A button type lithium battery (CR2025) is
used in the Remote Commander. Do not
use batteries other than CR2025.
• Keep the lithium battery out of the reach of
children.
• Should the battery be swallowed,
immediately consult a doctor.
Notes on Remote Commander
operation
• Make sure that nothing obstructs the
infrared beam between the Remote
Commander and the remote control
detector on the projector. Direct the
Remote Commander toward the remote
control detector.
• The operation range is limited. The shorter
the distance between the Remote
Commander and the remote control
detector is, the wider the angle within
which the commander can control the
projector becomes.
Face the +
side up.

8Installing the Projector
BProjecting the Picture
Installing the Projector
The distance between the lens and the screen varies depending on the size of the screen. Use
the following table as a guide.
There may be a slight difference between the actual value and the design value shown in the table
above.
Distance between the screen
and the center of the lens
Screen
Unit: m (feet)
Screen size
(inches)
40 80 100 150 200 250 300
Minimum
Distance
1.2
(3.9)
2.3
(7.5)
2.9
(9.5)
4.4
(14.4)
5.9
(19.4)
7.3
(24)
8.8
(28.9)
Maximum
Distance
1.4
(4.6)
2.8
(9.2)
3.6
(11.8)
5.4
(17.7)
7.2
(23.6)
9.0
(29.5)
10.7
(35.1)

9
Connecting the Projector
Projecting the Picture
Connecting the
Projector
When you connect the projector,
make sure to:
• Turn off all equipment before making any
connections.
• Use the proper cables for each connection.
• Insert the cable plugs firmly; loose
connections may increase noise and
reduce performance of picture signals.
When pulling out a cable, be sure to pull it
out by the plug, not the cable itself.
This section describes how to connect the
projector to a computer.
For more information, refer to the
computer’s instruction manual.
To connect a computer
AHD D-sub 15-pin cable (supplied)
BA/V connecting adaptor (supplied)
CAudio cable (not supplied) (Connect only
when you want to output the audio from the
speaker of the projector.)
• The projector accepts VGA, SVGA, XGA,
SXGA, and SXGA+ signals. However, we
recommend that you set the output mode of
your computer to XGA (VPL-CX21) or
Connecting a Computer
Notes
Left side
to monitor
output
Computer
White
to audio
output
(L)
Red
to audio
output
(R)

10 Connecting the Projector
SVGA (VPL-CS21) mode for the external
monitor.
• If you set your computer, such as a notebook
computer, to output the signal to both your
computer’s display and the external monitor,
the picture of the external monitor may not
appear properly. Set your computer to output
the signal to only the external monitor.
For details, refer to the operating
instructions supplied with your computer.
To connect a Macintosh computer equipped
with a video output connector of a type having
two rows of pins, use a commercially available
plug adaptor.
This section describes how to connect the
projector to a VCR.
For more information, refer to the
instruction manuals of the equipment you
are connecting.
To connect to a video or S video
output connector
AA/V connecting adaptor (supplied)
BS-video cable (not supplied) or Video cable
(not supplied)
CStereo audio connecting cable (not supplied)
(Use a no-resistance cable.)
Connect either a video or S video output
connector.
Note
Connecting a VCR
Note
VCR
to S
video
output
Left side
Red
to audio
output
(R)
to video
output
White
to audio
output
(L)

11
Projecting
Projecting the Picture
To connect to a video GBR/
Component output connector
ASMF-402 Signal Cable (not supplied)
HD D-sub 15-pin (male) ↔3 ×phono jack
BA/V connecting adaptor (supplied)
CStereo audio connecting cable (not supplied)
(Use a no-resistance cable.)
Set the aspect ratio using “Wide Mode” on the
Signal menu according to the input signal.
Projecting
1Plug the AC power cord into a wall
outlet, then connect all equipment.
The ON/STANDBY indicator lights in
red and the projector goes into standby
mode.
2Press the ?/1key.
The ON/STANDBY indicator flashes in
green and the Advanced Intelligent
Auto-setup starts. The powered tilt
adjuster rises and stops at the previously
adjusted position and adjusts the focus.
The projection size that can be adjusted
with the automatic focus adjustment is
from 40-inch up to 150-inch. However, it
Note
Left side
Red
to
audio
output
(R)
VCR
to video
GBR/
component
output
White
to
audio
output
(L)
Note
APA
FREEZE
KEY
STONE /TILT
LENS
AUTO
FOCUS
PIC
MUTING
AUDI O
MUTING
INPUT
ENTER
RESET
D ZOOM VOLUME
MENU
ON/STANDBY indicator
Rear remote control
detector

12 Projecting
may not be perfectly adjusted depending
on the brightness of the room, or the state
of the screen. In this case, adjust it
manually in step 8on page 13.
3Turn on the equipment connected to
the projector.
4Press the INPUT key to select the
input source.
Each time you press the key, the input
signal switches as follows:
Smart APA (Auto Pixel Alignment)
adjusts the picture of the connected
equipment so that it is projected clearly.
• If “Auto Input Search” is set to “On,” the
projector searches for the signals from
the connected equipment and displays
the input channel where the input signals
are found.
For details, see “Auto Input Search”
on page 24.
• The Smart APA feature is effective for
the input signal from a computer only.
5Switch the equipment connected to
output to the projector.
Depending on the type of your
computer, for example a notebook, or an
all-in-one LCD type, you may have to
switch the computer to output to the
projector by pressing certain keys (e.g.,
, etc.), or by
changing your computer’s settings.
The key used for switching the computer to
output to the projector varies depending on
the type of computer.
6Adjust the upper or lower position of
the picture.
To adjust using the Remote
Commander
Press the KEYSTONE/TILT key on the
Remote Commander to display the Tilt
menu and adjust the tilt using the v/V/
b/Bkeys.
To adjust using the control panel on
the left side of the projector
Press vor Vof the TILT key to adjust
the tilt of the projector.
To input from Press INPUT
to display
Computer connected to
the INPUT A connector
Input-A
Video equipment
connected to the
AUDIO/VIDEO input
connector
Video
Video equipment
connected to the
AUDIO/S-Video input
connector
S-Video
Notes
Input-A tVideo tS-Video
Note
or
and
to lower the projector
TILT adjustment key
to raise the projector
Powered tilt
adjuster

13
Projecting
Projecting the Picture
• When you adjust the powered tilt
adjuster with the TILT key, the V
keystone adjustment is performed at the
same time. If you do not want to perform
the automatic keystone adjustment, set
the V Keystone menu to “Manual.” (See
page 26.)
• If you set the “V Keystone” adjustment
to “Auto,” the “V Keystone” correction
is automatically adjusted. However, it
may not be perfectly adjusted depending
on the room temperature or the screen
angle. In this case, adjust it manually.
Press the KEYSTONE/TILT key on the
Remote Commander until “V Keystone”
appears on the screen, and adjust the
value with the v/V/b/Bkey. The
corrected value is effective until the
power is turned off.
• Be careful not to let the projector down
on your fingers.
• Do not push hard on the top of the
projector with the powered tilt adjuster
extended.
It may cause a malfunction.
7Adjust the size of the picture.
To adjust using the Remote
Commander
Press the LENS key on the Remote
Commander to display the Lens Zoom
menu and adjust the size of the picture
using the v/V/b/Bkeys.
To adjust using the control panel on
the left side of the projector
Press the ZOOM +/– keys on the
projector to adjust the size of the picture.
8Adjust the focus.
To adjust the focus automatically
Press the AUTO FOCUS key on the left
side of the projector or on the Remote
Commander.
To adjust the focus manually
To adjust the focus using the Remote
Commander:
Press the LENS key on the Remote
Commander to display the Lens Focus
menu and adjust the focus using the v/
V/b/Bkeys.
To adjust using the control panel on
the left side of the projector:
Press the FOCUS +/– keys to adjust the
focus.
Notes

14 Turning Off the Power
Turning Off the
Power
1Press the ?/1key.
“POWER OFF? Please press ?/1key
again.” appears to confirm that you want
to turn off the power.
The message disappears if you press any
key other than the ?/1key, or if you do not
press any key for five seconds.
2Press the ?/1key again.
The powered tilt adjuster is retracted
into the projector. The ON/STANDBY
indicator flashes in green and the fan
continues to run to reduce the internal
heat. Also, the ON/STANDBY indicator
flashes quickly for the first 45 seconds.
During this time, you will not be able to
light up the ON/STANDBY indicator
again with the ?/1key.
3Unplug the AC power cord from the
wall outlet after the fan stops running
and the ON/STANDBY indicator
lights in red. (Except when using the
Off & Go function)
When you cannot confirm the on-
screen message
When you cannot confirm the on-screen
message under certain conditions, you can
turn off the power by holding the ?/1key for
about two seconds instead of above steps 1
and 2.
The internal circuitry of the Off & Go function
may cause the fan to continue to operate for a
short time even after the ?/1key is pressed to
turn off the power and the ON/STANDBY
indicator changes to red.
Note
Note

15
Selecting the Menu Language
Convenient Functions
BConvenient Functions
Selecting the Menu
Language
You can select one of fifteen languages for
displaying the menu and other on-screen
displays. The factory setting is English.
To change the menu language, proceed as
follows:
1Plug the AC power cord into a wall
outlet.
2Press the ?/1key to turn on the
projector.
3Press the MENU key.
The menu appears.
The menu currently selected is shown as
a yellow button.
4Press the vor Vkey to select the
Setup menu, then press the Bor
ENTER key.
The selected menu appears.
5Press the vor Vkey to select
“Language,” then press the Bor
ENTER key.
6Press the v, V, bor Bkey to select a
language, then press the ENTER key.
The menu changes to the selected
language.
To clear the menu
Press the MENU key.
The menu disappears automatically if a key
is not pressed for one minute.
APA
FREEZE
KEY
STONE /TILT
LENS
AUTO
FOCUS
PIC
MUTING
AUDI O
MUTING
INPUT
ENTER
RESET
D ZOOM VOLUME
MENU
Front remote
control detector
ON/STANDBY indicator

16 Security Lock
Security Lock
The projector is equipped with a security
lock function. When you turn the power of
the projector on, you are required to input
the previously set password. If you do not
input the correct password, you will not be
able to project the picture.
You will not be able to use the projector if you
forget your password and the password
administrator is not available. Be please aware
that using the security lock can prevent valid
usage in such cases.
To use the security lock
1Press the MENU key and then, on the
Function menu, turn on the “Security
Lock” setting.
2Enter the password.
Use the MENU, v/V/b/B, and ENTER
keys to enter the four-digit password.
(The default initial password setting is
“ENTER, ENTER, ENTER, ENTER.”
After this is entered you can put in your
own password. Therefore, when you use
this function for the first time, please
input “ENTER” four times.)
Next, the screen for entering the new
password is displayed. (Enter the
password on this screen even if you want
to keep the current password.)
3Enter the password again to confirm.
When the following message is
displayed, the setting for security lock is
completed.
If “Invalid Password!” is displayed on
the menu screen, perform this procedure
again from step 1.
4Turn the main power off and
disconnect the AC power cord.
The security lock is set to on, then it
becomes effective. The screen used for
Note
Sel: Set: Back: Exit:
Signal
Function
Setup
Installation
Information
Smart APA:
Auto Input Search: On
On
Auto Focus: On
Test Pattern: Off
Standby Mode: Standard
Power Saving: Off
Panel Key Lock: Off
Security Lock:
Security Lock enabled!
On
Sel: Set: Back: Exit:
Signal
Function
Setup
Installation
Information
Smart APA:
Auto Input Search: On
On
Auto Focus: On
Test Pattern: Off
Standby Mode: Standard
Power Saving: Off
Panel Key Lock: Off
Security Lock:
Invalid Password!
Off

17
Other Functions
Convenient Functions
entering the password is displayed when
the power is turned on the next time.
Security certification
When the password screen is displayed,
enter the password that was set. If you fail to
enter the correct password after three tries,
the projector cannot be used. In this case,
press the ?/1key to turn off the power.
To cancel the security lock
1Press the MENU key, then turn off the
“Security Lock” setting on the
Function menu.
2Enter the password.
Enter the password that was set.
If you call the customer service center because
you have forgotten the password, you will need
to be able to verify the projector’s serial
number and your identity. (This process may
differ in other countries/regions.) Once your
identity has been confirmed, we will provide
you with the password.
Other Functions
If you are leaving the conference room
immediately, turn the projector off, and then,
after the powered tilt adjuster is retracted
into the projector, you can unplug the AC
power cord. After the AC power cord is
unplugged, the fan runs for a certain time
automatically.
• When unplugging the AC power cord, ensure
that the powered tilt adjuster has been
retracted into the projector. Moving the
projector with the powered tilt adjuster
extended may damage the adjuster.
• Turn off the projector according to the
procedure explained in “Turning Off the
Power” on pag e 14,” th en cool it down before
storing the projector in the carrying case.
• To use this function, the unit needs to have
been on or standby mode for more than 15
minutes. If not, the fan might not keep
turning for enough time as a result of
inadequate charging. In this case, check that
the ON/STANDBY indicator turns red after
turning off the power, and then unplug the
power cord.
• When the power is turned on soon after it has
been turned off, it may take some time until
the lamp will light on.
Note
Off & Go Function
Notes

18 Other Functions
To enlarge the image (Digital Zoom
function)
You can select a section of the image to
enlarge. This function works when a signal
from a computer is input.
This function does not work when a video
signal is input.
1Project a normal image, and press the
D ZOOM + key on the Remote
Commander.
The digital zoom icon appears in the
center of the image.
2Move the icon to the point on the
image you want to enlarge. Use the
arrow key (v/V/b/B) to move the
icon.
3Press the D ZOOM + key again.
The portion of the image where the icon
is located is enlarged. The enlargement
ratio is displayed on the screen for a few
seconds.
By pressing the + key repeatedly, the
image size (ratio of enlargement: max. 4
times) increases.
Use the arrow key (v/V/b/B) to scroll
the enlarged image.
To return the image to its original size
Press the D ZOOM – key.
Just pressing the RESET key returns the
image back to its original size immediately.
To freeze the image projected
(Freeze function)
Press the FREEZE key on the remote
commander. “Freeze” appears when the key
is pressed. This function works when a
signal from a computer is input.
To restore the original screen, press the
FREEZE key again.
Effective Tools for Your
Presentation
Digital zoom icon

19
Using a MENU
Adjustments and Settings Using a Menu
BAdjustments and Settings Using a Menu
Using a MENU
The projector is equipped with an on-screen
menu for making various adjustments and
settings. Some of the adjustable/setting
items are displayed in a pop-up menu, in a
setting menu or adjustment menu with no
main menu, or in the next menu window. If
you select an item name followed by an
arrow (B), the next menu window with
setting items appears.To change the on-
screen menu language, see “Selecting the
Menu Language” on page 15.
1Press the MENU key.
The menu appears.
2Use the vor Vkey to select a menu,
then press the Bor ENTER key.
The items that can be set or adjusted
with the selected menu appear. The item
presently selected is shown in yellow.
3Select an item.
Use the vor Vkey to select the item,
then press the Bor ENTER key.
The setting items are displayed in a pop-
up menu, in a setting menu, in an
adjustment menu or in the next menu
window.
4Make the setting or adjustment of an
item.
• When changing the adjustment
level:
To increase the number, press the vor
Bkey.
To decrease the number, press the Vor
bkey.
Press the ENTER key. The setting or
adjustment done is stored and the
previous screen is restored.
• When changing the setting:
Press the vor Vkey to select the
setting.
Press the ENTER or Bkey to restore
the previous screen.
Sel: Set: Exit:
Signal
Function
Setup
Installation
Information
V Keystone: Auto
Image Flip: Off
Tilt
Lamp Mode: Standard
Lens Control: On
IR Receiver: Front & Rear
Background: Blue
Illumination: On
High Altitude Mode: Off
Sel: Set: Back: Exit:
Signal
Function
Setup
Installation
Information
Status:
Language:
Input-A Signal Sel.: Auto
Color System:
English
On
Auto
NTSC3.58
PAL
SECAM
NTSC4.43
PAL - M
PAL - N
Items that can
be set
Pop-up menu
Setting menu
Adjustment menu
Sel: Set: Back: Exit:
Signal
Function
Setup
Installation
Information
Adjust Picture Standard
Contrast: 80
Brightness: 50
Gamma Mode:
Color Temp.: High
Graphics
50
Sharpness:
Items that can
be set
Next menu window

20 Using a MENU
To clear the menu
Press the MENU key.
The menu disappears automatically if a key
is not pressed for one minute.
To reset items that have been
adjusted
Select the item that you want to reset, and
press the RESET key on the Remote
Commander.
“Complete!” appears on the screen and the
setting of the item that you have selected is
reset to its factory preset value.
Items that can be reset are:
• “Contrast,” “Brightness,” “Color,” “Hue”
and “Sharpness” on the “Adjust Picture...”
menu of the Picture menu.
• “Dot Phase,” “H Size,” and “Shift” on the
“Adjust Signal...” menu of the Signal
menu
Storage of the settings
The settings are automatically stored in the
projector memory when the ENTER key is
pressed.
If no signal is input
If there is no input signal, “Cannot adjust
this item.” appears on the screen.
Unadjustable items
Items that cannot be adjusted, depending on
the input signal, are not displayed on the
menu.
For details, see page 30.
