Sony VPL-FX30 User manual

VPL-FX30
Solid Installation Projector

2
Installation Flexibility and Hassle-free Maintenance
with a Stylish Unobtrusive Design
The VPL-FX30 offers amazing installation flexibility and hassle-free
maintenance, along with a stylish yet inconspicuous design that
blends into any decor.
This projector is equipped with an excellent lens shift function and
a standard 1.6x zoom lens, making image adjustment easy. It’s also
compatible with the optional lenses designed for Sony’s VPL-F40 Series,
extending the range of installation choices. The maintenance cycles
of the lamp and cleaning filters are synchronized and exceptionally
long, which cuts maintenance time and cost. In addition, the VPL-FX30
is designed to deliver a low total cost of ownership, and includes
eco-friendly features, thanks to its long-lasting lamp and low power
consumption.
Packing the most advanced projector technologies into a low-profile
design, the VPL-FX30 is an excellent choice, delivering a dramatic
brightness of 4200 lumens and high-quality images with XGA resolution.
FEATURES
Low Profile Design
The VPL-FX30 showcases a newly
designed low profile chassis, so
the projector appears to blend
into the ceiling or wall on which
it is mounted. The connector
panel is located on the front of
the unit so its cables cannot be
seen by the audience, to further
ensure the projector fits elegantly
into the installation environment.
High Picture Quality
High Picture Quality and Bright Images
By combining a new-generation optical system that uses
Sony’s BrightEra™ with Long Lasting Optics technology* and
a 3LCD projection system, the VPL-FX30 offers high picture
quality in XGA (1024 x 768) resolution and a high brightness
of 4200 lumens.
* BrightEra with Long Lasting Optics is the brand name for a new generation
of optical system, which is a more advanced version of Sony‘s original
BrightEra technology. In addition to the adoption of LCD panels that have
pixels with large aperture ratios and inorganic alignment layers, BrightEra
with Long Lasting Optics technology also uses an inorganic layer for
polarization plates to greatly enhance reliability.
3LCD Projection Offers Brilliant
Color Performance
The VPL-FX30 adopts a 3LCD
projection system incorporating
three LCD panels. This system
enables the projector to present
bright and natural images.
High Resolution Lens
The VPL-FX30 incorporates a high-resolution lens known as the
All Range Crisp Focus (ARC-F) lens. Its large diameter and
fine pitch ensure crisp pictures.
12-bit 3D Gamma Correction
The VPL-FX30 incorporates 12-bit 3D Gamma Correction
circuitry to perform highly accurate gamma correction,
achieving smoother gradations and richer gray-scale.
I/P Conversion and Film Mode
The video signal processing technology that Sony has
incorporated in the VPL-FX30 offers I/P conversion and 2-3
pull-down to generate high-quality images with outstanding
clarity.
Typical LensARC-F Lens
10-bit12-bit
(simulated images)
(simulated images)
(simulated image)

Symmetric Installation Image
3
Good TCO and ECO-friendly Design
Long-lasting Lamp
By incorporating a newly developed high-performance lamp
and advanced lamp-control technology, the VPL-FX30 offers
the recommended lamp replacement time of approximately
5,000 hours.*
* In Standard mode.
Low Power Consumption
The VPL-FX30 offers remarkably low power consumption,
allowing users to make significant savings on electricity
expenses.
ECO MODE Key
With a single push of the ECO MODE key on either the
projector or the supplied Remote Commander™ unit, user
can select energy-saving setting in the ECO Mode menu.
Convenient, Simple Projector Replacement
The standard 1.6x zoom lens enables installation flexibility when
replacing an existing projector with the VPL-FX30 – there’s typically
no need to change ceiling mount positions. For applications
where more than a standard lens is needed, the VPL-FX30
is compatible with the optional VPLL-Z1024 and VPLL-Z1032
accessory lenses designed for Sony’s current VPL-FX40 Series.
Centered Lens Design
The centered lens provides symmetry for a balanced
installation, and makes set up very simple.
Conventional 1
Shorter throw ratio VPL-FX30 Conventional 2 Longer throw ratio
ECO MODE Key
Installation Advantages
Lens Shift Function
The VPL-FX30 is equipped with a lens shift function, which is
controlled from the projector control panel or the supplied
Remote Commander unit. Using this function, the position of
the projected image can be moved vertically by up to 51%
and horizontally from -33% through to +33%. Images can be
easily adjusted to the desired settings during installation.
Nice Throw Ratio Coverage for Replacement Image
VPL-FX30
Conventional
Model
5000 hours
Longer Lamp Exchange Time
3000 hours
VPL-FX40
VPL-FX30
4200 lm
+200 lm
Brightness up
VPL-FX40
4000 lm
Conventional
Model
Lower Power
Consumption
Higher Energy Efciency
Approx. 18% down

4
Fine mesh lters
Normal mesh lters
Conventional
VPL-FX30
Maintenance
too often
Short life lter
Time
One time
Synchronized lamp and lter
Maintenance Cycle Comparison Image
Quad Filter System
Hassle-free Maintenance
Easy Lamp and Filter Maintenance
When the air filter must be cleaned, a timely message is
clearly displayed on screen. The lamp and the filter are
accessible from the same side, so their replacement can
be performed without uninstalling the projector. With typical
usage, replacement filters have an approximate 15000-hour
cleaning cycle. This is achieved by a Quad Filter System
enabling both the lamp and the filters to be replaced at the
same time, even in tough environments, saving maintenance
time and cost.
Presentation Functions
Freeze Function
Freezes the projected image
Digital Zoom Function
Enlarges a section of the image
Picture/Audio Muting
Mutes the image/audio
Other Features
Closed Captioning
Official teletext broadcasting, developed by the NCI, USA
Security Pack
Security lock (password and mechanical), security bar, panel
key lock, and security label
Network and Control
Controls and monitors projector status
Compatible with various control systems
Test Pattern Key
For easy screen adjustment
ID Mode
For individual control of multiple projectors
Audio Monitor Function
Allows audio to be selected based on input selection
Smart APA
Auto pixel alignment
Direct Power On/Off
Direct power control using the circuit breaker on the switch
board
High Altitude Mode
For projector operation at high altitude

5
OPTIONAL ACCESSORIES
LMP-F230
Projector Lamp (for replacement)
PAM-600
Projector Suspension Support
VPLL-Z1024
Projector Lens
VPLL-Z1032
Projector Lens
PK-F30LA1
Projector Lens Adapter
OPTIONAL LENSES
Projection lens VPLL-Z1024 VPLL-Z1032
Zoom ratio Manual (Approx. 1.4 x) Manual (Approx. 1.6 x)
Focus Manual Manual
Screen size* 40” to 600” 40” to 600”
Maximum external dimensions W 3 13/16 x H 3 7/16 x D 7 3/32 in (W 97 x H 87 x D 180 mm) W 3 13/16 x H 3 7/16 x D 6 31/32 in (W 97 x H 87 x D 177 mm)
Weight 2 lb 7 oz / 1.1 kg 2 lb 7 oz / 1.1 kg
Required projection lens adapter PK-F30LA1 PK-F30LA1
* Viewable area, measured diagonally.

6
INSTALLATION DIAGRAM
Projection Distance Unit: inches (m)
Projection image size Projection distance L
Diagonal Width × Height Standard lens VPLL-Z1024 VPLL-Z1032
80-inch (2.03 m) 64 x 48
(1.63 x 1.22)
91 – 145
(2.31 – 3.69)
152 – 207
(3.85 – 5.28)
207 – 315
(5.24 – 8.01)
100-inch (2.54 m) 80 x 60
(2.03 x 1.52)
114 – 182
(2.89 – 4.62)
191 – 260
(4.84 – 6.62)
260 – 395
(6.59 – 10.05)
120-inch (3.05 m) 96 x 72
(2.44 x 1.83)
137 – 218
(3.48 – 5.56)
230 – 313
(5.83 – 7.97)
313 – 476
(7.94 – 12.09)
150-inch (3.81 m) 120 x 90
(3.05 x 2.29)
172 – 274
(4.36 – 6.96)
288 – 393
(7.31 – 9.98)
392 – 596
(9.95 – 15.14)
200-inch (5.08 m) 160 x 120
(4.06 x 3.05)
230 – 366
(5.83 – 9.29)
385 – 525
(9.77 – 13.34)
525 – 797
(13.32 – 20.24)
Front of the lens
Projection distance L
Projected image
Computer Signal
Resolution fH [kHz]/
fV [Hz]
Input connector
RGB DVI-D
640 x 350 31.5/70
37.9/85
640 x 400 31.5/70
37.9/85
640 x 480
31.5/60
35.0/67
37.9/73
37.5/75
43.3/85
800 x 600
35.2/56
37.9/60
48.1/72
46.9/75
53.7/85
832 x 624 49.7/75
1024 x 768
48.4/60
56.5/70
60.0/75
68.7/85
1152 × 864
64.0/70
67.5/75
77.5/85
1152 x 900 61.8/66
1280 x 960 60.0/60
75.0/75
1280 x 1024
64.0/60
80.0/75
91.1/85
1400 x 1050 65.3/60
1600 x 1200 75.0/60
1280 x 768 47.8/60
1280 x 720 45.0/60
1920 x 1080 67.5/60
1360 x 768 47.7/60
1440 x 900 55.9/60
1680 x 1050 65.3/60
1280 x 800 49.7/60
1920 x 1200 74.0/60 *1*1
PRESET SIGNAL CHART
Digital TV Signal
Signal fV [Hz] Input connector
RGB*2/YPBPRDVI-D
480i 60
576i 50
480p 60
576p 50
1080i 60
1080i 50
720p 60 *3
720p 50
1080p 60 *3
1080p 50
Analog TV Signal
Signal fV [Hz] Input connector
VIDEO/S VIDEO
NTSC 60
PAL/SECAM 50
*1: Available for VESA Reduced Blanking signals.
*2: With INPUT A only.
*3: Determine as a computer signal.
• When a signal other than the signals listed in table is input, the picture
may not be displayed properly.
• An input signal meant for screen resolution different from that of the
panel will not be displayed in its original resolution. Text and lines may be
uneven.

7

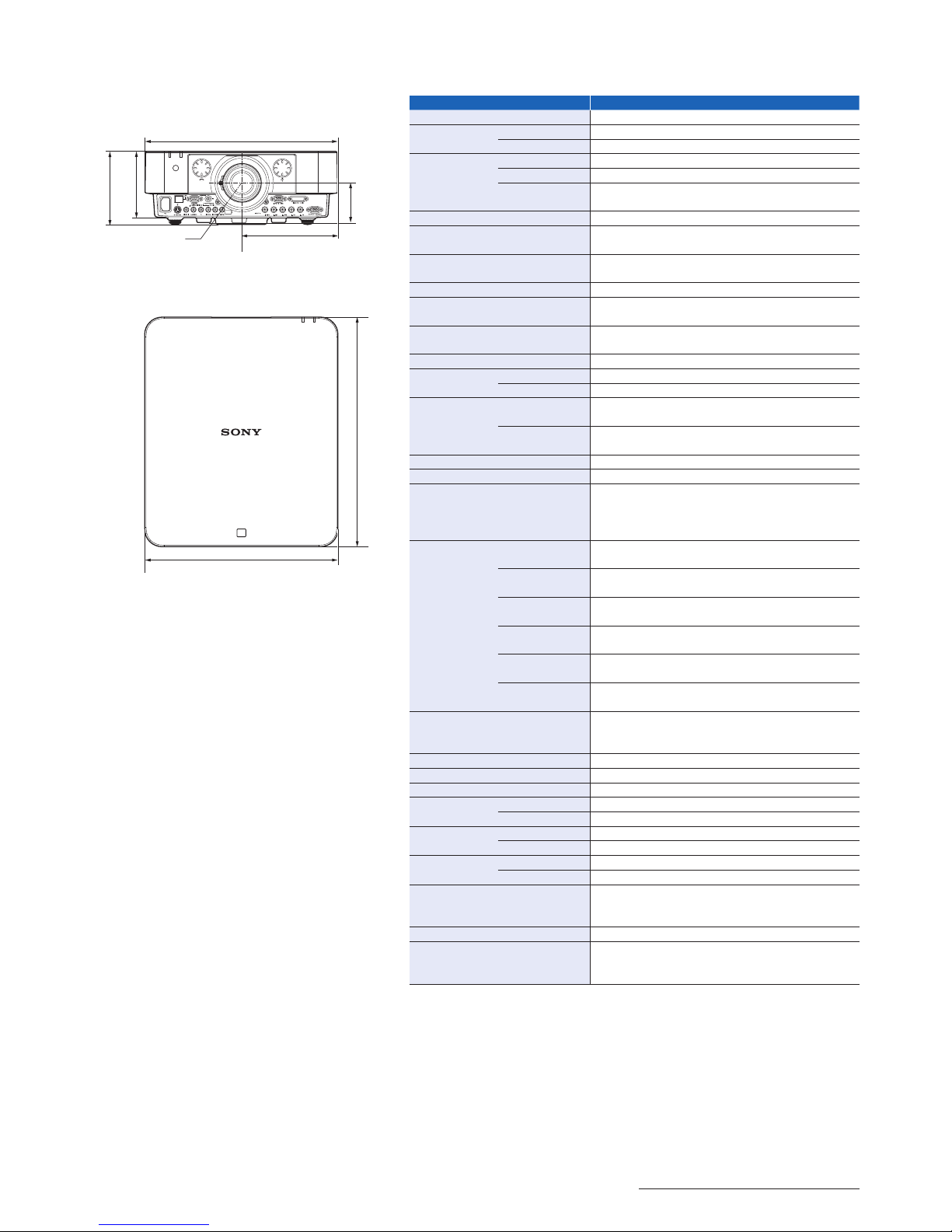

SPECIFICATIONSDIMENSIONS
15 11/32 (390)
7 11/16 (195)
5 9/32 (134)
5 13/16 (148)
3 3/16(81)
Front
Center of the lens
18 7/32 (463)
Top
Unit: inches (mm)
15 11/32 (390)
VPL-FX30
Display system 3 LCD system
Display elements Effective display size 0.79" (20.1 mm) x 3, BrightEra, Aspect ratio: 4:3
Effective pixels 2,359,296 (1024 x 768 x 3) pixels
Projection lens Zoom Manual (Approx. 1.6 x)
Focus Manual
Lens shift Manual, Vertical: Upward 51% to Downward 0%
Horizontal: Right 33% to Left 33%
Light source High-pressure mercury lamp 230 W type
Recommended lamp replacement time*14000 H (Lamp mode: High)
5000 H (Lamp mode: Standard)
Filter cleaning cycle Max.15000 H*1
Same time as the lamp replacement is recommended
Screen size 40" to 600" (1.02 m to 15.24 m)*2
Luminous flux (brightness) 4200 lm (Lamp mode: High)
3000 lm (Lamp mode: Standard)
Color luminous flux (Color brightness) 4200 lm (Lamp mode: High)
3000 lm (Lamp mode: Standard)
Contrast ratio*32000:1
Displayable
scanning frequency
Horizontal 14 kHz to 93 kHz
Vertical 47 Hz to 93 Hz
Display resolution Computer signal input Maximum display resolution: 1920 x 1200 dots*4 (resizing display)
Panel display resolution: 1024 x 768 dots
Video signal input NTSC, PAL, SECAM, 480/60i, 576/50i, 480/60p, 576/50p, 720/60p,
720/50p, 1080/60i, 1080/50i, 1080/60p, 1080/50p
Color system NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N, PAL60
V. Keystone correction Max. +/- 30 degrees*5
OSD language 20-languages (English, Dutch, French, Italian, German, Spanish,
Portuguese, Turkish, Polish, Russian, Swedish, Norwegian, Japanese,
Simplified Chinese, Traditional Chinese, Korean, Thai, Vietnamese,
Arabic, Persian)
Computer and video
signal input/output
INPUT A RGB / Y PB PR input connector: 5BNC (female)
Audio input connector: Stereo mini jack
INPUT B RGB input connector: Mini D-sub 15-pin (female)
Audio input connector: Stereo mini jack (shared with INPUT C)
INPUT C DVI-D input connector: DVI-D 24-pin (Single link), supported HDCP
Audio input connector: Stereo mini jack (shared with INPUT B)
S VIDEO IN S video input connector: Mini DIN-4 pin
Audio input connector: Pin jack (x2) (shared with VIDEO IN)
VIDEO IN Video input connector: Pin jack
Audio input connector: Pin jack (x2) (shared with S VIDEO IN)
OUTPUT Monitor output connector*6: Mini D-sub 15-pin (female)
Audio output connector*7: Stereo mini jack (variable out)
Other signal input/output RS-232C connector: D-sub 9-pin (female)
LAN connector: RJ45, 10BASE-T/100BASE-TX
Control S input connector: Stereo mini jack, Plug in power DC5V
Operating temperature (Operating humidity) 32°F to 104°F / 0°C to 40°C (35% to 85% (no condensation))
Storage temperature (Storage humidity) -4°F to +140°F /-20°C to +60°C (10% to 90%)
Power requirement AC 100 V to 240 V, 3.3 A to 1.3 A, 50/60 Hz
Power consumption AC 100 V to 120 V 330 W
AC 220 V to 240 V 310 W
Standby mode power
consumption
AC 100 V to 120 V 11 W (Standby mode: Standard) / 0.15 W (Standby mode: Low)
AC 220 V to 240 V 12 W (Standby Mode: Standard) / 0.3 W (Standby mode: Low)
Heat dissipation AC 100 V to 120 V 1126 BTU
AC 220 V to 240 V 1058 BTU
Standard outside dimensions W 15 11/32 x H 5 13/16 x D 18 25/32 in (W 390 x H 148 x D 477 mm)
W 15 11/32 x H 5 9/32 x D 18 7/32 in (W 390 x H 134 x D 463 mm)
(without protrusion)
Weight 17 lb 7 oz / 7.9 kg
Supplied accessories RM-PJ19 Remote Commander (1), Size AA (R6) batteries (2),
AC power cord (1), Cable ties (2), Quick Reference Manual (1),
Security Label (1), Operating Instructions (1)
*1 The figures are expected maintenance time and not guaranteed. They will depend on
the environment or how the projector is used.
*2 Viewable area, measured diagonally.
*3 The value is average.
*4 Available for VESA Reduced Blanking signal.
*5 Depend on resolution. This projector tilt angle is up to +/- 15 degrees.
*6 From INPUT A and INPUT B.
*7 Works as audio switcher function. From current channel only.

Sony Electronics Inc.
1 Sony Drive
Park Ridge, NJ 07656
www.sony.com/projectors
DI-0204B (MK10693V1)
©2011 Sony Electronics Inc. All rights reserved.
Reproduction in whole or in part without written permission is prohibited.
Features and specifications are subject to change without notice.
The values for mass and dimension are approximate.
Sony and ‘make.believe’, BrightEra and Remote Commander are trademarks of Sony.
Trademark PJLink is a trademark applied for trademark rights in Japan,
the United States of America and other countries and areas.
All other trademarks are the property of their respective owners.
Printed in USA (1/11)
