The VPL-FX30 and VPL-FX35 projectors are
bright ideas for executive conference
rooms, training centers and larger
classrooms and auditoriums, providing
superb image quality, easy maintenance
and worry-free operation. Compatibility
with current interchangeable lenses
enables a wide range of options
– from long distance projection in
large auditoriums to short distance
rear projection applications. ECO-
friendly longer lamp life means less
energy consumption, less cost and
less time spent up on a ladder making
replacements.
Installation Flexibility — With the
VPL-FX30’s wide zoom standard lens,
it’s possible to keep the same mount
position when upgrading from an older
model.A centered lens makes it easy to
calculate symmetric installation, and a
Wider Lens Shift Range minimizes picture
degradation and distance recalculating
caused by using keystone correction.
Superior Image Quality and Rich Color
Reproduction — An outstanding Color
Light Output of 5000 Lm and a high
contrast ratio at 2000:1 (4200 Lm for
FX30). 12bit 3D Digital Gamma Correction
reproduces gradation in greater detail.
High Resolution via All Range Crisp Focus
Lens with HD compatibility delivers crisp
images.
Quiet and Unobtrusive — Outfitted with a
white, flat cabinet and a connector panel
located on the lower face front that hides
the connectors and cables – the VPL-FX30
series gives audiences the impression
that the projector is blended into the
ceiling when mounted. Plus it produces
minimal fan noise, so the overall effect
is unobtrusive.
Eco-friendly Features — Replace lamps
less frequently with a long expected
lamp replacement time of 4000/5000H
(3000/4000H for FX35)! Sony’s optical
engine, BrightEra™ feature with Longer
Lasting Optics provides improved optical
efficiency: more light is projected onto
the screen at less lamp power, requiring
smaller lamps, which are less expensive,
use less electricity and produce less heat.
Convenience Features — Include Closed
Captioning, Digital Zoom, Picture Muting,
Direct Power On/Off, Network Control
and Monitoring.
XGA/4,200 Lumens(VPL-FX30) XGA/5,000 Lumens(VPL-FX35)
Bright ideas for classrooms, conference rooms and auditoriums.
VPL-FX30 & VPL-FX35 Reliable Installation Projector

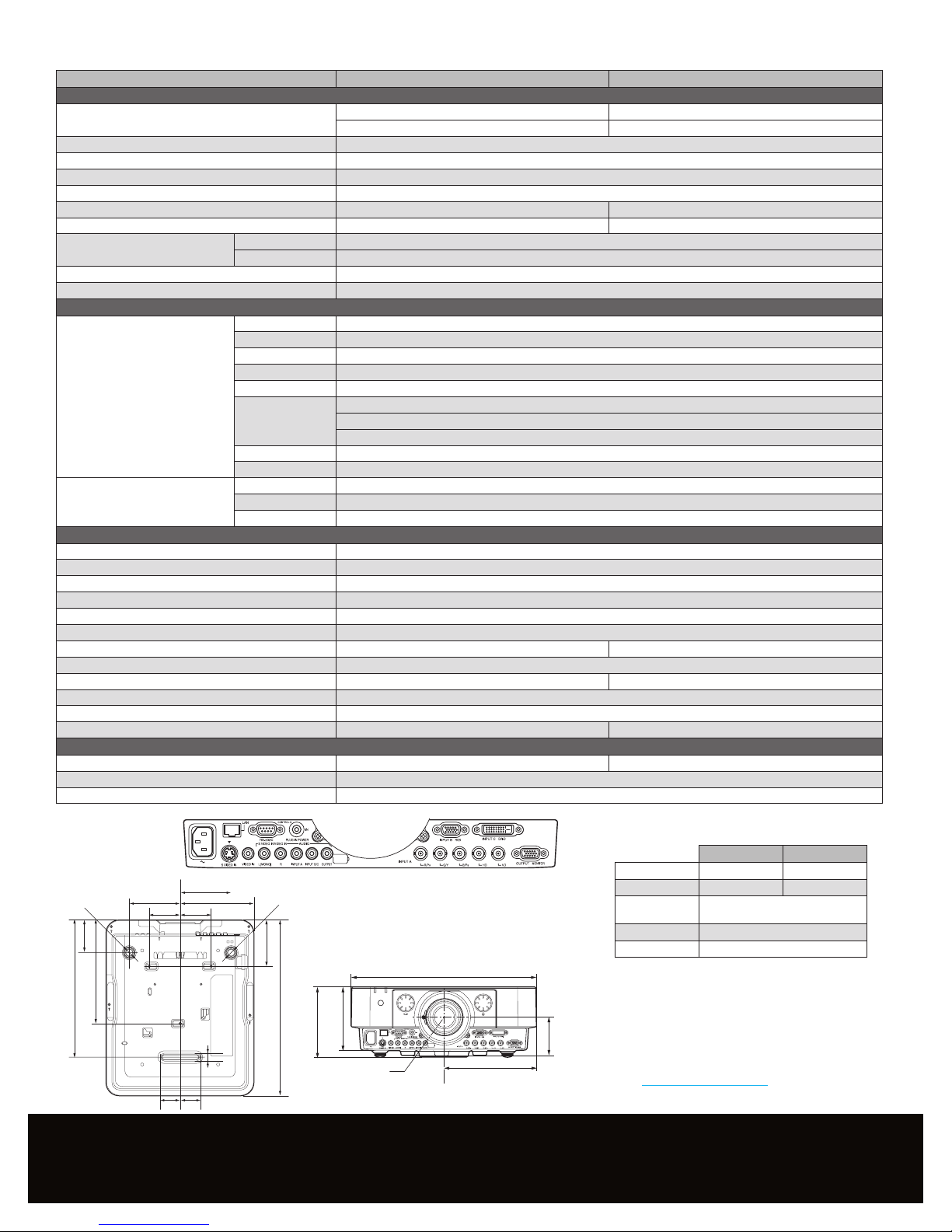

VPL-FX30 & VPL-FX35 Specifications
Model Number VPL-FX30 VPL-FX35
Optical
Color Light Output / Light Output 4200 lumens (high) 5000 lumens (high)
3000 lumens (Standard) 4000 lumens (Standard)
LCD Panels 0.79” x3 TFT BrightEra LCD Panel
Resolution XGA (1024 x 768 Pixels)
Video Resolution 750 TV Lines
Contrast Ratio* 2000:1 (Full white/full black)
Lamp 230W UHP Lamp 275W UHP Lamp
Lamp replacement time** 4000H (High) / 5000H (Standard) 3000H (High) / 4000H (Standard)
Lens Zoom/Focus Manual 1.6x Zoom / Manual Focus
Lens Shift Manual,Vertical : +51%/-0%, Horizontal : +/- 33%
Throw Ratio 1.42 to 2.27 : 1
Screen Size †40” to 600”
Interface
Computer and
Video Signal
Input/Output
INPUT A 5BNC (RGB / Y Pb Pr)
INPUT B Mini D-sub 15-pin (RGB)
INPUT C DVI-D (HDCP Supported)
S VIDEO IN Mini DIN-4pin (Y/C)
VIDEO IN Pin Jack (Composite)
AUDIO IN
Stereo Mini Jack (INPUT A)
Stereo Mini Jack (shared between INPUT B and C)
Pin Jack x2 (shared between VIDEO and S VIDEO IN)
MONITOR OUT Mini D-sub 15-pin (from with INPUT A and B)
AUDIO OUT Stereo mini jack (variable out)††
Control Signal
Input/Output
RS-232C D-sub 9 pin
LAN RJ45, 10BASE-T/100BASE-TX
Control S Input Stereo mini jack (plug in power DC5V)
General
Scanning Frequency fH: 14 to 93kHz, fV: 47 to 93Hz
Acceptable Computer Signals Maximum display resolution : 1920 x 1200 dots (resizing display)
Acceptable Video Signals NTSC, PAL, SECAM, 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/60p, 1080/50p
Color System NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N, PAL60
Keystone Correction Vertical : Max +/- 30 degrees††
Speaker None (Audio IN/OUT for audio switcher usage)
UPC Code 49 05524 62853 1 49 05524 62854 8
Power Requirements AC 100V to 240V, 3.3A to 1.3A, 50Hz/60Hz
Power Consumption 330W 380W
Power Consumption (Standby) 11W (Standard mode) / 0.15W (Low mode)
Dimensions (W x H x D) 15 11/32 x 5 13/16 x 18 25/32”
Weight 17 lbs. 7 oz. 17 lbs. 10 oz.
Accessory
Replacement Lamp LMP-F230 LMP-F272
Replacement Filter (Filters are cleanable) 4-172-386-01 (Top) / 4-172-387-01 (Bottom)
Replacement Remote 1-489-092-11 (RM-PJ19)
VPLL-Z1024 VPLL-Z1032
Throw Ratio 2.38 to 3.26 3.24 to 4.95
F Stop 2.0 to 2.3 2.0 to 2.4
Lens Shift Vertical : +51%/-0%
Horizontal : +/- 33%
Weight 2 lbs. 7oz.
Lens Adaptor PK-F30LA1
Visit sony.com/projectors for throw
distance simulator
* The value is average.
** The figures are expected maintenance time
and not guranteed.They will depend on the
environment or how the projector is used.
† Viewable area measured diagonally
†† Depends on resolution
Optional Lens Specifications
Sony Electronics Inc.
1 Sony Drive
Park Ridge, NJ 07656
Front Panel
Dimensions
Center of the lens
15 11 /32
7 11 /16
Center of the lens
5 13/16
5 9/32
3 3/16
18 7/32
23/32 23/32
4 13/16
3 3/8
10 23/32
14 7/32
19/32
5 9/32
3 7/323 7/32
1 31 /32 1 31 /32
7 11/165 9/32
© 2010 Sony Electronics Inc. All rights reserved. Reproduction in whole or in part without written permission is prohibited. Features and specifications
subject to change without notice. All metric weights and measures are approximate. Sony, make.believe, Bright Era and their respective logos are
trademarks of Sony. The 3LCD logo is a trademark of Seiko Epson Corporation. All other trademarks are the property of their respective owners.
Printed in USA 10/10
DI-0216
Bottom Front
