Sony ICF-1000L User manual

Ver 1.0 2000.07
ICF-1000L
SERVICE MANUAL
FM/SW/MW/LW 4 BAND RADIO
SPECIFICATIONS
AEP Model
UK Model
Frequency range:
FM: 87.5 – 108.0 MHz
SW: 5.95 – 18 MHz
MW: 530 – 1 605 kHz
LW: 153 – 255 kHz
Speaker:
Approx. 10.2 cm (4 1⁄8inches) dia. 8 Ω
Power output:
1W (at 10% harmonic distortion)
Output:
vjack (ø 3.5 mm minijack)
Power requirements:
With the supplied AC power cord:
220 – 230 VAC, 50 Hz
With four R6 (size AA) batteries: 6V DC
Dimensions:
Approx. 299 x 139.5 x 83.2 mm (w/h/d)
(11 7⁄8x 5 1⁄2x 3 3⁄8inches) incl. projecting parts and control.
Mass:
Approx. 1100 g (2 lb 7 oz) incl. batteries
Supplied accessory:
AC power cord(1)
Design and specifications are subject to change
without notice.

– 2 –
TABLE OF CONTENTS
Specifications ........................................................................... 1
1. GENERAL
Choosing Power Sources ................................................... 3
Operating the Radio Manual Tuning ................................. 3
2. DISASSEMBLY
2-1. Cabinet (Rear)............................................................. 4
2-2. Power Board ............................................................... 4
2-3. AC IN Board, AMP Board.......................................... 5
2-4. Main Board, Key Board.............................................. 5
2-5. Setting the Pointer ...................................................... 6
3. ELECTRICAL ADJUSTMENT
3-1. MW Section ................................................................ 7
3-2. LW Section ................................................................. 7
3-3. SW Section ................................................................. 7
3-4. FM Section ................................................................. 7
4. DIAGRAMS
4-1. Block Diagram............................................................ 9

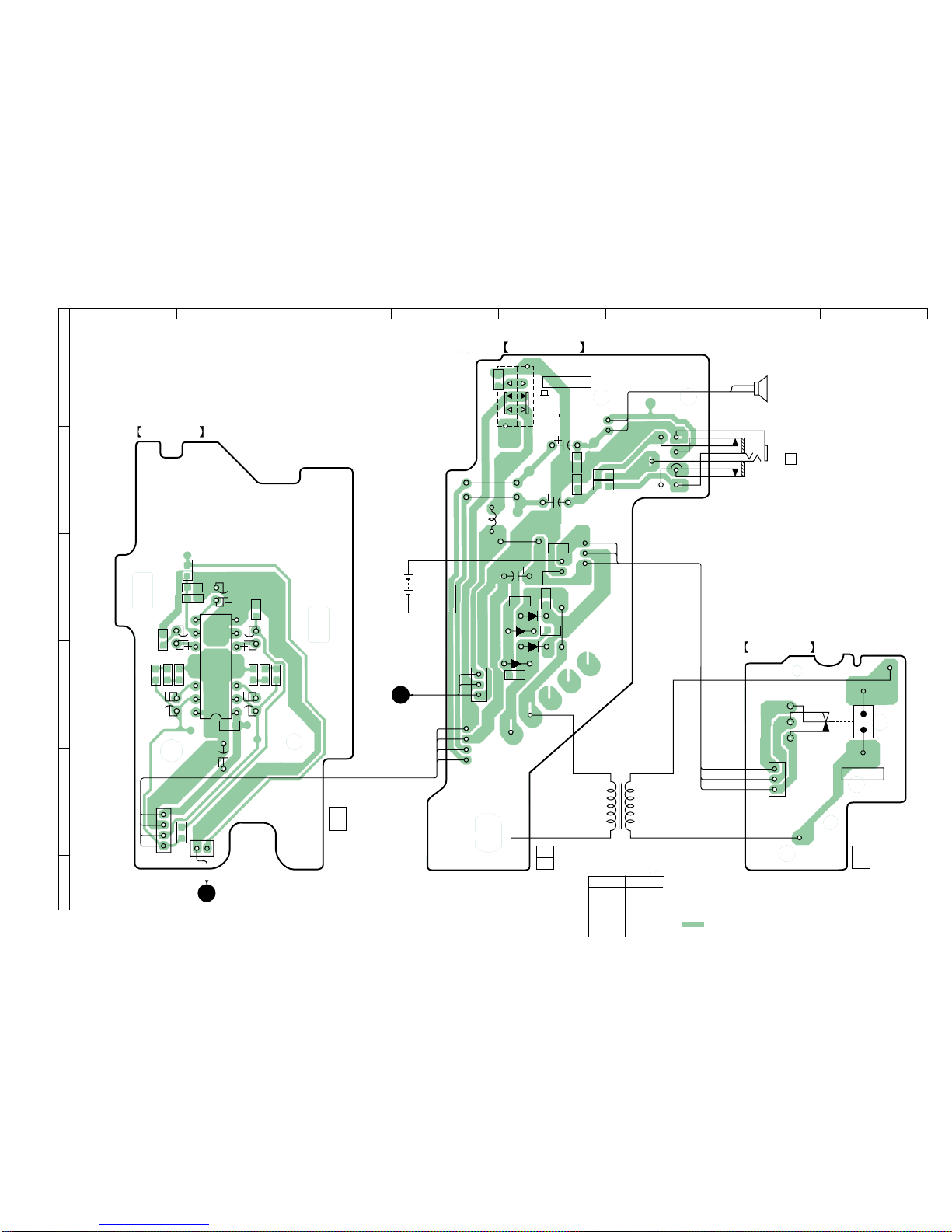

4-2. Printed Wiring Boards (1/2) ......................................11
4-3. Printed Wiring Boards (2/2) ..................................... 13
4-4. Schematic Diagrams ................................................. 15

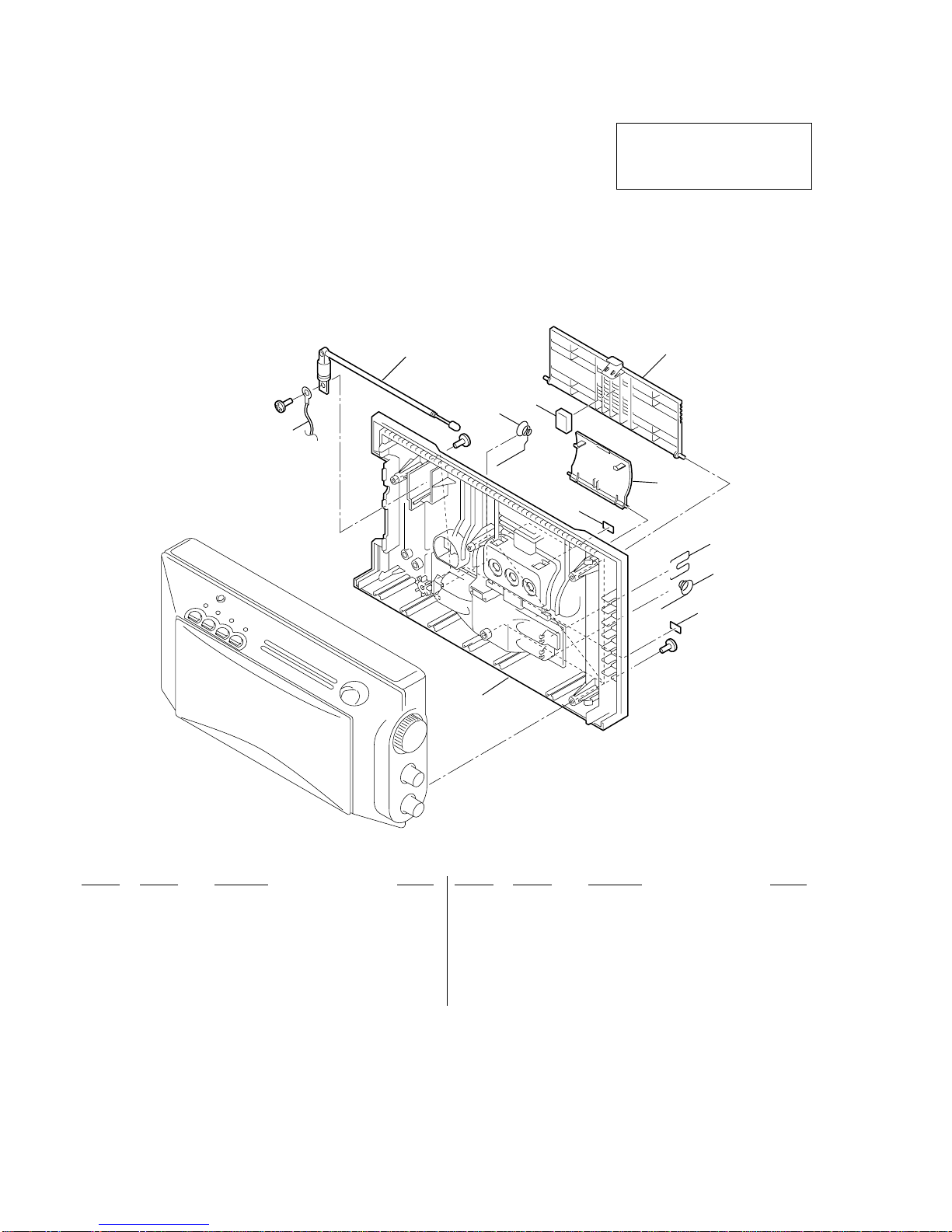

5. EXPLODED VIEWS
5-1. Rear Cabinet Section ................................................ 18
5-2. Front Cabinet Section ............................................... 19
5-3. Chassis Section ......................................................... 20
6. ELECTRICAL PARTS LIST................................... 21
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0OR DOTTED LINE
WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICALTO SAFE OPERATION.
REPLACETHESE COMPONENTSWITH SONY PARTSWHOSE
PART NUMBERS APPEAR AS SHOWN INTHIS MANUAL OR
IN SUPPLEMENTS PUBLISHED BY SONY.

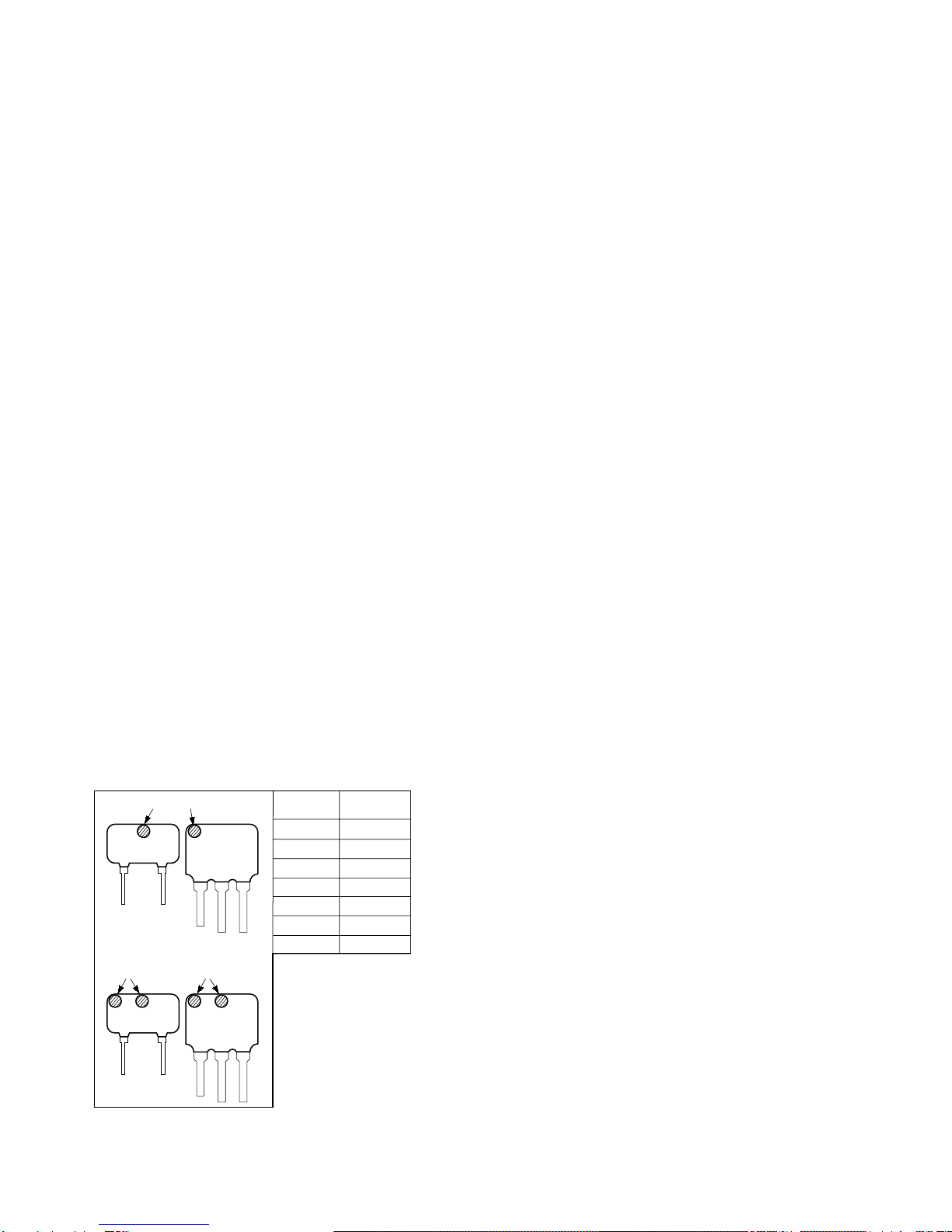

• HOW TO CHANGE THE CERAMIC FILTER
This model is used three ceramic filters of CF2, CF3 and CF4.
You must use same type of color marked ceramic filters in
order to meet same specifications.
Therefore, the ceramic filter must change three pieces together
since it's supply three pieces in package as a spare parts.
red
blue
orange
black
white
white/white
yellow
10.70MHz
10.67MHz
10.73MHz
10.64MHz
10.76MHz
10.75MHz
10.79MHz
Mark Center
frequency
mark mark
• white/white only
CF2
CF3
CF4
markmark
CF3
CF2
CF4
Notes on chip component replacement
• Never reuse a disconnected chip component.
• Notice that the minus side of a tantalum capacitor may be
damaged by heat.

– 3 –
SECTION 1
GENERAL This section is extracted from
instruction manual.

–4 –
SECTION 2
DISASSEMBLY
Note:Followthedisassemblyprocedureinthenumericalordergiven.
2-1. CABINET (REAR)
2-2. POWER BOARD
r
Theequipmentcanberemo vedusingthef ollo wingpr ocedure .
2 Screws (+BTP 3x20)
1
3
3
Cabinet (front)
Cabinet (rear)
Lid, Battery cas
e
3 Screws (+BTP 2.6x10)
1 Screw (+BTP 2.6x8)
2 Remove solder
4 AC IN board (CN405)
5 AMP board (CN601)
7
6
Cabinet (front)
Blue
Power board
8 Button (power)
CN401
Operation switch (S401)
Cabinet (rear)
zCautions during assembly
Align the operation
switch (S401) with the
groove of button (power).
AMP board
Cabinet (rear) Power board AC IN board
Main board, Key board
Set

–5 –

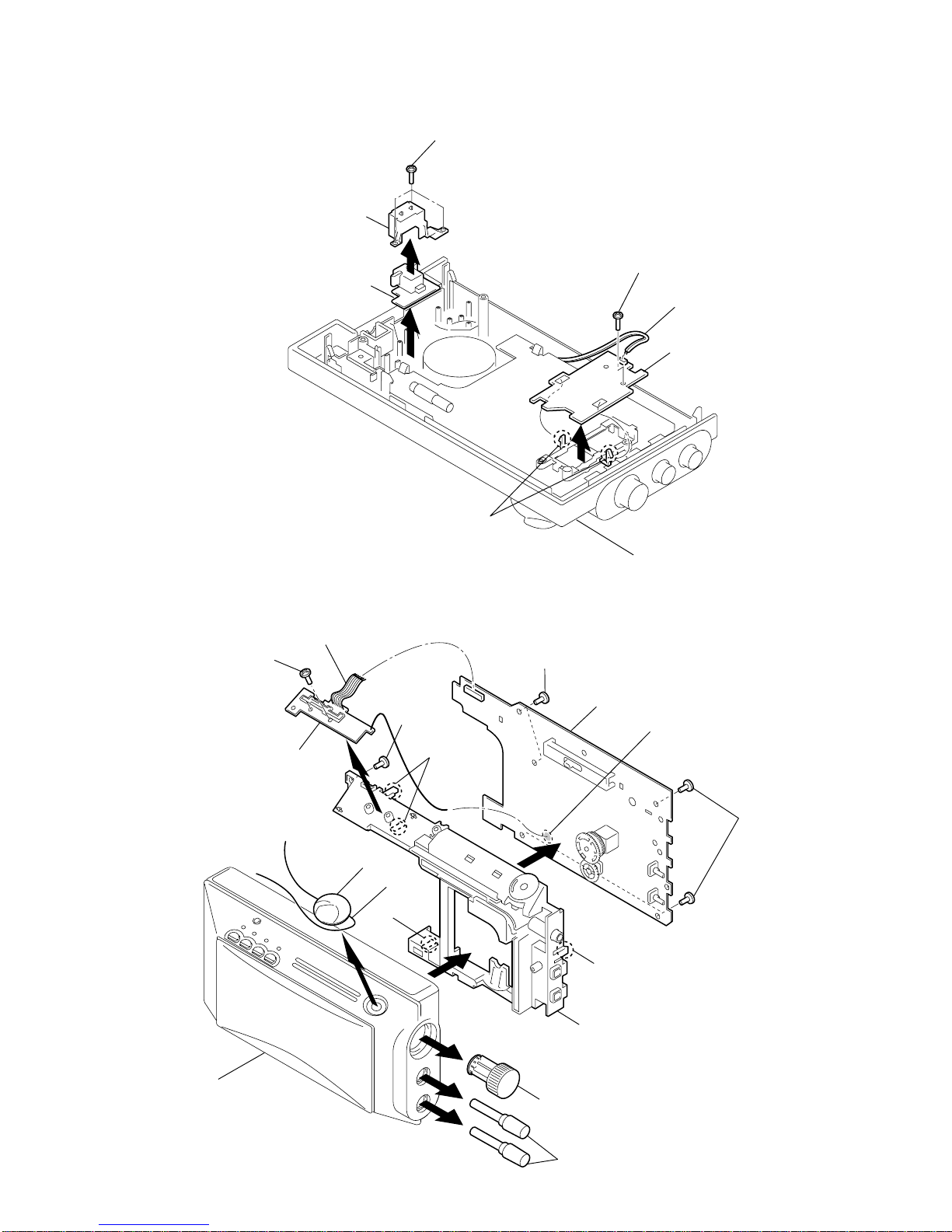

2-3. AC IN BOARD, AMP BOARD
2-4. MAIN BOARD, KEY BOARD
4 Screw (+BTP 3x20
)
Holder
AC IN board
1 Screws (+BTP 2.6x10)
5 Claws
6
3
2
7
CN602
AMP board
Cabinet (front)
5Screws (+BTP 2.6x6)
3Screws
(+BTP 3x10)
9Screws (+BTP 3x10)
9Screws (+BTP 3x10)
8Remove solder
7CN201
q; Claw
q; Claw
1Knob (tone)
1Knob (tuning)
q; Claws
6
qa
4
2Wind up thread,
and pull it up
Thread
Knob (band)
key board
Main board
Chassis
Cabinet (front)

–6 –
3
4
2
A
1
Rack (pointer)
Gear, VOL
Pointer
Pointer Rack (pointer)
Scribed
line
Chassi
s
Drum (A)
Drum (B)
2-5. SETTINGTHE POINTER
1Turnthedrum(B)inthedirectionof Auntilitstopped.
2Inserttherack(pointer)intothechassisgroove.
3Installthepointer .
4Slidthepointerandalignitwiththegrooveonthescribed
"Gear ,VOL"enga geswith
drum(A)likeafigure.

– 7 –
SECTION 3
ELECTRICAL ADJUSTMENTS
• Repeat the procedures in each adjustment several times, and the
frequency coverage and tracking adjustments should be finally
done by the trimmer capacitors.
MW IF ADJUSTMENT
Adjust for a maximum reading on level meter.
T1 455kHz
MW FREQUENCY COVERAGE ADJUSTMENT
Adjust for a maximum reading on level meter.
L4 520kHz
CT4 1,650kHz
MW TRACKING ADJUSTMENT
Adjust for a maximum reading on level meter.
L2-1 600kHz
CT1 1,400kHz
3-1. MW SECTION
BAND switch : MW
Put the lead-wir
e
antenna close to
the set.
AM RF signal
generator
400Hz, 30%
AM modulation
Output level: as low as possible
16 Ω
set
v jack (EPJ401)
level mete
r
• Repeat the procedures in each adjustment several times, and the
frequency coverage and tracking adjustments should be finally
done by the trimmer capacitors.
3-2. LW SECTION
BAND switch : LW
Put the lead-wir
e
antenna close to
the set.
AM RF signal
generator
400Hz, 30%
AM modulation
Output level: as low as possible
16 Ω
set
vjack (EPJ401)
level mete
r
• Repeat the procedures in each adjustment several times, and the
frequency coverage and tracking adjustments should be finally
done by the trimmer capacitors.
SW FREQUENCY COVERAGE ADJUSTMENT
Adjust for a maximum reading on level meter.
L5 5.8MHz
CT5 18.5MHz
SW TRACKING ADJUSTMENT
Adjust for a maximum reading on level meter.
L3 5.8MHz
CT3 18.5MHz
3-3. SW SECTION
BAND switch : SW
telescopic
antenna terminal
12 pF
AM RF signal
generator
400Hz, 30%
AM modulation
Output level: as low as possible
set
16 Ω
set
v jack (EPJ401)
level mete
r
3-4. FM SECTION
BAND switch : FM
telescopic
antenna terminal
0.01
µ F
FM RF signal
generator
400Hz, 30% FM modulation
frequency deviation
± 22.5kHz
Output level: as low as possible
set
16 Ω
set
v jack (EPJ401)
level mete
r
LW FREQUENCY COVERAGE ADJUSTMENT
Adjust for a maximum reading on level meter.
CT6 145kHz
< confirmation > 265kHz
LW TRACKING ADJUSTMENT
Adjust for a maximum reading on level meter.
L2-2 160kHz
CT2 240kHz

– 8 –
• Repeat the procedures in each adjustment several times, and the
frequency coverage and tracking adjustments should be finally
done by the trimmer capacitors.
FM FREQUENCY COVERAGE ADJUSTMENT
Adjust for a maximum reading on level meter.
L9 86.5MHz
CT8 109.5MHz
FM TRACKING ADJUSTMENT
Adjust for a maximum reading on level meter.
L7, L8 86.5MHz
CT7 109.5MHz

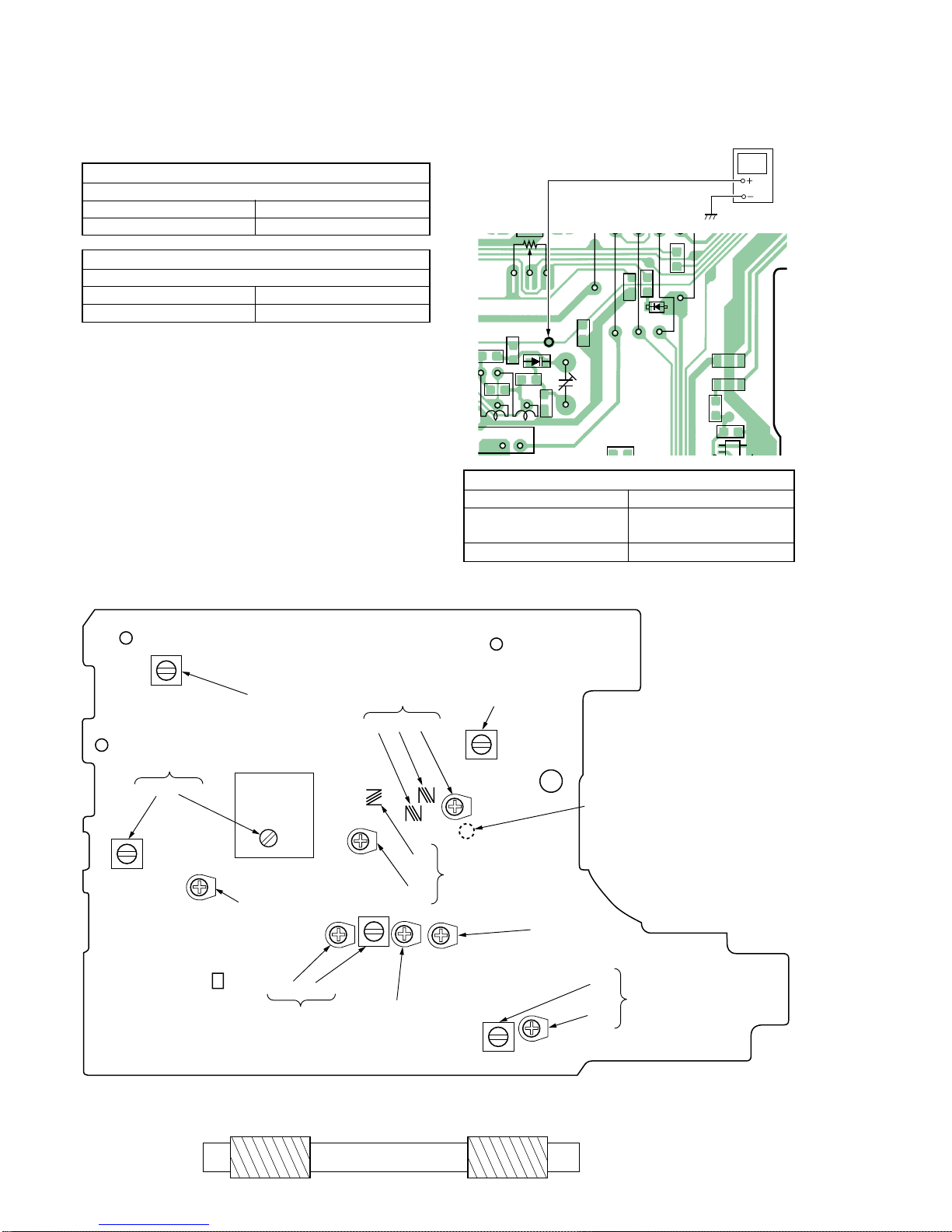

• Connecting DigitalVoltmeter
– MAIN board (Conductor side) –
FM VT VOLTAGE ADJUSTMENT
Frequency Display 86.5MHz
Reading on Digital Voltmeter Adjustment value : 1.0V
Standard value : 0.9 – 1.1V
Adjustment Part RV204
SW
TRACKING
ADJUSTMENT
L2-2
LW
TRACKING
ADJUSTMENT
MW
FREQUENCY
COVERAGE
ADJUSTMENT
CT6
LW
FREQUENCY
COVERAGE
ADJUSTMENT
RV204
FM
VT VOLTAGE
ADJUSTMENT
FM
FREQUENCY
COVERAGE
ADJUSTMENT
T1
MW
IF
ADJUSTMENT
FM
TRACKING
ADJUSTMENT
–MAIN BOARD (Component side) –
SW
FREQUENCY
COVERAGE
ADJUSTMENT
L2-1
MW
TRACKING
ADJUSTMENT
CT1
MW
TRACKING
ADJUSTMENT
CT2
LW
TRACKING
ADJUSTMENT
TP2 (VT)
(conductor side)
L7, L8, CT7
L4, CT4
CT5, L5 L3
CT3
L9
CT8
Adjustment Location : Main board
R9
C207
I
C
2
0
4
4
5
1
3
R4
R214
R215
R3
C12
C13
C14
D202
C15
D2
R201
JC18
JC19
JC20
RV202
32
L8
L7
TP2
(VT)
FM1
JW9
JW10 JW11
JW12
JW
1
CT7
digital voltmete
r
Main board
TP2 (VT)

– 9 – – 10 –
ICF-1000L
4-1. BLOCK DIAGRAM
SECTION 4
DIAGRAMS
MW
ANT
LW
ANT
SW
ANT
FM MW LW SW SW LW MW FM FM MW LW SW SW LW MW FM
L2-1, CT1
L2-2, CT2
L3, CT3
SW
OSC
AM
FE
FM
SW
DET
FM
BPF FM FE
FM
OSC
L5, CT5
MW/LW
OSC
CT4, L4
B+
CT6
S1-3
TUNING
CV1-1
TUNING
CV1-2
S1-5
S1-7
S1-4
S1-6
(LW)
AM
ANT
FM
ANT
FM IF
TUNING
METER
LPF
CONT
TONE
MUTE
MUTE
DRIVE
AM IF
DET/AGC
FM
RF
FM
OSC
D2, 3
L7,L8, L9,
CT7, CT8
BPF1
Q1
ANT1
FM/SW
TELESCOPIC
ANTENNA
6
11
13
15 24
10 8
CF2
10.7MHz
CF3
10.7MHz
CF5 CF1
455kHz
18
20
17
3
CF4
10.7MHz
Q6-8
Q502, 503
Q501
Q504
TONE
RV501
PON 3V
S1-1
(LW/SW)
RV502
VOLUME
IC1
FM/AM FRONT-END
IF, DET
PON 3V
S1-1
(FM)
Q9
Q202
D201
D6
KI/02 KI/06
KI/04
KI3
17 1
14
19
KI/05 20
KI/07 2
KI/01 16
IC201
KEY IN CONTROL IC202
IC202
IC202
IC202
13
1 2
IC205
SWITCH RV202
FM1
12
11 10
RV203
FM2
6
9 8
RV201
FM3
RV204
FM VT
VOLTAGE
5
3 4 RV205
(FM TUNING)
FM3 FM2 FM1
KI011
KI1
12
KI213
XIN
7
XOUT
8
CN201
POWER
CONT
POWER
CONT
ON/OFF
DRIVE
Q102, 103
PON 6V
3V
TU 6V
Q101
RIPPLE
FILTER
Q10
3 5
2
DC/DC
CONV
CONT
IC101
3 2
3V
REG
IC204
5 2
911
IC601
POWER AMP
VT
D301
TUNE
FM3
SW303
FM2
SW302
FM1
SW301
FM3
D303
FM2
D304
FM1
D302
MANUAL
SW304
FM1
FM2
FM3
KEY BOARD
MAIN BOARD
X201
3.68MHz
PON 6V
Q201
3V
Q203
PON 3V
EPJ401
SP1
SPEAKER
S401
D401-404
OPERATION
STANDBY ON
PON 6V
6V
D101
ACJ401
AC IN
T401
POWER
TRANSFORMER
POWER BOARD
AC IN BOARD
AMP BOARD
02
AM
OSC
T1
455kHz
5
7
9
11
2
1
14
13
CT4, L4
MW FREQUENCY
COVERAGE
CT1, L2-1
MW
TRACKING
T1
MW
IF
CT6
LW FREQUENCY
COVERAGE
CT2, L2-2
LW
TRACKING
CT5, L5
SW FREQUENCY
COVERAGE
CT3, L3
SW
TRACKING
CT8, L9
FM FREQUENCY
COVERAGE
CT7, L7, L8
FM
TRACKING
• Signal path
: MW
: FM
DRY BATTERY
SIZE "AA"
(IEC DESIGNATION R6)
4PCS, 6V
v
CN405
CN401
CN602 CN601

– 11 – – 12 –
ICF-1000L
4-2. PRINTEDWIRING BOARDS (1/2)
D401 D-5
D402 C-5
D403 C-5
D404 D-5
IC601 D-2
Ref. No. Location
zSemiconductor
Location
Note:
•X: parts extracted from the component side.
•: Pattern from the side which enables seeing.
02
AC IN BOARD
AMP BOARD
POWER BOARD
23 4 5 6 7 8
A
1
B
C
D
E
11
(11)
1-678-893-
11
(11)
1-678-892-
11
(11)
1-678-894-
ACJ401
- AC IN
T401
POWER TRANSFORMER
A
MAIN BOARD
(Page 14)
BMAIN BOARD
(Page 13)
C609 C610 C612 C611
C404
R606
R604
R603
R601
R607
R605
R403
R402
R405 R404
R401
R602
C604
C607
C401
C407
C403
C408
D404
D401
D403
D402
1
CN401
JW404
JW403
JW402
JW401
C402
DRY BATTERY
SIZE "AA"
(IEC DESIGNATION R6)
4PCS, 6V
C405
C406
L401
SP1
SPEAKER
+
–
–
+
EPJ401
v
S401
OPERATION
STANDBY
R
ON
CN602
2 1
YEL
YEL
BLU
CN601
4
1
C605
C602
C603
C606
C601
C608
IC601
3
2
1
6
5
4
7
8
9
10
11
12
3
CN405
YEL
3
2
1
YEL

– 13 – – 14 –
ICF-1000L
4-3. PRINTEDWIRING BOARDS (2/2)
Note:
•X: parts extracted from the component side.
•f: internal component.
•: Pattern from the side which enables seeing.
D1 C-7
D2 E-6
D3 E-5
D5 F-4
D6 B-6
D101 G-3
D201 B-10
D202 D-7
D203 G-4
D301 D-10
D302 G-10
D303 E-10
D304 F-10
IC1 F-5
IC101 G-3
IC201 C-9
IC202 B-9
IC204 E-7
IC205 B-8
Q1 B-7
Q3 F-6
Q4 F-6
Q5 G-6
Q6 G-6
Q7 F-6
Q8 F-6
Q9 B-5
Q10 F-7
Q101 G-3
Q102 G-4
Q103 G-4
Q201 C-10
Q202 B-10
Q203 C-8
Q501 E-3
Q502 E-2
Q503 F-2
Q504 F-2
Ref.No. Location
zSemiconductor
Location
02
R303
C209
C208
C202
JC301
JC302
JC303
R202 R204
R206
R205
C205
R203
R9
R16
R17
R305
R306
R1
R302 R301
C203 C204 C206
C20
C207
C303
C304
C301
R304
R307
C302
C3
C1
L1
C2
Q201
Q202
Q1
Q203
D302, SW301
FM1
D304, SW302
FM2
D303, SW303
FM3
D301, SW304
MANUAL
KEY BOARD
MAIN BOARD
SW301
SW302
11
(11)
1-678-891-
11
(11)
1-678-890-
23 4 5 6 7 89 10
A
1
B
C
D
E
F
G
1
5
9
1
5
9
CN201
A
POWER BOARD
CN401
(Page 11)
B
AMP BOARD
CN602
(Page 11)
B
C
E
Q10
BLU
JW20
JW19
JW18
JW17 JC30
IC204 4
5
1
3
R221
JC3
R220
R219
R218
R209 R210
R208
R212 R211
R213
R10
R8
R14
R12
R6
R4
R214
R215
R3 R2
R13
L10 L6
R509
R513
R19
C106
C103
C506
C21
C12
C39
C6
C501
C44
C32
C509
C25
C26
C45
R18
R102
R105 R106
R101
R216
D203 D5
R104
R501
R20
R505R508
R510
R512
R511
R502
R503R506
R507
R515
R514
R103
R107
L101
R21
C31
C42
C503
C507
C508
C504
C104
C43
D101
C30
C29
C35 C37
C13
C14
C17
C16
D3
D202
R5
C15
C38
D2
C4
C5JC12
R201
JC18
JC14JC15JC16
JC17
JC19
JC25
JC33
JC26
JC29
JC23
JC22
JC21
JC13
JC20
JC6
JC8 JC7
JC24
JC31
JC32
C41
C201
JC28
JC27
JC11
JC10
JC4
JC2
JC1
Q5
Q8
Q6
Q103
Q102
Q7
Q3
Q504
Q502
Q503
Q501
Q4
Q9
ECB
Q101 L102
R207
1
5
7
8
10
14
IC202
BLU
GRN
CT2
CT1
CT5
L5
AF
GND
T1
CF5
CF3
CF2
CF1
FM ANT
1
5
10 11
15
20
IC201
1
5
78
10
14
IC205
C27
C36
C28
C24
C23
C22
C105
C107
C101
RV205
(FM TUNING)
RV202
RV203
RV201
RV501
TONE
RV502
VOLUME
RV204
1
12
3
4
515
16
20
25
30
IC1
R11
IC101
1
3
4
5
3
12
L8
L7
TP2
(VT)
C9
CT6
C8
C11
C10
C7
FM/U t MW/M t LW/K t SW/K
S1
(BAND)
L2-1
MW
L2
MW/LW
FERRITE-ROD
ANTENNA
L2-2
LW
FM
PRESET
S1-4
S1-3
S1-6
S1-7
S1-1S1-2S1-8
S1-5
FM1FM2FM3
WHT
WHT
RED
CLEAR
CLEAR
RED
BLK
BLU
GRN
BLK
JW2
JW1
JW4
JW6
JW7
CT3
L3
JW3
JW9
JW10 JW11
JW12
JW13
JW5
JW14
JW15
JW16
L4
MW/LW OSC
CT4
CV1-2
CV1-1
JW22
JW21
CV1
TUNING
CF4
L9
CT8
CT7
RV502
RV501
JW25
JW23
ANT1
FM/SW
TELESCOPIC ANTENNA
X201
JW24
BPF1
D201
D1
D6
C19
ECB
ECB
ECB ECB
ECB
BCE
BCE
BCE BCE
BCE
BCEBCE ECB
ECB
ECB
ECB
ECB
D301
D303
D304
D302

– 15 – – 17 –– 16 –
ICF-1000L
4-4. SCHEMATIC DIAGRAMS
Note:
• All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.
• All resistors are in Ωand 1/4W or less unless otherwise
specified.
•f: internal component.
Note: The components identified by mark 0or dotted
line with mark 0are critical for safety.
Replace only with part number specified.
•: B+ Line.
•H: adjustment for repair.
• Power voltage is dc 6V and fed with regulated dc power
supply from battery terminal.
• Voltages and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
no mark : FM
( ) : MW/LW/SW
• Voltages are taken with a VOM (Input impedance 10
MΩ).
Voltage variations may be noted due to normal produc-
tion tolerances.
• Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal produc-
tion tolerances.
• Circled numbers refer to waveforms.
• Signal path.
F: FM
f: MW
zWaveform
1
Q101 C
(Band : FM)
VOLT/DIV : 5 V AC
TIME/DIV : 1 msec
12 Vp-
p

– 18 –
SECTION 5
EXPLODED VIEWS
NOTE :
• -XX, -X mean standardized parts, so they
may have some difference from the original
one.
• Color indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) ••• (RED)
↑↑
Parts color Cabinet's color
• Items marked “ * ”are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference
number in the exploded views are not
supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
5-1. REAR CABINET SECTION
#4
#1 #7
#7
1
23
4
5
6
7
8
8
ANT1
1 3-047-918-01 CABINET (REAR)(GRAY)
1 3-047-918-11 CABINET (REAR)(BROWN)
2 3-047-934-01 TERMINAL (+/-), BATTERY
3 9-911-815-02 CUSHION, CABINET
4 3-047-919-01 LID, BATTERY CASE(GRAY)
4 3-047-919-11 LID, BATTERY CASE(BROWN)
5 3-047-921-01 COVER (PRESET)(GRAY)
5 3-047-921-11 COVER (PRESET)(BROWN)
6 3-047-930-01 TERMINAL (+), BATTERY
7 3-047-932-01 TERMINAL (-), BATTERY
*8 3-546-152-02 CUSHION
ANT1 1-501-222-71 ANTENNA, TELESCOPIC (FM)
The components identified by mark 0
or dotted line with mark 0are critical
for safety.
Replace only with part number specified.

– 19 –
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
#8
#5 #5 #6
#5
#3
#3
#5
51
52 53 54
55
56
57
58
59
60
61
62
63 65 64
66
68
69
70
SP1
T401
5-2. FRONT CABINET SECTION
51 3-047-923-01 WOOD (C), SIDE(GRAY)
51 3-047-923-11 WOOD (C), SIDE(BROWN)
52 3-043-336-01 SHAFT (TUNING)
53 3-045-680-01 SPRING (TUNING)
54 3-047-931-01 KNOB (TUNING)
55 3-047-929-01 KNOB (CONTROL)
56 3-047-916-01 CABINET (FRONT)(GRAY)
56 3-047-916-11 CABINET (FRONT)(BROWN)
57 3-043-343-21 KNOB (BAND)
58 X-3379-581-1 NET ASSY (GRAY)
58 X-3379-582-1 NET ASSY (BROWN)
59 3-047-937-01 WOOD (B), SIDE(GRAY)
59 3-047-937-11 WOOD (B), SIDE(BROWN)
60 3-047-936-01 WOOD (A), SIDE(GRAY)
60 3-047-936-11 WOOD (A), SIDE(BROWN)
61 3-047-933-01 BUTTON (POWER)
62 3-220-209-01 SHEET (LIGHT GUIDE PLATE)
63 3-047-927-01 PLATE, LIGHT GUIDE
64 3-047-926-01 PLATE, TRANSPARENT
65 3-220-208-01 SHEET (TRANSPARENT PLATE)
66 3-047-928-01 BUTTON (PRESET)
*68 1-678-892-11 POWER BOARD
*69 1-678-893-11 AC IN BOARD
70 3-047-924-01 HOLDER
SP1 1-529-803-11 SPEAKER (10.3cm)
0T401 1-435-504-11 TRANSFORMER, POWER
The components identified by mark 0
or dotted line with mark 0are critical
for safety.
Replace only with part number specified.

– 20 –
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
101 3-047-925-01 HOLDER (LED)
*102 A-3683-227-A KEY BOARD,COMPLETE
103 3-043-330-01 CHASSIS
104 3-043-344-01 GEAR (BAND)
105 3-043-345-01 SLIDER (BAND)
106 3-043-350-01 GEAR (B), MIDWAY
107 3-043-349-01 GEAR (A), MIDWAY
108 3-043-721-01 SPRING (BAND)
*109 3-363-397-01 DRUM (B)
110 3-364-941-11 SCREW (+B) (2.6X5), NYLOK
111 3-363-366-11 SPRING, DRUM
112 3-048-207-01 RING (BAND)
113 3-043-341-01 GEAR, VOL
114 3-043-342-01 DRUM (A), VC
*115 A-3683-226-A MAIN BOARD,COMPLETE
116 3-043-346-01 HOLDER, FERRITE-ROD ANTENNA
117 3-220-210-01 CHASSIS, SUB
*118 1-678-894-11 AMPLIFIER BOARD
119 3-043-348-01 RACK (POINTER)
120 3-043-347-01 POINTER
5-3. CHASSIS SECTION
#6
#3
#2
#6
#6
#6
#7
#3
#3
120
101
102
103 104
105
106 107
108
110 109
111
112 113
114
115
116
117
118
119

– 21 –
NOTE :
• Due to standardization, replacements in the
parts list may be different from the parts
specified in the diagrams or the components
used on the set.
• -XX, -X mean standardized parts, so they
may have some difference from the original
one.
• RESISTORS
All resistors are in ohms
METAL : Metal-film resistor
METAL OXIDE :Metal oxide-film resistor
F : nonflammable
• Items marked “ * ”are not stocked since
they are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
• SEMICONDUCTORS
In each case, u : µ, for example :
uA.... : µA.... , uPA.... : µPA....
uPB.... : µPB.... , uPC.... : µPC....
uPD.... : µPD....
• CAPACITORS
uF : µF
• COILS
uH : µH
When indicating parts by reference num-
ber, please include the board.
The components identified by mark 0
or dotted line with mark 0are critical
for safety.
Replace only with part number specified.
SECTION 6
ELECTRICAL PARTS LIST
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
*1-678-893-11 AC IN BOARD
***********
0ACJ401 1-526-838-11 INLET, AC 2P(-AC IN)
**************************************************************
*1-678-894-11 AMPLIFIER BOARD
***************
< CAPACITOR >
C601 1-104-665-11 ELECT 100uF 20% 10V
C602 1-104-665-11 ELECT 100uF 20% 10V
C603 1-126-964-11 ELECT 10uF 20% 50V
C604 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C605 1-104-665-11 ELECT 100uF 20% 10V
C606 1-104-665-11 ELECT 100uF 20% 10V
C607 1-115-156-11 CERAMIC CHIP 1uF 10V
C608 1-126-929-11 ELECT 4700uF 20% 10V
C609 1-165-128-11 CERAMIC CHIP 0.22uF 16V
C610 1-165-128-11 CERAMIC CHIP 0.22uF 16V
C611 1-165-128-11 CERAMIC CHIP 0.22uF 16V
C612 1-165-128-11 CERAMIC CHIP 0.22uF 16V
< CONNECTOR >
*CN601 1-568-270-11 SOCKET, CONNECTOR 4P
*CN602 1-568-268-11 SOCKET, CONNECTOR 2P
< IC >
IC601 8-759-802-46 IC LA4550
< RESISTOR >
R601 1-216-813-11 METAL CHIP 220 5% 1/16W
R602 1-216-833-11 METAL CHIP 10K 5% 1/16W
R603 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R604 1-216-813-11 METAL CHIP 220 5% 1/16W
R605 1-216-837-11 METAL CHIP 22K 5% 1/16W
R606 1-216-789-11 METAL CHIP 2.2 5% 1/16W
R607 1-216-789-11 METAL CHIP 2.2 5% 1/16W
**************************************************************
*A-3683-227-A KEY BOARD, COMPLETE
********************
3-047-925-01 HOLDER (LED)
< CAPACITOR >
C301 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C302 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C303 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C304 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
< DIODE >
D301 8-719-080-08 LED SLP145B-51(TUNE)
D302 8-719-080-08 LED SLP145B-51(FM1)
D303 8-719-080-08 LED SLP145B-51(FM3)
D304 8-719-080-08 LED SLP145B-51(FM2)
< JUMPER >
JC301 1-216-296-91 SHORT 0
JC302 1-216-296-91 SHORT 0
JC303 1-216-864-11 METAL CHIP 0 5% 1/16W
< RESISTOR >
R301 1-216-827-11 METAL CHIP 3.3K 5% 1/16W
R302 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R303 1-216-821-11 METAL CHIP 1K 5% 1/16W
R304 1-216-821-11 METAL CHIP 1K 5% 1/16W
R305 1-216-821-11 METAL CHIP 1K 5% 1/16W
R306 1-216-821-11 METAL CHIP 1K 5% 1/16W
R307 1-216-809-11 METAL CHIP 100 5% 1/16W
< SWITCH >
SW301 1-692-444-11 SWITCH, KEY BOARD(FM1)
SW302 1-692-444-11 SWITCH, KEY BOARD(FM2)
SW303 1-692-444-11 SWITCH, KEY BOARD(FM3)
SW304 1-692-444-11 SWITCH, KEY BOARD(MANUAL)
**************************************************************
*A-3683-226-A MAIN BOARD, COMPLETE
*********************
3-043-346-01 HOLDER, FERRITE-ROD ANTENNA
3-220-210-01 CHASSIS, SUB
7-685-533-19 SCREW +BTP 2.6X6 TYPE2 N-S
AC IN AMPLIFIER
KEY MAIN

– 22 –
< BAND PASS FILTER >
BPF1 1-236-022-11 FILTER, BAND PASS
< CAPACITOR >
C1 1-164-357-11 CERAMIC CHIP 0.001uF 5% 50V
C2 1-162-975-11 CERAMIC CHIP 24PF 5% 50V
C3 1-164-357-11 CERAMIC CHIP 0.001uF 5% 50V
C4 1-164-185-11 CERAMIC CHIP 13PF 5% 50V
C5 1-162-959-11 CERAMIC CHIP 330PF 5% 50V
C6 1-162-955-11 CERAMIC CHIP 150PF 5% 50V
C7 1-102-949-00 CERAMIC 12PF 5% 50V
C8 1-102-949-00 CERAMIC 12PF 5% 50V
C9 1-136-355-11 FILM 330PF 5% 100V
C10 1-104-732-11 FILM 390PF 5% 100V
C11 1-136-682-11 FILM 0.0039uF 5% 100V
C12 1-109-982-11 CERAMIC CHIP 1uF 10% 10V
C13 1-162-936-11 CERAMIC CHIP 5PF 0.25PF 50V
C14 1-164-357-11 CERAMIC CHIP 0.001uF 5% 50V
C15 1-164-357-11 CERAMIC CHIP 0.001uF 5% 50V
C16 1-164-357-11 CERAMIC CHIP 0.001uF 5% 50V
C17 1-164-357-11 CERAMIC CHIP 0.001uF 5% 50V
C19 1-164-039-11 CERAMIC 3PF 5% 50V
C20 1-162-957-11 CERAMIC CHIP 220PF 5% 50V
C21 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C22 1-124-259-11 ELECT 4.7uF 20% 16V
C23 1-124-259-11 ELECT 4.7uF 20% 16V
C24 1-124-261-00 ELECT 10uF 20% 50V
C25 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V
C26 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C27 1-124-234-00 ELECT 22uF 20% 16V
C28 1-126-925-11 ELECT 470uF 20% 10V
C29 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C30 1-115-156-11 CERAMIC CHIP 1uF 10V
C31 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V
C32 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C35 1-162-932-11 CERAMIC CHIP 2PF 0.25PF 50V
C36 1-124-261-00 ELECT 10uF 20% 50V
C37 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C38 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C39 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C41 1-126-925-11 ELECT 470uF 20% 10V
C42 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V
C43 1-109-982-11 CERAMIC CHIP 1uF 10% 10V
C44 1-115-156-11 CERAMIC CHIP 1uF 10V
C45 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C101 1-128-111-11 ELECT 100uF 20% 25V
C103 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C104 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C105 1-124-584-00 ELECT 100uF 20% 10V
C106 1-115-156-11 CERAMIC CHIP 1uF 10V
C107 1-128-111-11 ELECT 100uF 20% 25V
C201 1-124-584-00 ELECT 100uF 20% 10V
C202 1-115-156-11 CERAMIC CHIP 1uF 10V
C203 1-162-921-11 CERAMIC CHIP 33PF 5% 50V
C204 1-162-920-11 CERAMIC CHIP 27PF 5% 50V
C205 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C206 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C207 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C208 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C209 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C501 1-164-489-11 CERAMIC CHIP 0.22uF 10% 16V
C503 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V
C504 1-109-982-11 CERAMIC CHIP 1uF 10% 10V
C506 1-109-982-11 CERAMIC CHIP 1uF 10% 10V
C507 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C508 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C509 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
< FILTER >
CF1 1-567-845-11 FILTER, CERAMIC
CF2 1-577-600-81 FILTER, CERAMIC
CF3 1-577-600-81 FILTER, CERAMIC
CF4 1-577-600-81 FILTER, CERAMIC
CF5 1-781-790-11 FILTER, AM CERAMIC
< CONNECTOR >
CN201 1-580-188-11 SOCKET, CONNECTOR 9P
< TRIMMER >
CT1 1-141-354-21 CAP, TRIMMER 10PF(MW TRACKING)
CT2 1-141-320-11 CAP, TRIMMER 45PF(LW TRACKING)
CT3 1-141-354-21 CAP, TRIMMER 10PF(SW TRACKING)
CT4 1-151-679-11 CAP, VAR(TUNING)(MW FREQUENCY
COVERAGE)
CT5 1-141-354-21 CAP, TRIMMER 10PF(SW FREQUENCY
COVERAGE)
CT6 1-141-320-11 CAP, TRIMMER 45PF(LW FREQUENCY
COVERAGE)
CT7 1-141-304-21 CAP, TRIMMER 10PF(FM TRACKING)
CT8 1-141-299-11 CAP, CERAMIC TRIMMER 5PF(FM FREQUENCY
COVERAGE)
< VARIABLE CAPACITOR >
CV1 1-151-679-11 CAP, VAR(TUNING)
< DIODE >
D1 8-719-800-76 DIODE 1SS226
D2 8-713-100-11 DIODE 1T362
D3 8-713-100-11 DIODE 1T362
D5 8-719-988-61 DIODE 1SS355TE-17
D6 8-719-988-61 DIODE 1SS355TE-17
D101 8-719-988-61 DIODE 1SS355TE-17
D201 8-719-988-61 DIODE 1SS355TE-17
D202 8-719-988-61 DIODE 1SS355TE-17
D203 8-719-988-61 DIODE 1SS355TE-17
< IC >
IC1 8-752-037-02 IC CXA1019S
IC101 8-759-448-77 IC RN5RY202A-TL
IC201 8-759-680-16 IC IC UPD62MC-744-5A4-E2
IC202 8-759-273-87 IC NJM2901V(TE2)
IC204 8-759-198-63 IC S-81230SG-QB-T1
IC205 8-759-523-03 IC TC74HC4066AFT(EL)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
MAIN

– 23 –
< JUMPER >
JC1 1-216-296-91 SHORT 0
JC2 1-216-296-91 SHORT 0
JC3 1-216-864-11 METAL CHIP 0 5% 1/16W
JC4 1-216-296-91 SHORT 0
JC6 1-216-864-11 METAL CHIP 0 5% 1/16W
JC7 1-216-864-11 METAL CHIP 0 5% 1/16W
JC8 1-216-296-91 SHORT 0
JC10 1-216-296-91 SHORT 0
JC11 1-216-296-91 SHORT 0
JC12 1-216-864-11 METAL CHIP 0 5% 1/16W
JC13 1-216-864-11 METAL CHIP 0 5% 1/16W
JC14 1-216-296-91 SHORT 0
JC15 1-216-864-11 METAL CHIP 0 5% 1/16W
JC16 1-216-864-11 METAL CHIP 0 5% 1/16W
JC17 1-216-296-91 SHORT 0
JC18 1-216-296-91 SHORT 0
JC19 1-216-296-91 SHORT 0
JC20 1-216-864-11 METAL CHIP 0 5% 1/16W
JC21 1-216-296-91 SHORT 0
JC22 1-216-296-91 SHORT 0
JC23 1-216-296-91 SHORT 0
JC24 1-216-864-11 METAL CHIP 0 5% 1/16W
JC25 1-216-864-11 METAL CHIP 0 5% 1/16W
JC26 1-216-296-91 SHORT 0
JC27 1-216-296-91 SHORT 0
JC28 1-216-864-11 METAL CHIP 0 5% 1/16W
JC29 1-216-864-11 METAL CHIP 0 5% 1/16W
JC30 1-216-864-11 METAL CHIP 0 5% 1/16W
JC31 1-216-296-91 SHORT 0
JC32 1-216-296-91 SHORT 0
JC33 1-216-864-11 METAL CHIP 0 5% 1/16W
< COIL >
L1 1-410-981-22 INDUCTOR CHIP 0.1uH
L2 1-754-133-11 ANTENNA, FERRITE-ROD (LW/MW TRACKING)
L3 1-402-538-11 SW COIL (ANT) (SW TRACKING)
L4 1-406-092-11 COIL, OSC (MW FREQUENCY COVERAGE)
L5 1-406-413-11 COIL, SW (OSC)(SW FREQUENCY COVERAGE)
L6 1-410-997-22 INDUCTOR CHIP 2.2uH
L7 1-428-290-11 COIL, AIR-CORE(FM TRACKING)
L8 1-428-229-11 COIL, AIR-CORE(FM TRACKING)
L9 1-419-767-11 COIL, AIR-CORE(FM FREQUENCY COVERAGE)
L10 1-414-406-11 INDUCTOR 220uH
L101 1-412-006-31 INDUCTOR CHIP 10uH
L102 1-410-335-11 INDUCTOR 150uH
< TRANSISTOR >
Q1 8-729-102-07 TRANSISTOR 2SC2223-F13
Q3 8-729-027-60 TRANSISTOR DTC144TKA-T146
Q4 8-729-027-60 TRANSISTOR DTC144TKA-T146
Q5 8-729-027-60 TRANSISTOR DTC144TKA-T146
Q6 8-729-027-60 TRANSISTOR DTC144TKA-T146
Q7 8-729-027-60 TRANSISTOR DTC144TKA-T146
Q8 8-729-027-60 TRANSISTOR DTC144TKA-T146
Q9 8-729-027-38 TRANSISTOR DTA144EKA-T146
Q10 8-729-142-46 TRANSISTOR 2SC2001-LK
Q101 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q102 8-729-800-71 TRANSISTOR 2SB815B7-TB
Q103 8-729-027-60 TRANSISTOR DTC144TKA-T146
Q201 8-729-027-60 TRANSISTOR DTC144TKA-T146
Q202 8-729-027-39 TRANSISTOR DTA144TKA-T146
Q203 8-729-027-39 TRANSISTOR DTA144TKA-T146
Q501 8-729-800-37 TRANSISTOR 2SD1048-X7
Q502 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q503 8-729-027-60 TRANSISTOR DTC144TKA-T146
Q504 8-729-120-28 TRANSISTOR 2SC1623-L5L6
< RESISTOR >
R1 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R2 1-216-842-11 METAL CHIP 56K 5% 1/16W
R3 1-216-845-11 METAL CHIP 100K 5% 1/16W
R4 1-216-845-11 METAL CHIP 100K 5% 1/16W
R5 1-216-845-11 METAL CHIP 100K 5% 1/16W
R6 1-216-845-11 METAL CHIP 100K 5% 1/16W
R8 1-216-841-11 METAL CHIP 47K 5% 1/16W
R9 1-216-825-11 METAL CHIP 2.2K 5% 1/16W
R10 1-216-841-11 METAL CHIP 47K 5% 1/16W
R11 1-247-879-11 CARBON 100K 5% 1/4W
R12 1-216-821-11 METAL CHIP 1K 5% 1/16W
R13 1-216-827-11 METAL CHIP 3.3K 5% 1/16W
R14 1-216-857-11 METAL CHIP 1M 5% 1/16W
R16 1-216-833-11 METAL CHIP 10K 5% 1/16W
R17 1-216-817-11 METAL CHIP 470 5% 1/16W
R18 1-216-833-11 METAL CHIP 10K 5% 1/16W
R19 1-216-837-11 METAL CHIP 22K 5% 1/16W
R20 1-216-837-11 METAL CHIP 22K 5% 1/16W
R21 1-216-864-11 METAL CHIP 0 5% 1/16W
R101 1-216-833-11 METAL CHIP 10K 5% 1/16W
R102 1-216-841-11 METAL CHIP 47K 5% 1/16W
R103 1-216-813-11 METAL CHIP 220 5% 1/16W
R104 1-216-789-11 METAL CHIP 2.2 5% 1/16W
R105 1-216-833-11 METAL CHIP 10K 5% 1/16W
R106 1-216-845-11 METAL CHIP 100K 5% 1/16W
R107 1-216-809-11 METAL CHIP 100 5% 1/16W
R201 1-216-809-11 METAL CHIP 100 5% 1/16W
R202 1-216-845-11 METAL CHIP 100K 5% 1/16W
R203 1-216-845-11 METAL CHIP 100K 5% 1/16W
R204 1-216-821-11 METAL CHIP 1K 5% 1/16W
R205 1-216-845-11 METAL CHIP 100K 5% 1/16W
R206 1-216-797-11 METAL CHIP 10 5% 1/16W
R207 1-216-849-11 METAL CHIP 220K 5% 1/16W
R208 1-216-845-11 METAL CHIP 100K 5% 1/16W
R209 1-216-857-11 METAL CHIP 1M 5% 1/16W
R210 1-216-857-11 METAL CHIP 1M 5% 1/16W
R211 1-216-857-11 METAL CHIP 1M 5% 1/16W
R212 1-216-857-11 METAL CHIP 1M 5% 1/16W
R213 1-216-809-11 METAL CHIP 100 5% 1/16W
R214 1-216-830-11 METAL CHIP 5.6K 5% 1/16W
R215 1-216-827-11 METAL CHIP 3.3K 5% 1/16W
R216 1-216-837-11 METAL CHIP 22K 5% 1/16W
R218 1-216-833-11 METAL CHIP 10K 5% 1/16W
R219 1-216-833-11 METAL CHIP 10K 5% 1/16W
R220 1-216-833-11 METAL CHIP 10K 5% 1/16W
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
MAIN

– 24 –
ICF-1000L
9-927-976-11 Sony Corporation
Audio Entertainment Group 2000G0244-1
Printed in Japan © 2000.7
Published by PE General Engineering Dept.
R221 1-216-833-11 METAL CHIP 10K 5% 1/16W
R501 1-216-821-11 METAL CHIP 1K 5% 1/16W
R502 1-216-833-11 METAL CHIP 10K 5% 1/16W
R503 1-216-833-11 METAL CHIP 10K 5% 1/16W
R505 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R506 1-216-844-11 METAL CHIP 82K 5% 1/16W
R507 1-216-833-11 METAL CHIP 10K 5% 1/16W
R508 1-216-833-11 METAL CHIP 10K 5% 1/16W
R509 1-216-833-11 METAL CHIP 10K 5% 1/16W
R510 1-216-817-11 METAL CHIP 470 5% 1/16W
R511 1-216-837-11 METAL CHIP 22K 5% 1/16W
R512 1-216-829-11 METAL CHIP 4.7K 5% 1/16W
R513 1-216-833-11 METAL CHIP 10K 5% 1/16W
R514 1-216-853-11 METAL CHIP 470K 5% 1/16W
R515 1-216-833-11 METAL CHIP 10K 5% 1/16W
< VARIABLE RESISTOR >
RV201 1-241-377-11 RES, VAR, CARBON 100K(FM3)
RV202 1-241-377-11 RES, VAR, CARBON 100K(FM1)
RV203 1-241-377-11 RES, VAR, CARBON 100K(FM2)
RV204 1-241-765-11 RES, ADJ, CARBON 22K(FM VT VOLTAGE)
RV205 1-223-621-11 RES, VAR, CARBON 100K(FM TUNING)
RV501 1-227-240-11 RES, VAR, CARBON 100K(TONE)
RV502 1-225-498-11 RES, VAR, CARBON 50K(VOLUME)
< SWITCH >
S1 1-571-172-21 SWITCH, SLIDE(BAND)
< TRANSFORMER >
T1 1-404-902-11 TRANSFORMER, IF (MW IF)
< VIBRATOR >
X201 1-579-452-11 OSCILLATOR, CERAMIC(3.68MHz)
**************************************************************
*1-678-892-11 POWER BOARD
*************
< CAPACITOR >
C401 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C402 1-126-927-11 ELECT 2200uF 20% 10V
C403 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C404 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C405 1-126-925-11 ELECT 470uF 20% 10V
C406 1-126-925-11 ELECT 470uF 20% 10V
C407 1-164-156-11 CERAMIC CHIP 0.1uF 25V
C408 1-164-156-11 CERAMIC CHIP 0.1uF 25V
< CONNECTOR >
CN401 1-568-269-11 SOCKET, CONNECTOR 3P
CN405 1-568-269-11 SOCKET, CONNECTOR 3P
< DIODE >
D401 8-719-031-85 DIODE 1N4002L
D402 8-719-031-85 DIODE 1N4002L
D403 8-719-031-85 DIODE 1N4002L
D404 8-719-031-85 DIODE 1N4002L
< JACK >
EPJ401 1-566-891-21 JACK (v)
< JUMPER >
JC402 1-216-296-91 SHORT 0
< COIL >
L401 1-410-294-11 INDUCTOR 38uH
< RESISTOR >
R401 1-216-821-11 METAL CHIP 1K 5% 1/16W
R402 1-216-805-11 METAL CHIP 47 5% 1/16W
R403 1-216-805-11 METAL CHIP 47 5% 1/16W
R404 1-216-809-11 METAL CHIP 100 5% 1/16W
R405 1-216-809-11 METAL CHIP 100 5% 1/16W
< SWITCH >
S401 1-571-042-11 SWITCH, PUSH (1 KEY)(OPERATION)
**************************************************************
MISCELLANEOUS
*************
SP1 1-529-803-11 SPEAKER (10.3cm)
ANT1 1-501-222-71 ANTENNA, TELESCOPIC (FM)
T401 1-435-504-11 TRANSFORMER, POWER
**************************************************************
ACCESSORIES & PACKING MATERIALS
*******************************
01-696-562-11 CORD, POWER (AEP)
01-751-115-11 CORD, POWER (UK)
3-049-016-11 MANUAL, INSTRUCTION(ENGLISH,FRENCH,
GERMAN,SPANISH,ITALIAN,DUTCH,SWEDISH,
PORTUGUESE,FINNISH,DANISH)
**************************************************************
**************
HARDWARE LIST
**************
#1 7-623-508-01 LUG, 3
#2 7-671-112-11 BALL, STEEL
#3 7-685-533-19 SCREW +BTP 2.6X6 TYPE2 N-S
#4 7-685-534-14 SCREW +BTP 2.6X8 TYPE2 N-S
#5 7-685-535-19 SCREW +BTP 2.6X10 TYPE2 N-S
#6 7-685-547-19 SCREW +BTP 3X10 TYPE2 N-S
#7 7-685-551-14 SCREW +BTP 3X20 TYPE2 N-S
#8 7-685-903-11 SCREW +PTPWH 3X6 (TYPE2)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
The components identified by mark !or dotted
line with mark !are critical for safety.
Replace only with part number specified.
MAIN POWER
