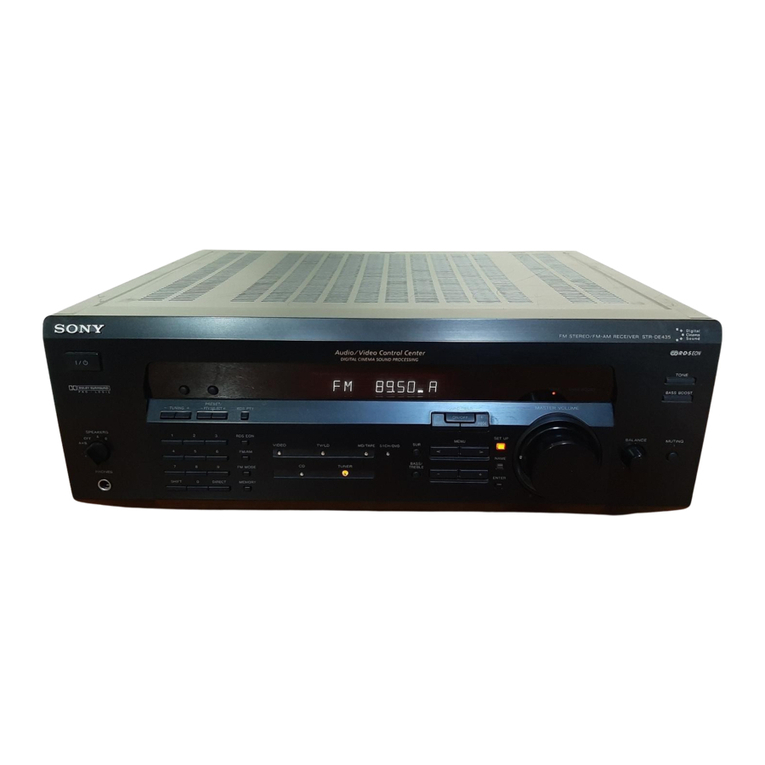

Sony STR-D511 User manual

___SIRDoI1/D611
SERVICE MANUAL
This photo is STR-D611.
mm ALi VIEG CONTROL CENTER
US Model
Canadian Model
UK Model
Australian Model
STR-D511/D611
AEP Model
STR-D611
SPECIFICATIONS
(For US and Canadian models)
PANU To [fom axel -l mney olen i fers] Ue) aT)
POWER OUTPUT AND TOTAL HARMONIC DISTORTION
With 8-ohm load, both channels driven,
from
40
-
20,000
Hz,
rated
70
watts
(STR-
D611) or 50 watts (STR-D511) per channel
minimum RMS power, with less than 0.8%
total harmonic distortion from 250
milliwatts to rated output.
SUR (surround) MODE (8 ohms, less than 0.8% total harmonic
distortion)
STR-D511
STR-D611
FRONT 80 W/CH
CENTER (only in the 20 W 10 W
DOLBY mode)
70 W/CH
REAR 10 W
Other Specifications
Amplifier section
Continuous RMS power output (8 ohms, at 40 Hz - 20 kHz less than
0.8% total harmonic distortion) (FRONT)
STR-D611: 75 W + 75 W
STR-D511: 55 W + 55 W
Dynamic power (at 1 kHz IHF) (FRONT)
STR-D611: 90 W + 90 W (8 ohms), 120 W + 120 W (4 ohms)
STR-D511: 80 W + 80 W (8 ohms), 110 W + 110 W (4 ohms)
Harmonic distortion
Less than 0.8% at rated output
Frequency response
PHONO: RIAA equalization curve 0.5 dB
CD
VIDEO 10 Hz - 50 kHz +1 dB
TAPE
Inputs
Sensitivity Impedance | S/N (weighting
network, input level)
PHONO =|2.5mv 50 kilohms | 74 dB .
72 dB* (A, 2.5 mV)
300 mV 50 kilohms [95 dB
80 dB* (A, 200 mV)
VIDEO 1, 2 | 200 mV
TAPE
Outputs
REC OUT, VIDEO 1 Voltage 200 mV
(AUDIO)
OUT
Impedance
10
kilohms
HEADPHONES
Accepts
low
and
high
impedance
headphones
*'78 IHF
Tone controls
BASS: +10 dB at 100 Hz
TREBLE: +8 cB at 10 kHz
+7 dB at 70 Hz
—Continued on next page—
FM STEREO/FM-AM RECEIVER
SON Y.

Video section
INPUT VIDEO1,2 1 | Vp-p 75ohms | Vp-p 75ohms 75 ohms
OUTPUT VIDEO 1 1 Vp-p 75 ohms
MONITOR
Tuner section
| CL tuner section AM tuner section
a range | 87.5 — 108 MHz 530 —- 1710 KHz
(10 kHz step)
531 - 1602 kHz
(9 kHz step)
Antenna 300 ohms,balanced External antenna
terminals 75 ohms, unbalanced _ | terminal
Sensitivity at | 18.3 dBf, 4.5 pV (mono)
50 dB quieting} 38.3 dBf, 45 pV (stereo)
Usable 11.2 dBf, 2 pV (IHF) Loop antenna:
sensitivity 500 pV (at 1,000 kHz)
hagas noise} 76 dB (mono) 54 dB (at 50 mV/m)
ratio 70 dB (stereo)
Harmonic 0.3% (mono), 0.5% a ig Ss 50 mvV/m,
distortion (stereo) at 1 kHz
oe 60 dB at 400 kHz 40 dB at 10 kHz
45 dB at 1 kHz
General
System
Frequency 30 Hz — 15 kHz
response ane
Tuner section: PLL quartz-locked digital
synthesizer system
Preamplifier section: low-noise NF type equalizer amp
Power amplifier section: pure complementary SEPP
Power requirements
120 V AC, 60 Hz
Power consumption
US model: 170 W (STR- D611)
140 W (STR-D511)
Canadian model: 180 W (STR-D611)
155 W (STR-D511)
AC outlet
One switched (120 W/1A Max.)
Dimensions
Approx. 430 x 135 x 295 mm (w/h/d)
(17x5%, x 11 */, inches)
including projecting parts and controls
Mass
Approx. 6.4 kg (14 Ib 20 oz) (STR-D611)
Approx. 5.9 kg (13 Ib 1 0z) (STR-D511)
Accessories supplied
FM wire antenna (1)
AM loop antenna (1)
Remote Commander RM-U232 (1)
Sony batteries SUM-3(NS) (2)
Design and specifications are subject to change without notice.
(For AEP, UK and Australian models)
Amplifier section
Continuous RMS power output (8 ohms, at 40 Hz - 20 kHz less than
0.8% total harmonic distortion) (FRONT)
STR-D611: 60 W + 60 W
STR-D511: 50 W + 50 W
Dynamic power (at 1 KHz IHF) (FRONT)
STR-D611: 80 W + 80 W (8 ohms), 110 W + 110 W (4 ohms)
STR-D511: 70 W + 70 W(8 ohms), 100 W + 100 W (4 ohms)
Harmonic distortion
Less than 0.8% at rated output
SUR (surround ) MODE (8 ohms, less than 0.8% total harmonic
distortion)
FRONT 75 W/CH 65 W/CH
CENTER (only in the 20 W 10 W
DOLBY mode)
Frequency response
PHONO: RIAA equalization curve +0.5 dB
CD
VIDEO | 10 Hz - 50 kHz +1 dB
TAPE
Inputs
Sensitivity Impedance | S/N (weighting
network, input level)
PHONO 2.5 mV 50 kilohms {74 dB
72 dB* (A, 2.5 mV)
joo |s00mv mV 50 kilohms |95 dB
80 dB* (A, 200 mV)
Sea 1,2 aa mV
TAPE
*'78 IHF
Outputs
REC OUT, VIDEO 1
(AUDIO) OUT
HEADPHONES
Tone controls
BASS: +10 dB at 100 Hz
TREBLE: +8 GB at 10 kHz
Muting
-20 dB
DBFB
+7 dB at 70 Hz
Voltage 200 mV
Impedance 10 kilohms
Accepts low and high impedance
headphones
Video section
INPUT VIDEO1,2 1 Vp-p 75 ohms
OUTPUT VIDEO 1 1 Vp-p 75 ohms
MONITOR

87.5 — 108 MHz 531 — 1,602 kHz
50 dB quieting] ohms (mono)
Usable 11.2 dBf, 1 pV (IHF) Loop antenna:
sensitivity 75 ohms
Harmonic 0.3% (mono), 0.5% 0.5% (at 50 mV/m,
distortion (stereo) at 1.kHz
System
Preamplifier section: low-noise NF type equalizer amp
220—230V AC, 50/60Hz (for AEP model)
Power consumption
In standby condition: 5 W
Dimensions
including projecting parts and controls
Approx. 6.4 kg (14 lb 2 oz) (STR-D511)
AM loop antenna (1)
Tuner section
Antenna 75 ohms, External antenna
terminals terminal
38.3 dBf, 22.5 pV, 75
500 pV (at 1,000 kHz)
400 Hz)
Frequency 30 Hz — 15 kHz
response *}°dB
Tuner section: PLL quartz-locked digital synthesizer
Power amplifier section: pure complementary SEPP
240V AC, 50/60Hz (for UK model)
160 W (STR-D611)
AC outlet
Approx. 430 x 135 x 295 mm (w/h/d)
Mass
Accessories supplied
Remote Commander RM-U232 (1)
Fane secon
unbalanced
Sensitivity at | 18.3 dBf, 2.25 pV, 75
ohms (stereo)
Signal-to-noise} 70 dB (mono) 54 dB (at 50 mV/m)
ratio 66 dB (stereo)
Selectivity 60 GB at 400 kHz 30 dB at 9 kHz
General
system
Power requirements
240V AC, 50Hz (for Australian model)
135 W (STR-D511)
One switched (100 W Max.)
(17x5%, x 11 %/, inches)
Approx. 6.9 kg (15 Ib 4 0z) (STR-D611)
FM wire antenna (1)
Sony batteries SUM-3(NS) (2)
Design and specifications are subject to change without notice.
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK A OR DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.
SAFETY CHECK-OUT (US Model)
After correcting the original service problem,
perform the following safety check before releasing
the set to the customer:
Check the antenna terminals, metal trim, ‘‘metallized”’
knobs, screws, and all other exposed metal parts for
AC leakage. Check leakage as described below.
LEAKAGE TEST
The AC leakage from any exposed metal part to
earth ground and from all exposed metal parts to any
exposed metal part having a return to chassis, must
not exceed 0.5mA (500 microampers). Leakage
current can be measured by any one of three
methods.
1. A commercial leakage tester, such as the
Simpson 229 or RCA WT-540A. Follow the
manufacturers’ instructions to use these instru-
ments.
2. <A battery-operated AC milliammeter. The Data
Precision 245 digital multimeter is suitable for
this job.
3. Measuring the voltage drop across a resistor by
means of a VOM or battery-operated AC volt-
meter. The “limit” indication is 0.75 V, so
analog meters must have an accurate low-
voltage scale. The Simpson 250 and Sanwa
SH-63Trd are examples of a passive VOM that
is suitable. Nearly all battery operated digital
multimeters that have a 2V AC range are
suitable. (See Fig. A)
To Exposed Metal
Parts on Set
AC
voltmeter
as (0.75 V)
= Earth Ground
Fig. A. Using an AC voltmeter to check AC leakage.
ATTENTION AU COMPOSANT AYANT RAPPORT
A LA SECURITE!
LES COMPOSANTS IDENTIFIES PAR UNE MARQUE /\
SUR LES DIAGRAMMES SCHEMATIQUES ET LA LISTE
DES PIECES SONT CRITIQUES POUR LA SECURITE
DE FONCTIONNEMENT. NE REMPLACER CES COM-
POSANTS QUE PAR DES PIECES SONY DONT LES
NUMEROS SONT DONNES DANS CE MANUEL OU
DANS LES SUPPLEMENTS PUBLIES PAR SONY.

MODEL IDENTIFICATION
—Specification Label—
STR-D511
STR-D611
SONY MODELN.LZZZ
FM STEREO/FM-AM RECEIVER
US, Canadian model: AC 120V 60Hz
AEP model : AC 220—230V 50/60Hz
UK model : AC 240V 50/60Hz
Australian model : AC 240V 50Hz
TABLE OF CONTENTS
Section Title
1.
e Identifying the Parts and Controls
2.
2-1.
2-2.
2-3.
2-4,
2-5.
2-6.
2-7.
3.
3-1.
3-2.
A.
GENERAL
DIAGRAMS
Circuit Boards Location .................
Bloek Diasram scone he kawes cones iuwneeaa
Printed Wiring Boards—Main Section— ..
Schematic Diagram—Main Section— ......
Schematic Diagram—Display Section—....
Printed Wiring Boards—Display Section—
Semiconductor Lead Layouts..............
EXPLODED VIEWS
Front Panel Section ...........00ee eee eeee
Chassis Section ......... cc cecee cee eeeeee
ELECTRICAL PARTS LIST ..............

oO
_ —
Ze}
@
~~
Oo © _
~
x ®
2
Cc
2 ww
[S) @
”
BL
<=
ed
