Sony PFV-L10 User manual

INTERFACE UNIT
PFV-L10
INSTALLATION MANUAL
2nd Edition (Revised 1)
Serial No. 17001 and Higher

!WARNING
This manual is intended for qualified service personnel only.
To reduce the risk of electric shock, fire or injury, do not perform any servicing other than that
contained in the operating instructions unless you are qualified to do so. Refer all servicing to
qualified service personnel.
!WARNUNG
Die Anleitung ist nur für qualifiziertes Fachpersonal bestimmt.
Alle Wartungsarbeiten dürfen nur von qualifiziertem Fachpersonal ausgeführt werden. Um die
Gefahr eines elektrischen Schlages, Feuergefahr und Verletzungen zu vermeiden, sind bei
Wartungsarbeiten strikt die Angaben in der Anleitung zu befolgen.Andere als die angegeben
Wartungsarbeiten dürfen nur von Personen ausgeführt werden, die eine spezielle Befähigung
dazu besitzen.
!AVERTISSEMENT
Ce manual est destiné uniquement aux personnes compétentes en charge de l’entretien.Afin
de réduire les risques de décharge électrique, d’incendie ou de blessure n’effectuer que les
réparations indiquées dans le mode d’emploi à moins d’être qualifié pour en effectuer d’autres.
Pour toute réparation faire appel à une personne compétente uniquement.
PFV-L10
5. Install the equipment while taking the operating
temperature of the equipment into consideration
For the operating temperature of the equipment, refer
to the specifications of the Operation Manual.
6. When performing the installation, keep the rear of
the unit 10 cm (4 inches) or more away from walls
in order to obtain proper exhaust and radiation of
heat.
For the U.S.A.
Attention-when the product is installed in Rack:
1. Prevention against overloading of branch circuit
When this product is installed in a rack and is
supplied power from an outlet on the rack, please
make sure that the rack does not overload the supply
circuit.
2. Providing protective earth
When this product is installed in a rack and is
supplied power from an outlet on the rack, please
confirm that the outlet is provided with a suitable
protective earth connection.
3. Internal air ambient temperature of the rack
When this product is installed in a rack, please make
sure that the internal air ambient temperature of the
rack is within the specified limit of this product.
4. Prevention against achieving hazardous
condition due to uneven mechanical loading
When this product is installed in a rack, please make
sure that the rack does not achieve hazardous
condition due to uneven mechanical loading.

1 (E)
PFV-L10
Table of Contents
Manual Structure
Purpose of this manual ......................................................................................... 3(E)
Contents ................................................................................................................ 3(E)
Related manuals.................................................................................................... 4(E)
1. Installation
1-1. Installation Procedure.............................................................................1-1(E)
1-2. Operating Environment ..........................................................................1-1(E)
1-3. Power Supply .........................................................................................1-2(E)
1-3-1. Power Supply Specifications.................................................1-2(E)
1-3-2. Recommended Power Cord...................................................1-2(E)
1-4. Installation Space ...................................................................................1-3(E)
1-5. Installing Optional Board .......................................................................1-4(E)
1-6. Rack Mounting.......................................................................................1-6(E)
1-6-1. Notes on Rack Mounting ......................................................1-6(E)
1-6-2. Rack Mounting Procedure.....................................................1-7(E)
1-7. Matching Connector...............................................................................1-8(E)
1-8. Signal Inputs/Outputs.............................................................................1-8(E)
1-9. Optional Accessories..............................................................................1-8(E)

3 (E)
PFV-L10
Purpose of this manual This manual is the installation manual of Interface Unit PFV-L10.
This manual is intended for use by trained system and service engineers, and
describes the information for installation of the unit.
Contents This manual is organized by following sections.
Section 1 Installation
1-1. Installation Procedure
This section explains the installation procedure with a flowchart.
1-2. Operating Environment
This section describes the operating environment such as operating temperature/
humidity, and mass of the unit.
1-3. Power Supply
This section describes the power supply, recommended power cord, and the
notes for power supply.
1-4. Installation Space
This section describes the dimensions of the unit.
1-5. Installing Optional Board
This section explains the installation procedure of the optional board.
1-6. Rack Mounting
This section explains the rack mounting procedure of the unit in the 19-inch
standard rack.
1-7. Matching Connector
This section describes the type of connector at the rear panel and the matching
connector.
1-8. Signal Inputs/Outputs
This section describes the connector pin assignments at the rear panel.
1-9. Optional Accessories
This section describes the optional boards and rack mount kit.
Manual Structure

4 (E) PFV-L10
Related manuals The following manuals are prepared for PFV-L10.
• Operation Manual (Supplied with PFV-L10)
This manual describes the notes on operating, the locations and functions of parts,
and controls of PFV-L10.
• Maintenance Manual (Available on request)
This manual describes the information for periodic maintenance and detailed
service.
If this manual is required, please contact your local Sony Sales Office/Service
Center.

1-1 (E)
PFV-L10
Section 1
Installation
End
Start
Determining the Location of Installation
1-2. Operating Environment
1-3. Power Supply
1-4. Installation Space
Installing the Optional Board
1-5. Installing Optional Board
1-6. Rack Mounting
Connection
Rack Mounting
1-1. Installation Procedure

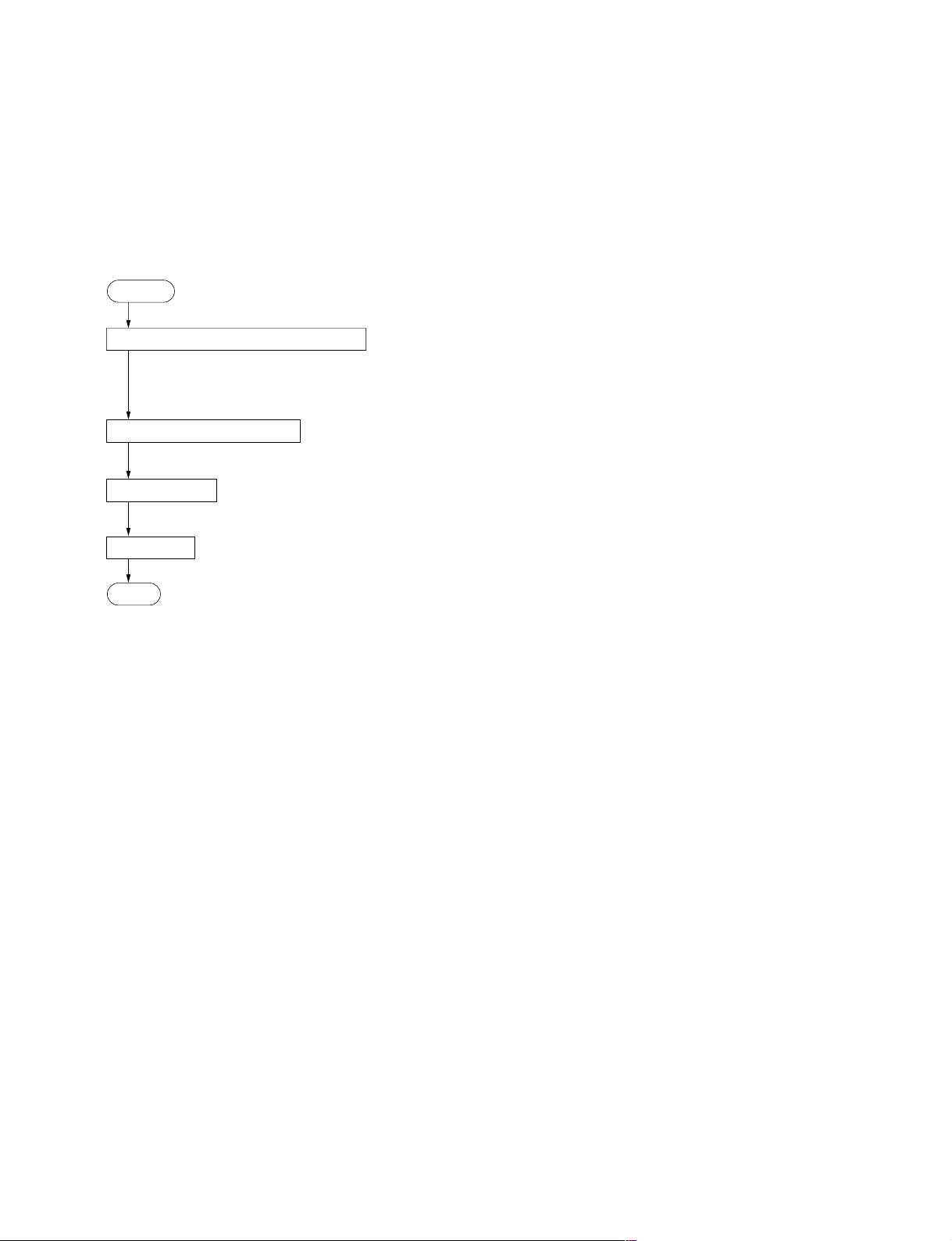

The installation procedure of PFV-L10 is as shown in the
following flowchart.
Refer to the each item in this manual for details.
1-2. Operating Environment
Operating temperature 5 dC to 40 dC
Performance temperature 10 dC to 35 dC
Humidity 10 to 90 % (No condensation)
Mass: Approx. 7 kg
(Without the optional board)
To prevent overheating of PFV-L10, ensure that there is
good air circulation around the unit.
n
Install in a stable location.
Installation on unstable or tilting surface may cause the
unit fall off, resulting in injury.

PFV-L10
1-2 (E)
AC Inlet
(Main unit)
1
AC Inlet
(Main unit)
2

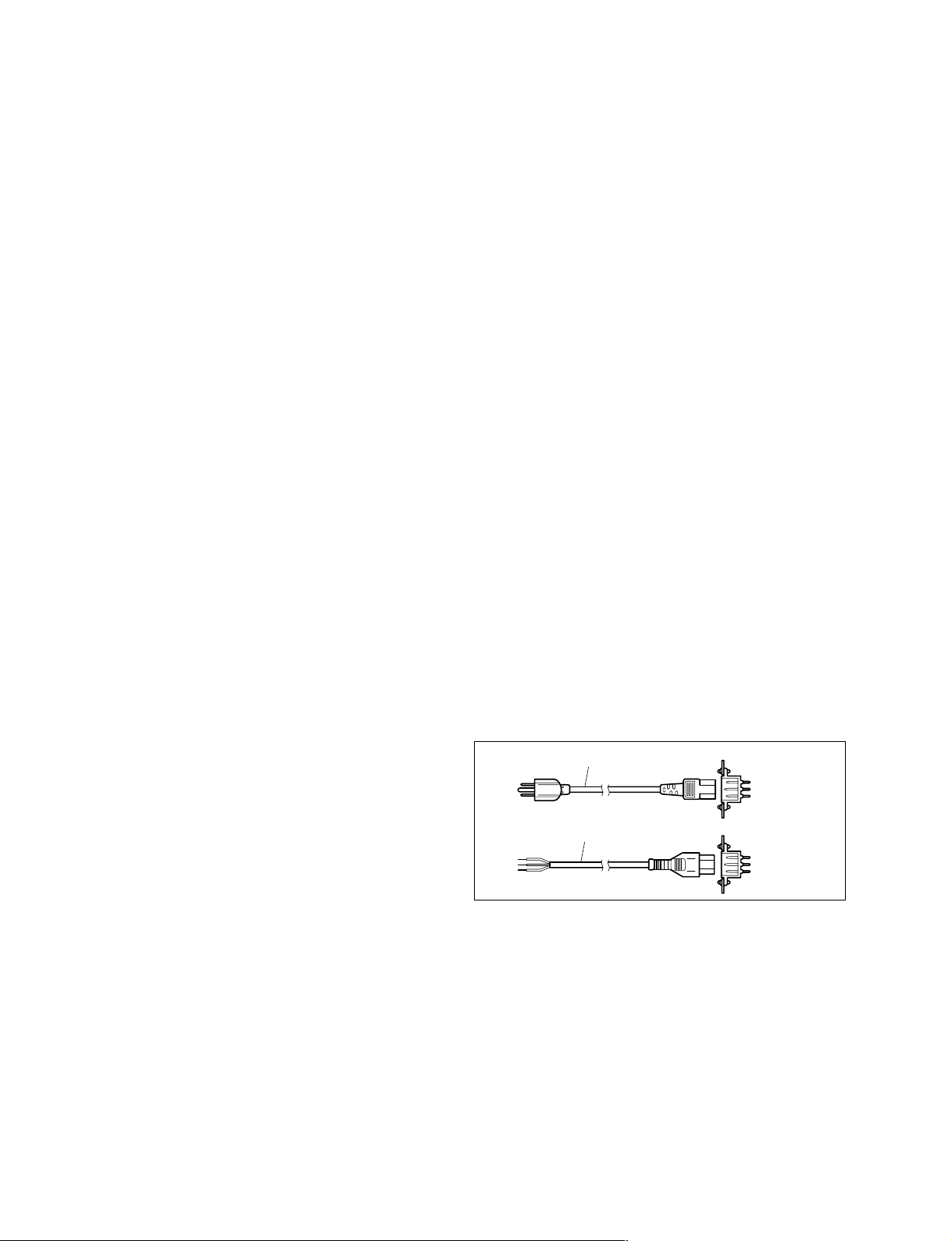

1-3-2. Recommended Power Cord
This unit does not come with a power cord.
To get a power cord, please contact your local Sony Sales
Office/Service Center.
w
.Use the approved Power Cord (3-core mains lead)/
Appliance Connector/Plug with earthing-contacts that
conforms to the safety regulations of each country if
applicable.
.Use the Power Cord (3-core mains lead)/Appliance
Connector/Plug conforming to the proper ratings (Volt-
age, Ampere).
If you have questions on the use of the above Power Cord/
Appliance Connector/Plug, please contact your local Sony
Sales Office/Service Center.
w
.Never use an injured power cord.
For customers in the U.S.A. and Canada
Required Part
1Power cord, 125 V 10 A (2.4 m) : !1-557-377-11
For customers in the United Kingdom
Required Part
2Power cord, 250 V 10 A (2.4 m) : !1-782-929-21
If the unit is used in the area except above, please contact
your local Sony Sales Office/Service Center.
1-3. Power Supply
1-3-1. Power Supply Specifications
Power voltage AC 100 V to 240 V
Power frequency 50 Hz or 60 Hz
Power consumption Max. 13 A, +5 V/DC
(With the optional boards installed)
Rush current AC 120 V IN : 20 A
AC 240 V IN : 55 A
n
AC power supply is required a capacity which is commen-
surate with rush current.
If the capacity of the AC power supply is not enough, the
breaker of AC power of a supply side may operate or this
unit may not operate normally.
1-3. Power Supply

1-3 (E)
PFV-L10
1-4. Installation Space
n
Do not block the ventilation holes of the unit.
Both of the front and rear sides must be at least 20 cm away from the walls for ventilation and mainte-
nance.

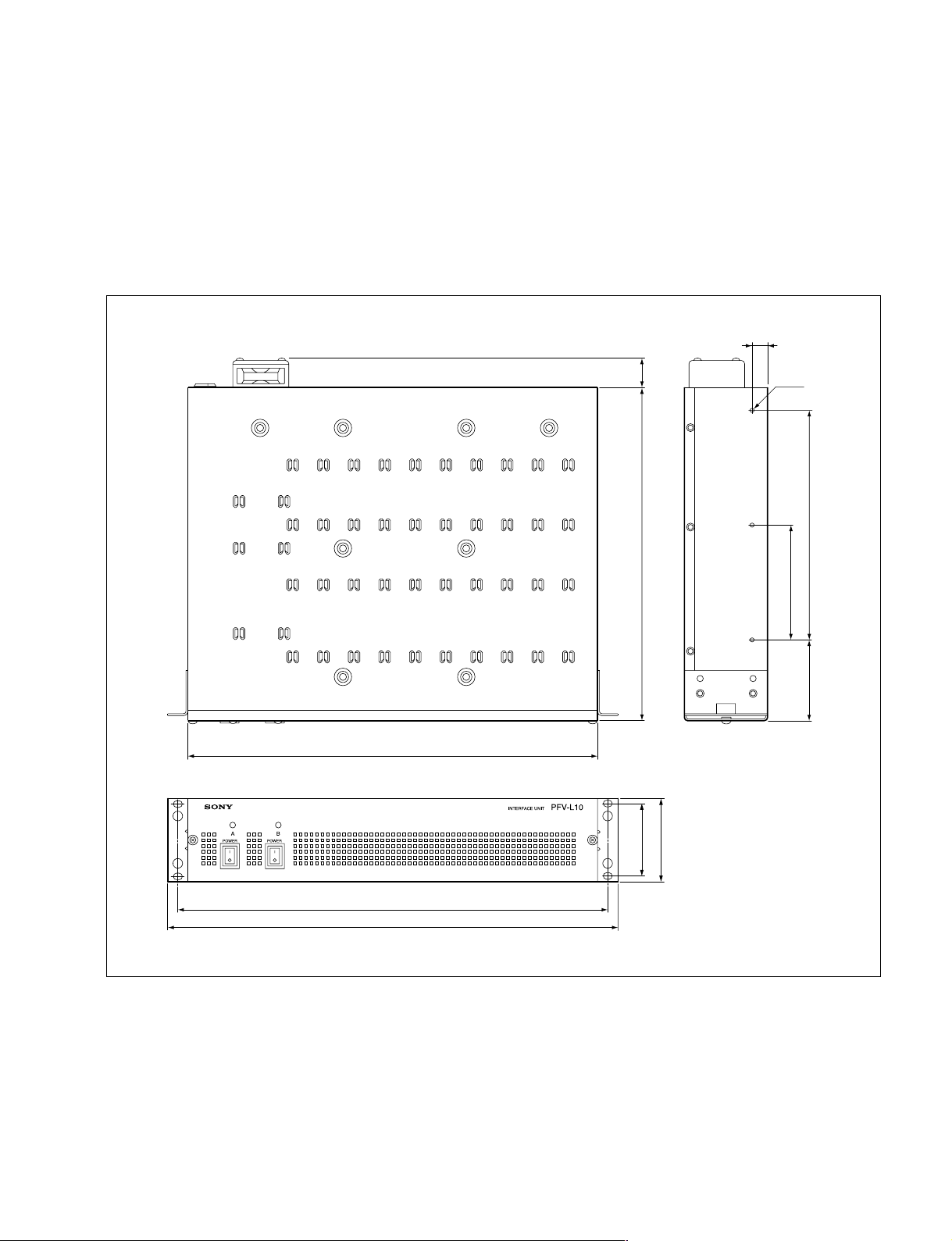

The outer dimensions of PFV-L10 are as shown here:
1-4. Installation Space
15.3
3-M4
76.2 353.2
91.7 231
115.5
31
88 (2U)
465
440
482
Unit: mm

PFV-L10
1-4 (E)

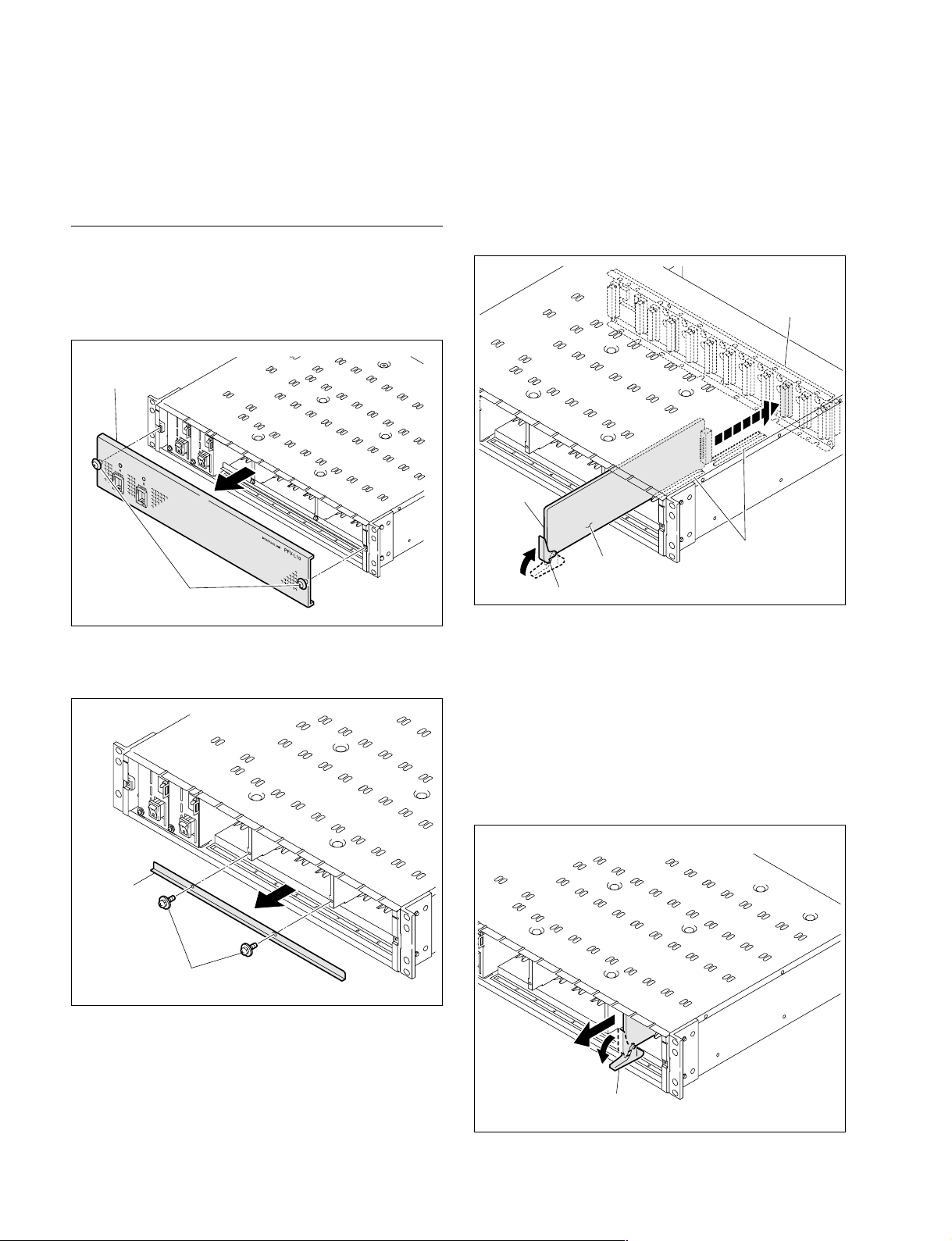

1-5. Installing Optional Board
Board retainer
PSW 3x6
MB-862 board
1
Side A
Board lever
Board guide rails
Main board
2
Board lever
Screws
Front panel
4. Insert the optional board along the board guide rails
with the board lever turned in the direction of the
arrow 1, securely connect it to the MB-862 board by
pushing.
5. Stick the slot label supplied with the optional board
onto the board lever.
6. Reinstall the board retainer.
7. Reinstall the front panel.
n
When removing the main board, turn the board lever in the
direction of the arrow 2, and pull out the board to ward
you.
1-5. Installing Optional Board
The optional board can be installed in any empty slot of
PFV-L10.
Installing Main Board (Front side)
1. Turn off the power switches A and B of PFV-L10.
2. Remove the front panel after loosening the two screws
on the panel.
3. After removing the two screws, remove the board
retainer.

1-5 (E)
PFV-L10

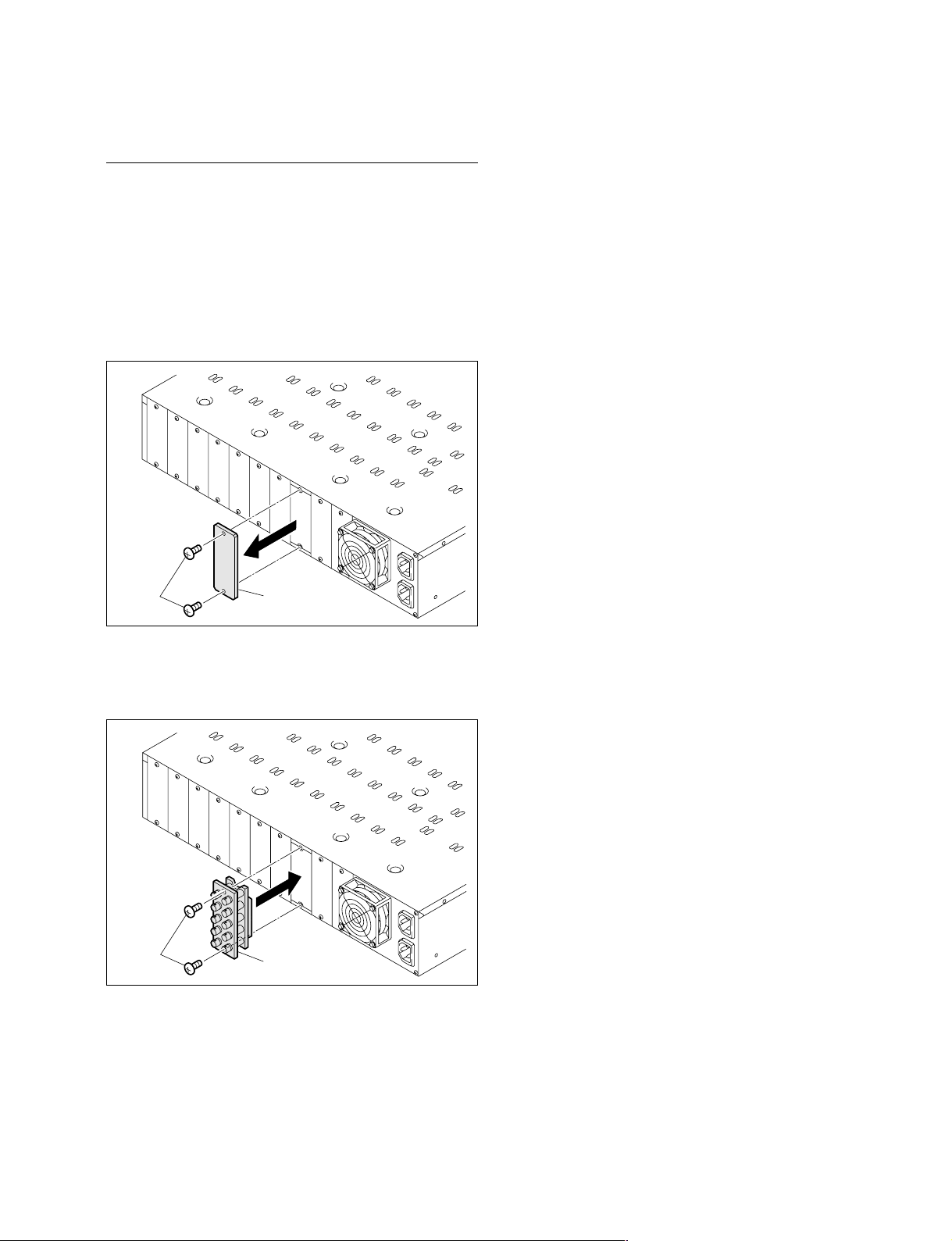

Installing Connector Panel (Rear side)
The connector panel must be installed to the slot which
contains the main board.
1. After removing the two screws, remove the blank
panel of the slot which contains the main board.
n
Keep the blank panel which is removed.
2. Connect the connector panel to the MB-862 board.
3. Secure the connector panel with the two screws
securing the blank panel.
n
Do not open the slot for an air-cooled effect of this unit.
Attach the blank panel to a empty slot.
B 2.6x4Blank panel
B 2.6x4Connector panel
1-5. Installing Optional Board

PFV-L10
1-6 (E)
1-6. Rack Mounting
1-6. Rack Mounting
PFV-L10 can be mounted on a 19-inch standard rack for use.
Mount PFV-L10 on the rack properly in the procedure below using a specified rack mounting kit.
Specified rack mounting kit: RMM-10
n
PFV-L10 may not be able to be mounted on a 19-inch standard rack using a rack mounting kit other than
the specified one.
Components of RMM-10
.Rack brackets .................................................................2 pieces
.Rack mounting adaptor (right) .......................................1 piece
[Including two screws (B 4x6: 7-682-560-09)]
.Rack mounting adaptor (left) .........................................1 piece
[Including two screws (B 4x6: 7-682-560-09)]
.Rack bracket fixing screws (B 4x6: 7-682-560-09) ......6 pieces
.Adaptor fixing screws (B 4x10: 7-682-560-10) ............6 pieces
Required other parts
To mount the unit on the rack, the following parts are required.
.Screws (RK 5x16: 7-682-378-04) .................................4 pieces
.Ornamental washers (2-297-913-01) .............................4 pieces
1-6-1. Notes on Rack Mounting
w
.Fix the rack on the horizontal and firm floor with bolts to prevent it from turning over or moving.
If the rack overturn due to the weight of the unit, this may cause a death or serious injury.
.Use the specified rack mounting kit.
If not, the unit may fall because of insufficient strength. This causes an in jury.
.After rack mounting, be sure to tighten the screws of the rack angle and fix this unit to the rack.
If not, this unit may slide and fall from the rack. This causes an injury.
c
Attention when this unit is installed in the rack:
.Mount the unit with two or more persons.
.Be careful not to put your hand or finger in the rack mount rail.
.Install in a stable posture.
n
Install a ventiloting fan in the rack to prevent the increase in the temperature inside a rack when multiple
units are put in one rack.

1-7 (E)
PFV-L10
RK 5x16
RK 5x16
Ornamental washer
Ornamental washer
1-6-2. Rack Mounting Procedure
Explains the procedure for rack mounting by Rack Mount
Kit RMM-10.
n
Fasten the screws at the tightening torque below.
Tightening torque: 120 x10_2N.m {12.2 kgf.cm}
1. Attach the rack brackets in the side panels of the unit
with the specified six screws.
n
Be sure to use B4x6 as a screw.
2. Loosen the screws at the rear of the each adaptor,
before adjusting each adaptor length to the rack depth.
(Following figure is case of left side.)
n
The maximum depth of an adaptor is 750 mm.
The minimum depth of an adaptor is 595 mm.
3. Firmly lay the right and left adaptors in the rack with
the specified six screws.
(Following figure is case of left side.)
4. Fasten the length adjustment screws which are loos-
ened in step 2.
5. Align the crook of the each rack bracket on the side
panels of the unit with the rail, then slide the unit
backward.
n
Each rack bracket covers the rails as shown in the
figure below.
6. Fix the unit to the rack with the specified screws and
ornamental washers.
1-6. Rack Mounting
B 4x6
B 4x6
Rack bracket
Rack bracket
B 4x10
2U
31.75
31.75
B 4x10
Front
Rear
Rack bracket
Rail
Rack bracket
Rail
Rail portion
B 4x6
(Length adjustment
screws)

PFV-L10
1-8 (E)
1-7. Matching Connector
When external cables are connected to the STATUS OUT connector on the connector panel during
installation and maintenance, the hardware listed below (or the equivalents) must be used at the end of
cable.
PFV-L10 Side Connector Matching Connector
Print on Panel Connector Type Connector Type Sony Part Number
STATUS OUT D-sub 15-pin, FEMALE D-sub 15-pin, MALE 1-563-376-11 (Shell)
1-566-355-11 (Plug) *1
*1 : This plug requires the following solderless plug contact:
Using cables AWG#18 through #22 : 1-566-493-21
AWG#22 through #24 : 1-564-774-11
AWG#24 through #28 : 1-567-775-11

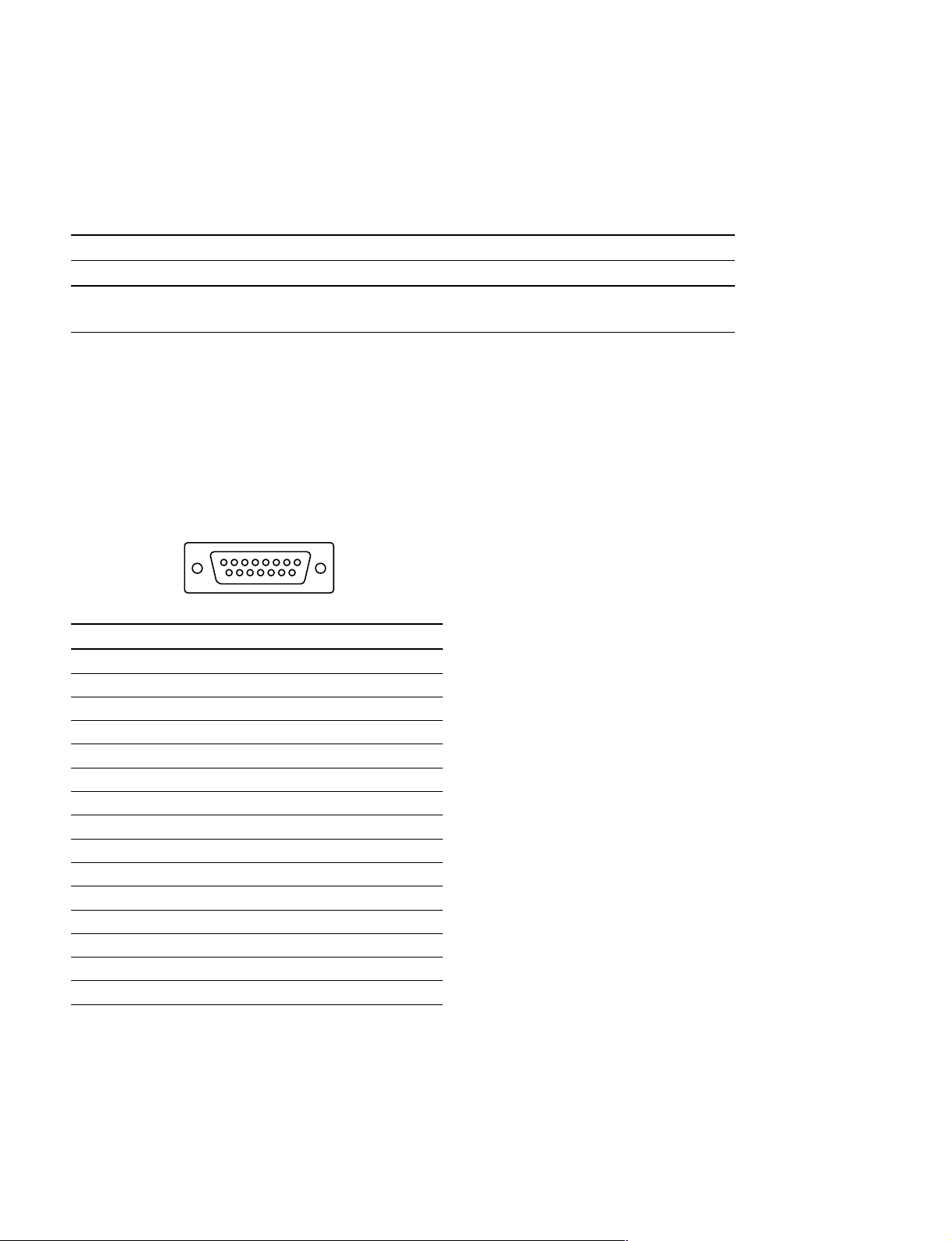

1-8. Signal Inputs/Outputs
The input and output signals of the connectors on the connector panel are as shown here:
STATUS OUTPUT (D-sub 15-pin, FEMALE)
Pin No. I/O Signal
1 OUT DIAG 1
2 OUT DIAG 2
3 OUT DIAG 3
4 OUT DIAG 4
5 OUT DIAG 5
6 OUT DIAG 6
7 OUT DIAG 7
8 OUT DIAG 8
9 OUT DIAG 9
10 OUT DIAG PS B
11 OUT DIAG PS A
12 OUT FAN STOP
13 OUT OVER LOAD
14 OUT DIAG 10
15 _GND
1-9. Optional Accessories
.Optional Board BKPF-Lxxx series
Refer to the operation manual supplied with the unit for the details.
.Rack Mount Kit RMM-10
1-7. Matching Connector
1-8. Signal Inputs/Outputs
1-9. Optional Accessories
81
15 9
< External view >

The material contained in this manual consists of
information that is the property of Sony Corporation and
is intended solely for use by the purchasers of the
equipment described in this manual.
Sony Corporation expressly prohibits the duplication of
any portion of this manual or the use thereof for any
purpose other than the operation or maintenance of the
equipment described in this manual without the express
written permission of Sony Corporation.
Le matériel contenu dans ce manuel consiste en
informations qui sont la propriété de Sony Corporation et
sont destinées exclusivement à l’usage des acquéreurs
de l’équipement décrit dans ce manuel.
Sony Corporation interdit formellement la copie de
quelque partie que ce soit de ce manuel ou son emploi
pour tout autre but que des opérations ou entretiens de
l’équipement à moins d’une permission écrite de Sony
Corporation.
Das in dieser Anleitung enthaltene Material besteht aus
Informationen, die Eigentum der Sony Corporation sind,
und ausschließlich zum Gebrauch durch den Käufer der
in dieser Anleitung beschriebenen Ausrüstung bestimmt
sind.
Die Sony Corporation untersagt ausdrücklich die
Vervielfältigung jeglicher Teile dieser Anleitung oder den
Gebrauch derselben für irgendeinen anderen Zweck als
die Bedienung oder Wartung der in dieser Anleitung
beschriebenen Ausrüstung ohne ausdrückliche
schriftliche Erlaubnis der Sony Corporation.
PFV-L10

Printed in Japan
Sony Corporation 2004. 12 22
B&P Company ©2002
PFV-L10 (SY) J, E
3-202-581-12
