Sony HT-S350 User manual

Sony Video & Sound Products Inc.
SERVICE MANUAL
Conditions of Use:
(1) Please use this information only for the purpose of performing repair, maintenance and/or configuration services of the Sony products (hereinafter the “Repair services”) under the ser-
vice agreement entered into with the Sony group company (hereinafter the “Service agreement”). Using this information for any purpose other than the purpose described foregoing is
forbidden.
(2) Only the Authorized Servicer’s officers, employees or subcontractors (including their officers and employees) whose duties justify a need-to-know and who have agreed to hold
confidential this information (collectively hereinafter the “Permitted users”) are permitted to access and use this information. To disclose or disseminate to any person other than the
Permitted users is forbidden.
(3) Destroy or erase any and all portion of this information promptly in an irrecoverable and secure fashion after achieving the purpose described in Section (1) above.
(4) Do not copy, replicate, reproduce, alter, translate, transmit, sell, lease, or distribute this information in whole or in part without the prior written permission of the author.
(Notwithstanding foregoing, it is permitted to copy and distribute this information to the Permitted users.)
(5) Please notify immediately any leakage, loss, theft, misappropriation, or other misuse of this information by e-mail to the following address:
[email protected].com
(6) In addition to the above, the terms and conditions of the Service agreement shall be applied to using this information.
Revision of Information:
This information may be changed or updated at any time without any prior notice. Please confirm that this information is up-to-date before using it.
Sony CONFIDENTIAL
For Authorized Servicer
9-896-575-01
2019B33-1
© 2019.02
HT-S350/SD35
SA-S350/SD35
Note:
Be sure to keep your PC used for service and
checking of this unit always updated with the
latest version of your anti-virus software.
In case a virus affected unit was found during
service, contact your Service Headquarters.
SYSSET
2019/02/1301:27:25(GMT+09:00)

SERVICE MANUAL
Sony CONFIDENTIAL
For Authorized Servicer
SPECIFICATIONS
HT-S350/SD35
SOUND BAR
SA-S350/SD35
ACTIVE SPEAKER SYSTEM
US Model
AEP Model
UK Model
HT-S350/SD35/SA-S350/SD35
Canadian Model
HT-S350/SA-S350
Ver. 1.0 2019.02
HT-S350/SD35
SA-S350/SD35
• All of the units included in the HT-S350 (SA-
S350/SA-WS350/Remote control) or HT-SD35
(SA-SD35/SA-WSD35/Remote control) are re-
quired to confirming operation of this unit. Check
in advance that you have all of the units.
COMPONENT MODEL NAME
HT-S350 HT-SD35
Bar Speaker (Active Speaker System) SA-S350 SA-SD35
Subwoofer (Active Subwoofer) SA-WS350 SA-WSD35
• Please refer to service manual separately issued for Subwoofer.
Photo: SA-S350
Amplifier section
U.S. models:
POWER OUTPUT AND TOTAL HARMONIC
DISTORTION:
(FTC)
Front L + Front R:
With 4 ohms loads, both channels
driven, from 200 - 20,000 Hz; rated
18 W per channel minimum RMS
power, with no more than 1% total
harmonic distortion from 250 mW to
rated output.
POWER OUTPUT (reference)
Front L/Front R speaker: 85 W (per
channel at 4 ohms, 1 kHz)
CND, AEP, UK models:
POWER OUTPUT (rated)
Front L + Front R: 45 W + 45 W (at
4 ohms, 1 kHz, 1% THD)
POWER OUTPUT (reference)
Front L/Front R speaker: 85 W (per
channel at 4 ohms, 1 kHz)
Inputs
TV IN (OPTICAL)
Outputs
HDMI OUT (TV (ARC))
Transmission range (A2DP)
20 Hz - 20,000 Hz (Sampling frequency
32 kHz, 44.1 kHz, 48 kHz)
1) The actual range will vary depending on
factors such as obstacles between
devices, magnetic fields around a
microwave oven, static electricity,
cordless phone use, reception
sensitivity, the operating system,
software applications, etc.
2) BLUETOOTH standard profiles indicate
the purpose of BLUETOOTH
communication between devices.
3) Codec: Audio signal compression and
conversion format
4) Abbreviation for Subband Codec
Front L/Front R speaker block section
Speaker system
2 Speaker System
Speaker
Front L/Front R speaker: 52 mm ×
90mm(21/8in×35/8in)conetype,
4Ω
Modulation method
FHSS (Freq Hopping Spread Spectrum)
Compatible BLUETOOTH profiles2)
A2DP (Advanced Audio Distribution
Profile)
AVRCP (Audio Video Remote Control
Profile)
Supported Codec3)
SBC4)
BLUETOOTH section
Communication system
BLUETOOTH Specification version 5.0
Output
BLUETOOTH Specification Power
Class 1
Maximum communication range
Line of sight approx. 25 m1)
Frequency band
2.4 GHz band (2.4000 GHz -
2.4835 GHz)
Maximum output power (AEP, UK)
≤ 6 dBm
– Continued on next page –
SYSSET
2019/02/1301:27:25(GMT+09:00)

HT-S350/SD35
3
Sony CONFIDENTIAL
For Authorized Servicer
General
Power requirements
120 V AC, 60 Hz (US, CND)
Power consumption
On: 30 W
Standby mode: 0.5 W or less (Power
Saving mode)
(When Control for HDMI function and
BLUETOOTH Standby mode are set to
o)
Standby mode: 2 W or less*
(When Control for HDMI function and
BLUETOOTH Standby mode are set to
on)
* The Sound Bar will automatically
enter Power saving mode when
220 V - 240 V AC, 50 Hz/60 Hz (AEP, UK)
there is no HDMI connection and no
BLUETOOTH pairing history.
Dimensions* (approx.) (w/h/d)
900 mm × 64 mm × 88 mm (35 1/2 in ×
2 5/8 in × 3 1/2 in)
* Not including projection portion
Mass (approx.)
2.4 kg (5 lb 4 7/10 oz)
Frequency band
2.4 GHz (2.4000 GHz - 2.4835 GHz)
Modulation method
FHSS (Freq Hopping Spread Spectrum)
Design and specifications are subject to
change without notice.
Wireless Transmitter
Section
What’s in the Box
• Bar Speaker (1)
• Subwoofer (1)
• Remote control (1)
• R03 (size AAA) battery (2)
• Optical digital cable (1)
• WALL MOUNT TEMPLATE (1)
• Startup Guide
• Operating Instructions
This Sound Bar incorporates Dolby* Digital.
* Manufactured under license from Dolby
Laboratories.
Dolby, Dolby Audio and the double-D
symbol are trademarks of Dolby
Laboratories.
The BLUETOOTH®word mark and logos are
registered trademarks owned by Bluetooth
SIG, Inc. and any use of such marks by Sony
Corporation is under license. Other
trademarks and trade names are those of
their respective owners.
The terms HDMI, HDMI High-Definition
Multimedia Interface, and the HDMI Logo
are trademarks or registered trademarks of
HDMI Licensing Administrator, Inc.
“BRAVIA” logo is a trademark of Sony
Corporation.
“PlayStation” is a registered trademark or
trademark of Sony Interactive
Entertainment Inc.
MPEG Layer-3 audio coding technology
and patents licensed from Fraunhofer IIS
and Thomson.
Windows Media is either a registered
trademark or trademark of Microsoft
Corporation in the United States and/or
other countries.
This product is protected by certain
intellectual property rights of Microsoft
Corporation. Use or distribution of such
technology outside of this product is
prohibited without a license from Microsoft
or an authorized Microsoft subsidiary.
All other trademarks are trademarks of
their respective owners.
Copyrights and Trademarks
SYSSET
2019/02/1301:27:25(GMT+09:00)

HT-S350/SD35
4
Sony CONFIDENTIAL
For Authorized Servicer
NOTES ON CHIP COMPONENT REPLACEMENT
• Never reuse a disconnected chip component.
• Notice that the minus side of a tantalum capacitor may be dam-
aged by heat.
SAFETY CHECK-OUT
After correcting the original service problem, perform the following
safety check before releasing the set to the customer:
Check the antenna terminals, metal trim, “metallized” knobs,
screws, and all other exposed metal parts for AC leakage.
Check leakage as described below.
LEAKAGE TEST
The AC leakage from any exposed metal part to earth ground and
from all exposed metal parts to any exposed metal part having a re-
turn to chassis, must not exceed 0.5 mA (500 microamperes.). Leak-
age current can be measured by any one of three methods.
1. A commercial leakage tester, such as the Simpson 229 or RCA
WT-540A. Follow the manufacturers’ instructions to use these
instruments.
2. A battery-operated AC milliammeter. The Data Precision 245
digital multimeter is suitable for this job.
3. Measuring the voltage drop across a resistor by means of a
VOM or battery-operated AC voltmeter. The “limit” indication
is 0.75 V, so analog meters must have an accurate low-voltage
scale. The Simpson 250 and Sanwa SH-63Trd are examples of a
passive VOM that is suitable. Nearly all battery operated digital
multimeters that have a 2 V AC range are suitable. (See Fig. A)
1.5 kΩ0.15 μF
AC
voltmeter
(0.75 V)
To Exposed Metal
Parts on Set
Earth Ground

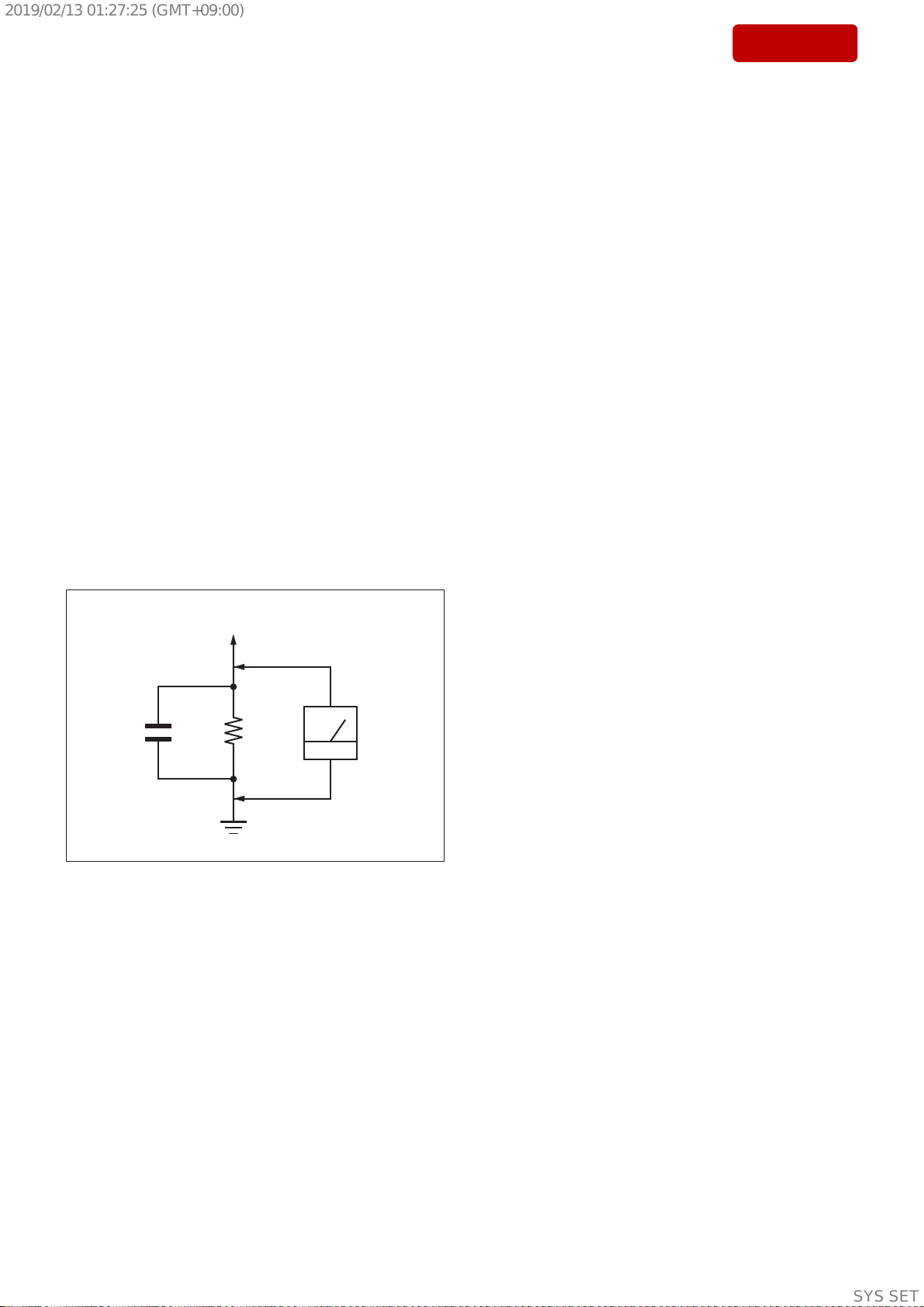

Fig. A. Using an AC voltmeter to check AC leakage.
SAFETY-RELATED COMPONENT WARNING!
COMPONENTS IDENTIFIED BY MARK 0OR DOTTED LINE
WITH MARK 0ON THE SCHEMATIC DIAGRAMS AND IN THE
PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE
PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR
IN SUPPLEMENTS PUBLISHED BY SONY.
ATTENTION AU COMPOSANT AYANT RAPPORT
À LA SÉCURITÉ!
LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0SUR
LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES
PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONC-
TIONNEMENT. NE REMPLACER CES COMPOSANTS QUE
PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DON-
NÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS
PUBLIÉS PAR SONY.
1. SERVICING NOTES ................................................ 5
2. DISASSEMBLY
2-1. Disassembly Flow.............................................................. 9
2-2. Top Panel Block................................................................. 10
2-3. Wire with Lug Terminal, FFC (6 Core) (L=138 mm)........ 11
2-4. TOUCH KEY Board.......................................................... 12
2-5. BT Module......................................................................... 13
2-6. IR RP Board....................................................................... 13
2-7. AC Cord............................................................................. 14
2-8. Grille Assy ......................................................................... 15
2-9. Speaker Unit ...................................................................... 16
2-10. LED Board......................................................................... 17
2-11. Chassis Block-1 ................................................................. 18
2-12. Chassis Block-2 ................................................................. 19
2-13. Chassis Block-3 ................................................................. 20
2-14. MAIN Board-1................................................................... 21
2-15. MAIN Board-2, FFC (6 Core) (L=161 mm)...................... 22
2-16. POWER Board................................................................... 23
3. TEST MODE ............................................................... 24
4. DIAGRAMS
4-1. Block Diagram................................................................... 25
4-2. Printed Wiring Board - MAIN Board -.............................. 27
4-3. Schematic Diagram - MAIN Board (1/9) -........................ 28
4-4. Schematic Diagram - MAIN Board (2/9) -........................ 29
4-5. Schematic Diagram - MAIN Board (3/9) -........................ 30
4-6. Schematic Diagram - MAIN Board (4/9) -........................ 31
4-7. Schematic Diagram - MAIN Board (5/9) -........................ 32
4-8. Schematic Diagram - MAIN Board (6/9) -........................ 33
4-9. Schematic Diagram - MAIN Board (7/9) -........................ 34
4-10. Schematic Diagram - MAIN Board (8/9) -........................ 35
4-11. Schematic Diagram - MAIN Board (9/9) -........................ 36
4-12. Printed Wiring Board - IR RP Board -............................... 37
4-13. Schematic Diagram - IR RP Board -.................................. 37
4-14. Printed Wiring Board - LED Board -................................. 38
4-15. Schematic Diagram - LED Board -.................................... 38
4-16. Printed Wiring Board - TOUCH KEY Board -.................. 39
4-17. Schematic Diagram - TOUCH KEY Board -..................... 39
4-18. Printed Wiring Board - POWER Board -........................... 40
4-19. Schematic Diagram - POWER Board - ............................. 41
5. EXPLODED VIEWS
5-1. Grille, Foot, AC Cord Section ........................................... 42
5-2. Top Panel Section .............................................................. 43
5-3. Bottom Case Section.......................................................... 44
5-4. Chassis Section .................................................................. 45
6. ACCESSORIES .......................................................... 46
TABLE OF CONTENTS
SYSSET
2019/02/1301:27:25(GMT+09:00)

HT-S350/SD35
5
Sony CONFIDENTIAL
For Authorized Servicer
SECTION 1
SERVICING NOTES
The SERVICING NOTES contains important information for servicing. Be sure to read this section before repairing the unit.
UNLEADED SOLDER
Boards requiring use of unleaded solder are printed with the lead-
free mark (LF) indicating the solder contains no lead.
(Caution: Some printed circuit boards may not come printed with
the lead free mark due to their particular size)
: LEAD FREE MARK
Unleaded solder has the following characteristics.
• Unleaded solder melts at a temperature about 40 °C higher than
ordinary solder.
Ordinary soldering irons can be used but the iron tip has to be
applied to the solder joint for a slightly longer time.
Soldering irons using a temperature regulator should be set to
about 350 °C.
Caution: The printed pattern (copper foil) may peel away if the
heated tip is applied for too long, so be careful!
• Strong viscosity
Unleaded solder is more viscous (sticky, less prone to flow) than
ordinary solder so use caution not to let solder bridges occur
such as on IC pins, etc.
• Usable with ordinary solder
It is best to use only unleaded solder but unleaded solder may
also be added to ordinary solder.
ADVANCE PREPARATION WHEN CONFIRMING OPER-
ATION
All of the units included in the HT-S350 (SA-S350/SA-WS350/Re-
mote control) or HT-SD35 (SA-SD35/SA-WSD35/Remote control)
are required to confirming operation of this unit. Check in advance
that you have all of the units.
DISCHARGE PROCESSING
Before checking the operation of the boards for the electric shock
prevention, perform the discharge processing by connecting the re-
sistor at both ends of the specified capacitor with referring to the
figure below.
Note: Be sure to discharge using a resistor of 800 or higher.
–

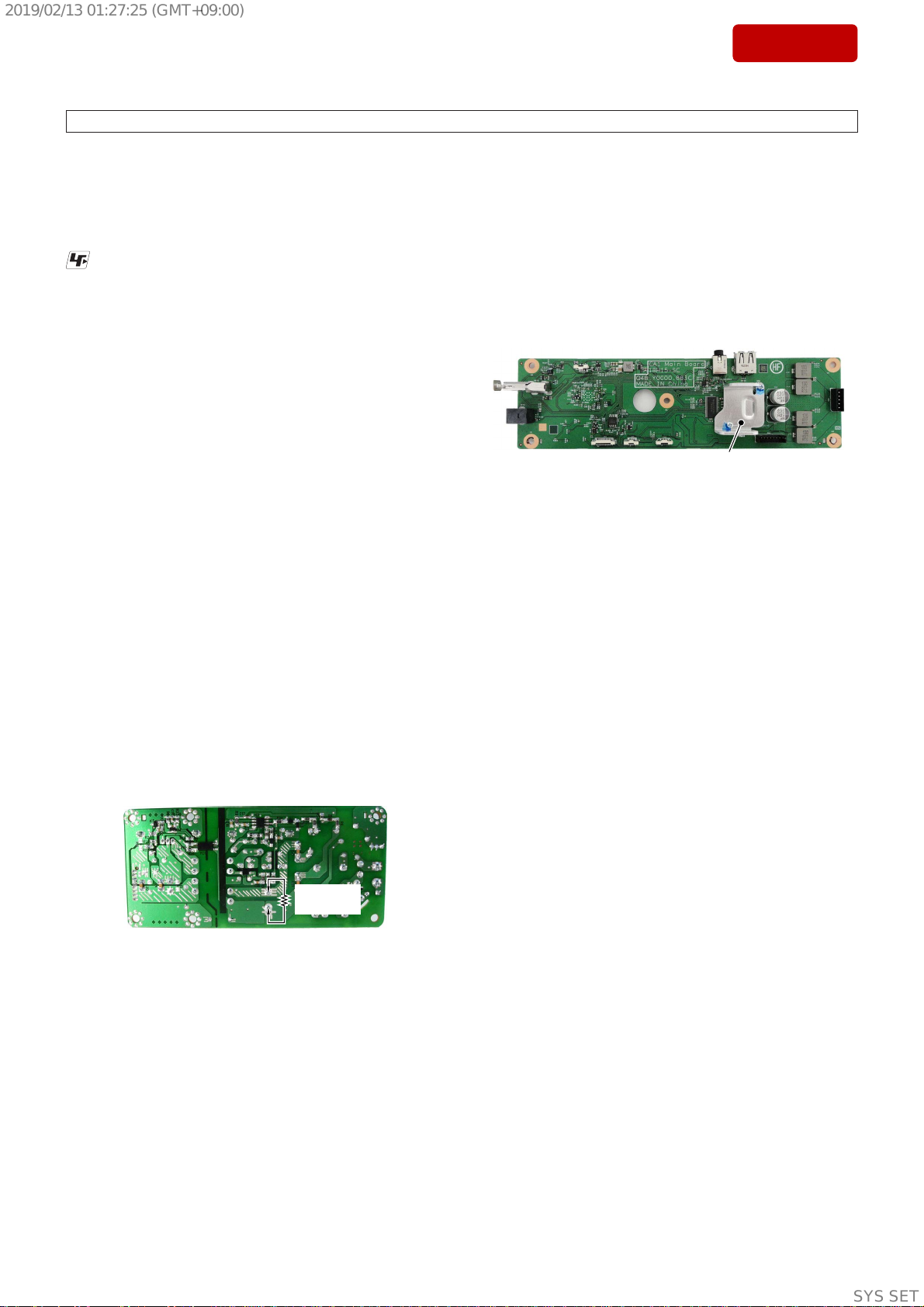

POWER Board (Conductor side) –
800 :/2 W
(for C3)
ABOUT THE PROTECTION
If all the indicators on the bar speaker blink for about 10 seconds
and the bar speaker power turns off, the protection function of this
unit is working.
In that case, please unplug the power cord, make sure that the venti-
lation holes of the bar speaker is not blocked, leave it for a while and
turn the power on again.
NOTE OF PERFORMING THE OPERATION CHECK IN
THE STATE THAT HEAT SINK IS REMOVED
When performing the operation check in the state that this unit is
disassembled, it is possible to perform the operation check in the
state that heat sink is removed from the MAIN board.
However, in that case, volume setting to low and work in a short
time of about several minutes.
If you need more than volume setting to medium, or more than a
few minutes of work, be sure to work with attach the heat sink to
the MAIN board.
– MAIN Board (Side A) –
heat sink
SYSSET
2019/02/1301:27:25(GMT+09:00)

HT-S350/SD35
6
Sony CONFIDENTIAL
For Authorized Servicer

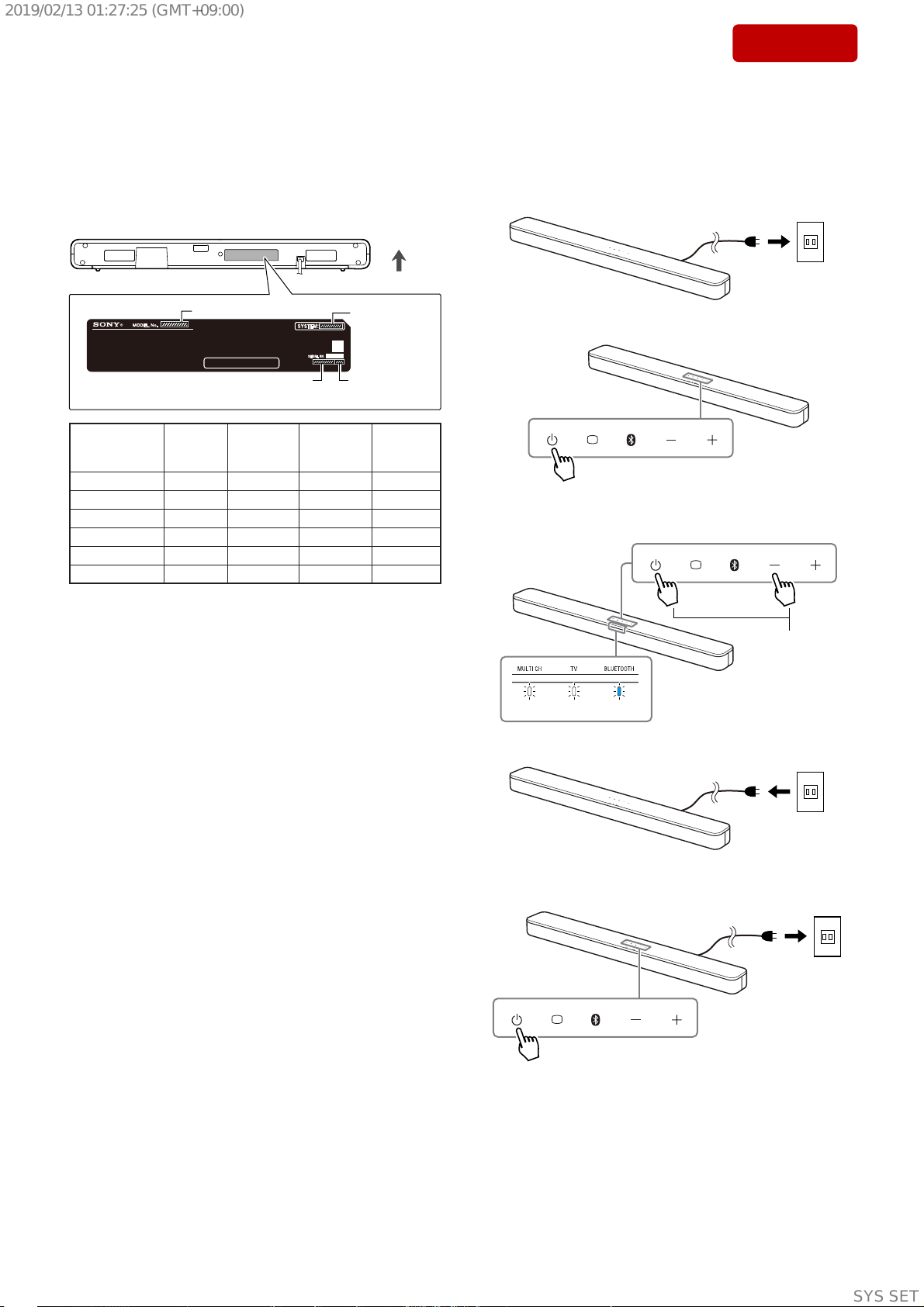

MODEL IDENTIFICATION
When identifying the destination and model of this unit, check the
part number, destination code, model name and system name printed
on the model number label on the bottom side of the main unit.
Note: The content printed and the part number suffix printed on the model
number label may be changed in the midway of production.
– Bottom view –
front side
Model Name System Name
Part No. Destination
code
Part No.
Desti-
nation
code
Model
Name
System
Name
Destina-
tion
5-000-987-01 (UC2) SA-S350 HT-S350 US, CND
5-000-987-11 (CEL) SA-S350 HT-S350 AEP
5-000-987-21 (CEK) SA-S350 HT-S350 UK
5-002-488-01 (U2) SA-SD35 HT-SD35 US
5-002-488-61 (CEL) SA-SD35 HT-SD35 AEP
5-002-488-71 (CEK) SA-SD35 HT-SD35 UK
DESTINATION ABBREVIATIONS
The following abbreviations for model destinations are used in this
service manual.
• Abbreviations
AEP : European area (Except for UK, Ireland), East European
area, CIS area (Moldova) and Middle East area (Israel, Jor-
dan) models
CND : Canadian and Latin American area (Puerto Rico) models
UK : European area (UK, Ireland) model
RESET METHOD
After the repair of this unit is completed, be sure to reset the bar
speaker by referring to the following before checking the operation.
Reset procedure:
1. Insert the AC power cord of the bar speaker.
Outle
t
2. Touch the [1] button to turn the power on.
3. Touch the [1] button and [–] button at the same time for about 5
seconds, then all indicators flash 3 times (resetting).
Touch for about
5 seconds.
flash 3 times
4. Unplug the AC power cord.
Outle
t
5. Insert the AC power cord, and touch the [1] button to turn the
power on.
Outle
t
SYSSET
2019/02/1301:27:25(GMT+09:00)

HT-S350/SD35
7
Sony CONFIDENTIAL
For Authorized Servicer
WIRELESS CONNECTION (LINK) WORK OF THE BAR
SPEAKER AND THE SUBWOOFER
When replace each BT module or MAIN board of the bar speaker
or the subwoofer with a new part, the wireless connection (LINK)
between the bar speaker and the subwoofer will be disconnected.
Before returning the repaired product to the customer, please wire-
less connect (LINK) the bar speaker and the subwoofer referring to
the following.
Note: If only the bar speaker or the subwoofer is brought in for repair, can-
not wireless connection (LINK). Refer to “What to do if only the bar
speaker or the subwoofer are brought in for repair” on page 8.
Replacement that requires wireless connection (LINK)
work
• Replacing the BT module (CA1 BAR) of the bar speaker
• Replacing the MAIN board of the bar speaker
• Replacing the BT module (SW) of the subwoofer
• Replacing the MAIN board of the subwoofer
Wireless connection (LINK) method
After replacing the BT module or the MAIN board, perform the re-
set of the this unit. After that, when turning the power on, it auto-
matically wireless connect (LINK).
(For the reset method, refer to “RESET METHOD” on page 6)
What to do when not automatically wireless connection
(LINK)
If you do not automatically wireless connection (LINK) even if you
turn the power on, there is a possibility that the bar speaker and the
subwoofer before the repair were connected via the secure link.
In that case, perform a wireless connection (LINK) with reference
to the following.
• When the bar speaker is repaired
Procedure:
1. Press the [1] button on the subwoofer to turn the power on.
Subwoofer
– Rear view –
2. While the status indicator of the subwoofer flashes orange slow-
ly, press and hold the [LINK] button on the rear side for about
5 seconds and check that the status indicator switches to flashes
green →red light up (standby).
Alternatively, while the status indicator of the subwoofer flash-
es orange slowly, press the [LINK] button on the rear side for
a short and checking that the status indicator has switched to
flashes orange quickly, then leave as it is for about 2 minutes and
check that it switches to flashes green →red light up (standby).
Subwoofer
– Rear view –
Subwoofer
– Front view –
Status indicator
flashes orange
slowly
press
short
press and
hold 5 sec.
Subwoofer
– Front view –
Status indicator
flashes green
red light up
flashes orange
slowly
flashes orange
quickly (2 min.)
red light up
flashes green
3. Turn the power on of the bar speaker and automatically make a
wireless connection (LINK).
• When the subwoofer is repaired
Procedure:
1. Touch the [1] button to turn the power on.
2. Press and hold the [SECURE LINK] button on the remote con-
trol for about 5 seconds, the [MULTI CH] indicator of the bar
speaker flashes 2 times and the secure link is released.
p
ress and hold
5 seconds flash 2 times
3. Touch the [1] button and [–] button at the same time for about 5
seconds, then all indicators flash 3 times (resetting).
Touch for about
5 seconds.
flash 3 times
4. Unplug the AC power cord.
Outle
t
5. Insert the AC power cord, and touch the [1] button to turn the
power on.
Outle
t
6. Turn the power on of the subwoofer and automatically make a
wireless connection (LINK)
– Continued on next page –
SYSSET
2019/02/1301:27:25(GMT+09:00)

HT-S350/SD35
8
Sony CONFIDENTIAL
For Authorized Servicer
What to do if only the bar speaker or the subwoofer are
brought in for repair
If only the bar speaker or the subwoofer is brought in for repair situ-
ation, and either BT module or MAIN board is replaced, customers
themselves need to wireless connection (LINK) the bar speaker and
the subwoofer.
• If the customer was not performing the secure link:
It will automatically wireless connection (LINK) with the bar speak-
er and the subwoofer when turn the power on.
• If the customer was performing the secure link:
Customers themselves need to release the secure link of the bar
speaker or the subwoofer at hand of the customer and make a nor-
mal wireless connection. In that case, please inform the customer to
“What to do when not automatically wireless connection (LINK)”
on page 7.
In addition, if make a secure link again, please inform the customer
how to set up the secure link described in the operating instructions
(“Performing the Wireless Connection of the Subwoofer (SECURE
LINK)”).
DOUBLE-SIDED TAPE OF THE TOUCH KEY BOARD
The TOUCH KEY board is pasted to the inside of the top side of the
top panel with the double-sided tape.
When pasting the TOUCH KEY board to the top panel, cut the com-
mercially available double-sided tape to the size below and paste it
on the TOUCH KEY board, then paste the TOUCH KEY board to
the top panel.
Note: When pasting the TOUCH KEY board, please firmly press the
TOUCH KEY board against the top panel and paste it so that there is
no gap between the TOUCH KEY board and the top panel.
105.0 ± 0.5 mm
TOUCH KEY board
guide
point
TOUCH KEY board
top panel
(inner)
19.0 ± 0.5 mm
double-sided tape for
commercially available
(thickness: 0.2 mm)
press
MALFUNCTION PREVENTION OF THE BUTTON (TOUCH
PANEL SWITCH)
When the button portion on the top side of the this unit are contact
with something, there is a possibility of occurring the malfunction.
When performing the operation check in the state that the top side
is under, set the stand etc. to the position that avoids the button por-
tion as shown in the figure below, perform in the state that the button
portion does not touch anything.
bottom side
stand stand
button portion
button portion
ABOUT THE REPAIRING OF BOARD
When boards installed in this unit are defective, boards will be re-
placed.
Individual electrical parts that mounted on the board cannot be re-
placed.
When each board is defective, replace each complete mounted board
individually.
CHECKING THE OPERATION AFTER REPAIR
After repair completion, use the TV, smartphone etc. corresponding
to this unit, and check the Bluetooth operation etc.
ABOUT THE THERMAL COMPOUND
The thermal compound is applied between U9 of the MAIN board
and the heat sink.
If you remove the heat sink from the MAIN board, be careful not to
wipe off the thermal compound.
thermal compound
heat sink
(board surface side)
– MAIN Board (Side A) –
heat sink
U9
thermal compound
SYSSET
2019/02/1301:27:25(GMT+09:00)

HT-S350/SD35
9
Sony CONFIDENTIAL
For Authorized Servicer
SECTION 2
DISASSEMBLY
• This set can be disassembled in the order shown below.
2-1. DISASSEMBLY FLOW
SET
2-2. TOP PANEL BLOCK
(Page 10)
2-8. GRILLE ASSY
(Page 15)
2-3. WIRE WITH LUG TERMINAL,
FFC (6 CORE) (L=138 mm)
(Page 11)
2-5. BT MODULE
(Page 13)
2-7. AC CORD
(Page 14)
2-6. IR RP BOARD
(Page 13)
2-9. SPEAKER UNIT
(Page 16)
2-11. CHASSIS BLOCK-1
(Page 18)
2-14. MAIN BOARD-1
(Page 21)
2-10. LED BOARD
(Page 17)
2-16. POWER BOARD
(Page 23)
2-4. TOUCH KEY BOARD
(Page 12)
2-15. MAIN BOARD-2,
FFC (6 CORE) (L=161 mm)
(Page 22)
2-13. CHASSIS BLOCK-3
(Page 20)
2-12. CHASSIS BLOCK-2
(Page 19)
SYSSET
2019/02/1301:27:25(GMT+09:00)

HT-S350/SD35
10
Sony CONFIDENTIAL
For Authorized Servicer
Note: Follow the disassembly procedure in the numerical order given.
2-2. TOP PANEL BLOCK
rear side
front side
– Bottom view –
Ÿ
1two screws
(BTP3 u10)
1three screws
(BTP3 u10)
six screws
(BTP3 u10)
eleven screws
(BTP3 u10)
soft cloth, etc.
Note 2: When working with the top
side facing down, lay a soft
cloth, etc. so as not to damage.
ŸŸŸ
Ÿ
1two screws
(BTP3 u10)
1two screws
(BTP3 u10)
1two screws
(BTP3 u10)
1two screws
(BTP3 u10)
1three screws
(BTP3 u10)
1screw
(BTP3 u10)
Turn over.
rear side
front side
front side
left side
right side
2Open the top panel block
in the direction of the arrow.
6top panel block
5terminal
(See Fig. A)
3Unlock the
connector.
connector
(CN6)
terminal side
rear side
4Draw the FFC (6 core)
out of the connector.
Note 1::KHQGLVDVVHPEOLQJWKHWRSSDQHOEORFNUHPRYLQJWKHILYHVFUHZVDWWKHŸPDUNVFUHZVLVQRWQHFHVVDU\
top side
bottom side
< Fig. A >
rear side
,QVWDOODWLRQGLUHFWLRQIRUWKHWHUPLQDO
terminal
MAIN
board
caulking
direction – Top view –
SYSSET
2019/02/1301:27:25(GMT+09:00)

HT-S350/SD35
11
Sony CONFIDENTIAL
For Authorized Servicer

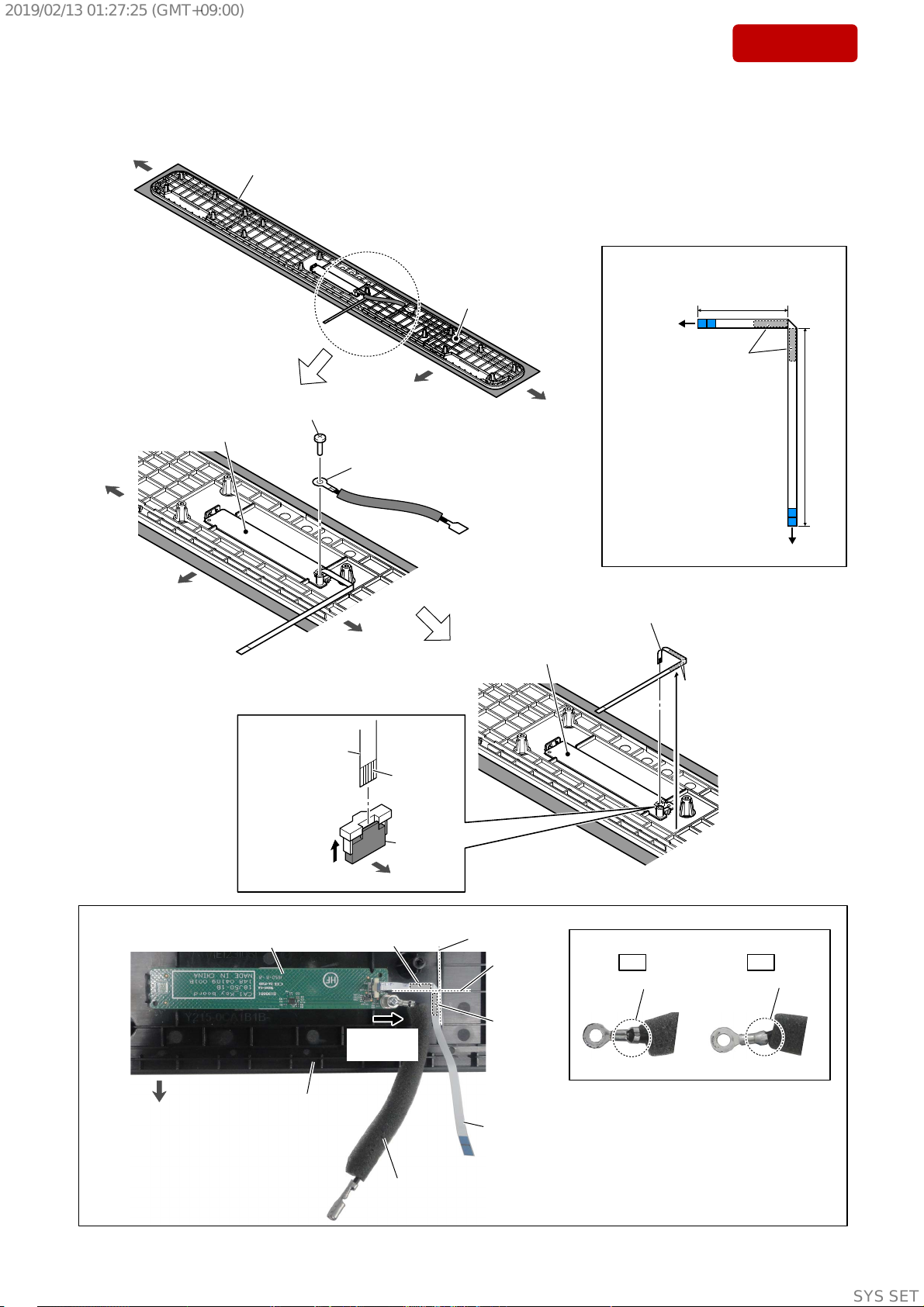

2-3. WIRE WITH LUG TERMINAL, FFC (6 CORE) (L=138 mm)
short
long
TOUCH
KEY board
MAIN board
,QVWDOODWLRQGLUHFWLRQIRUWKH))&
FRUH/ PP
3Peel the FFC (6 core) off
of the top panel block.
(See Fig. B)
adhesive
tape
adhesive
tape
6FFC (6 core) (L=138 mm)
(See Fig. B, C)
TOUCH KEY board
TOUCH KEY board
guide line
FFC (6 core)
(L=138 mm)
front side
guide line
adhesive
tape
adhesive tape
lug terminal
direction
wire with lug terminal
:LUHVHWWLQJ
)LJ%!
soft cloth, etc.
Note: When working with the top side facing down,
lay a soft cloth, etc. so as not to damage.
top panel block
(inner side)
front side
front side
left side
left side
right side
right side
2wire with lug terminal
(See Fig. B)
4Unlock the
connector.
connector
(CN1)
terminal
side
5Draw the FFC
(6 core) out of
the connector.
left side
TOUCH KEY board
top panel block
(inner side)
)LJ&!
OK NG
,QVWDOODWLRQGLUHFWLRQIRUWKHOXJWHUPLQDO
–7RSYLHZ–
Caulking is upward. Caulking is downward.
1screw
(BM2.5 u6)
SYSSET
2019/02/1301:27:25(GMT+09:00)

HT-S350/SD35
12
Sony CONFIDENTIAL
For Authorized Servicer
2-4. TOUCH KEY BOARD
4Draw the TOUCH KEY board block
out of the rib in top panel.
TOUCH KEY
board
flathead screwdriver, etc.2Gradually peel off the TOUCH KEY board
block with a flathead screwdriver, etc.
Note 2: The TOUCH KEY board is affixed to
the top panel with a double-sided tape.
When removing the TOUCH KEY
board, remove slowly so that you do
not damage the rib, etc. of the top panel.
rib
rib
TOUCH KEY board 5TOUCH KEY
board block
7TOUCH KEY board
(See Note 3)
6double-sided tape
(See Note 3)
3DVWLQJSRVLWLRQRIWKHGRXEOHVLGHGWDSH
guide line
guide line
double-sided tape
Turn over the TOUCH
KEY board block.
Note 3: When installing the TOUCH KEY board to the top panel, cut out the double-sided tape (thickness: 0.2 mm) of commercial products
to 19.0
u105.0 mm size and paste it on the TOUCH KEY board, then install the TOUCH KEY board to the top panel.
Also, when installing the TOUCH KEY board, firmly press the TOUCH KEY board to the top panel, and paste it so that there no gap
between the TOUCH KEY board and the top panel.
(Refer to “DOUBLE-SIDED TAPE OF THE TOUCH KEY BOARD” on page 8)
double-sided tape
3rib
claw
1Push.
soft cloth, etc.
Note 1: When working with the top side facing down,
lay a soft cloth, etc. so as not to damage.
top panel block
(inner side)
front side
front side
left side
left side
right side
right side TOUCH KEY board
105.0 mm
19.0 mm
1RWHDERXWLQVWDOOLQJ
WKH728&+.(<ERDUG
claw
TOUCH KEY board
Fully lock the TOUCH KEY board
by the claw.
SYSSET
2019/02/1301:27:25(GMT+09:00)

HT-S350/SD35
13
Sony CONFIDENTIAL
For Authorized Servicer

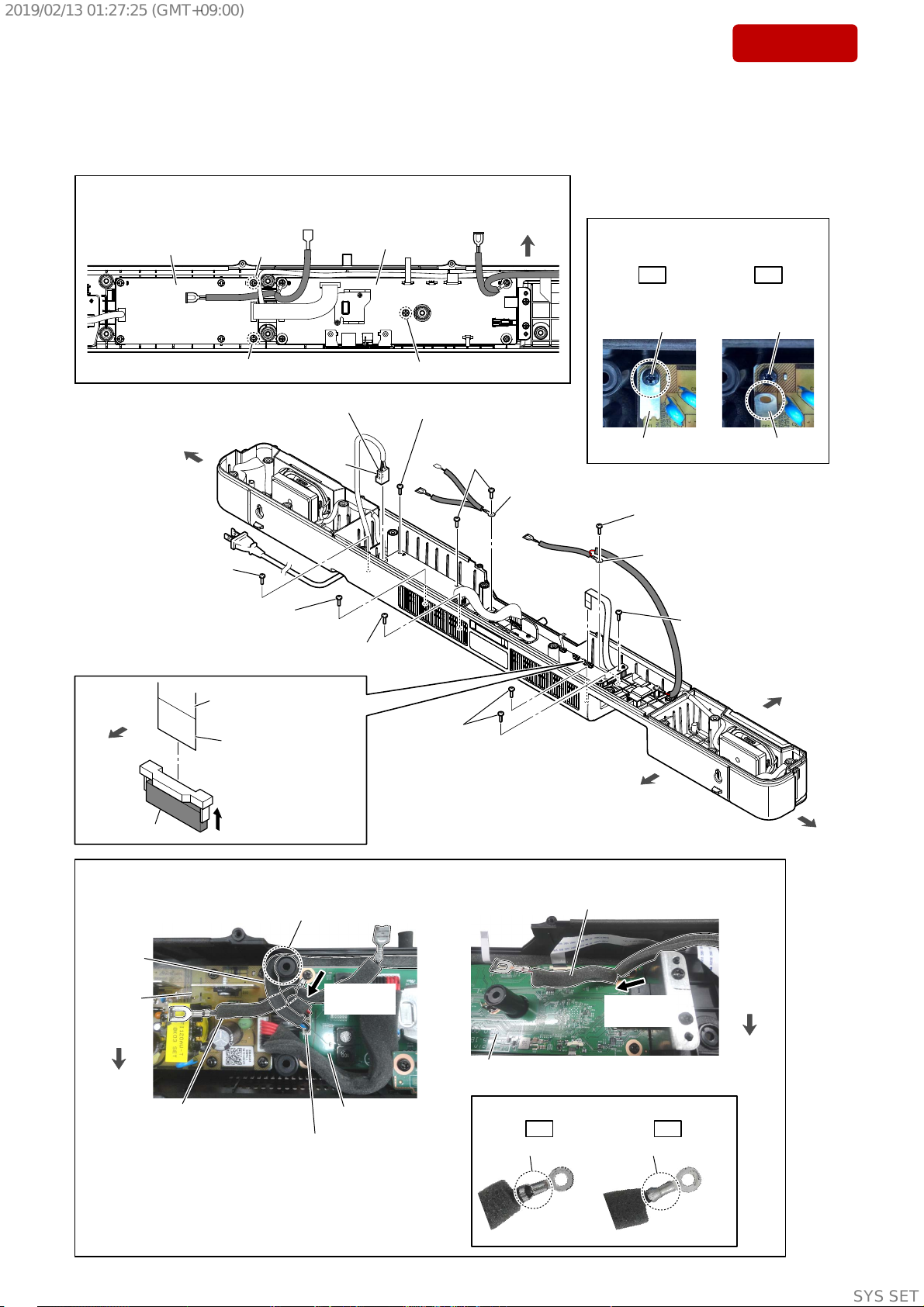

2-5. BT MODULE
OK NG
front side
rear side
left side
hole
• Installation direction for the lug terminal
– Top view –
Caulking is upward. Caulking is downward.
• Wire with lug terminal setting
The opposite side
is terminal side.
2screw
(BTP3 u10)
BT
module
wire with
lug terminal
– Top view –
rear side FFC
(18 core)
1Draw the FFC (18 core)
out of the connector.
boss
3wire with lug terminal
4
5BT module
(See Note 1)
Note 2: When installing the BT module,
align the boss and hole.
Note 1: If BT module is replaced with a new part, refer to “RESET METHOD” on page 6, be sure to perform the reset.
Also, after completing the reset, refer to “WIRELESS CONNECTION (LINK) WORK OF BAR SPEAKER
AND THE SUBWOOFER” on page 7, perform the wireless connection of bar speaker and subwoofer.
lug terminal
direction

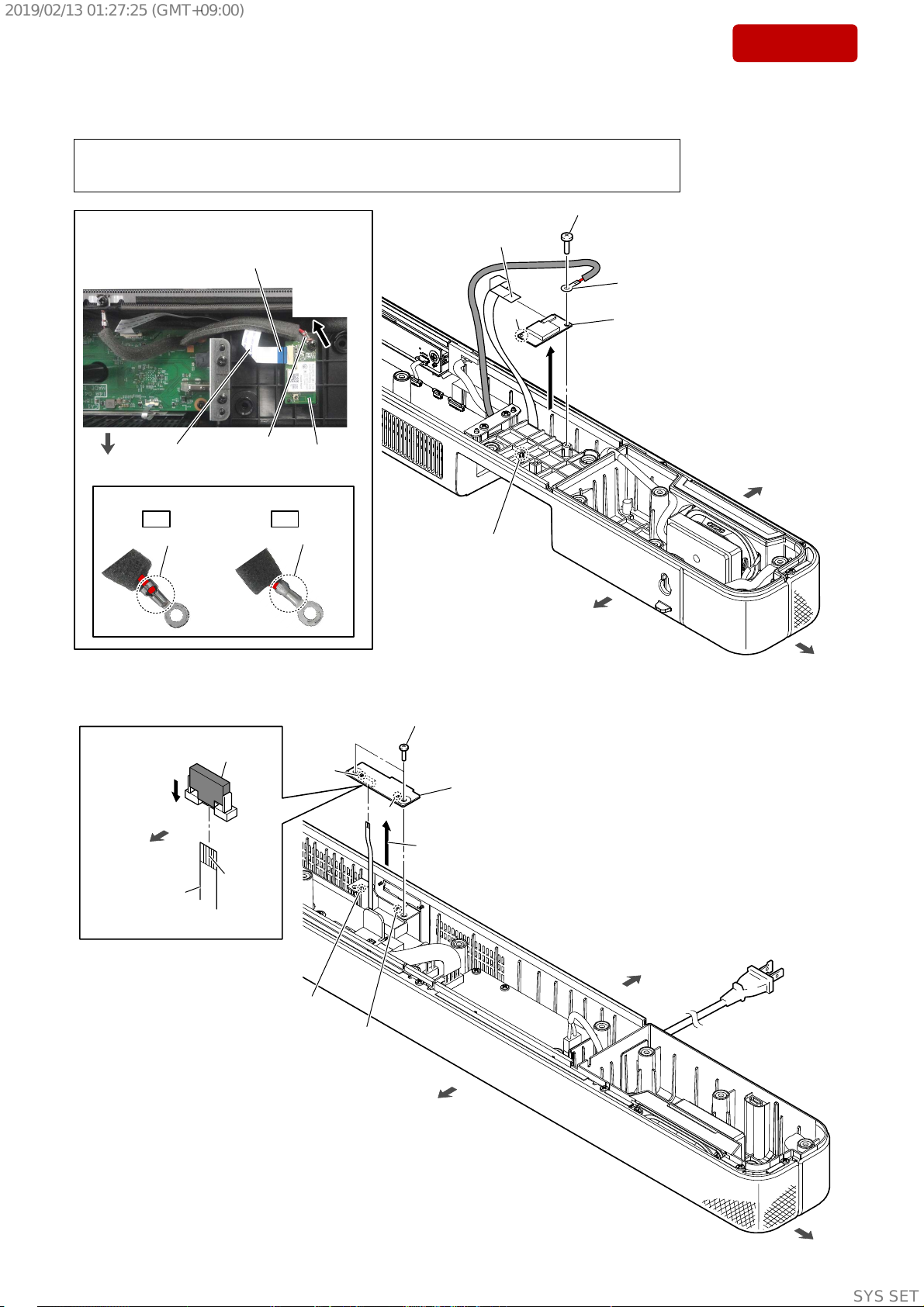

2-6. IR RP BOARD
front side
rear side
right side
3Unlock the
connector.
connector
(CN1)
terminal
side
4Draw the FFC
(6 core) out of
the connector.
1two screws
(BTP3 u10)
5IR PR board
Note: When installing the IR PR board,
align the two ribs and two holes.
2Lift up the IR PR board block
in the direction of the arrow.
rib
rib
hole
hole
front side
SYSSET
2019/02/1301:27:25(GMT+09:00)

HT-S350/SD35
14
Sony CONFIDENTIAL
For Authorized Servicer

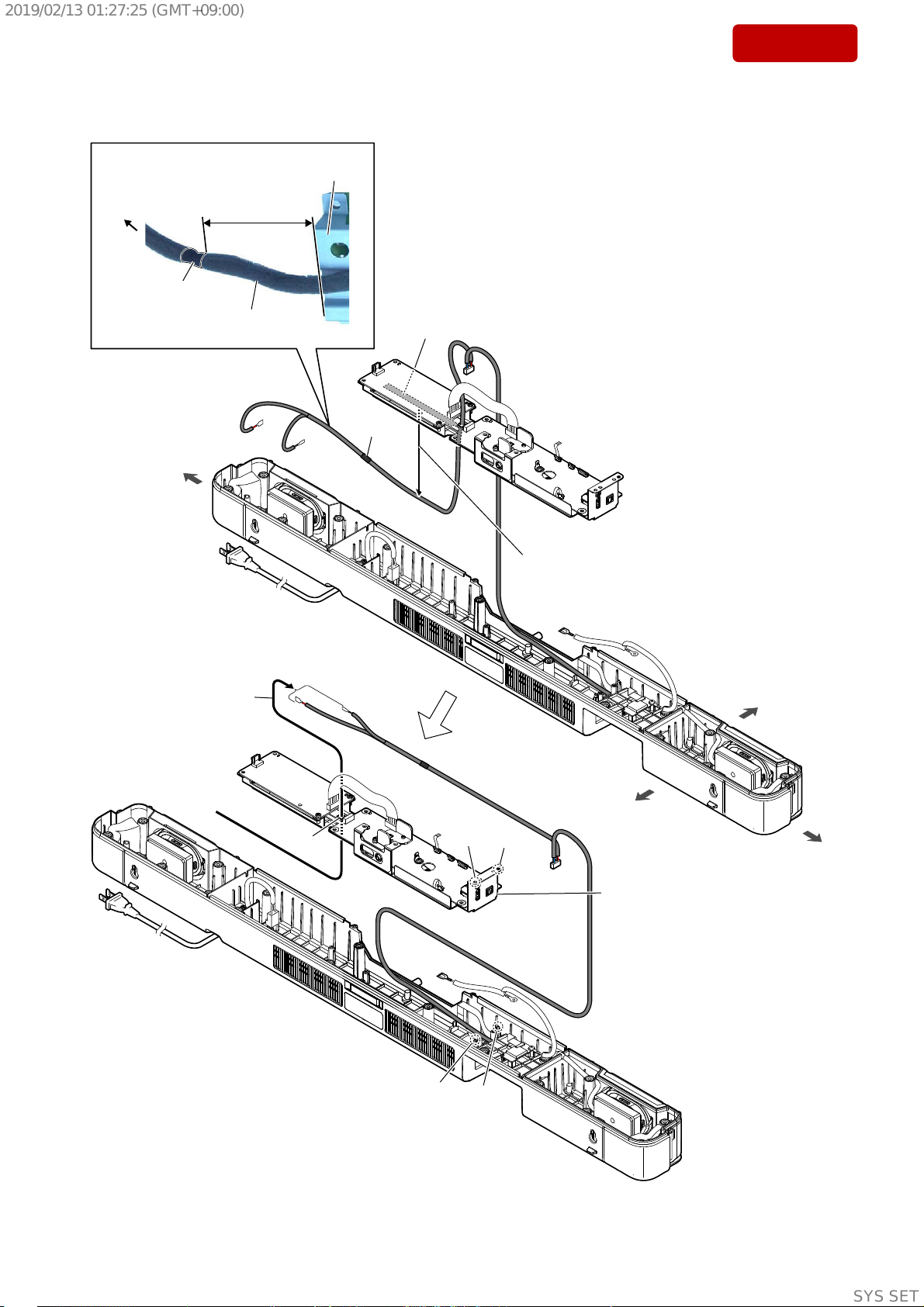

2-7. AC CORD
50 mm
,QVWDOODWLRQGLUHFWLRQIRUWKHFRUGEXVK
,QVWDOODWLRQSRVLWLRQRIWKHFRUGEXVK
claw
side
2two screws
(BTP3 u10)
1AC cord connector
(CN1)
6cord bush
3Lift up the metal bracket
block in the direction of
the arrow.
4Remove the cord bush in
the direction of the arrow.
boss
boss
hole
hole
8AC cord
5metal bracket
Note: When installing the metal
bracket, align the two bosses
and two holes.
hole
7Draw the AC cord out of
the hole in bottom case.
claw side
cord bush
US, CND: [white]
AEP, UK: [blue]
US, CND: [white]
AEP, UK: [blue]
US, CND: [black]
AEP, UK: [brown]
US, CND: [black]
AEP, UK: [brown]
AC cord
protrusion
side
cord bush
metal bracket
AC cord connector
–7RSYLHZ–
SYSSET
2019/02/1301:27:25(GMT+09:00)

HT-S350/SD35
15
Sony CONFIDENTIAL
For Authorized Servicer

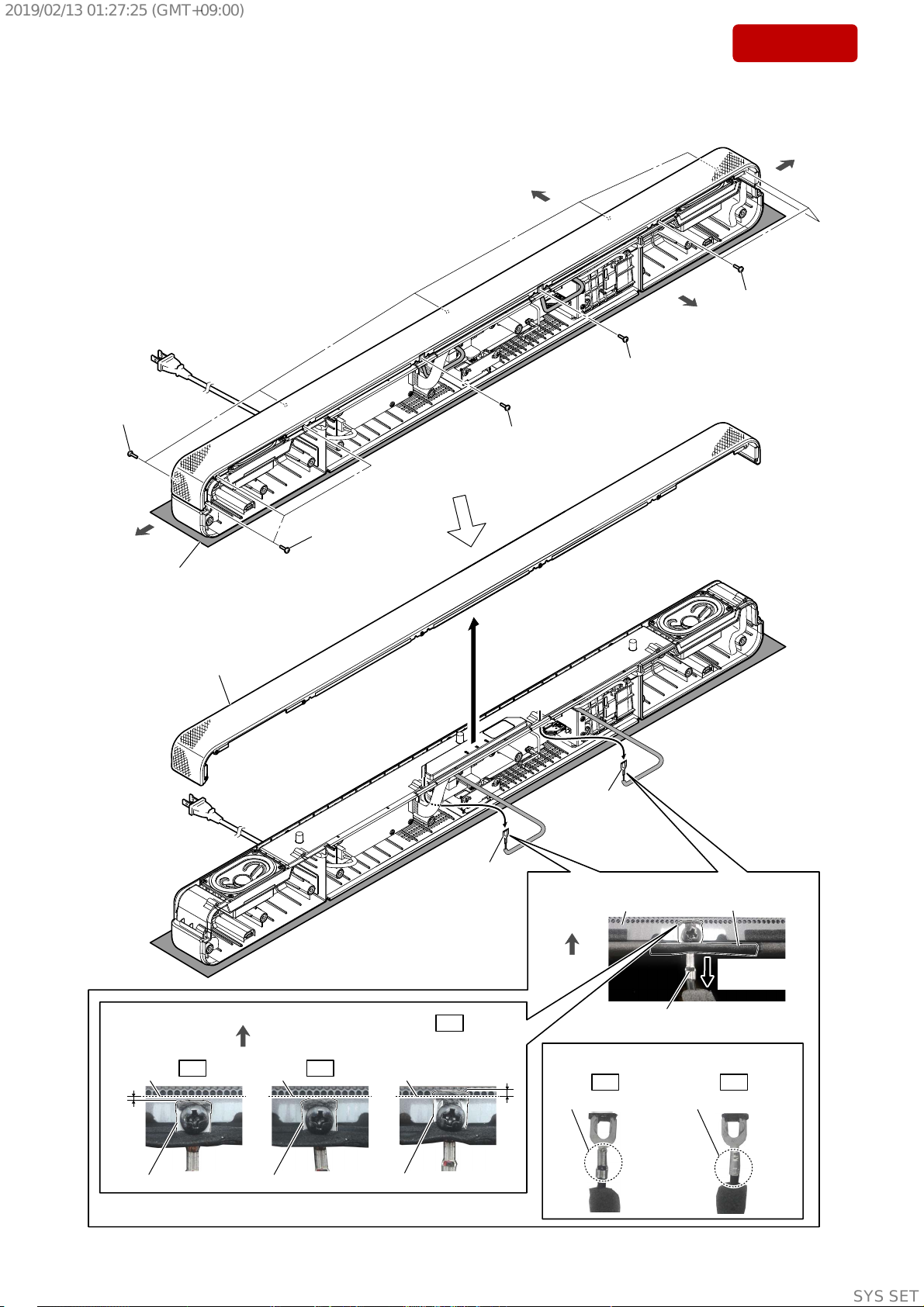

2-8. GRILLE ASSY
top side
bottom side
left side
right side
1five screws
(BTP3 u10)
1three screws
(BTP3 u10)
1screw
(BTP3 u10)
1three screws
(BTP3 u10)
1screw
(BTP3 u10)
soft cloth, etc.
Note: When working with the side other than
the bottom side facing downward, lay
a soft cloth, etc. so as not to damage.
2wire with
lug terminal
3
4grille assy
2wire with
lug terminal
OK NG
,QVWDOODWLRQGLUHFWLRQIRUWKHOXJWHUPLQDO
–7RSYLHZ–
Caulking is upward. Caulking is downward.
:LUHZLWKOXJWHUPLQDOVHWWLQJ
wire with
lug terminal
–7RSYLHZ–
grille assy
front side
lug terminal
direction
cushion
OK OK
NG
–7RSYLHZ–front side
lug terminal lug terminal lug terminal
guide lineguide line guide line
The lug terminal
is protruding.
SYSSET
2019/02/1301:27:25(GMT+09:00)

HT-S350/SD35
16
Sony CONFIDENTIAL
For Authorized Servicer
2-9. SPEAKER UNIT
OK NG OK NG
,QVWDOODWLRQGLUHFWLRQIRUWKHWHUPLQDORIVSHDNHUFDEOHIRU/FK
terminal (wide)
[blue]
terminal [black]
terminal [white]
Note: When connecting the terminals of the speaker cable to the speaker unit (for L-ch),
be careful of the direction of the terminals.
terminal (narrow)
[black]
speaker unit (for L-ch)speaker unit (for L-ch)
,QVWDOODWLRQGLUHFWLRQIRUWKHWHUPLQDORIVSHDNHUFDEOHIRU5FK
terminal (wide)
[red]
terminal [black] terminal [white]
Note: When connecting the terminals of the speaker cable to the speaker unit (for R-ch),
be careful of the direction of the terminals.
terminal (narrow)
[black] speaker unit (for R-ch)speaker unit (for R-ch)
1four screws
(BTP3 u10)
2Pull out the speaker unit (for L-ch)
in the direction of the arrow.
3 terminal (wide)
[red]
4 speaker unit
(for L-ch)
1four screws
(BTP3 u10)
2Pull out the speaker unit (for R-ch)
in the direction of the arrow.
3 terminal (wide)
[blue]
3 terminal (narrow)
[black]
4 speaker unit
(for R-ch)
3 terminal (narrow)
[black]
OK NG
OK NG
SYSSET
2019/02/1301:27:25(GMT+09:00)

HT-S350/SD35
17
Sony CONFIDENTIAL
For Authorized Servicer
2-10. LED BOARD
front side
rear side
left side
right side
6screw
(BTP3 u10)
5Lift up the panel LED block
in the direction of the arrow.
hole
boss
hole boss
6screw
(BTP3 u10)
9LED board
Note: When installing the LED board,
align the two bosses and two holes.
8panel LED
assy +RZWRLQVWDOOWKHSDQHO/('EORFN
Insert straight into
the interior.
groove
groove
panel LED block
–)URQWYLHZ–
Flat.
3wire with
terminal
(See Fig. D)
4cushion
4cushion
$IIL[LQJWKHFXVKLRQ
cushion
guide line
(center)
–7RSYLHZ–
–,QQHUYLHZ–
guide line
(center)
guide line
guide line
guide line
right side
right side
cushion
$IIL[LQJWKHFXVKLRQ
–7RSYLHZ–
–,QQHUYLHZ–
left side
left side
cushion
7terminal
Bend.
Bend.
guide line
1Unlock the
connector. connector
(CN1)
terminal side
rear side
2Draw the FFC (6 core)
out of the connector.
OK NG
cushion
Bend. Bend.
)LJ'!
:LUHVHWWLQJ
,QVWDOODWLRQGLUHFWLRQ
IRUWKHWHUPLQDO
SPK cord power wire with terminal
screw boss
Push the SPK cord power.
front side
–7RSYLHZ–
SPK cord power
(See Fig. D)
SYSSET
2019/02/1301:27:25(GMT+09:00)

HT-S350/SD35
18
Sony CONFIDENTIAL
For Authorized Servicer
2-11. CHASSIS BLOCK-1
• Continued on 2-12 (page 19).
OK NG
,QVWDOODWLRQGLUHFWLRQIRUWKHOXJWHUPLQDO
–7RSYLHZ–
Caulking is upward. Caulking is downward.
front side
rear side
left side
right side claw
side
4screw
(BTP3 u10)
1AC cord connector
(CN1)
NRWHVZKHQGLVDVVHPEOLQJWKHFKDVVLVEORFN
Removing the three screws at the Ÿmark screws is not necessary.
Ÿ
Ÿ–7RSYLHZ–Ÿ
MAIN board
POWER board
front side
2Unlock the
connector.
connector (CN4)
terminal
side
3Draw the FFC (18 core)
out of the connector.
rear side
4screw
(BTP3 u10)
4screw
(BTP3 u10)
4two screws
(BTP3 u10)
4screw (BTP3 u10)
(See Fig. G)
4screw
(BTP3 u10)
5wire with lug terminal
(See Fig. F)
5wire with lug terminal
(See Fig. E)
4two screws
(BTP3 u10)
)LJG!
NRWHDERXWLQVWDOOLQJWKHVFUHZ
:LUHZLWKOXJWHUPLQDOVHWWLQJ
lug terminal
direction
wire with
lug terminal
wire with lug terminal
MAIN board
MAIN board
rear side
rear side
)LJ)!)LJ(!
–7RSYLHZ–
–7RSYLHZ–
OK NG
GND plate
GND plate
screwscrew
GND plate is
screwed.
GND plate is
floating.
–7RSYLHZ–
lug terminal
direction
4screw
(BTP3 u10)
connector
(CN3)
speaker
cable
POWER
board
Pass the speaker cable
beside the screw boss.
SYSSET
2019/02/1301:27:25(GMT+09:00)

HT-S350/SD35
19
Sony CONFIDENTIAL
For Authorized Servicer
2-12. CHASSIS BLOCK-2
• Continued on 2-13 (page 20).
tape
portion
(See Fig. H)
6SHDNHUFDEOHVHWWLQJ
groove
3 terminal (wide)
[red]
3 terminal (narrow)
[black]
1Lift up the chassis block in
the direction of the arrow.
2Draw the speaker cable
out of the two grooves.
speaker unit
(for R-ch)
front side
rear side
right side
4speaker cable
connector (CN3)
(See Fig. H)
,QVWDOODWLRQGLUHFWLRQIRUWKHWHUPLQDORIVSHDNHUFDEOHIRU5FK
Note: When connecting the terminals of the speaker cable to the speaker unit (for R-ch),
be careful of the direction of the terminals.
)LJ+!
rear side
–7RSYLHZ–
speaker cable
terminal (wide)
[red]
terminal (narrow)
[black]
groove groove
speaker unit
(for R-ch)
–7RSYLHZ–
,QVWDOODWLRQGLUHFWLRQIRU
WKHFRQQHFWRU&1
MAIN
board
[red]
[blue] connector (CN3)
front side
Pass the speaker cable
beside the screw boss.
terminal (wide)
[red]
terminal [black]
terminal [white]
terminal (narrow)
[black]
speaker unit (for R-ch) speaker unit (for R-ch)
OK 1* OK 1*
tape portion
OK 1*
tape
portion
tape
portion
groove groove
Tape portion is not
in the groove.
Tape portion is
in the groove.
chassis block
groove
SYSSET
2019/02/1301:27:25(GMT+09:00)

HT-S350/SD35
20
Sony CONFIDENTIAL
For Authorized Servicer
2-13. CHASSIS BLOCK-3
2Draw the speaker cable
out of the hole.
hole
hole
boss
boss
hole
left side
90 ± 3 mm
tape portion
speaker unit
(for R-ch)
metal chassis
speaker cable
– Bottom view –
double-sided
tape
3DVtiQJ SoVitioQoItKe VSeDNeUFDEOe
front side
rear side
right side
1Peel the speaker cable
off of the metal chassis.
tape
portion
3chassis block
Note: When installing the chassis block,
align the two bosses and two holes.
SYSSET
2019/02/1301:27:25(GMT+09:00)
