1
Ver 1.1 2002. 04
SERVICE MANUAL
US Model
Canadian Model
AEP Model
UK Model
E Model
For the U.S. model
AUDIO POWER SPECIFICATIONS
POWER OUTPUTAND TOTAL HARMONIC DISTORTION:
with 6 ohm loads both channels driven, from 20 – 200 Hz;
rated 150 watts per channel minimum RMS power, with
no more than 0.8% total harmonic distortion from
250 milliwatts to rated output.
SS-MS535 (front, center, and rear speakers)
Speaker system 2 way, magnetically shielded
Speaker units Woofer: 5.7 cm (2 1/4 in.),
cone type
Tweeter: 2.5 cm (1 in.),
balance dome type
Enclosure type Bass reflex
Rated impedance 8 ohms
Power handling capacity
Maximum input power: 120 watts
Sensitivity level 85 dB (1 W, 1 m)
Frequency range 120 Hz – 50,000 Hz
Dimensions (w/h/d) When attached speaker grille:
Approx. 98 ×168 ×137 mm
(3 7/8 ×6 5/8 ×5 1/2 in.)
When attached supplied
speaker stand:
Approx.168 ×135 ×150 mm
(6 5/8 ×5 3/8 ×6 in.)
(pointed upwards)
Approx.168 ×127 ×150 mm
(6 5/8 ×5 ×6 in.)
(pointed downwards)
Mass When attached speaker grille:
Approx. 1.3 kg (2 lb 14 oz)
When attached supplied
speaker stand:
Approx. 1.4 kg (3 lb 2 oz)
SPECIFICATIONS
SA-WMS535 (subwoofer)
Speaker system Active subwoofer,
magnetically shielded
Speaker unit Woofer: 20 cm (8 in.),
cone type
Enclosure type Advanced SAW type
Reproduction frequency range
26 Hz – 250 Hz
Continuous RMS power output
150 W (6 ohms 20 Hz –
20 kHz, 0.8% THD)
Inputs
LINE IN (input pin jack)
General
Power requirements
US, Canadian model: 120 V AC, 60 Hz
AEP, UK model: 220 – 230 VAC, 50/60 Hz
E model: 110 – 120 V/220 – 240 V AC,
50/60 Hz
Power consumptions 70 W
1 W (standby mode)
Dimensions (w/h/d) Approx. 230 ×395 ×447 mm
(9 1/8 ×15 5/8 ×17 5/8 in.),
including front grille
Mass Approx. 13.3 kg (29 lb 5.14 oz)
Supplied accessories
Foot pads (16)
Center speaker stand (1)
Screw (for the center speaker stand) (1)
Washer (for the center speaker stand) (1)
Audio connecting cord (1)
Speaker connecting cords, 10 m (32 ft 9 3/4 in.) (2)
Speaker connecting cords, 3.5 m (11 ft 6 in.) (3)
Design and specifications are subject to change without
notice.
The SA-VE535H system consists of one
unit of SA-WMS535 and five units of SS-
MS535.
Sony Corporation
Home Audio Company
Published by Sony Engineering Corporation
9-873-648-02
2002D0400-1
© 2002. 04
MICRO SATELLITE SYSTEM
SA-VE535H/WMS535/
SS-MS535
SA-WMS535 SS-MS535 SS-MS535
(front and rear) (center)

2
SA-VE535H/WMS535/SS-MS535
TABLE OF CONTENTS
1. DIAGRAMS
1-1. Circuit Boards Location (SA-WMS535) ............................ 3
1-2. Printed Wiring Boards (SA-WMS535) ............................... 5
1-3. Schematic Diagram (SA-WMS535) ................................... 6
2. EXPLODED VIEWS
2-1. Front Panel Section (SA-WMS535).................................... 7
2-2. Rear Panel Section (SA-WMS535)..................................... 8
2-3. Front and Rear, Center Speaker (SS-MS535) ..................... 9
3. ELECTRICAL PARTS LIST ........................................ 10
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0OR DOTTED LINE
WITH MARK 0ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE
PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR
IN SUPPLEMENTS PUBLISHED BY SONY.
ATTENTION AU COMPOSANT AYANT RAPPORT
À LA SÉCURITÉ!!
LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0SUR LES
DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES
SONT CRITIQUES POUR LASÉCURITÉ DE FONCTIONNEMENT.
NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈCES
SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL
OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY.
To Exposed Metal
Parts on Set
0.15µF 1.5k
Ω
AC
voltmeter
(0.75V)
Earth Ground
Fig. A. Using an AC voltmeter to check AC leakage.
SAFETY CHECK-OUT
After correcting the original service problem, perform the following
safety check before releasing the set to the customer:
Check the antenna terminals, metal trim, “metallized” knobs,screws,
and all other exposed metal parts forAC leakage. Check leakage as
described below.
LEAKAGE TEST
The AC leakage from any exposed metal part to earth ground and
from all exposed metal parts to any exposed metal part having a
return to chassis, must not exceed 0.5 mA (500 microamperes).
Leakage current can be measured by any one of three methods.
1. A commercial leakage tester, such as the Simpson 229 or RCA
WT-540A. Follow the manufacturers’ instructions to use these
instruments.
2. A battery-operated AC milliammeter. The Data Precision 245
digital multimeter is suitable for this job.
3. Measuring the voltage drop across a resistor by means of aVOM
or battery-operatedAC voltmeter. The “limit” indication is 0.75
V, so analog meters must have an accurate low-voltage scale. The
Simpson 250 and Sanwa SH-63Trd are examples of a passive
VOM that is suitable. Nearly all battery operated digital
multimeters that have a 2V AC range are suitable. (See Fig. A)

3
SA-VE535H/WMS535/SS-MS535
1-1. CIRCUIT BOARDS LOCATION (SA-WMS535)
SECTION 1
DIAGRAMS
AUTO POWER board
MAIN boar
d
POWER board
LED board
POWER SWITCH board
CONTROL board

4
SA-VE535H/WMS535/SS-MS535
Ref. No. Location
D201 I-4
D202 H-4
D301 D-3
D302 D-3
D303 F-6
D304 F-4
D501 C-8
D502 E-6
D503 E-6
D504 E-7
D505 E-7
D506 E-5
D507 E-5
D508 C-2
D509 B-4
D510 C-6
D511 B-6
D512 C-5
D513 B-5
D601 I-7
D602 I-7
D603 J-7
D604 I-7
D605 H-7
D606 G-7
(D607) J-9
<D608> G-8
D701 B-3
D702 B-4
D703 A-5
D704 A-5
D801 E-10
IC101 B-2
IC102 C-2
IC201 H-3
IC202 H-1
IC203 H-3
IC204 H-4
IC301 E-2
IC501 C-3
IC701 B-4
Q301 D-3
Q302 D-3
Q303 D-3
Q304 D-2
Q305 D-3
Q306 D-3
Q307 D-4
Q308 E-4
Q309 E-4
Q310 F-4
Q311 E-4
Q401 J-3
Q402 J-3
Q403 J-2
Q404 J-5
Q501 E-5
Q502 E-5
Q503 C-4
Q504 C-4
Q505 C-5
Q506 C-5
Q601 H-7
Q602 G-7
Q701 B-5
Q702 B-6
Q703 B-5
Q704 B-6
Q705 B-6
•Semiconductor
Location
(): Except Singapore model
<>: Singapore model
Note on Schematic Diagram:
•All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.
•All resistors are in Ωand 1/4W or less unless otherwise
specified.
•2: nonflammable resistor.
•C: panel designation.
Note:
The components identi-
fied by mark 0or dotted
linewithmark 0arecriti-
cal for safety.
Replace only with part
number specified.
Note:
Lescomposantsidentifiés par
une marque 0sont critiques
pour la sécurité.
Ne les remplacer que par une
piéce portant le numéro
spécifié.
•A: B+ Line.
•B: B– Line.
•Voltage is dc with respect to ground under no-signal
(detuned) condition.
•Voltagesaretakenwith aVOM(Input impedance10 MΩ).
Voltage variations may be noted due to normal produc-
tion tolerances.
•Signal path.
F: AUDIO
•Abbreviation
CND : Canadian model.
SP : Singapore model.
MY : Malaysia model.
AR : Argentine model.
Note on Printed Wiring Boards:
•X: parts extracted from the component side.
•: Pattern from the side which enables seeing.
•Abbreviation
CND : Canadian model.
SP : Singapore model.
MY : Malaysia model.
AR : Argentine model.

55
SA-VE535H/WMS535/SS-MS535

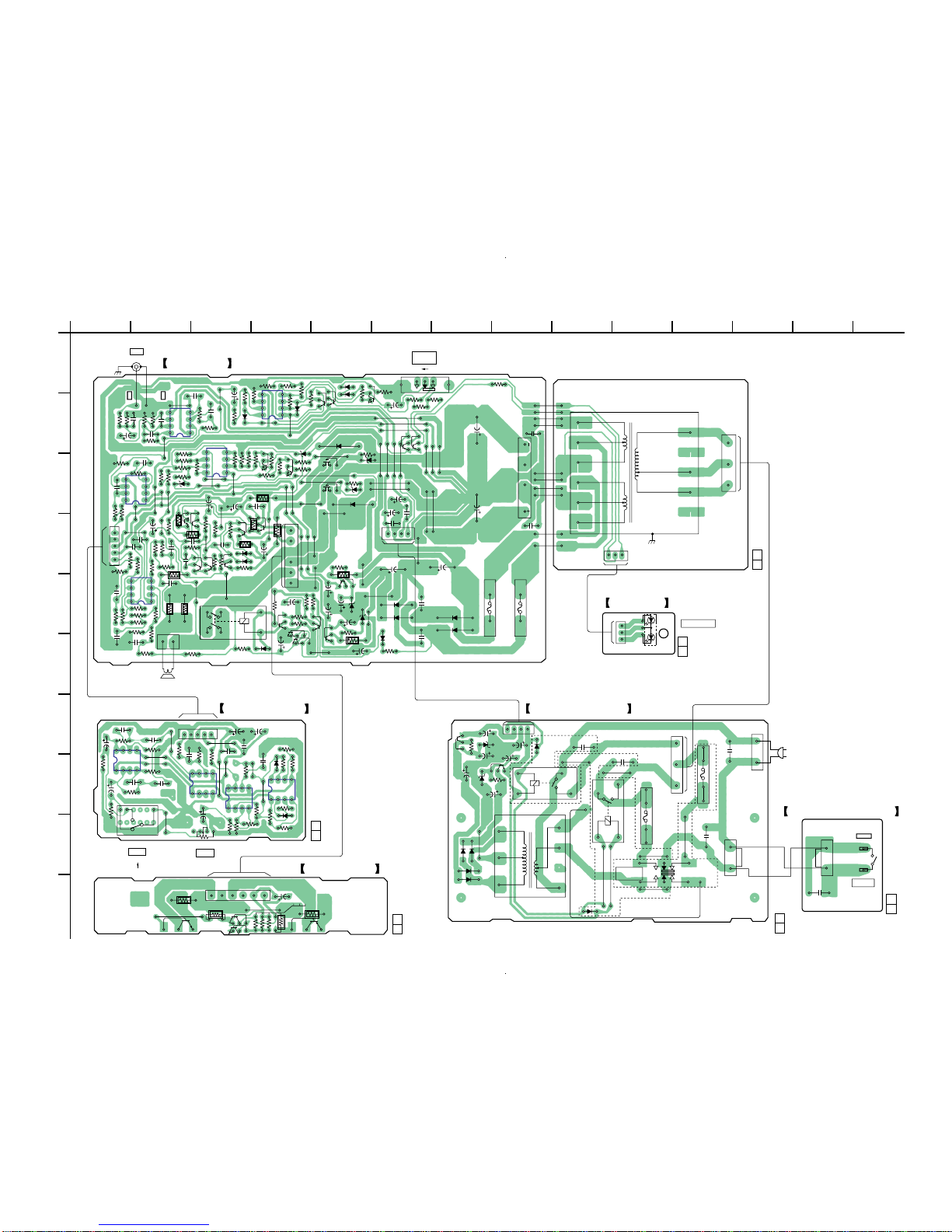

1-2. PRINTED WIRING BOARDS (SA-WMS535) • Refer to page 3 for Circuit Boards Location.
1
A
B
C
D
E
F
G
H
I
J
234567891011121314
JW61
R201
CN201
C201 R202
JW64
R221
IC201
IC203
IC204
JW59
C213
JW57
C211 C212
R215
R217
R214
D201
R210
JW60
R209
R211 R220
R219
C214
C210
D202
R218
R216
R407
Q404
C401
JW56
R406
R404
CN401
Q401
Q403
Q402
JW55
R405
R402 R401 R403
JW58
R212
R213
C208
RV201
15
R205
S201
S201
MODE LEVEL
MUSIC
MOVIE
C204 R208
IC202
C207
R203
C203
R206
C206
RY602
T601
RY601
D608
R602
C602
JW604
JW601 JW602
C5
F601
F602
C2
C1
D605
D601 D602
JW606
J101
IN POWER
SAVE
S701
LINE
R302
IC301
R304
R331
R332
R329
C312
R327 R335
R326
CN302
R322
R319
C310
C305
R310
C304
R308
R306
D302
D301
R313
C301
R303 R333
C313
R328
R330
R321
R320
JW33
JW74
JW34
C308
JW35
JW52
C505C506
C512
JW36
JW44
R317
JW75
JW37
D506
R307 R315
C303
Q301
Q303 Q302
D504
D505
D503
JW38
D303
D507
C510
C511
D502
R101
R102
C101
R105
R103
R107
C105
JW2
C701
R701
D701 R702
R703
JW4
JW11 JW26
R314
Q307
R341
R517
JW73
R509
R518 R516 R519
Q504 R520
Q503
R512
R710
R709
R711
D702
Q701
Q703
R704
Q702
C103
C102 C104 R106
JW3
IC701
R708 R707 D704 R706
C702 R705 R712
R714
S701
R713
C504
JW56
D501
JW55 JW54
Q705 Q704
C503
JW51
JW50
R514
D510
D511
R522
D513
JW13
JW76
JW12
JW27
R511
R318
C306
C309
D509
R521
R513
Q506
C516
D512
Q505
JW49
CN301
R504
R503
C317
R339
R340
Q311
Q309
R501
JW53
Q310
C316
R502
R336
Q501
D304 C314
Q308
C509
Q502
C507 C508
C517
CN502
C515
JW16 JW17
C518
JW77
R337
R338
JW28 JW29
JW15 JW14
JW42
JW46
JW47
D703
C106
IC101
JW78
JW1
R11O C108
R109
IC102 D508
R508
JW72
JW9
IC501
JW22
C514
CN101
C513
C107
R108 R111
JW21
R506
R505
C302
JW24
R305
R309
R324
R301
R334
R325
R323
C311
R316
R312
C307
JW43
R311
Q306
Q304
JW41
JW23
JW42
JW25
Q305
R515
R507
R51O
R104
F501 F502
CN501
T501
C606
D606
C604
R601
C601
D604
D603
D607
Q601
JW609
JW608
C3
CN604
CNT1
CNT2
CN602
~ AC IN
CN601
JW605
JW600
S601
VOLTAGE
SELECTOR
C4
CN605
C605
C603
Q602
CN701
C501
JW19
JW20
JW31
JW32
JW30
JW18
JW5
JW6
JW7
JW8
C502
C202
R204
JW63
R207
JW62
C205
POWER BOARD
MAIN BOARD
CONTROL BOARD AUTO POWER BOARD
13
3
1
1
5
3
1
2
1
1
2
1
2
41
1-685-124- (11)
11
1-685-128- (11)
11
1-685-125-
(11)
11
1-685-126-- (11)
11
1-685-129- (11)
11
1-685-127- (11)
11
85
14
85
14
8
61
5
14 85
14
LED BOARD
S1
POWER
D801
ON/STANDBY
CN1
CN801
D801
POWER SWITCH BOARD
(CHASSIS)
(CHASSIS)
1
3
SP1
SPEAKER
BLU
BRN
AUTO OFF
~~
4
5
6
2
3
1
12 3
65 4
SP, MY MODEL
SP, MY MODEL
EXCEPT SP, MY MODEL
4
1
5
8
4
1
5
8
4
1
5
8
4
1
5
8
4
1
5
8
RY301
1
6
BLK
-
RED
+
12
14

66
SA-VE535H/WMS535/SS-MS535
1-3. SCHEMATIC DIAGRAM (SA-WMS535)
R306
R308
C304
R309 R310 R318
R315
R317
R305
R311
CN502
CN302
R340
R339
R338R337 R319
R335
S701
CN701
R314
R404
R405
R403
R402
R401
R304
R303
C301
R301
R313
CN501
C501
C502
C503
C504
CN301
CN101
CN801
C201 R202
R201 C202 C203
R203
R204
C204
R205
S201
CN201
C211 C213 C212
C214
IC202(1/2)
IC202(2/2)
C207
R208
RV201 C208
R209
R211
R212
R213
R214
R215
R216
IC204(1/2)
IC204(2/2)
R221
IC203(1/2)
IC203(2/2)
R218
R217
R316
C316
Q307
CN401
Q404
Q403
SP1
CN604
R601
R602
CN605
CN1
S1
C601
C602
C605
C606
CN601
C604
C603
CN602
C2
C1
C5
J101
Q401
Q402
Q311
Q701
D702
Q702
D703
D704
Q703
Q705
Q704
D605
D606
D601
D602
D603
D604
Q601
Q602
D202
D201
IC201
RY601
T601
F601
JW604
JW600
JW605
JW608
JW609
RY602
JW602
JW601
S601
D607
D608
C4
C3
RY301
D501
R210
R219 R220
C210
R101
R102
C102
R103
C103
R105 C104
R107
C105
C106
R106
R111
R108
C107
C108
R109
C513 C514
R302
R334
R333 R332 R331
C313 R330
C302
R328
R329
R327
C312
R326
C311
R325 R323
R324
R322
R321
R320
R312D301
D302
R307
C303
C305
C307
C306
R714
R712
R713
R711
R710
R709
R708
R707
R702
R703
R701
C701
D303
R336
C314
T501
R502
D506
C509
R504
D507
C510
R509
R511
R510
R512
R513
R514
R517
R520
R519
R521
R522
R518
D508
R506
R507
R508
R515
R516
D509
D513
D512
C101
R104
R110
C205 C206
R206
R207
D304
R341
C310
C317
R501
R503
C506
C505
C511
C512
R505
C401
R704
R705
C702 R706
C515
C517
C516
C518
IC101(1/2)
IC102(2/2)
IC102(1/2)
IC301(1/2)
IC301(2/2)
IC701(1/2)
IC701(2/2)
C308
Q306
Q301
Q302 Q303
Q304 Q305
C309
R407
R406
Q310
Q309
Q308
IC501(1/2)
IC501(2/2)
Q505
D510
Q504
D511
Q506
Q502
Q501
C507
C508
D502
D503
D505
D504
D801
IC101(2/2)
Q503
D701
F501
F502
F602

7
SA-VE535H/WMS535/SS-MS535
SECTION 2
EXPLODED VIEWS
Ref. No. Part No. Description Remark
2-1. FRONT PANEL SECTION
(SA-WMS535)
Ref. No. Part No. Description Remark
NOTE:
•The mechanical parts with no reference
number in the exploded views are not supplied.
•Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
•Abbreviation
AR : Argentina model
CND : Canadian model
MY : Malaysia model
SP : Singapore model
•Color Indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) ... (RED)
Parts Color Cabinet’s Color
•Accessories are given in the last of this
parts list.
RR
The components identified by
mark 0or dotted line with mark
0are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
1
2
3
3
4
5
8
6
7
10
9
SP1
Supplied with
RV201 and S201
#1
#1
#2
#2
1X-4953-330-1 FRAME ASSY, GRILLE
2X-4953-555-1 PANEL ASSY, FRONT (AEP,UK,SP,MY,AR)
2X-4954-878-1 PANEL ASSY, FRONT (US,CND)
33-703-564-21 SCREW, TAPPING
44-227-298-01 SHEET
54-999-482-11 KNOB (VOL)
64-231-866-01 PACKING
71-685-127-11 POWER SWITCH BOARD
84-973-938-31 KNOB (A), PUSH
91-685-128-11 LED BOARD
10 A-4729-384-A CONTROL BOARD, COMPLETE
SP1 1-825-151-11 SPEAKER (20cm)
#1 7-685-664-79 SCREW +P 4X20 TYPE1
#2 7-685-146-29 SCREW +P 3X8 TYPE2 SLIT

8
SA-VE535H/WMS535/SS-MS535
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
2-2. REAR PANEL SECTION
(SA-WMS535)
51
51
54
55
58
53
56
57
T501
F501
F502 not supplied
not supplied
not supplied
not supplied not supplied
not
supplied
not supplied
#3
#3
#4
#4
#5
#5
#6
#5
#5
#5
#5
#5
#5
#5 #5 #5
#5
#5
52
not supplied
not supplied
not supplied
F601
F602
T601
The components identified by
mark 0or dotted line with mark
0are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0sont critiques pour
la sécurité.
Neles remplacer que parune piéce
portant le numéro spécifié.
51 4-981-864-01 FOOT
52 1-685-129-11 AUTO POWER BOARD
*53 3-703-044-26 LABEL, CAUTION (US,CND)
54 1-685-126-11 POWER BOARD
55 3-905-609-01 SCREW (TRANSISTOR)
056 1-696-570-21 CORD, POWER (UK)
056 1-769-744-52 CORD, POWER (AEP,SP,MY)
056 1-783-820-11 CORD, POWER (US,CND)
056 1-783-941-22 CORD, POWER (AR)
*57 3-703-244-00 BUSHING (2104), CORD
58 A-4729-387-A MAIN BOARD, COMPLETE
0F501 1-532-203-00 FUSE (T2A/250V) (AEP,UK,SP,MY,AR)
0F501 1-533-470-11 FUSE, GLASS TUBE (DIA.5) (3.15A/250V)
(US,CND)
0F502 1-532-203-00 FUSE (T2A/250V) (AEP,UK,SP,MY,AR)
0F502 1-533-470-11 FUSE, GLASS TUBE (DIA.5) (3.15A/250V)
(US,CND)
0F601 1-532-299-00 FUSE, GLASS TUBE (DIA.5) (5A/250V) (US)
0F601 1-532-503-31 FUSE (T1.6AL/250V) (AEP,UK,SP,MY,AR)
0F601 1-533-470-11 FUSE, GLASS TUBE (DIA.5) (3.15A/250V) (CND)
0F602 1-532-237-00 FUSE (T3.15A/250V) (SP,MY)
0T501 1-435-999-11 TRANSFORMER, POWER (US,CND)
0T501 1-437-219-12 TRANSFORMER, POWER (SP,MY)
0T501 1-437-246-11 TRANSFORMER, POWER (AEP,UK,AR)
0T601 1-437-820-11 TRANSFORMER, POWER (US,CND)
0T601 1-437-839-11 TRANSFORMER, POWER (AEP,UK,AR)
0T601 1-437-841-11 TRANSFORMER, POWER (SP,MY)
#3 7-685-163-01 SCREW +P 4X16 TYPE1
#4 7-685-660-19 SCREW +BVTP 4X10 TYPE2 N-S
#5 7-685-647-79 SCREW +P 3X10 TYPE2 NON-SLIT
#6 7-685-645-79 SCREW +P 3X6 TYPE2 SLIT

9
SA-VE535H/WMS535/SS-MS535
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
2-3. FRONT AND REAR, CENTER SPEAKER
(SS-MS535)
SP3
SP2
SP4
not supplied
not supplied
#7
101
102
102
103
104
104
104 105
106
107
109
108
101 X-4954-607-1 FRAME (V) ASSY, GRILLE (vertical type)
101 X-4954-608-1 FRAME (H) ASSY, GRILLE (holizontal type)
102 4-231-872-01 SCREW, ORNAMENTAL
103 4-239-550-01 PANEL, FRONT
104 4-986-971-11 SCREW (3.5)
105 X-4954-610-1 CABINET ASSY
106 1-694-516-21 TERMINAL, SPEAKER
107 4-239-555-01 TW-BASE
108 4-239-556-01 COVER
109 4-238-824-01 SCREW
SP2 1-825-043-11 SPEAKER (5.7cm)
SP3 1-825-043-11 SPEAKER (5.7cm)
SP4 1-825-042-11 SPEAKER (2.5cm)
#7 7-682-149-04 SCREW +P 3X10

10
SA-VE535H/WMS535/SS-MS535 SECTION 3
ELECTRICAL PARTS LIST
NOTE:
•Due to standardization, replacements in
the parts list may be different from the
parts specified in the diagrams or the
components used on the set.
•-XX and -X mean standardized parts, so
they may have some difference from the
original one.
•RESISTORS
All resistors are in ohms.
METAL:Metal-film resistor.
METAL OXIDE: Metal oxide-film resistor.
F:nonflammable
•Abbreviation
AR : Argentina model
CND: Canadian model
MY : Malaysia model
SP : Singapore model
•Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
•SEMICONDUCTORS
In each case, u : µ, for example:
uA.. : µA.. uPA.. : µPA..
uPB.. : µPB.. uPC.. : µPC.. uPD.. : µPD..
•CAPACITORS
uF : µF
•COILS
uH : µH
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
The components identified by
mark 0or dotted line with mark
0are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
When indicating parts by reference
number, please include the board.
AUTO POWER
CONTROL
1-685-129-11 AUTO POWER BOARD
******************
1-533-217-31 HOLDER, FUSE
< CAPACITOR >
0C2 1-113-925-11 CERAMIC 0.01uF 20% 250V
0C3 1-113-925-11 CERAMIC 0.01uF 20% 250V
(EXCEPT SP,MY)
0C4 1-113-925-11 CERAMIC 0.01uF 20% 250V
(SP,MY)
0C5 1-113-924-11 CERAMIC 0.0047uF 20% 250V
C601 1-104-666-11 ELECT 220uF 20% 25V
C602 1-104-666-11 ELECT 220uF 20% 25V
C603 1-126-964-11 ELECT 10uF 20% 50V
C604 1-126-964-11 ELECT 10uF 20% 50V
C605 1-126-964-11 ELECT 10uF 20% 50V
C606 1-126-964-11 ELECT 10uF 20% 50V
< CONNECTOR >
*CN601 1-580-230-11 PIN, CONNECTOR (PC BOARD) 2P
CN602 1-564-321-00 PIN, CONNECTOR (3.96mm PITCH) 2P
*CN604 1-564-687-11 PIN, CONNECTOR (3.96mm PITCH) 3P
CN605 1-564-507-11 PLUG, CONNECTOR 4P
< DIODE >
D601 8-719-024-99 DIODE 11ES2-NTA2B
D602 8-719-024-99 DIODE 11ES2-NTA2B
D603 8-719-024-99 DIODE 11ES2-NTA2B
D604 8-719-024-99 DIODE 11ES2-NTA2B
D605 8-719-110-36 DIODE RD13ES-B2
D606 8-719-110-36 DIODE RD13ES-B2
D607 8-719-911-19 DIODE 1SS133T-72 (EXCEPT SP,MY)
D608 8-719-911-19 DIODE 1SS133T-72 (SP,MY)
< TRANSISTOR >
Q601 8-729-119-78 TRANSISTOR 2SC2785-HFE
Q602 8-729-173-38 TRANSISTOR 2SA733-K
< RESISTOR >
R601 1-247-843-11 CARBON 3.3K 5% 1/4W
R602 1-247-843-11 CARBON 3.3K 5% 1/4W
< RELAY >
0RY601 1-755-458-11 RELAY (EXCEPT SP,MY)
0RY602 1-755-458-11 RELAY (SP,MY)
< SWITCH >
0S601 1-771-474-11 SWITCH, POWER (VOLTAGE CHANGE)
(VOLTAGE SELECTOR) (SP,MY)
*************************************************************
A-4729-384-A CONTROL BOARD, COMPLETE
*************************
< CAPACITOR >
C201 1-130-475-00 MYLAR 0.0022uF 5% 50V
C202 1-131-697-21 FILM 0.27uF 5% 50V
C203 1-131-697-21 FILM 0.27uF 5% 50V
C204 1-126-964-11 ELECT 10uF 20% 50V
C205 1-131-695-21 FILM 0.18uF 5% 50V
C206 1-131-695-21 FILM 0.18uF 5% 50V
C207 1-126-964-11 ELECT 10uF 20% 50V
C208 1-126-964-11 ELECT 10uF 20% 50V
C210 1-136-165-00 FILM 0.1uF 5% 50V
C211 1-126-964-11 ELECT 10uF 20% 50V
C212 1-126-964-11 ELECT 10uF 20% 50V
C213 1-164-159-21 CERAMIC 0.1uF 50V
C214 1-164-159-21 CERAMIC 0.1uF 50V
< CONNECTOR >
*CN201 1-564-508-11 PLUG, CONNECTOR 5P
< DIODE >
D201 8-719-911-19 DIODE 1SS133T-72
D202 8-719-911-19 DIODE 1SS133T-72
< IC >
IC201 8-759-145-58 IC uPC4558C
IC202 8-759-145-58 IC uPC4558C
IC203 8-759-145-58 IC uPC4558C
IC204 8-759-145-58 IC uPC4558C
< RESISTOR >
R201 1-249-417-11 CARBON 1K 5% 1/4W
R202 1-249-429-11 CARBON 10K 5% 1/4W
R203 1-247-843-11 CARBON 3.3K 5% 1/4W
R204 1-249-438-11 CARBON 56K 5% 1/4W
R205 1-249-429-11 CARBON 10K 5% 1/4W

11
SA-VE535H/WMS535/SS-MS535
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
CONTROL MAINLED
R206 1-249-429-11 CARBON 10K 5% 1/4W
R207 1-249-437-11 CARBON 47K 5% 1/4W
R208 1-249-429-11 CARBON 10K 5% 1/4W
R209 1-249-429-11 CARBON 10K 5% 1/4W
R210 1-249-427-11 CARBON 6.8K 5% 1/4W
R211 1-249-421-11 CARBON 2.2K 5% 1/4W
R212 1-247-807-31 CARBON 100 5% 1/4W
R213 1-249-429-11 CARBON 10K 5% 1/4W
R214 1-249-424-11 CARBON 3.9K 5% 1/4W
R215 1-249-424-11 CARBON 3.9K 5% 1/4W
R216 1-249-429-11 CARBON 10K 5% 1/4W
R217 1-249-429-11 CARBON 10K 5% 1/4W
R218 1-249-429-11 CARBON 10K 5% 1/4W
R220 1-249-427-11 CARBON 6.8K 5% 1/4W
R221 1-247-807-31 CARBON 100 5% 1/4W
< VARIABLE RESISTOR >
RV201 1-225-826-11 RES, VAR, CARBON 20K (LEVEL)
< SWITCH >
S201 1-771-632-12 SWITCH, ROTARY (MODE)
*************************************************************
1-685-128-11 LED BOARD
**********
< CONNECTOR >
*CN801 1-564-518-11 PLUG, CONNECTOR 3P
< DIODE >
D801 8-719-028-30 LED SPR-39MVWF (ON/STANDBY)
*************************************************************
A-4729-387-A MAIN BOARD, COMPLETE
*********************
1-533-217-31 HOLDER, FUSE
< CAPACITOR >
C101 1-162-286-21 CERAMIC 220PF 10% 50V
C102 1-126-964-11 ELECT 10uF 20% 50V
C103 1-162-215-31 CERAMIC 47PF 5% 50V
C104 1-162-215-31 CERAMIC 47PF 5% 50V
C105 1-131-696-11 FILM 0.22uF 5% 50V
C106 1-131-688-21 FILM 0.047uF 5% 50V
C107 1-131-697-21 FILM 0.27uF 5% 50V
C108 1-131-696-11 FILM 0.22uF 5% 50V
C301 1-131-679-21 FILM 0.01uF 5% 50V
C302 1-126-964-11 ELECT 10uF 20% 50V
C303 1-162-302-11 CERAMIC 0.0022uF 30% 16V
C304 1-162-282-31 CERAMIC 100PF 10% 50V
C305 1-101-804-00 CERAMIC 10PF 5% 500V
C306 1-101-810-00 CERAMIC 100PF 5% 500V
C307 1-126-934-11 ELECT 220uF 20% 10V
C308 1-128-551-11 ELECT 22uF 20% 63V
C309 1-128-551-11 ELECT 22uF 20% 63V
C310 1-117-162-11 FILM 0.01uF 2% 100V
C311 1-136-165-00 FILM 0.1uF 5% 50V
C312 1-130-471-00 MYLAR 0.001uF 5% 50V
C313 1-131-688-21 FILM 0.047uF 5% 50V
C314 1-126-934-11 ELECT 220uF 20% 10V
C316 1-126-964-11 ELECT 10uF 20% 50V
C317 1-126-968-11 ELECT 100uF 20% 50V
C501 1-117-162-11 FILM 0.01uF 2% 100V
C502 1-117-162-11 FILM 0.01uF 2% 100V
C503 1-100-054-11 ELECT 10000uF 80V
C504 1-100-054-11 ELECT 10000uF 80V
C505 1-131-679-21 FILM 0.01uF 5% 50V
C506 1-131-679-21 FILM 0.01uF 5% 50V
C507 1-119-940-11 ELECT 4700uF 20% 50V
C508 1-119-940-11 ELECT 4700uF 20% 50V
C509 1-126-964-11 ELECT 10uF 20% 50V
C510 1-126-964-11 ELECT 10uF 20% 50V
C511 1-126-964-11 ELECT 10uF 20% 50V
C512 1-126-964-11 ELECT 10uF 20% 50V
C513 1-164-159-21 CERAMIC 0.1uF 50V
C514 1-164-159-21 CERAMIC 0.1uF 50V
C515 1-126-964-11 ELECT 10uF 20% 50V
C516 1-126-964-11 ELECT 10uF 20% 50V
C517 1-164-159-21 CERAMIC 0.1uF 50V
C518 1-164-159-21 CERAMIC 0.1uF 50V
C701 1-126-964-11 ELECT 10uF 20% 50V
C702 1-104-661-11 ELECT 330uF 20% 16V
< CONNECTOR >
*CN101 1-564-508-11 PLUG, CONNECTOR 5P
*CN301 1-564-243-11 PIN, CONNECTOR (3.96mm PITCH) 6P
CN302 1-564-320-00 PIN, CONNECTOR (3.96mm PITCH) 2P
*CN501 1-564-687-11 PIN, CONNECTOR (3.96mm PITCH) 3P
CN701 1-564-506-11 PLUG, CONNECTOR 3P
< DIODE >
D301 8-719-911-19 DIODE 1SS133T-72
D302 8-719-911-19 DIODE 1SS133T-72
D303 8-719-911-19 DIODE 1SS133T-72
D304 8-719-911-19 DIODE 1SS133T-72
D501 8-719-302-37 DIODE RBV-602
D502 8-719-064-47 DIODE RN1Z-LF-B1
D503 8-719-064-47 DIODE RN1Z-LF-B1
D504 8-719-064-47 DIODE RN1Z-LF-B1
D505 8-719-064-47 DIODE RN1Z-LF-B1
D506 8-719-947-65 DIODE MTZJ-T-72-16B
D507 8-719-947-65 DIODE MTZJ-T-72-16B
D508 8-719-109-89 DIODE RD5.6ES-B2
D509 8-719-109-89 DIODE RD5.6ES-B2
D510 8-719-921-75 DIODE MTZN-10B
D511 8-719-921-75 DIODE MTZN-10B
D512 8-719-902-17 DIODE U15G
D513 8-719-902-17 DIODE U15G
D701 8-719-911-19 DIODE 1SS133T-72
D702 8-719-911-19 DIODE 1SS133T-72
D703 8-719-911-19 DIODE 1SS133T-72

12
SA-VE535H/WMS535/SS-MS535
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
MAIN
The components identified by
mark 0or dotted line with mark
0are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0sont critiques pour
la sécurité.
Neles remplacer que parune piéce
portant le numéro spécifié.
D704 8-719-911-19 DIODE 1SS133T-72
< IC >
IC101 8-759-076-15 IC KIA4558P
IC102 8-759-076-15 IC KIA4558P
IC301 8-759-076-15 IC KIA4558P
IC501 8-759-076-15 IC KIA4558P
IC701 8-759-076-15 IC KIA4558P
< JACK >
J101 1-770-377-31 JACK, PIN 1P (LINE IN)
< TRANSISTOR >
Q301 8-729-117-41 TRANSISTOR 2SA1174-P
Q302 8-729-117-41 TRANSISTOR 2SA1174-P
Q303 8-729-117-41 TRANSISTOR 2SA1174-P
Q304 8-729-016-43 TRANSISTOR KTC3199Y-TP
Q305 8-729-016-43 TRANSISTOR KTC3199Y-TP
Q306 8-729-214-51 TRANSISTOR 2SA1145-O
Q307 8-729-270-51 TRANSISTOR 2SC2705-O
Q308 8-729-016-43 TRANSISTOR KTC3199Y-TP
Q309 8-729-045-02 TRANSISTOR KTC3200GR-AT
Q310 8-729-016-43 TRANSISTOR KTC3199Y-TP
Q311 8-729-029-86 TRANSISTOR DTC124ESA
Q501 8-729-119-78 TRANSISTOR 2SC2785-HFE
Q502 8-729-173-38 TRANSISTOR 2SA733-K
Q503 8-729-045-02 TRANSISTOR KTC3200GR-AT
Q504 8-729-117-41 TRANSISTOR 2SA1174-P
Q505 8-729-040-49 FET 2SJ103-Y-TP
Q506 8-729-224-61 FET 2SK246-Y
Q701 8-729-029-86 TRANSISTOR DTC124ESA
Q702 8-729-119-77 TRANSISTOR 2SA1175-FEK
Q703 8-729-029-86 TRANSISTOR DTC124ESA
Q704 8-729-029-40 TRANSISTOR DTA124ESA
Q705 8-729-029-40 TRANSISTOR DTA124ESA
< RESISTOR >
R101 1-249-417-11 CARBON 1K 5% 1/4W
R102 1-249-441-11 CARBON 100K 5% 1/4W
R103 1-249-441-11 CARBON 100K 5% 1/4W
R104 1-247-843-11 CARBON 3.3K 5% 1/4W
R105 1-247-843-11 CARBON 3.3K 5% 1/4W
R106 1-249-429-11 CARBON 10K 5% 1/4W
R107 1-249-429-11 CARBON 10K 5% 1/4W
R108 1-249-426-11 CARBON 5.6K 5% 1/4W
R109 1-249-425-11 CARBON 4.7K 5% 1/4W
R110 1-249-440-11 CARBON 82K 5% 1/4W
R111 1-247-807-31 CARBON 100 5% 1/4W
R301 1-249-429-11 CARBON 10K 5% 1/4W
R302 1-249-427-11 CARBON 6.8K 5% 1/4W
R303 1-249-429-11 CARBON 10K 5% 1/4W
R304 1-249-433-11 CARBON 22K 5% 1/4W
R305 1-249-438-11 CARBON 56K 5% 1/4W
R306 1-249-411-11 CARBON 330 5% 1/4W
R307 1-249-432-11 CARBON 18K 5% 1/4W
R308 1-249-408-11 CARBON 180 5% 1/4W
0R309 1-249-408-11 CARBON 180 5% 1/4W
0R310 1-249-408-11 CARBON 180 5% 1/4W
R311 1-249-429-11 CARBON 10K 5% 1/4W
R312 1-249-434-11 CARBON 27K 5% 1/4W
0R313 1-249-407-11 CARBON 150 5% 1/4W
0R314 1-249-401-11 CARBON 47 5% 1/4W
R315 1-249-438-11 CARBON 56K 5% 1/4W
R316 1-249-419-11 CARBON 1.5K 5% 1/4W
0R317 1-249-393-11 CARBON 10 5% 1/4W
0R318 1-249-393-11 CARBON 10 5% 1/4W
0R319 1-249-393-11 CARBON 10 5% 1/4W
0R320 1-219-792-51 METAL 0.47 10% 5W
0R321 1-219-792-51 METAL 0.47 10% 5W
R322 1-249-435-11 CARBON 33K 5% 1/4W
R323 1-249-429-11 CARBON 10K 5% 1/4W
R324 1-249-415-11 CARBON 680 5% 1/4W
R325 1-249-417-11 CARBON 1K 5% 1/4W
R326 1-249-417-11 CARBON 1K 5% 1/4W
R327 1-249-417-11 CARBON 1K 5% 1/4W
R328 1-249-429-11 CARBON 10K 5% 1/4W
R329 1-249-430-11 CARBON 12K 5% 1/4W
R330 1-249-421-11 CARBON 2.2K 5% 1/4W
R331 1-249-425-11 CARBON 4.7K 5% 1/4W
R332 1-249-417-11 CARBON 1K 5% 1/4W
R333 1-249-431-11 CARBON 15K 5% 1/4W
R334 1-249-420-11 CARBON 1.8K 5% 1/4W
R335 1-249-433-11 CARBON 22K 5% 1/4W
R336 1-249-431-11 CARBON 15K 5% 1/4W
R337 1-249-438-11 CARBON 56K 5% 1/4W
R338 1-249-441-11 CARBON 100K 5% 1/4W
R339 1-249-441-11 CARBON 100K 5% 1/4W
R340 1-249-433-11 CARBON 22K 5% 1/4W
0R341 1-215-865-81 CARBON 220 5% 1W
0R501 1-249-401-11 CARBON 47 5% 1/4W
R502 1-249-429-11 CARBON 10K 5% 1/4W
0R503 1-249-401-11 CARBON 47 5% 1/4W
R504 1-249-429-11 CARBON 10K 5% 1/4W
R505 1-249-433-11 CARBON 22K 5% 1/4W
R506 1-249-425-11 CARBON 4.7K 5% 1/4W
R507 1-249-437-11 CARBON 47K 5% 1/4W
R508 1-249-433-11 CARBON 22K 5% 1/4W
R509 1-247-903-00 CARBON 1M 5% 1/4W
R510 1-247-843-11 CARBON 3.3K 5% 1/4W
R511 1-249-437-11 CARBON 47K 5% 1/4W
R512 1-249-429-11 CARBON 10K 5% 1/4W
R513 1-249-433-11 CARBON 22K 5% 1/4W
R514 1-249-425-11 CARBON 4.7K 5% 1/4W
R515 1-249-437-11 CARBON 47K 5% 1/4W
R516 1-249-433-11 CARBON 22K 5% 1/4W
R517 1-247-903-00 CARBON 1M 5% 1/4W
R518 1-247-843-11 CARBON 3.3K 5% 1/4W
R519 1-249-437-11 CARBON 47K 5% 1/4W
R520 1-249-429-11 CARBON 10K 5% 1/4W
R521 1-249-433-11 CARBON 22K 5% 1/4W

13
SA-VE535H/WMS535/SS-MS535
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
MAIN
The components identified by
mark 0or dotted line with mark
0are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0sont critiques pour
la sécurité.
Neles remplacer que parune piéce
portant le numéro spécifié.
POWER POWER SWITCH
R522 1-249-425-11 CARBON 4.7K 5% 1/4W
R701 1-249-417-11 CARBON 1K 5% 1/4W
R702 1-247-887-00 CARBON 220K 5% 1/4W
R703 1-249-421-11 CARBON 2.2K 5% 1/4W
R704 1-249-441-11 CARBON 100K 5% 1/4W
R705 1-249-417-11 CARBON 1K 5% 1/4W
R706 1-249-430-11 CARBON 12K 5% 1/4W
R707 1-249-429-11 CARBON 10K 5% 1/4W
R708 1-249-429-11 CARBON 10K 5% 1/4W
R709 1-249-441-11 CARBON 100K 5% 1/4W
R710 1-247-903-00 CARBON 1M 5% 1/4W
R711 1-249-433-11 CARBON 22K 5% 1/4W
R712 1-249-417-11 CARBON 1K 5% 1/4W
R713 1-249-421-11 CARBON 2.2K 5% 1/4W
R714 1-249-421-11 CARBON 2.2K 5% 1/4W
< RELAY >
RY301 1-515-920-11 RELAY (24V)
< SWITCH >
S701 1-771-188-11 SWITCH, SLIDE (POWER SAVE)
*************************************************************
1-685-126-11 POWER BOARD
*************
< CAPACITOR >
C401 1-126-947-11 ELECT 47uF 20% 16V
< CONNECTOR >
*CN401 1-564-243-11 PIN, CONNECTOR (3.96mm PITCH) 6P
< TRANSISTOR >
Q401 8-729-141-30 TRANSISTOR 2SC3623A-LK
Q402 8-729-119-77 TRANSISTOR 2SA1175-FEK
Q403 8-749-010-25 TRANSISTOR MN2488-OPY-M
Q404 8-749-010-26 TRANSISTOR MP1620-OPY-M
< RESISTOR >
R401 1-249-437-11 CARBON 47K 5% 1/4W
R402 1-249-421-11 CARBON 2.2K 5% 1/4W
R403 1-249-414-11 CARBON 560 5% 1/4W
0R404 1-249-408-11 CARBON 180 5% 1/4W
0R405 1-249-408-11 CARBON 180 5% 1/4W
0R406 1-217-156-00 METAL 0.22 10% 5W
0R407 1-217-156-00 METAL 0.22 10% 5W
*************************************************************
1-685-127-11 POWER SWITCH BOARD
********************
< CAPACITOR >
0C1 1-113-924-11 CERAMIC 0.0047uF 20% 250V
< CONNECTOR >
CN1 1-564-321-00 PIN, CONNECTOR (3.96mm PITCH) 2P
< SWITCH >
0S1 1-554-920-61 SWITCH, PUSH (AC POWER) (1 KEY) (POWER)
*************************************************************
MISCELLANEOUS
***************
056 1-696-570-21 CORD, POWER (SA-WMS535:UK)
056 1-769-744-52 CORD, POWER (SA-WMS535:AEP,SP,MY)
056 1-783-820-11 CORD, POWER (SA-WMS535:US,CND)
056 1-783-941-22 CORD, POWER (SA-WMS535:AR)
106 1-694-516-21 TERMINAL, SPEAKER (SS-MS535)
0F501 1-532-203-00 FUSE (T2A/250V) (SA-WMS535:AEP,UK,SP,MY,AR)
0F501 1-533-470-11 FUSE, GLASS TUBE (DIA.5) (3.15A/250V)
(SA-WMS535:US,CND)
0F502 1-532-203-00 FUSE (T2A/250V) (SA-WMS535:AEP,UK,SP,MY,AR)
0F502 1-533-470-11 FUSE, GLASS TUBE (DIA.5) (3.15A/250V)
(SA-WMS535:US,CND)
0F601 1-532-299-00 FUSE, GLASS TUBE (DIA.5) (5A/250V)
(SA-WMS535:US)
0F601 1-532-503-31 FUSE (T1.6AL/250V)
(SA-WMS535:AEP,UK,SP,MY,AR)
0F601 1-533-470-11 FUSE, GLASS TUBE (DIA.5) (3.15A/250V)
(SA-WMS535:CND)
0F602 1-532-237-00 FUSE (T3.15A/250V) (SA-WMS535:SP,MY)
SP1 1-825-151-11 SPEAKER (20cm) (SA-WMS535)
SP2 1-825-043-11 SPEAKER (5.7cm) (SS-MS535)
SP3 1-825-043-11 SPEAKER (5.7cm) (SS-MS535)
SP4 1-825-042-11 SPEAKER (2.5cm) (SS-MS535)
0T501 1-435-999-11 TRANSFORMER, POWER (SA-WMS535:US,CND)
0T501 1-437-219-12 TRANSFORMER, POWER (SA-WMS535:SP,MY)
0T501 1-437-246-11 TRANSFORMER, POWER
(SA-WMS535:AEP,UK,AR)
0T601 1-437-820-11 TRANSFORMER, POWER (SA-WMS535:US,CND)
0T601 1-437-839-11 TRANSFORMER, POWER
(SA-WMS535:AEP,UK,AR)
0T601 1-437-841-11 TRANSFORMER, POWER (SA-WMS535:SP,MY)
*************************************************************
ACCESSORIES
************
01-569-008-21 ADAPTOR, CONVERSION 2P (SP,MY)
1-751-598-52 CORD, CONNECTION (PIN-PIN)
(US,CND,AEP,UK,AR)
1-769-329-21 CORD, CONNECTION (PIN-PIN) (SP,MY)
1-790-503-11 CORD, SPEAKER (10m)
1-790-503-31 CORD, SPEAKER (3.5m)
3-701-443-21 WASHER, DIA.5
4-219-450-01 SCREW (M5X16) (for vertical type)
4-222-029-01 SCREW (+P 3.5X14) (for holizontal type)
4-239-746-11 MANUAL, INSTRUCTION (ENGLISH,FRENCH)
(US,CND,UK)
4-239-746-21 MANUAL, INSTRUCTION (ENGLISH,FRENCH,
GERMAN,ITALIAN) (AEP)
4-239-746-31 MANUAL, INSTRUCTION (DUTCH,SPANISH,
SWEDISH,POLISH) (AEP)
4-239-746-41 MANUAL, INSTRUCTION (PORTUGUESE,
DANISH,FINNISH,RUSSIAN) (AEP)
4-239-746-51 MANUAL, INSTRUCTION (ENGLISH,FRENCH,
SPANISH,TRADITIONAL CHINESE)
(SP,MY,AR)
4-972-322-01 FOOT (Y)
X-4954-609-1 STAND ASSY

16
SA-VE535H/WMS535/SS-MS535
REVISION HISTORY
Clicking the version allows you to jump to the revised page.
Also, clicking the version at the upper right on the revised page allows you to jump to the next revised
page.
Ver. Date Description of Revision
1.0 2002. 02 New (Preliminary)
1.1 2002. 04 New (Complete)
