Sony Hcd-gnz333d User manual

SERVICE MANUAL

DVD DECK RECEIVER

SPECIFICATIONS

HCD-GNZ333D/GNZ444D

Ver. 1.4 2008.09

DVD Model Name Using Similar Mechanism NEW

Section Optical Pick-up Name KHM-313CAB

Tape Deck Model Name Using Similar Mechanism HCD-EC55/EC77

Section Tape Transport Mechanism Type CS-21SC-901TP

9-887-709-05

2008I04-1

Sony Corporation

Audio&Video Business Group

Published by SonyTechno Create Corporation

E Model

(Photo: HCD-GNZ444D)

•HCD-GNZ333D/GNZ444D are the tuner,

deck, DVD and amplifier section in

MHC-GNZ333D/GNZ333DL/GNZ444D.

Amplifier section

The following are measured at AC 120, 127,

220, 240V 50/60 Hz

Front speaker:

Power output (rated)

72 W + 72W (at 6 Ω, 1 kHz, 1%

THD)

RMS output power (reference)

120 W + 120W (per channel at 6 Ω,

1 kHz, 10% THD)

Subwoofer (HCD-GNZ444D only):

RMS output power (reference)

150 W (at 6 Ω, 80 Hz, 10% THD)

Inputs

AUDIO IN (stereo mini jack):

Voltage 700 mV, impedance

47 kilohms

Outputs

DIGITAL OUT (square optical connector

jack): Wavelength 650 nm

VIDEO OUT (phono jack):

Max. output level 1 Vp-p, unbalanced,

Sync. negative load impedance 75 Ω

PHONES (stereo mini jack):

accepts headphones of 8 Ωor more

SUBWOOFER OUT (HCD-GNZ444D

only)

Power consumption:

190 W

Dimensions (w/h/d):

Approx. 200 ×306 ×410 mm

Mass: Approx. 8.0 kg

Disc player section

System Compact disc and digital audio and

video system

Laser Semiconductor laser (DVD:

λ=650 nm, CD: λ=790 nm)

Emission duration: continuous

Frequency response

DVD (PCM 48 kHz): 2 Hz – 22 kHz

(±1dB)

CD: 2 Hz – 20 kHz (±0.5 dB)

Video color system format

NTSC and PAL

Tape deck section

Recording system: 4-track 2-channel, stereo

– Continued on next page –

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

2

HCD-GNZ333D/GNZ444D

SAFETY-RELATED COMPONENT WARNING!!

COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE

WITH MARK 0ON THE SCHEMATIC DIAGRAMS AND IN

THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.

REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE

PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR

IN SUPPLEMENTS PUBLISHED BY SONY.

Tuner section

FM stereo, FM/AM superheterodyne tuner

FM tuner section

Tuning range:

87.5 – 108.0 MHz (50 kHz step)

AntennaFM lead antenna

Antenna terminals

75 Ωunbalanced

Intermediate frequency

10.7 MHz

AM tuner section

Tuning range:

Saudi Arabian and Russian models:

531 – 1,602 kHz (with the interval set

at 9 kHz)

Other models:

531 – 1,602 kHz (with the interval set

at 9 kHz)

530 – 1,610 kHz (with the interval set

at 10 kHz)

AntennaAM loop antenna

Antenna terminals

External antenna terminal

Intermediate frequency

450 kHz

General

Power requirements:

Russian model:

AC 220 – 240 V, 50/60 Hz

SaudiArabian model:

AC 120 – 127, 220 – 240 V,

50/60 Hz, adjustable with voltage

selector

Other models:

AC 120, 220 or 230 – 240 V,

50/60 Hz, adjustable with voltage

selector

Design and specifications are subject to

change without notice.

U.S. and foreign patents licensed from

Dolby Laboratories.

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

3

HCD-GNZ333D/GNZ444D

Notes on chip component replacement

•Never reuse a disconnected chip component.

•Notice that the minus side of a tantalum capacitor may be

damaged by heat.

Flexible Circuit Board Repairing

•Keep the temperature of the soldering iron around 270 ˚C

during repairing.

•Do not touch the soldering iron on the same conductor of the

circuit board (within 3 times).

•Be careful not to apply force on the conductor when soldering

or unsoldering.

CAUTION

Use of controls or adjustments or performance of procedures

otherthanthose specified hereinmayresultin hazardous radiation

exposure.

UNLEADED SOLDER

Boards requiring use of unleaded solder are printed with the lead-

free mark (LF) indicating the solder contains no lead.

(Caution: Some printed circuit boards may not come printed with

the lead free mark due to their particular size)

: LEAD FREE MARK

Unleaded solder has the following characteristics.

•Unleaded solder melts at a temperature about 40 ˚C higher

than ordinary solder.

Ordinary soldering irons can be used but the iron tip has to be

applied to the solder joint for a slightly longer time.

Soldering irons using a temperature regulator should be set to

about 350 ˚C.

Caution: The printed pattern (copper foil) may peel away if

the heated tip is applied for too long, so be careful!

•Strong viscosity

Unleaded solder is more viscou-s (sticky, less prone to flow)

than ordinary solder so use caution not to let solder bridges

occur such as on IC pins, etc.

•Usable with ordinary solder

It is best to use only unleaded solder but unleaded solder may

also be added to ordinary solder.

The laser diode in the optical pick-up block may suffer electrostatic

break-down because of the potential difference generated by the

charged electrostatic load, etc. on clothing and the human body.

During repair, pay attention to electrostatic break-down and also

use the procedure in the printed matter which is included in the

repair parts.

The flexible board is easily damaged and should be handled with

care.

NOTES ON LASER DIODE EMISSION CHECK

The laser beam on this model is concentrated so as to be focused on

the disc reflective surface by the objective lens in the optical pick-

up block. Therefore, when checking the laser diode emission,

observe from more than 30 cm away from the objective lens.

NOTES ON HANDLING THE OPTICAL PICK-UP

BLOCK OR BASE UNIT

Laser component in this product is capable

of emitting radiation exceeding the limit for

Class 1.

This appliance is

claassified as a CLASS 1

LASER product. This

label is located on the

rear exterior.

Ver. 1.2

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

4

HCD-GNZ333D/GNZ444D

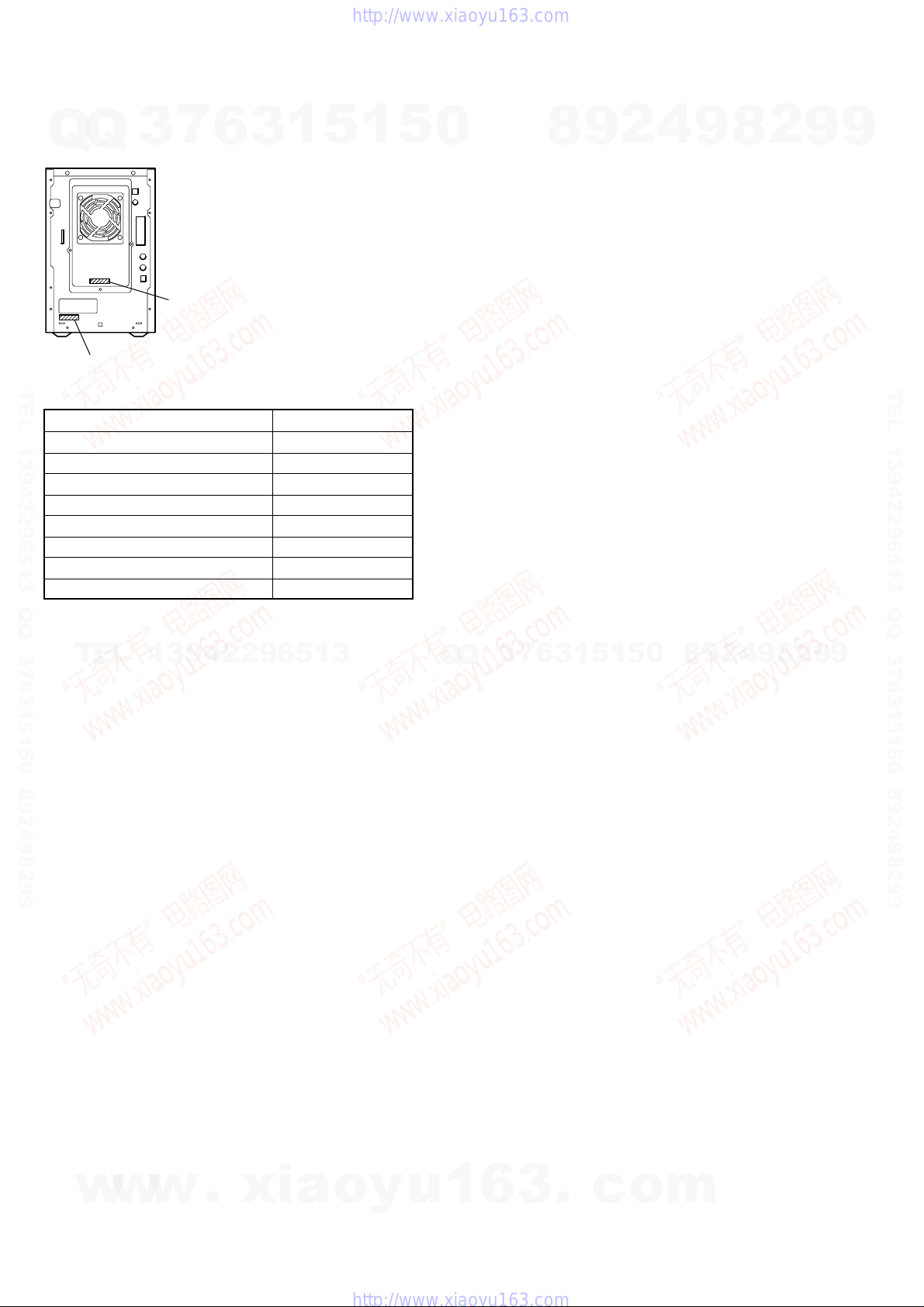

MODEL IDENTIFICATION

– BACK PANEL –

Model Part No.

GNZ333D: SP 2-898-299-0s

GNZ444D: E13 2-898-299-1s

GNZ333D: EA 2-898-299-2s

GNZ333D: E13 2-898-299-3s

GNZ333D: E3, E15 2-898-299-4s

GNZ333D: PH 2-898-299-5s

GNZ333D:TH 2-898-299-6s

GNZ333D: E12 2-898-299-7s

•Abbreviation

E3 : 240 V AC area in E model

E12 : 220-240 V AC area in E model

E13 : Russian model

E15 : Iran model

EA : Saudi Arabia model

PH : Philippine model

SP : Singapore model

TH : Thai model

PARTS No. (except TH model)

PARTS No. (TH model

)

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

5

HCD-GNZ333D/GNZ444D

1. SERVICING NOTES ............................................... 6

2. GENERAL

Guide to Parts and Controls............................................. 8

3. DISASSEMBLY

3-1. Side Panel (R), Side Panel (L)......................................... 16

3-2. Top Panel Section ............................................................ 16

3-3. Door (CD)........................................................................ 17

3-4. Front Panel Section ......................................................... 17

3-5. Main Board ...................................................................... 18

3-6. DC Fan ............................................................................ 18

3-7. Rear Panel........................................................................ 19

3-8. AMP Board...................................................................... 19

3-9. PT Board.......................................................................... 20

3-10. Cover (CDM)................................................................... 20

3-11. CD Mechanism Section................................................... 21

3-12. DMB16 Board ................................................................. 21

3-13. Belt (DLM3A) ................................................................. 22

3-14. Optical Pick-up................................................................ 22

3-15. Mechanism Deck ............................................................. 23

3-16. Belt (Main), Belt (R/F) .................................................... 23

4. TEST MODE.............................................................. 24

5. MECHANICAL ADJUSTMENTS ....................... 28

6. ELECTRICAL ADJUSTMENTS ......................... 28

7. DIAGRAMS

7-1. Block Diagram – RF/Servo Section – ............................. 31

7-2. Block Diagram – Video Section – ................................... 32

7-3. Block Diagram – Main Section – .................................... 33

TABLE OF CONTENTS

7-4. Block Diagram – Display Section – ................................ 34

7-5. Printed Wiring Boards – Main Section –......................... 36

7-6. Schematic Diagram – Main Section (1/3) – .................... 37

7-7. Schematic Diagram – Main Section (2/3) – .................... 38

7-8. Schematic Diagram – Main Section (3/3) – .................... 39

7-9. Printed Wiring Board – DMB16 Section (1/2) –............. 40

7-10. Printed Wiring Board – DMB16 Section (2/2) –............. 41

7-11. Schematic Diagram – DMB16 Section (1/6) – ............... 42

7-12. Schematic Diagram – DMB16 Section (2/6) – ............... 43

7-13. Schematic Diagram – DMB16 Section (3/6) – ............... 44

7-14. Schematic Diagram – DMB16 Section (4/6) – ............... 45

7-15. Schematic Diagram – DMB16 Section (5/6) – ............... 46

7-16. Schematic Diagram – DMB16 Section (6/6) – ............... 47

7-17. Printed Wiring Board – AMP Section – .......................... 48

7-18. Schematic Diagram – AMP Section – ............................. 49

7-19. Printed Wiring Board – Deck Section – .......................... 50

7-20. Schematic Diagram – Deck Section – ............................. 51

7-21. Printed Wiring Boards – MIC/Jack Section – ................. 52

7-22. Schematic Diagram – MIC/Jack Section –...................... 53

7-23. Printed Wiring Boards – Panel Section – ........................ 54

7-24. Schematic Diagram – Panel Section – ............................ 55

7-25. Printed Wiring Board – Power Section – ........................ 56

7-26. Schematic Diagram – Power Section – ........................... 57

8. EXPLODED VIEWS

8-1. Overall Section ................................................................ 70

8-2. Front Panel Section ......................................................... 71

8-3. Main Board Section ......................................................... 72

8-4. Rear Panel Section........................................................... 73

8-5. Chassis Section ................................................................ 74

8-6. Top Panel Section ............................................................ 75

8-7. DVD Mechanism Deck Section ...................................... 76

9. ELECTRICAL PARTS LIST................................ 77

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

6

HCD-GNZ333D/GNZ444D SECTION 1

SERVICING NOTES

1. CDM SERVICE POSITION

2. OPENING THE CD TRAY MANUAL

J-2501-077-A

(1.25m/13P/300L)

DMB16 board

CDM mechanism block

gear

lever

door (CD)

flathead screwdriver

bottom rib

1

Turn the bottom rib (not the gear) with

a flathead screwdriver in the direction

of arrow A, with the lever pushed up,

draw out the door (CD) by the hand.

A

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

7

HCD-GNZ333D/GNZ444D

4. ARRANGEMENT OF THE CORD

3. NOTE FOR HANDLING THE BU

Perform solder bridging to prevent damage

by electrostatic discharge when handling the BU as a single unit.

cordes are fixed

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

8

HCD-GNZ333D/GNZ444D SECTION 2

GENERAL This section is extracted from

instruction manual.

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

9

HCD-GNZ333D/GNZ444D

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

10

HCD-GNZ333D/GNZ444D

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

11

HCD-GNZ333D/GNZ444D

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

12

HCD-GNZ333D/GNZ444D

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

13

HCD-GNZ333D/GNZ444D

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

14

HCD-GNZ333D/GNZ444D

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

15

HCD-GNZ333D/GNZ444D

Note: Disassemble the unit in the order as shown below.

SECTION 3

DISASSEMBLY

3-1. SIDE PANEL (R),

SIDE PANEL (L)

(Page 16)

3-2. TOP PANEL SECTION

(Page 16)

SET

3-3. DOOR (CD)

(Page 17)

3-14. OPTICAL PICK-UP

(Page 22)

3-4. FRONT PANEL SECTION

(Page 17)

3-10. COVER (CDM)

(Page 20)

3-6. DC FAN

(Page 18)

3-8. AMP BOARD

(Page 19)

3-9. PT BOARD

(Page 20)

3-7. REAR PANEL

(Page 19)

3-11. CD MECHANISM SECTION

(Page 21)

3-12. DMB16 BOARD

(Page 21)

3-5. MAIN BOARD

(Page 18)

3-16. BELT (MAIN),

BELT (R/F)

(Page 23)

3-15. MECHANISM DECK

(Page 23)

3-13. BELT (DLM3A)

(Page 22)

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

16

HCD-GNZ333D/GNZ444D

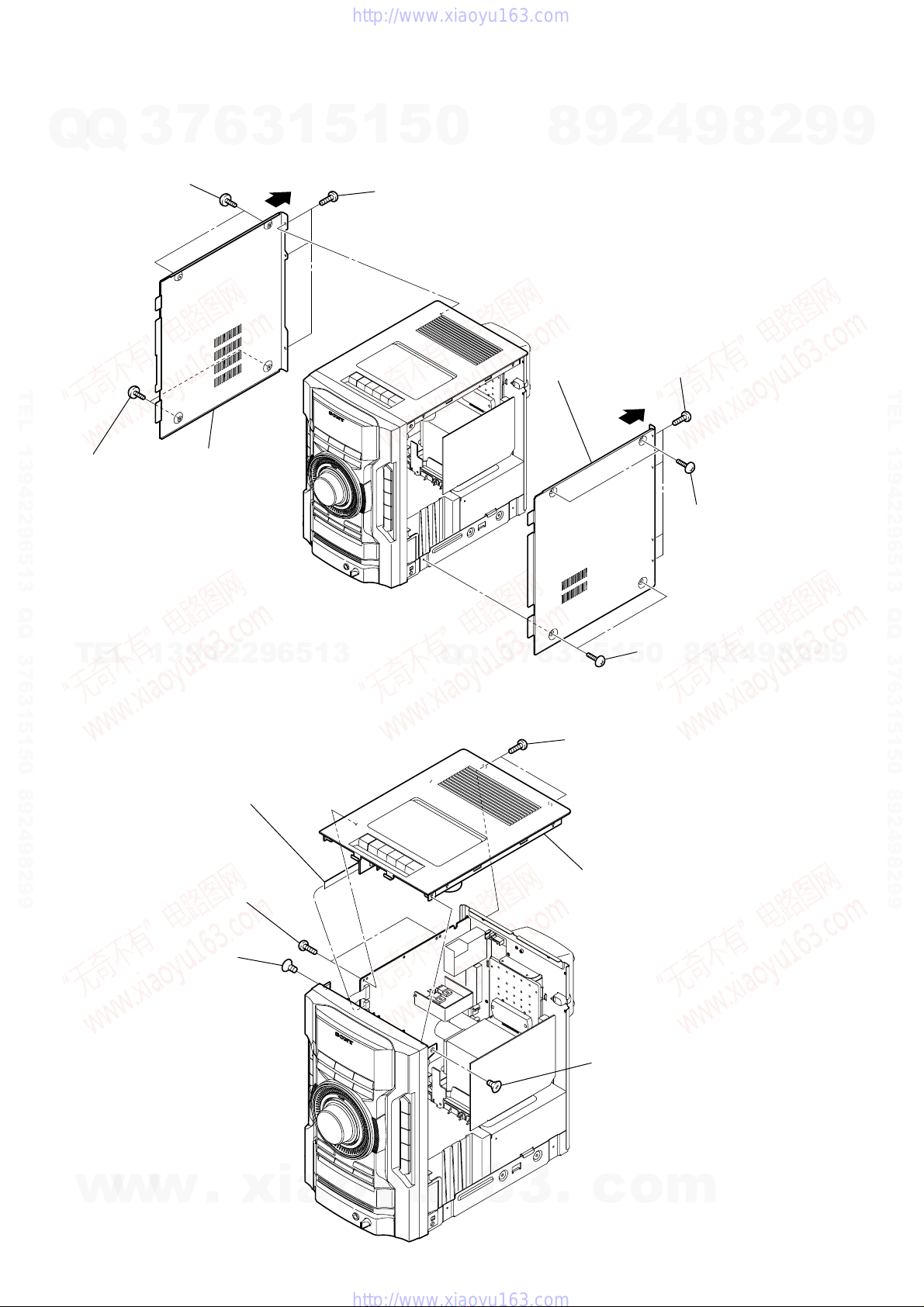

3-2. TOP PANEL SECTION

Note: Follow the disassembly procedure in the numerical order given.

3-1. SIDE PANEL (R), SIDE PANEL (L)

1

two

screws

(case 3 TP2)

6

two

screws

(case 3 TP2)

7

two

screws

(case 3 TP2)

2

two

screws

(case 3 TP2

)

3

four

screws

(+BVTP 3

×

10)

8

three

screws

(+BVTP 3

×

10)

4

9

5

side panel (R)

0

side panel (L)

5

two

screws

(+BVTP 3

×

10)

4

two

screws

(+BVTP 3

×

10)

2

screw

(+KTP 3

×

10)

3

screw

(+KTP 3

×

10)

6

top panel section

1

wire (flat type) (9 core)

(CN102)

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

17

HCD-GNZ333D/GNZ444D

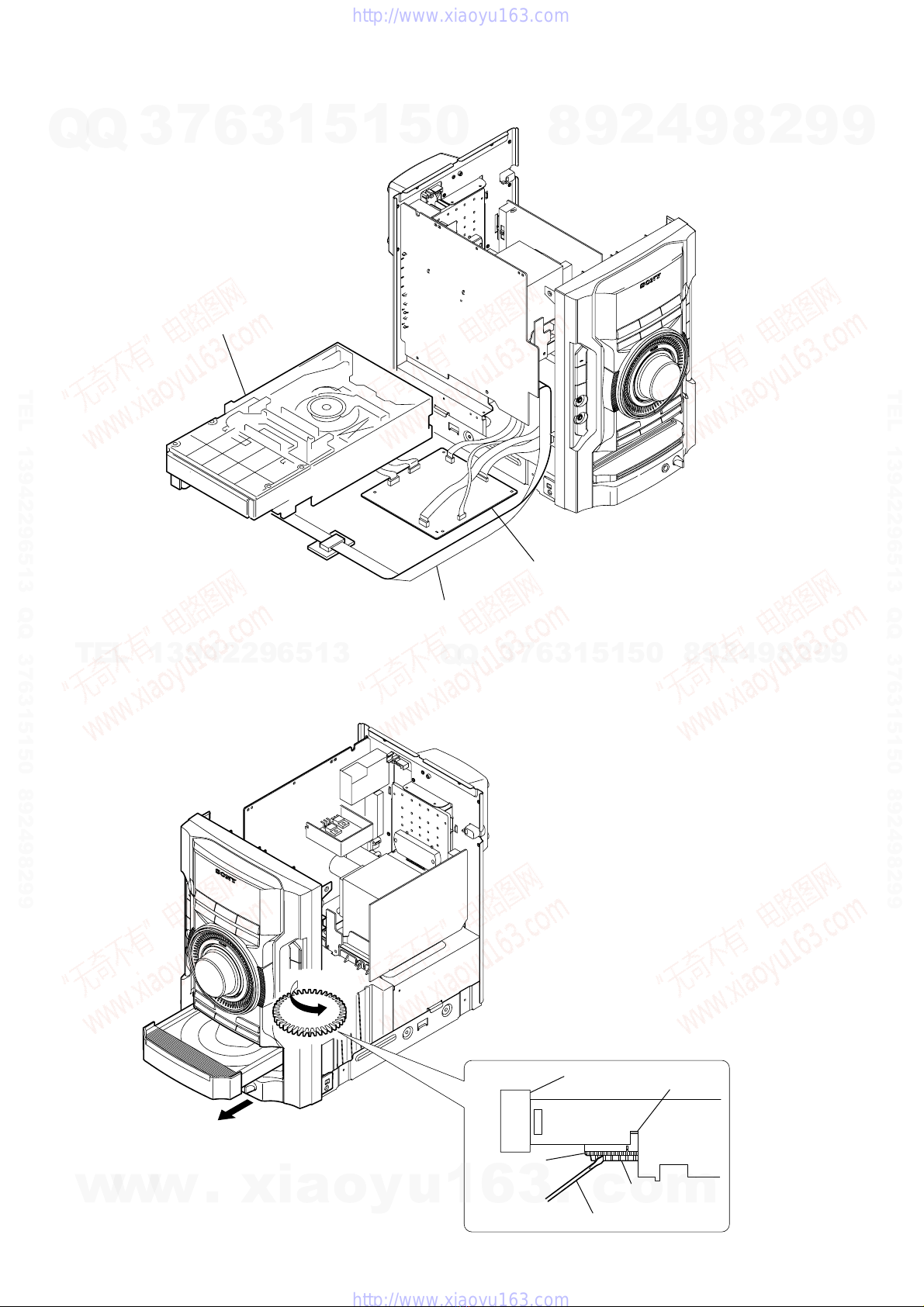

3-3. DOOR (CD)

3-4. FRONT PANEL SECTION

gear

lever

door (CD)

tray

flathead screwdriver

bottom rib

3

Turn the bottom rib (not the gear) with

a flathead screwdriver in the direction

of arrow A, with the lever pushed up,

draw out the door (CD) by the hand.

4

door (CD)

A

1

screw

(+BVTP 3

×

10)

2

lid CDM cover

4

screw

(+BVTP 3

×

10)

5

screw

(+BVTP 3

×

10)

6

two

screws

(+BVTP 3

×

10)

7

front panel section

1

wire (flat type) (15 core)

(CN402)

2

CN101 (8P)

3

CN103 (4P)

lug

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

18

HCD-GNZ333D/GNZ444D

3-6. DC FAN

3-5. MAIN BOARD

2

wire (flat type) (9 core)

(connector)

qj

CN105 (3P)

qk

MAIN board

8

CN107 (4P)

4

tuner (FM/AM)

(TN001)

9

CN401 (5P)

qf

CN751 (10P)

qg

CN001 (6P)

qh

CN002 (8P)

qs

REG board

5

wire (flat type) (19 core)

(CN406)

6

wire (flat type) (13 core)

(CN404)

7

wire (flat type) (13 core)

(CN403)

0

wire (flat type) (5 core)

(CN405)

qd

five

screws

(+BVTP 3

×

10

)

3

two

screws

(+BVTP 2.6

×

8)

qa

screw

(+BVTP 3

×

10)

1

two

screws

(+BVTP 3

×

10)

5

DC fan

6

cover (fan)

2

three

screws

(+BVTP 3

×

10)

4

two

screws

(+BVTP 3

×

10)

3

1

screw

(+BVTP 3

×

10)

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

19

HCD-GNZ333D/GNZ444D

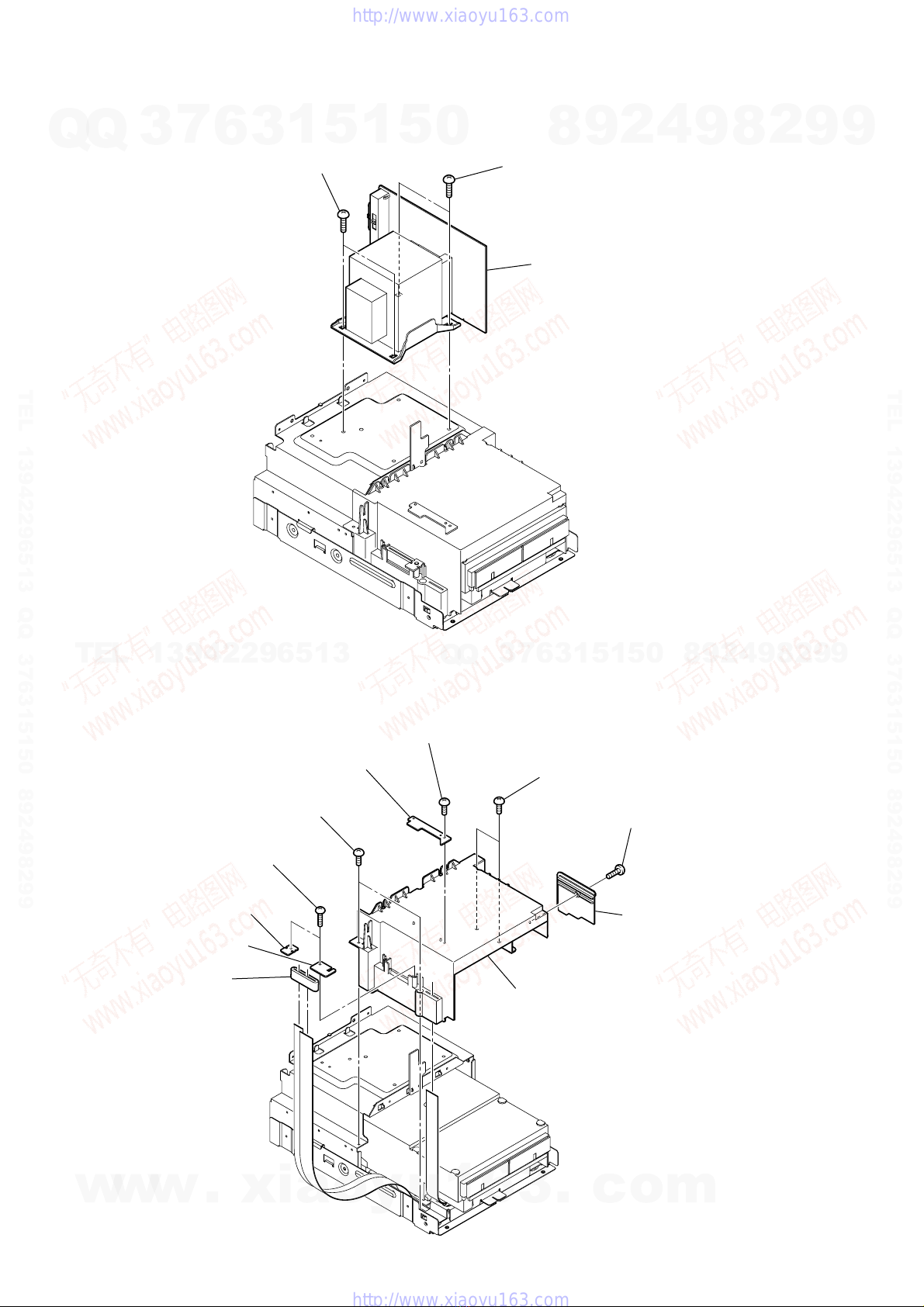

3-8. AMP BOARD

3-7. REAR PANEL

5

rear panel section

4

two

screws

(+BVTP 3

×

10)

3

two

screws

(+BVTP 3

×

10)

2

two

screws

(+BVTP 3

×

10)

1

cord bushing (2104)

1

two

screws

(+BVTP 3

×

10)

3

screw

(+BVTP 3

×

10)

5

AMP board

6

heat sink assy

4

two

screws

(transistor)

2

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

20

HCD-GNZ333D/GNZ444D

3-10. COVER (CDM)

3-9. PT BOARD

1

two

screws

(+BVTT 4

×

6)

3

PT board

2

two

screws

(+BVTT 4

×

6)

3

screw

(+BV 3 (3-CR))

5

two

screws

(+BVTP 2.6

×

8)

9

two

screws

(+BV 3 (3-CR))

0

two

screws

(+BV 3 (3-CR))

1

screw

(+BVTP 3

×

10)

2

lid CDM cover

4

FFC HOLD board

7

F HOLD B board

6

F HOLD A board

8

ferrite core

qa

cover (CDM)

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

Sony HCD-GNZ333D User manual

Popular Stereo System manuals by other brands
