Sony HCD-RG110 User manual

1
Ver 1.0 2003. 04
SERVICE MANUAL
AEP Model
UK Model
HCD-RG110
Amplifier section
DIN power output (rated)50 + 50 watts
(6 ohms at 1 kHz, DIN)
Continuous RMS power output (reference)
60 + 60 watts (6 ohms at
1 kHz, 10% THD)
Music power output (reference)
120 + 120 watts (6 ohms
at 1 kHz, 10% THD)
Inputs
AUDIO INPUT (phono jack):
voltage 250 mV,
impedance 47 kilohms
Outputs
PHONES (stereo mini jack):
accepts headphones of
8 ohms or more
Front speaker: accepts impedance of 6 to
16 ohms
SPECIFICATIONS
CD player section
System Compact disc and digital
audio system
Laser Semiconductor laser
(λ=780 nm)
Emission duration:
continuous
Frequency response 2 Hz – 20 kHz (±0.5 dB)
Wavelength 780 – 790 nm
Signal-to-noise ratio More than 90 dB
Dynamic range More than 90 dB
Tape deck section
Recording system 4-track 2-channel stereo
Frequency response 50 – 13,000 Hz (±3 dB),
using Sony TYPE I
cassette
Sony Corporation
Home Audio Company
Published by Sony Engineering Corporation
9-877-259-01
2003D0400-1
© 2003. 04
– Continued on next page –
MINI HI-FI COMPONENT SYSTEM
•HCD-RG110 are the tuner, deck, CD
and amplifier section in MHC-RG110.
Model Name Using Similar Mechanism HCD-RL3
CD CD Mechanism Type CDM58F-K6
Section Optical Pick-up Name
KSM-213DCP/Z-NP
Tape deck Model Name Using Similar Mechanism HCD-RL3
Section Tape Transport Mechanism Type CWL43FF48

7
HCD-RG110

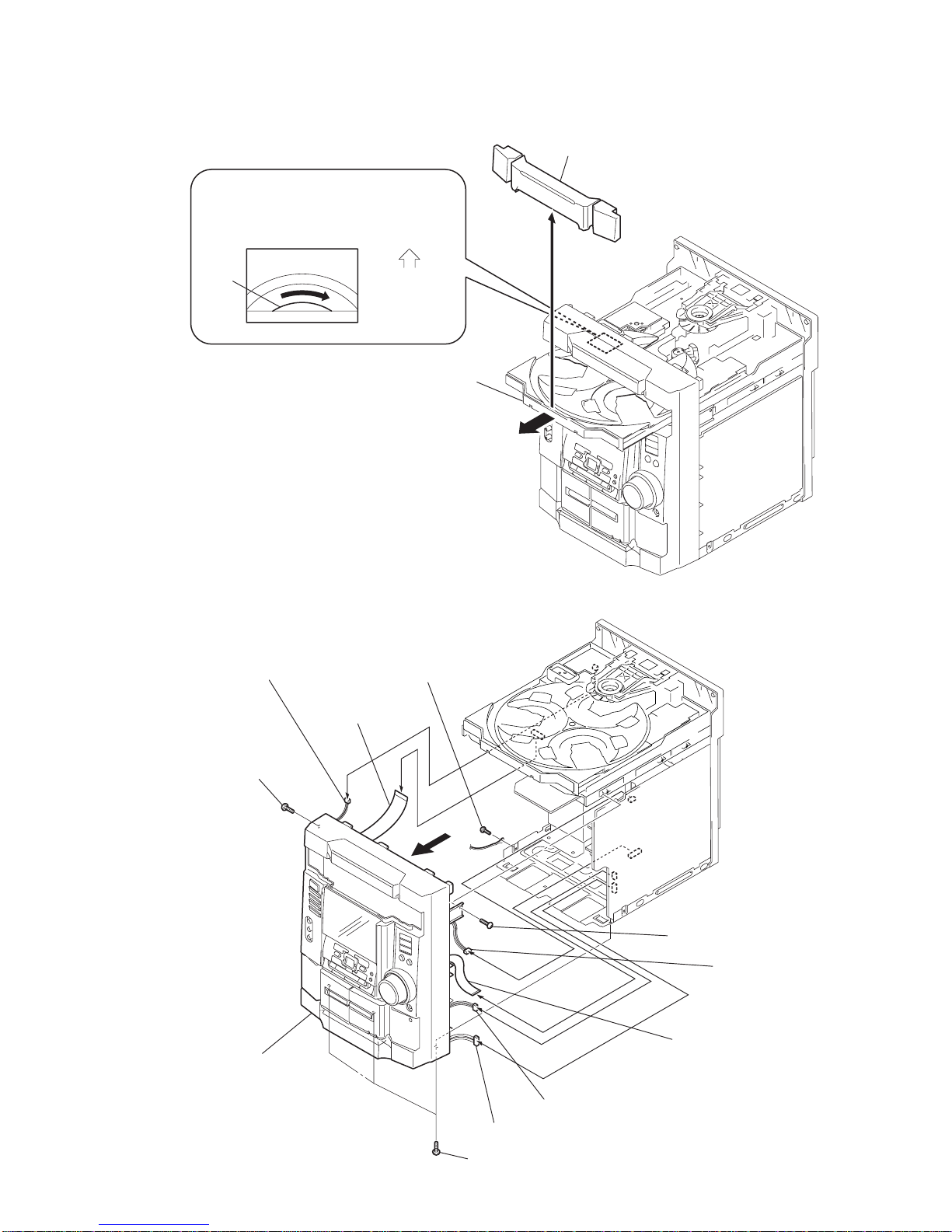

2-2. CD Door
2-3. Front Panel Section
2 Pull-out the disc tray.
1 Turn the pulley to the direction of arrow.
pulley
4 CD door
Front panel side
CD mechanism deck (CDM58F-K6)
3
1 three screws (+BVTT 3 × 6)
9 wire (flat type) 13p (CN207)
7 wire (flat type)
19p (CN733)
qa connector 7p (CN202)
qs front panel
0 connector 3p (CN303)
8 connector 3p (CN201
)
6 connector 2p (CN682)
3 screw (+BVTP 3 × 10)
4 screw (+BVTP 3 × 10)
2 screw (+BVTP 3 × 10)
5

8
HCD-RG110
2-4. CD Mechanism Deck (CDM58F-K6)
2 connector 7p (CN734)
4 CD mechanism deck (CDM58F-K6)
3
1
screw (+BVTP 3 × 10
)
2-5. Tape Mechanism Deck (CWL43FF48)
1 six screws
(+BVTP 2.6
× 8
)
3 tape mechanism deck
(CWL43FF48)
2 three ground wires

9
HCD-RG110
2-6. REM Board and PANEL Board
5 Remove the solderin
g
(three portions)
4 connector
13p (CN662)
four
claws
two claws
claw
7 PANEL board
6 REM board
REM board
1 volume knob
2
3 eight screws
(+BVTP 2.6
× 8 )
2-7. KEY Board
2 KEY board
two claws
three claws
1four screws
(+BVTP 2.6
×8 )

10
HCD-RG110
2-8. Back Panel Section
3 connector
3p (CN903)
5
1
four screw
(+BVTP 3
× 10
)
2 two screw
(+BVTT 3
× 6)
4 connector
2p (CN505)
6 back panel
2-9. SUB TRANS Board, VIDEO OUT Board and SENSOR Board
5 two screws (+BVTP 3 × 10)
1 screw (+BVTP 3 × 10)
2 SUB TRANS board
4 VIDEO board
3 screw (+BVTP 3 × 10)
6 cover (duct)

11
HCD-RG110
2-10. MAIN Board
2-11. POWER Board
2t hree screws (+BVTT 3 × 6)
3
1t
wo screws (+BVTT 3 × 6)
7h eat sink
4t wo screws (+BVTP 3 ×1 6)
6POWER board
5 connector 13p (CN915)
3 connector 13p (CN502)
2 connector 13p (CN503)
Main board
1 screw (+BVTT 3 × 6
)
4 MAIN board

12
HCD-RG110
2-12. TRANS Board
3TRANS board
1two
screws (+BVTT 4 × 6)
2two screws (+BVTT 4 × 6)
2-13. CD Board and DRIVER Board
3 four s crews (+BTTP M2.6 )
4
2
wire (flat type)
16p (CN731)
7 wire (flat type)
8p (CN702)
8 DRIVER board
5 CD board
6 Screw (+BTTP M2.6
)
1 connector 10p (CN735)

13
HCD-RG110
2-14. SPDL Board
2-15. Optical Pick-up (KSM-213DCP)
0 optical pick-up
(KSM-213DCP)
9
5two screws (+PTPWH M2.6
)
1 screw (+PTPWH M2.6)
6 screw (DIA. 12)
3 two screws (+BTTP M2.6)
8 two insulators
2 holder (BU) assy
7 two insulators
4 two stoppers (BU)
1Remove solder (four places)
2Remove solder (four places)
3SPDL board

14
HCD-RG110
2-16. MOTOR Board, ADDRESS SENSOR Board
1 Pull out the disc tray.
5 two screws (+BTTP M2.6)
2 screw (+PTPWH 2.6 × 8)
3 tray
8 screw (+BTTP M2.6)
7 MOTOR board
9 ADDRESS SENSOR board
6 Remove the two solderings of motor.
4 connector 4p (CN722)

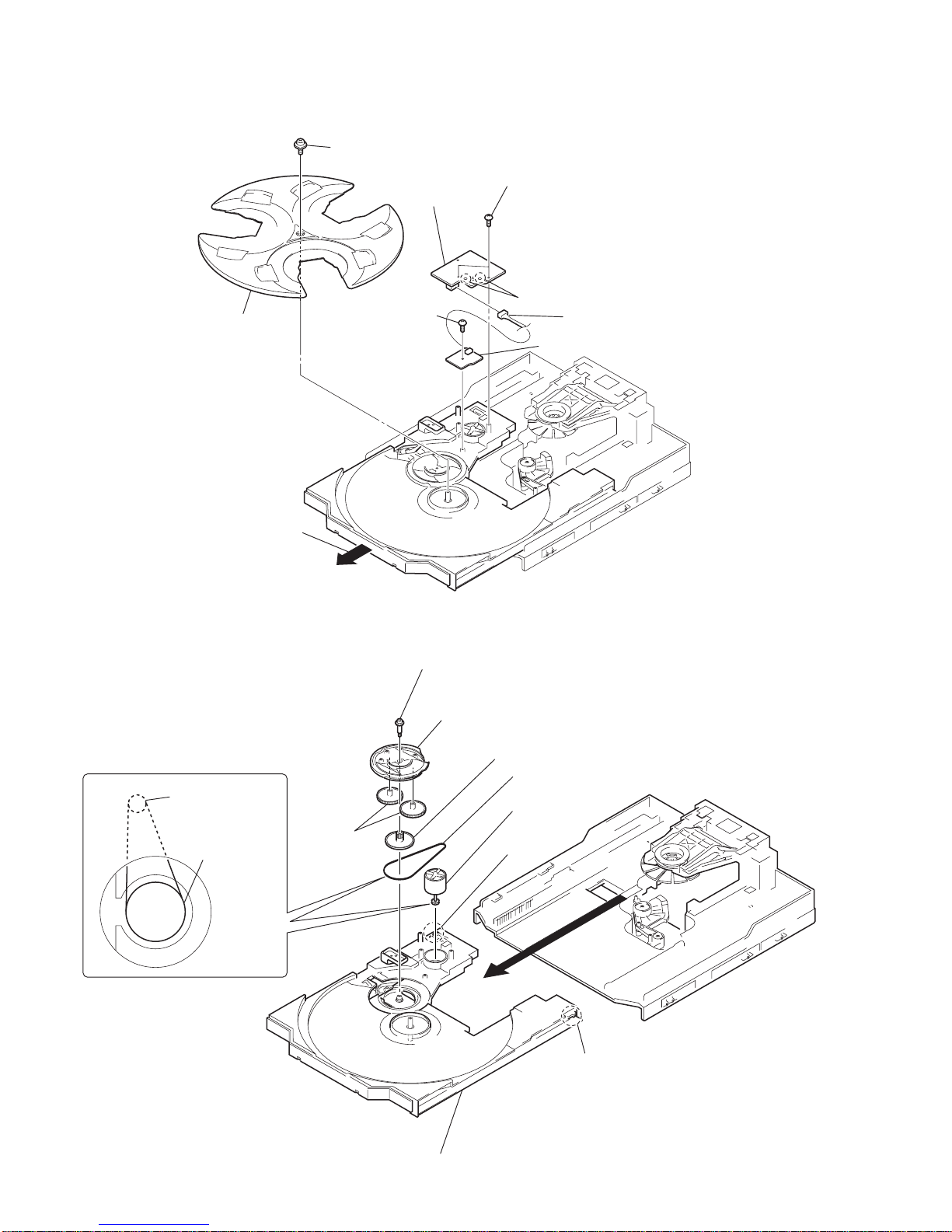

2-17. Table (New), Cam (Control) and DC Motor
*Cautions of an assembly
7DC
motor (TURN)
claw
claw
6belt
5pulley (S)
4gear (U)
2screw (STEP)
3cam (CONTROL)
1table (NEW)
DC motor (TURN)
pulley (S)

15
HCD-RG110
SECTION 3
TEST MODE
[Change-over of AM Tuner Step between 9 kHz and
10 kHz]
•Astep ofAM channels can be changed over between 9 kHz and
10 kHz. (Except AEP/UK models)
Procedure:
1. Press ?/1button to turn the set ON.
2. Select the function “TUNER”, and press TUNER/BAND
button to select the BAND “AM”.
3. Press ?/1button to turn the set OFF.
4. Press TUNER/BAND and ?/1buttons simultaneously, and
the display of fluorescent indicator tube changes to “AM 9 k
STEP”or “AM10 k STEP”,and thus thechannelstep is changed
over.
[Cold Reset]
•The cold reset clears all data including preset data stored in the
RAM to initial conditions. Execute this mode when returning
the set to the customer.
Procedure:
1. Press three buttons x, GROOVE , and ?/1simultaneously.
2. The fluorescent indicator tube displays “COLD RESET” and
the set is reset.
[Aging Mode]
This mode can be used for operation check of CD section and tape
deck section.
•If an error occurred:
The aging operation stops and is displayed status.
•If no error occurs:
The aging operation continues repeatedly.
1. Operating method of Aging Mode
Turn on the main power and select “CD” of the function.
1) Set three discs in tray. Select ALL DISCS, and REPEAT OFF.
2) Load the tapes recording use into both decks.
3) Press three buttons x, GAME EQ , and
DISC SKIP/EX-CHANGE simultaneously.
4) Aging operations of CD and tape are started at the same time.
5) To exit the aging mode, perform [Cold Reset].
2. Aging mode in CD section
1) Operation during aging mode
•In the agining mode ,the program is excuted in the following
sequence.
(1) The disc tray opens and closes.
(2) The disc tray turns to select a disc 3.
(3) The pickup accesses to the first track, and plays 3 seconds.
(4) The pickup accesses to the last track, and plays 3 seconds.
(5) The disc tray opens and closes.
(6) The disc tray turns to select a disc 1.
(7) The same operation starts like step (3).
(8) After a disc 1 aging operation, a disc 2 is selected.
(9) When an aging operation of a disc 3 is completed, the display
“AGING ∗∗∗∗” value increases.
(10) If no error occurs, the aging operation continues repeatedly.
2) Error display
Step
1
2
3
4
5
6
7
8
9
10
11
12
Operation
Rewind the TAPE A
Rewind the TAPE B
Play the TAPE A (1 minute)
Stop the TAPE A (1 second)
Play the TAPE A (3 minutes)
Rewind(AMS) the TAPE A
F.F.(AMS) the TAPE A
Play the TAPE B (1 minute)
Stop the TAPE B (1 second)
Record the TAPE B (3 minutes)
Rewind(AMS) the TAPE B
F.F.(AMS) the TAPE B
Display
TAPE AAG-1
TAPE BAG-2
TAPE AAG-2
TAPE AAG-3
TAPE AAG-4
TAPE AAG-5
TAPE AAG-6
TAPE BAG-2
TAPE BAG-3
TAPE BAG-4
TAPE BAG-5
TAPE BAG-6
Disc error
Display Error
E00D01022 Focus error (No disc)
E00D02022 Sub Q error (Focus is good)
E00D02023 TOC reading error
E00D02014 Access error (Unable within regular time)
Mechanism error
Display Error
E00M__E_0 Error during opening tray
E00M__C_2 EX-CHANGE disc error
E00M__D_0 Error during closing tray
E00M__F_3 EX-OPEN error
E00M__D_5 EX-CLOSE error
E00M__C_2 Chuck-up error
E00M__C_3 Unchucking error
3. Aging mode in Tape Deck section
1) Operation during aging mode
•In the agining mode, the program is excuted in the following
sequence.
2) Error display
•If error occurred, the display remains like “TAPE BAG-2”.
4. Exiting from the aging mode
•Be sure to perform Cold Reset to exit from the aging mode.
http://getMANUAL.com

16
HCD-RG110
[MC Test Mode]
•This mode is used to test the function of the equalizer.
Procedure:
1. Press ?/1button to turn the set ON.
2. To enter the test mode, press the three buttons x , GAME EQ
and DISC 3 simultaneously.
3. Press the MOVIE EQ button.
The function of the equalizer is set to “MIN”.
4. Press the MUSIC EQ button.
The function of the equalizer is set to “MAX”.
5. Press the P.FILE button.
The function of the equalizer is set to “FLAT”.
6. To exit from this mode, press ?/1button to turn the set OFF.
[CD Ship Mode (No Memory Clear) ]
•This mode moves the pickup to the position durable to vibra-
tion. Use this mode when returning the set to the customer after
repair.
Procedure:
1. Press ?/1button to turn the set ON.
2. Select the function “CD”.
3. Press ?/1button to turn the set OFF.
4. Press CD button and ?/1button simultaneously.
5. The "STANDBY" display blinks instantaneously, and the CD
ship mode is set.
[GC Test Mode]
•All fluorecent segments and LEDs are tested.
•Keyboard check.
Procedure:
1. Press ?/1button to turn the set ON.
2. To enter the test mode, press the three buttons x , GAME EQ
and DISC 2 simultaneously.
3. All segments and LEDs (without STANDBY LED) are turned
on.
4. Press GAME EQ and DISC 2 buttons simultaneously, and the
key check mode is activated.
5. The message “KEY 0 0 0 0” is displayed.
Each time a button is pressed, the key code number is displayed.
6. Press GAME EQ and DISC 2 buttons simultaneously, and the
key count mode is activated.
7. The message “KEYCNT 0 1” is displayed.
Each time a button is pressed, “KEYCNT 0 1” value increased.
However, once a button is pressed, it is no longer taken into
account.
8. Press GAME EQ and DISC 2 buttons simultaneously, and the
head phone detect mode is activated.
9. The message “H_P OFF” is displayed when a headphone jack
is not inserted.
“H_P ON ” is displayed when a headphone jack is inserted.
10. Press GAME EQ and DISC 2 buttons simultaneously, and the
volume control detect mode is activated.
11. The message “VOLUME FLAT” is displayed.
“VOLUME UP” is displayed if rotating VOLUME knob
clockwise, or “VOLUME DOWN” is displayed if rotating
counterclockwise.
12. To exit from the GC test mode after the volume control detect
mode, press GAME EQ and DISC 2 buttons simultaneously.
[Version and Destination Display Mode]
•The version or destination is displayed.
Procedure:
1. Press ?/1button to turn the set ON.
2. To enter the test mode, press the three buttons x , GAME EQ
and MOVIE EQ simultaneously.
3. The destination is displayed.
4. Press STOP and GROOVE buttons simultaneously.
5. The version is displayed.
6. To exit from this mode, press ?/1button to turn the set OFF.
[CD Service Mode]
•This mode can run the CD sled motor freely. Use this mode, for
instance, when cleaning the pickup.
Procedure:
1. Press ?/1button to turn the set ON.
2. Select the function “CD”.
3. To enter the test mode, press three buttons x, GAME EQ ,
and OPEN/CLOSE simultaneously.
4. The CD service mode is selected.
5. With the CD in stop status, press > button to move the pickup
to outside track, or press . button to inside track.
6. To exit from this mode, perform as follows:
1) Move the pickup to the most inside track.
2) Press ?/1button to turn the set OFF.
Note: • Always move the pickup to most inside track when exiting from
this mode. Otherwise, a disc will not be unloaded.
•Do not run the sled motor excessively, otherwise the gear can be
chipped.
+
–

17
HCD-RG110
SECTION 4
ELECTRICAL ADJUSTMENTS

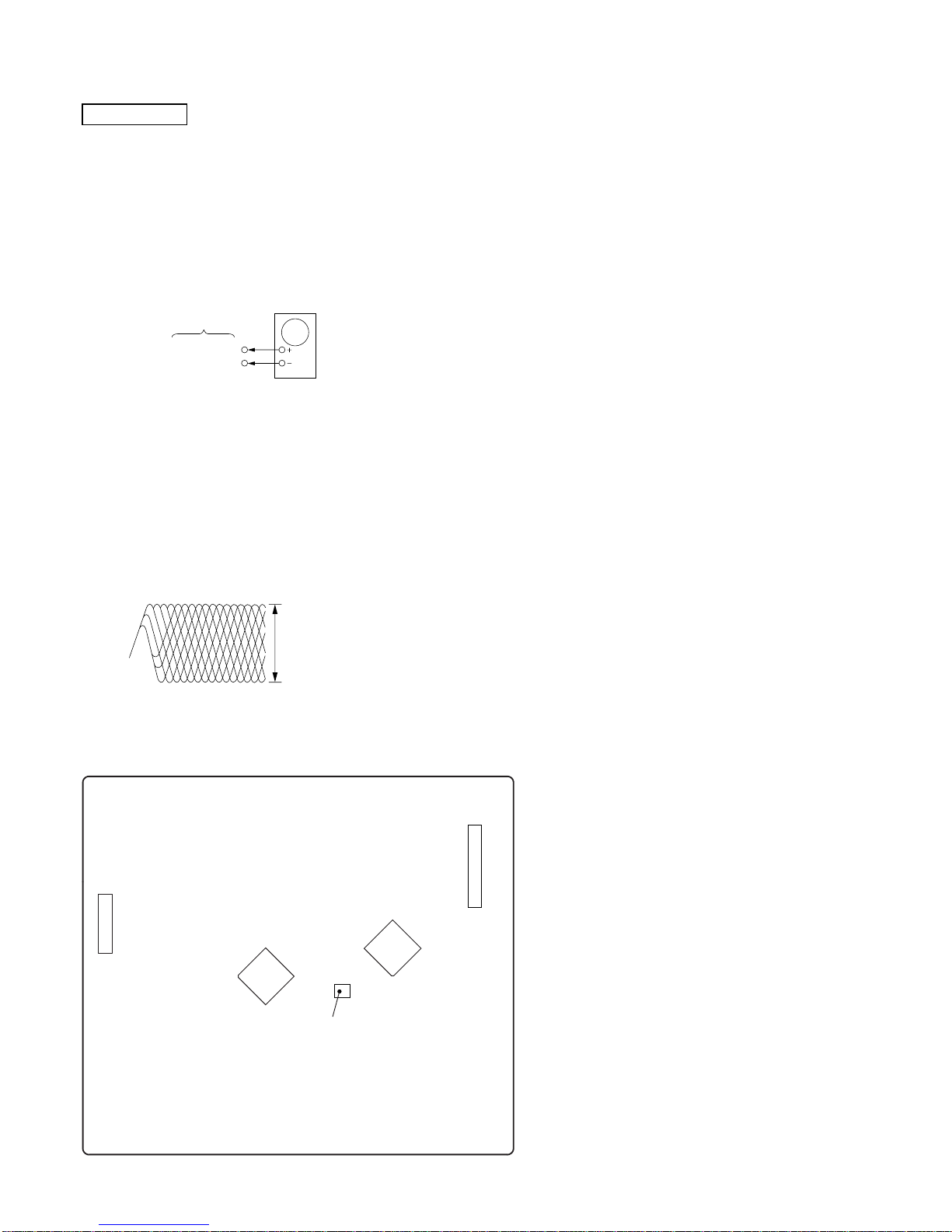

FM Tuned Level Adjustment
Procedure:
1. Supplya 98 MHzsignalat 28dBfrom theANTENNA terminal.
2. Tune the set to 98 MHz.
3. Adjust RV101 to the point (moment) when the TUNED
indicator will change from going off to going on.
Adjustment Location: MAIN board
Null Adjustment
Procedure:
1. Supplya 98 MHzsignalat 60dB fromtheANTENNAterminal.
2. Tune the set to 98 MHz.
3. Measure voltage between pin 21 and pin 23 of IC 101. Adjust
T101 until the voltage becomes 0V.
Adjustment Location: MAIN board
[MAIN BOARD] Component side
FM RF Signal generator
75
Ω coaxial
Carrier frequency : 98 MHz
Modulation : AUDIO 1 kHz, 75 kHz
deviation (100%)
Output level : 30 dB (at 75
Ω open)
FM ANTENNA terminal
(JK103)
set
FM RF Signal generator
75
Ω coaxial
Carrier frequency : 98 MHz
Modulation : AUDIO 1 kHz, 75 kHz
deviation (100%)
Output level : 60 dB (at 75
Ω open)
FM ANTENNA terminal
(JK103)
set
AM RF Signal generator
30% amplitude
modulation by
400Hz signal
output level : as low as possible
AM ANTENNA termina
l
(JK103)
set
AM IF Adjustment
TUNER SECTION
Procedure:
1. Set the frequency of theAM RF signal generator to 1000 kHz
(at 10 kHz step) or 999 kHz (at 9 kHz step).
2. Tune the set toAM 1000 kHz (at 10 kHz step) or 999 kHz (at 9
kHz step).
3. Adjust IFT101 so that the reading on level meter becomes in
maximum.
headphones jack (JK691)
level meter
set
16
Ω
T101: NULL
IFT101: AM IF
RV101:
FM TUNED LEVEL

18
HCD-RG110
CN731
TP731:
TP connected to pin q; (IC751)
IC751
CN733
IC731
Adjustment Location: CD board
[CD BOARD] (Component Side)
CD SECTION
RF Level Check
Procedure :
1. Connect oscilloscope to pin q; (IC751).
2. Turned Power switch on.
3. Load a disc (YEDS-18) and playback.
4. Confirmthatoscilloscope waveformis clearand checkRF signal
level is correct or not.
IC751 pin q;
GND
CD board oscilloscope
Note : Clear RF signal waveform means that the shape “ ◊” can be clearly
distinguished at the center of the waveform.
RF signal waveform VOLT/DIV : 200mV
TIME/DIV : 500ns
level : 1.4 to 2.1Vp-
p
Note :
1. CD Block is basically designed to operate without adjustment.
Therefore, check each item in order given.
2. UseYEDS-18 disc (3-702-101-01) unless otherwise indicated.
3. Use an oscilloscope with more than 10MΩimpedance.
4. Clean the object lens by an applicator with neutral detergent
when the signal level is low than specified value with the
following checks.

19 19
HCD-RG110
SECTION 5
DIAGRAMS
Note on Schematic Diagram:
•All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.
•All resistors are in Ωand 1/4W or less unless otherwise
specified.
•f: internal component.
•C: panel designation.
Note on Printed Wiring Boards:
•X: parts extracted from the component side.
•b: Pattern from the side which enables seeing.
•Indication of transistor.
•A: B+ Line.
•B: B– Line.
•H: adjustment for repair.
•Voltages and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
•Voltagesaretaken withaVOM (Input impedance 10 MΩ).
Voltage variations may be noted due to normal produc-
tion tolerances.
no mark : FM
< >:CD
[]:TAPE
•Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal produc-
tion tolerances.
•Circled numbers refer to waveforms.
•Signal path.
F: FM
E: PB (DECK A)
d: PB (DECK B)
G: REC (DECK B)
J: CD
THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS.
(In addition to this, the necessary note is printed in each block.)
C
B
These are omitted. E
Q
B
These are omitted.
CE
Q
5-1. Circuit Boards Location
• Waveforms
KEYBOARD board
PANEL board
SUB TRANS board
MAIN board
CD board
TRANS board
VIDEO OUT board
POWER board
DRIVER board
MOTOR board
SPDL board
ADDRESS SENSOR board
REM board
5Q209 Collector
(TAPE REC mode)
2IC601 qd (XT2)
1IC751 rf (XOUT)
4IC102 ws (XOUT)
2 V/DIV, 100 ns/DIV
5 V/DIV, 10 s/DIV
2 V/DIV, 10 s/DIV
2 V/DIV, 20 ns/DIV
3IC601 qh (CF2)
2 V/DIV, 40 ns/DIV
6IC103 qf (XO)
1 V/DIV, 100 ns/DIV
5.2 Vp-p
5.6 Vp-p
59 ns
222 ns
30.5 s
4.9 Vp-p
100 ns
5.0 Vp-p
13.5 Vp-p
17 s
231 ns
Note: The components identified by mark 0or dotted line
with mark 0are critical for safety.
Replace only with part number specified.

2424
HCD-RG110
5-5. Schematic Diagram – CD Section – • See page 34,35 for IC Block Diagrams. • See page 19 for Waveforms.
4.9
1.6
4.2
0.7
0
0.8
0.8 0.6
0.6
0
0.2
0
4.1
0.1 0.1 7.7 7.7
0 0
0.1
1.2
1
No mark:CD
CN01 CN732
MM1469XH
IC781
CN731
IC731
LA9242M
IC751
LC78622NE
CN734
CN733
CN722CN711 CN702CN721
CN735
CN701
/
OPTICAL PICK-UP
BLOCK
(KSM-213DCP)
SPDL
BOARD
LD DRIVER
IC731
FOCUS/TRACKING/SLED/
SPINDLE SERVO,RF AMP
IC701
MOTOR
DRIVER
IC711
TABLE SENSOR
IC781
FCS/TRK COIL,
SL/SP MOTOR
DRIVER
IC751
DIGITAL SIGNAL
PROCESSOR
SWITCH
MUTE
MUTE
TO
PANEL BOARD
CN602
A
(Page 31)
TO
MAIN BOARD (1/4)
CN704
B
(Page 26)
(TURN)
(OPEN/CLOSE)
(UP/DOWN)
SG-264
SWITCH
( )
( )
( )
MOTOR BOARD
ADDRESS SENSOR BOARD
DRIVER BOARD
CD BOARD
50V
10
4.7k
10
10
0.0015
0.0015
M01
M02
MTZJ-3.9A
IC B/D IC B/D
IC B/D
IC B/D

2626
HCD-RG110
5-7. Schematic Diagram – MAIN Board (1/4) – • See page 34 for IC Block Diagrams. • See page 19 for Waveforms.
2.3
5.3
2.6
1
1
2.6
2.6
5.1 6.9
0 0 0 0
0 0
11.9
6.42.3
88
2.3 2.3
4.5
8.1
8
0
6.9 3.4
3.1 3.1 0.3 0
2.5
2.3
2.1 2.2 3.4 3.4
0 0
4.9
0
00
0.2 0.2
9.6
11.8
5.6
4
0.6
1.3
3.5
2.4
2.5
2.5
4.7 0
2.5
2.3
2.3 1.7
4.7
6
12 3
4
5
6
9
10
7
8
11
12
14
15
17
18
16
13
MAIN BOARD (1/4)
TO
MAIN BOARD
(3/4)
TO
CD
BOARD
CN734
(Page 24)
TO
MAIN BOARD
(3/4)
TO
MAIN BOARD
(2/4)
TO
MAIN BOARD
(3/4)
TO
MAIN BOARD
(2/4)
ANTENNA
RF IF
AMP
+B SWITCH
3
4
2
4
1
B
IC102
PLL
IC101
AM FM IF MPX
IC103
0.022
0.022
MUTE
MUTE
RV101
FM TUNED
LEVEL
IFT101
AM IF
T101
NULL
CN704
RDS
BUFF
0.1
0.01
0.01
0.01
0.01
100
J134
J137
R122
680
C133 33p
33pC148
LA1845N
15k
15k
330k
560p
IC B/D
IC B/D
IC B/D

27 27
HCD-RG110
5-8. Schematic Diagram – MAIN Board (2/4) – • See page 19 for Waveforms.
0.6
0.6
0
0
0
4.5
0
0.6
1.2
9.4
0.2
3.7
2.5
0.6
4.7
2.9
12
12
0
00.7
0.7
0.7 0.7
0
0
0
0.7
0.7
5.7
1.3 1.2
0.6
4.8
3.4
0 0
0
4.7
0 0
4.8
4.7
0
5 4
4.4
4.7 0.2 0.2
4.8
4.4
4.7
4.8
0
4.7
5.9
5.9
5.9
11.5
7.1
0.2
0.8
0.2
0.8
5.5 5.6
2.7
3.4 5.1
0
0
0
0
0
0
0
0
0
9
9
9
9.1
9.1
9.1
9.1
9.1
9.1
0
0
11.9 11.2
11.9
11.9
2.9
4.7
4.7
1.2
4.8
2.9
2.9
4.7 4.8 4.7 2.4 4.8
AMS AMS AMS
SPEANA(R)
SPEANA(L)
5
2019 121 222 24
325 28 291287 11 26 27
23
30
31
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
33
32
MAIN BOARD (2/4)
TO
MAIN BOARD
(3/4)
TO
MAIN BOARD
(3/4)
TO
MAIN BOARD
(3/4)
TO
MAIN BOARD
(1/4)
TO
MAIN BOARD
(1/4)
TO
MAIN BOARD
(4/4)
7
C
1 6 285
IC303
BUFFER
IC202
BUS SHIFT
REGISTER
TO
PANEL BOARD
CN601
(Page 31)
TAPE DECK
(2/2)
TAPE
DECK
(1/2)
RESET
Q222,223
B SOL DRIVE
Q224,225
A SOL DRIVE
Q226,227
M +B CONT
BIAS OSC
Q201-204
SWITCH
SWITCH
SWITCH
BIAS
REC BIAS
IC201
DECK A/B SELECT
PB/REC EQ AMP
DECK A
DECK B
CN603
50V
50V
R265
BU1924 CLK BU1924 DATA
HA12237F
470
22k
3.3k
8.2k
3.3k
150k
0.1 50v
220p

2828
HCD-RG110

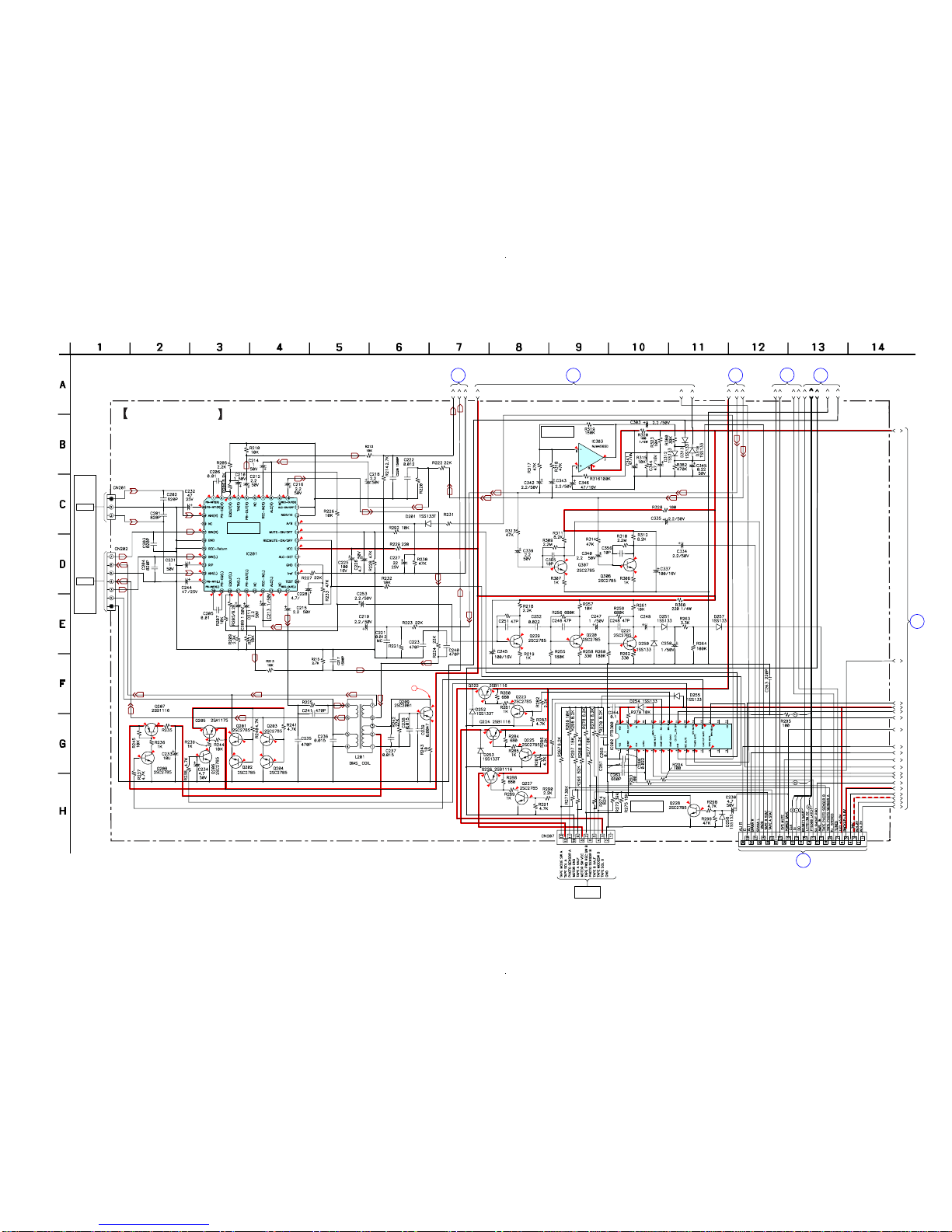

5-9. Schematic Diagram – MAIN Board (3/4) – • See page 34 for IC Block Diagrams.
11.4
4.4 4.7
11.4
4.3 4.6
513.6
13.6 13.65.6
915.4
0
0
0
0
0
0.8
0.7
0
4.3
2.9
11.9
12
12
4.6 0.7
4.6 4.6
4.6
4.6
4.6
4.6
4.6
4.6
4.6
4.6
4.6
4.6
9.2
0
0
4.6
4.6
4.6
4.6
4.6
4.6
24.6
0.6
13.6
13.6
4.8
13.6
CN402
2627 49 5020 1921 512829 52 53 5425 55 58596061626364656667 69 70 80 71 74 75 76 77 78 79
4
5
24
6
23
9
10
13
14
15
16
17
18
22
4
8 95
TO
MAIN BOARD
(1/4)
TO
MAIN
BOARD
(2/4)
TO
MAIN
BOARD
(4/4)
TO
MAIN
BOARD
(2/4)
TO
MAIN BOARD
(1/4)
TO
MAIN BOARD
(2/4)
MAIN BOARD (3/4)
3
6
IC301
SOUND PROCESSOR
IC804
+5V REG
IC803
+5.6V REG
IC801
+9V REG
IC802
+12V REG
BUFFER BUFFER
SWITCH
PROTECT CONT PROTECT SWITCH
Q806,813
RELAY DRIVE
RELAY DRIVE
F
TO
POWER BOARD
CN502
(Page 33)
0.22
0.22
0.22
0.22
220p
220p
GND1
IC B/D

29 29
HCD-RG110

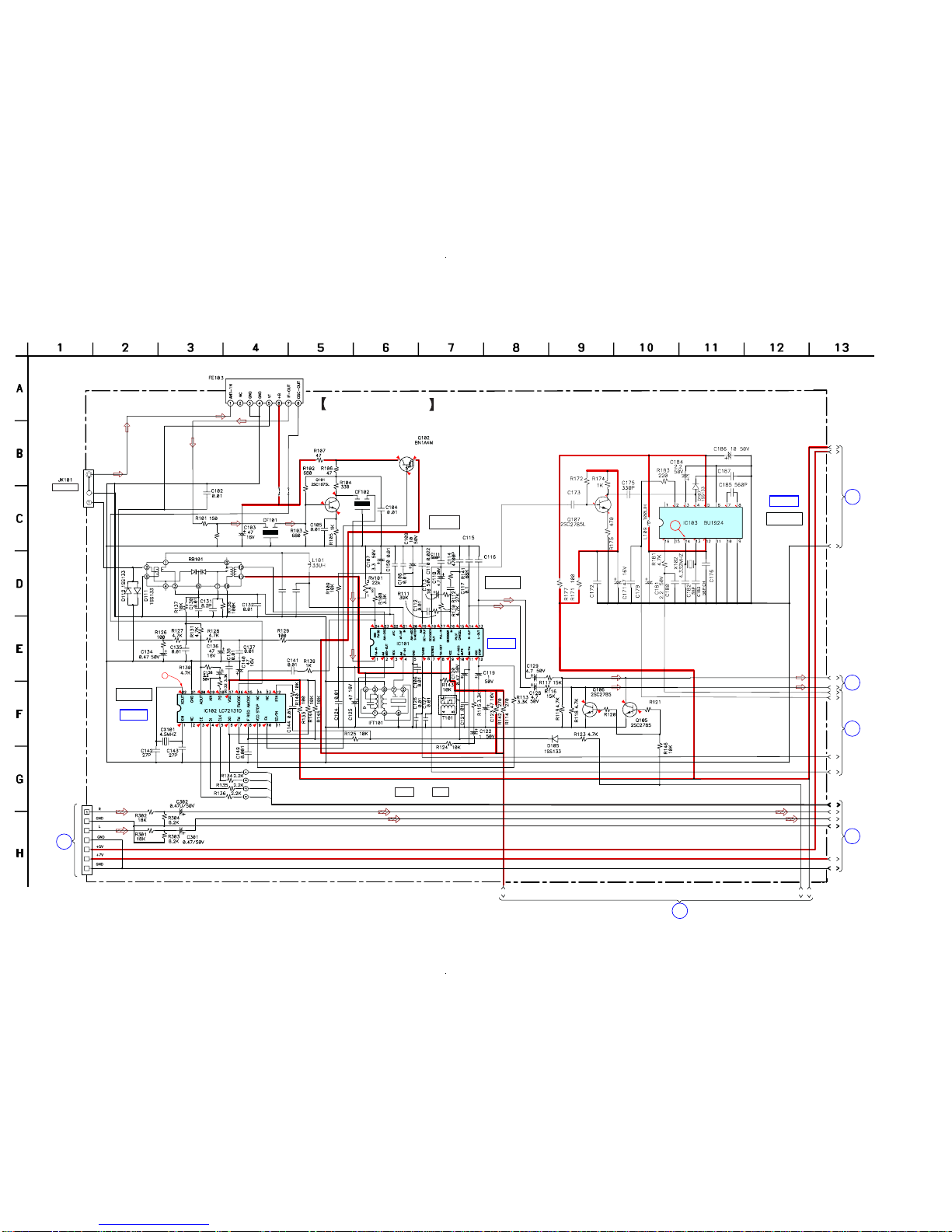

5-10. Schematic Diagram – MAIN Board (4/4) –
4.0
0
0
0
0
12
11.8
0
0
0
0.7
11.9 11.9
11.1
4.8
4
4.4 4.4
4.4 4.4 4
0.7
0.7
0
0
0
5.6
4.4 4.4 4.4 4.4
0.7
000 00
0
6.6
1.2 1.9
0.7
0.7
5.8
1.5
2.1
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
TO
MAIN BOARD
(2/4)
TO
MAIN BOARD
(3/4)
49 50 51 52 53 54 55 58596061626364656671 67 69 70 80 74 75 76 77 78 79
MAIN BOARD
(4/4)
7
9
+
+
-
-
SPEAKER
TO
PANEL
BOARD
CN691
E
(Page 31)
TO
POWER
BOARD
CN503
D
(Page 33)
SWIITCH
Q331,332
MUTE
Q315,316
MUTE
Q313,314
MUTE CONT
Q809,810
PROTECT DETECT
BUFFER
BUFFER
BUFFER
BUFFER BUFFER BUFFER BUFFER BUFFER
SWITCH SWITCH SWITCH
JK303
CN403
L351
R396
10
L352
R397
10
27k
4.7k
56k 27k
http://getMANUAL.com

31 31
HCD-RG110
5-12. Schematic Diagram – PANEL Section – • See page 36 for IC Pin Function Description. • See page 19 for Waveforms.
-23.8 0
0
0
0
5.1
0
0
0
5
5
5
5
0.3<4.9>
4.9<0.4>
5
4.3
0.2
No mark:FM
< >:CD(stop)
5
5
-23.8
-23.8
-23.8
-23.8
-23.8
-23.6
-23.6
-23.6
-23.6
-23.6
-14.9
-12.4
-12.5
-25
4.9
-20
-17.5
-22.5
-25.1
-25.4
-15
-22.5 -25.2 -22.5 -17.5
-15
-17.5 -17.5
-15
-17.5 -25.2 -25.2 -25.3 -20.2
0 0
0 0
0.2
4.9
0 0 0
4.6
4.8 4.8 4.8
4.9
-1.5
0 5.1 5 5.1 5.1 5.1 5.1 0.3 0.4 0.9 5.1 5.1 4.9 2.7 2.4 2.5 2.2 4.9 5 0 4.9 4.9 0 0 0 4.9 4.9 4.9
-23.8
5.1
4.8
0
5.1 5.1
4.9
3 2
FLD601
IC601
LC876662W-5Z80
JK691
CN601
CN602
100
KEY BOARD BOARD
PANEL BOARD
REM BOARD
VIDEO OUT
BOARD
GAME MIXING
GAME MIXING
+/START
SEL2410G
TO
MAIN BOARD(4/4)
CN303
E
(Page 29)
PHONES
JK602
VIDEO
OUT
AUDIO
JK681
VIDEO
GAME
INPUT
TO
MAIN BOARD
(2/4)
CN603
C
(Page 27)
TO
CD BOARD
CN733
A
(Page 24)
SEL2110R
SEL2810D-C
SEL2810D-C
SEL2810D-C
SEL2810D-C
A/B
/BAND
IC601
SYSTEM CONTROL
IC602
RESET
RM601
REMOTE CONTROL
RECEIVER
OPEN/CLOSE
VOLUME
EX-CHANGE
NJL64H00A-1
BUFFER
10K
10K
4.7M
D606 1SS133
11ES2-TB5
32.768kHz
27k
27k
J
