Sony HCD-VP11 User manual
HCD-VP11
E Model
SERVICE MANUAL
MICRO Hi-Fi COMPONENT SYSTEM
— Continued on next page —
SPECIFICATIONS
Dolby noise reduction manufactured under license
from Dolby Laboratories Licensing Corporation.
“DOLBY” and the double-D symbol aare trade-
marks of Dolby Laboratories Licensing Corporation.
HCD-VP11 is the Amplifier, CD
player,Tape Deck andTuner section
in CMT-VP11.
Note
CD block,tape deck block and
tuner pack are supplied with
the assembled block.
Model Name Using Similar Mechanism NEW
CD Mechanism Type CDM55-K5BD42
Base Unit Name BU-K5BD42
Optical Pick-up Name KSM-213CKP
Model Name Using Similar Mechanism HCD-CP11
Tape Transport Mechanism Type TCB-020
CD
Section
Tape deck
Section
Amplifier section
The following measured at 230 V AC, 60 Hz
DIN power output (rated): 30 + 30 W
(6 Ωat 1 kHz, DIN)
Continuous RMS power output (reference):
35 + 35 W
(6
Ω
at 1 kHz, 10% THD)
The following measured at 220 V AC, 60 Hz
DIN power output (rated): 24 + 24 W
(6 Ωat 1 kHz, DIN)
Continuous RMS power output (reference):
27 + 27 W
(6
Ω
at 1 kHz, 10% THD)
Inputs
MD IN (phono jacks): Sensitivity 500 mV, impedance
47 k
Ω
VIDEO IN (phono jacks): Sensitivity 250 mV, impedance
47 k
Ω
MIC (mini jack): sensitivity 1 mV,
impedance 10 k
Ω
Outputs
LINE OUT (phono jacks): Sensitivity 250 mV, impedance
1 k
Ω
OPTICAL DIGITAL OUT (CD):
Optical
VIDEO OUT (phono jack):max. output level 1 Vp-p,
unbalanced, Sync negative, load
impedance 75
Ω
PHONES (stereo phone jack):
Accepts headphones with an
impedance of 8
Ω
or more
VIDEO CD/CD player section
System Compact disc and digital audio and
video system
Laser Semiconductor laser
(λ=780 nm)
Emission duration: continuous
Laser output MAX 44.6
µ
W*
* This output is the value
measured at a distance of
200 mm from the objective
lens surface on the optical
pick-up block with 7 mm
aperture.
Wavelength 780 - 790 nm
Video color system format NTSC, PAL
OPTICAL DIGITAL OUT (CD)
(Square optical connector jack, rear panel)
Wavelength 660 nm
Output Level –18 dBm
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
2
1. Check the area ofyour repairfor unsolderedor poorly-soldered
connections. Checkthe entire board surfacefor solder splashes
and bridges.
2. Check the interboard wiring to ensure that no wires are
"pinched" or contact high-wattage resistors.
3. Look for unauthorized replacement parts, particularly
transistors, that were installed during a previous repair. Point
them out to the customer and recommend their replacement.
4. Look for parts which, through functioning, show obvious signs
of deterioration. Point them out to the customer and
recommend their replacement.
5. Check the B+ voltage to see it is at the values specified.
6. Flexible Circuit Board Repairing
• Keep the temperature of the soldering iron around 270˚C
during repairing.
• Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).
• Be careful not to apply force on the conductor when soldering
or unsoldering.
SAFETY CHECK-OUT
After correcting the original service problem, perform the following
safety checks before releasing the set to the customer.
Tape player section
Recording system 4-track 2-channel stereo
Frequency response (DOLBY NR OFF)
50 - 13,000 Hz (±3 dB), using a
Sony TYPE I cassette
50 - 14,000 Hz (±3 dB),
using a Sony TYPE II cassette
Tuner section
FM stereo, FM/AM superheterodyne tuner
FM tuner section
Tuning range 87.5 - 108.0 MHz
(50-kHz step)
Antenna FM wire antenna
Antenna terminals 75 Ωunbalanced
Intermediate frequency 10.7 MHz
AM tuner section
Tuning range
Middle Eastern model: 531 - 1,602 kHz
(with the tuning interval set at
9 kHz)
Other models: 530 - 1,710 kHz
(with the tuning interval set at
10 kHz)
531 - 1,602 kHz
(with the tuning interval set at
9 kHz)
Antenna AM loop antenna, external antenna
terminal
Intermediate frequency 450 kHz
General
Power requirements 220 - 240 V AC , 50/60 Hz
Adjustable with voltage selector
Power consumption 75 W
Dimensions (w/h/d) Approx. 190 ×252 ×310 mm
incl. projecting parts and controls
Mass Approx. 5.7 kg
Supplied accessories Remote commander (1)
AM loop antenna (1)
FM wire antenna (1)
Batteries (2)
Video connecting cord (1)
Design and specifications are subject to change
without notice.
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
3
1. SERVICING NOTES ······················································ 3
2. GENERAL ·········································································· 4
3. DISASSEMBLY ································································ 6
4. SERVICE MODE··························································· 10
5. ELECTRICAL ADJUSTMENTS ······························· 11
6. DIAGRAMS
6-1. Circuit Boards Locations ··················································· 13
6-2. Block Diagram – MAIN Section – ···································· 14
6-3. Block Diagram
– DISPLAY/POWER SUPPLY Section – ························· 15
6-4. Printed Wiring Board – MAIN Section – ·························· 16
6-5. Schematic Diagram – MAIN Section (1/2) – ···················· 17
6-6. Schematic Diagram – MAIN Section (2/2) – ···················· 18
6-7. Printed Wiring Boards
– LCD/HEADPHONE/LOADING/SPEAKER Section –
····· 19
6-8. Schematic Diagrams
– HEADPHONE/SPEAKER Section – ····························· 19
6-9. Printed Wiring Boards – CONTROL Section –················· 20
6-10.Schematic Diagram – CONTROL Section – ····················· 21
6-11.Printed Wiring Board – POWER Section – ······················· 22
6-12.Schematic Diagram – POWER Section –·························· 23
6-13.IC Block Diagrams ···························································· 24
6-14.IC Pin Function Description ·············································· 25
7. EXPLODED VIEWS····················································· 27
8. ELECTRICAL PARTS LIST····································· 32
TABLE OF CONTENTS
SECTION 1
SERVICING NOTES
The laser diode in the optical pick-up block may suffer electrostatic
break-down because of the potential difference generated by the
charged electrostatic load, etc. on clothing and the human body.
During repair, pay attention to electrostatic break-down and also
use the procedure in the printed matter which is included in the
repair parts.
The flexible board is easily damaged and should be handled with
care.
NOTES ON LASER DIODE EMISSION CHECK
The laser beam on this model is concentrated so as to be focused on
the disc reflective surface by the objective lens in the optical pick-
up block. Therefore, when checking the laser diode emission,
observe from more than 30 cm away from the objective lens.
Notes on chip component replacement
• Never reuse a disconnected chip component.
• Notice that the minus side of a tantalum capacitor may be dam-
aged by heat.
Flexible Circuit Board Repairing
• Keep the temperature of the soldering iron around 270 ˚C dur-
ing repairing.
• Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).
• Be careful not to apply force on the conductor when soldering
or unsoldering.
NOTES ON HANDLING THE OPTICAL PICK-UP
BLOCK OR BASE UNIT
CAUTION
Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous
radiation exposure.
This appliance is classified as a CLASS 1 LASER product.
The CLASS 1 LASER PRODUCT MARKING is located on
the rear exterior.
Laser component in this product is capable of emitting radiation
exceeding the limit for Class 1.
The following caution label is located inside the unit.
CAUTION :
INVISIBLE LASER RADIATION WHEN OPEN AND
INTERLOCKS DEFEATED. AVOID EXPOSURE TO BEAM.
ADVARSEL :
USYNLIG LASERSTRÅLING VED ÅBNING NÅR
SIKKERHEDSAFBRYDERE ER UDE AF FUNKTION. UNDGÅ UDSAETTELSE
FOR STRÅLING.
VORSICHT :
UNSICHTBARE LASERSTRAHLUNG, WENN
ABDECKUNG GEÖFFNET UND SICHERUEITSVERRIEGELUNG
ÜBERBRÜCKT. NICHT DEM STRAHL AUSSETZEN.
VARO
!
:
AVATTAESSA JA SUOJALUKITUS OHITETTAESSA OLET ALT-
TIINA NÄKYMÄTTÖMÄLLE LASERSÄTEILYLLE. ÄLÄ KATSO SÄTEESEEN.
VARNING :
OSYNLING LASERSTRÅLING NÄR DENNA DEL ÄR ÖPPNAD
OCH SPÄRREN ÄR URKOPPLAD.BETRAKTA EJ STRÅLEN.
ADVERSEL :
USYNLIG LASERSTRÅLING NÅR DEKSEL ÅPNES OG
SIKKERHEDSLÅS BRYTES. UNNGÅ EKSPONERING FOR STRÅLEN.
VIGYAZAT
!
:
A BURKOLAT NYITÁSAKOR LÁTHATATLAN LÉZERSU-
GÁRVESZÉLY
!
KERÜLJE A BESUGÁRZÁST
!
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0OR DOTTED LINEWITH
MARK 0ON THE SCHEMATIC DIAGRAMS AND INTHE PARTS
LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE
COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS
APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS
PUBLISHED BY SONY.
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
4
SECTION 2
GENERAL

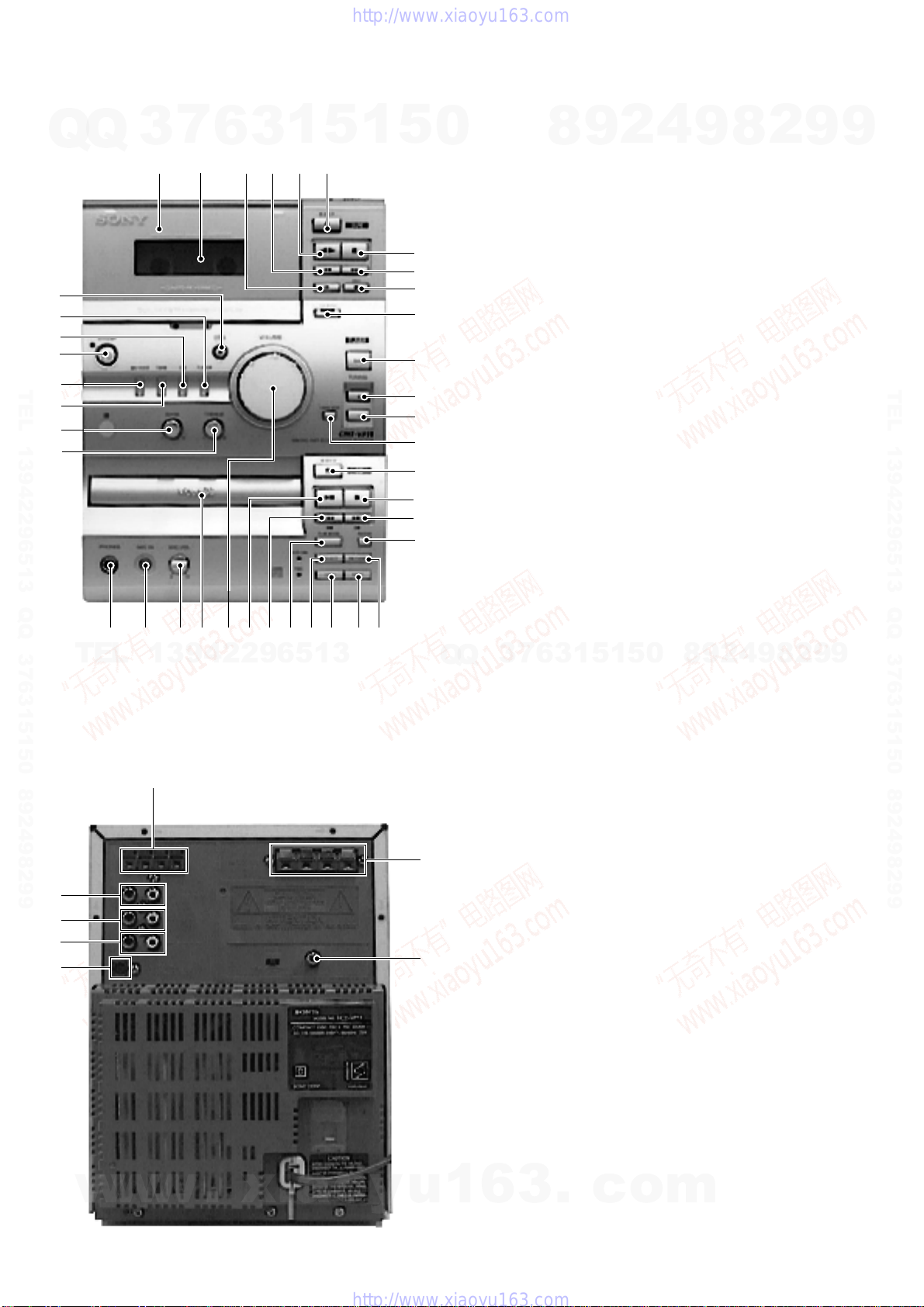

LOCATION OF CONTROLS
• Front View
126543
7
8
9
0
qa
qs
qd
qf
qg
qh
qj
qk
edese;wj
wh
wg
ws
wa
w;
ql
wd
wf
wk wl eh ej
ef eg
ea
ek
1TAPE deck
2Liquid crystal display
3TAPE Xbutton
4TAPE mbutton
5TAPE Ybutton
6TAPE Zbutton
7TAPE xbutton
8TAPE Mbutton
9TAPE REC zbutton
0CD SYNC button and indicator
qa BAND button
qs TUNING + button
qd TUNING – button
qf TUNING MODE button
qg CD EJECT Zbutton
qh CD xbutton
qj CD >button
qk CD REPEAT button
ql DSG button and indicator
w; TUNER button and indicator
wa CD button and indicator
ws STANDBY ?/1button and indicator
wd MD/VIDEO button and indicator
wf TAPE button and indicator
wg BASS knob
wh TREBLE knob
wj PHONES jack
wk MIC IN jack
wl MIC VOL knob
e; CD disc tray
ea VOLUME knob
es CD ubutton
ed CD .button
ef CD PLAY MODE button
eg SELECT button
eh PREV button
ej RETURN button
ek NEXT button
1
2
3
5
4
6
7
1ANTENNA terminals
2SPEAKER terminals
3VIDEO OUT jack
4LINE OUT jacks
5MD IN jacks
6VIDEO IN jacks
7CD DIGITAL OUT OPTICAL connector
• Rear View
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
5
This section is extracted from
instruction manual.

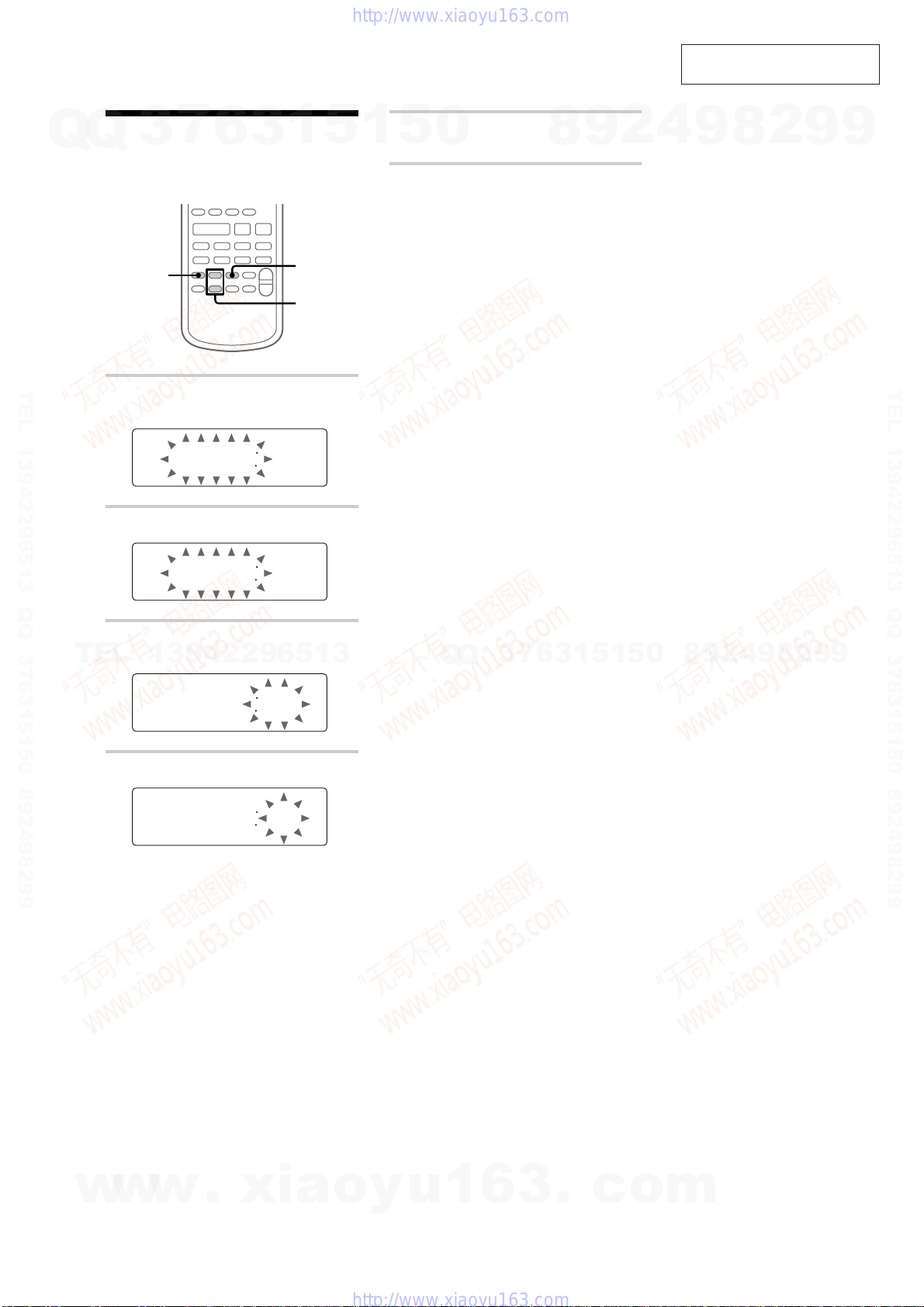

Step 2: Setting the time
Before you can use the system’s timer functions,
set the internal clock.
+
–
#
2
N
Xx
nN .> z
mM y
12,4
3,5
1
Press TIMER SET.
The hour indication flashes.
AM1200
2
Press +/– repeatedly to set the hour.
AM1100
3
Press ENTER.
The minute indication flashes.
AM1100
4
Press +/– repeatedly to set the minute.
AM1110
5
Press ENTER.
The clock will begin operating.
To reset the system clock
You can reset the system clock even when the
system is on or off. To reset the time while the
system is on, do the following:
1Press TIMER SET.
2Press +/– repeatedly until “SET CLOCK”
appears, then press ENTER.
3Repeat steps 2 to 5 in “Step 2: Setting the
time”.
Tip
If you make a mistake, start over from step 1.
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
6
3-1. COVER (UPPER)
3-2.TAPE MECHANISM DECK
Note: Follow the disassembly procedure in the numerical order given.
SECTION 3
DISASSEMBLY
1
Two screws
(case3 TP2)
4
Cover (upper)
2
Four screws
(BTP3
×
8)
3
Two screws
(case3 TP2
)
2
Connector
5
Tape
mechanism deck
1
Flat wire (12 core)
3
Two screws
(BTP3
×
8)
4
Two screw
s
(BTP3
×
8)
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
7

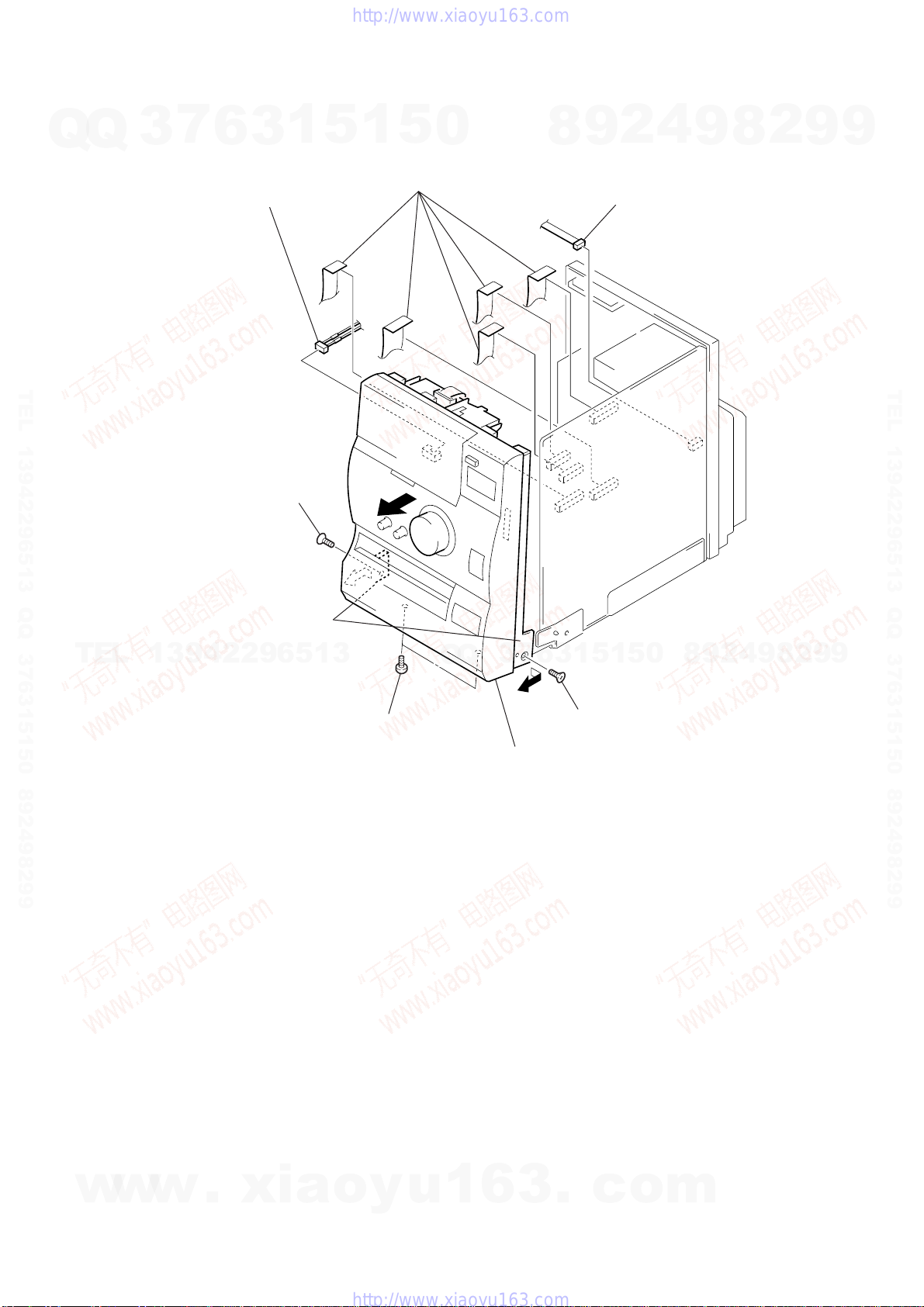

3-3. FRONT PANEL SECTION
1
Connector
(CN303)
3
Connector
2
Flat wire
Two claws
6
Screw
(KTP3
×
6)
7
Front panel section
(There is a claw.)
5
Two screws
(BTP3
×
8)
4
Screw
(TP3
×
6)
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
8
3-4. CD MECHANISM DECK
3
Screw
(BTP3
×
8)
2
flat wire (19 core)
(CN805)
1
connecto
r
4
CD mechanism deck
3-5. UPPER CHASSIS
1
Scre
w
2
Upper chassis
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
9
3-6.TRAY
4
Motor board
3
Two screws
2
Belt
1
Rotate the control cam in
the direction of arrow
A
5
Pull the tray
A
3-7. CAM
1
Torsion spring
2
SW lever
4
Pulley
5
Gear
6
Gear
7
Roller
8
Cam
3
Spacer (55)
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
10
SECTION 4
SERVICE MODE
Start
REC pause for 3 seconds
FWD REC
Fast forward
REV Play
REC pause for 3 seconds
REV REC
Rewind
FWD Play Shut off
Shut off
Shut off
Shut off
1 minute
3 minutes
1 minute
3 minutes
Start
Open the disc tray
Close the disc tray
Play the last track
[Liquid Crystal Display All Lit Check Mode]
Procedure:
1. Set to standby state.
2. Press three buttons of x(TAPE), x(CD),and MD/VIDEO
simultaneously.
3. Liquid crystal display are all turned on.
4. To exit from thismode,press the ?/1 buttonto turn thepower
OFF.
[Tape Deck Aging Mode]
This mode can be used for operation check of tape deck section.
Procedure:
1. Set a tape in the tape deck.
2. Set to standby state.
3. Press three buttons of x(TAPE), x(CD), and TAPE
simultaneously.
4. The aging is executed in bellow sequence.
5. To exit from the aging mode, press the ?/1 button to turn the
power OFF.
Aging mode sequence:
[CD Aging Mode]
This mode can be used for operation check of CD section.
Procedure:
1. Load a CD disc.
2. Set to standby state.
3. Press three buttons of x(TAPE), x(CD), and TUNER
simultaneously.
4. The aging is executed in bellow sequence.
5. To exit from the aging mode, press the ?/1 button to turn the
power OFF.
Aging mode sequence:
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
11
SECTION 5
ELECTRICAL ADJUSTMENTS
0 dB=0.775 V
DECK SECTION
Note: Confirm each contents of this section first of all. If the results are
not satisfied, do the adjustment.
1. Demagnetize the record/playback head with a head
demagnetizer.
2. Do not use a magnetized screwdriver for the adjustments.
3. After the adjustments, apply suitable locking compound to the
parts adjust.
4. The adjustments should be performed with the rated power
supply voltage unless otherwise noted.
5. The adjustments should be performed in the order given in this
service manual. (As a general rule, playback circuit adjustment
should be completed before performing recording circuit
adjustment.)
6. The adjustments should be performed for both L-CH and R-
CH.
7. Switches and controls should be set as follows unless otherwise
specified.
• Test Tape

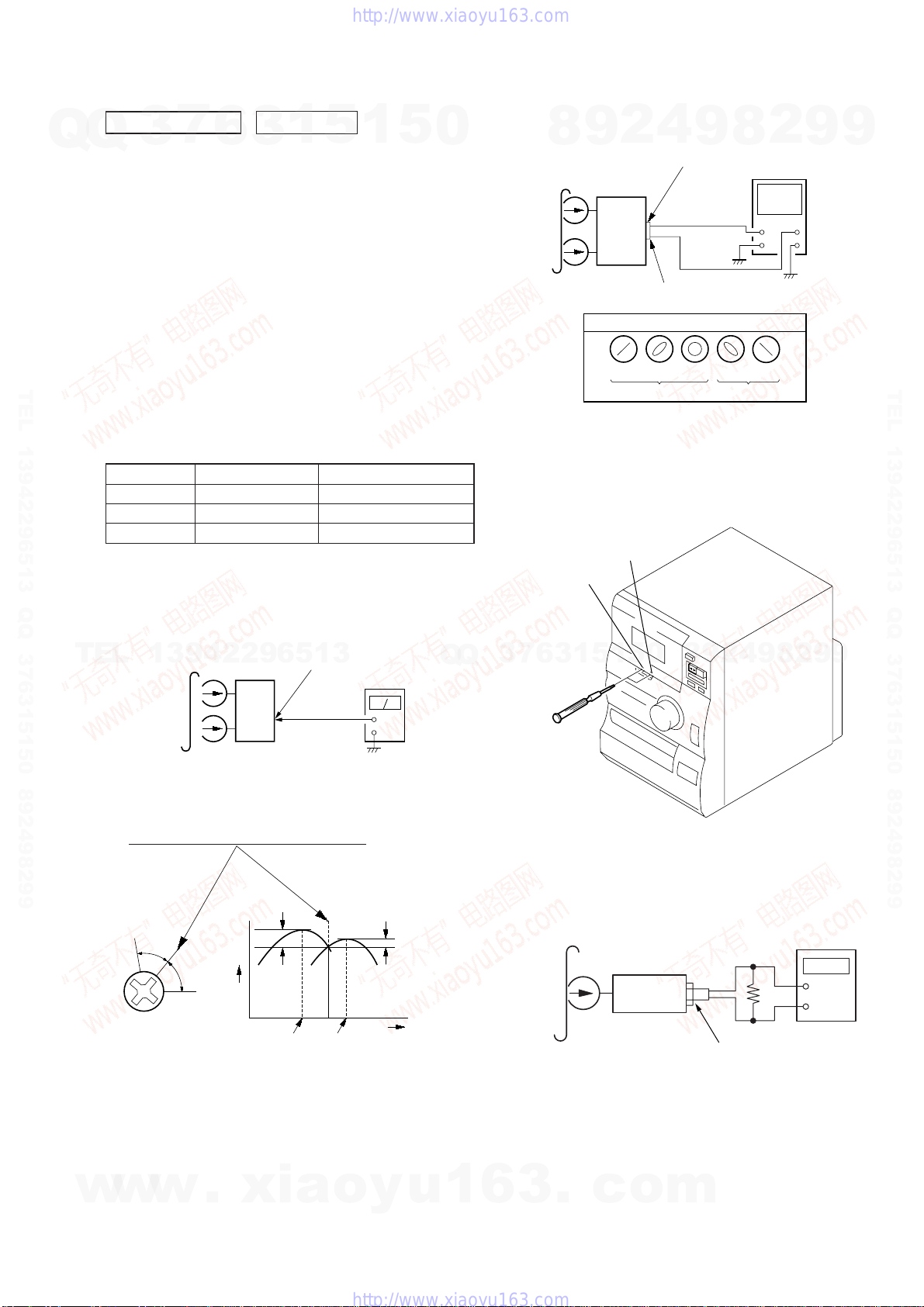

Record/Playback Head Azimuth Adjustment
Procedure:
1. Mode: Playback
set
MAIN board
LINE OUT jack (PJ301)
L-CH, R-CH
+
–
level mete
r
test tape
P-4-A100
(10 kHz, –10 dB)
Screw
position
L-CH
peak
within
1dB
Output
level
L-CH
peak R-CH
peak
within
1dB
Screw
position
R-CH
peak
3. Mode: Playback
4. Repeat step 1 to 3 in playback (REV) mode.
5. After the adjustments, apply suitable locking compound to the
pats adjusted.

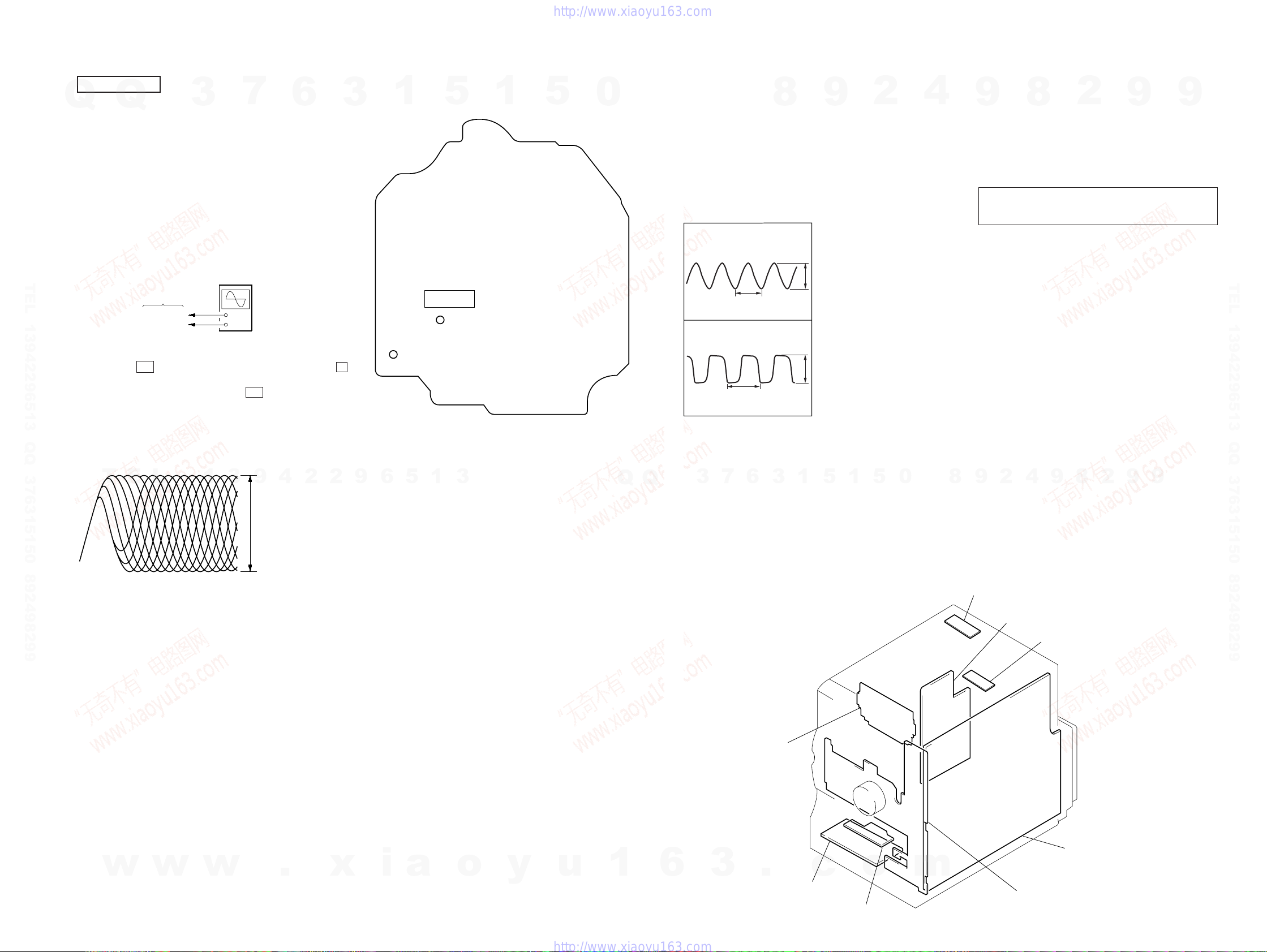

Adjustment Location:
Tape Speed Adjustment
Procedure :
Mode : Playback
Adjust the tape speed adjustment control inside motor, so that the
frequency counter reading becomes 3,000 ±90 Hz.
Sample Value of Wow and flutter
W.RMS (JIS) less than 0.3%
(test tape : WS-48B)
MAIN
board
CN301
set
test tape
P-4-A100
(10 kHz, –10 dB)
R-CH
oscilloscop
e
L-CH
R-CH
VH
waveform of oscilloscope
in phase 45
°
90
°
135
°
180
°
good wrong
MAIN board
LINE OUT jack (PJ301)
L-CH
forward
reverse
Tape Signal Used for
P-4-A100 10 kHz, –10 dB Azimuth Adjustment
WS-48B 3 kHz, 0 dB Tape Speed Check
P-4-L300 315 Hz, 0 dB Level Adjustment
2. Turn the adjustment screw and check output peaks. If the peaks
do not match for L-CH and R-CH, turn the adjustment screw
so that outputs match within 1dB of peak.
32
Ω
test tape
WS-48B
(3kHz, 0dB)
set
digital frequency
counter
LINE OUT
+
–
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
12
AdjustRV101 (L-CH) andRV201 (R-CH), so that adjustmentwithin
the following adjustment level.
Adjustment level:
LINE OUT level: –7.7 ±0.5 dB (301.5 to 338.5 mV)
Level difference between the channels: within ±0.5 dB
Confirm that the LINE OUT level does not change even though
play and stop are repeated.
Playback Level Adjustment
Procedure:
Mode: FWD playback
Record Level Adjustment
Procedure:
1. Record mode.
2. Playback mode.
3. Confirm playback the signal recorded in step 1 become
adjustment level as follows.
4. If these levels do not adjustment level, adjust the RV103 (L-
CH) and RV203 (R-CH), on the MAIN board to repeat steps 1
to 3.
Adjustment level:
LINE OUT level: –23.8 dB ±0.5 dB (47.2 to 53.0 mV)
Adjustment Location: TC board
Record Bias Adjustment
Procedure:
1. Record mode.
2. Playback mode.
3. Confirm playback the signal recorded in step 1 become
adjustment level as follows.
4. If these levels do not adjustment level, adjust the RV102 (L-
CH) and RV202 (R-CH), to repeat steps 1 to 3.
Adjustment level:
The playback outpout of 10 kHz level difference adjust
315 Hz reference should be 0 dB ±0.5 dB.
test tape
P-4-L300
(3kHz, 0dB)
set
LINE OUT
frequency counte
r
AF OSC
LINE IN
1) 315 Hz
2) 10 kHz
blank tap
e
CS-123
set
attenuator 600
Ω
} 50 mV (–23.8 dB)
recorded
position
set
LINE OUT
level mete
r
AF OSC
LINE IN
315Hz 50 mV (–23.8 dB)
blank tap
e
CS-123
set
attenuator 600
Ω
recorded
position
set
LINE OUT
level mete
r
Record
level
RV203
RV103
Record
bias
RV102
RV202
Play back
level
RV201
RV101
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
1313
NOTE FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGARAMS
Note on Printed Wiring Board:
•X: parts extracted from the component side.
•Y: parts extracted from the conductor side.
•b: Pattern from the side which enables seeing.
Note on Schematic Diagram:
• All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.
• All resistors are in Ωand 1/4W or less unless otherwise
specified.
•¢: internal component.
•C: panel designation.
•U: B+ Line.
•V: B– Line.
•H: adjustment for repair.
• Voltages aretaken with aVOM (Input impedance10MΩ).
Voltage variations may be noted due to normal produc-
tion tolerances.
• Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal produc-
tion tolerances.
• Circled numbers refer to waveforms.
• Signal path.
F:TUNER
E:TAPE PLAY
a:TAPE RECORD
J: CD PLAY (ANALOG OUT)
c: CD PLAY (DIGITAL OUT)
• Abbreviation
SP : Singapore model.
MY : Malaysia model.
HK : Hong Kong model.
TH :Thai model.
EA : Saudi Arabia model.
6-1. CIRCUIT BOARDS LOCATION
SECTION 6
DIAGRAMS
POWER board
MAIN boar
d
HEADPHONE board
LCD board
LOADING board CONTROL board
SPEAKER board
VIDEO OUT board
1
IC801 el
(EXTAL1)
2
IC801 os
(TX)
4.6Vp-p
238ns
5.0Vp-p
30.5µs
•Waveforms
– MAIN Board – Note: The components identified by mark 0or dotted line
with mark 0are critical for safety.
Replace only with part number specified.
CD SECTION
Note:
1. CD Block is basically constructed to operate without
adjustment.
2. UseYEDS-18 disc (3-702-101-01) unless otherwise indicated.
3. Use an oscilloscope with more than 10 MΩimpedance.
4. Clean the object lens by an applicator with neutral detergent
when the signal level is low than specified value with the
following checks.
5. Check the focus bias check when optical block is replaced.
Focus Bias Check
Procedure :
1. Connect oscilloscope toTP (RF) andTP (VC) onthe CDboard.
2. Press the I/1button to turn the power on, and press the Z
(CD) button to open the CD disc tray.
3. Put disc (YEDS-18) in and press the u(CD) button to play-
back.
4. Confirm that oscilloscope waveform is as shown in the figure
below. (eye pattern)
A good eye pattern means that the diamond shape ( ) in the
center of the waveform can be clearly distinguished.
Checking Location:
s
– CD BOARD (Conductor Side) –
+
–
BD board
TP (RF)
TP (VC)
oscilloscope
(DC range)
VOLT/DIV: 200 m
V
TIME/DIV: 500 ns
level:
1.2
±
0.1 Vp-p
IC103
TP (RF)
TP (VC)
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
HCD-VP11
1414
6-2. BLOCK DIAGRAM – MAIN Section –
16
• SIGNAL PATH
: TAPE RECORD
: TAPE PLAY
: CD PLAY (ANALOG OUT)
: CD PLAY (DIGITAL OUT)
: TUNER
S901
(DISC TRAY CLOSE DET)
S902
(DISC TRAY OPEN DET) IN2OPEN OUT2
TX
TEX
MD/VIDEO-ON
D313
DISC TRAY OPEN/CLOSE
MOTOR DRIVE
IC309
X802
32.768kHz
TU-DATA/SDA
TU-CLK
TU-CE
TU-COUNT
S-SI
LIN3
LIN1
INL
R-CH
PJ301 (1/2)
SCL
SDA
92
93
XTAL1
EXTAL1
X801
4.19MHz
40
CLOSE-SW
OPEN-SW 6 10
IN1CLOSE OUT1
5 2
39
24
AU-MUTE 97
VCD-LED 23
AMP-MUTE 22
1
MUTE
10
15
1
5
8
SCK
28
19
S-CLK
11
17
S-REQ
14
TUNED
2
18
12
S-ACK
100
13
LIN4
14
11
LIN2
MOL 16
12
A
TU ON
B
REC/PB
L
MD IN
R
L
R
L
L
R
R-CH
R-CH
6
LOUT
5
ROUT R-CH
R-CH
R-CH
R-CH
R-CH
R-CH
R-CH
CD-L-OUT
CD-R-OUT
CD BLOCK
INPUT SELECT SWITCH,
TONE CONTROL,
ELECTRICAL VOLUME
IC301
IN+
3OUT 14
POWER AMP
IC101
L-CH
2
9
R-CH
TUNER PACK
R-CH
B+
R-CH
VIDEO IN
MUTING
Q102, 103
LINE AMP
IC307
HEADPHONE
AMP
IC303
MUTING
CONTROL SWITCH
Q317, 318
LED DRIVE
Q853
MUTING
Q106
MUTING
Q101,107
VOLUME
CONTROL
CIRCUIT
TONE
CONTROL
CIRCUIT
ATT
MUTING
Q111
OPTICAL
TRANSCEIVER
IC308
CD DIGITAL OUT
OPTICAL
R-CH
MUTE
PJ301 (2/2)
LINE OUT
J301
PHONES
SJ301
SPEAKER
IMPEDANCE
USE 6Ω
D853
MD/VIDEO
+
D-OUT
S-SO
13
S-SO
S-CLK
S-REQ
VIDEO OUT VIDEO-OUT
NTSC/AUTO/PAL
DI
8
CK
CE
7
DO
4
TUNED
S-ACK
S-SI
S-RST MPEG-RST
ANTENNA
FM ANT
ANT GND
ANT GND
AM ANT
FM
75Ω
AM
LED DRIVE
Q500
D500
VCD
PBC-LED 15 LED DRIVE
Q501
D501
PBC
+
–
–
M
M901
DISC TRAY
OPEN/CLOSE
INPUT SELECT SWITCH
R-CH
MUTING
Q132
HP SW
Q393
R
SYSTEM CONTROLLER
IC801 (1/2)
REC/PB
MOT-CON
SOL-CON
DOLBY
L-MUTE
TAPE-END
96
4
10
T-MODE
6
32
REC-MUTE
87
88
95
1
REC-BIAS
L IN
R IN
TAPE DECK
R-CH
R-CH
LINE MUTE
+12V
DOLBY ON/OFF
PLAY SW
REC MUTE
L OUT
R OUT R-CH
SOL 12V
BIAS ON/OFF
REC/PB
SENSOR OUT
PACK/REC-L/R TC-SW
30
86
CAPSTAN/REEL
MOTOR DRIVE
Q657,659
TRIGGER
PLUNGER DRIVE
Q656,658
10
MUTING
CONTROL SWITCH
Q303, 304
C
J402
MIC
RV200
ECHO
MIC AMP
IC315(1/2)
MIC AMP
IC315(2/2)
+
SYSTEM
SELECT
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
HCD-VP11
1515

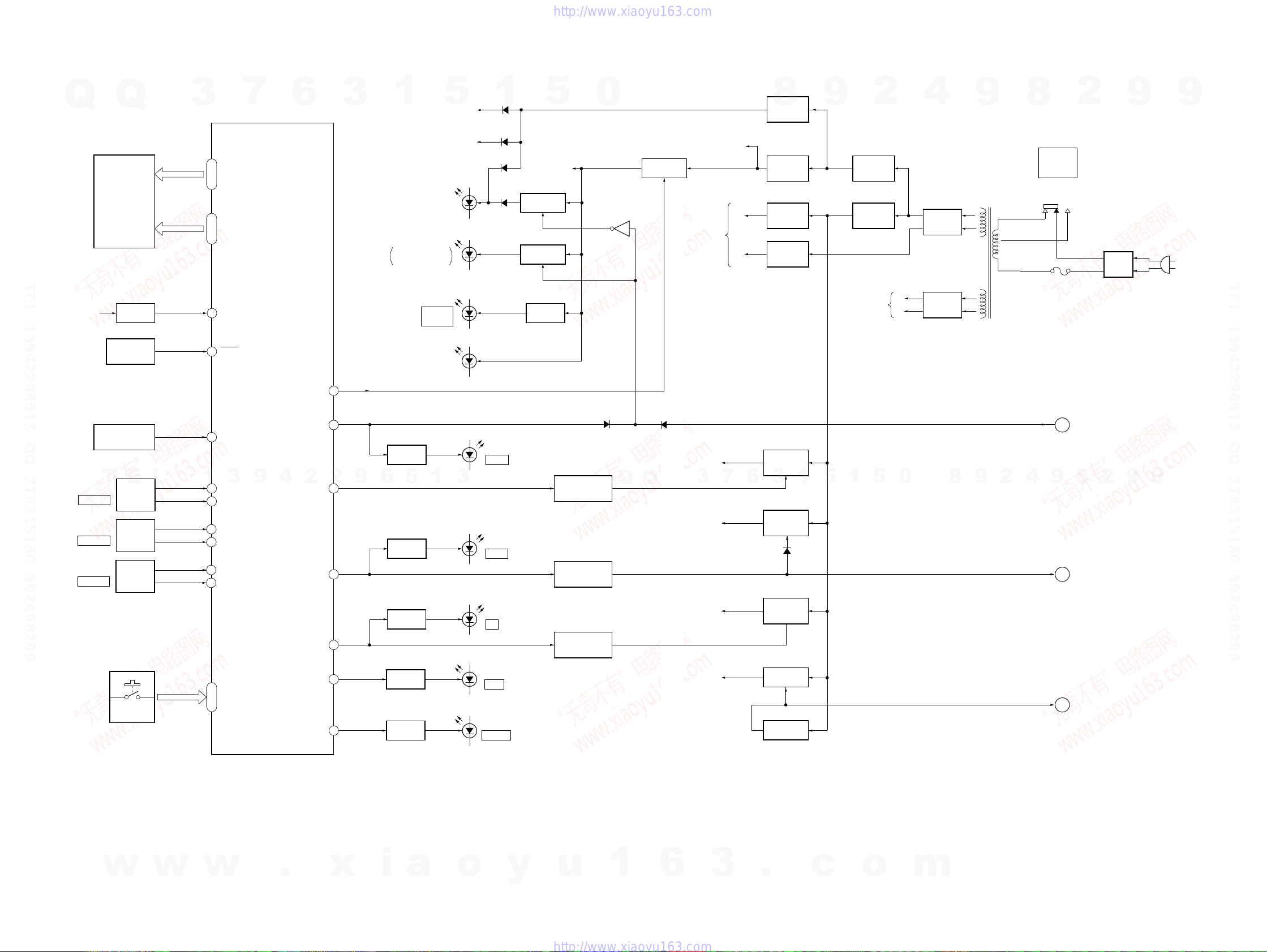

6-3. BLOCK DIAGRAM – DISPLAY/POWER SUPPLY Section –
TC-ON 98
LED DRIVE
Q854
16
SYSTEM CONTROLLER,
LCD DRIVER
IC801 (2/2)
B
REC/PB
A
TU ON
REGULATOR
CONTROL SWITCH
Q311, 312
+5V
REGULATOR
Q310
+8V
REGULATOR
IC304
–8V
REGULATOR
IC305
RECT
D911 – 914
RECT
D907 – 910
POWER TRANSFORMER
T901
VOLTAGE
SELECTOR
S901
LINE
FILTER
LF901
+9V
REGULATOR
Q313,D304
AC IN
B+
B–
+8V
+8V
REGULATOR
IC311
+8V
CD BLOCK
+5V
CD BLOCK B+
+7.5V
TDA7439 (IC301) B+
+9V
TUNER PACK B+
–8V
AUDIO
CIRCUIT
POWER AMP
(IC101, 201)
D307
C
MUTE
REGULATOR
CONTROL SWITCH
Q321, 322
LED DRIVE
Q852
D814
D815
D813 D812
D801
D802
Q655
CD
D852
CD-ON 94
TU-ON 25
TC-ON 98
REG-CON
+7.5V
REGULATOR
Q314
FM 7.5V
FM CIRCUIT B+
B+ SWITCH
Q661, 662
B+ SWITCH
Q653, 654
B+ SWITCH
Q651, 652
REGULATOR
CONTROL SWITCH
Q315, 316
RDS-ON 31
LED DRIVE
Q855 TUNER
D855
LED DRIVE
Q854
LED DRIVE
Q858,859
TAPE
D854
D858
(DISC TRAY ILLUMINATION)
STANDBY
I/u
D851
D657 – 660
(LCD BACK LIGHT)
BACK UP +5V
REMOTE CONTROL
RECEIVER
IC802
3REMOCON
ROTARY
ENCODER
RV801
JOG-A
21
JOG-B
20
36 – 33
SEG0 – SEG31
KEY1 – KEY4
54 – 85
COM0 – COM3
50 – 53
S801 – 828
RV801
VOLUME
LIQUID CRYSTAL
DISPLAY
LCD801
CASSETTE HOLDER
BACK LIGHT
ROTARY
ENCODER
RV802
JOG-E
29
JOG-F
30
RV802
TREBLE
ROTARY
ENCODER
RV803
JOG-C
9
JOG-D
16
RV803
BASE
+7.5V REG
Q325,D306
+8V DET
Q326
+12V
REGULATOR
Q350-351
+12V
REGULATOR
Q301-303
230V
115V
COM F901
+5.6V
REGULATOR
IC310
7
SYSTEM CONTROLLER (IC801) B+
220-240V 110-120V
LED B+
26 LED DRIVE
Q856 DSG
D856
D.S.G.
27 LED DRIVE
Q857 CD SYNC
D857
CD-SYNC
RESET
38
RESET SIGNAL
GENERATOR
IC803
WP
99
SWITCH
Q829,830
+5V
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
HCD-VP11
1616
6-4. PRINTED WIRING BOARD – MAIN Section – • See page 13 for Circuit Boards Location.
Ref. No. Location
D301 G-6
D303 B-5
D304 B-5
D305 G-5
D306 C-5
D307 B-5
D308 F-5
D311 E-5
D313 E-4
D350 G-5
D651 A-3
D652 B-3
D801 F-3
D802 E-3
D812 G-3
D813 G-3
D814 C-1
D815 A-3
IC101 F-7
IC201 E-7
IC301 C-6
IC303 D-7
IC304 F-5
IC305 G-5
IC307 B-6
IC308 C-7
IC309 F-5
IC310 E-5
IC311 F-5
IC312 B-4
IC315 D-7
IC801 F-2
IC803 F-3
Q101 B-7
Q102 C-7
Q103 C-7
Q106 A-6
Q111 C-7
Q201 B-7
Q202 C-7
Q203 C-7
Q206 A-6
Q211 C-7
Q301 G-6
Q302 G-6
Q303 G-6
Q307 E-4
Q308 E-4
Q310 G-5
Q311 G-5
Q312 G-5
Q313 A-5
Q314 B-5
Q315 B-5
Q316 B-5
Q317 F-4
Q318 F-4
Q321 A-5
Q322 A-5
Q350 G-5
Q351 G-5
Q352 G-5
Q393 D-7
Q651 G-4
Q652 F-4
Q653 G-4
Q654 G-4
Q655 G-4
Q656 B-3
Q657 B-3
Q658 B-4
Q659 B-4
• Semiconductor
Location
(Page 19)
(Page 19)
(Page 20)
(Page 19)
(Page 19)
(Page 22)
(Page 19)
16
12
A
B
C
D
E
F
G
345678
There are few cases that the part printed on this
diagram isn’t mounted in this model.
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
HCD-VP11
1818
6-6. SCHEMATIC DIAGRAM – MAIN Section (2/2) – • See page 25 for IC Pin Function Description. •See page 13 forWaveforms.
PIN FUNCTION
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
HCD-VP11
1919
6-8. SCHEMATIC DIAGRAMS – HEADPHONE/SPEAKER Section –6-7. PRINTED WIRING BOARDS – LCD/HEADPHONE/LOADING/SPEAKER Section –
• See page 13 for Circuit Boards Location.
• See page 18 for LCD BOARD Schematic Diagram.
• See page 17 for LOADING BOARD Schematic Diagram.
(Page 16)
12
A
B
C
D
E
F
G
345
(Page 16)
(Page 16)
(Page 16)
(Page 16)
There are few cases that the part printed on this
diagram isn’t mounted in this model.
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
HCD-VP11
2020
6-9. PRINTED WIRING BOARDS – CONTROL Section – • See page 13 for Circuit Boards Location.
Ref. No. Location
D500 G-3
D501 H-3
D851 C-7
D852 D-5
D853 D-6
D854 D-5
D855 D-4
D856 C-4
D857 B-2
D858 E-5
• Semiconductor
Location
(Page 16)
12
A
B
C
D
E
F
G
H
34567
There are few cases that the part printed on this
diagram isn’t mounted in this model.
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
Table of contents
Other Sony Stereo System manuals
Sony
Sony MEX-N4050BT User manual
Sony
Sony CMT-MX500i User manual
Sony
Sony ZS-X1 - Cd Boombox User manual
Sony
Sony CMT-DH30 User manual
Sony
Sony BRAVIA DAV-HDX589W User manual
Sony
Sony CMT-EH45DAB User manual
Sony
Sony HCD-NXM1 User manual
Sony
Sony MAP-S1 User manual
Sony
Sony CMT-LX20I Marketing User manual
Sony
Sony CMT-GPX5 User manual
Sony
Sony CMT-HPX10W - Micro Hi Fi Component System Manual
Sony
Sony MHC-GT660 User manual
Sony
Sony CMT-M70K User manual
Sony
Sony HCD-VX880AV User manual
Sony
Sony MHC-D60 User manual
Sony
Sony LBT-V4800R User manual
Sony
Sony MHC-V7D User manual
Sony
Sony HCD-CL1 User manual
Sony
Sony DAV-FC7 - Dvd Dream System User manual
Sony
Sony HCD-GZR33D User manual
