Sony SA-VE835ED User manual

1
Ver 1.1 2002. 08
SERVICE MANUAL
US Model
Canadian Model
AEP Model
UK Model
E Model
SA-VE835ED
For the U.S. model
AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL
HARMONIC DISTORTION:
with 3.75 ohm loads both channels driven,
from 20 – 200 Hz; rated 200 watts per
channel minimum RMS power, with no more
than 0.8% total harmonic distortion from
250 milliwatts to rated output.
SS-MS835(front, center, and rear speakers)
Speaker system 2 way, magnetically
shielded
Speaker units Tweeter: 1.9 cm (3/4 in.),
dome type
Woofer: 5.7 cm
(2 1/4 in.) ×2, cone type
Enclosure type Bass reflex
Rated impedance 8 ohms
Power handling capacity
Maximum input power: 140 W
Sensitivity level 87 dB (1 W, 1 m)
Frequency range 120 Hz – 70,000 Hz
Dimensions (w/h/d)
When attached speaker grilles:
Approx. 90 ×182 ×147
mm (3 5/8 ×7 1/4 ×5 7/8
in.) each
When attached to supplied speaker stand:
Approx. 97 ×220 ×158
mm (3 7/8 ×8 3/4 ×6 1/4
in.)each,(Front(and rear)
speakers)
Approx.182 ×145 ×163
mm (7 1/4 ×5 3/4 ×6 1/2
in.), (Center speaker:
pointed upwards)
Approx.182 ×123 ×163
mm (7 1/4 ×4 7/8 ×6 1/2
in.), (Center speaker:
pointed downwards)
SPECIFICATIONS
Mass
When attached speaker grilles:
Approx. 1.3 kg
(2 lb 14 oz) each
When attached to supplied speaker stand:
Approx. 1.4 kg (3 lb 1 oz)
each, (Front (and rear)
speakers)
Approx.1.4 kg (3 lb 1 oz),
(Center speaker)
SA-WMS835 (subwoofer)
Speaker system Active subwoofer,
magnetically shielded
Speaker unit Woofer: 20 cm (8 in.),
cone type
Enclosure type Advanced SAW type
Reproduction frequency range
24 Hz – 200 Hz
Continuous RMS power output
200 W (3.75 ohms, 20 –
200 Hz, 0.8% THD)
Inputs
LINE IN (input pin jack)
TheSA-VE835EDsystem consistsofone
unit of SA-WMS835 and five units of SS-
MS835.
Sony Corporation
Home Audio Company
Published by Sony Engineering Corporation
9-873-688-02
2002H0400-1
© 2002. 08
MICRO SATELLITE SYSTEM
SA-VE835ED/WMS835/
SS-MS835
SA-WMS835 SS-MS835 SS-MS835
(front and rear) (center)
General
Power requirements 120 VAC, 60 Hz
(US, CND, MX model)
220 – 240VAC, 50/60 Hz
(AEP, UK, SP, AR, KR
model)
Power consumptions 50 W
1 W (standby mode)
Dimensions (w/h/d) Approx. 230 ×395 ×485
mm (9 1/8 ×15 5/8 ×
19 1/8 in.),
including front grille
Mass Approx. 15.5 kg
(34 lb 3 oz)
Supplied accessories
Speaker stands (for the front and rear speakers) (4)
Speaker stand (for the center speaker) (1)
Screws (for the speaker stands) (5)
Washers (for the speaker stands) (5)
L-shaped Allen (Hex) Head wrench (1)
Speaker connecting cords, 10 m (32 ft 9 3/4 in.) (2)
Speaker connecting cords, 3.5 m (11 ft 6 in.) (3)
Audio connecting cord (1)
Design and specifications are subject to change
without notice.
•Abbreviation
CND : Canadian model
SP : Singapore model
MX : Mexican model
AR : Argentine model
KR : Korean model

2
SA-VE835ED/WMS835/SS-MS835
TABLE OF CONTENTS
1. DIAGRAMS
1-1. Circuit Boards Location (SA-WMS835) ............................ 3

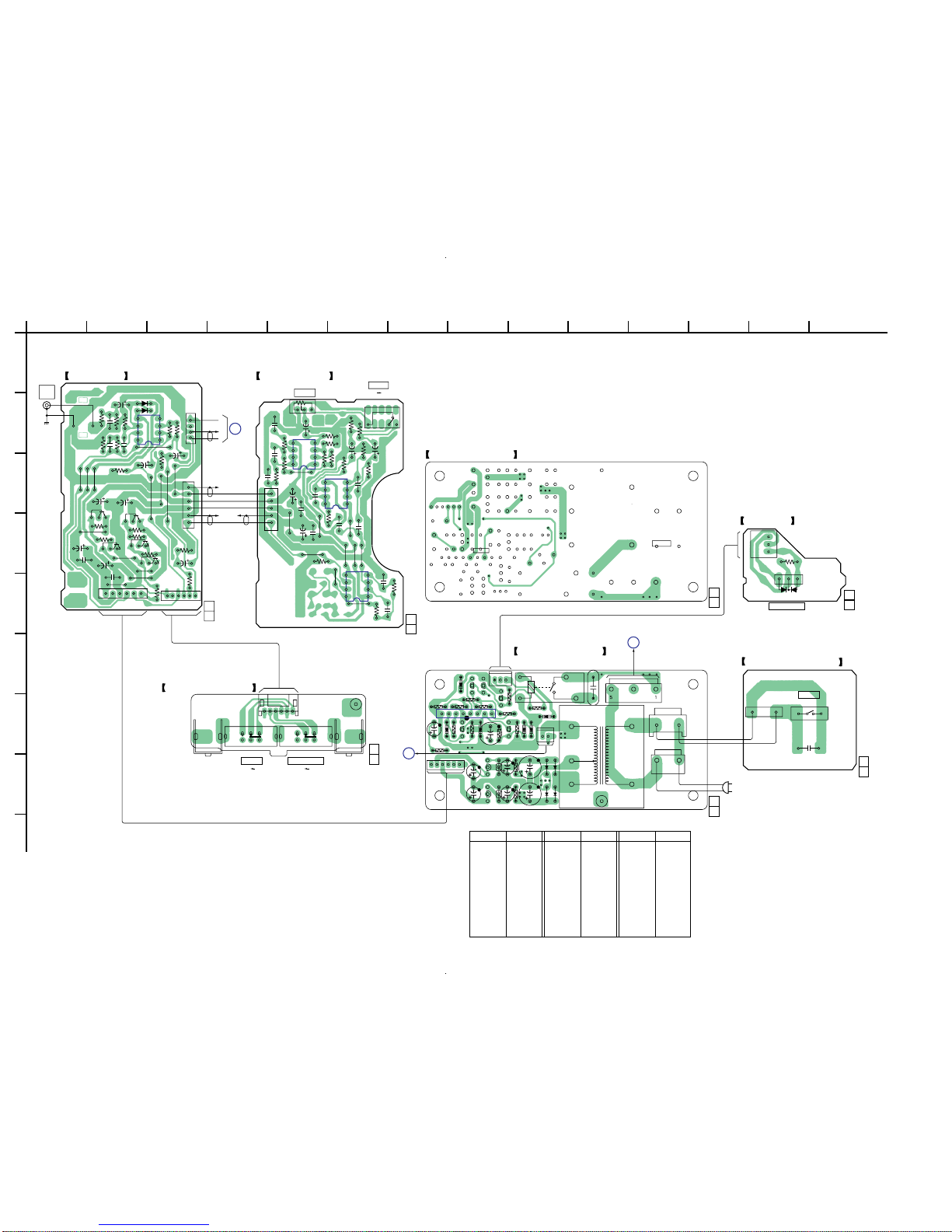

1-2. Printed Wiring Boards (SA-WMS835)
–Audio Section–.................................................................. 4
1-3. Printed Wiring Boards (SA-WMS835)
–Main Power Section– ........................................................5
1-4. Schematic Diagram (SA-WMS835) ................................... 6
2. EXPLODED VIEWS

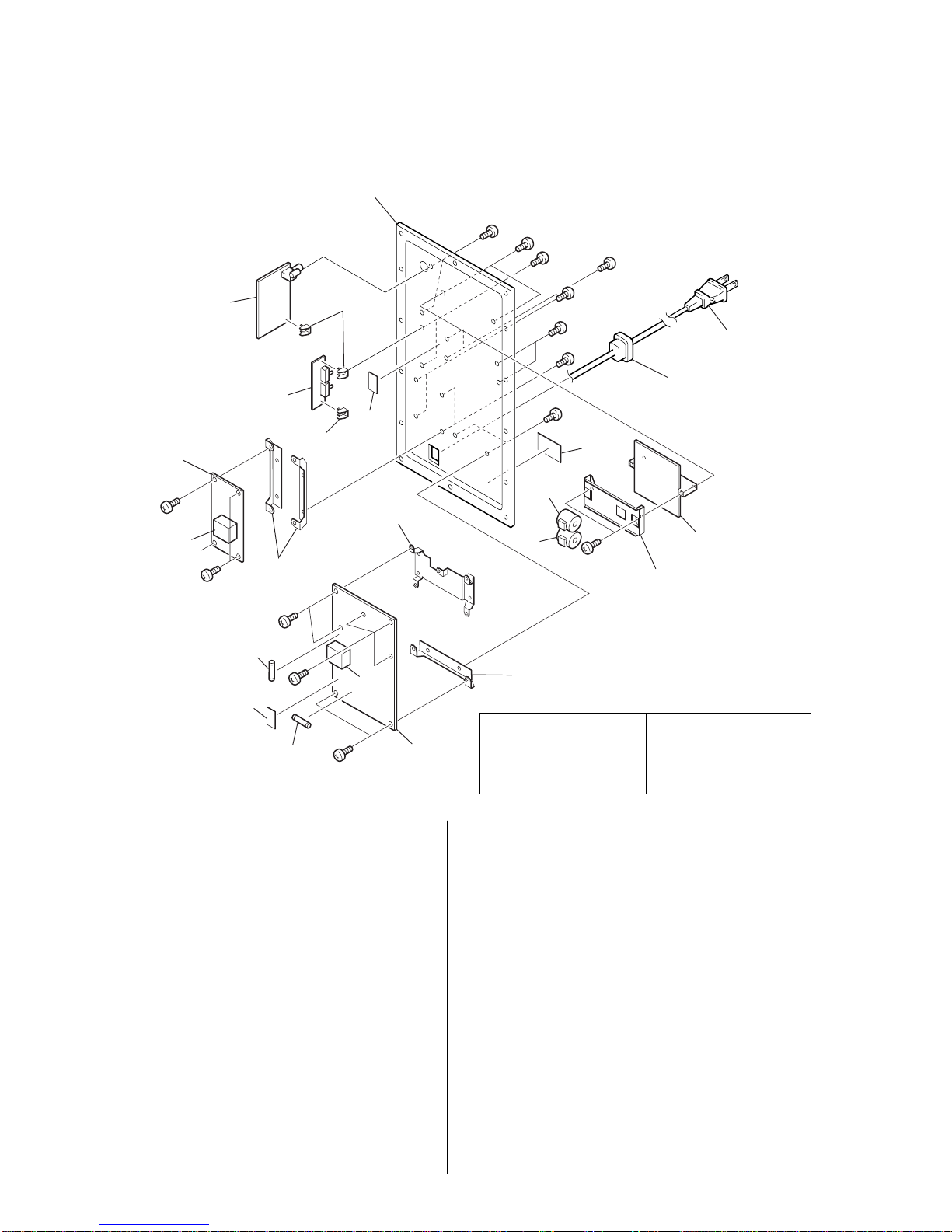

2-1. Front Panel Section (SA-WMS835).................................... 7

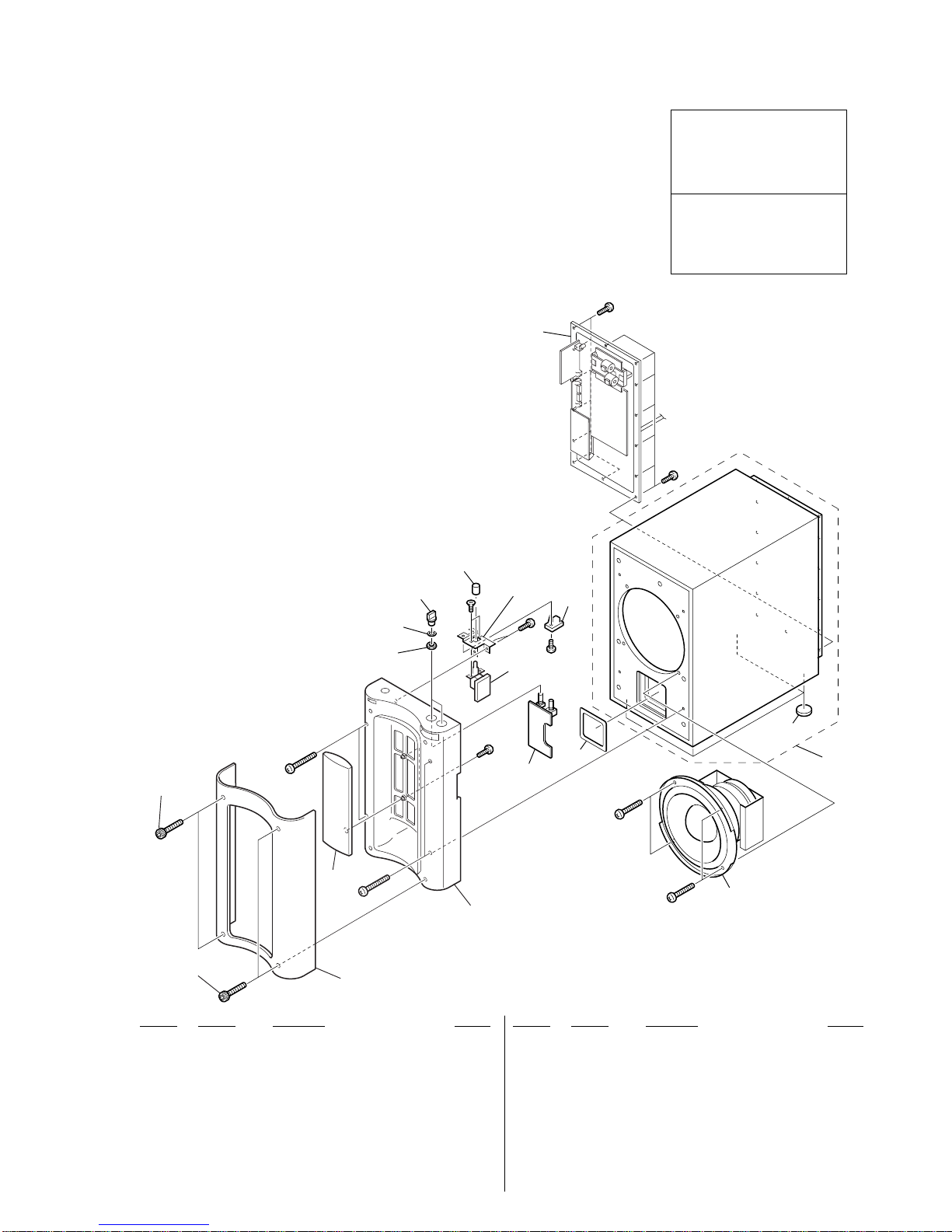

2-2. Rear Panel Section (SA-WMS835)..................................... 8

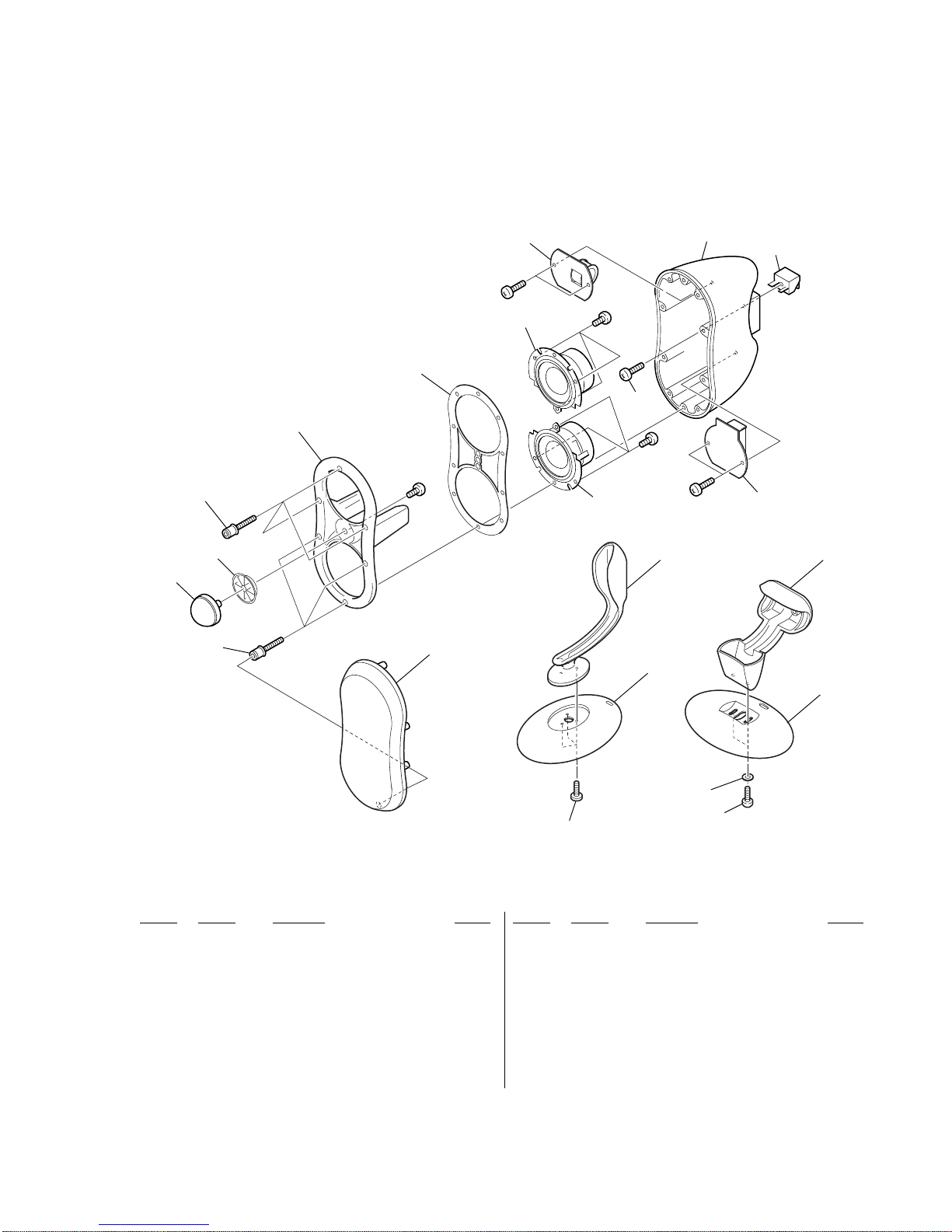

2-3. Speaker Section (SS-MS835).............................................. 9
3. ELECTRICAL PARTS LIST ........................................ 10
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0OR DOTTED LINE
WITH MARK 0ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE
PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR
IN SUPPLEMENTS PUBLISHED BY SONY.
ATTENTION AU COMPOSANT AYANT RAPPORT
À LA SÉCURITÉ!!
LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0SUR LES
DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES
SONT CRITIQUES POUR LASÉCURITÉ DE FONCTIONNEMENT.
NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈCES
SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL
OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY.
To Exposed Metal
Parts on Set
0.15µF 1.5k
Ω
AC
voltmeter
(0.75V)
Earth Ground
Fig. A. Using an AC voltmeter to check AC leakage.
SAFETY CHECK-OUT
After correcting the original service problem, perform the following
safety check before releasing the set to the customer:
Check the antenna terminals, metal trim, “metallized” knobs, screws,
and all other exposed metal parts forAC leakage. Check leakage as
described below.
LEAKAGE TEST
The AC leakage from any exposed metal part to earth ground and
from all exposed metal parts to any exposed metal part having a
return to chassis, must not exceed 0.5 mA (500 microamperes).
Leakage current can be measured by any one of three methods.
1. A commercial leakage tester, such as the Simpson 229 or RCA
WT-540A. Follow the manufacturers’ instructions to use these
instruments.
2. A battery-operated AC milliammeter. The Data Precision 245
digital multimeter is suitable for this job.
3. Measuring the voltage drop across a resistor by means of aVOM
or battery-operatedAC voltmeter. The “limit” indication is 0.75
V, so analog meters must have an accurate low-voltage scale. The
Simpson 250 and Sanwa SH-63Trd are examples of a passive
VOM that is suitable. Nearly all battery operated digital
multimeters that have a 2V AC range are suitable. (See Fig. A)

33
SA-VE835ED/WMS835/SS-MS835
1-1. CIRCUIT BOARDS LOCATION (SA-WMS835)
SECTION 1
DIAGRAMS
MAIN POWER boar
d
IC1
(power amplifier unit)
AUTO POWER board
CONTROL board
INPUT board
INPUT SELECT board
LED board
POWER SWITCH board
Note:
The components identi-
fied by mark 0or dotted
linewith mark 0arecriti-
cal for safety.
Replace only with part
number specified.
Note:
Lescomposantsidentifiés par
une marque 0sont critiques
pour la sécurité.
Ne les remplacer que par une
piéce portant le numéro
spécifié.
THIS NOTE IS COMMON FOR PRINTED WIRING
BOARDS AND SCHEMATIC DIAGRAMS.
(In addition to this, the necessary note is
printed in each block.)
for schematic diagram:
•All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.
•All resistors are in Ωand 1/4W or less unless otherwise
specified.
•2: nonflammable resistor.
•C: panel designation.
•A: B+ Line.
•B: B– Line.
•Voltage is dc with respect to ground under no-signal
(detuned) condition.
•Voltagesare takenwith a VOM(Inputimpedance 10 MΩ).
Voltage variations may be noted due to normal produc-
tion tolerances.
•Signal path.
F: AUDIO
•Abbreviation
CND : Canadian model.
SP : Singapore model.
for printed wiring boards:
•X: parts extracted from the component side.
•: Pattern from the side which enables seeing.
•Abbreviation
CND : Canadian model.
SP : Singapore model.
MX : Mexican model.
AR : Argentine model.
KR : korean model.
Caution:
Pattern face side: Partson thepattern faceside seenfromthe
(Side B) pattern face are indicated.
Parts face side: Parts on the parts face side seen from the
(Side A) parts face are indicated.
B
These are omitted.
C
Q
Q
E
BCE
Ver 1.1

44
SA-VE835ED/WMS835/SS-MS835
1
A
B
C
D
E
F
G
H
I
234567891011 12 13 14
IC101
85
14
1-684-602- (12)
12
1-684-601- (12)
11
1-684-636- (11)
11
1-684-636- (11)
11
1-684-637- (11)
11
1-684-604- (12)
11
1-684-603- (12)
11
1
3
2
VR301
C102
R101
R107 R106
R102 R103
C105
R105
JW2 JW3 JW4
R104
R108
R315
R317
JW8
CN301
R314
C307
R309
C310
C306
C305
JW21
C308
R313
JW20
C314
C316
JW17
R301
JW25
C1
S801
CN801
BLU
BLU
BRN
BRN
JW19
R402
D402
JW18 JW16
R310
R312
R318
R316
C309
C315
C317
JW7
JW26
C303
R308
C304
R307
R325
R326
C312
C313
C318
R327
C311
R311
MODE
MOVIE MUSIC
LEVEL
POWER SAVE
AUTO OFF
PHASE
REVERSE NORMAL
ON/STANDBY
POWER
C106
JW24
D101
D102
MAIN
POWER
BOARD
CN906
MAIN
POWER
BOARD
CN909
MAIN POWER BOARD
CN901
C103
(CHASSIS)
J101
LINE
IN
C107
C606 C605
R602
R603
R601
R110
R111
C108
JW11
JW12
C601
JW1
JW9
JW10
CN103 CN102
R606
R604
Q605 Q603
Q604 Q602
Q601
C602 R605
C104
R109
JW14
JW13
JW22
CN101
JW23
CN104
C604
C603
6
1
4
21
1
16
1
16
6
INPUT BOARD CONTROL BOARD
LED BOARD
AUTO POWER BOARD
(SIDE B)
AUTO POWER BOARD (SIDE A)
INPUT SELECT BOARD
POWER SWITCH BOARD
IC303
85
14
IC302
85
1
5
1
4
IC301
85
14
1
81
6
12
1
~ AC IN
13
2
12
CN401
RY801
C3
D807
T201
D204
D201
D202
D203
C201 C202
R201
C203
D205
Q201
C205
R202
C204
D206
Q202
C206
D207
D208
D209
D210
D211
R203
R204
R205
R206
R207
R208 R209
R210
R211
R212
R213
R214
IC201
Q203
Q205
Q206
Q207
Q204
C207
C208
CN210
CN203
CN212
CN202
CN204
CN211
SW502 SW501
CN501
3
1
SW301
1-2. PRINTED WIRING BOARDS (SA-WMS835) — AUDIO SECTION — • Refer to page 3 for Circuit Boards Location.
Ref. No. Location
D101 B-3
D102 B-3
D201 H-9
D202 H-9
D203 H-9
D204 H-9
D205 H-8
D206 H-8
D207 G-7
D208 G-8
D209 G-9
D210 G-9
•Semiconductor Location
D211 G-8
D402 E-13
D807 G-9
IC101 B-3
IC201 G-8
IC301 E-6
IC302 C-6
IC303 C-5
Q201 H-8
Q202 H-8
Q203 G-8
Q204 G-8
Q205 F-8
Q206 F-8
Q207 G-8
Q601 D-3
Q602 D-2
Q603 D-2
Q604 D-2
Q605 D-2
Ref. No. Location Ref. No. Location
(Page 5)
(Page 5)
(Page 5)

55
SA-VE835ED/WMS835/SS-MS835
1-3. PRINTED WIRING BOARDS (SA-WMS835) — MAIN POWER SECTION — • Refer to page 3 for Circuit Boards Location.
1
A
B
C
D
E
F
G
H
I
J
234567891011 12 13
1-684-635- (11)
11
1-684-635- (11)
11
2
1
3
AUTO
POWER
BOARD
CN211
AUTO
POWER
BOARD
CN202
INPUT BOARD
CN104
1
1
1 2
4 3
135
24
2
3
31
14
18
1
SP1
SPEAKER
BLK
RED
8
322
MAIN POWER BOARD (SIDE A)
MAIN
POWER
BOARD
IC1
POWER AMPLIFIER
UNIT
(ICE250A)
(CHASSIS)
(CHASSIS)
(CHASSIS)
(CHASSIS)
(SIDE B)
F901
T901
D901
IC901
C910
C911
R902
C902
C903
R901
R906
D902
C912
EP901
C908
C915
D903
R912
D908
Q901
R909
D907
C913
R907
D906
D904
D905
R905
R916
R913
R915
R908
R910
R911
THP901
R904
C901
C914
FB901
D922
FH901
FH902
R903
L902
C904
C916
C905
JW901
JW902
AEP,UK,SP,AR,KR MODEL
US,CND,MX
MODEL
US,CND,MX
MODEL
US,CND,MX MODEL
AEP,UK,SP,AR,KR MODEL
C2
RY701
C920
C919
L904
L905
D909
C922
R914
IC906 IC907
C934 C935
C936
C937
C932 C933
D701
R706
C703
Q704
R705
C702
R703
R704
Q703
C701
Q701
R702
D919
D920
C917
L903
R707
D911
D910
IC902 FH903
FH904
F902
CN904
CN907
R917 R918
R708
CN906
C918
CN912
EP903
C939
C938
PC901
C940
C941
C942
EP904
EP902
R701
12
CN909
D921
C906
C907
L901
CN903
CN901
Q705
R709
~~
FC1 FC1
KA
Ref. No. Location
D701 D-7
D901 H-8
D902 G-11
D903 G-9
D904 G-9
D905 F-10
D906 G-10
D907 F-9
D908 F-9
D909 C-12
D910 E-10
D911 E-10
D919 C-8
D920 C-8
D921 C-7
D922 F-8
IC901 F-8
IC902 E-8
IC906 C-9
IC907 C-10
PC901 F-9
Q701 D-8
Q703 D-8
Q704 D-8
Q705 D-7
Q901 G-9
•Semiconductor
Location
(Page 4)
(Page 4)
(Page 4)
Ver 1.1

66
SA-VE835ED/WMS835/SS-MS835
1-4. SCHEMATIC DIAGRAM (SA-WMS835)
IC B/D
C933
D701
FB901
SW502
SW501
JW901
JW902
D904
D905
C922
R707
D101
R402
R211
C2 C901
C905 R702
D211
R703
R706 R705
R206
R213
R709
CN212
R913
R912
R909
R916
R908
R903
CN202
CN909
CN203
R914
R917
CN104
CN501
CN102
CN204 CN401
CN906
SP1
C1
S801
C3
D807
C912
C915
R907
R906
R905
C911
THP901
R202
D206
C206
C203
R201
D205
C205
D203
D204
D202
D201
D102
R203
C207
R204
D207
C208
D208
C703 R704 C702
C940
R915
C919
C920
C941
C942
D911
R918
C935
C937 C936
C934
C932
R708 C701
R209R207
R205
D210
D209 R208
R210
R212
R214
D921
D919
D920
L904
C938C939
L905
CN904
CN907
CN903
RY801
RY701
R108
C106
R107
R106
R110R105
J101 R101
C102 R102
C103
R103
C104
C107
R109
R602
R603 C605
R605
R604
R606
R601
C603
C604
C601
C602
IC301(1/2)
R301
R307
R308
IC301(2/2)
C304
C305 C306
R309
R310 IC302(1/2)
C307
R311
SW301
R314
C310
IC302(2/2)
R312
C309C308
VR301
R315 R317
IC303(1/2)
R318
R316
IC303(2/2)
C313
R325
R326
C312
R327
C318
C317
C606
D910
T201
T901
EP901
EP904 EP903
EP902
IC101(1/2)
R104
C105
CN101 CN301
F901
L901
R904
L902 D901
C910
F902
C917
D909
C914R910 R911 C913
R902
C902 C903
C904
R901
C906 C907
C908
Q703
FC1
FC2
Q901
IC901
C314 C316
C315
IC101(2/2)
Q601
Q603
Q602
Q604
Q605
CN103
C311
R313
C303
CN211
CN901
C201
Q201
IC201(1/2)
Q203
Q204 IC201(2/2)
Q206
Q205
D402
Q202
C202
C204
CN801
CN210
Q207
D902
D906
D903
C916
D907
D908
D922
L903
PC901 IC907
IC902
IC906
R701
Q701
Q705
Q704
R111
C918
C108
• IC BLOCK DIAGRAMS
IC901 STR-F6426S (MAIN POWER BOARD)
(US, CND model)
IC901 STR-F6676 (MAIN POWER BOARD)
(AEP, UK, SP model)
1 2 3 4 5
LATCH O.V.P. START
T.S.D. REG.
DRIVEOSC
COMP.1
COMP.2
FB/OCP S D VCC GND
1 2 3 4 5
LATCH O.V.P. START
T.S.D. REG.
ICONST
DRIVEOSC
COMP.1
COMP.2
FB/OCP S D VCC GND

7
SA-VE835ED/WMS835/SS-MS835
SECTION 2
EXPLODED VIEWS
Ref. No. Part No. Description Remark
2-1. FRONT PANEL SECTION
(SA-WMS835)
Ref. No. Part No. Description Remark
NOTE:
•The mechanical parts with no reference
number in the exploded views are not supplied.
•Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
•Abbreviation
CND : Canadian model
SP : Singapore model
MX : Mexican model
AR : Argentine model
KR : Korean model
•Color Indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) ... (RED)
Parts Color Cabinet’s Color
•Accessories are given in the last of this
parts list.
RR
The components identified by
mark 0or dotted line with mark
0are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
5
6
7
#5
#1
#1 SP1
#4
#2
#2
#5
#6
#6
Amplifier
section
#3
not supplied
not supplied
Supplied with
RV201, S201
8
11
1
12
2
2
3
4
9
10
14-239-121-01 PANEL (A)
24-222-422-01 SCREW (4X16)
34-239-122-01 PANEL (B)
4X-4954-549-1 PANEL ASSY, FRONT (US,CND,MX)
4X-4954-604-1 PANEL ASSY, FRONT (AEP,UK,SP,AR,KR)
54-217-642-01 SHEET
64-239-313-01 KNOB (VOL)
74-973-938-31 KNOB (A), PUSH
81-684-604-11 LED BOARD
9A-4728-653-A POWER SWITCH BOARD, COMPLETE
10 A-4728-651-A CONTROL BOARD, COMPLETE
11 4-222-467-01 PACKING
12 4-981-864-01 FOOT
SP1 1-825-067-11 SPEAKER (20cm)
#1 7-685-664-79 SCREW +P 4X20 TYPE1
#2 7-685-165-01 SCREW +PTP 4X25 TYPE1
#3 7-685-645-79 SCREW +BVTP 3X6 TYPE2 N-S
#4 7-682-147-01 SCREW +P 3X6
#5 7-682-148-01 SCREW +P 3X8
#6 7-685-663-79 SCREW +BVTP 4X16 TYPE2 N-S
Ver 1.1

8
SA-VE835ED/WMS835/SS-MS835
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
2-2. REAR PANEL SECTION
(SA-WMS835)
The components identified by
mark 0or dotted line with mark
0are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0sont critiques pour
la sécurité.
Nelesremplacerque par une piéce
portant le numéro spécifié.
51 A-4676-377-A MAIN POWER BOARD, COMPLETE (US,CND,MX)
51 A-4676-386-A MAIN POWER BOARD, COMPLETE
(AEP,UK,SP,AR,KR)
52 A-4676-383-A AUTO POWER BOARD, COMPLETE
53 1-684-637-11 INPUT SELECT BOARD
54 A-4728-652-A INPUT BOARD, COMPLETE
55 4-239-408-01 PANEL, REAR (US,MX)
55 4-239-408-11 PANEL, REAR (CND)
55 4-239-408-21 PANEL, REAR (AEP,UK,SP)
55 4-239-408-41 PANEL, REAR (AR)
55 4-239-408-51 PANEL, REAR (KR)
*56 3-703-244-00 BUSHING (2104), CORD
057 1-769-744-52 CORD, POWER (AEP,SP)
057 1-696-570-21 CORD, POWER (UK)
057 1-783-820-11 CORD, POWER (US,CND)
057 1-783-941-22 CORD, POWER (AR)
057 1-824-778-11 CORD, POWER (KR)
58 3-701-946-31 LABEL, FUSE RATING (US,CND,MX)
*59 3-701-946-28 LABEL, FUSE RATING (US,CND,MX)
*60 3-703-044-26 LABEL, CAUTION (US,CND,MX)
0F901 1-532-504-31 FUSE, CYLINDRICAL (TIME-LAG) (T4A/250V)
(AEP,UK,SP,AR,KR)
0F901 1-533-310-11 FUSE, GLASS CYLINDRICAL (DIA.5)
(6.3A/125V) (US,CND,MX)
0F902 1-533-312-11 FUSE, GLASS CYLINDRICAL (DIA.5)
(10A/125V) (US,CND,MX)
0F902 1-533-949-31 FUSE, CYLINDRICAL (TIME-LAG) (T8A/250V)
(AEP,UK,SP,AR,KR)
FC1 1-543-993-11 CORE, FERRITE
FC2 1-543-993-11 CORE, FERRITE
IC1 6-700-752-01 IC ICE250A-SW
0T201 1-437-793-11 TRANSFORMER, POWER (US,CND,MX)
0T201 1-437-794-11 TRANSFORMER, POWER (AEP,UK,SP,AR,KR)
0T901 1-437-232-11 TRANSFORMER, POWER (US,CND,MX)
0T901 1-437-233-11 TRANSFORMER, POWER (AEP,UK,SP,AR,KR)
#7 7-685-160-19 SCREW +P 4X10 TYPE2 NON-SLIT
#8 7-685-751-09 SCREW +PTT 3X6 (S)
#9 7-682-560-09 SCREW +B 4X6
#10 7-685-871-09 SCREW +BVTT 3X6 (S)
51
59
52
53
54
55
56
57
#8
#8
#8
#8
#8
#7
FC1
FC2
#9
#10
not supplied
not supplied
not supplied
not supplied
not supplied
IC1
not supplied
#10 #10
#10
#10
#10
#10
58
60
F902
T201
F901
T901
Ver 1.1

9
SA-VE835ED/WMS835/SS-MS835
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
2-3. SPEAKER SECTION
(SS-MS835)
101 X-4954-548-1 FRAME ASSY (V), GRILLE (VERTICAL TYPE)
101 X-4954-566-1 FRAME ASSY (H), GRILLE (HOLIZONTAL TYPE)
102 4-238-678-01 SCREW, ORNAMENTAL
103 4-239-114-01 PANEL, FRONT
104 4-986-971-11 SCREW (3.5)
105 4-239-118-01 PACKING
106 1-761-530-11 MAIN BOARD
107 1-694-516-21 TERMINAL, SPEAKER
108 4-239-107-01 STAY (V)
109 4-239-106-01 BASE (V)
110 4-222-029-01 SCREW (+P 3.5X14)
111 4-239-109-01 STAY (H)
112 4-239-108-01 BASE (H)
113 4-219-450-01 SCREW (M5X16)
SP2 1-825-068-11 SPEAKER (5.7cm)
SP3 1-825-068-11 SPEAKER (5.7cm)
SP4 1-825-079-11 SPEAKER (1.9cm)
#11 7-682-145-01 SCREW +P 3X4
#12 7-682-150-01 SCREW +P 3X12
SP4
not supplied
SP2
SP3
z A
not supplied
not supplied
(including z A)
#11
#11
#12
#12
#12
101
102
102
103
104
105
106
107
110 113
108
109
111
112

10
SA-VE835ED/WMS835/SS-MS835 SECTION 3
ELECTRICAL PARTS LIST
NOTE:
•Due to standardization, replacements in
the parts list may be different from the
parts specified in the diagrams or the
components used on the set.
•-XX and -X mean standardized parts, so
they may have some difference from the
original one.
•RESISTORS
All resistors are in ohms.
METAL:Metal-film resistor.
METAL OXIDE: Metal oxide-film resistor.
F:nonflammable
•Abbreviation
CND: Canadian model
SP : Singapore model
MX : Mexican model
AR : Argentine model
KR : Korean model
•Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
•SEMICONDUCTORS
In each case, u : µ, for example:
uA.. : µA.. uPA.. : µPA..
uPB.. : µPB.. uPC.. : µPC.. uPD.. : µPD..
•CAPACITORS
uF : µF
•COILS
uH : µH
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
The components identified by
mark 0or dotted line with mark
0are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
When indicating parts by reference
number, please include the board.
AUTO POWER
CONTROL
A-4676-383-A AUTO POWER BOARD, COMPLETE
****************************
< CAPACITOR >
0C3 1-113-924-11 CERAMIC 0.0047uF 20% 250V
C201 1-104-666-11 ELECT 220uF 20% 25V
C202 1-104-666-11 ELECT 220uF 20% 25V
C203 1-126-964-11 ELECT 10uF 20% 50V
C204 1-126-964-11 ELECT 10uF 20% 50V
C205 1-126-964-11 ELECT 10uF 20% 50V
C206 1-126-964-11 ELECT 10uF 20% 50V
C207 1-128-551-11 ELECT 22uF 20% 25V
C208 1-126-940-11 ELECT 330uF 20% 16V
< CONNECTOR >
*CN202 1-564-704-11 PIN, CONNECTOR (SMALL TYPE) 2P
*CN204 1-564-705-11 PIN, CONNECTOR (SMALL TYPE) 3P
CN210 1-564-321-00 PIN, CONNECTOR 2P
*CN211 1-565-395-11 PIN, CONNECTOR 3P
CN212 1-580-230-11 PIN, CONNECTOR (PC BOARD) 2P
< DIODE >
D201 8-719-200-82 DIODE 11ES2
D202 8-719-200-82 DIODE 11ES2
D203 8-719-200-82 DIODE 11ES2
D204 8-719-200-82 DIODE 11ES2
D205 8-719-110-36 DIODE RD13ES-B2
D206 8-719-110-36 DIODE RD13ES-B2
D207 8-719-991-33 DIODE 1SS133T-77
D208 8-719-991-33 DIODE 1SS133T-77
D209 8-719-991-33 DIODE 1SS133T-77
D210 8-719-991-33 DIODE 1SS133T-77
D211 8-719-991-33 DIODE 1SS133T-77
D807 8-719-911-19 DIODE 1SS119-25
< IC >
IC201 8-759-909-71 IC BA4558F
< TRANSISTOR >
Q201 8-729-281-53 TRANSISTOR 2SC1815-GR
Q202 8-729-231-12 TRANSISTOR 2SA1015TP-O
Q203 8-729-029-86 TRANSISTOR DTC124ESA
Q204 8-729-119-54 TRANSISTOR 2SA1464-T2Y13
Q205 8-729-029-86 TRANSISTOR DTC124ESA
Q206 8-729-029-40 TRANSISTOR DTA124ESA
Q207 8-729-029-40 TRANSISTOR DTA124ESA
< RESISTOR >
R201 1-249-424-11 CARBON 3.9K 5% 1/4W
R202 1-249-424-11 CARBON 3.9K 5% 1/4W
R203 1-249-417-11 CARBON 1K 5% 1/4W
R204 1-247-895-00 CARBON 470K 5% 1/4W
R205 1-249-441-11 CARBON 100K 5% 1/4W
R206 1-249-417-11 CARBON 1K 5% 1/4W
R207 1-249-430-11 CARBON 12K 5% 1/4W
R208 1-249-429-11 CARBON 10K 5% 1/4W
R209 1-249-429-11 CARBON 10K 5% 1/4W
R210 1-249-441-11 CARBON 100K 5% 1/4W
R211 1-247-903-00 CARBON 1M 5% 1/4W
R212 1-249-433-11 CARBON 22K 5% 1/4W
R213 1-249-416-11 CARBON 820 5% 1/4W
R214 1-249-420-11 CARBON 1.8K 5% 1/4W
< RELAY >
0RY801 1-755-458-11 RELAY
*************************************************************
A-4728-651-A CONTROL BOARD, COMPLETE
*************************
< CAPACITOR >
C303 1-131-693-31 FILM 0.12uF 5% 50V
C304 1-131-700-31 FILM 0.47uF 5% 50V
C305 1-131-697-31 FILM 0.27uF 5% 50V
C306 1-131-697-31 FILM 0.27uF 5% 50V
C307 1-126-964-11 ELECT 10uF 20% 50V
C308 1-131-697-31 FILM 0.27uF 5% 50V
C309 1-131-697-31 FILM 0.27uF 5% 50V
C310 1-126-964-11 ELECT 10uF 20% 50V
C311 1-126-964-11 ELECT 10uF 20% 50V
C312 1-131-695-11 FILM 0.18uF 5% 50V
C313 1-131-696-11 FILM 0.22uF 5% 50V
C314 1-126-964-11 ELECT 10uF 20% 50V
C315 1-126-964-11 ELECT 10uF 20% 50V
C316 1-164-159-21 CERAMIC 0.1uF 50V
C317 1-164-159-21 CERAMIC 0.1uF 50V
C318 1-130-471-00 MYLAR 0.001uF 5% 50V
Ver 1.1

11
SA-VE835ED/WMS835/SS-MS835
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
CONTROL
< CONNECTOR >
CN301 1-779-179-11 CONNECTOR (B5B-XH-A) 5P
< IC >
IC301 8-759-145-58 IC uPC4558C
IC302 8-759-145-58 IC uPC4558C
IC303 8-759-145-58 IC uPC4558C
< RESISTOR >
R301 1-249-429-11 CARBON 10K 5% 1/4W
R307 1-249-425-11 CARBON 4.7K 5% 1/4W
R308 1-249-425-11 CARBON 4.7K 5% 1/4W
R309 1-249-437-11 CARBON 47K 5% 1/4W
R310 1-249-426-11 CARBON 5.6K 5% 1/4W
R311 1-249-437-11 CARBON 47K 5% 1/4W
R312 1-249-435-11 CARBON 33K 5% 1/4W
R313 1-249-428-11 CARBON 8.2K 5% 1/4W
R314 1-249-437-11 CARBON 47K 5% 1/4W
R315 1-249-429-11 CARBON 10K 5% 1/4W
R316 1-249-425-11 CARBON 4.7K 5% 1/4W
R317 1-249-421-11 CARBON 2.2K 5% 1/4W
R318 1-249-405-11 CARBON 100 5% 1/4W
R325 1-249-429-11 CARBON 10K 5% 1/4W
R326 1-249-429-11 CARBON 10K 5% 1/4W
R327 1-249-419-11 CARBON 1.5K 5% 1/4W
< SWITCH >
SW301 1-786-376-11 SWITCH, ROTARY (MODE)
< VARIABLE RESISTOR >
VR301 1-227-491-11 RES, VAR 20K (LEVEL)
*************************************************************
A-4728-652-A INPUT BOARD, COMPLETE
**********************
< CAPACITOR >
C102 1-162-286-21 CERAMIC 220PF 10% 50V
C103 1-126-964-11 ELECT 10uF 20% 50V
C104 1-162-215-31 CERAMIC 47PF 5% 50V
C105 1-162-215-31 CERAMIC 47PF 5% 50V
C106 1-126-964-11 ELECT 10uF 20% 50V
C107 1-126-964-11 ELECT 10uF 20% 50V
C108 1-126-964-11 ELECT 10uF 20% 50V
C601 1-126-964-11 ELECT 10uF 20% 50V
C602 1-126-964-11 ELECT 10uF 20% 50V
C603 1-164-159-21 CERAMIC 0.1uF 50V
C604 1-164-159-21 CERAMIC 0.1uF 50V
C605 1-126-933-11 ELECT 100uF 20% 16V
C606 1-126-933-11 ELECT 100uF 20% 16V
< CONNECTOR >
*CN101 1-506-947-11 PIN, CONNECTOR 6P
CN103 1-564-509-11 PLUG, CONNECTOR 6P
*CN104 1-564-706-11 PIN, CONNECTOR (SMALL TYPE) 4P
< DIODE >
D101 8-719-911-19 DIODE 1SS119-25
D102 8-719-911-19 DIODE 1SS119-25
< IC >
IC101 8-759-145-58 IC uPC4558C
< JACK >
J101 1-794-436-11 JACK, PIN 1P (LINE IN)
< TRANSISTOR >
Q601 8-729-029-86 TRANSISTOR DTC124ESA
Q602 8-729-029-86 TRANSISTOR DTC124ESA
Q603 8-729-119-77 TRANSISTOR 2SA1175-FEK
Q604 8-729-029-86 TRANSISTOR DTC124ESA
Q605 8-729-016-43 TRANSISTOR KTC3199Y-TP
< RESISTOR >
R101 1-249-417-11 CARBON 1K 5% 1/4W
R102 1-249-441-11 CARBON 100K 5% 1/4W
R103 1-249-441-11 CARBON 100K 5% 1/4W
R104 1-249-421-11 CARBON 2.2K 5% 1/4W
R105 1-249-421-11 CARBON 2.2K 5% 1/4W
R106 1-249-429-11 CARBON 10K 5% 1/4W
R107 1-249-429-11 CARBON 10K 5% 1/4W
R108 1-249-437-11 CARBON 47K 5% 1/4W
R109 1-249-437-11 CARBON 47K 5% 1/4W
R110 1-249-437-11 CARBON 47K 5% 1/4W
R111 1-249-413-11 CARBON 470 5% 1/4W
R601 1-249-433-11 CARBON 22K 5% 1/4W
R602 1-247-843-11 CARBON 3.3K 5% 1/4W
R603 1-249-427-11 CARBON 6.8K 5% 1/4W
R604 1-247-843-11 CARBON 3.3K 5% 1/4W
R605 1-249-427-11 CARBON 6.8K 5% 1/4W
R606 1-249-433-11 CARBON 22K 5% 1/4W
*************************************************************
1-684-637-11 INPUT SELECT BOARD
*******************
< CONNECTOR >
CN501 1-564-722-11 PIN, CONNECTOR (SMALL TYPE) 6P
< SWITCH >
SW501 1-570-707-31 SWITCH, SLIDE (POWER SAVE)
SW502 1-570-707-31 SWITCH, SLIDE (PHASE)
*************************************************************
INPUT INPUT SELECT

12
SA-VE835ED/WMS835/SS-MS835
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
LED
The components identified by
mark 0or dotted line with mark
0are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0sont critiques pour
la sécurité.
Nelesremplacerque par une piéce
portant le numéro spécifié.
1-684-604-11 LED BOARD
**********
< CONNECTOR >
*CN401 1-564-719-11 PIN, CONNECTOR (SMALL TYPE) 3P
< DIODE >
D402 8-719-061-31 LED SML72420CTH8F (ON/STANDBY)
< RESISTOR >
R402 1-249-421-11 CARBON 2.2K 5% 1/4W
*************************************************************
A-4676-377-A MAIN POWER BOARD, COMPLETE (US,CND,MX)
A-4676-386-A MAIN POWER BOARD, COMPLETE
(AEP,UK,SP,AR,KR)
****************************
1-533-233-11 HOLDER, FUSE
< CAPACITOR >
0C2 1-113-925-11 CERAMIC 0.01uF 20% 250V
C701 1-126-934-11 ELECT 220uF 20% 10V
C702 1-126-948-11 ELECT 100uF 20% 35V
C703 1-126-963-11 ELECT 4.7uF 20% 50V
0C901 1-117-916-11 FILM 0.22uF 275V
0C902 1-113-915-11 CERAMIC 0.001uF 20% 250V
(AEP,UK,SP,AR,KR)
0C903 1-113-915-11 CERAMIC 0.001uF 20% 250V
(AEP,UK,SP,AR,KR)
0C904 1-113-915-11 CERAMIC 0.001uF 20% 250V
(AEP,UK,SP,AR,KR)
0C905 1-117-916-11 FILM 0.22uF 275V
0C906 1-113-915-11 CERAMIC 0.001uF 20% 250V
(US,CND,MX)
0C907 1-113-915-11 CERAMIC 0.001uF 20% 250V
(US,CND,MX)
0C908 1-113-915-11 CERAMIC 0.001uF 20% 250V
(US,CND,MX)
0C910 1-137-994-11 ELECT 820uF 20% 200V
(US,CND,MX)
0C910 1-165-626-11 ELECT 390uF 20% 400V
(AEP,UK,SP,AR,KR)
0C911 1-165-706-91 FILM 0.01uF 5% 630V
C912 1-126-947-11 ELECT 47uF 20% 25V
C913 1-162-286-31 CERAMIC 220PF 10% 50V
(AEP,UK,SP,AR,KR)
C913 1-162-290-31 CERAMIC 470PF 10% 50V
(US,CND,MX)
0C914 1-125-893-11 FILM 680PF 3% 1.5KV
(AEP,UK,SP,AR,KR)
0C914 1-136-555-11 FILM 0.0022uF 5% 630V
(US,CND,MX)
C915 1-162-290-31 CERAMIC 470PF 10% 50V
0C916 1-117-703-11 CERAMIC 0.0047uF 250V
C917 1-117-832-11 FILM 4700PF 3% 1.5KV
(AEP,UK,SP,AR,KR)
C917 1-136-559-11 FILM 0.0047uF 5% 630V
(US,CND,MX)
C918 1-115-361-11 ELECT 6800uF 20% 50V
C919 1-126-951-11 ELECT 470uF 20% 35V
C920 1-126-951-11 ELECT 470uF 20% 35V
C922 1-136-153-00 FILM 0.01uF 5% 50V
C932 1-136-165-00 FILM 0.1uF 5% 50V
C933 1-136-165-00 FILM 0.1uF 5% 50V
C934 1-126-935-11 ELECT 470uF 20% 16V
C935 1-126-935-11 ELECT 470uF 20% 16V
C936 1-136-165-00 FILM 0.1uF 5% 50V
C937 1-136-165-00 FILM 0.1uF 5% 50V
C938 1-164-159-21 CERAMIC 0.1uF 50V
C939 1-164-159-21 CERAMIC 0.1uF 50V
C940 1-162-600-11 CERAMIC 0.0047uF 30% 16V
C941 1-161-494-00 CERAMIC 0.022uF 25V
C942 1-161-494-00 CERAMIC 0.022uF 25V
< CONNECTOR >
CN901 1-564-321-00 PIN, CONNECTOR 2P
CN903 1-564-320-00 PIN, CONNECTOR (B2P-VH) 2P
CN904 1-757-829-11 CORD, CONNECTION
*CN906 1-564-706-11 PIN, CONNECTOR (SMALL TYPE) 4P
CN907 1-757-828-11 CORD, CONNECTION
*CN909 1-564-704-11 PIN, CONNECTOR (SMALL TYPE) 2P
< DIODE >
D701 8-719-911-19 DIODE 1SS119-25
0D901 8-719-022-92 DIODE RBV-604 (US,CND,MX)
0D901 8-719-084-58 DIODE RBV-406 (AEP,UK,SP,AR,KR)
D902 8-719-080-26 DIODE SARS01V0
D903 8-719-075-11 DIODE AG01ZV0
D904 8-719-110-17 DIODE RD10ES-B2
D905 8-719-079-18 DIODE MTZJ-T-72-20A
D906 8-719-075-11 DIODE AG01ZV0
D907 8-719-075-11 DIODE AG01ZV0
D908 8-719-075-11 DIODE AG01ZV0
D909 8-719-049-98 DIODE FML-G14S (AEP,UK,SP,AR,KR)
D909 8-719-058-38 DIODE FMN-G12S (US,CND,MX)
D910 8-719-064-47 DIODE RN1Z-LF-B1
D911 8-719-064-47 DIODE RN1Z-LF-B1
D919 8-719-200-82 DIODE 11ES2
D920 8-719-200-82 DIODE 11ES2
D921 8-719-911-19 DIODE 1SS119-25
D922 8-719-043-76 DIODE AK04V0
< TERMINAL BOARD >
EP901 1-537-770-21 TERMINAL BOARD, GROUND
EP902 1-537-770-21 TERMINAL BOARD, GROUND
EP903 1-537-770-21 TERMINAL BOARD, GROUND
EP904 1-537-770-21 TERMINAL BOARD, GROUND
MAIN POWER
Ver 1.1

13
SA-VE835ED/WMS835/SS-MS835
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
The components identified by
mark 0or dotted line with mark
0are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0sont critiques pour
la sécurité.
Nelesremplacerque par une piéce
portant le numéro spécifié.
POWER SWITCH
< COIL >
FB901 1-412-473-21 INDUCTOR (SMALL TYPE)
< IC >
IC901 6-700-162-01 IC STR-F6426S (US,CND,MX)
IC901 8-749-017-79 IC STR-F6676 (AEP,UK,SP,AR,KR)
IC902 8-749-019-49 IC SE040
IC906 8-759-604-39 IC M5F78M12L
IC907 8-759-604-45 IC M5F79M12L
< COIL >
0L901 1-416-778-11 FILTER, LINE (AEP,UK,SP,AR,KR)
0L901 1-424-978-11 FILTER, LINE (US,CND,MX)
0L902 1-416-778-11 FILTER, LINE (AEP,UK,SP,AR,KR)
0L902 1-424-977-11 TRANSFORMER, LINE FILTER (US,CND,MX)
L903 1-419-667-11 COIL, CHOKE 10uH
L904 1-410-334-21 INDUCTOR 100uH
L905 1-410-334-21 INDUCTOR 100uH
< PHOTO COUPLER >
PC901 8-749-019-04 PHOTO COUPLER TLP421
< TRANSISTOR >
Q701 8-729-029-86 TRANSISTOR DTC124ESA
Q703 8-729-178-42 TRANSISTOR 2SC2784-F
Q704 8-729-119-78 TRANSISTOR 2SC2785-HFE
Q705 8-729-029-86 TRANSISTOR DTC124ESA
Q901 8-729-111-29 TRANSISTOR 2SD1616A-K
< RESISTOR >
0R701 1-215-869-11 METAL OXIDE 1K 5% 1W F
R702 1-247-887-00 CARBON 220K 5% 1/4W
R703 1-249-441-11 CARBON 100K 5% 1/4W
R704 1-249-433-11 CARBON 22K 5% 1/4W
R705 1-249-441-11 CARBON 100K 5% 1/4W
R706 1-249-441-11 CARBON 100K 5% 1/4W
R707 1-249-427-11 CARBON 6.8K 5% 1/4W
R708 1-249-427-11 CARBON 6.8K 5% 1/4W
R709 1-249-433-11 CARBON 22K 5% 1/4W
0R901 1-202-725-00 SOLID 3.3M 10% 1/2W F
(US,CND,MX)
0R902 1-202-725-00 SOLID 3.3M 10% 1/2W F
(AEP,UK,SP,AR,KR)
R903 1-247-903-00 CARBON 1M 5% 1/4W
0R904 1-215-901-00 METAL OXIDE 33K 5% 2W F
(US,CND,MX)
0R904 1-218-642-11 METAL OXIDE 100K 5% 1W F
(AEP,UK,SP,AR,KR)
R905 1-247-895-00 CARBON 470K 5% 1/4W
R906 1-260-083-11 CARBON 47 5% 1/2W
R907 1-249-429-11 CARBON 10K 5% 1/4W
R908 1-249-393-11 CARBON 10 5% 1/4W
R909 1-249-421-11 CARBON 2.2K 5% 1/4W
0R910 1-240-858-11 METAL 0.27 5% 2W F
(AEP,UK,SP,AR,KR)
0R910 1-244-317-71 METAL 0.18 5% 2W F
(US,CND,MX)
0R911 1-219-984-51 METAL 0.1 5% 2W F
(US,CND,MX)
0R911 1-244-398-71 METAL 0.3 5% 2W F
(AEP,UK,SP,AR,KR)
R912 1-249-415-11 CARBON 680 5% 1/4W
R913 1-249-426-11 CARBON 5.6K 5% 1/4W
R914 1-249-419-11 CARBON 1.5K 5% 1/4W
R915 1-249-417-11 CARBON 1K 5% 1/4W
R916 1-249-420-11 CARBON 1.8K 5% 1/4W
0R917 1-249-381-11 CARBON 1 5% 1/4W F
0R918 1-249-381-11 CARBON 1 5% 1/4W F
< RELAY >
RY701 1-515-920-11 RELAY (24V)
< THERMISTOR >
0THP901 1-803-916-11 THERMISTOR, NTC
*************************************************************
A-4728-653-A POWER SWITCH BOARD, COMPLETE
******************************
< CAPACITOR >
0C1 1-113-925-11 CERAMIC 0.01uF 20% 250V
< CONNECTOR >
*CN801 1-770-314-11 PIN, CONNECTOR 2P
< SWITCH >
0S801 1-554-920-11 SWITCH, PUSH (AC POWER) (1 KEY) (POWER)
*************************************************************
MAIN POWER Ver 1.1

14
SA-VE835ED/WMS835/SS-MS835
MISCELLANEOUS
***************
057 1-769-744-52 CORD, POWER (AEP,SP)
057 1-696-570-21 CORD, POWER (UK)
057 1-783-820-11 CORD, POWER (US,CND,MX)
057 1-783-941-22 CORD, POWER (AR)
057 1-824-778-11 CORD, POWER (KR)
106 1-761-530-11 MAIN BOARD
107 1-694-516-21 TERMINAL, SPEAKER
0F901 1-532-504-31 FUSE, CYLINDRICAL (TIME-LAG) (T4A/250V)
(AEP,UK,SP,AR,KR)
0F901 1-533-310-11 FUSE, GLASS CYLINDRICAL (DIA.5)
(6.3A/125V) (US,CND,MX)
0F902 1-533-312-11 FUSE, GLASS CYLINDRICAL (DIA.5)
(10A/125V) (US,CND,MX)
0F902 1-533-949-31 FUSE, CYLINDRICAL (TIME-LAG) (T8A/250V)
(AEP,UK,SP,AR,KR)
FC1 1-543-993-11 CORE, FERRITE
FC2 1-543-993-11 CORE, FERRITE
IC1 6-700-752-01 IC ICE250A-SW
SP1 1-825-067-11 SPEAKER (20cm)
SP2 1-825-068-11 SPEAKER (5.7cm)
SP3 1-825-068-11 SPEAKER (5.7cm)
SP4 1-825-079-11 SPEAKER (1.9cm)
0T201 1-437-793-11 TRANSFORMER, POWER (US,CND,MX)
0T201 1-437-794-11 TRANSFORMER, POWER (AEP,UK,SP,AR,KR)
0T901 1-437-232-11 TRANSFORMER, POWER (US,CND,MX)
0T901 1-437-233-11 TRANSFORMER, POWER (AEP,UK,SP,AR,KR)
*************************************************************
ACCESSORIES
************
01-569-008-21 ADAPTOR, CONVERSION 2P (SP)
1-769-329-21 CORD, CONNECTION (PIN-PIN)
1-791-467-11 CORD, SPEAKER (10m)
1-791-467-31 CORD, SPEAKER (3.5m)
4-222-421-01 SCREW (5X18), HEXAGON SOCKET
4-239-411-11 MANUAL, INSTRUCTION (ENGLISH,FRENCH)
(US,CND,MX)
4-239-411-21 MANUAL, INSTRUCTION (ENGLISH,FRENCH,
GERMAN,ITALIAN) (AEP,UK)
4-239-411-31 MANUAL, INSTRUCTION (DUTCH,SPANISH,
SWEDISH,POLISH) (AEP)
4-239-411-41 MANUAL, INSTRUCTION (PORTUGUESE,
DANISH,FINNISH,RUSSIAN) (AEP)
4-239-411-51 MANUAL, INSTRUCTION (ENGLISH,FRENCH,
SPANISH,TRADITIONAL CHINESE)
(SP,AR)
4-239-411-61 MANUAL, INSTRUCTION (KOREAN) (KR)
*4-985-459-01 WRENCH, HEXAGON SHAFT
Ref. No. Part No. Description Remark
The components identified by
mark 0or dotted line with mark
0are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0sont critiques pour
la sécurité.
Nelesremplacerque par une piéce
portant le numéro spécifié.
Ver 1.1

15
SA-VE835ED/WMS835/SS-MS835
MEMO

16
SA-VE835ED/WMS835/SS-MS835
REVISION HISTORY
Clicking the version allows you to jump to the revised page.
Also, clicking the version at the upper right on the revised page allows you to jump to the next revised
page.
Ver. Date Description of Revision
1.0 2002. 03 New
1.1 2002. 08 Addition of Destination (Korean Model)
