Sony StorStation AITi90 User manual

AIT Drive
4-671-481-12(1)
2002 Sony Corporation
AIT-3 TAPE DRIVE
AITi260
AIT-2 TAPE DRIVE
AITi130
AIT-1 TAPE DRIVE
AITi90
User’s Guide

2
This document contains proprietary
information which is protected by
copyright.
All rights reserved. No part of this
document may be photocopied,
reproduced or translated to another
language without prior written consent
of Sony.
The information contained in this
document is subject to change without
notice.
SONY MAKES NO WARRANTY
OF ANY KIND WITH REGARD TO
THIS DOCUMENT.
Sony shall not be liable for error
contained herein, indirect, special,
incidental or consequential damages in
connection with the furnishing,
performance or use of this document.
VORSICHT
Diese Ausrüstung erfüllt die
Europäischen EMC-Bestimmungen für
die Verwendung in folgender /
folgenden Umgebung(en):
• Wohngegenden
• Gewerbegebiete
• Leichtindustriegebiete
(Diese Ausrüstung erfüllt die
Bestimmungen der Norm EN55022,
Klasse B.)
Contents
Introduction .......................................4
About AIT Drives .....................4
Precautions ................................5
Installation .........................................7
SCSI Connection/Setting the
SCSI ID .................................7
Option Switches (DIP Switch) ..8
Mounting Holes.........................9
Remodeling from 5.25"
Model to 3.5" Model............11
Orientation...............................12
Operation .........................................13
Location of 3 LEDs
(AITi260).............................13
Location of 3 LEDs
(AITi130/AITi90) ................14
Drive Operation.......................16
Interface Implementation.................17
Supported SCSI Messages ......17
Supported SCSI Commands....17
Specification ....................................18
Product Specifications.............18
Third Party Support Contacts
(In the USA) ...............................20
Sony Contacts ..................................22

3
Overview
The Sony AITi260, AITi130, and AITi90 drives are high capacity data
storage devices using Advanced Intelligent tape (AIT) technology. The
AITi260, AITi130, and AITi90 drives achieve high data reliability through
Read-After-Write, an additional level of Error Correction Code, and other
features.
The Sony AITi260, AITi130, and AITi90 drives store data on tape using
standard formats called AIT (Advanced Intelligent Tape) and ALDC
formats.

4
Introduction
About AIT Drives
The AITi260 is an internal AIT drive unit that uses data cartridges conforming
to the AIT-3 format. The AITi130 is an internal AIT drive unit that uses data
cartridges conforming to the AIT-2 format. The AITi90 is an internal AIT
drive unit that uses data cartridges conforming to the AIT-1 format. The
AITi260 supports AIT-1, AIT-2, and AIT-3 formats. The AITi130 supports
AIT-1 and AIT-2 formats. The AITi90 supports only AIT-1 format.
Features
The AIT Drive Unit AITi260 has the following features:
• The Advanced Intelligent Tape format provides a huge data storage
capacity on AIT-1/AIT-2/AIT-3 data cartridges.
• Read After Write Function and third-level error code guarantee high data
reliability.
• Data compression provides 260 gigabytes of storage on 230 m tape-
length cartridge.*1
The native capacity is 100 gigabytes of storage on 230 m tape-length
cartridge.
• Stored data are automatically checked for compression.
• Ultra 160 SCSI LVD/SE interface is fully supported for host computer
access.
• Read/Write operation is available with AIT-1, AIT-2, and AIT-3 formats.
The AIT Drive Unit AITi130 has the following features:
• The Advanced Intelligent Tape format provides a huge data storage
capacity on AIT-1/AIT-2 data cartridges.
• Read After Write Function and third-level error correction code
guarantee high data reliability.
• Data compression provides 130 gigabytes of storage on 230 m tape-
length cartridge.*1
The native capacity is 50 gigabytes of storage on 230 m tape-length
cartridge.
• Stored data are automatically checked for compression.
• Wide Ultra SCSI LVD/SE interface is fully supported for host computer
access.

5
• Read/Write operation is available with AIT-1 and AIT-2 formats.
The AIT Drive Unit AITi90 has the following features:
• The Advanced Intelligent Tape format provides a huge data storage
capacity on AIT-1 data cartridges.
• Read After Write Function and third-level error correction code
guarantee high data reliability.
• Data compression provides 91 gigabytes of storage on 230 m tape-length
cartridge.*1
The native capacity is 35 gigabytes of storage on 230 m tape-length
cartridge.
• Stored data are automatically checked for compression.
• Wide Ultra SCSI LVD/SE interface is fully supported for host computer
access.
• Read/Write operation is available with AIT-1 format.
*1 This is assuming 2.6 : 1 compression ratio.
The degree of data compression attained while recording data varies according to
system environment and data type.
Precautions
Installation
Avoid placing the drive in a location subject to:
– high humidity
– high temperature
– mechanical shock and vibration
– direct sunlight
Operation
• Do not move the drive while it is operating. It may cause malfunction.
• Avoid exposing the drive to sudden changes from a low to high in
temperature. This may cause water condensation to collect inside the
drive. If the ambient temperature should suddenly rise while the drive is
turned on , wait at least one hour before turning on the drive. If you
attempt to operate the drive immediately after a sudden increase in
temperature, a malfunction may occur.

6
• Turning off the power to the drive while it is writing to tape may cause
the tape to become unreadable. All previously negotiated parameters will
be lost, whenever power to the drive is cycled.
• Upon execution of the hardware reset hole with the AITi260, the driver
will be reset and there is a risk of lost and unreadable data. Thus, please
do not use the hole other than for repair purposes. (See page 14)
Transportation
• Keep the original packing materials to facilitate transportation of the
drive.
• Always remove the tape before moving the drive. After removing the
drive from the computer, repack the drive into its original packing.
SCSI Termination
The AITi260, AITi130, and AITi90 conform to the Microsoft PC97
standard which requires the internal (naked) drive to be terminated with an
internal terminator.
Microsoft PC97 SCSI requirements
SCSI peripherals must not terminate the bus. Both internal and external cable ends are
instead terminated by plug-in connectors.
Terminato
r
68p cable
Host Computer Wide SCSI
This drive
Example of SCSI setup
The AITi260 supports Ultra 160 SCSI. When using an Ultra 160 SCSI
connection, make sure that you are using appropriate cables and
terminators.

7
Installation
SCSI Connection/Setting the SCSI ID
SCSI 68pin Connector
5 V
Power Connector
1234
GND GND 12 V
Disable
Enable
Parity
Note :
=
= CLOSED/Jumper
Don’t care
OPEN/Jumper not
installed
Parity Disable
No Connection
SCSI ID 3 SCSI ID 2 SCSI ID 1 SCSI ID 0
Jumpers
SCSI ID
SCSI ID
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
2 1 0
P.D.
N.C.
3
Parity Disable Jumper
Parity check function can be disabled by Jumper. Parity check is disabled
while left end jumper is installed. Parity generate function is always
enabled.

8
Option Switches (DIP Switch)
DIP Switch Positions
ON
12345678
DIP Switch
1 Reserved (OFF)
2 Reserved (OFF)
3 Reserved (OFF)
4 Reserved (OFF)
5 Terminator Power (ON)
6 Reserved (OFF)
7 DC Control (1) (ON)
8 DC Control (2) (OFF)
Data Compression Control DIP switch
Data compression can be selected by DIP switches. Data compression is
enabled while position 7 [DC Control (1)] is ON. Control by host can be
disabled when position 8 [DC Control (2)] is ON.

9
Mounting Holes

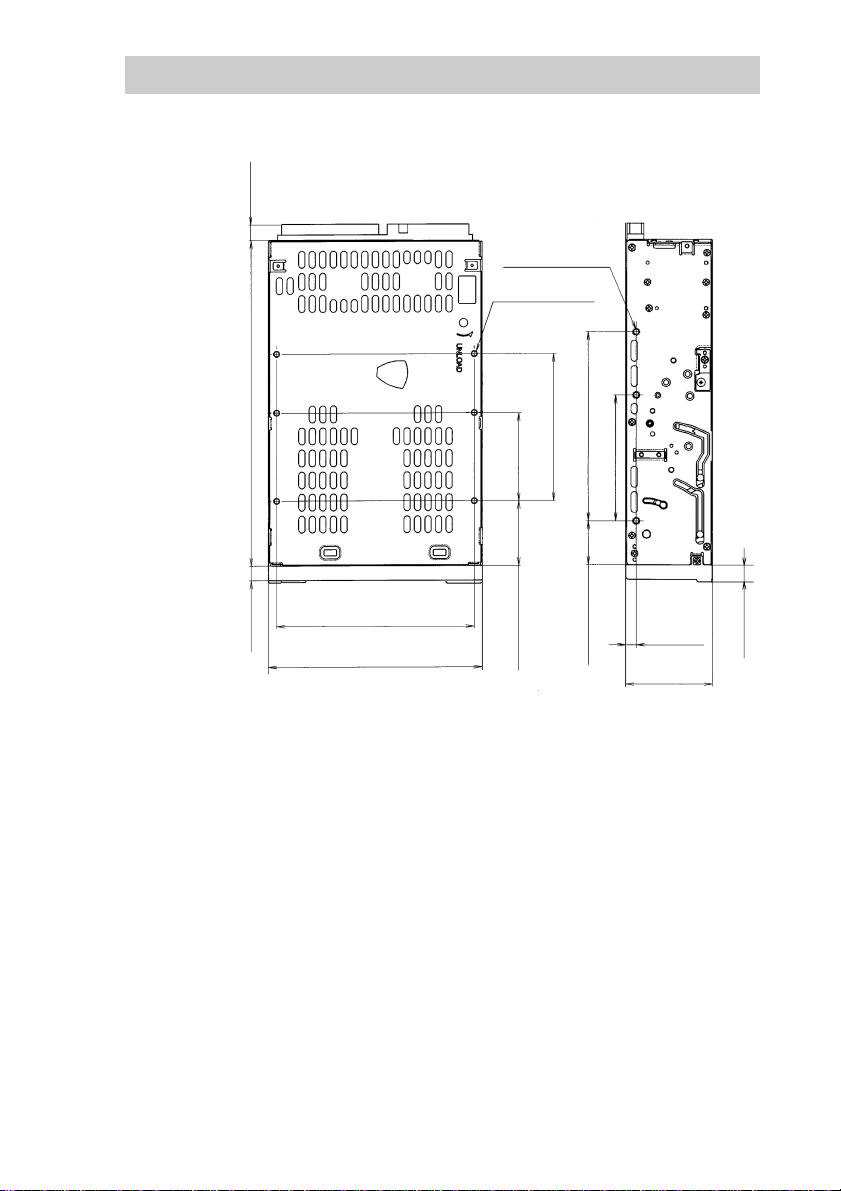

For 3.5" Standard Height (AITi260/AITi130/AITi90)
155.0 mm
(6.10 in)
7.0 mm
(0.28 in)
94.0 mm (3.70 in)
101.6 mm (4.00 in)
70.0 mm
(2.76 in)
42.0 mm
(1.65 in)
31.0 mm
(1.22 in)
3-M3 (depth
2.5mm (0.10 in) max.)
6-M3 (depth
2.5mm (0.10 in) max.)
5.0 mm
(0.20 in)
7.4 mm
(0.29 In in)
41.2 mm
(1.62 in)
90.0 mm (3.54 in)
60.0 mm (2.36 in)
21.0 mm
(0.83 in)
7.6 mm
(0.30 in)

10

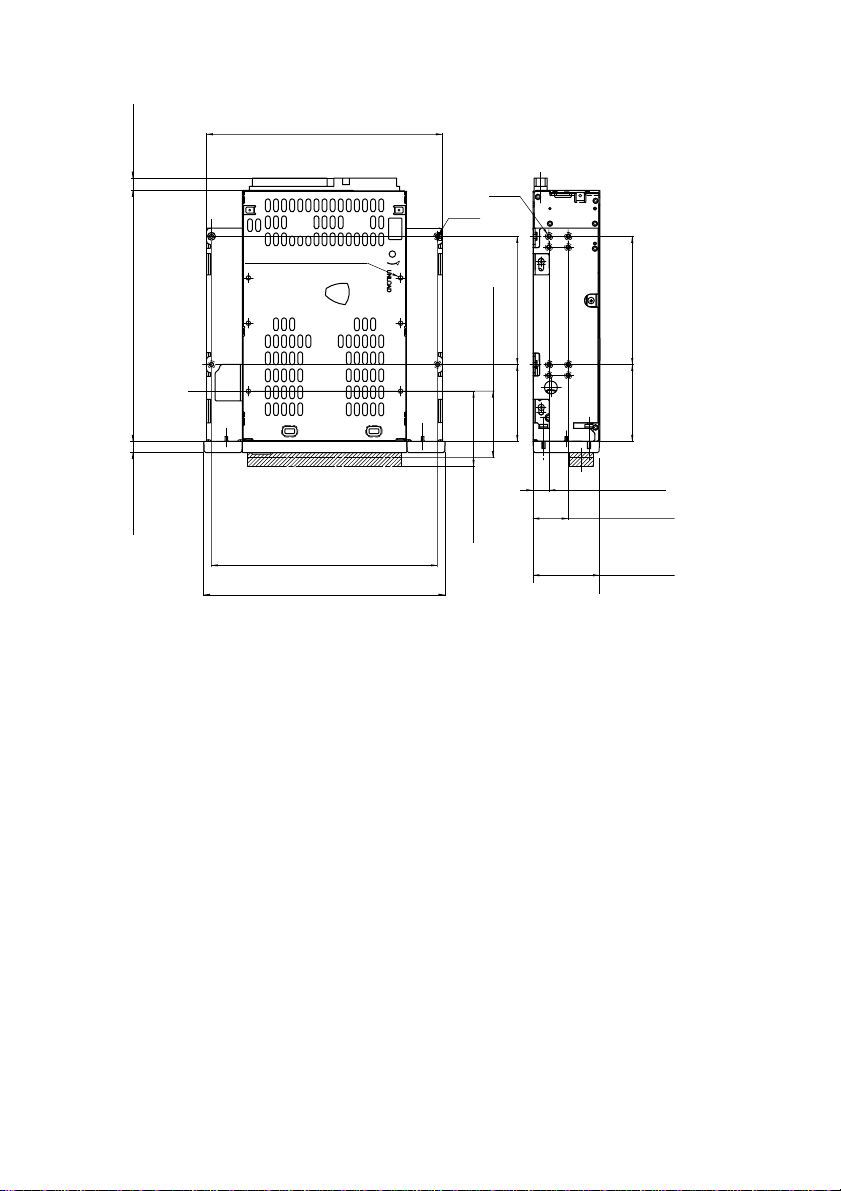

For 5.25" Half Height (AITi260/AITi130/AITi90)
(1.87 in)
47.5 mm
(1.87 in)
47.5 mm (3.12 in)
79.2 mm
(3.12 in)
79.2 mm
(1.61 in)
41.0 mm
(1.83 in)
46.5 mm
(1.62 in)
41.2 mm
(6.1 in)
155.0 mm (0.3 in)
7.6 mm
(5.75 in)
146.0 mm
(depth 0.10 in max.)
6-M3 (depth 2.5mm max.)
(0.39 in)
9.9 mm
(0.86 in)
21.8 mm
4-M3
4-M3
(5.5 in)
139.6 mm
(0.28 in)
7.0 mm
(5.87 in)
149.0 mm

11

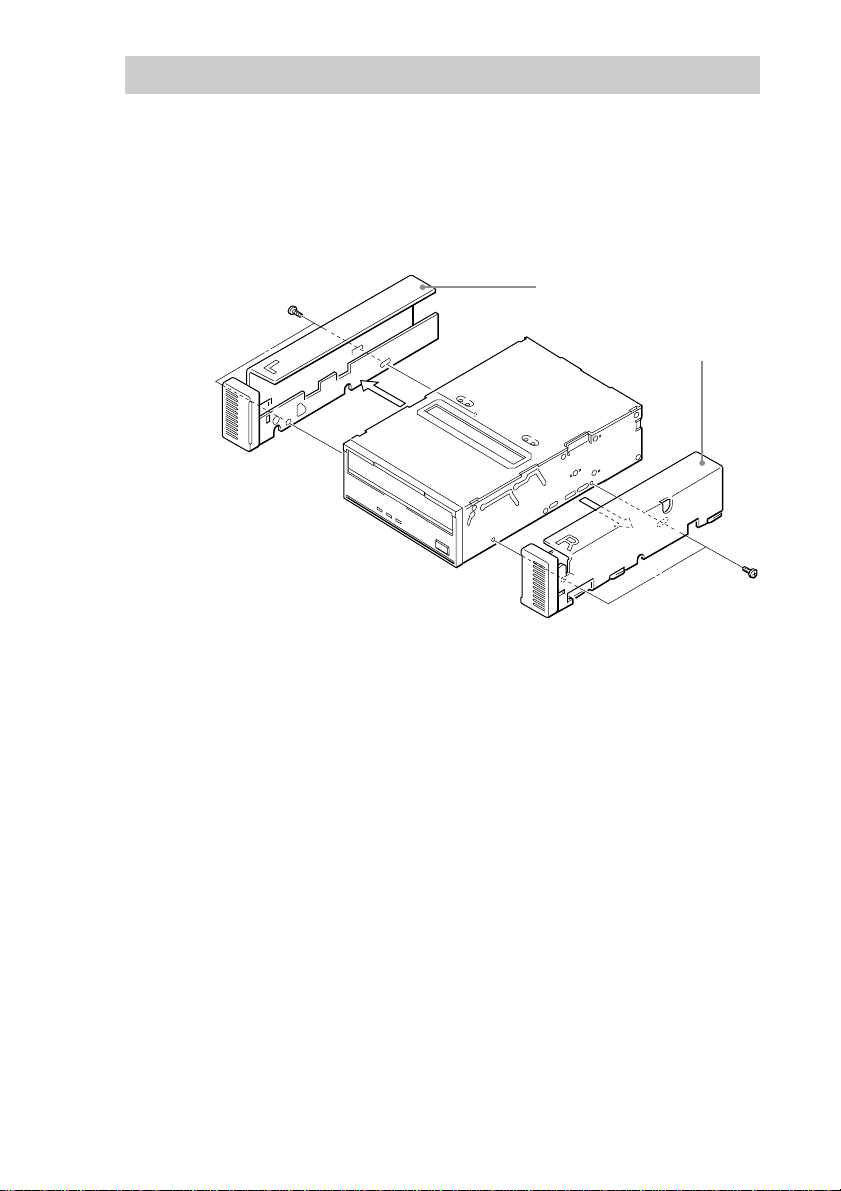

Remodeling from 5.25" Model to 3.5" Model
You can remodel the 5.25" model to the 3.5" model yourself.
1Remove the 2 screws for each side rail.
2Take the side rail off.
Side Rail (L)
Side Rail (R)

12

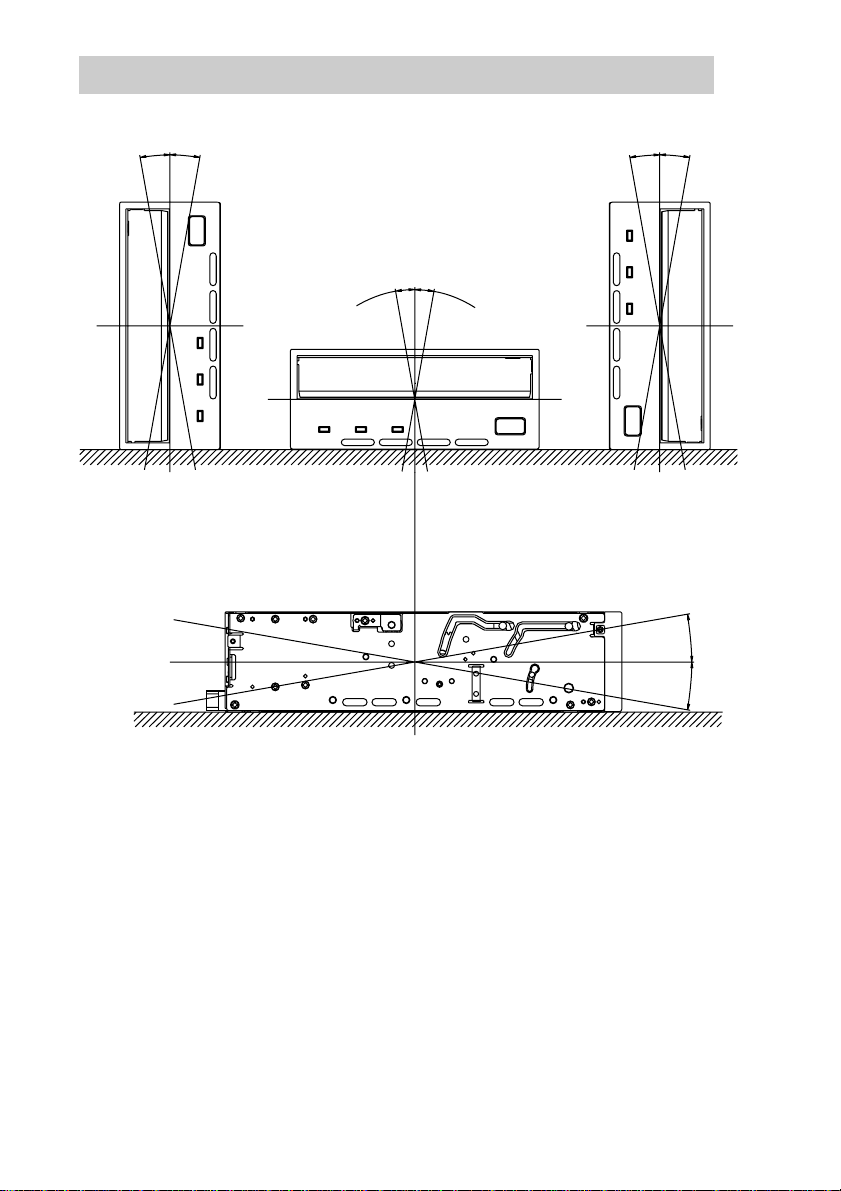

Orientation
10°10° 10°10°
10°
10°
10° 10°

13
Operation
Location of 3 LEDs (AITi260)
There are three LED indications (Tape Motion, Cleaning Request, Replace
Tape) and an EJECT button on the front panel of the unit.

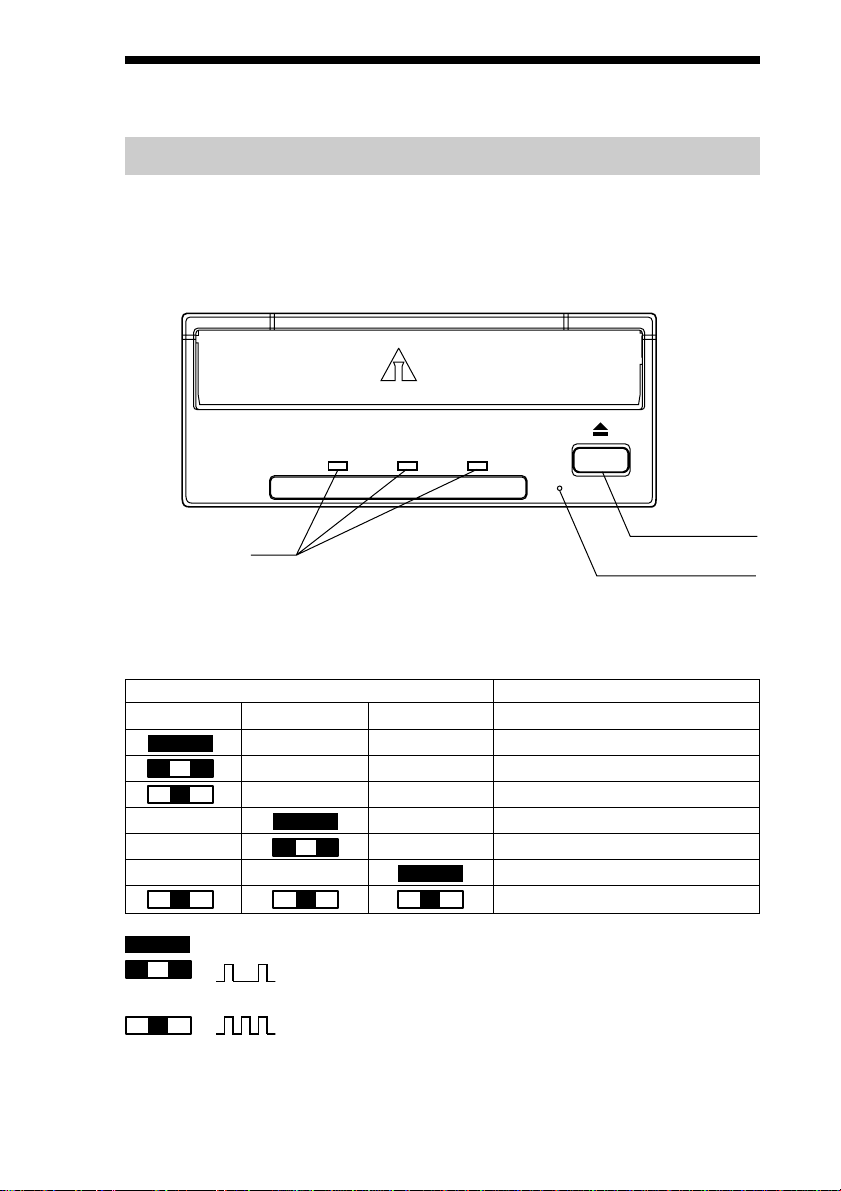

Front Panel (for 3.5" Standard Height)
TAPE
MOTION
LED HARD RESET HOLE
EJECT BOTTON
CLEANING
REQUEST REPLACE TAPE
Advanced
Intelligent
Tape
3
LED Indication for Drive Status
The LED indicators are defined as follows
LED
Tape Motion Cleaning Request Replace Tape Sense
Independent Independent Tape Loaded
Independent Independent Tape Access in Progress (write/read)
Independent Independent Tape Access in Progress (others)
Independent Independent Cleaning is requested
Independent Independent Cleaning is Not Completed
Independent Independent Media Error Occurred
H/W Error Occurred
on
Slow
1 pulse (0.9 sec on/0.3 sec off)
Fast
1 pulse (0.3 sec on/0.3 sec off)

14
Location of 3 LEDs (AITi130/AITi90)
There are three LED indications (BUSY,TAPE and STATUS) and an
EJECT button on the front panel of the unit.

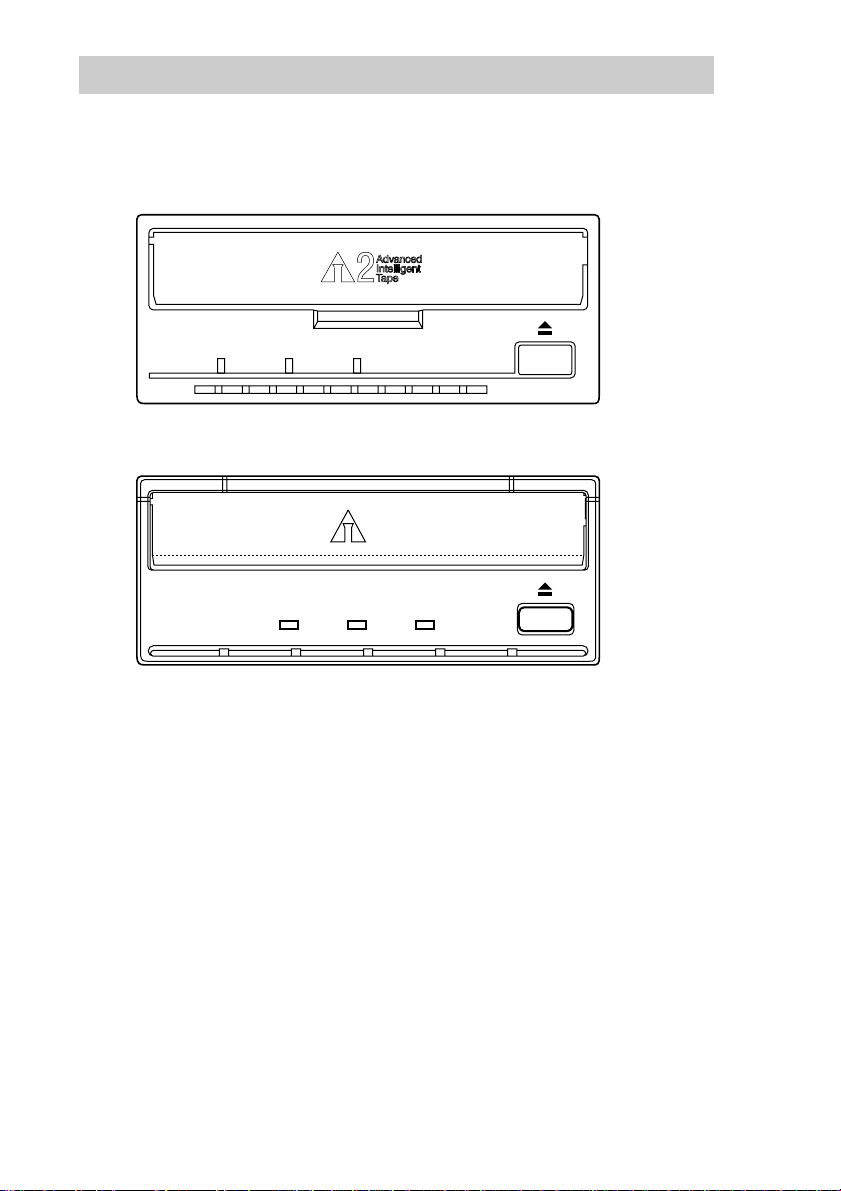

Front Panel (for 3.5" Standard Height) (AITi130)
BUSY TAPE STATUS
Front Panel (for 3.5" Standard Height) (AITi90)
BUSY TAPE STATUS
Advanced
Intelligent
Tape

15
LED Indication for Drive Status
The LED indicators are defined as follows.
LED State
BUSY TAPE STATUS Activity Cartridge Other
None None None
SCSI None None
Drive Loading/Unloading None
Drive Loading/Unloading Write Protected
None Loaded Cleaning Tape at EOM
None Loaded None
SCSI Loaded None
SCSI/Drive Loaded None
Independent ✽Loaded Write Protected
Independent Independent ✽Loaded Error Rate Warning
✽✽ ✽✽Cleaning Request
✽✽ ✽✽Self test Failure
✽✽✽ ✽Waiting for Reset
✽✽✽ ✽Waiting for Eject
✽: Not defined.
off
on
1 pulse (0.25 sec on / 0.25 sec off)
1 pulse (3.5 sec on / 0.5 sec off)
1 pulse (0.25 sec on)
2 pulses (0.25 sec on/0.5 sec off)

16
Drive Operation
Loading a Cassette
Insert a cassette into the slot on the front panel with the arrow on the
cassette pointing towards the drive. As the cassette is inserted, the drive
takes it and automatically loads it into drive mechanism.
Unloading a Cassette
The cassette can be removed from the AITi260, AITi130, and AITi90
either in response to a SCSI Unload Command, or by pressing the eject
bottom.
By pressing Eject button, the tape goes to BOT, the drive unthreads it, and
ejects the cassette from the slot.
Write-protecting a Cassette
Cassettes can be write-protected by sliding the tab on the back of the
cassette. In this state, data can be read from the tape but not written onto it.
Using your fingernail, push the switch in the
direction of the arrow to protect the tape from
writing or accidental erasure.
Return the switch to its original position to
re-enable writing.
AIT-1 AIT-2, 3
Using a Cleaning Tape
A cleaning function is built into the AITi260, AITi130, and AITi90 so the
use of a cleaning cartridge is not needed. If however the drive experiences
excessive errors, the use of a cleaning cartridge is recommended.

17
Interface Implementation
Supported SCSI Messages
Abort Message Parity Error
Bus Device Reset Message Reject
Command Complete No Operation
Disconnect Restore Pointers
Extended Message Save Data Pointer
–Synchronous Data Transfer
Request
–Wide Data Transfer Request
Identify ( w/&w/o Disconnect )
Ignore Wide Residue
Supported SCSI Commands
Erase
Inquiry
Load/Unload
Locate
Log Sense
Log Select
Mode Select
Mode Sense
Prevent Allow Medium Removal
Read
Read Block Limits
Read Buffer
Read Position
Receive Diagnostic Result
Release Unit
Report Density Support
Report Luns
Request Block Address
Request Sense
Reserve Unit
Rewind
Seek Block
Send Diagnostic
Space
Test Unit Ready
Verify
Write
Write Buffer
Write Filemarks

18
Specification
Product Specifications
Temperature and Humidity Range
Temperature
Operating 5 ˚C to 40 ˚C (∆T<10 ˚C/h)
Non-Operating (mech.) –40 ˚C to 70 ˚C (∆T<20 ˚C/h)
Non-Operating (tape) –40 ˚C to 45 ˚C (∆T<20 ˚C/h)
Humidity
Operating 20 to 80% RH, non-condensing
Maximum wet bulb temperature = 26 ˚C
Non-Operating (mech.) 5 to 95% RH (∆T<30%/h)
Non-Operating (tape) 20 to 80% RH (∆T<30%/h)
Dimensions
3.5" 5.25"
Height 41.2 mm (1.62 in) 41.2 mm (1.62 in)
Width 101.6 mm (4.0 in) 146 mm (5.75 in)
Depth 155.0 mm (6.1 in) 155 mm (6.1 in)
Mass
3.5" 750 g
5.25" 1020 g

19
Air-cooling Requirement
Surrounding temperature < 40 ˚C
Clean air flow is recommended to minimize the possibility of data loss.
Power Requirements
AITi260
Voltage Max Ripple Current
Typical Maximum
5 V +/–5 % 100 mVp-p 2.5 A 2.9 A
12 V +/–10 % 150 mVp-p 0.4 A 2.0 A
AITi130
Voltage Max Ripple Current
Typical Maximum
5 V +/–5 % 100 mVp-p 1.5 A 2.5 A
12 V +/–10 % 150 mVp-p 0.4 A 1.2 A
AITi90
Voltage Max Ripple Current
Typical Maximum
5 V +/–5 % 100 mVp-p 1.3 A 2.5 A
12 V +/–10 % 150 mVp-p 0.4 A 1.2 A

20
Third Party Support Contacts
(In the USA)
Host Adapter Vendors Phone Numbers
Adaptec 408-945-8600
ATTO 716-691-1999
Bus Logic 408-492-9090
DPT 407-830-5522
Future Domain 714-253-0400
Initio 408-988-1919
Qlogic 714-438-2200
Ultera Systems Inc. 714-367-8800
Operating Systems Backup Software Vendors Phone Numbers
DOS Arcada 407-333-7500
Cheyenne 516-484-5110
Columbia Data Products 407-869-6700
Corel 613-728-8200
NovaStor 805-579-6700
Palindrome 708-505-3300
ST. Bernard Sofware 619-676-2277
Sytron 508-898-0100
Tapedisk 715-235-3388
Macintosh Cheyenne 516-484-5110
Corel 613-728-8200
Dantz 510-253-3000
NovaStor 805-579-6700
OS/2 Cheyenne 516-484-5110
Corel 613-728-8200
IBM 800-426-3333
NovaStor 805-579-6700
Sytron 407-333-7500
Windows Arcada 407-333-7500
Cheyenne 516-484-5110
Corel 613-728-8200
Creata 909-595-8811
NovaStor 805-579-6700
ST. Bernard Software 619-676-2277
Sytron 508-898-0100
Windows NT Arcada 407-333-7500
Cheyenne 516-484-5110
Creata 909-595-8811
Microsoft 206-882-8080
NovaStor 805-579-6700
Avail Systems 303-444-4018
Windows NT Microsoft 206-882-8080
Advanced Server
* All phone numbers listed are in the USA.
Add the country code (1) prior to those numbers when calling from
outside the USA.
