Additional Information for Using Sony Wall-Mount Bracket (SU-WL500)
Additional Information for
Using Sony Wall-Mount Bracket (SU-WL500)
Compatible TV models for this Wall-Mount Bracket information:
to refer to the various methods of installing the Wall-Mount Bracket for step 5 of “Secure the
Mounting Hook to the rear of the TV” (page 5).

KDL-55HX701/KDL-46HX701/KDL-40HX701/
KDL-46EX507/KDL-40EX507/KDL-32EX507/
KDL-60EX505/KDL-55EX505/
KDL-40EX407/KDL-32EX407/KDL-40EX406/
KDL-46EX405/KDL-40EX405/KDL-32EX405/
KDL-32EX308/KDL-32EX306/KDL-32EX305

KDL-40EX40B/KDL-32EX40B

XBR-52HX909/XBR-46HX909

KDL-46HX800/KDL-40HX800/KDL-46EX717/KDL-40EX717/KDL-32EX717/
KDL-46EX715/KDL-40EX715/KDL-32EX715/KDL-46EX713/KDL-40EX713/
KDL-46EX711/KDL-46EX710/KDL-40EX710/KDL-32EX710/
KDL-46EX607/KDL-40EX607/KDL-32EX607/
KDL-46EX605/KDL-40EX605/KDL-32EX605
A-DLR-100-14(1)

− 2 −
Additional Information for Using Sony Wall-Mount Bracket (SU-WL500)

KDL-55HX800/KDL-55EX717/KDL-55EX713/KDL-55EX711/KDL-55EX710/
KDL-52EX707/KDL-46EX707/KDL-40EX707/KDL-32EX707/
KDL-46EX705/KDL-40EX705/KDL-32EX705/
KDL-60EX703/KDL-52EX703/KDL-46EX703/KDL-40EX703/
KDL-60EX701/KDL-52EX701/KDL-46EX701/
KDL-60EX700/KDL-52EX700/KDL-46EX700/KDL-40EX700/KDL-32EX700

XBR-60LX905/XBR-60LX900/KDL-60NX801/KDL-60NX800
For product protection and safety reasons, Sony strongly recommends that you use the
Wall-Mount Bracket model designed for your TV and that the wall-mounting of your TV
is performed by Sony dealers or licensed contractors.
To Customers
Please provide your licensed contractor with this installation supplement as well as the instructions
(supplied with the SU-WL500 Wall-Mount Bracket). Read these documents carefully for safety and proper
installation.
To Sony Dealers and Contractors
Provide full attention to safety during the installation, periodic maintenance and examination of this
product.
Sufficient expertise is required in installing this product, especially to determine the strength
of the wall for withstanding the TV’s weight. Be sure to entrust the attachment of this product
to the wall to Sony dealers or licensed contractors and pay adequate attention to safety during
the installation. Sony is not liable for any damage or injury caused by mishandling or improper
installation.
For proper installation, follow your wall-mount bracket instructions and the directions below.

− 3 −
Additional Information for Using Sony Wall-Mount Bracket (SU-WL500)
Installing the Wall-Mount Bracket
Install the Base Bracket and Mounting Hooks.
1 Open the Wall-Mount Bracket package and check for all the required parts
along with the Instructions.
2 Decide where you want to install your TV. Refer to the TV installation
dimensions table.

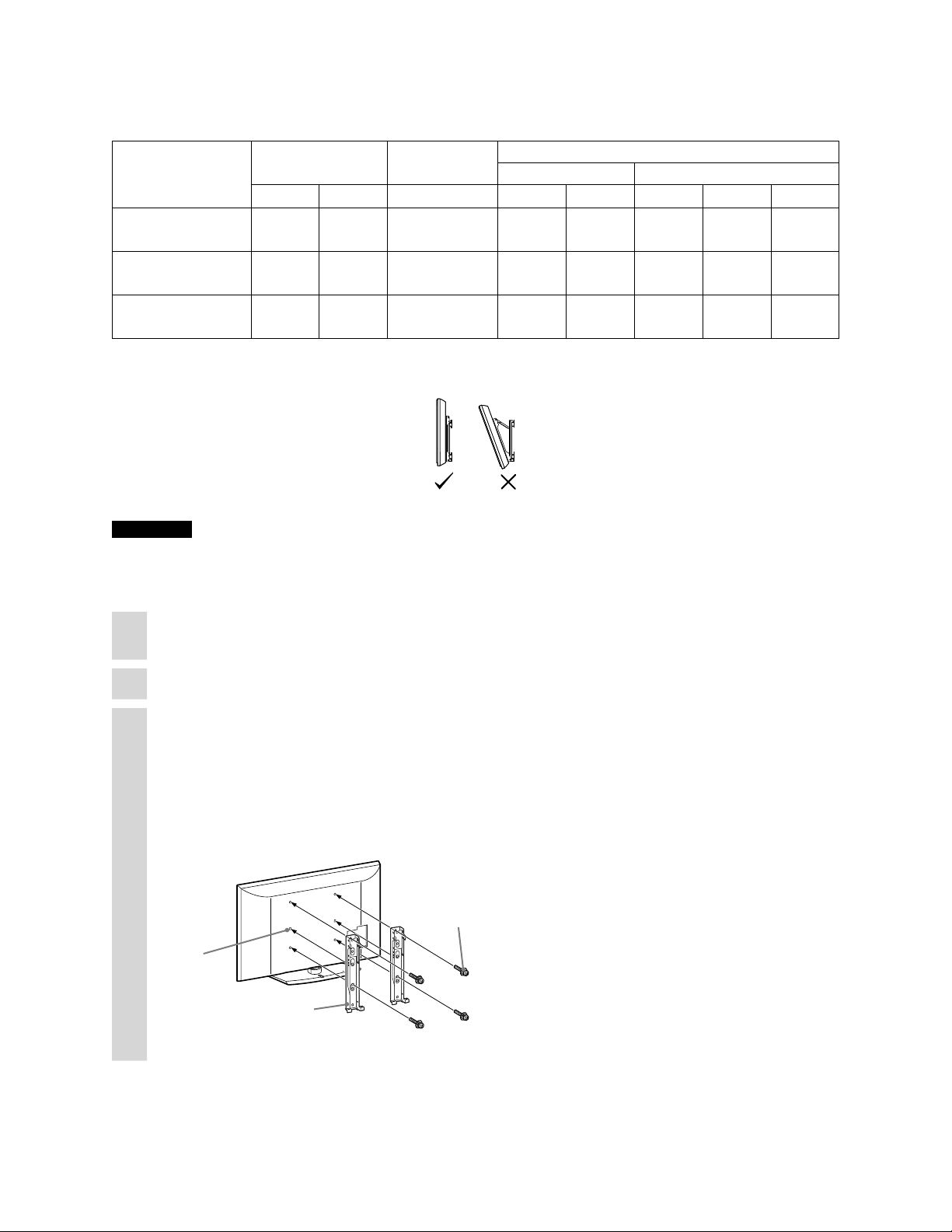

Dimension Table
Screen center point
(except
KDL-32EX*)
(KDL-32EX*
only)
Unit: inches (mm)
Model Name Display
dimensions
Screen center
dimensions
Length for each mounting angle
Angle (0°) Angle (20°)
       
XBR-60LX90*56 3/4
(1,440)
35 3/4
(906)
1 1/4
(31)
19 7/8
(503)
4 7/8
(121)
15 1/4
(386)
33 1/2
(850)
20 5/8
(521)
XBR-52HX909 49 3/4
(1,263)
30 5/8
(775)
3 1/8
(77)
19
(482)
4 3/4
(120)
13 3/4
(348)
29
(735)
20
(506)
XBR-46HX909 44 3/8
(1,124)
27 3/8
(695)
4 3/4
(118)
19
(482)
4 3/4
(120)
12 5/8
(320)
26
(659)
20
(506)
KDL-60NX80*56 3/4
(1,440)
35
(889)
1 1/4
(31)
19 3/8
(490)
4 7/8
(121)
15 1/8
(384)
33 1/4
(842)
20 1/4
(514)
KDL-55HX800 50 3/8
(1,278)
30 1/8
(765)
1 5/8
(41)
17
(431)
4 1/2
(113)
13 7/8
(352)
28 3/8
(719)
17 7/8
(452)
KDL-46HX800 42 3/4
(1,085)
25 7/8
(656)
3 3/4
(95)
17
(431)
4 7/8
(121)
12 3/4
(323)
24 3/8
(616)
17 7/8
(454)
KDL-40HX800 37 1/2
(952)
22 7/8
(581)
5 1/4
(133)
17
(431)
4 3/4
(120)
11 3/4
(297)
21 1/2
(546)
17 7/8
(454)
KDL-55HX701 53 3/4
(1,363)
32 1/2
(825)
31/32
(25)
17 3/8
(439)
6 5/8
(165)
16 5/8
(421)
30 5/8
(776)
19
(481)
KDL-46HX701 45 1/2
(1,154)
27 3/4
(704)
3 3/8
(84)
17 3/8
(439)
6 1/2
(162)
14 7/8
(377)
26 1/8
(662)
19
(480)
KDL-40HX701 40 3/8
(1,023)
24 3/4
(628)
4 7/8
(122)
17 3/8
(439)
6 3/8
(160)
13 3/4
(349)
23 3/8
(591)
18 7/8
(479)

− 4 −
Additional Information for Using Sony Wall-Mount Bracket (SU-WL500)
Unit: inches (mm)
Model Name Display
dimensions
Screen center
dimensions
Length for each mounting angle
Angle (0°) Angle (20°)
       
KDL-55EX71*50 3/8
(1,278)
30 1/8
(765)
1 5/8
(41)
17
(431)
4 1/2
(113)
13 7/8
(352)
28 3/8
(719)
17 7/8
(452)
KDL-46EX71*42 3/4
(1,085)
25 7/8
(656)
3 3/4
(95)
17
(431)
4 7/8
(121)
12 3/4
(323)
24 3/8
(616)
17 7/8
(454)
KDL-40EX71*37 1/2
(952)
22 7/8
(581)
5 1/4
(133)
17
(431)
4 7/8
(121)
11 3/4
(297)
21 1/2
(546)
17 7/8
(454)
KDL-32EX71*30 1/8
(764)
18 3/4
(475)
7 3/8
(185)
17
(431)
4 7/8
(121)
10 1/4
(260)
18 5/8
(473)
17 7/8
(454)
KDL-60EX70*56 3/8
(1,430)
34 5/8
(877)
1 1/4
(31)
19 1/8
(483)
4 5/8
(115)
14 7/8
(375)
32 1/2
(824)
19 3/4
(501)
KDL-52EX70*49 3/8
(1,251)
30 5/8
(775)
3 1/4
(82)
19 1/8
(483)
4 1/2
(114)
13 3/8
(339)
28 3/4
(728)
19 3/4
(501)
KDL-46EX70*44
(1,117)
27 1/2
(698)
4 7/8
(121)
19 1/8
(483)
4 1/2
(114)
12 3/8
(313)
25 7/8
(656)
19 3/4
(501)
KDL-40EX70*38 3/4
(984)
24 5/8
(623)
6 1/4
(158)
19 1/8
(483)
4 1/2
(114)
11 3/8
(287)
23 1/8
(585)
19 3/4
(501)
KDL-32EX70*32
(810)
20
(507)
7 7/8
(197)
18 1/8
(459)
4 5/8
(115)
10 1/8
(257)
19 5/8
(497)
18 7/8
(478)
KDL-40EX40B 39 1/8
(992)
23 5/8
(598)
4 7/8
(122)
16 3/4
(425)
6 3/8
(160)
—** —** —**
KDL-32EX40B 31 1/2
(800)
19 5/8
(497)
6 7/8
(172)
16 7/8
(426)
6 1/4
(157)
—** —** —**
KDL-46EX60*42 3/4
(1,085)
25 7/8
(656)
3 3/4
(95)
17
(431)
4 7/8
(121)
12 3/4
(323)
24 3/8
(616)
17 7/8
(454)
KDL-40EX60*37 1/2
(952)
22 7/8
(581)
5 1/4
(133)
17
(431)
4 3/4
(120)
11 3/4
(297)
21 1/2
(546)
17 7/8
(454)
KDL-32EX60*30 1/8
(764)
18 3/4
(475)
7 3/8
(185)
17
(431)
4 3/4
(120)
10 1/4
(260)
18 5/8
(473)
17 7/8
(454)
KDL-46EX507 44 3/8
(1,127)
26 5/8
(676)
3 3/8
(84)
16 7/8
(426)
6 3/8
(161)
14 5/8
(369)
25 1/4
(640)
18 1/4
(463)
KDL-40EX507 39 1/8
(992)
23 5/8
(599)
4 7/8
(122)
16 7/8
(426)
6 3/8
(159)
13 1/2
(341)
22 3/8
(567)
18 1/4
(463)
KDL-32EX507 31 1/2
(800)
19 5/8
(497)
6 7/8
(172)
16 7/8
(426)
6 1/4
(156)
12
(303)
18 5/8
(470)
18 1/4
(461)
KDL-60EX505 57 3/8
(1,455)
34 3/8
(873)
9/16
(14)
17
(430)
7 1/4
(181)
17 7/8
(453)
32 3/8
(822)
18 5/8
(473)
KDL-55EX505 52 1/4
(1,324)
31 3/8
(795)
1
(25)
16 7/8
(428)
6 1/2
(165)
16 3/8
(413)
29 5/8
(752)
18 3/8
(466)
KDL-40EX40*39 1/8
(992)
23 5/8
(598)
4 7/8
(122)
16 3/4
(425)
6 3/8
(160)
13 1/2
(341)
22 3/8
(567)
18 1/4
(463)

− 5 −
Additional Information for Using Sony Wall-Mount Bracket (SU-WL500)
Unit: inches (mm)
Model Name Display
dimensions
Screen center
dimensions
Length for each mounting angle
Angle (0°) Angle (20°)
       
KDL-32EX40*31 1/2
(800)
19 5/8
(497)
6 7/8
(172)
16 7/8
(426)
6 1/4
(157)
12
(303)
18 5/8
(470)
18 1/4
(461)
KDL-46EX405 44 3/8
(1,127)
26 5/8
(674)
3 3/8
(84)
16 3/4
(424)
6 1/2
(162)
14 5/8
(369)
25 1/4
(640)
18 3/8
(464)
KDL-32EX30*31 1/2
(800)
19 5/8
(497)
6 7/8
(172)
16 7/8
(426)
6 1/4
(157)
12
(303)
18 5/8
(470)
18 1/4
(461)
*In the actual model names, the “” indicates numbers and/or characters specic to each model.
** Do not install the TV in an inclined position. It is designed to be operated in a vertical position only. Eject and take out any disc
from the built-in BD player before installing the TV on a wall.
Figures in the above table may dier slightly depending on the installation.
CAUTION
e wall that the TV will be installed on should be capable of supporting a weight of at least four times that of the TV.
Refer to your TV’s operating instructions for its weight.
3 Install the Base Bracket on the wall.
Refer to the Instructions for SU-WL500.
4 Disconnect all the cables from the TV.
5 Secure the Mounting Hook to the rear of the TV.
Determine the screw locations and secure the Mounting Hooks to the rear of the TV. Refer to
the “Screw and Hook Locations Diagram/Table” shown below.

KDL-HX70*, KDL-EX50*, KDL-EX40*, KDL-EX30*only
Screw
(+PSW6 × 16)
Square
hole
Mounting Hook

− 6 −
Additional Information for Using Sony Wall-Mount Bracket (SU-WL500)

KDL-40EX40B, KDL-32EX40B only
Screw
(+PSW6 × 16)
Square
hole
Mounting Hook

XBR-52HX909/XBR-46HX909 only
Screw
(+PSW6 × 16)
Square
hole
Mounting Hook

KDL-46HX800/KDL-40HX800/KDL-46EX717/KDL-40EX717/KDL-32EX717/
KDL-46EX715/KDL-40EX715/KDL-32EX715/KDL-46EX713/KDL-40EX713/
KDL-46EX711/KDL-46EX710/KDL-40EX710/KDL-32EX710/KDL-EX60*only
Screw
(+PSW6 × 16)
Square
hole
Mounting Hook

− 7 −
Additional Information for Using Sony Wall-Mount Bracket (SU-WL500)

KDL-55HX800/KDL-55EX717/KDL-55EX713/KDL-55EX711/KDL-55EX710/
KDL-EX70*only
Before installing,
remove screws Square
hole
Screw
(+PSW6 × 16)
Mounting Hook

XBR-60LX90*/KDL-60NX80*only
Attach the Mounting
Hook using the four
spacers and four
M6 × 20 screws
supplied with the TV.
Before installing,
remove screws
Spacer
Screw (M6 × 20)
Mounting Hook
Remove the bottom
cover and terminal
cover.
✍
• Place the TV on the Table-Top Stand, when securing the Mounting Hook.
• When installing the TV on a wall, remove the four screws installed in the wall mounting holes from the
rear of the TV. Be sure to store the removed screws in a safe place, keeping them away from children.
When attaching the Table-Top Stand again, be sure to fasten the removed screws to the original holes on
the rear of the TV (KDL-EX70*/XBR-60LX90*/KDL-60NX80*/KDL-55EX71* and KDL-
55HX800 only).
*In the actual model names, the “” indicates numbers and/or characters specic to each model.

− 8 −
Additional Information for Using Sony Wall-Mount Bracket (SU-WL500)
Hook Location
When installing the TV onto the Base Bracket.
a
b
c
Screw and Hook Locations Diagram/Table
Model Name Screw Locations Hook Location
XBR-60LX90*/KDL-60NX80*/
KDL-60EX70*/KDL-55EX71*/
KDL-55HX800
e, j a
KDL-55HX701/KDL-60EX50*/
KDL-55EX50*d, g a
KDL-46HX701/KDL-40HX701/KDL-40EX40B/
KDL-46EX50*/KDL-40EX50*/
KDL-46EX40*/KDL-40EX40*
d, g b
XBR-52HX909/XBR-46HX909/
KDL-46HX800/KDL-46EX71*/
KDL-40HX800/KDL-52EX70*/
KDL-40EX71*/KDL-46EX70*/
KDL-40EX70*/KDL-46EX60*/
KDL-40EX60*
e, j b
KDL-32EX71*/KDL-32EX70*/
KDL-32EX60*f, j c
KDL-32EX40B/KDL-32EX50*/
KDL-32EX40*/KDL-32EX30*e, g c
*In the actual model names, the “” indicates numbers and/or characters specic to each model.
Screw Location
When installing the Mounting Hook on the TV.
h
j
g
f
e
d
h
j
g
f
e
d
h
j
g
f
e
d
✍
• Available TV models vary depending on the country/region.
• e availability of this Wall-Mount Bracket (SU-WL500) varies depending on the country/region.

− 9 −
Additional Information for Using Sony Wall-Mount Bracket (SU-WL500)
6 Adjust the angle of the Mounting Hook using the hexagon wrench supplied
with the Wall-Mount Bracket.
When installing the TV parallel to the wall (0 degrees), adjustment of the Mounting Hook angle
(procedures  and  below) is not necessary. Make sure that each arm base Xis screwed in securely.
Remove the two screws from the arm base Xof the Mounting Hook. Choose the holes
corresponding to the desired angle (5, 10, 15 or 20 degrees).
Adjust the angles of the top Yand bottom Zarm to t the corresponding hole, and rmly
secure each arm using the two screws removed in the previous procedure .
Hexagon
wrench
✍
• Be sure to adjust the right and le arms to the same angle.
• Make sure that the two arm bases are screwed in securely.
CAUTION
Be careful not to pinch your ngers when adjusting the angle of the Mounting Hook.
7 Remove the screws from the back of the TV.
Do not remove any other screws from the TV.
KDL-32EX6*,
KDL-32EX7*,
KDL-40EX6*,
KDL-40EX7*,
KDL-40HX800 only
*In the actual model names, the “” indicates numbers and/or characters specic to each model.
8 Lift the TV o the stand. Make sure that you carry out this task with at least two
or three people.
Do not attempt to li the TV by yourself.
For holding and carrying the TV, refer to your TV’s instructions.

− 10 −
Additional Information for Using Sony Wall-Mount Bracket (SU-WL500)
9 Install the TV on the wall.
Refer to the Instructions for SU-WL500.
✍
• When you put the TV back on the stand, reverse the above steps.
• Remove the screws or install the Mounting Hook on a stable and level surface.
