To Customers and Sony Dealers
Wall-Mount Bracket
Installation Manual
Manuel d’installation
Manual de instalación
GB
FR
ES
SU-WL500
© 2018 Sony Visual Products Inc.

2 (GB)
Thank you for purchasing this product.
If the safety precautions are not observed or the
product is used incorrectly, it may result in serious
injury or fire.
This manual shows the correct handling of the
product and important precautions necessary to
prevent accidents. Be sure to read this manual
thoroughly and use the product correctly. Keep this
manual available for future reference.
To Sony dealers
Sufficient expertise is required for installing this
product. Be sure to read this manual thoroughly to do
the installation work safely. Sony is not liable for any
damages or injury caused by mishandling or
improper installation. Please give this manual to the
customer after installation.
Products by Sony are designed with safety in mind. If
the products are used incorrectly, however, it may
result in a serious injury through fire, electric shock,
the product toppling over, or the product dropping.
Be sure to observe the precautions for safety to
prevent such accidents.
Specified products
The following products are subject to change
without notice, may be out of stock, or
discontinued.
Some models may not be available in certain
regions.
To Customers
Sufficient expertise is required for installing this
product. Be sure to subcontract the installation to
Sony dealers or licensed contractors and pay
special attention to safety during the installation.
Sony is not liable for any damages or injury
caused by mishandling or improper installation, or
installing any other than the specified product.
Your Statutory Rights (if any) are not affected.
WARNING
On Safety
CAUTION
LCD Color Display
FW-85BZ35F
FW-75BZ35F
FW-65BZ35F
FW-55BZ35F
FW-49BZ35F
FW-43BZ35F

3 (GB)
GB
English
There are 4 types of installation. It may not be possible to install some types of displays. Check the following
and install your display in the adequate way.
AC adaptor holder kit SU-AH1 is not be able to installed.
To install the display to the wall, the SU-WL500 Wall-Mount Bracket is necessary. Screws and spacers listed
below are also necessary depending on the way of installation.
For further details/terms & conditions, contact the sales representative for professional use.
*1 You cannot install the display other than the noted types.
*2 For the display with , the following are necessary.
Spacer: a washer with an outside diameter of 18 mm, inside diameter of 10 mm, and thickness of 2 mm
(SONY Part Number 7-688-000-32) × 20
Screw: PSW M6 × 25 mm (SONY Part Number 4-577-326-01) × 4 (1 pk)
*3 Make brightness setting to Standard or Custom 37 and lower.
*4 When installing FW-49BZ35F or FW-43BZ35F in portrait orientation, a portion of the Base Bracket is not
hidden behind the display.
A: Landscape, -20° leaning B: Landscape, +60° leaning C: Portrait, no leaning D: Portrait, +20° leaning
Display model Installation type*1 Spacer*2 Wall-Mount Bracket
Model Qty
FW-85BZ35F
FW-75BZ35F C
SU-WL500 1
FW-65BZ35F
FW-55BZ35F
FW-49BZ35F*3
A
B
C*4
D*4
FW-43BZ35F C*4
D*4

4 (GB)
Be sure to read thoroughly the all safety information
described in the instruction manual of SU-WL500.
Do NOT use SU-WL450 for installation in the way
noted in this manual.

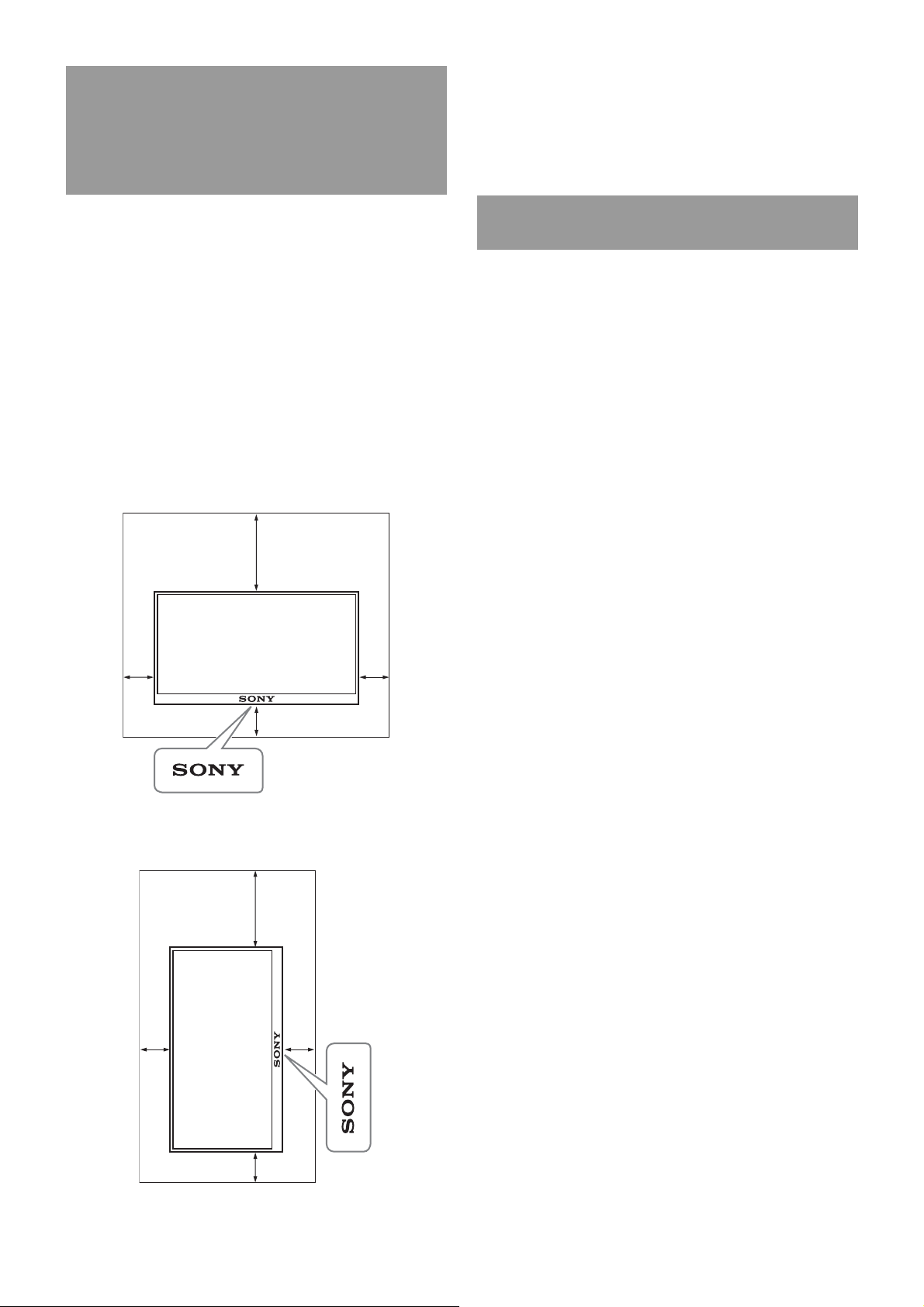

Provide adequate clearances
around the display.
The following illustration shows how much space is
required around the display.
Be sure to install the display in the orientation shown
in the following illustration.
Landscape
Portrait
Do not block the ventilation holes of
the display.
If you block the ventilation holes with tapes or other
objects, heat builds up inside the display and may
cause a fire.
• If you cover the illumination LED and its
surroundings with tapes or other objects, the
status of the display cannot be recognized and the
remote control may not work.
• When carrying the display, hold it in landscape
orientation, and take care not to drop it when
installing. Do not apply excessive force to the
display; otherwise, it may be deformed.
• Operating temperature: 35 °C and lower
WARNING
If the following precautions are not observed,
serious injury or death through fire, electric
shock, the product toppling over, or the
product dropping can result.
Unit: mm (inches)
300
100 100
100 (11 7/8)
(4) (4)
(4)
Unit: mm (inches)
300
(11 7/8)
100
100
100
(4)
(4)
(4)
Others

5 (GB)
Follow Step 1 in the SU-WL500 instruction manual to
check the parts.
Follow Step 2 in the SU-WL500 instruction manual to

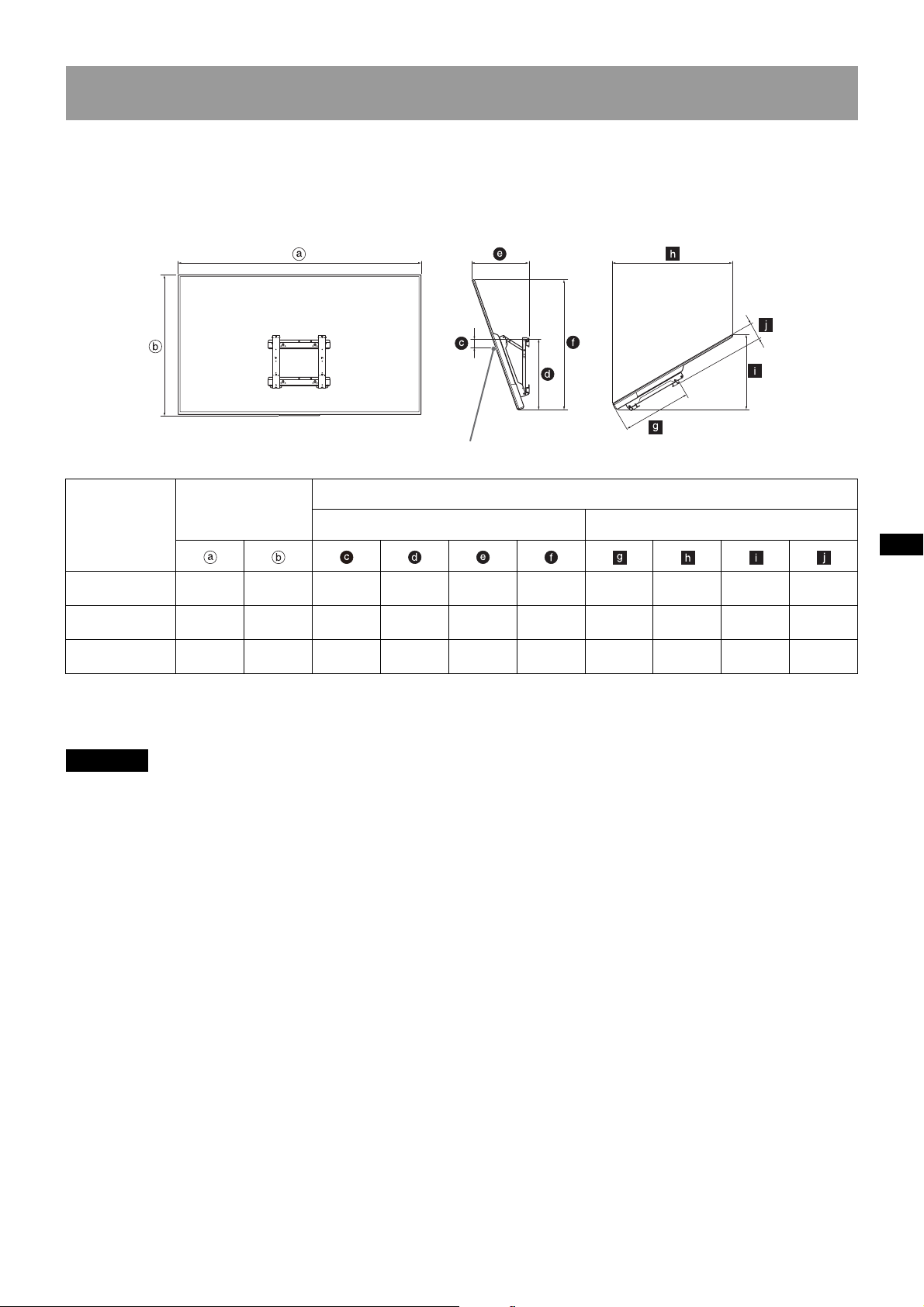

decide on the installation location. Refer to page 19
of this manual for the display installation dimension
table.
Follow Step 3 in the SU-WL500 instruction manual to
install the Base Bracket.
A: landscape, -20° leaning
Step 1:
Checking the parts
required for the
installation
Step 2:
Deciding on the
installation location
Step 3:
Installing the Base
Bracket on the wall
Step 4:
Preparing for the
installation of the
display
1Remove the stands if they are
installed to the display (FW-
49BZ35F only).
Be sure to lay down the display on a soft cloth
to protect the display. The installation of the
Mounting Hook is also done with the display
laid down.
FW-49BZ35F
When using an electric screwdriver, set the torque
setting to approximately 2 N·m {20 kgf·cm}.
Do not lift the Mounting Hook before the screws
(two screws each for left/right) are secured. This
may distort the Mounting Hook or the display
cabinet.

6 (GB)
2Remove the screws from the
rear of the display.
FW-65BZ35F/FW-55BZ35F
FW-49BZ35F
Note
Be sure to store the removed screws in a safe place,
keeping them away from children. When attaching
the stands to the display again, be sure to install the
stored screws back in the original position.
3Referring to the Screw and Hook
locations diagram/table on
page 21, determine the screw
positions, and secure the
Mounting Hook to the rear of the
display.
Secure the Mounting Hook to the rear of the
display temporarily, using the four screws
(+PSW6 × 16).
Be sure that both screws are securely
tightened with equal torque strength to the
rear of the display.
FW-65BZ35F/FW-55BZ35F
FW-49BZ35F
Mounting Hook Screw
(+PSW6 × 16)
Mounting Hook
Screw
(+PSW6 × 16)

7 (GB)
4Adjust the angle of the
Mounting Hook with the
supplied hex key.
Perform following and . Make sure that
screw firmly secures the arm base of the
Mounting Hook (both left and right).
Remove the 2 screws from the arm base
of the Mounting Hook (both left and right)
and determine the screw holes for the angle
(20°) you plan to change to.
Fit screw holes of the upper arm and
lower arm in an adequate angle, put
screws removed in step into the holes,
then secure both arms.
Notes
• Make sure that the adjusted angle of both arms are
the same.
• Make sure that both arms are screwed in securely.
CAUTION
• Be careful not to get your fingers caught while
adjusting the angle.
Hex key
FW-65BZ35F/FW-55BZ35F
FW-49BZ35F
5Remove the screws for the
stands from the display (FW-
65BZ35F/FW-55BZ35F only).
Since the stands are removed when you hold up
the display, be sure to hold the display securely
so that the display does not fall down.
FW-65BZ35F/FW-55BZ35F

8 (GB)
Step 5:
Installing the display
on the wall
WARNING
Be sure to complete the installation before
connecting the AC power cord to the wall outlet. If
you allow the AC power cord to be pinched under
or between pieces of equipment, this may result
in a short circuit or an electric shock.
Be careful not to stumble over the AC power cord
or the display, as you may hurt yourself.
1Connect the AC power cord and
the connecting cable(s) supplied
with the display to the display.
Connect the AC power cord and the connecting
cable(s) to the connectors on the rear of the
display. For details on connecting the AC power
cord and the connecting cable(s), refer to the
instruction manual of the display.
Notes
• You cannot connect the cables to the display after
installing it on the Base Bracket.
• Subcontract the cable routing in the wall to a
licensed contractor.

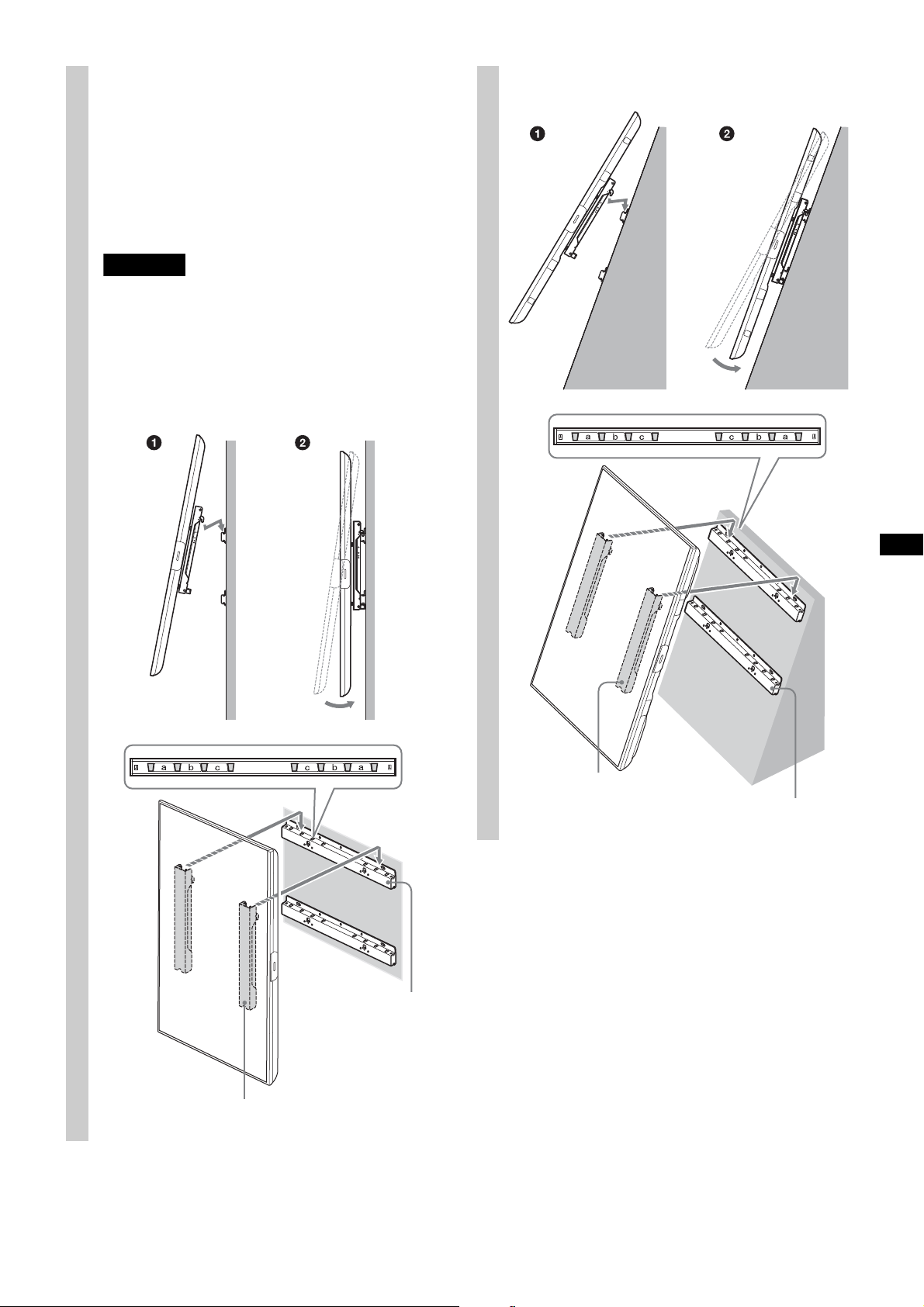

2Install the display onto the Base
Bracket.
Referring to the Screw and Hook locations
diagram/table on page 21, determine the
holes of the Base Bracket for latching the
upper hooks of the Mounting Hook.
Hold the display securely with both hands,
and gently align it on the wall.
WARNING
• Be sure that two or more persons hold the display
when carrying it.
• When carrying the display, hold it in landscape
orientation, and take care not to drop it when
installing. Do not apply excessive force to the
display; otherwise, it may be deformed.
Base Bracket
Mounting Hook

9 (GB)
Follow the instructions in the SU-WL500 instruction
manual to confirm.
Follow the instructions in the SU-WL500 instruction
manual to remove.
3Firmly secure the display and
the Base Bracket using the
screws supplied with SU-WL500
(+BVST4 × 12).
Note
When using an electric screwdriver, set the torque
setting to approximately 1.5 N·m {15 kgf·cm}.
Confirming the
completion of the
installation
When removing the
display
Screw
(+BVST4 × 12)
WARNING
Be sure to tighten the securing screw firmly.
If you fail to do so, the display may fall when
it is pushed upward and cause injury.

10 (GB)
Follow Step 1 in the SU-WL500 instruction manual to
check the parts.
Follow Step 2 in the SU-WL500 instruction manual to
decide on the installation location. Refer to page 19
of this manual for the display installation dimension
table.
Follow Step 3 in the SU-WL500 instruction manual to
install the Base Bracket.
B: landscape, +60° leaning
Step 1:
Checking the parts
required for the
installation
Step 2:
Deciding on the
installation location
Step 3:
Installing the Base
Bracket on the wall or
mounting
Step 4:
Preparing for the
installation of the
display
1Remove the stands if they are
installed to the display (FW-
49BZ35F only).
Be sure to lay down the display on a soft cloth
to protect the display. The installation of the
Mounting Hook is also done with the display
laid down.
FW-49BZ35F
When using an electric screwdriver, set the torque
setting to approximately 2 N·m {20 kgf·cm}.
Do not lift the Mounting Hook before the screws
(two screws each for left/right) are secured. This
may distort the Mounting Hook or the display
cabinet.

11 (GB)
2Remove the screws from the
rear of the display.
FW-65BZ35F/FW-55BZ35F
FW-49BZ35F
Note
Be sure to store the removed screws in a safe place,
keeping them away from children. When attaching
the stands to the display again, be sure to install the
stored screws back in the original position.
3Referring to the Screw and Hook
locations diagram/table on
page 21, determine the screw
positions, and secure the
Mounting Hook to the rear of the
display.
Secure the Mounting Hook to the rear of the
display temporarily, using the four screws
(+PSW6 × 16).
Be sure that both screws are securely
tightened with equal torque strength to the
rear of the display.
FW-65BZ35F/FW-55BZ35F
FW-49BZ35F
Mounting Hook Screw
(+PSW6 × 16)
Mounting Hook
Screw
(+PSW6 × 16)

12 (GB)
4Make sure that the screw 
firmly secures the arm base of
the Mounting Hook (both left
and right).
Note
Make sure that the two arms are screwed in securely.
5Remove the screws for the
stands from the display (FW-
65BZ35F/FW-55BZ35F only).
Since the stands are removed when you hold up
the display, be sure to hold the display securely
so that the display does not fall down.
FW-65BZ35F/FW-55BZ35F
FW-65BZ35F/FW-55BZ35F
FW-49BZ35F
Step 5:
Installing the display
on the wall
WARNING
Be sure to complete the installation before
connecting the AC power cord to the wall outlet. If
you allow the AC power cord to be pinched under
or between pieces of equipment, this may result
in a short circuit or an electric shock.
Be careful not to stumble over the AC power cord
or the display, as you may hurt yourself.
1Connect the AC power cord and
the connecting cable(s) supplied
with the display to the display.
Connect the AC power cord and the connecting
cable(s) to the connectors on the rear of the
display. For details on connecting the AC power
cord and the connecting cable(s), refer to the
instruction manual of the display.
Notes
• You cannot connect the cables to the display after
installing it on the Base Bracket.
• Subcontract the cable routing in the wall to a
licensed contractor.

13 (GB)
Follow the instructions in the SU-WL500 instruction
manual to confirm.
Follow the instructions in the SU-WL500 instruction
manual to remove.
2Install the display onto the Base
Bracket.
Referring to the Screw and Hook locations
diagram/table on page 21, determine the
holes of the Base Bracket for latching the
upper hooks of the Mounting Hook.
Hold the display securely with both hands,
and gently align it on the wall.
WARNING
• Be sure that two or more persons hold the display
when carrying it.
• When carrying the display, hold it in landscape
orientation, and take care not to drop it when
installing. Do not apply excessive force to the
display; otherwise, it may be deformed.
Base Bracket
Mounting Hook
3Firmly secure the display and
the Base Bracket using the
screws supplied with SU-WL500
(+BVST4 × 12).
Note
When using an electric screwdriver, set the torque
setting to approximately 1.5 N·m {15 kgf·cm}.
Confirming the
completion of the
installation
When removing the
display
Screw
(+BVST4 × 12)
WARNING
Be sure to tighten the securing screw firmly.
If you fail to do so, the display may fall when
it is pushed upward and cause injury.

14 (GB)
You can only install FW-85BZ35F/FW-75BZ35F using the installation “C: Portrait, no leaning”. The
installation “D: Portrait, +20° leaning” does not support FW-85BZ35F/FW-75BZ35F.
Follow Step 1 in the SU-WL500 instruction manual to
check the parts.
Follow Step 2 in the SU-WL500 instruction manual to
decide on the installation location. Refer to page 20
of this manual for the display installation dimension
table.
Follow Step 3 in the SU-WL500 instruction manual to
install the Base Bracket.
C: portrait, no leaning / D: portrait, +20° leaning
Step 1:
Checking the parts
required for the
installation
Step 2:
Deciding on the
installation location
Step 3:
Installing the Base
Bracket on the wall or
mounting
Step 4:
Preparing for the
installation of the
display
1Remove the stands if they are
installed to the display.
Be sure to lay down the display on a soft cloth
to protect the display. The installation of the
Mounting Hook is also done with the display
laid down.
FW-85BZ35F/FW-75BZ35F/FW-65BZ35F/FW-55BZ35F
FW-49BZ35F/FW-43BZ35F
When using an electric screwdriver, set the torque
setting to approximately 2 N·m {20 kgf·cm}.
Do not lift the Mounting Hook before the screws
(two screws each for left/right) are secured. This
may distort the Mounting Hook or the display
cabinet.

15 (GB)
2Remove the screws from the
rear of the display.
FW-85BZ35F/FW-75BZ35F/FW-65BZ35F/
FW-55BZ35F
FW-49BZ35F/FW-43BZ35F
Note
Be sure to store the removed screws in a safe place,
keeping them away from children. When attaching
the stands to the display again, be sure to install the
stored screws back in the original position.
3Referring to the Screw and Hook
locations diagram/table on
page 21, determine the screw
positions, and secure the
Mounting Hook to the rear of the
display.
Secure the Mounting Hook to the rear of the
display temporarily, using the four screws
(*1).
Be sure that both screws are securely
tightened with equal torque strength to the
rear of the display.
*1Screws (+PSW6 × 25) (not supplied)
*2Needs 5 spacers (not supplied).
Screw *1
Mounting Hook
Screw *1
Mounting Hook
10 mm
(13/32 inch)
FW-85BZ35F/FW-75BZ35F/FW-65BZ35F/FW-55BZ35F
FW-49BZ35F/FW-43BZ35F
*2

16 (GB)
4Make sure that the screw 
firmly secures the arm base of
the Mounting Hook (both left
and right).
Notes
• When installing in portrait orientation, be sure to
keep the Mounting Hook angle to 0 degrees. Do
not use another angles.
• Make sure that the two arm bases are screwed in
securely.
FW-85BZ35F/FW-75BZ35F/FW-65BZ35F/
FW-55BZ35F
FW-49BZ35F/FW-43BZ35F
Step 5:
Installing the display
on the wall
WARNING
Be sure to complete the installation before
connecting the AC power cord to the wall outlet. If
you allow the AC power cord to be pinched under
or between pieces of equipment, this may result
in a short circuit or an electric shock.
Be careful not to stumble over the AC power cord
or the display, as you may hurt yourself.
1Connect the AC power cord and
the connecting cable(s) supplied
with the display to the display.
Connect the AC power cord and the connecting
cable(s) to the connectors on the rear of the
display. For details on connecting the AC power
cord and the connecting cable(s), refer to the
instruction manual of the display.
Notes
• You cannot connect the cables to the display after
installing it on the Base Bracket.
• Subcontract the cable routing in the wall to a
licensed contractor.

17 (GB)
2Install the display onto the Base
Bracket.
Referring to the Screw and Hook locations
diagram/table on page 21, determine the
holes of the Base Bracket for latching the
upper hooks of the Mounting Hook.
Hold the display securely with both hands,
and gently align it on the wall.
WARNING
• Be sure that two or more persons hold the display
when carrying it.
• When carrying the display, hold it in landscape
orientation, and take care not to drop it when
installing. Do not apply excessive force to the
display; otherwise, it may be deformed.
C: Portrait, no leaning
Base Bracket
Mounting Hook
D: Portrait, +20° leaning
Base Bracket
Mounting Hook

18 (GB)
Follow the instructions in the SU-WL500 instruction
manual to confirm.
Follow the instructions in the SU-WL500 instruction
manual to remove.
3Firmly secure the display and
the Base Bracket using the
screws supplied with SU-WL500
(+BVST4 × 12).
C: Portrait, no leaning
Screw
(+BVST4 × 12)
D: Portrait, +20° leaning
Note
When using an electric screwdriver, set the torque
setting to approximately 1.5 N·m {15 kgf·cm}.
Confirming the
completion of the
installation
When removing the
display
Screw
(+BVST4 × 12)
WARNING
Be sure to tighten the securing screw firmly.
If you fail to do so, the display may fall when
it is pushed upward and cause injury.

19 (GB)
The table below shows the dimensions of the display that is mounted on this product. Refer to this table to
decide on the installation location.
A: Landscape, -20° leaning
B: Landscape, +60° leaning
Unit: mm (inches)
Some models may not be available in certain regions.
Figures in the above table may differ slightly depending on the installation.
WARNING
The wall that the display will be installed on should be capable of supporting a weight of at least four times that
of the display.
Refer to your display’s instructions for its weight.
Display installation dimensions table
Model Name
Display dimensions
Length for each mounting angle
Angle (-20°) Angle (60º)
FW-65BZ35F 1,450
(57 1/8)
836
(33)
67
(2 3/4)
463
(18 1/4)
373
(14 3/4)
786
(31)
443
(17 1/2)
726
(28 5/8)
458
(18 1/8)
112
(4 1/2)
FW-55BZ35F 1,231
(48 1/2)
713
(28 1/8)
168
(6 5/8)
506
(20)
315
(12 1/2)
671
(26 1/2)
488
(19 1/4)
619
(24 3/8)
396
(15 5/8)
112
(4 1/2)
FW-49BZ35F 1,098
(43 1/4)
644
(25 3/8)
149
(5 7/8)
456
(18)
315
(12 1/2)
605
(23 7/8)
438
(17 1/4)
559
(22 1/8)
366
(14 1/2)
118
(4 3/4)
Screen center point

20 (GB)
C: Portrait, no leaning
D: Portrait, +20° leaning
Unit: mm (inches)
Some models may not be available in certain regions.
Figures in the above table may differ slightly depending on the installation.
WARNING
The wall that the display will be installed on should be capable of supporting a weight of at least four times that
of the display.
Refer to your display’s instructions for its weight.
Model Name
Display dimensions Screen centre dimensions
Length for each mounting angle
Angle (0º) Angle (20º)

FW-85BZ35F 1,098
(43 1/4)
1,911
(75 1/4)
171
(6 3/4)
40
(1 5/8)
512
(20 1/4)
1,126
(44 3/8)
143
(5 3/4) ——
FW-75BZ35F 963
(38)
1,673
(65 7/8)
171
(6 3/4)
94
(3 3/4)
394
(15 5/8)
1,007
(39 3/4)
124
(5) ——
FW-65BZ35F 836
(33)
1,450
(57 1/8)
121
(4 7/8)
102
(4 1/8)
322
(12 3/4)
846
(33 3/8)
122
(4 7/8)
510
(20 1/8)
1,366
(53 7/8)
FW-55BZ35F 713
(28 1/8)
1,231
(48 1/2)
121
(4 7/8)
45
(1 13/16)
318
(12 5/8)
736
(29)
122
(4 7/8)
441
(17 3/8)
1,160
(45 3/4)
FW-49BZ35F 644
(25 3/8)
1,098
(43 1/4)
171
(6 3/4)
166
(6 5/8)
165
(6 1/2)
720
(28 3/8)
128
(5 1/8)
408
(16 1/8)
1,035
(40 3/4)
FW-43BZ35F 569
(22 1/2)
965
(38)
221
(8 3/4)
129
(5 1/8)
165
(6 1/2)
704
(27 3/4)
128
(5 1/8)
366
(14 1/2)
910
(35 7/8)
Screen center point
