SONYY.
VIDEOCASSETTE
PLAYER
BVW-22P
BETACAM E}
™
OPERATION MANUAL
ist Edition
Serial
No.
10001
and
Higher

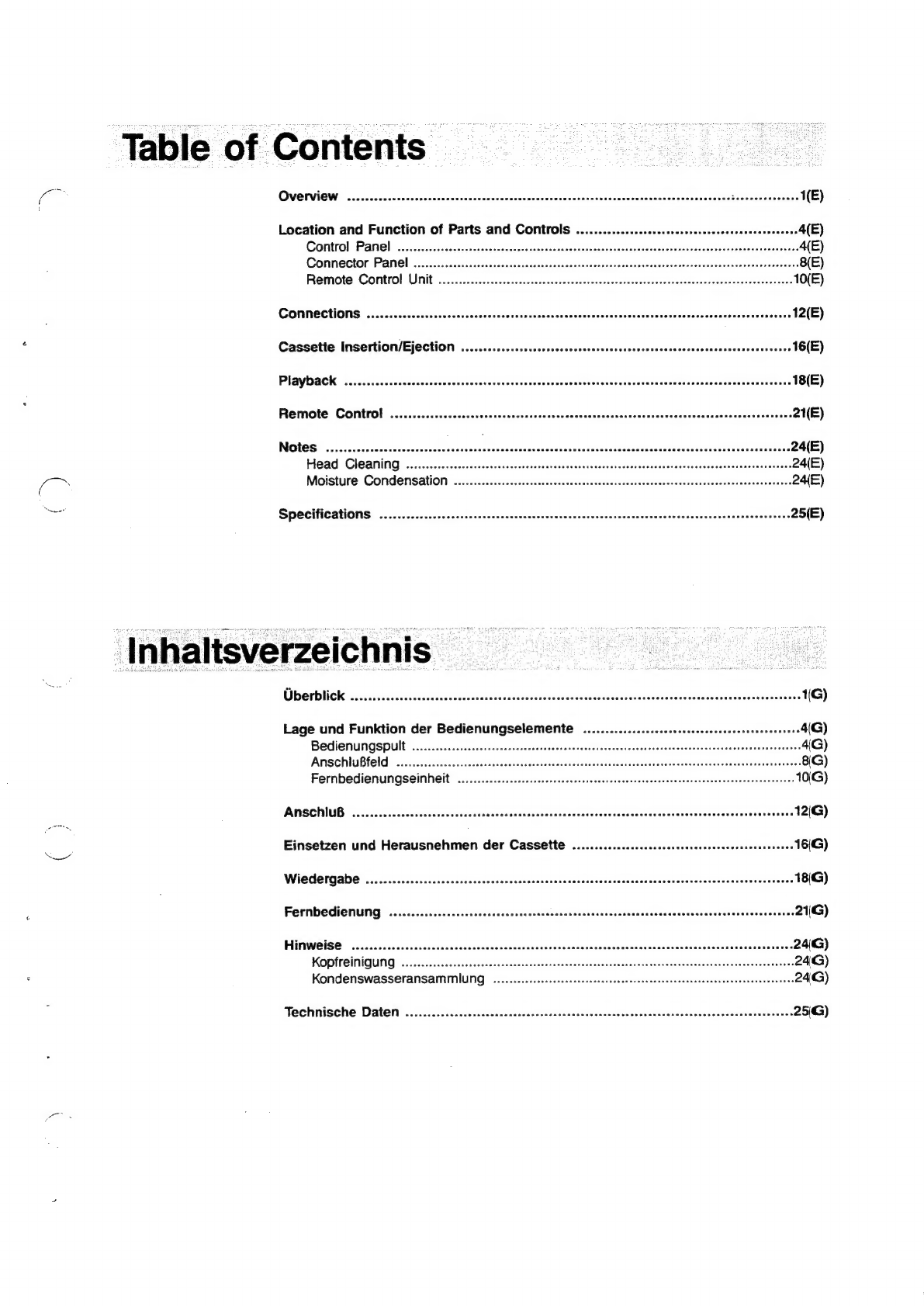

Table
of
Contents
OVOPVIOW occ d5 seks ienesecicneedec’ leven seeds cweewewvecceenavandevepeedesestzlasceteasisscsce ssavedsseace 1(E)
Location and Function of Parts and Controls ...........:cssccscssecsescssesceeneenensnseonee 4(E)
Control Paneli.225 0532) 255 ene ieecn BES ee A Navec caveats daacies dos vue cco ccuacuseenesve Ge-atbenivatencasd 4(E)
CONMECHOF PANCM 5. ccsscciscisscccesenkieddevaccvsteveeccesecgescleoaceesbaeyceasevopavedegsauuesecusettes deze 8(E)
Remote’ Control: Umit 2. itccccccescecscesspecascasscocscecesevasesviceccovteeeosdentenseodenseecsssabvssoees 10(E)
CONNECTIONS ©. cccsccscesceniss Scccccsctesiceeiesiessaescedcecscaccancedcasarccessceuceduescsaescacosnassse 12(E)
Cassette Insertion/Ejection ............ccccccccceccccsscsssssssssescnneceencecnscnasssseesoceuseenss 16(E)
PAYBACK: cv. sé fiw cate sctscictessevarcetcbiececstecetecbaesscescesewspevcsedgeussescececee séeassivecsaaeess 18(E)
Remote: Control sco. ccicceccscscatesetiscnseacstnsvecdseacatsadsscadcesasesesasscasandansed vonadsesuene 21(E)
NOES oiciciseddccccideaetetev eden ctascccceseccvedeuss wossesesccsceceecescetenusouceececsszees enueceseaes dese 24(E)
Head. Cleaning iscsi. c.ccevsesececescevecaclcewnecssedestssuvtduasvevsevescdedeatecectecesecgensesaaced sdeb ede. 24(E)
Moisture Condensation ................cccssccscssssccccsssecesessecscosserccecessnssscerssssnssssesseees 24(E)
Specifications .............ccccesessseccneccneccccscececcscceceecaseecscvecarseeseesessuceessenseneeeses 25(E)
Ober lick sc. cess 28s saces ibs ocdee chee Sapo caventadeddnada cece Wine lsuaesseseelGietdaesteavedendinsel ects 1(G)
Lage und Funktion der Bedienungselemente ..............:seccsssessseseneeeresseeeneeenees 4(G)
Bedientinigspullt -y:..cci.si.ceheibesscte coca ce caasustybeacstdes ccasdeacueis ogatdasacees bdenadanncsdere cera voces 4G)
ANSCHIUBIONG) sicccsa0vs cudscds ovoexestataes vesteties scwuesdceasatcnedaecedetanincecsascopecasssaaeasedgcdaiseusede 8iG)
Fernbedienungseinheit ..............cesesensescsesssecessenseesecseeseeesncsensceecesseaneseeeseseeeens 10(G)
AISCHIUB. .......cccccssersercnsssnssscsccnscnsncsccenssscccsccccecncccccsnssacssanconnsensocecsncesscenncs 12(\G)
Einsetzen und Herausnehmen der Cassette ...........----::cssecsceeececsesavenseesensenee 16(G)
Wiedergabe iiis.ccccssccincescccscessesnsenedcnnsnicvncieccsnndacccnancnectadnavasiasdececesddeersessveees 18/G)
POrmbechenung) 22.2 sccseescds cess cence cntecssevetesceccsadace Sevaececacveacseccequeeeisecnsedeua sucess 21(G)
inWEISG: oscsaseci cs cece cases cetieecdececwesdeeucatens caececdsccasggeacectdenseedsbeeadeccatedeacasenetessa 24\G)
KopfreimiQurig:. cxccsctescetsieis: ctte vicediee ssc pene adedsicts nredeegaccbetneuse asecelasbasievsacdeeentv cess 24G)
KondenswasSeranSaMmmlUng ...........eseeeeeesceeceeceeeeneececeeceseesseeenseasaneaeenentaeereessees 24,G)
Technische Daten 052.0000. sccsscteccieaddactissecceccesschocssatenssesdvussaseaccseacetccasscneseauase 251G)

The BVW-22P videocassette player is primarily designed for use as an “office viewer.”
The unit is so compact that it can also be conveniently used on the road or wherever
ease and simplicity of operation are demanded.
The BVW-22P uses the “Betacam SP” (Superior Performance) format to enhance the
video
and
audio
quality
and
achieve
longer
playback
time.
Connecting
the
unit
to
a
video monitor or a conventional TV receiver allows you to readily view either small size
(max.
playback
time
of
36
minutes)
or
large
size
(max.
playback
time
of
100
minutes)
cassette-taped
video
programs.
Reproduction
of
four
audio
channels
(two
longitudinal
and two AFM audio channels) is possible.
The
unit
also
maintains
playback
compatibility
with
conventional
“Betacam”
VTRs
and
is
capable
of
playing
back
both
oxide-taped
and
metal
particle-taped
programs.
This
unit
cannot
be
used
as
a
player
in
video
tape
editing.
1(E)

HTAEE
Enhanced ease of operation and improved functions
Controllable on the front panel
Cassette insertion/ejection and other operations can be performed on the front control
panel.
Supplied remote control unit
Playback, search and other frequent operations can be performed using the supplied
remote control unit. You may connect the remote contro! unit to the BVW-22P by the
supplied cable, or you may operate it in the wireless mode.
Built-in RF modulator
RF-modulated video and audio signals are output from the player's RF OUT connector,
and can be monitored on a conventional TV receiver.
Computer servo system
The CPU controls four direct drive DC motors for the drum, capstan and two reels to
enable quick and accurate tape access.
Audio noise reduction system
The noise reduction system of Dolby C type NR* is used for channels 1 and 2 (LNG
audio), which can be turned on/off as required when an oxide tape is played back. For
channels 3 and 4 (AFM audio), is used the “Betacam” noise reduction system (fixed
emphasis, 1-to-2 logarithmic compression/expansion).
Built-in time code reader
The time code (LTC**) or user bit data can be read by the built-in time code reader
during playback.
Display and superimposition of time data
A time counter is provided which can selectively display CTL, time code (LTC**), or
user bit data. These time data can be superimposed on video signals to be output
from the VIDEO OUTPUT, RF OUT or MONITOR connector.
*Dolby noise reduction manufactured under license from
Dolby Laboratories Licensing Corporation.
“Dolby” and the double-D symbol 00 are trademarks of
Dolby Laboratories Licensing Corporation.
*+ LTC (Longitudinal Time Code): Time code recorded on the
longitudinal time code track.
2(E)

Other features
Digital multihours meter
A
digital
multihours
meter
is
incorporated
which
can
selectively
indicate,
in
the
time
counter/HOURS
METER
display,
the
accumulated
values
of
POWER
ON
time,
drum
rotating
time,
tape
running
time,
and
frequency
of
tape
threading/unthreading.
Self-diagnostics
If
the
unit
cannot
be
operated
normally
owing
to
a
certain
error,
the
self-diagnostics
function
detects
the
cause
and
indicates
the
corresponding
error
code
number
on
the
time
counter/HOURS
METER
display.
Mountable in a standard 19-inch rack
The
unit
can
be
mounted
in
an
EIA
standard
19-inch
rack
using
the
optional
rack
mount
kit
RMM-507.
(Refer
to
the
maintenance
manual.)
3(E)
HUELNALSTIU

HATHA
Location and Function of Parts and Controls
Control Panel
few
ee
@ po -sy NR button and indicator £Y cassette compartment
@ aupio switches ) SUPERIMPOSE button
and indicator
© power switch
Time counter/HOURS METER
display contro! section
@ HEADPHONES LEVEL
contro! and
HEADPHONES jack
i) REMOTE jack
@ TRACKING contro!
U9 SEARCH buttons and
@ auto OFF indicator indicators
®
Tape
transport
buttons
and
indicators
Ui)
REMOTE
CONTROL
sensor and indicator
4(E)

@ DOLBY NR button and indicator
When
an
oxide
tape
is
to
be
played
back
and
you
want
to
turn
on
the
Dolby
C
type
noise
reduction
system
for
the
LNG
audio
track,
press
the
button
to
make
the
indicator
light up. To turn off the system, press the button again (the indicator will go out).
The
unit
keeps
in
memory
whether
the
Dolby
system
was
ON
or
OFF
when
the
power
was last turned off.
When
a
metal
particle
tape
is
loaded
into
the
player,
the
Dolby
system
is
automatically
switched
on
(the
indicator
lights
up).
In
this
case,
you
cannot
switch
off
the
DOLBY
system by pressing the DOLBY NR button.
2) AUDIO switches
Select
the
signal
to
be
output
from
the
HEADPHONES
jack,
AUDIO
OUTPUT
CH-1/3,
AUDIO
OUTPUT
CH-2/4,
AUDIO
OUTPUT
MONITOR,
RF
OUT
and
MONITOR
connectors.
a AUD UTPUT*| | AUDIO OUTPUT MONITOR,
ou
LNG oo CH-2 Stereo
MIX
© PowER switch
Set the switch to ON to turn on the power. Eight Os will appear in the time
counter/HOURS
METER
display
(or
seven
Os
will
appear
when
the
CTL/TC/U-BIT
select switch is set to CTL).
e Cassette compartment
Insert
a
cassette
here.
For
inserting
a
small
size
cassette,
align
the
cassette
with
the
marks on the compartment window.
© SUPERIMPOSE button and indicator
Nw
When
you
want
to
superimpose
CTL,
time
code
(LTC)
or
user
bit
data
on
the
pictures
displayed
on
the
monitors
connected
to
the
VIDEO
OUTPUT,
RF
OUT
and
MONITOR
connectors,
press
the
button
to
make
the
indicator
light
up.
To
make
the
unit
exit
from
the SUPERIMPOSE mode, press the button again (the indicator will go out).
The
unit
keeps
in
memory
whether
the
SUPERIMPOSE
function
was
ON
or
OFF
when
the power was last turned off.
@ cTL/tc/u-BIT select switch
Selects which data is to be indicated on the time counter/HOURS METER display.
CTL: Tape running time in hours, minutes, seconds and frames determined by
counting the CTL signal.
TC: Time code (LTC) read by the built-in time code reader.
U-BIT: User bit data read by the built-in time code reader.
*The
setting
of
the
AUDIO
MONITOR
switch
has
no
effect
ear
on
selection
of
audio
signals
to
be
output
from
the
AUDIO
OUTPUT
CH-1/3
and
CH-2/4
connectors.
This
selection
can
be
achieved
only
with
the
AUDIO
OUTPUT
switch
as
shown
in
the
chart
above.
The
output
signals
from
the
AUDIO
OUTPUT
CH-1/3
and
CH-2/4
connectors
are
always
stereophonic.
5(E)
I

@ Time counter/HOURS METER display
Indicates the data selected with the CTL/TC/U-BIT switch @ and the HOURS METER
button ©.
When the HOURS METER display mode is selected, it is automatically switched over
to the time counter display mode in about 5 seconds.
In the case where an error code (Error-XX) is displayed, follow the appropriate check
procedure consulting the maintenance manual.
man
es Be
; re om
bRAMES rs .
© RESET button
When CTL is selected with the CTL/TC/U-BIT select switch, pressing this button resets
the CTL counter (the CTL indication on the time counter/HOURS METER display is
reset to ‘0:00:00:00”)
© HOURS METER button
Switches the time counter display mode to the HOURS METER display mode. After
that, each time you press the button, the data item to be displayed is changed in the
following order:
OP —> dr—»> TP —> TH
(HOURS METER display mode)
Time counter data
(normal display mode)
OP: The accumulated POWER ON time.
dr: The accumulated time for which the drums rotate in the tape-threaded state.
TP: The accumulated time for which tape runs in the REW, PLAY, F FWD, SEARCH
FORWARD and SEARCH REVERSE modes.
TH: The total number of times of tape threading/unthreading.
¢ The maximum value of OP, dr or TP which can be displayed is 9999H. The moment
the value reaches 10000, the indication returns to OOOOH.
¢ The maximum value of TH which can be displayed is 99999. The moment the value
reaches 100000, the indication returns to 00000.
¢ The HOURS METER display mode is automatically reset to the normal (time counter)
display mode about 5 seconds after the HOURS METER button was last pressed.
@® HEADPHONES LEVEL contro! and HEADPHONES jack (stereo phone jack)
Connect a set of 8-ohm stereo headphones to the jack. The audio signal selected with
the AUDIO switches can be monitored (see “‘ @ AUDIO switches,” page 5.) The level
of the signal output from the jack can be adjusted with the HEADPHONES LEVEL =
control.
6(E)

@ TRACKING control
Normally
set
the
control
to
the
center
FIXED
position.
When
noise
appears
in
the
playback picture, adjust the tracking with the control.
WUEUENIA HT
@ AuTO OFF indicator
Lights
up
when
moisture
condensation
is
detected
on
the
head
drum
or
when
the
tape
protection mechanism enters into action.
® Tape transport buttons and indicators
When
a
tape
transport
button
or
the
corresponding
button
on
the
remote
control
unit
is
pressed, the associated indicator lights and keeps lit while the button’s function is
being performed.
EJECT button
Press
this
button
to
unthread
the
tape
and
eject
the
cassette.
When
the
cassette
is
ejected,
the
time
data
in
the
time
counter/HOURS
METER
display
is
reset
to
“0:00:00:00”
if
the
CTL
data
was
selected.
REW (rewind) button
Press this button to rewind the tape.
PLAY button
Press this button to start playback.
F FWD (fast forward) button
Press this button to advance the tape quickly.
STOP button
Press
this
button
to
stop
the
tape
and
to
monitor
a
still
picture.
For
the
first
minute
in
the
STOP
mode,
the
drum
keeps
rotating
in
contact
with
the
tape.
Then
the
tape
is
automatically
detensioned,
the
drum
stops
rotating,
and
the
still
on
the
monitor
disappears.
Each time a cassette is inserted, the unit is automatically set to the STOP mode.
It remains in the STOP mode until one of the tape transport buttons or the
SEARCH button is pressed.
@ REMOTE jack (special minijack)
When you want to control the BVW-22P from the remote control unit via the remote
control cable, connect the cable to this jack.
@® SEARCH buttons and indicators
REVERSE button and indicator
Press
the
button
for
reverse
playback
at
3.5
times
the
normal
speed
(reverse
search).
The indicator keeps lit while reverse search is being performed.
FORWARD button and indicator
Press the button for forward playback at 3.5 times the normal speed (forward search).
The indicator keeps lit while forward search is being performed.
@ REMOTE CONTROL sensor and indicator
When you want to operate the BVW-22P using the remote control unit in the wireless
mode, press the desired tape transport button (except for the REC button) on the
remote
control
unit
while
pointing
the
unit
toward
the
REMOTE
CONTROL
sensor.
The
REMOTE
CONTROL
indicator
on
the
player’s
control
panel
will
light
up
to
indicate
that
the player has received the signal transmitted from the remote control unit.
7(E)

EP
Connector Panel
VIDEO OUTPUT connectors
2} RF OUT system selector
<) RF OUT CHANNEL trimmer
Gy RF OUT connector
ky MONITOR connector 2 + Ground terminal
iy AUDIO OUTPUT sy AC INLET
1) VIDEO OUTPUT connectors (BNC and phono jack)
Both BNC connector and phono jacks supply composite video signal. Connect to the
video input connector of a VTR or a video monitor. Time code or other data can be
superimposed on the signal output from these connectors by pressing the
SUPERIMPOSE button on the contro! panel or remote control unit.
2) RF OUT system selector
Selects the TV system (G or |) for the signal output from the RF OUT connector. The
selector is factory-set at G.
8(E)

© RF OUT CHANNEL trimmer
Selects
the
TV
channel
for
the
signal
output
from
the
RF
OUT
connector.
The
trimmer
is factory-set at channel 36.
e
RF
OUT
connector
(IEC-type
standard
aerial
connector)
The
video
and
audio
playback
signals
are
converted
into
the
UHF
channel
30
to
39,
and
are
output
from
here.
The
output
channel
can
be
adjusted
by
the
channel
trimmer
and
the
1/G
system
selector
inside
the
unit.
Connect
to
the
UHF
antenna
terminal
to
monitor
the
signal
using
the
TV
receiver.
@ MONITOR connector (8-pin)
Supplies
the
video
and
audio
signals.
Connect
to
a
video
monitor
with
a
connecting
cable
(optional).
The
audio
signals
are
to
be
selected
with
the
AUDIO
switches
on
the
control
panel.
Time
code
or
other
data
can
be
superimposed
on
the
video
signal
output
from
this
connector
by
pressing
the
SUPERIMPOSE
button
on
the
control
pane!
or remote control unit.
@ aAuDIO OUTPUT connectors
CH-1/3 and CH-2/4 connectors (phono jacks)
Output
the
audio
signals
selected
with
the
AUDIO
OUTPUT
switch
on
the
control
panel.
kee ee faa eh Output frem oa
-| CH-13 connector ————«| CH-2/4 connector
Setting
of
AUDIO.
aS
‘OUTPUT
switch
7) 7H ground terminal
If
hum
is
heard
in
the
audio
signal,
connect
this
terminal
to
the
ground
terminal
of
the
connected audio equipment.
@ ac INLET
Connect
to
an
AC
outlet
(220
to
240
V)
with
the
supplied
AC
power
cord.
- 9(E)

Remote Control Unit
Connector
—____@ Transmitter
@REC SUPERIMPOSE gg PAUSE
Ce)
GS REV—SEARCH-@) FWD
mstoP
<}
Tape
transport
buttons
> al
PLAY FEWO
REMOTE CONTROL UNIT
RM-770
“> Battery compartment
REC
INHIBIT
ry
P
REC INHIBIT switch
(in the battery compartment)
10(E)

‘i @ Connector
When
you
want
to
control
the
BVW-22P
using
the
remote
control
unit
in
the
wired
mode, connect the supplied remote control cable to this connector.
@ Transmitter
When
you
want
to
contro!
the
BVW-22P
using
the
remote
control
unit
in
the
wireless
mode,
operate
the
remote
control
unit
with
this
part
pointed
toward
the
REMOTE
CONTROL sensor on the control panel of the player.
© Tape transport buttons
Each
button
except
for
PAUSE
and
REC
has
the
same
function
as
that
of
the
corresponding button on the control panel of the BVW-22P.
PAUSE button
Press
the
button
to
temporarily
stop
the
tape
during
playback
or
search
operation.
The
BVW-22P
shifts
to
the
STOP
mode
about
one
minute
after
pressing
the
PAUSE
button.
REC button
Doesn’t work for the BVW-22P.
-
4) Battery compartment
To
use
the
remote
control
unit
in
the
wireless
mode,
set
the
two
supplied
batteries
in
this compartment.
5) REC INHIBIT switch (located in the battery compartment)
When
you
are
remotely
controlling
the
BVW-22P
located
close
to
a
VTR*,
pressing
ihe
remote control unit's REC button may set the VTR to the REC mode, resulting in
erasing
of
recorded
material
on
the
tape
in
the
VTR.
To
avoid
this,
normally
use
the
remote control unit with this switch set to ON.
a
*U-matic VTR such as VO-9600P, VO-7630, etc.
11(E)
|

The video and audio signals played back on the BVW-22P can be monitored on a TV
receiver having neither video nor audio input connector, as well as on a video monitor.
The audio signal can also be monitored through a stereo headphones or a stereo
system.
Connections with a video monitor
When the video monitor has an 8-pin VTR connector
Video monitor
8-pin monitor cable (optional)
to VTR connector
12(E)

When
the
video
monitor
does
not
have
an
8-pin
VTR
connector
stereo)
(Audi
(Audio-monaural)
BNC cable
(optional)
to video
VMC-1S cable (optional) -
VMC-1S cable (optional)
to audio
RK-C74
cable
(optional)
omit
13(E)
Video monitor

HUE
Connections with a TV receiver (not having video and audio input connectors)
TV antenna
RF OUT system selector
RF OUT CHANNEL trimmer
75-ohm coaxial cable (optional)
to VTR to ANT
pi iS
TV receiver
(O} |)
Antenna selector L
(optional)
to
UHF
antenna
connector
75-ohm coaxial cable (optional)
The RF OUT system selector and RF OUT CHANNEL trimmer are factory-set at G and
36, respectively. To change the system and the channel, proceed as follows:
1 Set the RF OUT system selector to | or G according to your TV system.
2 Adjust the RF OUT CHANNEL trimmer to an unused channel (one of 30 to 39).
14(E)

Connections with a stereo system
to audio input
RK-C74 cable
(optional)
15(E)
to ground terminal
Stereo system
E
3

DELETED EDU
To insert the cassette
Be sure to take up any slack in the cassette tape before use.
POWER switch
EJECT button
1 Set the POWER switch ON.
2 Insert the cassette.
¢ To insert the small cassette, place
the cassette at the center of the
cassette compartment, aligning
with the marks on the
compartment window.
r
Ps if
|
16(E)
Small cassette
Large cassette
The tape is loaded automatically and the
drum starts rotating. The STOP indicator
lights up.
When a cassette is inserted, the orange
lock-out bar appears to prevent another
cassette from being inserted.
_

To eject the cassette
The tape is unthreaded and the cassette
Press
the
EJECT
button.
is
ejected.
17(E)
