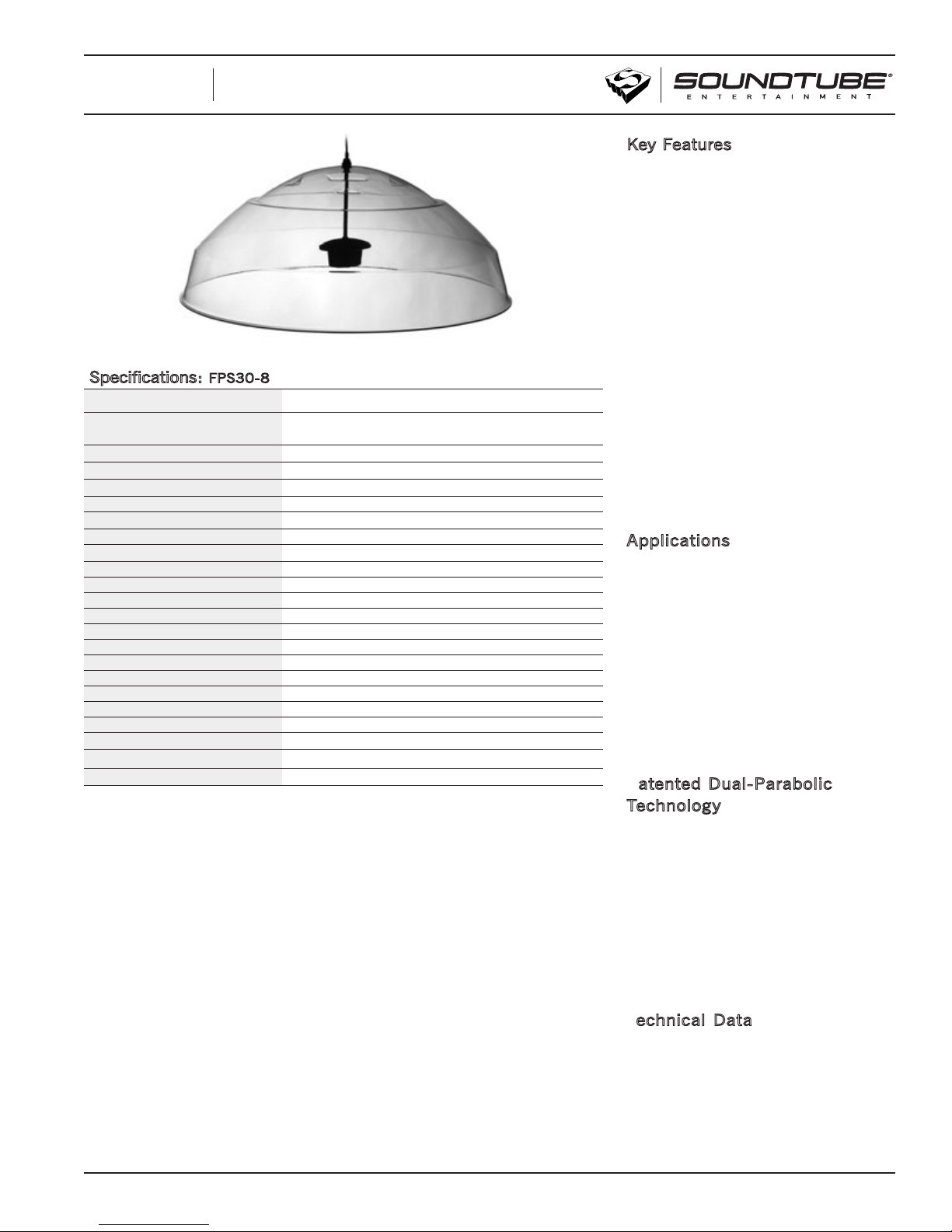

Sound Tube FPS30-8 User manual

© 2004 SoundTube Entertainment, Inc. All rights reserved. REV 07.20.04
Specifications: FPS30-8
System Type
2 x 50 mm (2.0 in) Stereo high-directivity focused
sound, voice coil/8 Ohm direct
Frequency Response (-3 dB)1260 Hz - 18.7 kHz
Frequency Response (-6 dB)1230 Hz - 20 kHz
Low Frequency (-10 dB)1200 Hz - 20 kHz
Max. Program Power 50 W
Max. Continuous Power RMS225 W
Max. SPL dB @ .5M 108 dB
Sensitivity dB @ 1W/0.5M390 dB
Impedance 8 Ohm (nominal value)
Coverage Angle (-6 dB) 34º @ 2 kHz
Directivity Factor (Q) 6.37 (100 Hz to 10 kHz averaged); 51.88 @ 2 kHz
Directivity Index (DI) 10.75 dB (100 Hz to 10 kHz averaged); 17.15 dB @ 2 kHz
Transducers 2 x 50 mm (2.0 in) Wide-range, fiber cone, rubber surround
Inputs 3 M (10.0 ft) Hardwire lead-4 conductor
Dome Material Custom molded PETG clear dome
Enclosure Material Molded Plastic ABS driver housing
Colors Clear, custom translucent & opaque colors available
Dome Diameter 781 mm (30.75 in)
Total Height 333 mm (13.1 in)
Weight 3.27 kG (7.2 lbs)
Accessories
Optional SoundSleeves™ & Wall Mount Bracket
Key Features
• Patented Dual-Parabolic™dispersion
control technology provides a dramatic
hot spot with crisp stereo separation.
• 781 mm (30.75 in) Custom-molded PETG
clear polymer dome.
• Twin 50 mm (2.0 in) drivers for stereo
music & messaging.
• Patented ZeroReflection™enclosure
technology for accurate sound repro-
duction.
• Narrow 34° coverage angle for sharp focus.
• Single point balanced mounting for
easier and cleaner-looking installs.
• Shipped fully assembled; bulk shipping
available upon customer request.
• Optional wall-mount bracket available.
• Custom colors and printed decorative
and promotional dome covers optional.
Applications
The SoundTube FPS30 incorporates twin
high-performance drivers with patented
Dual-Parabolic™sound dome technology to
deliver a targeted audio footprint for high-
definition music and messaging applica-
tions. Tight coverage, wide-range stereo
sound and true audio containment make
the FPS30 the ideal choice for focused-
audio applications, including kiosks, P.O.P.
displays, shows, plasma displays, or any-
where contained high-fidelity stereo sound
is required.
P
atented Dual-Parabolic™
Technolog y
SoundTube Entertainment is constantly
developing new technologies that enhance
audio product performance. SoundTube
Entertainment’s innovations are protected
by multiple U.S. & international patents,
which explicitly cover SoundTube dome,
enclosure and dispersion technologies.
SoundTube Entertainment actively defends
its patents in order to protect SoundTube
resellers and end users.
T
echnical Data
SoundTube Entertainment strives to pro-
vide complete and effective technical infor-
mation and data to dealers, engineers
and designers. All data are available
from SoundTube Entertainment, or at
www.soundtube.com.
FPS30
FPS30
Sound-Focusing Stereo Speaker
Technical Information for System Engineers
1
Frequency response is measured in full space.
2
Continuous power rating, EIA-426-B test.
3
2.83 Volts at a distance of 0.5 meters.
SoundTube continually develops new product innovations and improvements. Updates to existing
products without prior notice are an example of SoundTube’s drive for constant improvement.

Technical data and downloads include:
EASE™ data – 3-D polar plots
Tech Sheets – Technical information and
architectural specs for system engineers.
Data Acquisition
All performance data acquired at
SoundTube’s Technical Measurement
Center (TMC) are analyzed using a variety
of standard measurement techniques,
including Maximum Length Sequence
(MLS) and Time Delay Spectrometry (TDS).
Performance, development and data acqui-
sitions tools include: Gold Line TEF 20
Suite, CLIO, LMS, LEAP, and proprietary
modeling software.
Da
ta for Other SoundTube
Products
Also available: Sales & installation
information for all SoundTube speaker sys-
tems, including open-ceiling, in-ceiling, sur-
face-mount, in-ground and sound-focusing
speakers.
Frequency Response (unequalized)
Phase Response
Impedance Response
Frequency Response on-axis in full space (4π).
SPL, 1W, 1M (dB)
Frequency (Hz)
FPS30
FPS30
Sound-Focusing Stereo Speaker
Technical Information for System Engineers
Technical data, EASE
™
plots, SoundTubeSPEC
™
software & product downloads available at www.soundtube.com

Horizontal One Octave Polars
500 Hz250 Hz
1000 Hz
4000 Hz 8000 Hz
2000 Hz
FPS30
FPS30
Sound-Focusing Stereo Speaker
Technical Information for System Engineers
Technical data, EASE
™
plots, SoundTubeSPEC
™
software & product downloads available at www.soundtube.com

Mechanical Drawings Architectural Specifications
The loudspeaker shall consist of two 50
mm (2.0 in) transducers with a voice coil
diamter of 25 mm (1.0 in). Sound waves from
the transducers shall be reflected from a 781
mm (30.75 in) Dual-Parabolic™sound dome.
Performance specifications of a typical
production unit shall be as follows: Usable
frequency response shall extend from
200 Hz – 20 kHz. The loudspeaker shall
be available in 8 Ohm impedance mode.
Rated power capacity of the components
and network shall be at least 25 Watts RMS.
The dome shall be constructed of cus-
tom-molded PETG with an ABS driver
enclosure. The transducers shall have a
fiber cone with butyl rubber surround. The
grill shall be constructed of heat-resistant
ABS plastic material. The overall dome and
cabinet dimensions shall be no more than
781 mm (30.75 in) in diameter by 333 mm
(13.1 in) in height and weigh no more than
3.27 kG (7.2 lbs).
Installation for the FPS30 shall be
by single point hanging aircraft cable
(AC-HC20) with a 1/4 -20 stud into a
threaded insert on dome apex. Additional
accessories include Wall Mount Bracket
(AC-WB3) and Threaded Hanging Rod
(AC-TR36). Wall bracket is constructed of
cold rolled steel. The hardwired input
connectors shall be tinned, 24-gauge,
4-conductor, color-coded wires. Optional
decorative SoundSleeve™is available for
in-store marketing.
SoundTube Entertainment
6430 North Business Park Loop
Park City, Utah 84098
Phone [phone]
Fax [phone]
Toll Free 800.647.TUBE
www.soundtube.com
All SoundTube products come
with a 5-year limited warranty .
FPS30
FPS30
Sound-Focusing Stereo Speaker
Technical Information for System Engineers
781 mm (30.75 in)
333 mm (13.1 in)
(not shown)
AC-TR36 – Threaded Hanging Rod AC-FE1 – Forged Eyebolt
Optional Accessories
AC-HC20 20’ Hanging Cable
with SpeedClamp™
AC-CPSU Custom Printed SoundSleeve™
AC-WB3 Wall Mount Bracket
102.5 cm (40.38) in)
SoundTube Entertainment manufactures a complete line of speakers for:
Open-Ceiling • In-Ceiling • Surface-Mount • Outdoor • Sound-Focusing
All SoundTube products are designed and engineered in the USA.
