User Manual
Soundcore BeatLight B32

1
What's In The Box
16.4ft RGBIC Light Strips
x2
Control Box
x1
Adhesive Hooks
x10
Quick Start Guide
x1
Alcohol Prep Pads
x2
Quick
Start
Guide
Power Adapter
x1
Testing
• Spread through the light strips straight and power on to test whether they
light normally.
T Ensure to correctly connect the control box with the light strips.
1
2
3

2
Installing
1. Choose a dry, clean and smooth surface and wipe off the dust with
alcohol prep pads.
2. Tear off the adhesive tape and paste the light strips on the chosen surface
immediately.
T Avoid bending on the LED beads.
3. Press firmly to remove the air between the light strips and the surface.
4. Use the provided adhesive hooks to reinforce it if necessary.

3
5. Connect to the power adapter and then the power supply.
1
2
3
Control Box
• Press to switch to the next light
pattern.
• Press twice to switch to the
previous light pattern.
• Press to power on or off.
Microphone
Press to enter/exit
PartyCast mode.
Connecting
Connected
• Press and hold for 5 seconds to reset
the connection.
Pairing
5s
Solid white
Flashing white slowly

4

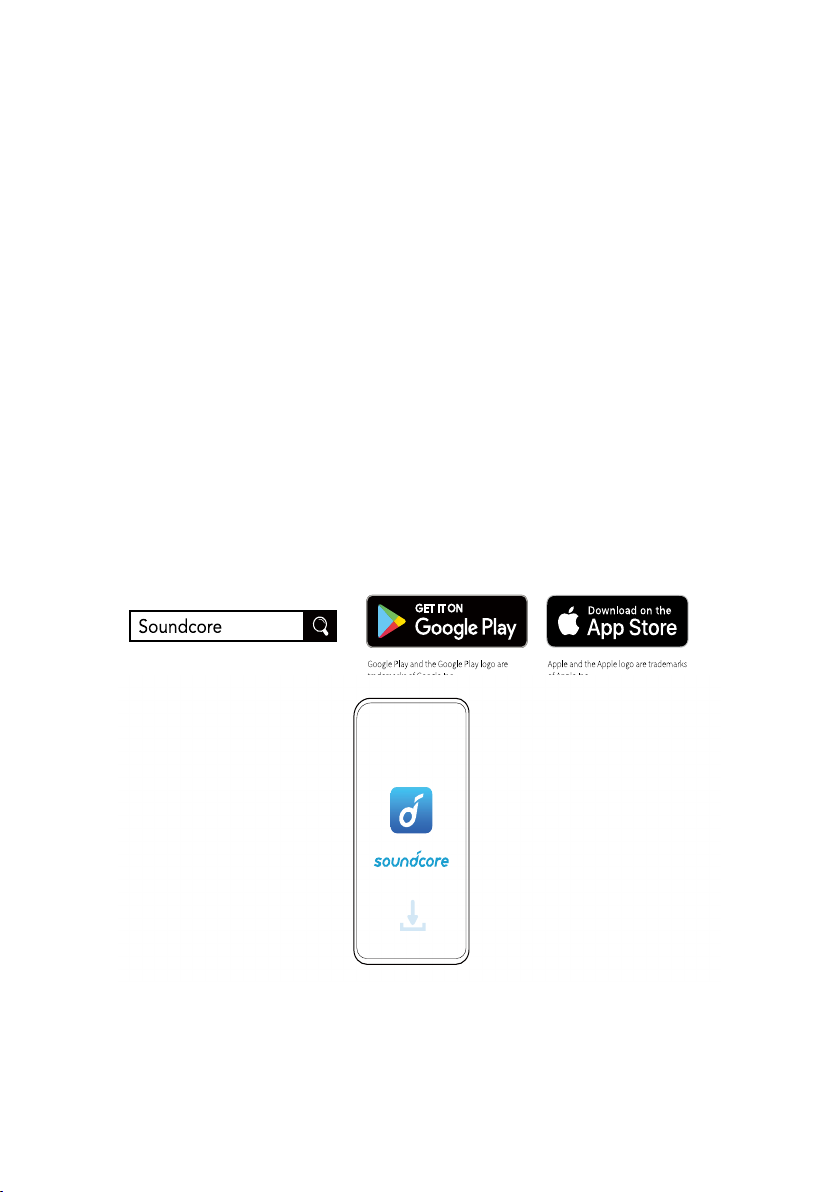

Soundcore APP
Download the Soundcore app to enhance your experience.
• Connect, manage, and disconnect the device.
• Check product information.
• Upgrade the firmware.
• Set the timer for the lights to automatically turn on and off.
• Adjust and manage light patterns.
• Adjust the basic light colors and paints.
• Customize unique light effects (Color/Speed/Direction/Brightness).
• Make your own playlist and each track can be accompanied by multiple
light effects.
• Switch voice pickup modes (Built-in microphone/PartyCast).
• Adjust voice pickup sensitivity (High/Medium/Low).
• Enter PartyCast mode to sync with your PartyCast speaker.

5
Voice Pickup Modes
There are two voice pickup modes you can select from the
Soundcore app.
• Microphone: the light will be synchronized with the ambient sounds or
music. You can also adjust the voice pickup sensitivity of the microphone.
• PartyCast: wirelessly connect with your PartyCast speaker and the light
will be synchronized with the music played by the speaker, without noise
interference.
Rhythm & Motion
The light strips come with multiple preset light patterns both in
the rhythm and motion categories.
• Rhythm (marked with musical
note): Automatically sync with
the musical rhythms and create
musical visual effects.
• Motion: Block the ambient
sounds and purely enhance
the atmosphere as a visual
decoration.

6
PartyCast
PartyCast enables the light strips to wirelessly connect with your
PartyCast speaker, the ambient sounds will be blocked and the
light effects will be synchronized with the music played.
1. Read carefully the user manual of your PartyCast speaker and complete
the Bluetooth connection with your smartphone or tablet.
2. Activate PartyCast pairing mode of the PartyCast speaker.
3. Press the PartyCast button on the control box to enter PartyCast pairing
mode. Alternatively, select "PartyCast" to connect from in the app.
21
PAIRING
>2s
3
x1 CONNECTING CONNECTED
PartyCast LED Light Strips Status
Flashing white
slowly
Flashing white and orange
alternately Connecting
Solid white Flashing white rapidly then
resuming the previous light pattern Connected
T
How to check whether the PartyCast connection is successful or not?
Pause the music, clap your hands, and check the light strips' response.
• If the light strips respond with light effects, this means they are not connected
with the PartyCast speaker, the voice pickup source is from the microphone.
• If no light effects happen, it means already connected.
Still having problems? Please contact our customer service team via
email: [email protected]

7
Specifications
Power adapter for US &
Canada: BI24G-120200-AdU
Input: 100-240V~50/60Hz, 0.8A
Output: 12V 2A
Power adapter for EU:
BI24GH-120200-AdV
Input: 200-240V~50/60Hz, 0.4A
Output: 12V 2A
Power adapter for UK(GB):
BI24GH-120200-AdB
Input: 200-240V~50/60Hz, 0.4A
Output: 12V 2A
Input 12V 2A
Power consumption 24W
Length 5m/16.4ft x2
Bluetooth range 100m (Nil interference)
Troubleshooting
The light strip doesn't work.
• Make sure to correctly connect the
control box to the light strip and the
power adapter.
Failed to connect this
device to the app.
• Make sure to turn on Bluetooth on your
smartphone or tablet.
• Turn the light strip off, then turn it on to
try again.
• Keep the light strip 1m/3.28ft or closer to
your smartphone.
Cannot sync with music or
sounds.
• Keep the music source closer to the
control box.
• Clean out the microphone on the control
box.
Some LED beads do not
light up.
• Please contact our customer service
team.

8
Important Safety Instructions
Read all the instructions before using the product, refer to the information
on the exterior bottom enclosure for electrical and safety information before
installing or operating the product.
1. Store the product in a cool and dry place.
2. Do not store the product in a hot or humid environment.
3. Keep out of the reach of children.
4. Do not touch the product for a long time when powered on.
5. Power off and unplug the adapter when not use for an extended period of
time.
6. Do not connect the rope light to the supply while it is in the packing or
wound onto a reel.
7. Do not use the rope light when covered or recessed into a surface.
8. Keep away from any sharp objects. Do not open or bend the rope light.
9. Use of a power supply or charger not recommended or sold by the
product manufacturer may result in a risk of fire or injury to persons.
10.Operating temperature should be between 0°C to 40°C.
11.Do not disassemble the product or make unauthorized alterations to
the product; doing so may compromise safety, regulatory compliance,
system performance, and may void the warranty.
12.Do not clean the product with harmful chemicals or detergents.
13.Misuse, dropping or excessive force may cause product damage.
14.Do not subject the product to mechanical shock, crushing, or cutting.
15.Do not short-circuit the product or be short-circuited by other metal
objects.
16.Do not use the product in excess of its output rating. Overload outputs
above rating may result in a risk of fire or injury to persons.
17.Do not use the product that is damaged or modified. It may exhibit
unpredictable behavior resulting in fire, explosion, or risk of injury.
18.Do not connect the chain to the supply while it is in the packaging.
19.Have servicing performed by a qualified repair person using only identical
replacement parts. Servicing is required when the apparatus has been

9
damaged in any way:such as power supply or cord is damaged; liquid has
been spilled or objects have fallen into the apparatus; the apparatus has
been exposed to rain or moisture, does not operate normally, or has been
dropped.
20.Do not install this equipment near any heat sources or in a confined or
building-in space such as a bookcase or similar unit, and remain in good
ventilation conditions at an open site.
21.Only suitable for safe use in areas below 2000m above sea level. Suitable
for safe use in tropical and non-tropical areas.
22.Protect the power supply or cord from being walked on or pinched,
particularly at plugs, convenience receptacles, and the point where they
exit from the apparatus. Unplug this apparatus during lightning storms or
when unused for long periods of time.
WARNING: Use only power supplies/attachments/accessories specified by
the manufacturer.
Use only adapters below by Dong Guan Royal Intelligent Co.,Ltd. according
to different area.
Model(s) for US & Canada：BI24G-120200-AdU
Model(s) for EU: BI24GH-120200-AdV
Model(s) for UK(GB): BI24GH-120200-AdB
This product complies with the radio interference
requirements of the European Community.
Declaration of Conformity
Hereby, Anker Innovations Limited declares that the product type A3561
is in compliance with Directives 2014/53/EU.The full text of the EU
declaration of conformity is available at the following internet address:
https://www.soundcore.com/products
Maximum output power: 11.63 dBm
Frequency band: 2.4G band (2.402GHz-2.480GHz)
The product is not under the Article 2 “Definitions” for ‘Light source’,
according to EU 2019/2020, because the x and/or y chromaticity
coordinates does not fall in the range of ‘Light source’.

10
This product complies with the radio interference
requirements of the United Kingdom.
GB Declaration of Conformity
Hereby, Anker Innovations Limited declares that the
product type A3561 is in compliance with Radio
Equipment Regulations 2017(RER 2017 (SI 2017/1206)).
The full text of the UK declaration of conformity is available
at the following
internet address: https://www.soundcore.com/products
The following importer is the responsible party (contact for EU and UK
matters)
ANKER TECHNOLOGY (UK) LTD
Suite B, Fairgate House, 205 Kings Road, Tyseley, Birmingham, B11 2AA,
United Kingdom
Anker Innovations Deutschland GmbH
Georg-Muche-Strasse 3, 80807 Munich, Germany
Indoor use only.
This symbol means the product must not be discarded as
household waste, and should be delivered to an appropriate
collection facility for recycling. Follow local rules and
never dispose of the product and rechargeable batteries
with normal household waste. Correct disposal of old
products and rechargeable batteries helps prevent negative
consequences for the environment and human health.
FCC Statement
NOTE: This equipment has been tested and found to comply with the limits
for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is

11
encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help
Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause
undesired operation.
RF Exposure Warning Statements:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment shall be installed and operated
with minimum distance 20cm between the radiator & body.
The following importer is the responsible party.
Company Name: Fantasia Trading LLC
Address: 5350 Ontario Mills Pkwy, Suite 100, Ontario, CA 91764
Telephone: [phone]
This device contains licence-exempt transmitter(s)/receiver(s) that comply
with Innovation, Science and Economic Development Canada’s licence-
exempt RSS(s). Operation is subject to the following two conditions: (1)
This device may not cause interference. (2) This device must accept any
interference, including interference that may cause undesired operation of
the device.
L’émetteur/récepteur exempt de licence contenu dans le présent appareil est
conforme aux CNR d’Innovation, Sciences et Développement économique
Canada applicables aux appareils radio exempts de licence. L’exploitation est
autorisée aux deux conditions suivantes :
(1) L' appareil ne doit pas produire de brouillage; (2) L' appareil doit accepter

12
tout brouillage radioélectrique subi, même si le brouillage est susceptible d'
en compromettre le fonctionnement.
Radio Frequency Exposure Statement for IC
This equipment complies with IC exposure limits set forth for an uncontrolled
environment. The device can be used in portable exposure conditions. This
equipment shall be installed and operated with minimum distance 20cm
between the radiator & body.
Cet équipement est conforme aux limites d'exposition IC établies pour un
environnement non contrôlé. L'appareil peut être utilisé dans des conditions
d'exposition portables. Cet équipement doit être installé et utilisé avec une
distance minimale de 20 cm entre le radiateur et le corps.
The Bluetooth® word mark and logos are registered trademarks owned
by the Bluetooth SIG, Inc. and any use of such marks by Anker Innovations
Limited. is under license. Other trademarks and trade names are those of
their respective owners.
*Additional Legal Rights for Consumers
For consumers, who are covered by consumer protection laws or regulations
in their country of purchase or, if different, their country of residence, the
benefits conferred by Soundcore's Limited Warranty are in addition to
all rights and remedies conveyed by such consumer protection laws and
regulations, including but not limited to these additional rights.
For FAQs and more information, please visit https://www.soundcore.com/
Anker Innovations Limited
Room 1318-19, Hollywood Plaza, 610 Nathan Road, Mongkok, Kowloon,
Hong Kong
