Safety Instructions
• Avoid dropping.
• Do not disassemble.
• Do not submerge in water.
• Avoid extreme temperatures.
• Do not use the device outdoors during thunderstorms.
• Use original or certified cables.
• Do not use any corrosive cleaner / oil to clean.
What’s Included
At a Glance
Central Volume Knob (For speaker
volume control)
Power Button / Power Indicator
Source Input Button / Source Input
Indicator
Bluetooth Button / Bluetooth
Indicator
Previous Track Button
Multi-function Button
Next Track Button
Light Eects Button / Light Eects
Indicator
Bass Up Button / Bass Up Indicator
MIC ECHO Volume Knob (For
microphone volume control)
AC Power Input
Reset Hole
Mic Input
Audio IN
Audio OUT
USB Port
Power IQ USB Port

03 04
EN EN
Using Your Soundcore Rave

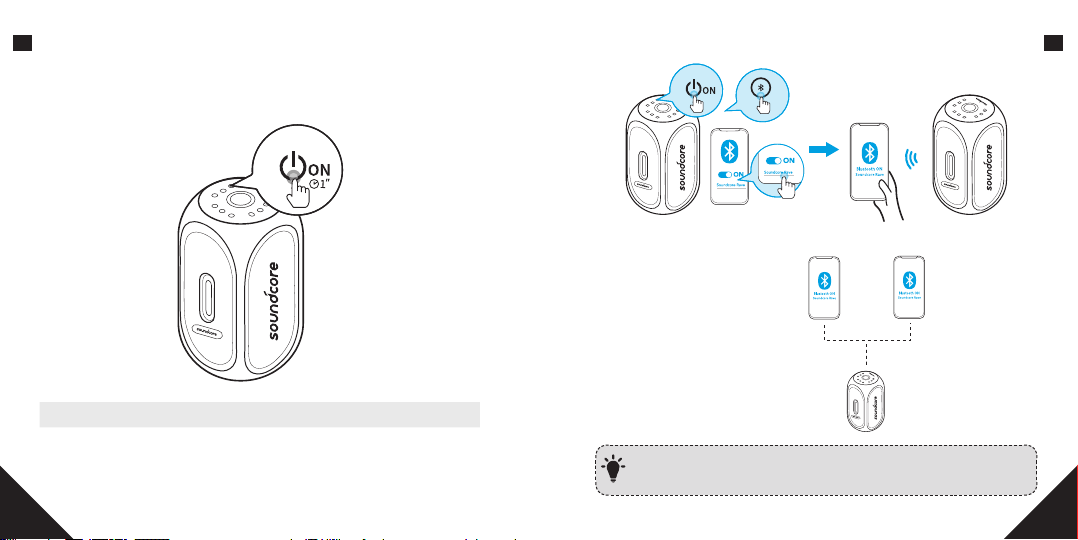

1. Turn On / O
ON Press and hold for 1 second
OFF Press and hold for more than 2 seconds
a. Bluetooth Mode
Soundcore Rave can pair up to 2 mobile devices via Bluetooth(Dual
Bluetooth Connection).
T

05 06
EN EN

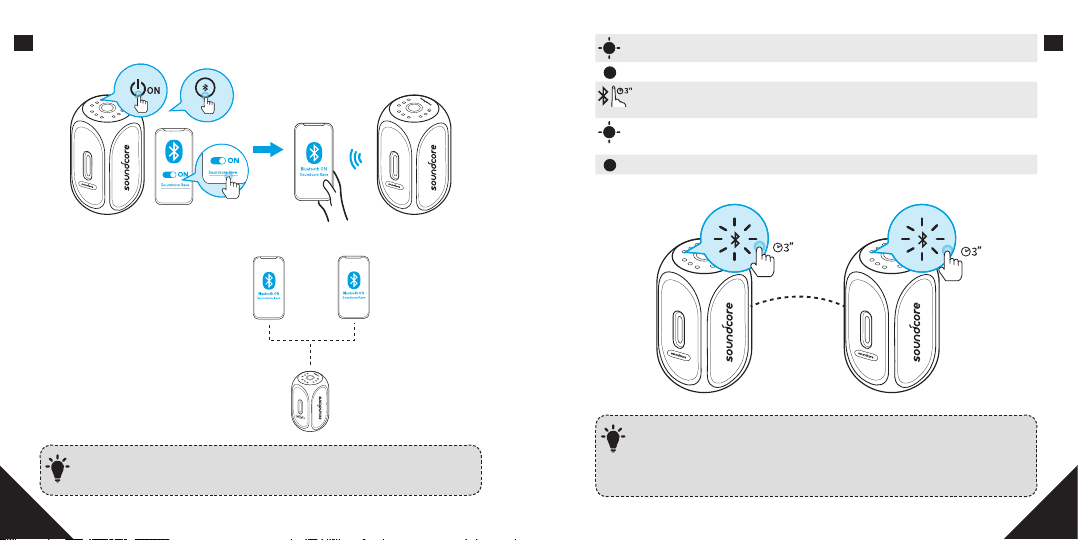

Flashing Blue Bluetooth Pairing Mode
Solid Blue Connected to a device

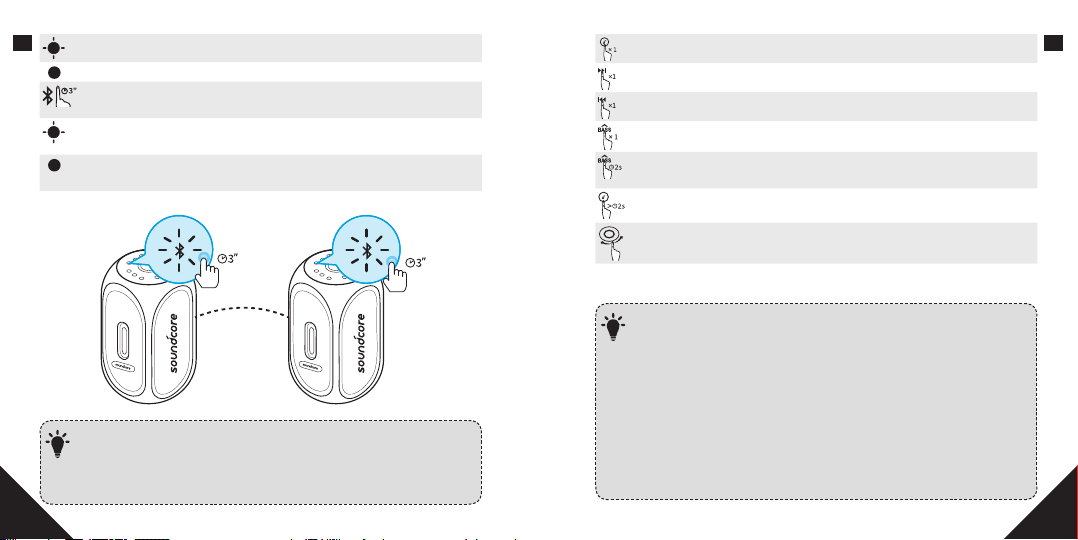

Enter True Wireless Stereo Group Mode / Disconnect True Wireless
Stereo
Double Flashing Blue True Wireless Stereo Group Mode
Solid Blue Connected to True Wireless Stereo
With True Wireless Stereo technology, you can pair your Soundcore
Rave with another Soundcore Rave to explore the best sound eects
with le and right sound channels separated on both speakers.
T
Play / Pause
Play Next Song
Play Previous Song
Press to turn Bass Up on and o
Press and hold for 2 seconds to switch between Indoor / Outdoor
modes.
Activate Siri / Other Voice Control Soware
Volume Up / Down
Check available Light Eects modes on Soundcore App.
When turned on, Soundcore Rave will automatically connect to the
last connected device if available. If not, press the Bluetooth pairing
button to activate pairing mode.
To pair a dierent device, press the Bluetooth button to re-enter
pairing mode. Then repeat the pairing steps.
Having connection problems? Remove Soundcore Rave from your
device’s Bluetooth history and ensure it’s less than 3 feet away. Then
try pairing again. To get the best sound quality, make sure there is a
clear line of sight between the connected device and your speaker.
T

07 08
EN EN
b. Source Input
Plug in an audio cable or insert USB drive, then press the source input button
to switch between AUX in mode and USB mode(support FAT32 / MP3 / WMA
formats).
Solid Green(Source input indicator) AUX in mode
Solid White(Source input indicator) USB mode
*SoundLine AUX cable sold separately.
When using AUX mode, control audio playback via the connected
device.
T
c. Connect Multiple Rave Speakers
Soundcore Rave can connect to other Soundcore Raves via RCA cables to form
a wired party chain.

09 10
EN EN
d. Microphone Connection
Connect the microphone to MIC IN port. You can adjust the microphone
volume by turning the MIC ECHO volume knob.
3. Charging your Soundcore Rave
Battery level <10%
Battery level <25%
Battery level 25%~55%
Battery level 51%~75%
Battery level 75%~100%
Slow Flashing White(Power indicator) Charging

11 12
EN EN
You can charge your mobile device through the Power IQ USB port on
Soundcore Rave.
Use the included AC power cable to charge your Soundcore Rave and
make sure it is fully charged before its first use.
Disconnect your speaker from the charger when fully charged. Do not
charge your speaker for extended periods.
T
4. Beat-Driven Light Show
Press to turn Light Eects On / O
Note: Flash can be turned o in Soundcore app individually.

13 14
EN EN
5. Soundcore App
Download the Soundcore app for an enhanced product experience. Follow
onscreen instructions to set up Soundcore app.
When not in use, store your speaker in a cool place.
T
Please note that your rights under applicable law governing the sale of
consumer goods remain unaected by the warranties given in this Limited
Warranty.
Specifications
Specifications are subject to change without notice.
T
Input: 100V-240V AC, 50/60Hz
Output: DC 5V, 2.4A(MAX)
Audio output: 160W
Battery capacity: max. 20000 mAh
Charging time: 4.0 hours
Playtime (varies by volume level and music content): 24 hours
Size: 255 x 245 x 505 mm
Weight (without packaging): 8.37 kg / 295.2 oz
Bluetooth version: V5.0
Bluetooth range: 20 m / 66 

DE DE
1615
EN
Soundcore App
- Light effect
- Update firmware
- Wave Equalizer
- Stereo or Boost mode
- Rename
- More
