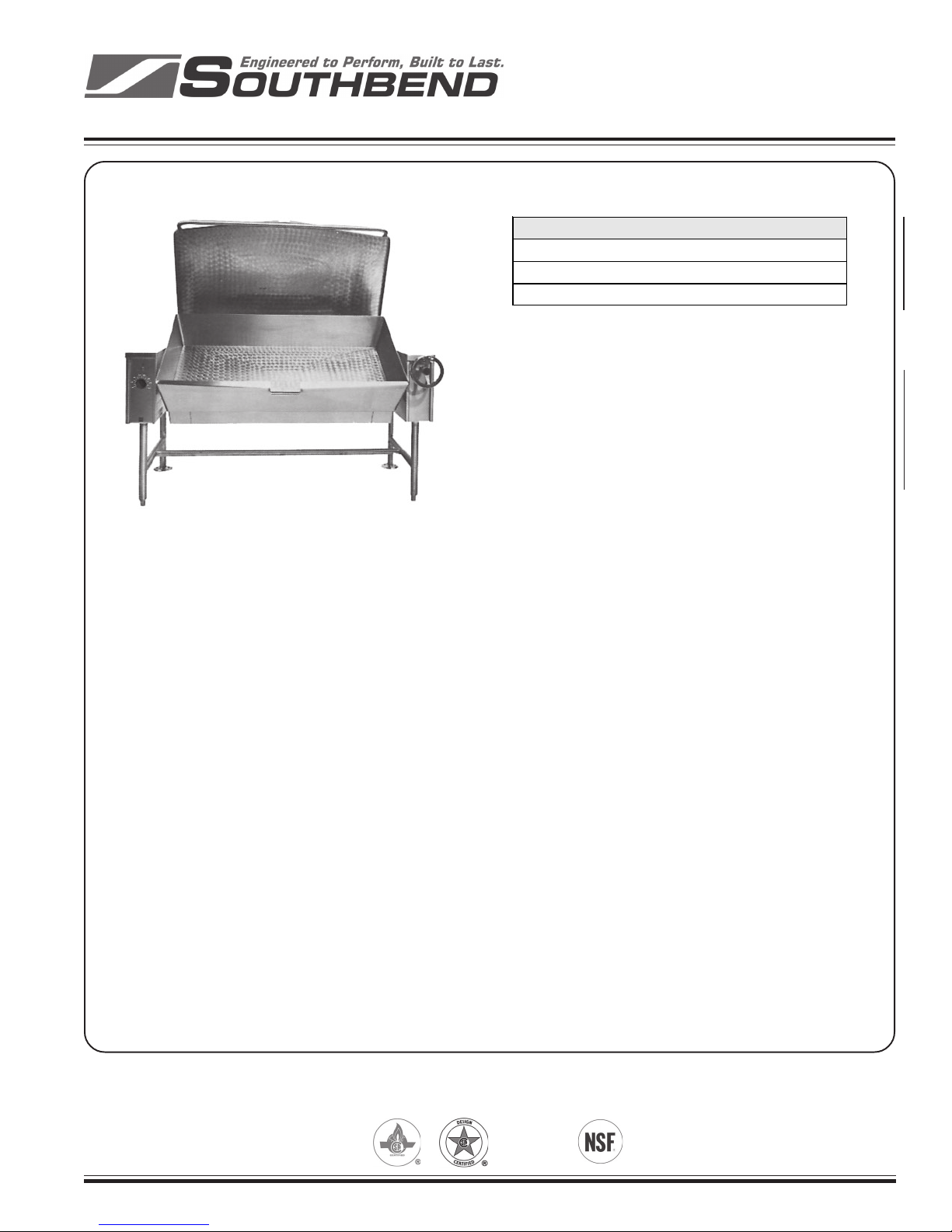

ELECTRIC TILTING SKILLET
Printed in USA
Form BECT Rev 0 (01/07)
MODEL CAPACITY
BECT-24 24 Gallon 91 Liter
BECT-30 30 Gallon 114 Liter
BECT-40 40 Gallon 152 Liter
SPECIFICATIONS:
Shall be a Model ___________________________________,
electrically heated tilting skillet, UL listed, CSA certified and
NSF approved. The skillet shall be of one piece coved corner,
10 gauge stainless steel with a #4 exterior finish and a polished
interior. The pan sides shall slope outward to facilitate access
to the cooking surface. Heating shall be accomplished by
electric elements cast embedded in a full 1-1/2" (38 mm) thick
aluminum casting bolted to the underside of the pan for even
heat distribution across the entire surface. Pan shall pivot on
side trunnions connected to the gear and control consoles.
The consoles shall be drip proof, stainless steel clad and shall
be supported by an all welded 1-5/8" (41 mm) stainless steel
pipe frame with front legs fitted with adjustable bullet feet and
rear legs fitted with flange adjustable feet for securing to the
floor. The worm and gear tilt mechanism shall allow the pan to
tilt forward manually for complete emptying of contents. The
controls shall be integrally mounted in the right hand console
and shall include a thermostat, power switch, pilot light and
contactors. As a safety feature the pan shall be equipped with
high limit thermostat to shut down operation should thermostat
fail.
Convenience features shall include a spring assist hinged
stainless steel cover with handle and no drip condensate guide,
and a removable pour strainer on the pour lip.
The skilled shall operate in a temperature range of 160°F to
450°F (71°C to 232°C).
OPERATION SHALL BE BY:
Electric heating elements equipped for operation on:
❑208 VAC, 3 phase, 50/60 Hz
❑240 VAC, 3 phase, 50/60 Hz
OPTIONAL ITEMS AT EXTRA COST:
❑380 VAC, 3 phase, 50/60 Hz
❑415 VAC, 3 phase, 50/60 Hz
❑480 VAC, 3 phase, 50/60 Hz
❑220/380 VAC, 1 phase, 50/60 Hz
❑240/415 VAC, 1 phase, 50/60 Hz
❑Vented stainless steel pan cover
❑2" (50 mm) draw-off valve
❑60 minute mechanical timer mounted on left console
ACCESSORIES:
❑Single pantry faucet with swing spout
❑Double pantry faucet with swing spout
❑Steam pan inset
❑Pan support

1100 Old Honeycutt Road, Fuquay-Varina, NC 27526
[phone] www.southbendnc.com
Models:
www.yatesgd.com www.yatesgraphicdesign.com
 BECT-24  BECT-30  BECT-40
INTENDED FOR COMMERCIAL USE ONLY.
NOT FOR HOUSEHOLD USE.
Form BECT Rev 0 (01/07)
MODEL CAPACITY UNITS A B C D E F G
BECT-24 24 Gallons
(91 liters)
inches
(mm)
50.5"
(1283)
33.75"
(857)
23.125"
(587)
43.625"
(1108)
7"
(178)
11"
(279)
66"
(1676)
BECT-30 30 Gallons
(114 liters)
inches
(mm)
50.5"
(1283)
33.75"
(857)
23.125"
(587)
43.625"
(1108)
8.75"
(222)
11"
(279)
66"
(1676)
BECT-40 40 Gallons
(152 liters)
inches
(mm)
66.5"
(1689)
49.5"
(1257)
24"
(610)
59.5"
(1511)
8.75"
(222)
11"
(279)
67"
(1702)
MODEL PH
208V 220V 240V 380V 415V 480V
KW AMP KW AMP KW AMP KW AMP KW AMP KW AMP
BECT-24
BECT-30 3 18 50.0 18 45.2 18 43.3 18 27.3 18 25.0 18 21.6
BECT-40 3 27 75.0 27 67.8 27 65.0 27 41.0 27 37.6 27 32.5
SERVICE CONNCETIONS
– ELECTRICAL CONNECTION: As specified by dataplate
ELECTRICAL CHARACTERISTICS
DIMENSIONS
