Southbend SB1063 User manual

OWNER'S MANUAL
Copyright © August, 2020 For Machines Mfd. Since 5/19
12" X 58" CNC KNEE MILL
MODEL SB1063

Customer Service
We stand behind our machines. If you have any service questions, parts requests or general questions
about the machine, feel free to contact us.
South Bend Lathe Co.
P.O. Box 2027
Bellingham, WA 98227
Phone: [phone]
Parts Department: [phone]
Fax: [phone] (International)
Fax: [phone] (USA Only)
Email: [email protected]
Updates
For your convenience, any updates to this manual will be available to download free of charge
through our website at:
www.southbendlathe.com
Scope of Manual
This manual helps the reader understand the machine, how to prepare it for operation, how to control
it during operation, and how to keep it in good working condition. We assume the reader has a basic
understanding of how to operate this type of machine,
and that the reader is experienced with using
CNC controls and commands
. As with all machinery of this nature, learning the nuances of operation
is a process that happens through training and experience. If you are not an experienced operator of
this type of machinery, read through this entire manual, then learn more from an experienced
operator, schooling, or research before attempting operations. Following this advice will help you
avoid serious machine damage, personal injury,and get the best results from your work.
Manual Feedback
We've made every effort to be accurate when documenting this machine. However, errors sometimes
happen or the machine design changes after the documentation process—so
the manual may not
exactly match your machine.
If a difference between the manual and machine leaves you in doubt,
contact our
customer service for clarification.
We highly value customer feedback on our manuals. If you have a moment, please share your
experience using this manual. What did you like about it? Is there anything you would change to
make it better? Did it meet your expectations for clarity, professionalism, and ease-of-use?
South Bend Lathe, Inc.
C
/O Technical Documentation Manager
P.O. Box 2027
Bellingham, WA 98227
Email: [email protected]

Table of Contents
INTRODUCTION...............................................................2
About This Machine............................................. 2
Full View Identification (Left)............................. 3
Full View Identification (Right) ..........................4
Controls Identification (Left)............................... 5
Controls Identification (Right) ............................6
Control Panel Close-Up Identification................ 7
Controls & Components.......................................8
Product Specifications ....................................... 11
SAFETY............................................................................. 14
Understanding Risks of Machinery ..................14
Basic Machine Safety ........................................14
Additional Milling Machine Safety................... 16
PREPARATION .............................................................. 18
Preparation Overview........................................ 17
Required for Setup.............................................17
Unpacking ..........................................................18
Inventory ............................................................18
Cleaning & Protecting ....................................... 19
Location ..............................................................20
Lifting & Moving................................................ 21
Leveling & Mounting.........................................22
Assembly ............................................................22
Power Requirements.......................................... 23
Power Connection ..............................................23
Air Connection ...................................................23
Test Run .............................................................24
Inspections & Adjustments ............................... 26
Spindle Break-In................................................26
OPERATION.................................................................... 27
Operation Overview...........................................27
Table Movement.................................................28
Headstock Movement ........................................29
Ram Movement ..................................................31
Downfeed Control ..............................................32
Spindle Brake..................................................... 32
Changing Tooling............................................... 33
MAINTENANCE ............................................................. 34
Maintenance Schedule....................................... 34
Cleaning .............................................................36
Lubrication......................................................... 36
Coolant Reservoir...............................................41
Machine Storage ................................................43
SERVICE...........................................................................44
Adjusting Gibs....................................................44
Adjusting X-, Y-, and Z- Ballscrew Backlash ...45
Main Belt Tensioning ........................................45
Servo Motor Belt Replacement .........................45
TROUBLESHOOTING.................................................48
ELECTRICAL...................................................................50
Electrical Safety Instructions ...........................50
Wiring Overview ................................................51
Wiring Visual Index........................................... 52
Control Panel Switch Wiring ............................ 52
General Component Wiring ..............................53
Electrical Schematics.........................................62
PARTS ..............................................................................86
Headstock........................................................... 86
Quill & Spindle Feed ......................................... 89
Gearbox ..............................................................91
Belt Housing.......................................................93
Ram..................................................................... 95
Column, Knee, & Saddle ................................... 97
Table ...................................................................99
Lubrication System.......................................... 100
Coolant System ................................................101
Main Electrical Box ......................................... 102
Electrical Control Box (Internal) ....................103
Electrical Control Box (External) ...................104
Accessories .......................................................106
Machine Labels (Left)......................................107
Machine Labels (Right) ................................... 108
WARRANTY................................................................... 109

-2-
For Machines Mfd. Since 5/19
Model SB1063 INTRODUCTION
About This Machine
Capabilities
This Milling Machine is built for any industrial
setting, tool room, or school shop and is built
for many years of service. Large workpieces
can be supported and is perfect for face milling,
end milling, planing, slot or keyway cutting,
dovetailing, routing, drilling, reaming, and
boring to name a few. With the movable ram and
tilting head, all these tasks can be performed on
horizontal, vertical, and angled surfaces.
Foreword
"Most boys should learn a trade in order that
they may become skilled workmen. The trained
workman is always in demand...When a boy has
learned a trade, becomes a skilled mechanic,
he has excellent equipment with which to begin
life's battle, but he need not stop there. George
Westinghouse, the Wright Brothers, Henry Ford,
and the Studebaker Brothers were mechanics,
and it was their mechanical training that
made their success possible." —Machine Shop
Equipment, 2nd Ed., 1920, by the O'Brien
Brothers, founders of South Bend Lathe.
The first South Bend milling machine debuted in
the 1950's. During that time, the milling machine
and the already well-established South Bend
lathes created the foundation of many tool rooms
and school shops across America and beyond
her borders. Many young people in those days
came of age on South Bend equipment, becoming
world-class machinists, mechanical engineers,
inventors, and manufacturing visionaries.
A lot has changed in the world since then. Those
same school shops have mostly been replaced
by computer labs. The technology in the rotary
dial phone, television set, mechanical calculator,
computer, and camera of that decade could
barely fit into one large room together—now
they fit into a tiny box that is no bigger than a
box of breath mints. And the average production
machinist spends more time at a computer than
at a machine. Technology has been much refined
and the world operates on a much faster pace.
But some things haven't changed. The same
human ingenuity and passion that created the
best mechanical technology of today still exists
within us. The core machines of the modern shop,
like this South Bend milling machine, are still
fundamentally important.
When you think about it, the greatest mechanical
technology of the future will be what we create
today. As the owner of a South Bend milling
machine, you are now part of a great legacy.
What will you create with yours?
Features
This CNC milling machine features 3-axis
table movement with built-in X-, Y-, and Z-axis
servo motors. It is constructed with high-grade
Meehanite castings, and the saddle and knee
ways are Turcite coated and built with wide
square ways for maximum support and accuracy
throughout the full range of movement.
To ensure quality work results, we have
equipped this mill with premium spindle
bearings that are rated to extreme tolerances.
The spindle taper is NT40 and has servo motor
downfeed with a variable feed rate between
0-0.98 FPM and spindle travel of 3.5".
The machine uses a Delta VFD-B inverter with
a 5HP induction motor to provide true variable
spindle speed from 50-5000 RPM.
The headstock is mounted on a wide dovetail
movable ram with 20" of travel on the column
and 320° rotating capability. The headstock itself
can swivel 90° left/right or 45° forward/back so it
can be positioned for nearly any setup needed.
To reduce the time spent doing daily lubrication,
this milling machine is outfitted with an
electronic lubrication system that automatically
lubricates the most critical areas.
A quality Fagor 8055i control panel with
excellent electrical components and attention to
detail give dependable CNC milling operations.
Last but not least, this milling machine includes
a circulating coolant system with the pump and
reservoir in the column base.

For Machines Mfd. Since 5/19 Model SB1063
-3-
INTRODUCTION
Figure 1. Left side machine view.
Control Box
Support Arm
Catch Pan
Master
Control Box
Work Lamp
Z-Axis
Motor
Assembly
Automatic
Oiler
Coolant Hose
w/Flow Lever
Sliding
and
Rotating
Ram
Front Way
Cover
Y-Axis Handwheel
Z-Axis Handcrank
Z-Axis Ballscrew Housing
Coolant Return Drain Screen
Spindle Feed Motor
and Stop Assembly
Z-Axis Knee
Lock
Y-Axis Table
Lock
X-Axis Table
Lock
Full View Identification (Left)

-4-
For Machines Mfd. Since 5/19
Model SB1063 INTRODUCTION
Coolant Tank with Rear Drain Plug
and Pump Motor Access Plate

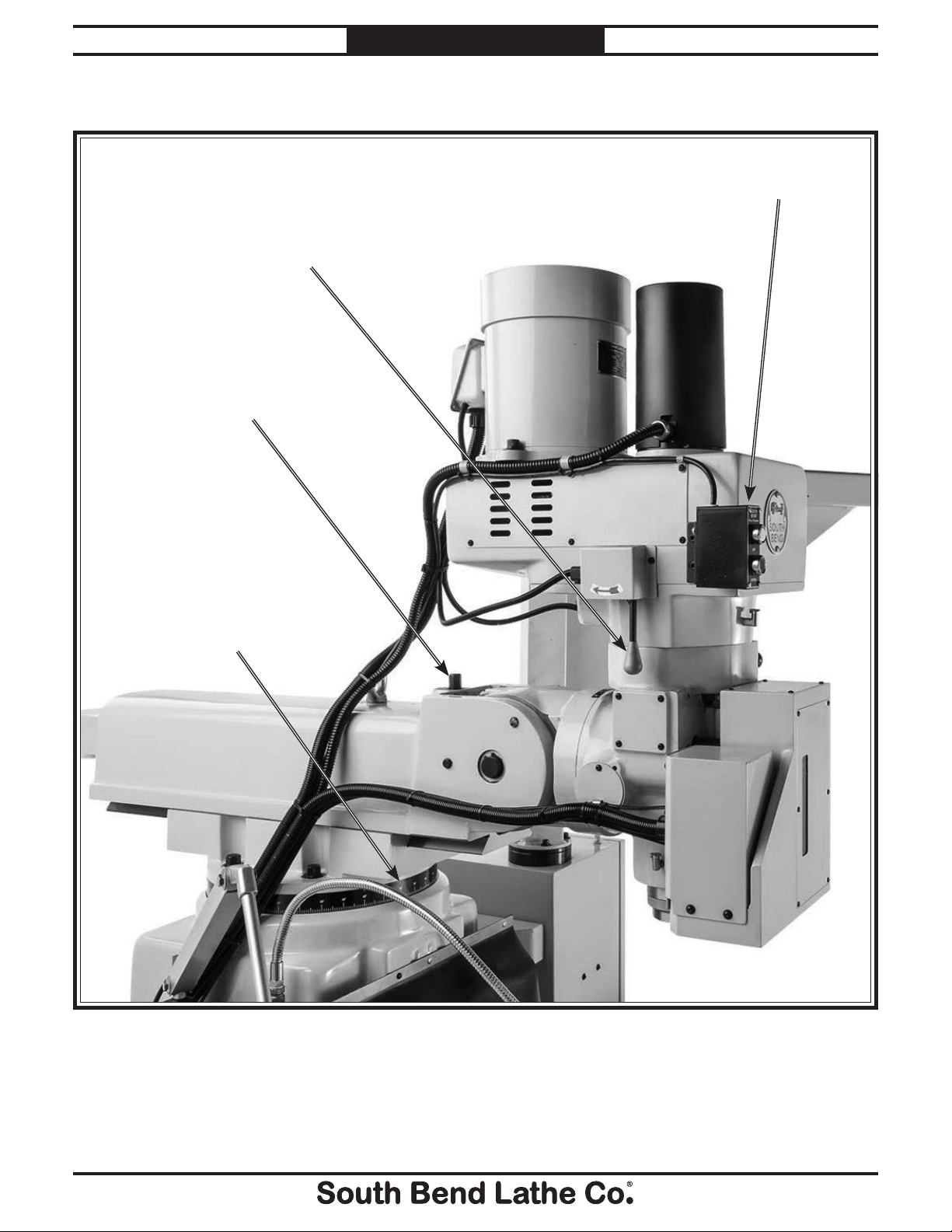

Figure 2. Right side machine view.
X-Axis
Motor Assembly
Knee
Assembly X- & Y- Table Travel
Limit Switch System
Full View Identification (Right)
Y-Axis
Assembly
Electrical
Cabinet
Power
Drawbar
Air Motor Spindle
Motor
Spindle Drive
Belt Access
Cover
Coolant
Return Hose
Headstock
Assembly
Rear Way Cover
Machine Status
Indicator Lights
Handheld
Controller
Z-Axis Table
Travel Limit
Switch
X-Axis Handwheel
Ram Slide
Jack Bolt
Dial Indicator
Mounting Rod
Red
Yellow
Green
Computer
Interface
Connection

For Machines Mfd. Since 5/19 Model SB1063
-5-
INTRODUCTION
Controls Identification (Left)

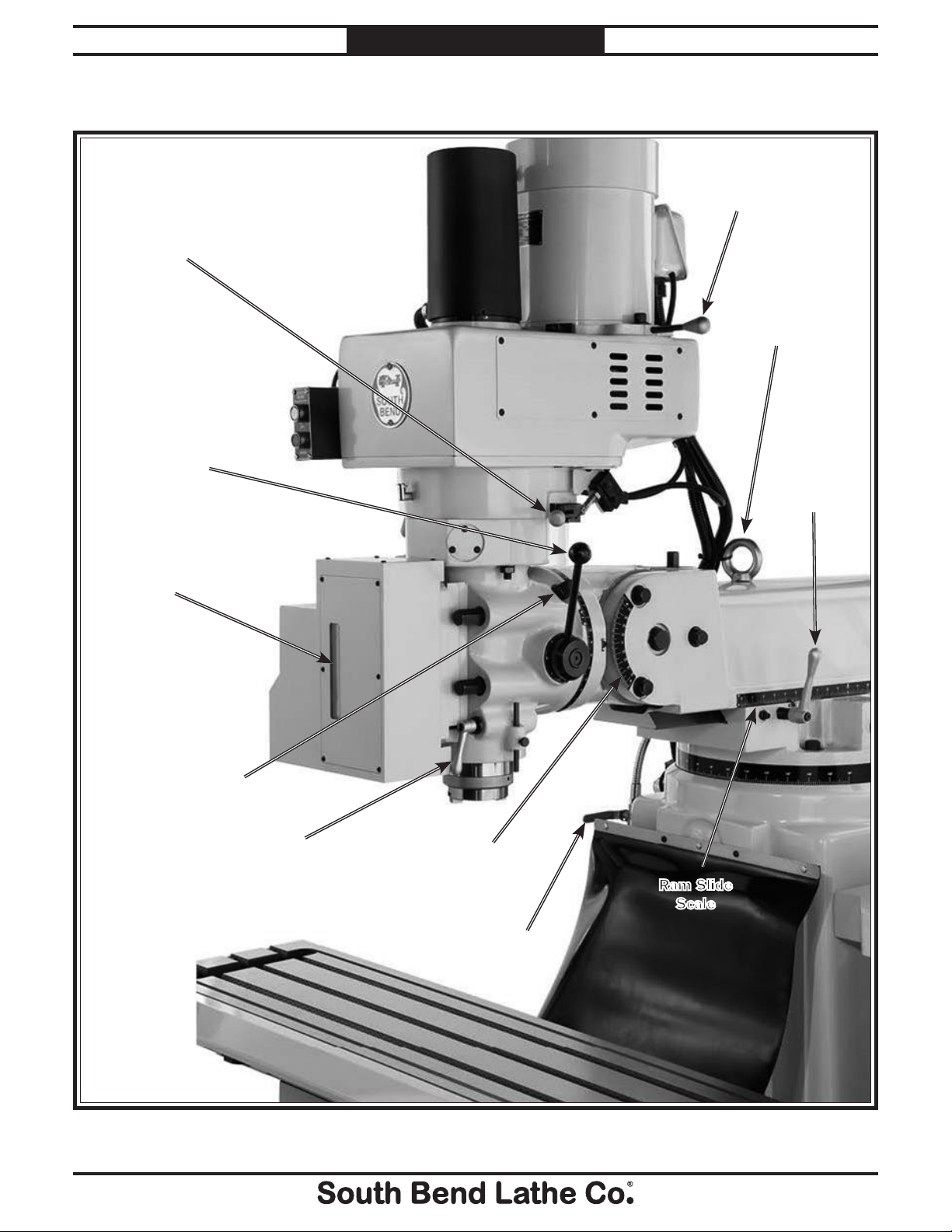

Figure 3. Left side controls.
Headstock
Tilt Bolt
Power Drawbar Electric
Over Air Controls
Spindle
Brake Lever
Ram Rotation
Scale

-6-
For Machines Mfd. Since 5/19
Model SB1063 INTRODUCTION
Controls Identification (Right)
Figure 4. Right side controls.
Rotation
Tilt Bolt
Downfeed
Scale
Removable
Spindle
Downfeed
Lever
Spindle
Speed Range
Selector
Quill Lock
Lever
Coolant Flow
Control Lever
Belt Tension
Adjustment
Lever
Machine
Lifting Eye
Ram Slide
Scale
Ram Slide
Lock Lever
Headstock
Tilt Scale

For Machines Mfd. Since 5/19 Model SB1063
-7-
INTRODUCTION
Control Panel Close-Up Identification
Serious personal injury could occur if
you connect the machine to power before
completing the setup process. DO NOT
connect power until instructed to do so later
in this manual.
Untrained users have an increased risk
of seriously injuring themselves with this
machine. Do not operate this machine until
you have understood this entire manual and
received proper training.
A

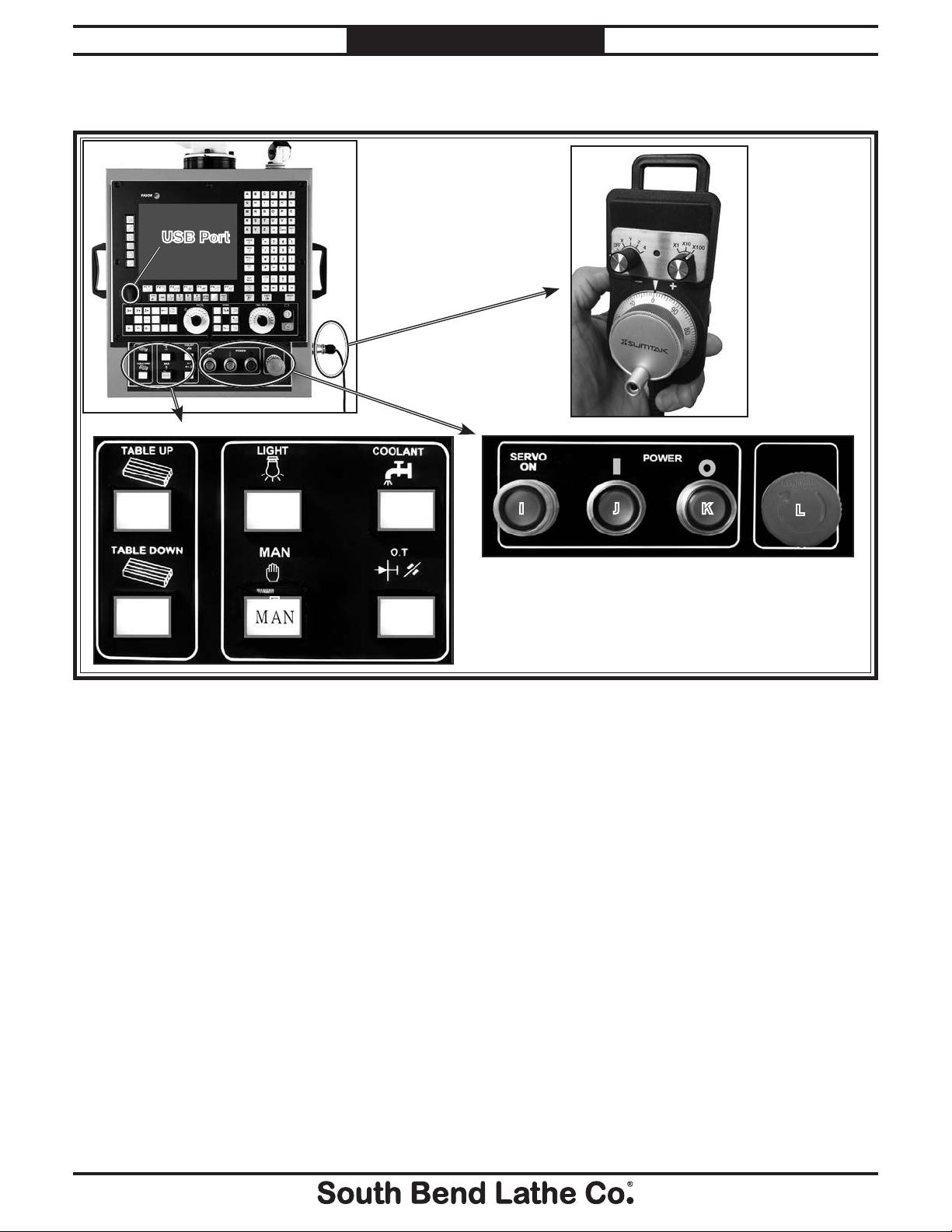

Figure 5. Control panel close-up details.
A
For Training and CNC
Operations, Refer to
Included CD Fagor
Manuals

-8-
For Machines Mfd. Since 5/19
Model SB1063 INTRODUCTION
Controls & Components
Controls & Components
These controls are largely independent of the
CNC interface and most will be used in Machine
Start-Up testing without using CNC programs.
Refer to Fagor CD Manuals for CNC testing.
A. Control Panel: This is the master location
for entering CNC commands and serves as
user interface with machine during milling
operation.
B. TABLE UP Button: Moves work table up until
upper limit switch is tripped.
C. TABLE DOWN Button: Moves work table
down until lower limit switch is tripped.
D. LIGHT Button: Toggles work light ON/OFF.
E. MAN (DRO) Button: Shuts down all servo-
driver power and releases the spindle
and quill lock so you can use the spindle
downfeed lever.
F. COOLANT Button: Toggles coolant pump
ON/OFF.
G. O.T REL Button: If axis over travel trips
limit switch, alarm message displays and all
axis motors stop. The O.T REL button resets
motors to resume operations.
Note: Pressing ESC clears alarm, and
pressing Servo On initalizes jog mode for
table to be moved back into the safe area.
H. Handheld Controller: Attached to the control
box, it controls manual feed of X-, Y-, and
Z-axes and has speed multiplying dial
functions.
JI
H
G
B
C
D
E
F
A
Figure 6. Control panel close-up details.
KL
USB Port

For Machines Mfd. Since 5/19 Model SB1063
-9-
INTRODUCTION
Figure 7. Controls and components.
ST
Red
Yellow
Green
Q
NOM
P
R

-10-
For Machines Mfd. Since 5/19
Model SB1063 INTRODUCTION
I. Servo ON Button: Takes machine table axis
out of Manual Mode and puts machine back
into CNC Mode for electronic control of servo
motors.
J. Power OFF (O) Button: Powers OFF all
items.
K. Power ON (I) Button: Powers ON all items.
L. EMERGENCY STOP Button: Stops all motors
on machine immediately.
M. Power Drawbar Controls:
The UP button threads drawbar into the
tooling and seats the tooling with spindle.
The DOWN button unthreads drawbar from
tooling and unseats tooling from spindle for
removal.
N. Drawbar Motor Air and Lubrication System:
This is a two-part electric over air control
system. Up/Down buttons open and close
air valve to supply regulated filtered air to
drawbar motor. The oiler also adds a drop
of oil to the air every time the button is
pressed.
Note:The oil is for the drawbar motor only
and does not reach the tooling arbors. Arbor
and spindle mating surfaces must still be
maintained by you.
O. Automatic Electronic Lubricator:
Automatically lubricates machine on timed
basis. Manual Override button will lubricate
on command.
Note: Lubrication volume and frequency can
be set manually by referring to the list of
locations in the Maintenance Section of this
manual and the oiler instructions.
P. Control Box Interface: When the waterproof
cover is opened, revealed is the:
• CAT-5 Port
• IEEE 1284 DB25 25-Pin Parallel Port
Q. Machine Status Indicator Light: When
illuminated, a red, yellow, or green light
indicates the operation mode of the machine.
Refer to the Fagor Manual for all the various
modes of operation indicated.
R. Master Electrical Safety Switch:
This switch toggles power to all machine
systems and most electronic components
in electrical box. However, when switched
to OFF, the input side is still live, so for all
electrical work, this machine must still be
disconnected from power first.
S. Work Lamp ON/OFF Switch: When switch is
in ON position; work light can be turned ON
and OFF at control panel.
T. VFD Controller: This control is only used
for initial VFD setup at the factory and
troubleshooting by authorized and trained
technicians. The machine operator will never
need to use this control and, tampering with
VFD settings can void warranty.

For Machines Mfd. Since 5/19 Model SB1063
-11-
INTRODUCTION
Model SB1063 Page 1 of 3
Model SB1063
12" x 58" CNC Knee Mill
Product Dimensions
Weight........................................................................................................................................................... 3814 lbs.
Width (side-to-side) x Depth (front-to-back) x Height..................................................... 124 x 105-1/2 x 93-1/2 in.
Footprint (Length x Width)....................................................................................................................... 47 x 38 in.
Shipping Dimensions
Type.......................................................................................................................................................... Wood Crate
Content.......................................................................................................................................................... Machine
Weight........................................................................................................................................................... 4015 lbs.
Length x Width x Height............................................................................................................... 106 x 79 x 100 in.
Must Ship Upright................................................................................................................................................ Yes
Electrical
Power Requirement................................................................................................................. 220V, 3-Phase, 60 Hz
Full-Load Current Rating.................................................................................................................................... 25A
Minimum Circuit Size.......................................................................................................................................... 30A
Connection Type...................................................................................... Permanent (Hardwire to Shutoff Switch)
Switch Type....................................................................................... Control Panel w/Magnetic Switch Protection
Inverter (VFD) Type.............................................................................................................................. Delta VFD-B
Inverter (VFD) Size............................................................................................................................................ 5 HP
Motors
Spindle
Horsepower............................................................................................................................................... 5 HP
Phase.................................................................................................................................................... 3-Phase
Amps........................................................................................................................................................... 14A
Speed................................................................................................................................................ 1730 RPM
Type................................................................................................................................................... Induction
Power Transfer ................................................................................................................................ Belt Drive
Bearings........................................................................................................ Shielded & Permanently Sealed
Coolant Pump
Horsepower............................................................................................................................................ 1/8 HP
Phase.................................................................................................................................................... 3-Phase
Amps........................................................................................................................................................ 0.38A
Speed................................................................................................................................................ 3450 RPM
Type................................................................................................................................................... Induction
Power Transfer ............................................................................................................................ Direct Drive
Bearings........................................................................................................ Shielded & Permanently Sealed

-12-
For Machines Mfd. Since 5/19
Model SB1063 INTRODUCTION
Model SB1063 Page 2 of 3
X-Axis Feed
Horsepower............................................................................................................................................... 1 HP
Phase.................................................................................................................................................... 3-Phase
Amps.......................................................................................................................................................... 5.1A
Speed................................................................................................................................................ 3000 RPM
Type.......................................................................................................................................................... Servo
Power Transfer ................................................................................................................................ Belt Drive
Bearings........................................................................................................ Shielded & Permanently Sealed
Y-Axis Feed
Horsepower............................................................................................................................................... 1 HP
Phase.................................................................................................................................................... 3-Phase
Amps.......................................................................................................................................................... 5.1A
Speed................................................................................................................................................ 3000 RPM
Type.......................................................................................................................................................... Servo
Power Transfer ................................................................................................................................ Belt Drive
Bearings........................................................................................................ Shielded & Permanently Sealed
Z-Axis Feed
Horsepower............................................................................................................................................ 1/2 HP
Phase.................................................................................................................................................... 3-Phase
Amps.......................................................................................................................................................... 2.6A
Speed................................................................................................................................................ 3000 RPM
Type.......................................................................................................................................................... Servo
Power Transfer ................................................................................................................................ Belt Drive
Bearings........................................................................................................ Shielded & Permanently Sealed
Main Specifications
Operation Info
Spindle Travel......................................................................................................................................... 3.5 in.
Max Distance Spindle to Column........................................................................................................... 27 in.
Max Distance Spindle to Table............................................................................................................... 19 in.
Longitudinal Table Travel (X-Axis)........................................................................................................ 32 in.
Cross Table Travel (Y-Axis)................................................................................................................. 15.7 in.
Vertical Table Travel (Z-Axis).............................................................................................................. 16.5 in.
Ram Travel............................................................................................................................................... 20 in.
Turret or Column Swivel (Left /Right)............................................................................................... 320 deg.
Head Tilt (Left/Right)........................................................................................................................... 90 deg.
Head Tilt (Front/Back).......................................................................................................................... 45 deg.
Drilling Capacity for Cast Iron................................................................................................................. 1 in.
Drilling Capacity for Steel.................................................................................................................. 15/16 in.
Tapping Capacity.................................................................................................................................... 3/4 in.
End Milling Capacity.............................................................................................................................. 3/4 in.
Face Milling Capacity...................................................................................................................... 3-15/16 in.
Table Info
Table Length............................................................................................................................................ 58 in.
Table Width....................................................................................................................................... 12-1/2 in.
Table Thickness................................................................................................................................... 3-3/8 in.
Table Weight Capacity......................................................................................................................... 660 lbs.
Number of T-Slots........................................................................................................................................... 3
T-Slot Size............................................................................................................................................... 5/8 in.
T-Slots Centers.................................................................................................................................... 3-1/4 in.
Number of Longitudinal Feeds............................................................................................... Variable Speed
X-Axis Table Power Feed Rate............................................................................................................ 16 FPM
Y-Axis Table Power Feed Rate............................................................................................................ 16 FPM

For Machines Mfd. Since 5/19 Model SB1063
-13-
INTRODUCTION
Model SB1063 Page 3 of 3
Spindle Info
Spindle Taper........................................................................................................................................... NT40
Number of Vertical Spindle Speeds........................................................................................ Variable Speed
Range of Vertical Spindle Speeds............................................................................................ 50 - 5000 RPM
Quill Diameter..................................................................................................................................... 4-1/8 in.
Quill Feed Rates.......................................................................................................... Variable: 0 - 0.98 FPM
Drawbar Thread Size.............................................................................................................................. 5/8-11
Drawbar Length.............................................................................................................................. 25-9/16 in.
Spindle Bearings...................................................................................................... Angular Contact - 7210A
Construction
Spindle Housing/Quill....................................................................................................................... Cast Iron
Table.................................................................................................................... Precision-Ground Cast Iron
Head................................................................................................................................................... Cast Iron
Column/Base...................................................................................................................................... Cast Iron
Base.................................................................................................................................................... Cast Iron
Stand.................................................................................................................................................. Cast Iron
Paint Type/Finish................................................................................................................................. Enamel
Other
Country of Origin ........................................................................................................................................... Taiwan
Warranty ......................................................................................................................................................... 1 Year
Approximate Assembly & Setup Time .......................................................................................................... 1 Hour
Serial Number Location ............................................................................................................... Machine ID Label
ISO 9001 Factory ................................................................................................................................................... No
Features
3-Axis Servo Driven
Fagor Control Panel with Hand-Held Controller
Manual/Servo Mode
Power Drawbar
Powered Lubrication System
Coolant Recycling System
Auxiliary Worklight

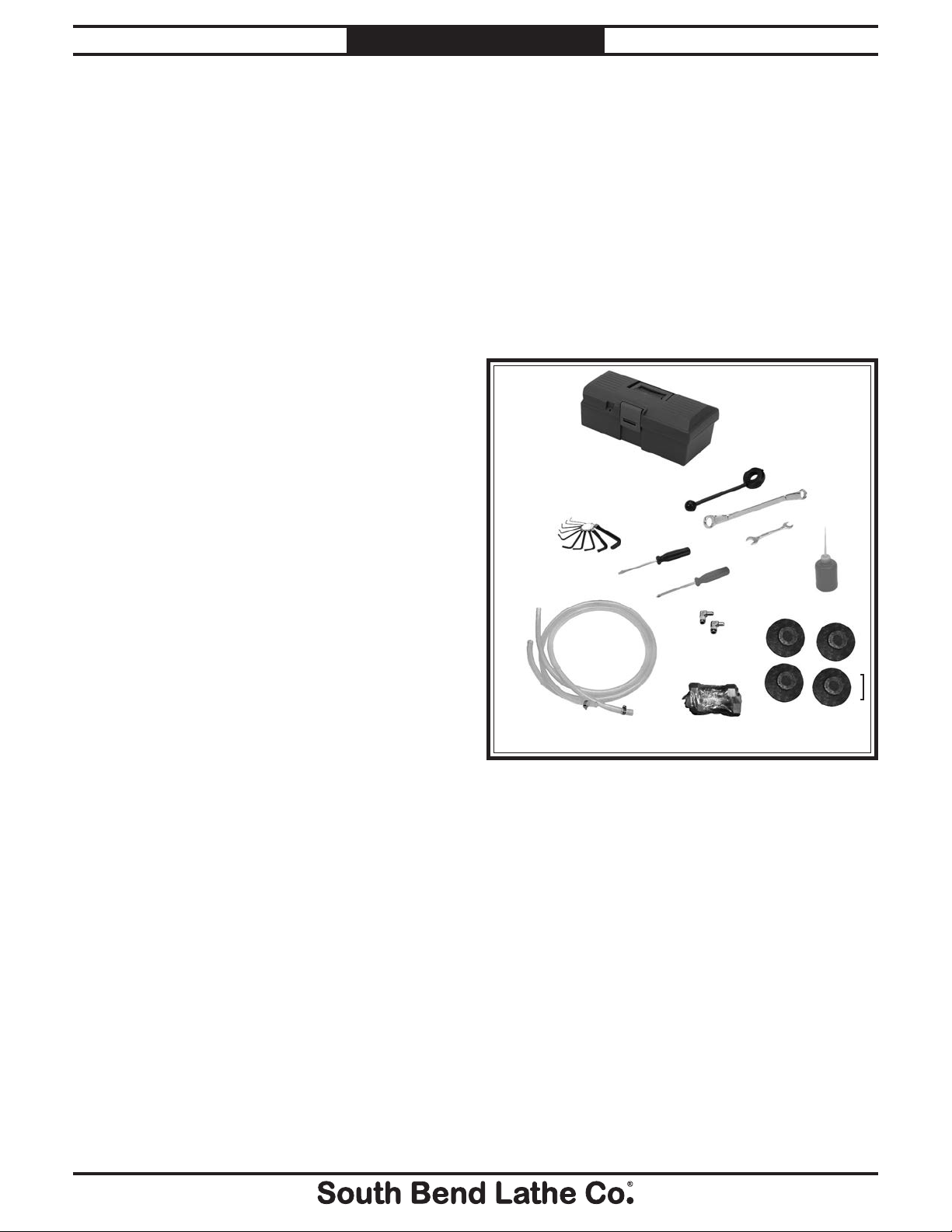

Included Accessories
Tool Box Including the Following Items:
Flat-Head, Philip Head Screwdrivers
Closed-End Wrench 19/21mm
Open-End Wrench 12/14mm
10-Pc. Hex Wrench Set: 1.5, 2, 2.5, 3, 4, 5, 5.5, 6, 8 & 10mm
Bottle for Oil

-14-
For Machines Mfd. Since 5/19
Model SB1063 SAFETY
Understanding Risks of Machinery
Operating all machinery and machining equipment can be dangerous or relatively safe depending
on how it is installed and maintained, and the operator's experience, common sense, risk awareness,
working conditions, and use of personal protective equipment (safety glasses, respirators, etc.).
The owner of this machinery or equipment is ultimately responsible for its safe use. This
responsibility includes proper installation in a safe environment, personnel training and usage
authorization, regular inspection and maintenance, manual availability and comprehension,
application of safety devices, integrity of cutting tools or accessories, and the usage of approved
personal protective equipment by all operators and bystanders.
The manufacturer of this machinery or equipment will not be held liable for injury or property
damage from negligence, improper training, machine modifications, or misuse. Failure to read,
understand, and follow the manual and safety labels may result in serious personal injury, including
amputation, broken bones, electrocution, or death.
The signals used in this manual to identify hazard levels are as follows:
Death or catastrophic
harm WILL occur.
Moderate injury or fire
MAY occur.
Death or catastrophic
harm COULD occur.
Machine or property
damage may occur.
Basic Machine Safety
Owner’s Manual: All machinery and machining
equipment presents serious injury hazards
to untrained users. To reduce the risk of
injury, anyone who uses THIS item MUST
read and understand this entire manual
before starting.
Personal Protective Equipment: Operating or
servicing this item may expose the user
to flying debris, dust, smoke, dangerous
chemicals, or loud noises. These hazards
can result in eye injury, blindness, long-
term respiratory damage, poisoning,
cancer, reproductive harm or hearing loss.
Reduce your risks from these hazards
by wearing approved eye protection,
respirator, gloves, or hearing protection.
Trained/Supervised Operators Only: Untrained
users can seriously injure themselves
or bystanders. Only allow trained and
properly supervised personnel to operate
this item. Make sure safe operation
instructions are clearly understood. If
electrically powered, use padlocks and
master switches, and remove start switch
keys to prevent unauthorized use or
accidental starting.
Guards/Covers: Accidental contact with
moving parts during operation may cause
severe entanglement, impact, cutting,
or crushing injuries. Reduce this risk by
keeping any included guards/covers/doors
installed, fully functional, and positioned
for maximum protection.

For Machines Mfd. Since 5/19 Model SB1063
-15-
SAFETY
Entanglement: Loose clothing, gloves, neckties,
jewelry or long hair may get caught in
moving parts, causing entanglement,
amputation, crushing, or strangulation.
Reduce this risk by removing/securing
these items so they cannot contact moving
parts.
Mental Alertness: Operating this item with
reduced mental alertness increases the
risk of accidental injury. Do not let a
temporary influence or distraction lead to a
permanent disability! Never operate when
under the influence of drugs/alcohol, when
tired, or otherwise distracted.
Safe Environment: Operating electrically
powered equipment in a wet environment
may result in electrocution; operating near
highly flammable materials may result in a
fire or explosion. Only operate this item in
a dry location that is free from flammable
materials.
Electrical Connection: With electically powered
equipment, improper connections to the
power source may result in electrocution
or fire. Always adhere to all electrical
requirements and applicable codes when
connecting to the power source. Have all
work inspected by a qualified electrician to
minimize risk.
Disconnect Power: Adjusting or servicing
electrically powered equipment while it
is connected to the power source greatly
increases the risk of injury from accidental
startup. Always disconnect power
BEFORE any service or adjustments,
including changing blades or other tooling.
Secure Workpiece/Tooling: Loose workpieces,
cutting tools, or rotating spindles can
become dangerous projectiles if not
secured or if they hit another object during
operation. Reduce the risk of this hazard
by verifying that all fastening devices are
properly secured and items attached to
spindles have enough clearance to safely
rotate.
Chuck Keys or Adjusting Tools: Tools used to
adjust spindles, chucks, or any moving/
rotating parts will become dangerous
projectiles if left in place when the machine
is started. Reduce this risk by developing
the habit of always removing these tools
immediately after using them.
Work Area: Clutter and dark shadows increase
the risks of accidental injury. Only operate
this item in a clean, non-glaring, and well-
lighted work area.
Properly Functioning Equipment: Poorly
maintained, damaged, or malfunctioning
equipment has higher risks of causing
serious personal injury compared to
those that are properly maintained.
To reduce this risk, always maintain
this item to the highest standards and
promptly repair/service a damaged or
malfunctioning component. Always follow
the maintenance instructions included in
this documentation.
Unattended Operation: Electrically powered
equipment that is left unattended while
running cannot be controlled and is
dangerous to bystanders. Always turn the
power OFF before walking away.
Health Hazards: Certain cutting fluids and
lubricants, or dust/smoke created when
cutting, may contain chemicals known to
the State of California to cause cancer,
respiratory problems, birth defects,
or other reproductive harm. Minimize
exposure to these chemicals by wearing
approved personal protective equipment
and operating in a well ventilated area.
Difficult Operations: Attempting difficult
operations with which you are unfamiliar
increases the risk of injury. If you
experience difficulties performing the
intended operation, STOP! Seek an
alternative method to accomplish the
same task, ask a qualified expert how the
operation should be performed, or contact
our Technical Support for assistance.

-16 -
For Machines Mfd. Since 5/19
Model SB1063 SAFETY
Additional Milling Machine Safety
Understanding Controls: Make sure you
understand the function and proper use of all
controls before starting. This will help you
avoid making mistakes that result in serious
injury.
Avoiding Entanglement. DO NOT wear loose
clothing, gloves, or jewelry, and tie back long
hair. Keep all guards in place and secure.
Always allow spindle to stop on its own. DO
NOT stop spindle using your hand or any
other object.
Wear Face Shield. Always wear a face shield
in addition to safety glasses. This provides
more complete protection for your face than
safety glasses alone.
Use Correct Spindle Speed. Follow
recommended speeds and feeds for each size
and type of cutting tool. This helps avoid tool
breakage during operation and ensures best
cutting results.
Inspect Cutting Tool. Inspect cutting tools for
sharpness, chips, or cracks before each use.
Replace dull, chipped, or cracked cutting
tools immediately.
Properly Secure Cutter. Firmly secure cutting
tool or drill bit so it does not fly out of
spindle during operation.
Power Disruption. In the event of a local power
outage during operation, turn spindle switch
OFF to avoid a possible sudden startup once
power is restored.
Clean Machine Safely. Metal chips or shavings
can be razor sharp. DO NOT clear chips
by hand or compressed air that can force
chips farther into machine—use a brush or
vacuum instead. Never clear chips while
spindle is turning.
Secure Workpiece To Table. Clamp workpiece
to table or secure in a vise mounted to
table, so workpiece cannot unexpectedly
shift or spin during operation. NEVER hold
workpiece by hand during operation.
Properly Maintain Machine. Keep machine
in proper working condition to help ensure
that it functions safely and all guards and
other components work as intended. Perform
routine inspections and all necessary
maintenance. Never operate machine with
damaged or worn parts that can break or
result in unexpected movement during
operation.
Disconnect Power First. To reduce risk of
electrocution or injury from unexpected
start- up, make sure mill/drill is turned
OFF, dis- connected from power, and all
moving parts have come to a complete stop
before changing cutting tools or starting
any inspection, adjustment, or maintenance
procedure.
Remove Chuck Key & Spindle Tools. Always
remove chuck key, drawbar wrench, and
other tools used on the spindle immediately
after use. This will prevent them from being
thrown by the spindle upon startup.
You can be seriously injured or killed by getting clothing, jewelry, or long hair entangled with rotating
cutter/spindle. You can be severely cut or have fingers amputated from contact with rotating cutters.
You can be blinded or struck by broken cutting tools, metal chips, workpieces, or adjustment tools
thrown from the rotating spindle with great force. To reduce your risk of serious injury when operating
this machine, completely heed and understand the following:

For Machines Mfd. Since 5/19 Model SB1063
-17-
PREPARATION
Preparation Overview Required for Setup
The items listed below are required to
successfully set up and prepare this machine for
operation.
For Lifting
• A forklift or other power lifting device rated
for at least 5000 lbs.
• Lifting chain and safety hook rated for at
least 5000 lbs.
• One or more assistants.
For Power Connection
• A power source that meets the minimum
circuit requirements for this machine.
Refer to Page 23 for details.
• A qualified electrician to ensure a safe and
code-compliant connection to the power
source.
For Assembly
• Cotton rags
• Applicable PPE for assembly and solvents
• Mineral spirits
• Safety glasses
• Oil can with applicable machine oil
• Grease gun with applicable grease
• Stiff grease brush
• Floor mounting hardware as needed
• Basic shop hand tools
The purpose of the preparation overview is to
help you gather your resources and the machine
for installation and operation. Steps for these
items are covered further later in this section.
The typical preparation process is as follows:
1. Unpack machine inventory the shipment.
2. Inspect the machine for shipping damage.
3. Clean the machine and its components.
4. Review Precautions Against Product
Damage in the Fagor Operators Manual,
and if location is acceptable;
5. Electrician verifies the power source
voltage, phase, and ground is within
specification listed in this manual and the
Fagor Operators Manual. Refer to Power
Requirements on Page 23 of that manual.
• If required, surge protection is installed.
6. Move the machine to its operating location.
7. Fasten and shim machine to the floor, or use
optional feet and bolts and adjust until level.
8. Install loose components as required.
9. Fill coolant and lubrication oil reservoirs as
applicable according to Lubrication section
starting on Page 36.
10. Make remaining adjustments and
inspections to ensure machine is ready for
operation.
11. Connect machine to power.
12. Read and understand Fagor Operating
Manual, and its Monitor Information
Layout on Page 28.
13. Complete machine Test Run in this manual.
14. Clean and make sure all tools are accounted
for and put away.

-18-
For Machines Mfd. Since 5/19
Model SB1063 PREPARATION
Unpacking
This item was carefully packaged to prevent
damage during transport. If you discover any
damage, please immediately call Customer
Service at
[phone] for advice. You may
need to file a freight claim, so save the containers
and all packing materials for possible inspection
by the carrier or its agent.
Inventory
Inspect the machine for damage and inventory
your shipment for the following items.
Included Documentation List
(Packed Inside of Electrical Box Door)
Fagor Binder Printed Manual:
Fagor CNC 8055 M Programming Manual Ref.
1010, Soft: V01.0X
Fagor CD:
Fagor Manual Man_8055.pdf 8055 M
• Installation Manual
• Operating Manual
• Programming Manual
• Error Solution
• Examples Manual
Delta Printed Manual:
Delta VFD-B Printed
Delta Packet:
• Delta VFD-B Instruction Sheet
• Delta VFD-B Parameter Manual
Delta CD:
Delta AC Motor Drives VFD Series User Manual
VFD-B
Power Drawbar Printed Manual:
Air Power Drawbar Operation Manual, PD-150-
PD-200
H
Figure 8. Shipping inventory.
A
B
C
D
E
F
G
I
JK
L
Description (see Figure 8) Qty
A. Tool Box ..........................................................1
B. Feed Lever (see For Manual Mode) ..............1
C. Closed-End Wrench 19/21mm ....................... 1
D. Open-End Wrench 12/14mm .........................1
E. Hex Wrench 10-Pc. Set 1.5–10mm................ 1
F. Screwdriver Standard #2...............................1
G. Screwdriver Phillips #2 .................................1
H. Oil Bottle ........................................................1
I. Table Drain Elbow Fittings...........................2
J. Coolant Hoses with Hose Clamps ................. 2
K. Machine Feet.................................................. 4
L. Machine Feet Bolt and Nut Kit.....................1
H
