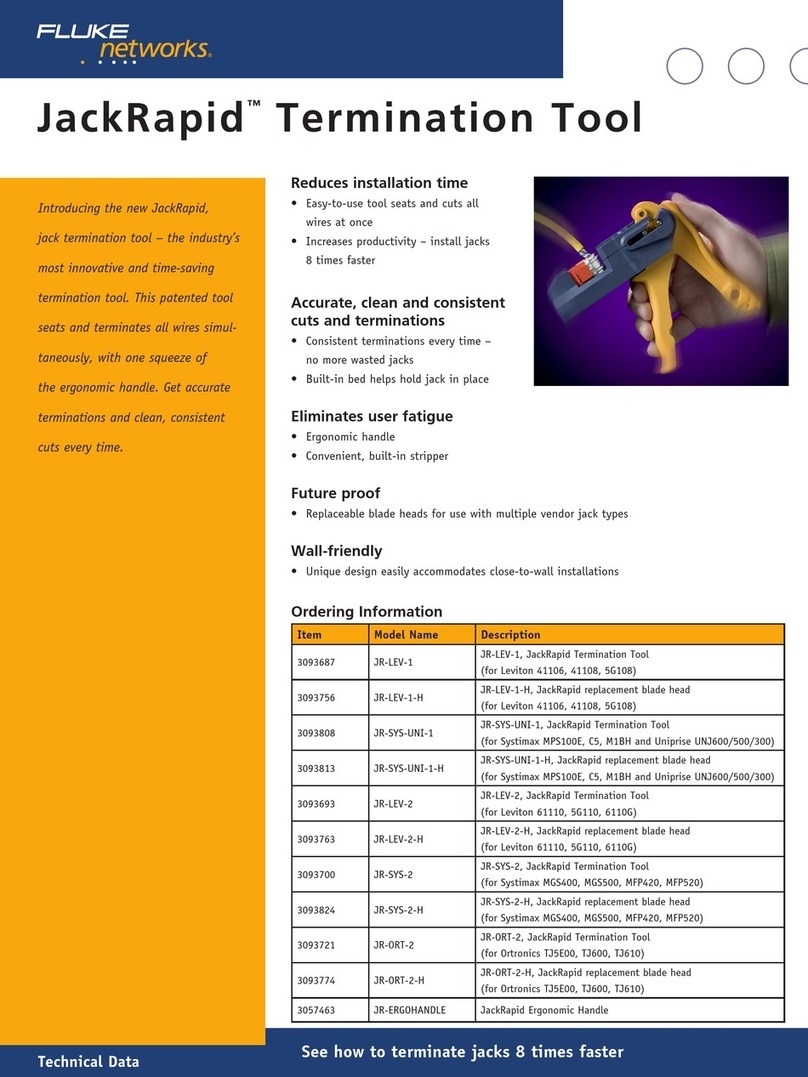

JackRapid™Punchdown Tool
Technical Data See howto terminate jacks8times faster
Introducing JackRapid™ – the
industry’s most innovative and time
saving installation punchdown tool
is now part of Fluke Networks’ line
of network installation and test
solutions. JackRapid allows you to
terminate jacks eight times faster
than traditional impact tools – with
accuracy that’s unmatched. The
patented jack termination tool seats
and terminates all wires simultaneously
with one squeeze ofthe handle.With
JackRapid, you’ll never punch into the
palm ofyour hand or through drywall
again.
High-quality terminations
• Built-in bed helps hold jack in place
• Eliminates error during terminations
•No more compromised connections
and wasted jacks
Cuts installation time
• Easy-to-use handle, seats and
cuts all wires at once
• Increases productivity –
install jacks 8 times faster
Simple, one-handed
operation
• Reduce hand fatigue –
one squeeze terminates all pairs!
•Virtually error-free terminations
Future proof
• Replaceable blade heads for use with
multiple jack types. Additional blade
heads are in development.
Wall-friendly
• Unique design easily accommodates close-
to-wall installations no slack, no problem!
Ordering Information
Description Model Number
JackRapid with Leviton Blade 10059600
Supports the following Leviton jacks:
41106, 41108 (Cat 3/5), 5G108 (Cat 5e)
Leviton Replacement Blade Head only 10059601
JackRapid with Systimax/Uniprise Blade 10059630
Supports the following Systimax jacks:
M1BH (Cat 3), C5 (Cat 5), MPS100E (Cat 5e)
andthefollowing Uniprise jacks:
UNJ300 (Cat 3), UNJ500 (Cat 5e), UNJ600 (Cat 6)
Systimax/Uniprise Replacement Blade Head only 10059603

Interchangeable blade heads for use with various jacks
1. Make sure handle is in
open position.
Push handle and blade
towardeach other.
2. Angle handle so that pin
#2will slide out first.
Then slide out pin # 1.
3. You have successfully
removed the blade head.
1. Open tool handle and
move lever to pin #1
"down" position.
2. Angle handle, and insert
pin one into blade head
first. Be sure to keep tool
handle in open position.
3. Makesurehandle is open.
Once pin #1 has been
inserted, slide pin #2 into
bladehead.
Perfect terminations are easy with JackRapid
1. Strip cable jacket. 2. Determine wiring scheme.
Dress all 4 pairs (8 wires).
3. Insert jack in JackRapid
front first with IDC slots
facing blades of JackRapid.
4. Ensure jack is completely
and securely inserted in
jack holder bed with IDC
slots facing the blades.
5. Pull trigger completely
and remove excess wire
prior to releasingtrigger.
6. Wires will be seated and
cut for a solid termination.
7. Release handle and remove jack
from JackRapid tool. Visually
verify proper termination.
FlukeCorporation
P.O. Box 777, Everett, WA USA 98206-0777
Fluke Networks operates in more than 50 countries
worldwide. To find your local office contact details,
goto www.flukenetworks.com/contact.
©2005 Fluke Corporation. All rights reserved.
Printed in U.S.A. 5/2005 2447816 D-ENG-N Rev B
