Atlas Copco LTV39-2 R48-10-ATEX Instruction sheet

LTV39-2 R48-10-ATEX
Printed Matter No. 9836 9450 49 Angle nutrunner ATEX
Valid from Serial No. A0610001
2010-10-01 Product Instructions
LTV39-2 R48-10-ATEX (24-48 Nm) 8431 0635 27
WARNING
Read all safety warnings and instructions
Failure to follow the safety warnings and in-
structions may result in electric shock, fire and/
or serious injury.
Save all warnings and instructions for future
reference

2© Atlas Copco Industrial Technique AB - 9836945049
Table of Contents
EN Product Instructions.......................................................................... 3
FR Instructions sur le produit .............................................................. 18
DE Produktanweisungen...................................................................... 30
RU Инструкции по изделию .............................................................. 42

LTV39-2 R48-10-ATEX EN Safety and operating instructions
© Atlas Copco Industrial Technique AB - 9836 945049 49 3
Safety and operating instructions
Safety instructions
Warning
Make sure you are familiar with the operating instructions before you use the
machine.
Before making any adjustments (e.g. setting the torque, changing bits) discon-
nect the machine from the compressed air line.
The machine, together with any attachments and accessories, must never be
used for anything other than the designed purpose.
Use power sockets only. For safe and economic use - replace worn sockets.
Check that the power socket is properly fastened - replace the square drive re-
tainer when necessary.
Keep your fingers and loose articles (cloths, hair) away from the outgoing shaft.
Do not use gloves.
Hold the machine correctly and be aware of the reaction force.
Never use the nutrunner without making sure that the clutch releases. Be aware
of fluctuations in air pressure.
Check the direction of the rotation before using the machine.
When working in close spaces without the use of a torque reaction bar - there is
a risk of injuries due to squeezing.
The operators of a nutrunner with a torque reaction bar should take particular
care to avoid injuries due to squeezing. Never put your hand on or close to
the torque reaction bar while the machine is being used.
When using a suspension yoke, check that it is in good condition and correctly
fastened.
Installation of vibrating tools
It is recommended that a minimum length of 300 mm of flexible hose for com-
pressed air is inserted between a vibrating tool and the quick-action coupling.
General information
ATEX certification information
• ATEX Certificate Number:
DEKRA BVS 08 ATEX H 063 X
• The marking code is:
EX II 2 GD IIB 135°C (T4)
Please make sure that the offset screwdriver is only used for intended purposes.
In the event of an inappropriate use, impacts sparks can occur between the
socket wrench and the screw or nut that is to be tightened. It is therefore recom-
mended to use torque wrenches exclusively. Before using the offset screw-
driver, please make sure that this tool is not worn and that a perfectly tight-fit-
ting connection is assured between the offset screwdriver and the screw or nut
that is to be tightened. Furthermore, it must also be assured that there is a per-
fectly tight-fitting connection between the square drive pin of the screwdriver

Safety and operating instructions EN LTV39-2 R48-10-ATEX
4© Atlas Copco Industrial Technique AB - 9836 945049 49
and the square retainer of the torque wrench. Furthermore, the offset screw-
driver must be earthed to the equipotential bonding system of the workshop, for
instance through suitable accessories such as hoses and air-pressure connec-
tions.
National safety regulations must be properly observed, if the tool is to be used
in areas that are subject to an explosion hazard. It is the responsibility of the
user to make sure that all possible accessories for the tool, such as wrenches
and air connections, conform to the national safety regulations for equipment
used in potentially explosive areas.
Maintenance and repairs of the tool must be carried out exclusively by au-
thorised personnel, after which a no-load test of at least 10 minutes and
temperature measurements must be carried out and recorded in a protocol.
A maximum surface temperature of 135°C may not be exceeded.
EC DECLARATION OF CONFORMITY
We, Atlas Copco Industrial Technique AB, S-105 23 STOCKHOLM, SWE-
DEN declare that the product (with name, type and serial number, see front
page) is in conformity with the following Directive(s):
2006/42/EC
Harmonised standards applied:
EN 792-6
Technical file available from:
Quality Manager, Atlas Copco Industrial Technique, Stockholm, Sweden
Stockholm, 1 July 2013
Tobias Hahn, Managing Director
Signature of issuer
Product safety video for nutrunners
Learn more about safety features on Atlas Copco nutrunners and what measures
the operator has to take for a safe operation. Click the link or scan the QR code
below to view the video:
http://www.atlascopco.com/videogallery/#detail/77f67648-30f0-4b92-
bab6-885ea6b054db
Installation
Installation of vibrating tools
It is recommended that a minimum length of 300 mm of flexible hose for com-
pressed air is inserted between a vibrating tool and the quick-action coupling.

LTV39-2 R48-10-ATEX EN Safety and operating instructions
© Atlas Copco Industrial Technique AB - 9836 945049 49 5
Air quality
• For optimum performance and maximum machine life we recommend the
use of compressed air with a maximum dew point of +10°C. We also rec-
ommend the installation of an Atlas Copco refrigeration-type air dryer.
• Use a separate air filter of type Atlas Copco FIL. This filter removes solid
particles larger than 15 microns and also removes more than 90 % of liquid
water. The filter must be installed as close as possible to the machine/equip-
ment and prior to any other air preparation unit such as REG or DIM (please
see Air Line Accessories in our main catalogue). Blow out the hose before
connecting.
Models which need air lubrication:
• The compressed air must contain a small quantity of oil.
We strongly recommend that you install an Atlas Copco oil lubricator
(DIM). This should be set according to air consumption by the air line tool
according to the following formula:
L = Air consumption (litre/s)
D = Number of drops per min (1 drop = 15 mm3)
L* 0.2 = D
this applies to the use of long work cycle air line tools. A single point lubri-
cator type Atlas Copco Dosol can also be used for tools with short running
cycles.
Information about Dosol settings may be found under Air Line Accessories
in our main catalogue.
Lubrication-free models:
• In the case of lubrication-free tools it is up to the customer to decide on the
peripheral equipment to be used. However, it is no disadvantage if the com-
pressed air contains a small quantity of oil e.g. supplied from a fog lubrica-
tor (DIM) or Dosol system.
•Note – This does not apply to turbine tools, which should be kept oil free.
Compressed air connection
• The machine is designed for a working pressure of 6–7 bar = 600–700 kPa =
87–102 psi.
• Blow out the hose before connecting.

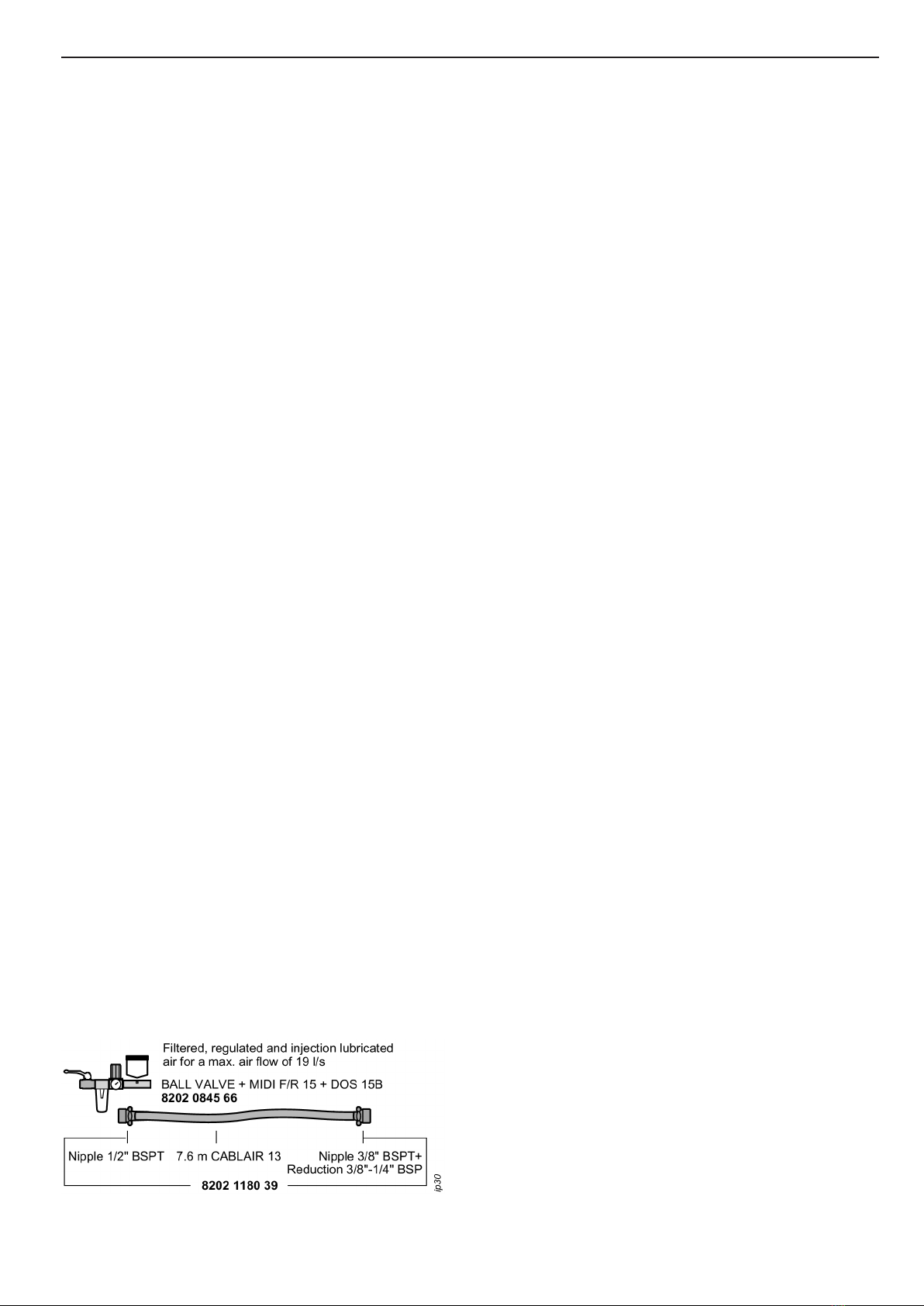

Installation proposal
Choosing the correct couplings, hose and clamps can be a troublesome digging
into details. To save your time and to ensure correct capacity of the airline in-
stallation, from the tapping point to the tool, we offer you an installation pro-
posal.

Safety and operating instructions EN LTV39-2 R48-10-ATEX
6© Atlas Copco Industrial Technique AB - 9836 945049 49
For more information please read, Atlas Copco Industrial Power Tools cata-
logue Ordering No. 9837 3000 01.
Handling
Tightening torque
For accurate operation and safety, the tightening torque of the nut runner must
be set correctly in relation to the screw joint. Check the tightening torque given
to the joint in question.
The tightening torque is adjusted by altering the tension of the clutch spring.
Turn the protection ring until the hole in the clutch housing is free. Then turn
the out going spindle until you can see the keyhole in the adjustment washer.
Turn the adjustment key clockwise to decrease and anticlockwise to increase
the torque. After the adjustment, turn the protective ring back again.

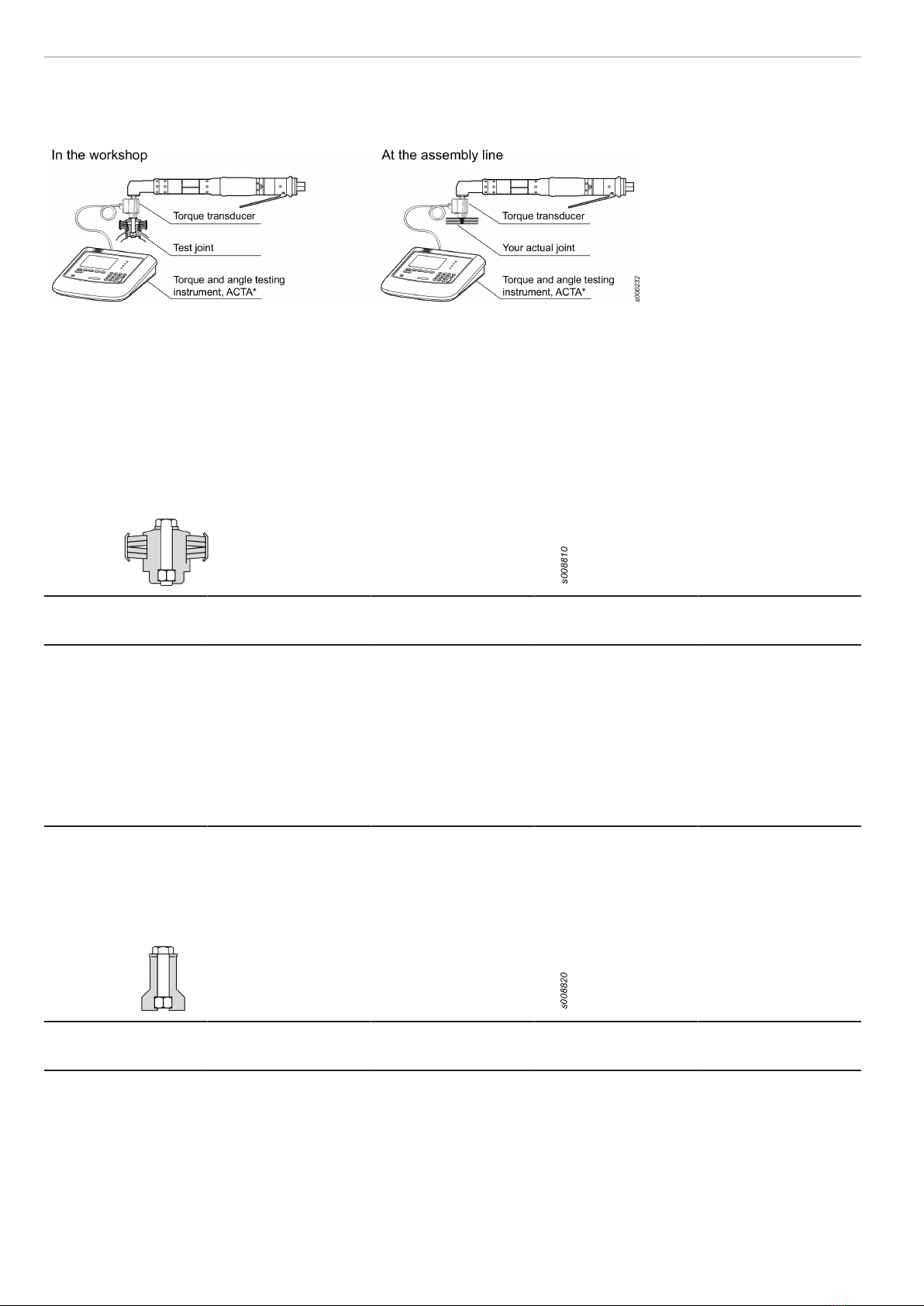

Verification of tightening torque
Atlas Copco Torque Analyser, ACTA 3000, plus an appropriately-sized in-line
transducer, IRTT together with the available test joints are recommended equip-
ment.
Operating instructions
See figure in Service instructions
Maintenance
For maximum performance
It is important to lubricate regularly to get maximum performance and trouble-
free operation. The motor should be lubricated with oil; i.e. drops of oil can be
dropped either into the compressed air or directly into the air inlet.
The trigger, planetary gears, needle bearings and ball bearings should be lubri-
cated with grease during the regular overhaul of the machine.
The angle gear and clutch must be lubricated using grease that contains molyb-
denum disulphide: Molykote BR2 Plus, for example, or an equivalent brand.
Use lubricants of good quality. The oils and greases mentioned in the table are
examples of lubricants which are recommended.
Rust protection and internal cleaning
Water in the compressed air, dust and wear particles cause rust and sticking of
vanes, valves etc. An air filter should be installed close to the machine (see ‘Air
quality’).

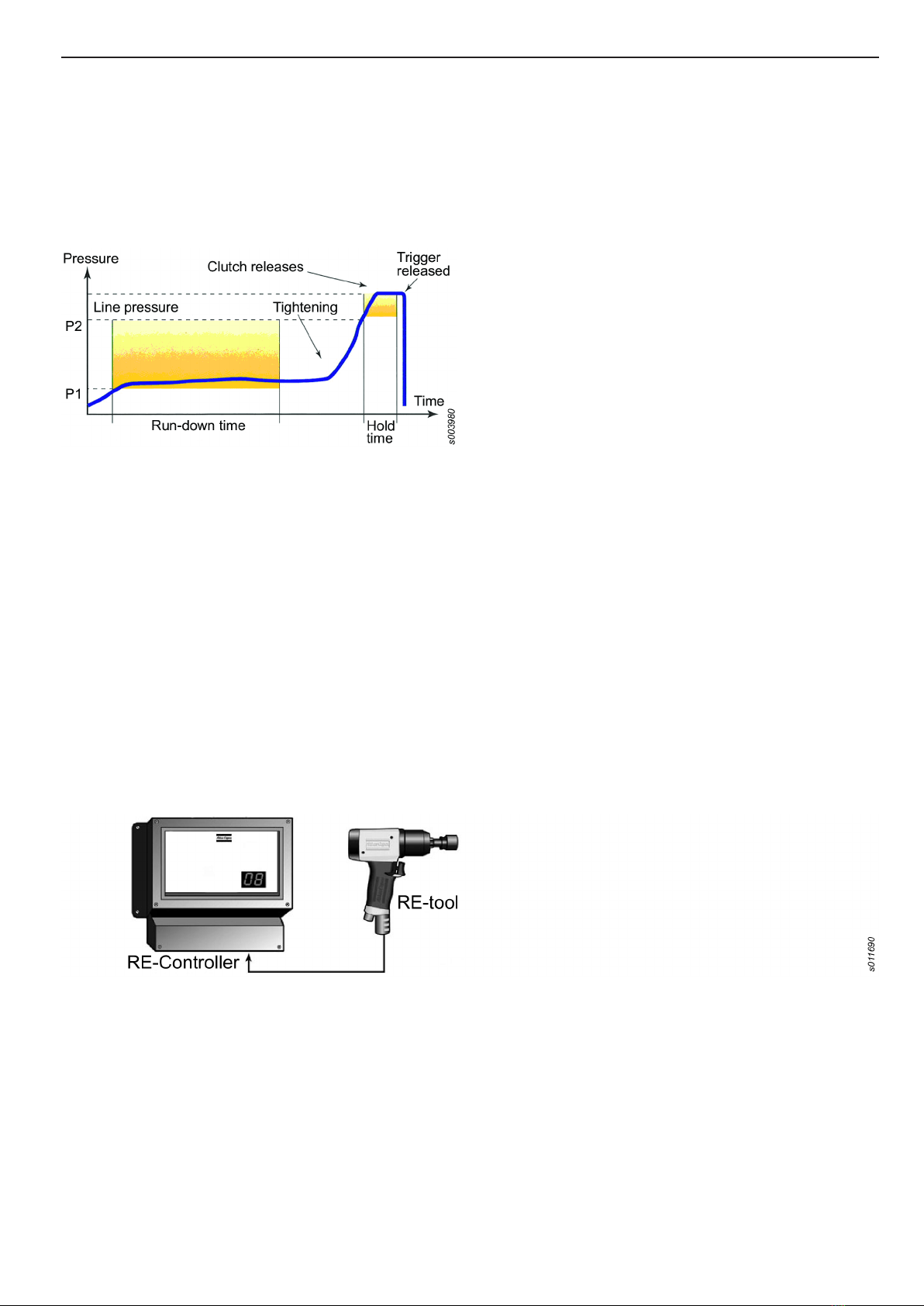

Reporting, RE – signal
Reporting (RE) machines supply an air signal that can be connected to a moni-
toring instrument that counts the number of approved tightening and detects
premature shut-off and rehits and other irregularities.

LTV39-2 R48-10-ATEX EN Safety and operating instructions
© Atlas Copco Industrial Technique AB - 9836 945049 49 7
Service instructions
Overhaul and preventive maintenance is recommended at regular intervals once
per year or after maximum 250.000 tightening depending on which occurs
sooner. More frequent overhaul may be needed, if used at high torque and long
tightening times. If the machine not is working properly, it should immediately
be taken away for inspection.
The strainer at the air inlet and the exhaust silencer should be cleaned fre-
quently or replaced in order to prevent clogging, which decreases the capacity.
At the overhauls, all parts should be cleaned accurately and defective or worn
parts (i.e. O-rings, vanes) should be replaced.
Disassembling / assembling
It is important that the machines threaded connections are tightened properly;
i.e. in accordance with the specifications on the exploded views.
Lubricate o-rings and threaded connections with grease before assembling.
Cleaning
Clean all parts thoroughly in white spirit or similar cleaning agent. To prevent
clogging and decreased power, it could be necessary to clean the strainer (if
used) and the exhaust filter between the overhauls.
Inspection
After the cleaning, inspect all parts. Damaged and worn parts should be re-
placed.

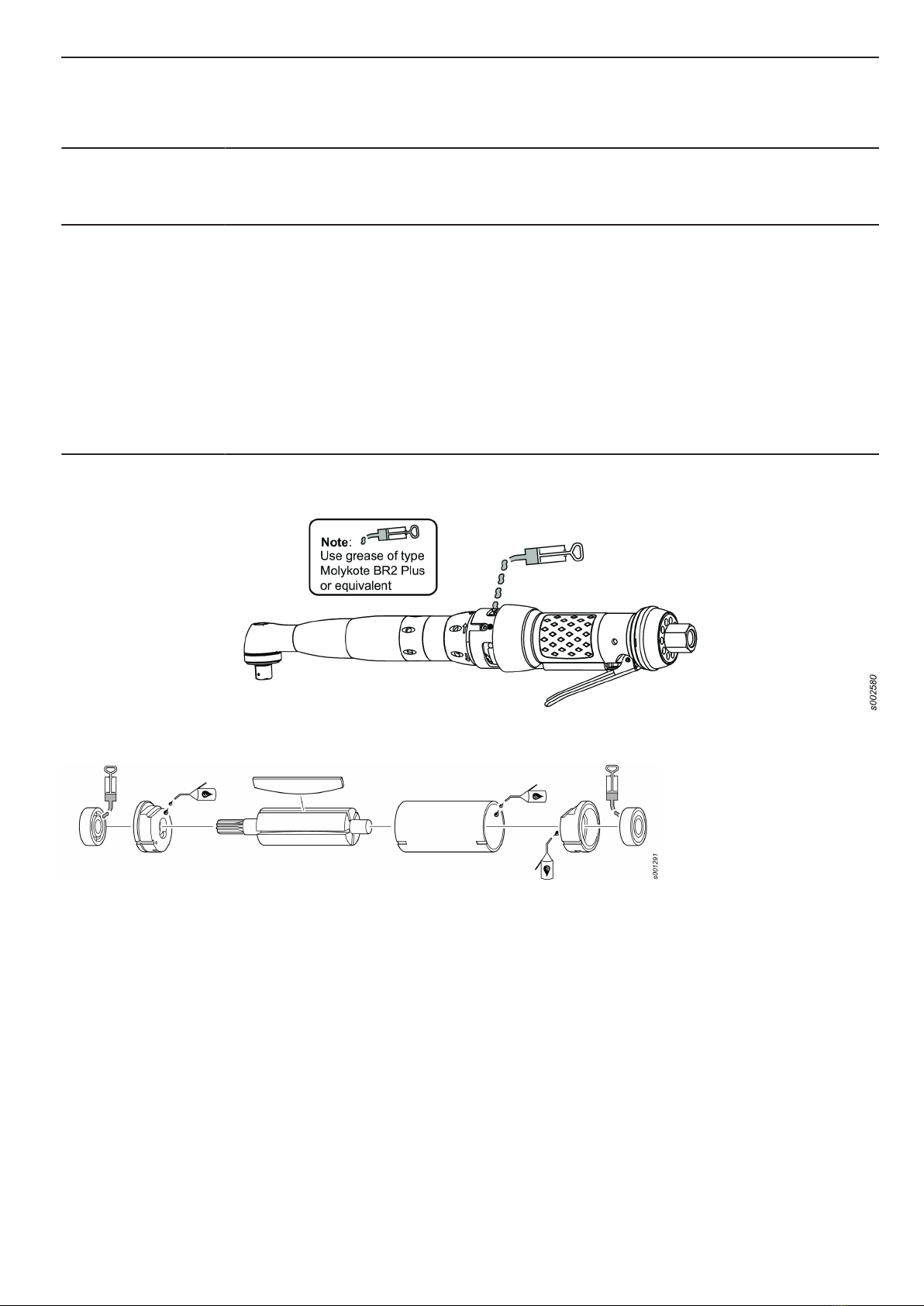

Lubrication
Lubricate specially gears, valve and clutch with grease containing molybdenum
disulphide (e.g. Molykote BR2 Plus). Please see exploded views and fig. under
Service instructions.
Grease guide
Brand General purpose, Bearings Air Lubrication
BP Energrease LS-EP2 Energol E46
Castrol Spheerol EP L2
Esso Beacon EP2 Arox EP46
Q8 Rembrandt EP2 Chopin 46
Mobil Mobilegrease XHP 222 Almo oil 525
Shell Alvania EP2 Tonna R32
Texaco Multifak EP2 Aries 32
Brand Clutch, Gears Angle gears
Molycote BR2 Plus Longterm 2 Plus
Useful information
Log in to Atlas Copco www.atlascopco.com

Safety and operating instructions EN LTV39-2 R48-10-ATEX
8© Atlas Copco Industrial Technique AB - 9836 945049 49
You can find information concerning our products, accessories, spare parts and
published matters on our website.
Ergonomic guidelines
Consider your workstation as you read through this list of general ergonomic
guidelines and see if you can identify areas for improvement in posture, compo-
nent placement, or work environment.
• Take frequent breaks and change work positions frequently.
• Adapt the workstation area to your needs and the work task.
• Adjust for convenient reach range by determining where parts or tools
should be located to avoid static load.
• Use workstation equipment such as tables and chairs appropriate for the
work task.
• Avoid work positions above shoulder level or with static holding during as-
sembly operations.
• When working above shoulder level, reduce the load on the static mus-
cles by reducing the weight of the tool, using for example torque arms,
hose reels or weight balancers. You can also reduce the load on the static
muscles by holding the tool close to the body.
• Make sure to take frequent breaks.
• Avoid extreme arm or wrist postures, particularly for operations requir-
ing a degree of force.
• Adjust for convenient field of vision by minimizing movement of the eyes
and head during the work task.
• Use the appropriate lighting for the work task.
• Select the appropriate tool for the work task.
• Use ear protection equipment in noisy environments.
• Use high-quality inserted tools or consumables to minimize exposure to ex-
cessive levels of vibration.
• Minimize exposure to reaction forces.
• When cutting:
A cut-off wheel can get stuck if the wheel is either bent or if it is not
guided properly. Make sure to use the correct flanges for cut-off wheels
and avoid bending the wheel during cut-off operation.
• When drilling:
The drill might stall when the drill bit breaks through. Makes sure you
use support handles if the stall torque is too high. The safety standard
ISO11148 part 3 recommends using something to absorb the reaction
torque above 10 Nm for pistol grip tools and 4 Nm for straight tools.
• When using direct-driven screw or nutrunners:
Reaction forces depend on tool setting and joint characteristics. The abil-
ity to bear reaction forces depends on the operator’s strength and pos-
ture. Adapt the torque setting to the operator's strength and posture and
use a torque arm or reaction bar if the torque is too high.
• Use dust extraction system or mouth protection mask in dusty environments.

LTV39-2 R48-10-ATEX EN Safety and operating instructions
© Atlas Copco Industrial Technique AB - 9836 945049 49 9
Country of origin
Please refer to the information on the product label.
Spare parts
Parts without ordering number are not delivered separately for technical rea-
sons.
The use of other than genuine Atlas Copco replacement parts may result in de-
creased tool performance and increased maintenance and may, at the company
option, invalidate all warranties.
Warranty
Contact the Atlas Copco sales representative within your area to claim a prod-
uct. Warranty will only be approved if the product has been installed, operated
and overhauled according to the Operating Instructions.
Please also see the delivery conditions applied by the local Atlas Copco com-
pany.
ServAid
ServAid is a utility for providing updated product information concerning:
- Safety instructions
- Installation, Operation and Service instructions
- Exploded views
ServAid facilitates the ordering process of spare parts, service tools and acces-
sories for the product of your choice. It is continuously updated with informa-
tion of new and redesigned products.
You can use ServAid to present content in a specific language, provided that
translations are available, and to display information about obsolete products.
ServAid offers an advanced search functionality of our entire product range.
ServAid is available on DVD and on the web:
http://servaidweb.atlascopco.com
For further information contact your Atlas Copco sales representative or e-mail
us at:
[email protected]
Safety Data Sheets MSDS/SDS
The safety data sheets describes chemical products sold by Atlas Copco.
For more information, consult the website
http://www.atlascopco.com/.
Choose Products - Safety Data Sheets, and follow the instructions on the
page.

Technical data EN LTV39-2 R48-10-ATEX
10 © Atlas Copco Industrial Technique AB - 9836 945049 49
Technical data
Technical data
Noise and vibration emission
Noise (in accordance with ISO15744) dBA
Sound pressure level 81
Sound power level 92
Uncertainty 3
Vibration total value, valid from 2010
(3-axes value in accordance with ISO28927-2) m/s2
Vibration value <2.5
Uncertainty -
Noise and Vibration Declaration Statement
These declared values were obtained by laboratory type testing in accordance
with the stated standards and are suitable for comparison with the declared val-
ues of other tools tested in accordance with the same standards. These declared
values are not adequate for use in risk assessments and values measured in indi-
vidual work places may be higher. The actual exposure values and risk of harm
experienced by an individual user are unique and depend upon the way the user
works, the workpiece and the workstation design, as well upon the exposure
time and the physical condition of the user.
We, Atlas Copco Industrial Technique AB, cannot be held liable for the con-
sequences of using the declared values, instead of values reflecting the actual
exposure, in an individual risk assessment in a work place situation over which
we have no control.
This tool may cause hand-arm vibration syndrome if its use is not adequately
managed. An EU guide to managing hand-arm vibration can be found by ac-
cessing http://www.pneurop.eu/index.php and selecting 'Tools' then 'Legisla-
tion'.
We recommend a programme of health surveillance to detect early symptoms
which may relate to noise or vibration exposure, so that management proce-
dures can be modified to help prevent future impairment.

LTV39-2 R48-10-ATEX EN Service instructions
© Atlas Copco Industrial Technique AB - 9836 945049 49 11
Service instructions
General
Symbols
Instruction for reversing
Changing the rotation direction of the tools is only possible while the tool is
not running, i.e. the lever must be completely released before the shifting is
possible.
Clockwise rotation
Grip the gear shift ring and pull it backwards (A). Turn it anti-clockwise until
stop (B). Release the shift ring and make sure that the shift ring returns to its
most forward position.
Only the arrows indicating clockwise rotation shall be visible (D).
Anti-clockwise rotation
Grip the gear shift ring and pull it backwards (A). Turn it clockwise until stop
(C). Release the shift ring and make sure that the shift ring returns to its most
forward position.
Only the arrows indicating anti-clockwise rotation shall be visible (E).
Tightening of threaded connections
The tightening torques indicated in the exploded views list are established to
achieve the correct clamping force and preventing the parts from coming loose.
At service these parts must be able to open up without being destroyed. In spe-
cial circumstances (depending on application and usage) the parts may however
come loose after some time of operation. In such cases the torque could be in-
creased 10-20% and if necessary some type of low or medium threadlocking
fluid could also be applied.

Service instructions EN LTV39-2 R48-10-ATEX
12 © Atlas Copco Industrial Technique AB - 9836 945049 49
Example
Tightening torque range
Check of valve play
Valve play, L = 4.9-5.1mm
RE-signal
Air pressure monitoring, RE-signal S1
Reporting pneumatic assembly tools provide a pneumatic signal that indicates
which part of the tightening cycle the tool has reached, by means of variations
in air pressure.
In the RE-Controller box timers are triggered when certain pressure levels are
reached.
Pressure level 1 (P1) starts a timer that checks that the tightening cycle is not
too short.
Pressure level 2 (P2) starts a timer that checks the time taken from when the
clutch has been released to when the operator releases the trigger to ensure that
it is not too short.

LTV39-2 R48-10-ATEX EN Service instructions
© Atlas Copco Industrial Technique AB - 9836 945049 49 13
The controller measures the differential pressure over the motor.
It should be noted that the system does not measure torque! Regular check of
installed torque/torque output of the tool must be done separately.
The RE-Controller checks the air-line pressure. One of the most common prob-
lems in air-line systems is pressure variations. If the pressure drops too much
the tool might stall and/or the torque will not be correct. The RE-Controller will
give a signal if the pressure drops too much.
The RE-Controller alerts the operator when it detects:
• Missed fasteners
• Premature tool shut-off
• Stripped threads
• Cross-threading
• Rehits
• Drop in air supply
The air pressure inside the tool is measured through a small hose (see Optional
accessories - RE-Signal kit) and converted into a digital signal. This signal is
processed in the RE-Controller. The RE-Controller gives instant visual and au-
dio feedback to the operator on whether the tightening was OK or not OK.
For further information, please see leaflet 9833 1358 01.
RE-Controller

Service instructions EN LTV39-2 R48-10-ATEX
14 © Atlas Copco Industrial Technique AB - 9836 945049 49
Testing of tightening torque
Torque and angle testing instrument
ACTA* 3000/ 4000. For further informatiom, please see our main catalogue or
separate leaflet.
Testjoint and Transducer
Select testjoint and transducers according to minimum and maximum torque of
your tool.
Lubricate screw and elastic washers with Molykote BR2 Plus.
Soft joints
Torque range
(Nm)
Test joint
Ordering No.
Screw size Screw quality Screw kit *)
Ordering No.
-15 4080 0788 91 M8 12.9 4080 0788 80
15-30 4080 0789 91 M10 12.9 4080 0789 80
30-60 4080 0790 91 M12 12.9 4080 0790 80
60-90 4080 0791 91 M14 12.9 4080 0791 80
90-200 4080 0866 90 M16 12.9 4080 0865 80
200-400 4080 0868 90 M20 12.9 4080 0867 80
400-800 4080 0876 90 M30 12.9 4080 0876 85
*) Including 2 screws, 2 nuts and 2 washers
Hard joints
Torque range
(Nm)
Test joint
Ordering No.
Screw size Screw quality Screw kit *)
Ordering No.
-15 4080 0788 90 M8 12.9 4080 0788 80
15-30 4080 0789 90 M10 12.9 4080 0789 80
30-60 4080 0790 90 M12 12.9 4080 0790 80
60-90 4080 0791 90 M14 12.9 4080 0791 80
90-200 4080 0865 90 M16 12.9 4080 0865 80

LTV39-2 R48-10-ATEX EN Service instructions
© Atlas Copco Industrial Technique AB - 9836 945049 49 15
Torque range
(Nm)
Test joint
Ordering No.
Screw size Screw quality Screw kit *)
Ordering No.
200-400 4080 0867 90 M20 12.9 4080 0867 80
400-800 4080 0876 95 M30 12.9 4080 0876 85
*) Including 2 screws, 2 nuts and 2 washers
In-line torque transducers - Torque models
Model Drive Hex
(inch)
Drive Square
(inch)
Rated capacity
(Nm) (ft lb)
Ordering No.
IRTT 5-I06 ¼ 5 4 8092 1129 05
IRTT 20-I06 ¼ 20 15 8092 1129 10
IRTT 20-06 ¼ 20 15 8092 1129 15
IRTT 25-10 3/8 25 18 8092 1129 20
IRTT 75-10 3/8 75 55 8092 1129 25
IRTT 180-13 ½ 180 133 8092 1129 30
IRTT 500-20 ¾ 500 369 8092 1129 35
IRTT 750-25 1 750 553 8092 1129 40
IRTT 1400-25 1 1400 1033 8092 1129 45
In-line torque transducers - Torque/angle models
Model Drive Hex
(inch)
Drive Square
(inch)
Rated capacity
(Nm) (ft lb)
Ordering No.
IRTT 2A-I06 ½ 2 1.5 8092 1130 01
IRTT 5A-I06 ¼ 5 4 8092 1130 06
IRTT 20A-I06 ¼ 20 15 8092 1130 11
IRTT 20A-06 ¼ 20 15 8092 1130 16
IRTT 25A-10 3/8 25 18 8092 1130 21
IRTT 75A-10 3/8 75 55 8092 1130 26
IRTT 180A-13 ½ 180 133 8092 1130 31
IRTT 500A-20 ¾ 500 369 8092 1130 36
IRTT 750A-25 1 750 553 8092 1130 41
IRTT 1400A-25 1 1400 1033 8092 1130 46
IRTT 3000A-38 1½ 3000 3000 8092 1130 51

Service instructions EN LTV39-2 R48-10-ATEX
16 © Atlas Copco Industrial Technique AB - 9836 945049 49
Instructions for Vane motor
Dismantling of Motor
Inspection of motor parts
•(R) To be replaced (from Service kit Ordering No. 4081 0298 90) at every
overhaul.
•End plates: Check that they not are scored or scratched. If these are shal-
low, polish with fine grinding paste against a face plate. Clean thoroughly.
•Rotor: Check that the end faces do not have any marks or burrs. Check that
the splines are not worn or cracked.
•Cylinder: Check that the bore is not scored or scratched. If these are shal-
low, polish with a fine grinding cloth.
Assembly of Motor

LTV39-2 R48-10-ATEX EN Service instructions
© Atlas Copco Industrial Technique AB - 9836 945049 49 17
Lubrication
Lubrication guide
Brand
General purpose/
Bearings
Grease
Clutch/ Gears
Grease
Angle-/ Off set
gears
Grease
Air-/ Motor Lubri-
cation
Oil
BP Energrease LS-EP2 Energol E46
Castrol Spheerol EP L2
Esso Beacon EP2 Arox EP46
Q8 Rembrandt EP2 Chopin 46
Mobil Mobilegrease XHP
222
Almo oil 525
Shell Alvania EP2 Tonna R32
Texaco Multifak EP2 Aries 32
Molycote BR2 Plus Longtterm 2Plus
Lubrication of gears in clutch casing
Lubrication of motor parts
Note
• No grease is needed for protected Ball bearings (ex. 2Z).
• Where oil is needed, apply only a thin layer.

Consignes d'utilisation et de sécurité FR LTV39-2 R48-10-ATEX
18 © Atlas Copco Industrial Technique AB - 9836 945049 49
Consignes d'utilisation et de sécurité
Consignes de sécurité
Attention
Familiarisez-vous avec les instructions d’emploi avant de mettre l’outil en ser-
vice.
Avant de procéder à un réglage quelconque (notamment le réglage du couple ou
le changement d’embouts), débranchez la conduite d’air comprimé de l’outil.
L’outil et ses accessoires sont strictement réservés aux utilisations prévues par
son fabricant.
Utilisez exclusivement des douilles. Pour une utilisation sûre et économique,
remplacez toujours les douilles usagées.
Assurez-vous que la douille est correctement fixée et si nécessaire, remplacez le
support du carré d’entraînement.
Eloignez les doigts et autres parties amples (telles que les vêtements et les che-
veux) de l’axe de sortie.
Ne pas utiliser de gants.
Tenez correctement l’outil et faites attention à la force de réaction.
N’utilisez jamais l’outil sans vérifier préalablement si l’embrayage se libère
correctement. Soyez attentif aux variations de la pression d’air.
Vérifiez le sens de rotation avant d’utiliser la machine.
Si vous travaillez dans un espace confiné sans utiliser de toc de réaction, vous
risquez de vous blesser par pincement.
Les boulonneuses avec toc de réaction demandent une attention particulière de
l’opérateur pour éviter toute blessure engendrée par un pincement. Ne posez ja-
mais la main sur le toc de réaction ou à proximité de celui-ci pendant l’uti-
lisation de l’outil.
Lorsqu'un anneau de suspension est utilisé, vérifiez son état et assurez-vous
qu’il est correctement fixé.
Installation d'outils vibrants
Il est recommandé d'insérer une longueur minimale de 300mm de tuyau souple
pour air comprimé entre un outil vibrant et le raccord rapide.
Informations générales
Informations sur la certification ATEX
• Numéro de certificat ATEX:
DEKRA BVS 08 ATEX H 063 X
• Code de marquage:
EX II 2 GD IIB 135°C (T4)
Veiller à utiliser la visseuse à tête déportée uniquement pour les usages aux-
quels elle est destinée. En cas d'utilisation inappropriée, des étincelles par choc
peuvent se former entre la douille et la vis ou l'écrou à serrer. Par conséquent, il
est recommandé d'utiliser exclusivement des clés dynamométriques. Avant
d'utiliser la visseuse à tête déportée, s'assurer que cet outil n'est pas usé et qu'il

LTV39-2 R48-10-ATEX FR Consignes d'utilisation et de sécurité
© Atlas Copco Industrial Technique AB - 9836 945049 49 19
assure une liaison parfaitement ajustée entre la visseuse à tête déportée et la vis
ou l'écrou à serrer. En outre, il est également impératif de s'assurer qu'il existe
une liaison parfaitement ajustée entre la tige du carré d'entraînement de la vis-
seuse et l'empreinte carrée de la clé dynamométrique. Par ailleurs, la visseuse à
tête déportée doit être mise à la terre ou raccordée au circuit de liaison équipo-
tentielle de l'atelier, par exemple par le biais d'accessoires adéquats tels que les
flexibles et les raccords d'air comprimé.
Il est impératif de bien observer la réglementation nationale en matière de sécu-
rité si l'outil doit être utilisé dans des zones soumises à un risque d'explosion. Il
est de la responsabilité de l'utilisateur de s'assurer que tous les accessoires pos-
sibles de l'outil tels que les clés et les raccords pneumatiques sont conformes à
la réglementation nationale de sécurité concernant les matériels utilisés dans des
atmosphères potentiellement explosibles.
L'entretien de l'outil et les réparations doivent être effectués exclusivement
par un personnel autorisé, après quoi il est impératif d'effectuer un essai à
vide d'au moins 10 minutes et des relevés de température dont les résultats
seront consignés dans un protocole. Il convient de ne pas dépasser une tem-
pérature maximale de surface de 135 °C.
DÉCLARATION DE CONFORMITÉ CE
Nous, Atlas Copco Industrial Technique AB, S-105 23 STOCKHOLM,
SUÈDE, déclarons que le produit (dont le nom, le type et le numéro de série fi-
gurent en première page) est en conformité avec la ou les directives suivantes:
2006/42/EC
Normes harmonisées appliquées:
EN 792-6
Dossier technique disponible auprès de:
Directeur de la qualité, Atlas Copco Industrial Technique, Stockholm, Suède.
Fait à Stockholm, le 1er juillet 2013
Tobias Hahn, Directeur général
Signature du déclarant
Vidéo de sécurité des produits pour les boulonneuses
Pour en savoir plus sur les caractéristiques de sécurité des boulonneuses Atlas
Copco et sur les mesures que l'opérateur doit prendre pour travailler en sécurité,
cliquez sur le lien ou scannez le QR code ci-dessous pour voir la vidéo:
http://www.atlascopco.com/videogallery/#detail/77f67648-30f0-4b92-
bab6-885ea6b054db

Consignes d'utilisation et de sécurité FR LTV39-2 R48-10-ATEX
20 © Atlas Copco Industrial Technique AB - 9836 945049 49
Installation
Installation d'outils vibrants
Il est recommandé d'insérer une longueur minimale de 300mm de tuyau souple
pour air comprimé entre un outil vibrant et le raccord rapide.
Qualité de l'air
• Pour assurer à la machine des performances optimums et une durée de vie
maximum, nous recommandons d'utiliser de l'air comprimé avec un point de
rosée maximum de +10°C. Nous recommandons également d'installer un
déshydrateur d'air Atlas Copco à réfrigération.
• Utilisez un filtre à air indépendant de type Atlas Copco FIL. Ce filtre retient
les particules solides supérieures à 15 microns et plus de 90 % d'eau sous
forme liquide. Il doit être placé aussi prêt que possible de la machine ou de
l'équipement et avant toute autre unité de préparation de l'air telles que des
unités REG ou DIM (voir "Accessoires de distribution d'air" dans notre ca-
talogue général). Mettez le flexible à l'air libre avant de le raccorder.
Modèles nécessitant une lubrification de l'air :
• L'air comprimé doit contenir une petite quantité d'huile.
Nous recommandons fortement l'installation d'un graisseur à brouillard
d'huile Atlas Copco (DIM). Celui-ci devra être réglé en fonction de la
consommation d'air de l'outil pneumatique conformément à la formule sui-
vante :
L = Consommation d’air (litre/s).
(voir notre documentation commerciale).
D = Nombre de gouttes par minute (1 goutte = 15 mm3)
L* 0.2 = D
cette formule s'appliquant aux outils pneumatiques à cycle de fonctionne-
ment long. Avec des outils à cycle de fonctionnement court, vous pouvez
également utiliser un lubrificateur à un seul point type Atlas Copco Dosol.
Vous trouverez des informations sur le réglage du Dosol dans notre cata-
logue général, sous le chapitre "Accessoires de distribution d'air".
Modèles sans lubrification :
• Pour les outils n'exigeant pas de lubrification, le client a le choix de l'équi-
pement périphérique à utiliser. Néanmoins, il n'y a aucun inconvénient à ce
que l'air comprimé contienne une petite quantité d'huile fournie par un équi-
pement tel qu'un graisseur à brouillard d'huile (DIM) ou un système Dosol.
•Remarque – ceci ne concerne pas les outils à turbine qui doivent rester
exempts d'huile.
Raccordement de l'air comprimé
• L'outil est conçu pour une pression d'utilisation de 6 à 7 bar = 600 – 700 kPa
= 6 – 7 kg/cm2.
• Soufflez de l’air dans le flexible avant de le connecter.
