Soyal AR-1207A-29 User manual
SOYAL
ACCESS CONTROL SYSTEM
®
V200528
x 12
x 2
x 2 x 2
- 1 -
AR-1207
Electric Bolt Lock (Fail Safe/Fail Secure)
ACCESS CONTROL SYSTEM
®
A/B-29/36
SOYAL
Wire Application Wire Color Description
---- 1 Blue White ----
---- 2 Purple White ----
LSS
(Lock Sensor Status) 3 White
Transistor open-collector output, Max
24V/110mA
Bolt locked output LOW, bolt unlocked
or power fail high impedance
DSS
(Door Sensor Status) 4 Orange
Transistor open-collector output, Max
24V/110mA
Door closed output LOW, door unlocked
power fail high impedance
PTE
(Push to Exit) 5 Purple Negative Trigger Input
Alarm Output 6 Gray
Transistor open-collector output, Max
24V/110mA
Alarming output LOW, normal status or
power fail high impedance
Power 7 Red Power DC 12-24V
8 Black Power DC 0V(GND)

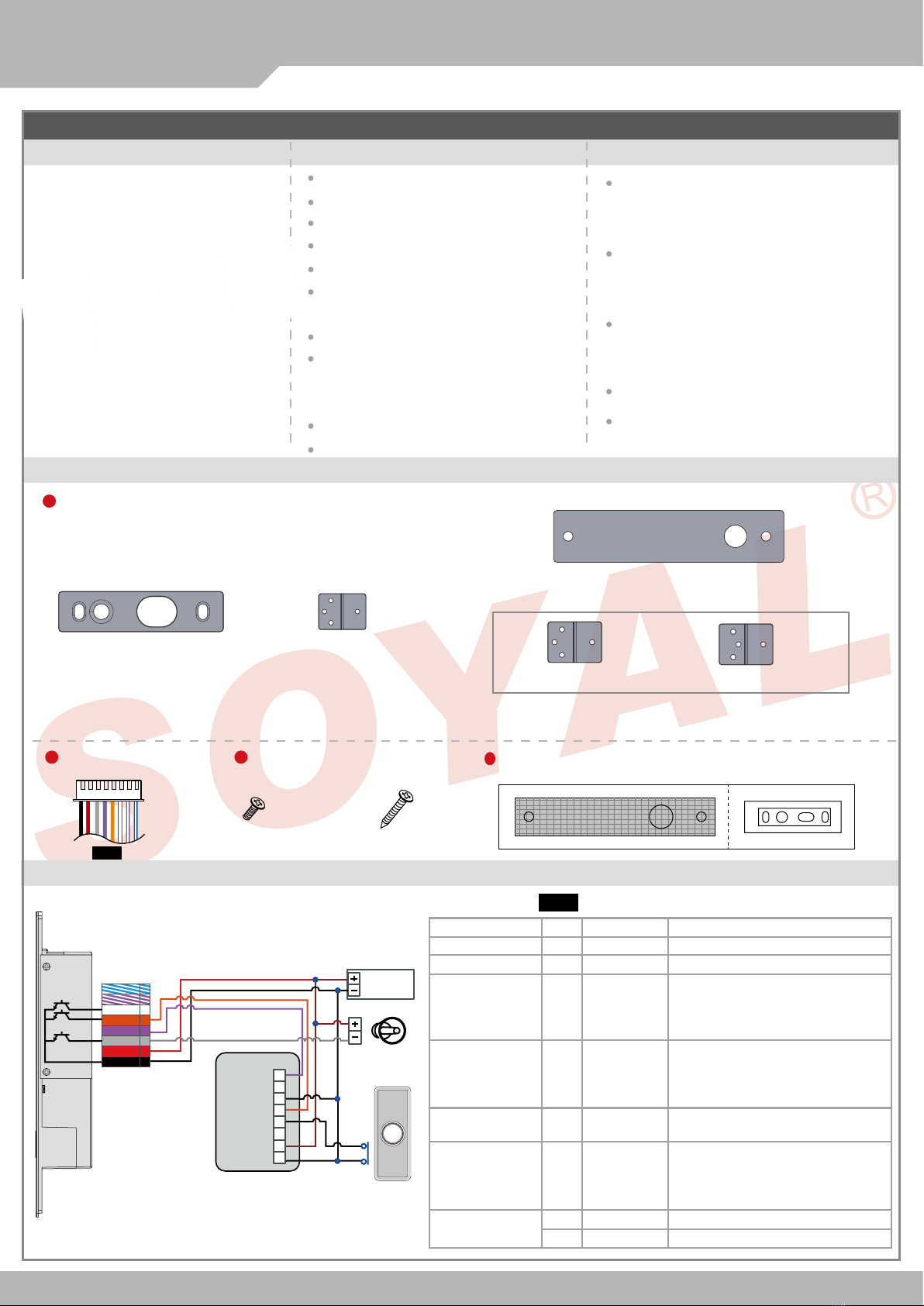

Wiring Table:
Content
AR-1207A/B-/29/36 Specication Features
Product Information
Wiring Diagram
Product 【
Electric Bolt Lock】Built-in door position status output
to indicates door opened or closed
position [Door Status]
Built-in Bolt status output to
Indicate locked or unlocked bolt
status [Bolt Status]
Built-in bolt tamper-resistant
indicator and alarm output contact
[Alarm]
Support all range voltage DC12V~24V
Time delay option 0 / 3 / 9 seconds
Voltage: DC12V-24V
Current Draw: 1A(12V) / 0.5A(24V)
Power Saving Mode: 220mA (12V)
/ 110mA (24V)
Operating Temperature: 0℃~ +50℃
Locking Mode: Type A (Fail Safe)
Type B(Fail Secure)
Dropbolt Length : 16 mm
Dimension:
AR-1207/29: 200Lx32Wx32H (mm)
AR-1207/36: 205Lx32Wx32H (mm)
Solenoid Test: Over 500,000 times
Weight: 500g
Strike plate x1
Extending Plate (big) x2
Door Plate x1
Extending Plate (small) x2
5mm*12mm Screw x12 5mm*32mm Screw x4
1Lock installation parts
2
8PIN Connector Cable
4
Installation Template
3
Screw Set
CN1
x 4
CN1
(Suitable for AR-1207-29) (Suitable for AR-1207-36)
EXIT
N.O.
GND
N.O.
COM
SENSOR
PB
12V
GND
DC12V-24V
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
LSS
DSS
PTE
V12-24
Alarm Output
V0 Controller
Push Button
Power
Alarm
SOYAL
ACCESS CONTROL SYSTEM
®
V200528
產品說明
- 2 -
AR-1207
Electric Bolt Lock (Fail Safe/Fail Secure)
ACCESS CONTROL SYSTEM
®
A/B-29/36
SOYAL
Indicators LED Indicator Door Status Bolt Status
Standby (waiting for locking) LED lights up RED Open Open
Door Locking Time Delay RED and GREEN LED ash alternately,
ash continuously every 0.5 second Close Open
Locked Well LED lights up GREEN Close Close
Fail to Lock RED and GREEN LED ash once every
0.2 second Close Open
Keep Locking Locked once every 2 seconds Close Open
Abnormal Door Status or Bolt Status Flashing RED LED Trigger Trigger
1) After “Fail to lock”, the bolt will enter into “Keep locking” mode and relock once every 2 seconds. It will keep ashing
red LED until the door is in correct position and completely locked, it will turned into green LED and will enter power
saving mode. If the door status is
2) When forced entry is occurring and break open the lock tongue, it will send alarm signal and will quick ash red LED,
until a personnel come back and review it.
3) Please check V(+) and V(-) wiring when LED doesn’t light up.
4) It is suggested to use 12V 1000mA or more for power supply. If the power supply is insucient, the drop bolt possibly
keep projecting and retracting.
Status Indicators
Troubleshooting
Time Delay
Functions Mode
Time Delay option: 0, 3, or 9 seconds
0s 0s 0s3s 3s 3s9s 9s 9s
2.Unlock Mode: In Lock mode, when pushing the exit switch, The bolt will automatically retract, after 3 seconds, if the
door is closed, the time delay (0/3/9 sec.) will reset and count and execute the following functions.
3.Forced Entry (alarm): when system is detecting error status or forced entry signal, alarm will be activated.
Bolt and LED identication as following chart
0 seconds 3 seconds 9 seconds
Time Delay adjustment
Manual
1.Standby Mode: If you close the door under the standby mode, the system will receive an induction and the time
delay (0/3/6/9 sec.) will start to count, and then the auto-detective function will execute the following movements:
1) If door is opened within the time delay countdown, the bolt will automatically retract and the systems will return
to standby mode.
2) If door is closed after the time delay countdown, the bolt will automatically extend into the “Detecting lock” and
may execute the following steps.
3) After “Detecting lock” is done (system will received an induction of “Locked well”) , and will stay locked.
4) When “Detecting lock” is done but the bolt can ‘t proceed to lock, it will enter “Fail to lock” mode, users can see
light indicator or listen to the warning buzzer, then push the door into the right position to lock.
When entering “Keep locking” mode, it will automatically relock for every 2 seconds, and when indicating “Locked
well” mode, it will enter power saving mode.
SOYAL
ACCESS CONTROL SYSTEM
®
V200528
26.6
24
32 mm
180 mm
200 mm
147 mm
29 mm
79 mm
104 mm
126 mm
ØBolt 15.8mm / Deep 16mm
26.6
24
25.6
16
32
30.5
1.5
16
36.5 mm
79 mm
104 mm
126 mm
ØBolt 15.8mm / Deep 16mm
32 mm
180 mm
147 mm 25.6
16
32
30.5
1.5
16
205 mm
19
24
19
24
- 3 -
AR-1207
Electric Bolt Lock (Fail Safe/Fail Secure)
ACCESS CONTROL SYSTEM
®
A/B-29/36
SOYAL
Installation
Ordering Model Name Description
F/X with/without Euro-Prole Cylinder -----------
29/36
Distance between Bolt centerpoint and mounting screw hole centerpoint
-----------
A/B Fail-Safe / Fail-Secure -------- A: Fail-Safe / B: Fail-Secure

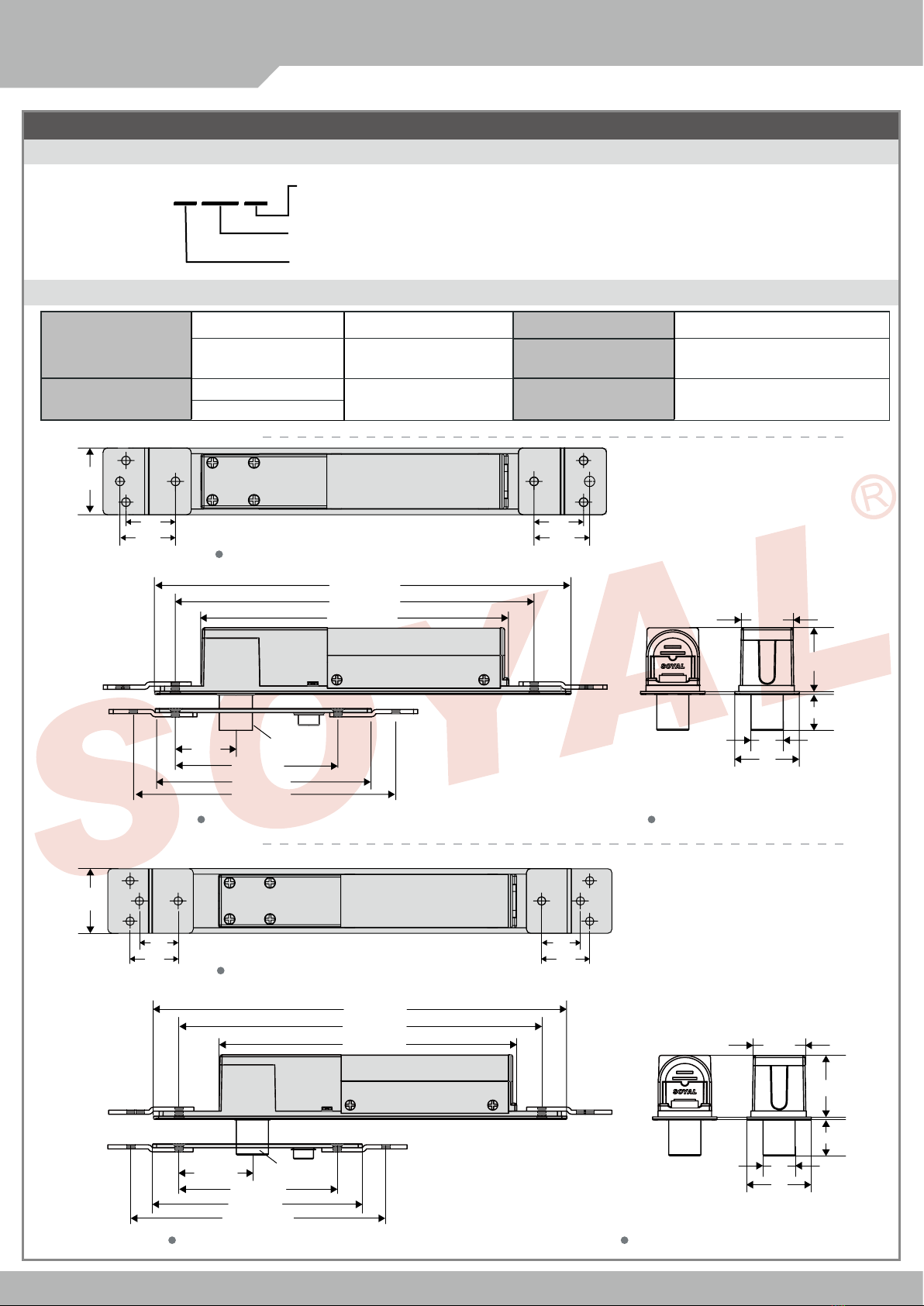

Dimension and Diagram
Lock Size (mm)
AR-1207A/B-29 200(L) x 32(W) x 32(H) Bolt size (mm) Adjustable up to 16mm
AR-1207A/B-36 205(L) x 32(W) x 32(H) Bolt diameter 16mm diameter (stainless
steel lock bolt)
Strike plate (mm) AR-1207A/B-29 104(L) x 25.5(W) x 5(H) U-shaped Plate (mm) (With additional purchase)
AR-1207A/B-36
Electric Bolt Lock Vertical View
Electric Bolt Lock Vertical View
Electric Bolt Lock/Strike Plate Front View
Electric Bolt Lock/Strike Plate Front View
Electric Bolt Lock Side View
Electric Bolt Lock Side View
AR-1207A/B-36 Dimension
AR-1207A/B-29 Dimension
AR-1207-X-XX-X
29: 29mm
36: 36mm
F: with Euro-Prole Cylinder
X: without Euro-Prole Cylinder
SOYAL
ACCESS CONTROL SYSTEM
®
V200528
- 4 -
AR-1207
Electric Bolt Lock (Fail Safe/Fail Secure)
ACCESS CONTROL SYSTEM
®
A/B-29/36
SOYAL
Installation Template Dimension for AR-1207A/B-29
According to the purchased lock model, attach the supplied installation template on the installation
position.
Installation Template Dimension for AR-1207A/B-36
For Lock Body
For Lock Body
For Strike Plate
For Strike Plate
Installation Template
SOYAL
ACCESS CONTROL SYSTEM
®
V200528
1
3 4
2
200mm / 205mm
104mm
25.5 mm
32mm
- 5 -
AR-1207
Electric Bolt Lock (Fail Safe/Fail Secure)
ACCESS CONTROL SYSTEM
®
A/B-29/36
SOYAL

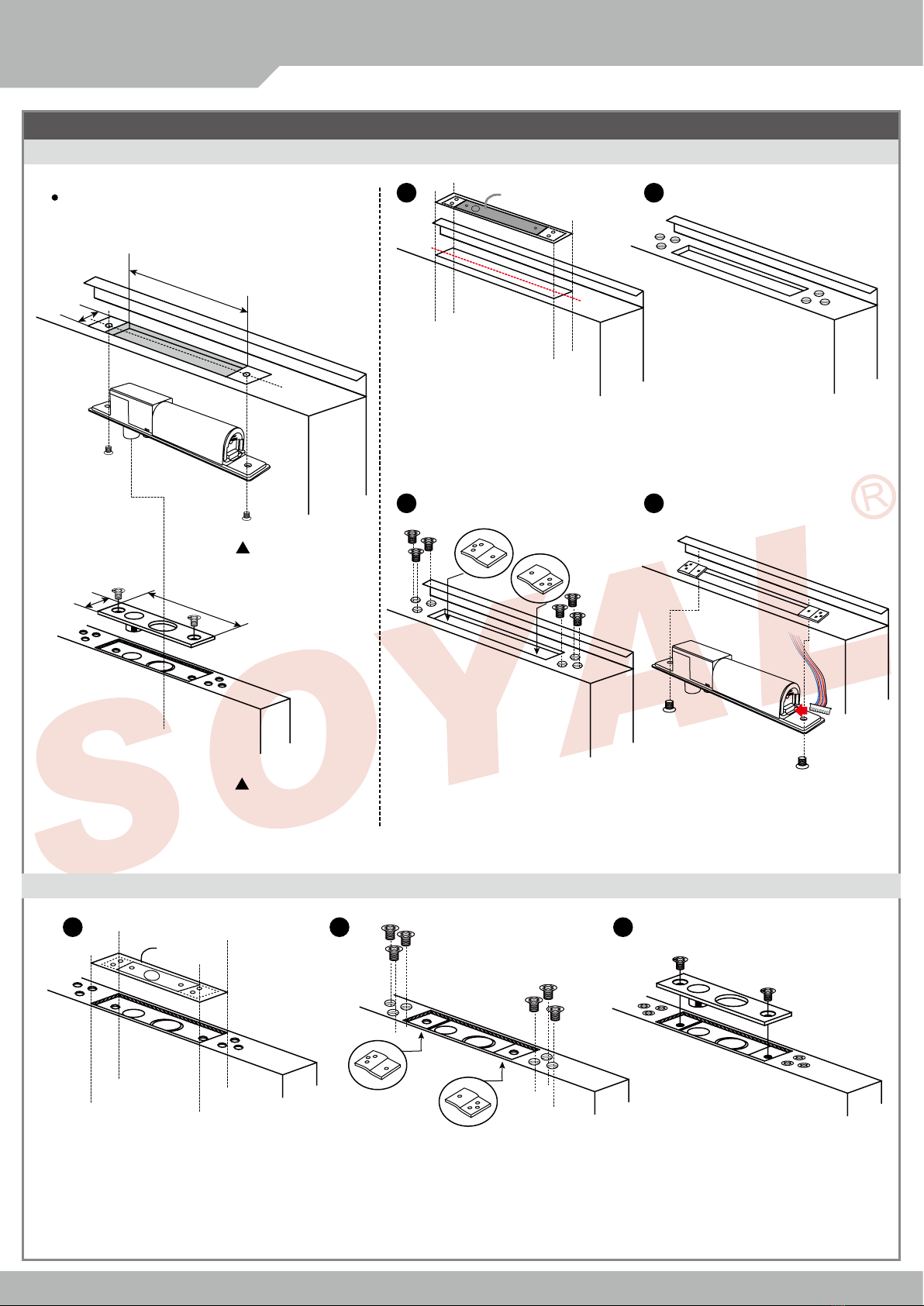

Installation Instruction
Electric dropbolt Lock body Installation Reference
Mortise Mount Installation –
Suitable for hollow metal door
STEP 1 : Mark the Ceterline position on
door frame, mark cutting size，attach the
supplied Lock Body installation template
on the installation position
STEP 3 : Install two big extending plates (
please notice the position and direction of
mounting)
STEP 4 :Play the cables from the
accessory kit into the cable socket and
wire with the related devices according
to the required functions; after pushing
the cables into the inside of door frame,
power on the lock and test.
STEP 2 :Cut screw hole according to
the mark position
Door Frame
Door leaf
(Detail installation steps
shown as below)
STEP 1 :Attach the mounting strike plate
templateon the installation position，cut by
the template instruction and drill screw holes.
STEP 2 :Install two small extending plates
( please note the position and direction of
mounting)
STEP 3 :Align Strike plate with screw holes,
screw Strike plate to nish the installation.
Mounting hole sticker
Strike Plate Installation Reference
1 2 3
Strike PlateTemplate
SOYAL
ACCESS CONTROL SYSTEM
®
V200528
1
3
4
2
- 6 -
AR-1207
Electric Bolt Lock (Fail Safe/Fail Secure)
ACCESS CONTROL SYSTEM
®
A/B-29/36
SOYAL
Installation Instruction
Installation Position Description
Install Bracket and box
STEP 1 : Install the external bracket box , mark the
screw hole position on door frame , drill screw hole
and x bracket box with screw.
STEP 3 :Install strike plate, mark screw hole on
door frame; drill screw hole and x bracket box with
screw.
STEP 2 : Place electric dropbolt body from bottom
into the external bracket box ;screw and nish.
STEP 4 :Place strike plate from top into the external
bracket box; screw and nish .
Install Lock body with external
Bracket box
Install Strike plate with external
bracket box
Door Frame Door leaf
Troubleshooting
Problem Possible Cause Solution
Dropbolt is not activated when
the door is closed.
The gap between the strike plate and
the dropbolt lock is large .
Adjust the distance between the magnet
strike plate and the reed sensor range
in the lock body is within 10mm.
No or Low voltage /current
Check whether the output power
(voltage and the current) is enough
Pull in power: 12W
Dropbolt repeats projecting action
Low voltage /current
Check whether the output power
(voltage and the current) is enough
Pull in power: 12W
Dropbolt is not locked in the hole properly
Adjust the door closer or the door hinge
to ensure the door closing in the correct
position.
If the door hinge is failed to adjust, it is
recommended to change double swing
door to single swing door
Bolt cannot retract Strike plate is misaligned
Sway the door to release the bolt to
open the door.
If the door hinge is failed to adjust, it is
recommended to change double swing
door to single swing door
Install lock on the top of double
swing door
Install lock on the side of single swing
door (Bolt upwards)
Install lock on the top of single
swing door
This manual suits for next models
3
Other Soyal Lock manuals
