SPARTAN sport Boat Nest Swing User manual

Boat nest swing
USER’S MANUAL
CAUTION & WARNING!
For family domestic use only. Not suitable for children under 3 years.
To be used under the direct supervision of an adult.
Long cord, risk of strangulation!
Risk of falling!

INSTRUCTIONS FOR USE
SAFETY INSTRUCTIONS WARNING！
1. Please keep this instruction sheet safely for future reference.
2. Please do not modify the product or the assembly details in any way. Modifications will affect
the structural integrity and replacement parts will be at the buyer’s expense. Inappropriate use or
faulty application of the product are explicitly forbidden and absolve the manufacturer of all
liability. This product needs to be mounted by an adult before use.
3. The use of the item is allowed only under continuous supervision by an adult. The product can
bear a maximum load of 150 kg. The product is not suitable for children under 36 months, due to
a lack of extra safety precautions and taking into account the limited mental capacities of
toddlers.
4. This product meets all security aspects of the European standard EN71-1, EN71-2, EN71-3
and EN 71-8.It is only suitable for family domestic use, both indoors and outdoors.
5. When installing the product, ensure that the play system or other construction can support the
weight (minimum 200 kg) and that there is no risk of entrapment.
6. The product should be at a distance of at least 2 m from all other installations e.g. fences,
branches, clothes-line, …
7. In this safety area no hard, angular or pointed objects should be present. The surface
underneath the product should be flat and shock absorbing. The product must not be placed on
asphalt, concrete or any other hard surface. We advise the removal and storage of all accessories
during the winter because the characteristics of the soil (when frozen) are not suitable for safe
play.

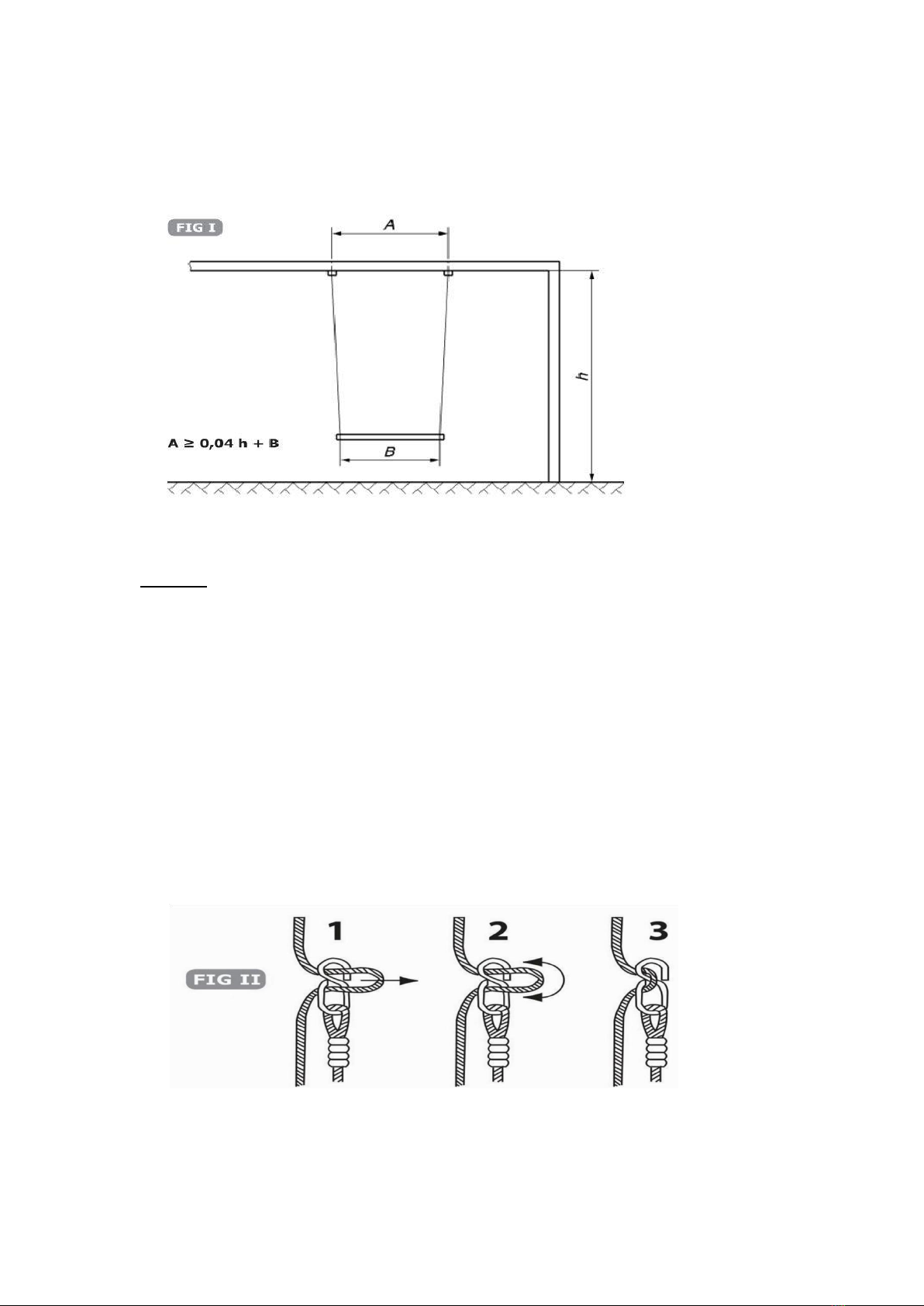

8. The distance between the suspension points along the crossbeam equals or is more than the
distance between the junction points of the product, plus 4% of the distance between the ground
and beam. See FIG I.
9. The minimum distance from the bottom of the swing seat to the ground surface shall not be
less than 35 cm. The minimum lateral free space should be 45 cm.
10. Specific instructions for adjusting the rope length : see FIG II. Ensure that the product hangs
horizontal after adjustment of the ropes.
11. Please ensure that the crossbeam is never higher than 2.5 m. Please make sure that children
do not climb the product to reach the top beam.
12. To avoid that the swing is heating up, do not place it facing the sun. In warm weather, check
that the seating surface is not too hot.
13. All pieces should be checked regularly. For replacement material and expansion of the
playground equipment please contact the supplier. Consequently safety will be guaranteed.
14. This product can only be used in combination with sufficiently strong swing hooks with a
nylon bearing. Only in this case the safety can be ensured. It is explicitly forbidden to use the
metal rings on a suspension system without a hinged element.

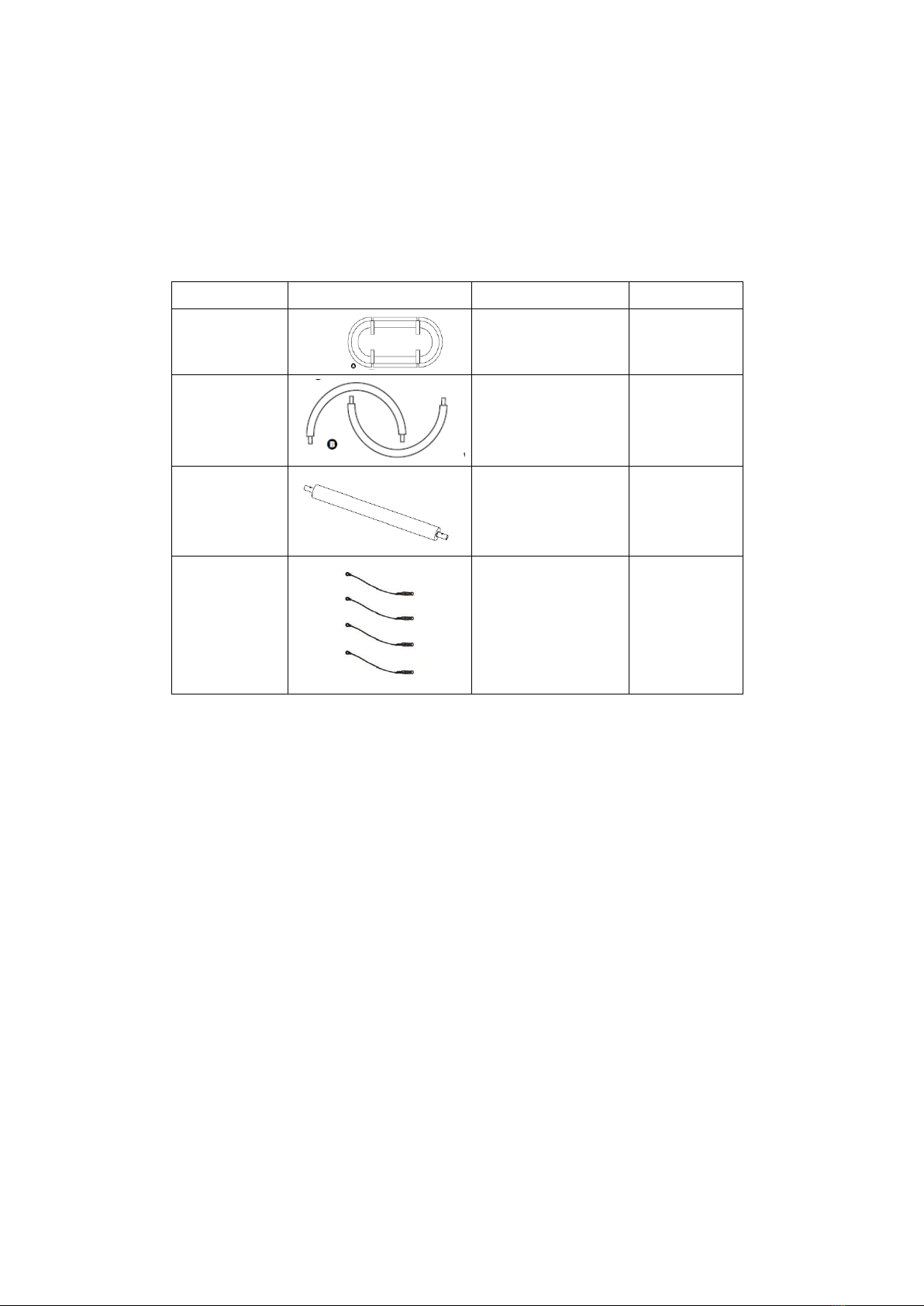

PARTS LIST
Remove all parts out of the packaging and check if anything is damaged, and if all parts are
present.
ITEM
PART IMAGE
PART
QTY
A
Sail
1
B
Curved tubes
2
C
Straight tubes
2
D
Ropes
4
HOW TO INSTALL - Installation
A- Distance between the suspension points along the crossbeam.
B- Distance between the junction points of the swing element and the means of suspension.
C - Distance from the ground to the lower side of the crossbeam.

The distance of A can be calculated by taking the measurement of the height and multiply it by
0.04, you will then add the measurement of the width. The distance of A should be equal to or
greater than that amount.
Example:
H=25m B=65cm
A = (0.04 x H) + B
A = (0.04 x250cm) + 65cm A≥ 75 cm
HOW TO ADJUST THE ROPES:

ASSEMBLY STEPS

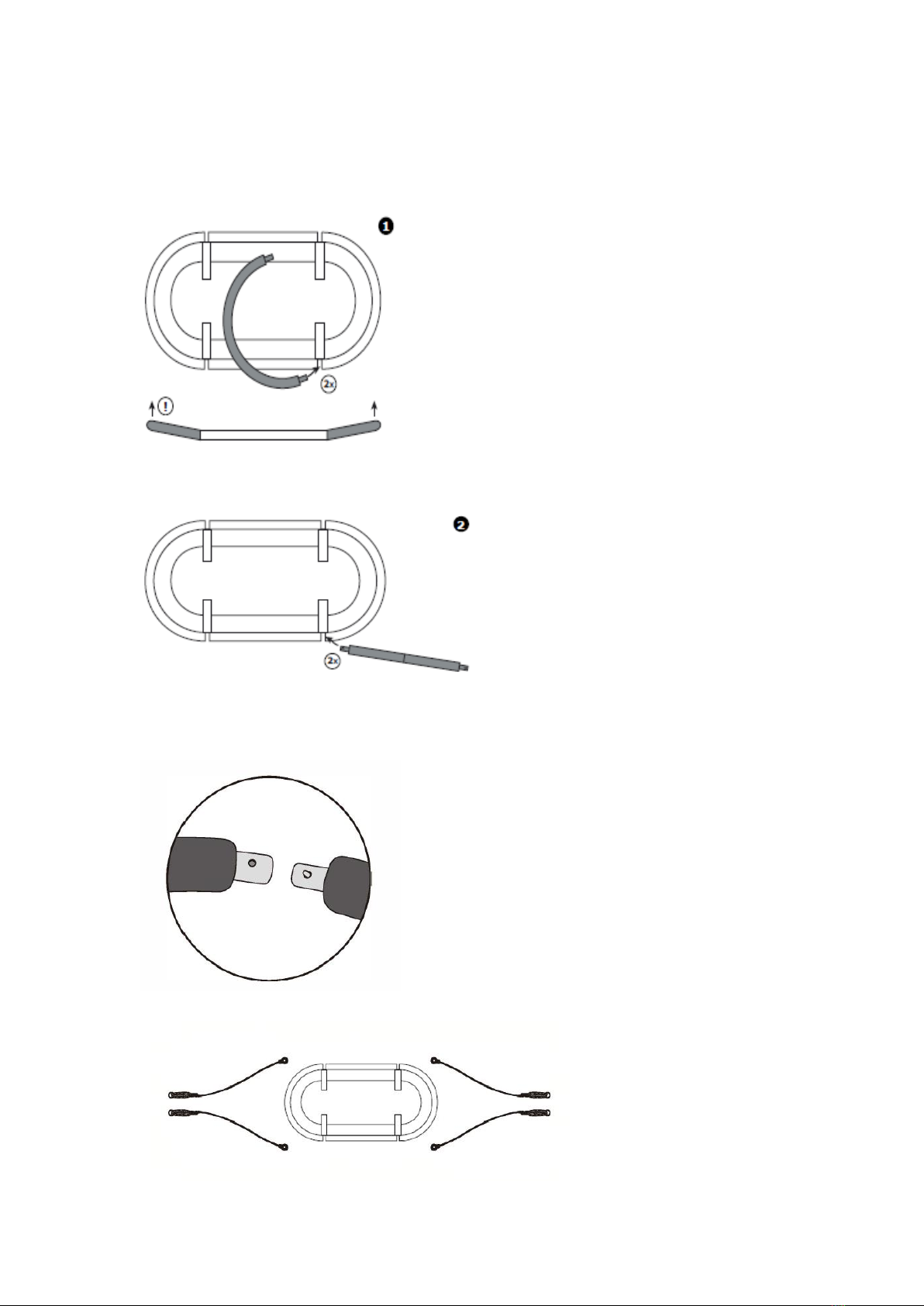

1. Open the flaps of the seat mat. Insert the two Curved tubes into the seat mat through the flap
openings, forming arc-shape. Do not remove the stock absorbing foams from tubes.
2. Insert the two Straight tubes into the seat mat through the flap openings, Do not remove the
stock absorbing foams from tubes.
.
3. When connecting the straight tube with the curved tube, make sure that a thicker tube end
with a hole follows a tube end with a button. Do not assemble the tubes now.
4. Put the two ropes with plastic connectors beside the seat mat like the picture below.

5. .Insert the plastic connector of the rope from the top through the opening of the velcro
flap.
Please note that there are “I”and “II”marked on the inner side of the plastic connectors.
6. Now connect the tubes by pressing down the button on the contracted tube end.
Locking is done by clicking on the button.
Make sure that “I”is pointed to the contracted tube with button, and “II”is pointed to the
tube with hole. And when you cover the plastic connector to the tube, please cover the “II”
side to the tube at first, next is “I”side. Make sure that the button is fully inserted into the
hole until you can see the button on the surface of the hole like following picture.
7. Now close the cover with the Velcro straps. The assembly is hereby finished.

Following is how to disassemble the swing:
Open the velcro flaps and push the shock absorbing foam to the side. Press down the button to pull
the tubes apart.
INSPECTION AND MAINTENANCE
The frequency of inspection and maintenance will vary with the type of equipment or materials
used or other factors (e.g. heavy use, levels of vandalism, coastal location, air pollution, age of
equipment, ...).
Special attention should be given to the swing hooks, rings, eights, plastic welds and ropes.
Moving metal parts must be oiled regularly.
Routine visual inspection (weekly to monthly)
- Always check that the bolts and nuts are securely fastened.
- Check the shock absorbing surface for objects that don’t belong there.
- Check for missing parts
- Check the equipment ground clearances.

Operational inspection (1 to 3 months)
- Check the stability of the construction.
- Check every part for excessive wear and replace when necessary.
Annual inspection (1 to 2 times per year)
- Check for rust and corrosion.
- Check every part for excessive wear and replace when necessary.
