Spartherm Living Fire Senso User instructions

ASSEMBLY AND OPERATING MANUAL
STOVES SENSO & SINO
STATUS 12.2022
Fire love. For a lifetime.

2
Assembly and operating manual | Senso & Sino | 12.2022 | EN
Document information
Assembly and operating manual for stoves:
•Senso L
•Senso L rotatable
•Senso L klassik
•Senso L klassik rotatable
•Senso L fashion
•Senso L fashion rotatable
•Sino L
•Sino L rotatable
•Sino City
The descriptions are identical for all above-mentioned models.
Any differences will be addressed explicitly. The images show
the stove Senso L.
These instructions refer to the stove as the “unit”. The full
system including the stove, thermal storage medium, pipes and
chimney is referred to as the “stove system”.
Safety information
DDANGER!
Information marked with the word DANGER indicates a
dangerous situation that will lead to severe injuries or death.
DWARNING!
Information marked with the word WARNING indicates a
dangerous situation that may lead to severe injuries or death.
DCAUTION!
Information marked with the word CAUTION indicates a
situation that may lead to minor to medium injuries.
DATTENTION!
Information marked with the word ATTENTION indicates a
situation that may lead to property or environmental damage.
Symbol explanation for text
AAction prompt
•List
✔Check
Advice or recommendation
§ Indication of standards or directives
¨Reference to other sections of this document
Reference to other sources to be taken into account
Symbol explanation for images
Fig. No.
A
x
B1.
2.
Highlighting of sections requiring action
1. Numbered action steps
AComponent designation or dimensions
x Dimensions in mm
Movement and direction arrows

3
Assembly and operating manual | Senso & Sino | 12.2022 | EN
Table of contents
1. Safety information 4
1.1 Intended use 4
1.2 Authorised target groups 4
1.2.1 Manufacturer 4
1.2.2 Owner 4
1.2.3 Qualified personnel 4
1.2.4 Users 4
1.3 Behaviour in emergencies 5
1.4 Chimney fire 5
1.5 General safety information 5
2. Product information 6
2.1 Functional principle 6
2.2 Operating modes 6
2.3 Material 6
2.4 Protective devices 6

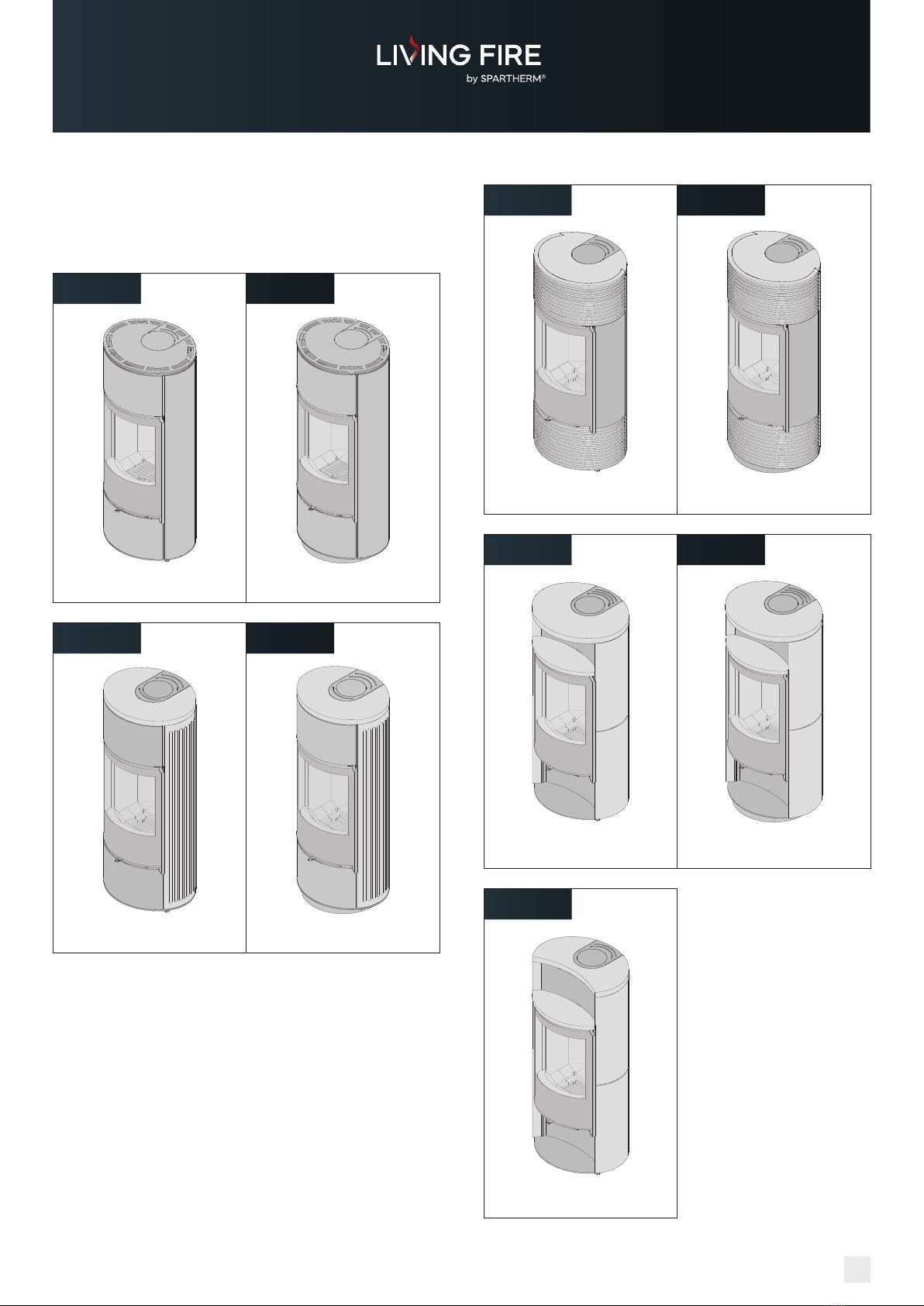

2.5 Models 7
2.6 Product overview 8

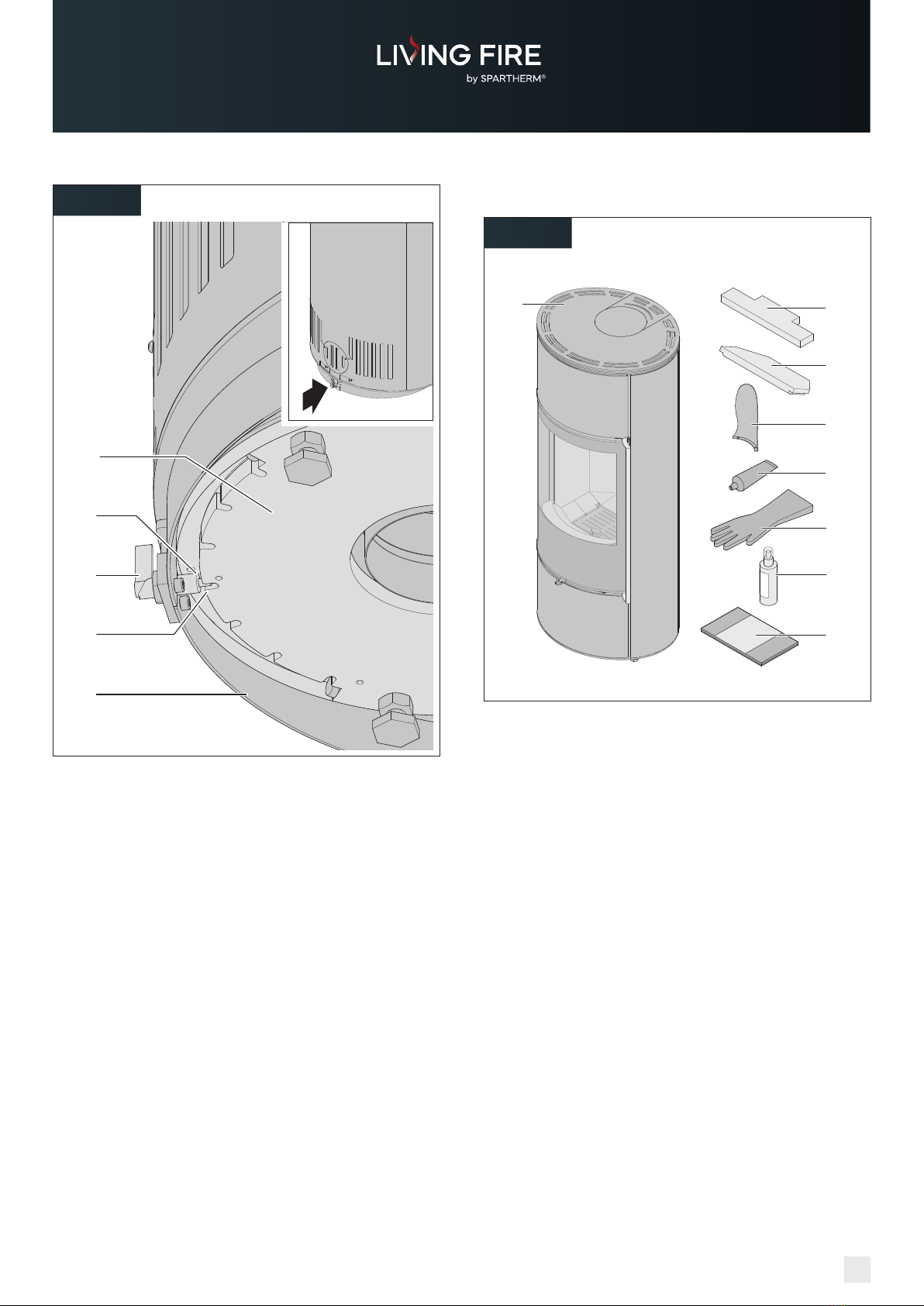

2.7 Scope of delivery 9
2.8 Technical data 10
2.9 Nominal heat output 12

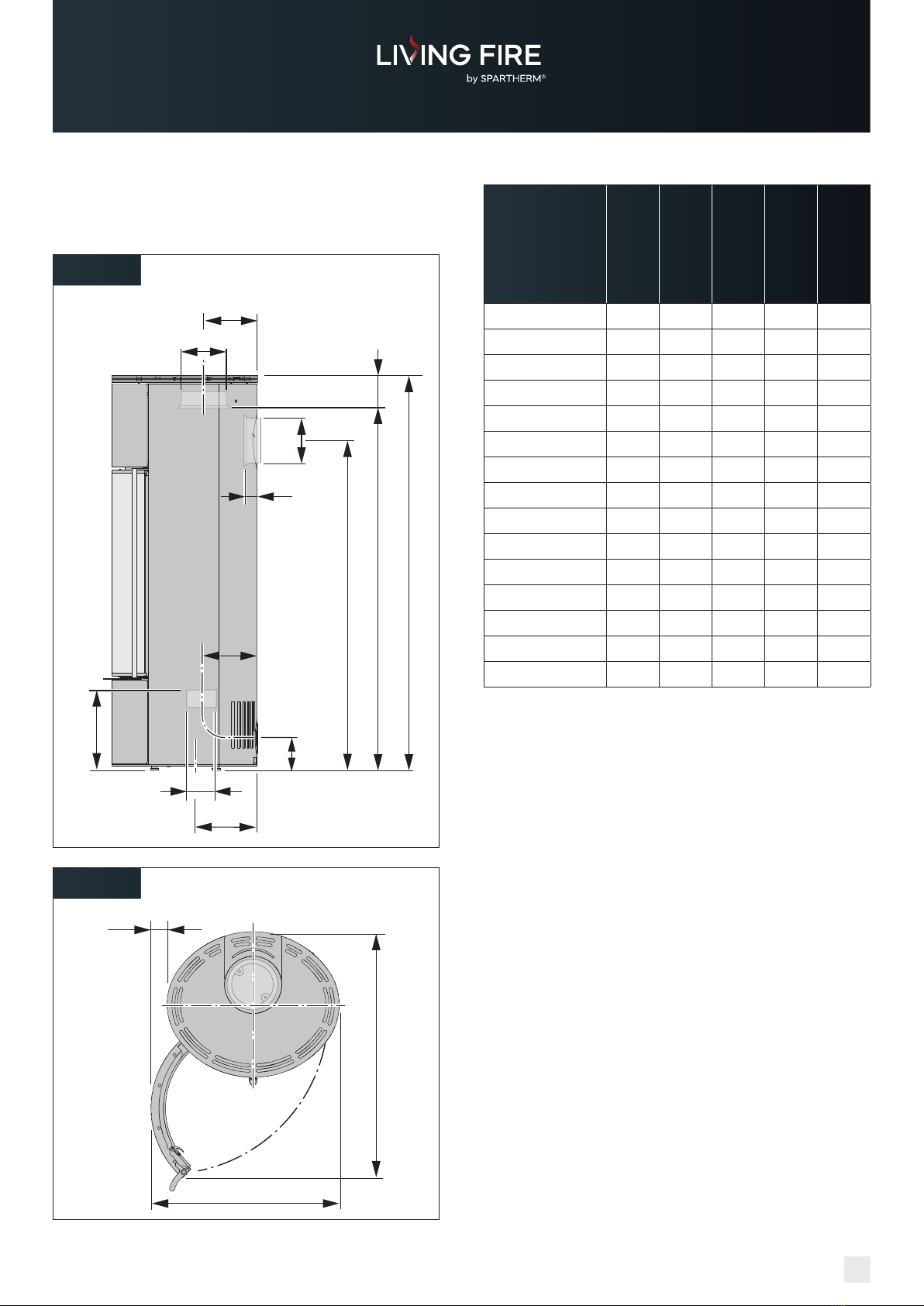

2.10 Dimensions 13
3. Types of fuel 14
3.1 Information on types of fuel 14
3.2 Permissible types of fuel 15
3.3 Permissible igniters 15
3.4 Fuel storage 15
3.5 Size of the fuel pieces 15
4. Assembly 16
4.1 Safety information for assembly 16
4.2 Requirements for assembly 16
4.3 Requirements for the installation site 16
4.3.1 Installation room 16
4.3.2 Installation dimensions 17

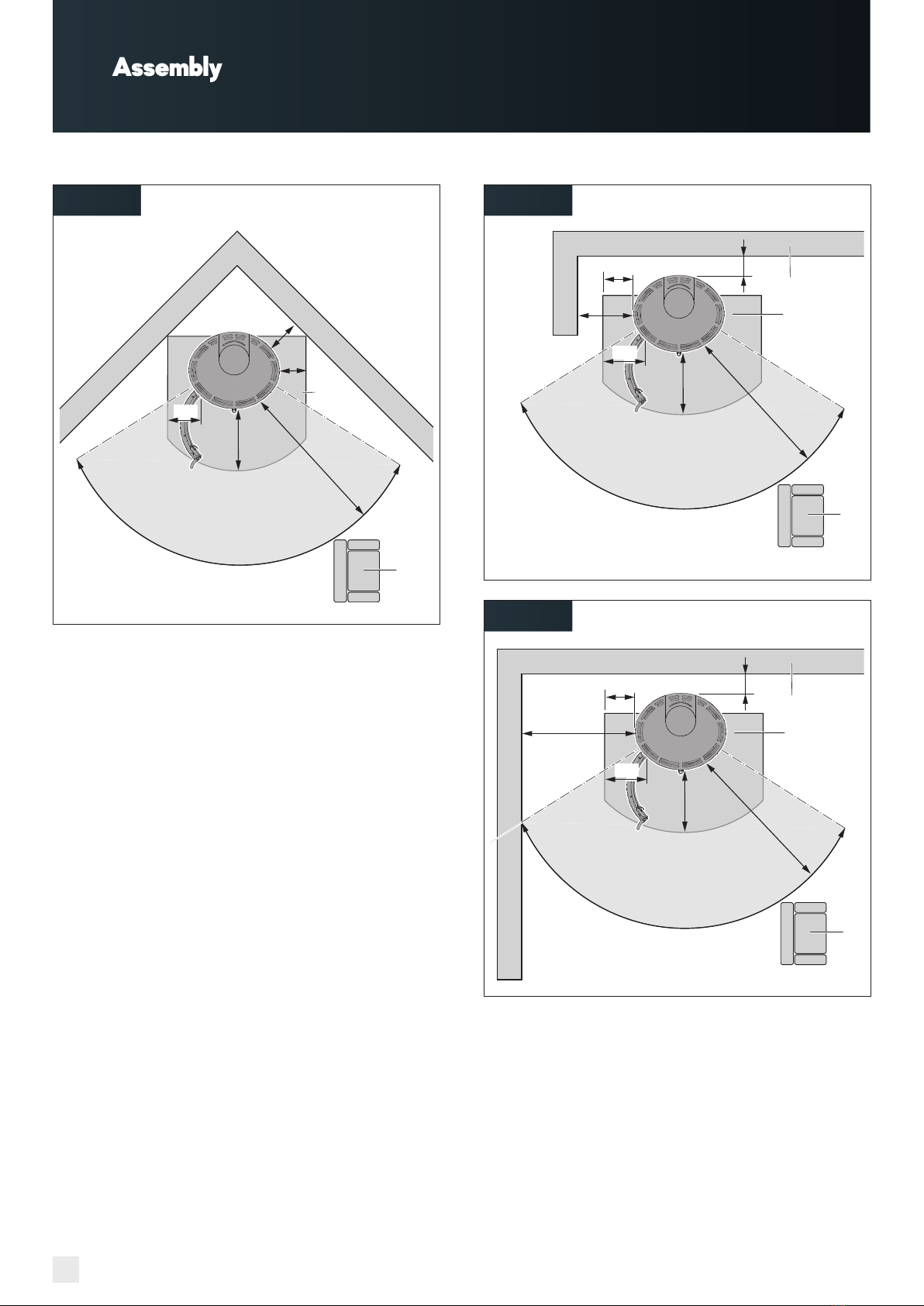

4.3.3 Safety distances 19

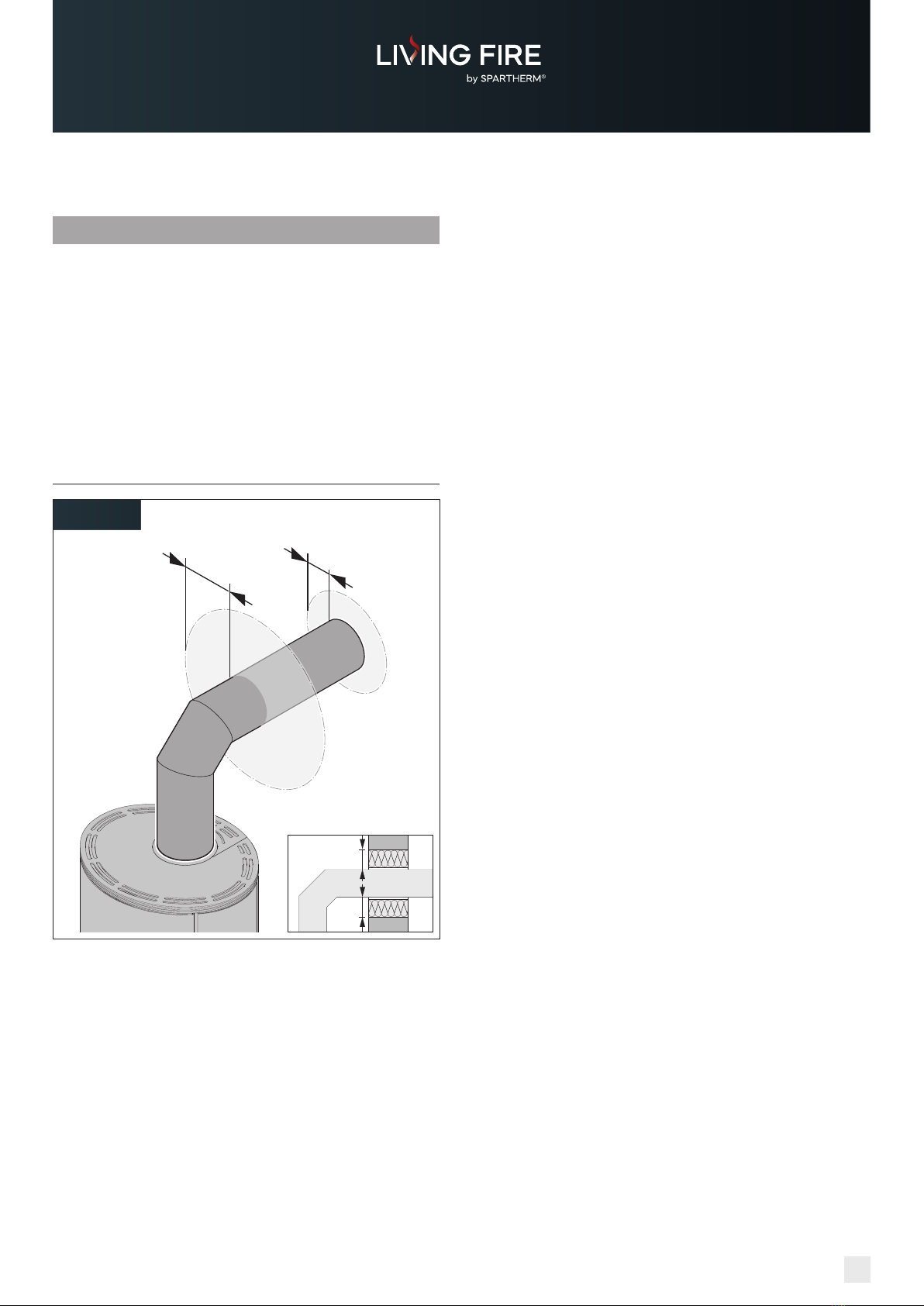

4.3.4 Flue gas routing 21
4.4 Preparation for assembly 22
4.5 Transporting the unit 23
4.6 Unpacking the unit 23
4.7 Changing the flue gas connection (optional) 24
4.8 Positioning the unit 26
4.9 Connecting the combustion air line (optional) 27
4.10 Installing the storage stones (optional) 28
4.11 Connecting the flue gas routing 29
4.12 Installing the deflection plate and baffle plate 30
4.13 Checking the installation 31
4.14 Performing initial start-up 31
4.15 Instructing the owner 32
5. Use 33
5.1 Safety information for use 33
5.2 Turning the unit (optional) 34
5.3 Heating mode 35
5.3.1 Preparing the heating process 35
5.3.2 Heating up the unit 36
5.3.3 Controlling the heating process 37
5.3.4 Refuelling the unit 38
5.3.5 Ending the heating process 39
6. Cleaning 40
6.1 Safety information for cleaning 40
6.2 Cleaning intervals 40
6.3 Simple cleaning 41
6.4 Annual cleaning 42
7. Service work 43
7.1 Safety information for service work 43
7.2 Maintenance intervals 43
7.3 Maintenance measures 43
7.4 Malfunction repair 45
8. Disassembly 47
8.1 Safety information for disassembly 47
8.2 Dismantling the unit 47
9. Disposal 48
9.1 Disposing of the packaging 48
9.2 Disposing of the unit 48
10. Appendix 49
10.1 Accessories 49
10.2 Warranty terms 49
10.3 Standards and regulations 49
10.4 Declarations of conformity 49

4
Safety information
Assembly and operating manual | Senso & Sino | 12.2022 | EN
1.2.2 Owner
The owner is responsible for the building in which the unit is
used.
The owner has the following tasks:
•Meeting the requirements for the installation site.
•Ensuring that the unit is always in perfect technical
condition.
•Adhering to cleaning and maintenance requirements.
•Instructing the users.
•Providing and adhering to these instructions.
1.2.3 Qualified personnel
Qualified personnel is responsible for installation,
commissioning, maintenance, disassembly and disposal.
Requirements for qualified personnel:
•Practical professional experience or professional training
regarding gas, water and heating systems.
•Experience in installing and maintaining stove systems.
•Experience in the use of electrical and mechanical tools.
•Familiarity with occupational health and safety regulations.
•Knowledge of how to read technical drawings.
•Familiarity with these instructions.
•Documentation of the work performed.
Electrical work may only be performed by qualified electricians.
§ DIN VDE 0100
Requirements for qualified electricians:
•Familiarity with the basics of electrical engineering.
•Familiarity with country-specific regulations and standards.
•Familiarity with the relevant safety regulations.
•Familiarity with these instructions.
1.2.4 Users
Instructed users perform work during use, cleaning and service
work.
Requirements for instructed users:
•The users have been instructed in the safe and intended
use of the unit.
•The users have been instructed with regard to their work by
the owner.
•Familiarity with these instructions.
Special requirements apply to the following users:
•Children age 8 and over.
•Persons with decreased physical, sensory or mental
capabilities.
•Persons with a lack of experience and knowledge.
1. Safety information
1.1 Intended use
The unit is designed to heat the air in a room by burning
suitable types of fuel and is exclusively intended for use in
private households.
The unit is designed as a time-limited fireplace, the burning
time of which can be extended by refuelling it.
§ Time-limited fireplace according to DIN EN 13240,
category 1 a.
The following conditions apply to using the unit:
•Only the appropriately authorised target group may install
or use the unit or perform other activities on the unit.
•The unit must be installed in a dry living space in an
enclosed building.
•Prior to start-up, acceptance by the responsible authorities
is required (in Germany e.g. the district chimney sweep).
•The unit is exclusively fuelled by natural, air-dried logs
(remaining humidity max. 20 %) or compressed wood
pieces.
§ Compressed wood pieces approved according to
DIN EN ISO 17225-3.
•Extending the combustion period (“permanent fire”)
by fuelling the unit with larger quantities of wood or by
extracting the combustion air is not permissible.
•Operation only with closed firebox door. Only open the door
for heating, refuelling and cleaning.
•The national and regional regulations and directives are
observed.
¨“10.3 Standards and regulations” (page 49).
•The requirements and safety information in these
instructions are observed.
Any other use is regarded as unintended use.
The manufacturer is not liable for damage caused by
unintended use.
1.2 Authorised target groups
Authorised target groups are divided into groups of persons
with different levels of authorisation.
1.2.1 Manufacturer
The manufacturer and the manufacturer’s agents have the
following tasks:
•Delivery of a ready-for-installation unit.
•Setting the unit to its factory settings.
•Instructing the owner in the intended use of the unit.

5
Assembly and operating manual | Senso & Sino | 12.2022 | EN
These users may only use the unit under the following
conditions:
•The users are supervised.
•The users have been instructed in the safe use of the unit.
•The users understand the dangers of handling the unit.
•Children may not play with the unit.
Children and pets must be supervised at all times and must be
kept away from the unit.
We recommend attaching a fixture to protect this group
(e.g. in front of hot unit components).
1.3 Behaviour in emergencies
ANever put yourself at risk of death.
If it is possible without endangering yourself:
AWarn others.
AInstruct others to leave the building.
ADeactivate the unit.
1.4 Chimney fire
The chimney requires regular cleaning (e.g. in Germany by the
district chimney sweep) to prevent formation of a layer of soot
in the chimney.
Burning wood may generate sparks that can enter the chimney
where they may ignite the layer of soot.
Signs of a burning chimney:
•Flames emerge from the mouth of the chimney.
•A large amount of flying sparks.
•Smoke and unpleasant odours.
•Chimney sides grow very hot.
In the event of a chimney fire:
AAlert the fire brigade by calling the emergency services
number.
ARemove flammable objects from the vicinity of the chimney.
Never attempt to extinguish the fire with water!
High temperatures will generate extreme amounts of steam
even from a small amount of water. The resulting pressure can
be a danger to people and can damage buildings or the stove
system.
1.5 General safety information
DWARNING!
Danger due to non-observance of the operating and
assembly instructions!
These instructions contain important information on how
to safely handle the unit. Potential dangers are pointed out
explicitly. Non-observance can lead to severe injuries or death.
ACarefully read these instructions.
AAdhere to the safety information in these instructions.
AKeep the instructions in an accessible place.
The unit may not be used in the following cases:
•If the responsible authorities have not given their approval.
•If the unit or individual components are damaged.
•If unauthorised modifications or changes have been made
to the unit.
•After improper repairs.
•If safety devices are missing or not functional.
•In garages, stairwells or hallways accessible by the general
public.
•In areas at risk of explosion.
In the following cases, the manufacturer shall not accept any
liability for damage:
•If these instructions are not adhered to.
•In the event of unintended use.
•In the event of improper handling.
•If the unit is used by unauthorised target groups.
•If the unit is installed or repaired by unauthorised experts.
•In the event of unauthorised conversions.
•If spare parts are used which were not manufactured or
approved by the manufacturer.
•If the protective devices of the unit are bypassed.
•If maintenance and cleaning intervals are not adhered to.
Depending on the work, always adhere to additional relevant
safety instructions. The safety instructions can be found in the
corresponding chapter of these instructions.
¨“4.1 Safety information for assembly” (page 16).
¨“5.1 Safety information for use” (page 33).
¨“6.1 Safety information for cleaning” (page 40).
¨“7.1 Safety information for service work” (page 43).
¨“8.1 Safety information for disassembly” (page 47).

6
Product information
Assembly and operating manual | Senso & Sino | 12.2022 | EN
2. Product information
2.1 Functional principle
The combustion air flows through the combustion air
connection into the air connection box. From there, the air
is guided to the firebox and combustion. The volume of
combustion air can be controlled using a combustion air slider.
2.1 / 1
A
B
There are two types of combustion air:
A Primary air
Oxygen-rich, non-preheated fresh air guided toward the
fuel from the bottom. Primary air is primarily used for light-
up.
B Secondary air
Pre-heated, variable air flow guided into the firebox from
above to ensure even, efficient combustion.
2.2 Operating modes
The unit can be used in two different operating modes:
•Room air sealed operation – only for RLU stoves.
The unit is supplied with combustion air from the outside or
from other rooms (e.g. cellar) through a combustion air line
connected to the rear or bottom of the unit.
§ The unit meets the requirements for approval by DIBt
(German institute for construction technology) for
room air sealed fireplaces and solid fuels according to
DIN 18897-1.
•Room air dependent operation –
for RLA and RLU stoves.
The unit is supplied with combustion air from the
installation room. The combustion air is supplied to the
unit through the air openings. A combustion air line is not
required but permissible (e.g. for operation together with
controlled ventilation and venting systems). Rotatable
models can only be operated in room air dependent mode.
2.3 Material
The unit consists of a steel body, which meets the requirements
for fireplaces.
§ The unit has been tested according to DIN EN 13240.
The firebox lining contains built-in components or cover panels
made of fireclay, ceramics, vermiculite or refractory concrete.
Cracks may form in these components as a result of e.g.:
•Physical and production-related residual moisture in the
components escaping during the heating process.
•High temperature differences.
Surface cracks do not affect combustion. If wide cracks form
or pieces break out uncovering the unit structure, the firebox
lining must be replaced.
2.4 Protective devices
•Self-closing firebox door.
•High-temperature resistant ceramic glass window.

7
Assembly and operating manual | Senso & Sino | 12.2022 | EN
2.5 Models
The product series Senso & Sino is available in different
designs.
2.5 / 1 2.5 / 2
Senso L Senso L rotatable
2.5 / 3 2.5 / 4
Senso L klassik Senso L klassik rotatable
2.5 / 5 2.5 / 6
Senso L fashion Senso L fashion rotatable
2.5 / 7 2.5 / 8
Sino L Sino L rotatable
2.5 / 9
Sino City

8
Product information
Assembly and operating manual | Senso & Sino | 12.2022 | EN
2.6 Product overview
2.6 / 1
A
C
D
B
B
G
E
F
L
M
N
O
K
K
J
I
H
A Top cover panel door
(not on Senso L fashion, Sino L and Sino City)
B SmartClose – Lock claw
C Firebox door with viewing window
D Door handle
E Door lock
F Combustion air slider
G Bottom cover panel door
(not on Senso L fashion, Sino L and Sino City)
H Heat baffle hood as upward flue gas outlet (optional)
I Deflection plate
J Baffle plate
K SmartClose – roller lock
L Firebox with firebox lining
M Ash grate
N Ash drawer
O Adjustable leg
2.6 / 2
A
B
C
E
H
G
D
F
A Blind cover of the top plate
B Top plate
C Flue gas connection
D Cover plate
E Cladding lid with heat protection plate behind it –
connection option for flue gas routing toward the rear
F Combustion air connection
G Type plate
H Cladding lid – Passage for combustion air supply from the
rear

9
Assembly and operating manual | Senso & Sino | 12.2022 | EN
2.7 Scope of delivery
2.7 / 1
A
F
E
H
G
B
C
D
A Stove
B Deflection plate
C Baffle plate
D Heat baffle hood for upward flue gas outlet
E Copper pate (in Blackbox)
F Heat protection glove (in Blackbox)
G Glass cleaner (in Blackbox)
H Assembly and operating manual (in Blackbox)
Optional:
•Combustion control S-Thermatik NEO.
•Underpressure control S-USI II.
•Glass cover plate
•Fireclay complete set eboris 1300 ultra black.
•Stainless steel rail handle.
•Flue gas connection bend set (suitable for any model).
¨“10.1 Accessories” (page 49).
2.6 / 3
A
B
C
D
E
Only for rotatable models:
A Turntable
B Adjustment bolt
C Locking lever
D Centre notch in the turntable (factory setting)
E Turntable cover

10
Product information
Assembly and operating manual | Senso & Sino | 12.2022 | EN
2.8 Technical data
Senso L /
Senso L rotatable
without S-Thermatik NEO (standard) with S-Thermatik NEO (optional)
Nominal heat output 5.9 kW 6.0 kW
Heat output direct / indirect 5.9 / – kW 6.0 / – kW
Heat output range 4.5 –
7.7 kW
4.5 –
7.8 kW
Energy efficiency class A A
Exhaust mass flow 5.2 g/s 5.5 g/s
Exhaust gas temperature 329 °C 341 °C
Average CO2content 10.2 % 10.3 %
Room heater annual use efficiency 70.0 % 69.7 %
Room heater
emissions at
nominal heat
output
Dust < 40
mg/m³
< 40
mg/m³
CO < 1250
mg/m³
< 1250
mg/m³
NOx < 200
mg/m³
< 200
mg/m³
OGC < 120
mg/m³
< 120
mg/m³
Auxiliary power
consumption
S-Thermatik
NEO (optional)
at nominal
heat output –0.004 kW
at minimum
heat output –0.004 kW
in stand-
by –0.003 kW
Max. input volume of hard wood 1.8 kg/h 1.8 kg/h
Max. input volume of compressed
wood 1.5 kg/h 1.5 kg/h
Efficiency 80 % 80 %
Combustion air requirement for
room air dependent operation 17.6 m3/h 17.8 m3/h
Delivery pressure at
nominal heat output 12.0 Pa 12.0 Pa
Rotating angles
(only for Senso L rotatable)
2x 45°
(left /
right)
2x 45°
(left /
right)
Weight Steel 165 kg 165 kg
Natural stone 233 kg 233 kg
Senso L klassik /
Senso L klassik rotatable
without S-Thermatik NEO (standard) with S-Thermatik NEO (optional)
Nominal heat output 5.9 kW 6.0 kW
Heat output direct / indirect 5.9 / – kW 6.0 / – kW
Heat output range 4.5 –
7.7 kW
4.5 –
7.8 kW
Energy efficiency class A A
Exhaust mass flow 5.2 g/s 5.5 g/s
Exhaust gas temperature 329 °C 341 °C
Average CO2content 10.2 % 10.3 %
Room heater annual use efficiency 70.0 % 69.7 %
Room heater
emissions at
nominal heat
output
Dust < 40
mg/m³
< 40
mg/m³
CO < 1250
mg/m³
< 1250
mg/m³
NOx < 200
mg/m³
< 200
mg/m³
OGC < 120
mg/m³
< 120
mg/m³
Auxiliary power
consumption
S-Thermatik
NEO (optional)
at nominal
heat output –0.004 kW
at minimum
heat output –0.004 kW
in stand-
by –0.003 kW
Max. input volume of hard wood 1.8 kg/h 1.8 kg/h
Max. input volume of compressed
wood 1.5 kg/h 1.5 kg/h
Efficiency 80 % 80 %
Combustion air requirement for
room air dependent operation 17.6 m3/h 17.8 m3/h
Delivery pressure at
nominal heat output 12.0 Pa 12.0 Pa
Rotating angles
(only for Senso L klassik rotatable)
2x 45°
(left /
right)
2x 45°
(left /
right)
Weight 240 kg 240 kg

11
Assembly and operating manual | Senso & Sino | 12.2022 | EN
Senso L fashion /
Senso L fashion rotatable
without S-Thermatik NEO (standard) with S-Thermatik NEO (optional)
Nominal heat output 5.9 kW 6.0 kW
Heat output direct / indirect 5.9 / – kW 6.0 / – kW
Heat output range 4.5 –
7.7 kW
4.5 –
7.8 kW
Energy efficiency class A A
Exhaust mass flow 5.2 g/s 5.5 g/s
Exhaust gas temperature 329 °C 341 °C
Average CO2content 10.2 % 10.3 %
Room heater annual use efficiency 70.0 % 69.7 %
Room heater
emissions at
nominal heat
output
Dust < 40
mg/m³
< 40
mg/m³
CO < 1250
mg/m³
< 1250
mg/m³
NOx < 200
mg/m³
< 200
mg/m³
OGC < 120
mg/m³
< 120
mg/m³
Auxiliary power
consumption
S-Thermatik
NEO (optional)
at nominal
heat output –0.004 kW
at minimum
heat output –0.004 kW
in stand-
by –0.003 kW
Max. input volume of hard wood 1.8 kg/h 1.8 kg/h
Max. input volume of compressed
wood 1.5 kg/h 1.5 kg/h
Efficiency 80 % 80 %
Combustion air requirement for
room air dependent operation 17.6 m3/h 17.8 m3/h
Delivery pressure at
nominal heat output 12.0 Pa 12.0 Pa
Rotating angles
(only for Senso L fashion rotatable)
2x 45°
(left /
right)
2x 45°
(left /
right)
Weight 210 kg 210 kg
Sino L /
Sino L rotatable
without S-Thermatik NEO (standard) with S-Thermatik NEO (optional)
Nominal heat output 5.9 kW 6.0 kW
Heat output direct / indirect 5.9 / – kW 6.0 / – kW
Heat output range 4.5 –
7.7 kW
4.5 –
7.8 kW
Energy efficiency class A A
Exhaust mass flow 5.2 g/s 5.5 g/s
Exhaust gas temperature 329 °C 341 °C
Average CO2content 10.2 % 10.3 %
Room heater annual use efficiency 70.0 % 69.7 %
Room heater
emissions at
nominal heat
output
Dust < 40
mg/m³
< 40
mg/m³
CO < 1250
mg/m³
< 1250
mg/m³
NOx < 200
mg/m³
< 200
mg/m³
OGC < 120
mg/m³
< 120
mg/m³
Auxiliary power
consumption
S-Thermatik
NEO (optional)
at nominal
heat output –0.004 kW
at minimum
heat output –0.004 kW
in stand-
by –0.003 kW
Max. input volume of hard wood 1.8 kg/h 1.8 kg/h
Max. input volume of compressed
wood 1.5 kg/h 1.5 kg/h
Efficiency 80 % 80 %
Combustion air requirement for
room air dependent operation 17.6 m3/h 17.8 m3/h
Delivery pressure at
nominal heat output 12.0 Pa 12.0 Pa
Rotating angles
(only for Sino L rotatable)
2x 45°
(left /
right)
2x 45°
(left /
right)
Weight Sandstone 227 kg 227 kg
Soapstone 260 kg 260 kg

12
Product information
Assembly and operating manual | Senso & Sino | 12.2022 | EN
Sino City
without S-Thermatik NEO (standard) with S-Thermatik NEO (optional)
Nominal heat output 5.9 kW 6.0 kW
Heat output direct / indirect 5.9 / – kW 6.0 / – kW
Heat output range 4.5 –
7.7 kW
4.5 –
7.8 kW
Energy efficiency class A A
Exhaust mass flow 5.2 g/s 5.5 g/s
Exhaust gas temperature 329 °C 341 °C
Average CO2content 10.2 % 10.3 %
Room heater annual use efficiency 70.0 % 69.7 %
Room heater
emissions at
nominal heat
output
Dust < 40
mg/m³
< 40
mg/m³
CO < 1250
mg/m³
< 1250
mg/m³
NOx < 200
mg/m³
< 200
mg/m³
OGC < 120
mg/m³
< 120
mg/m³
Auxiliary power
consumption
S-Thermatik
NEO (optional)
at nominal
heat output –0.004 kW
at minimum
heat output –0.004 kW
in stand-
by –0.003 kW
Max. input volume of hard wood 1.8 kg/h 1.8 kg/h
Max. input volume of compressed
wood 1.5 kg/h 1.5 kg/h
Efficiency 80 % 80 %
Combustion air requirement for
room air dependent operation 17.6 m3/h 17.8 m3/h
Delivery pressure at
nominal heat output 12.0 Pa 12.0 Pa
Weight Sandstone 210 kg 210 kg
Soapstone 245 kg 245 kg
Information on the model (e.g. type, inspection number, year of
manufacture) can be found on the type plate.
The type plate is required for regular inspection of the unit (e.g.
in Germany by the chimney sweep).
¨Figure 2.6 / 2 (page 8).
2.9 Nominal heat output
The nominal heat output of the unit can be checked in the
defined position “NHO position” of the combustion air slider.
To adjust the NHO position, first move the combustion air slider
all the way to the left to close the air supply. Then push the
combustion air slider 18 mm to the right.
2.9 / 1
0 1 2 3 4 5
6 7 9 9 10
A ruler applied directly to the outer edge of the cover panel
makes it possible to determine the NHO position of the unit.
The nominal heat output can only be achieved by adjusting
the NHO position under test bench conditions. In heating
mode the value represents an approximate value. The ideal
position of the combustion air slider depends on the situation
and is affected by a variety of factors.
¨“5.3.3 Controlling the heating process” (page 37).

13
Assembly and operating manual | Senso & Sino | 12.2022 | EN
2.10 Dimensions
Non-rotatable models
2.10 / 1
H
FH
FB
B
ø A
ø V
T
Dimensions
(mm)
Senso L Senso L klassik Senso L fashion Sino L Sino City
H 1310 1325 1286 1270 1270
B 568 568 568 590 590
T 482 482 482 505 505
FH 683 683 683 683 683
FB 467 467 467 467 467
ø A 150 150 150 150 150
ø V 100 100 100 100 100
H Total height
B Width
T Depth
FH Height of firebox door
FB Width of firebox door
ø A Diameter of flue gas connection
ø V Diameter of combustion air connection
Rotatable models
2.10 / 2
T
H
FH
FB
B
ø A
ø V
Dimensions
(mm) Senso L rotatable Senso L klassik rotatable Senso L fashion rotatable Sino L rotatable
H 1326 1365 1330 1326
B 568 568 568 590
T 487 487 487 505
FH 683 683 683 746
FB 466 466 466 467
ø A 150 150 150 150
ø V 100 100 100 100
H Total height
B Width
T Depth
FH Height of firebox door
FB Width of firebox door
ø A Diameter of flue gas connection
ø V Diameter of combustion air connection

14
Types of fuel
Assembly and operating manual | Senso & Sino | 12.2022 | EN
3. Types of fuel
3.1 Information on types of fuel
Wood primarily consists of cellulose, lignin, resins, fats and
oils. Wood does not burn directly. The components of wood
become gaseous at different temperatures and burn up if
enough oxygen is available.
Using fuel with a residual moisture of > 20 % will lead to
decreased output and increased emissions.
Good, fast combustion and good gas release are crucial for
problem-free operation of the unit.
Bark prevents moisture from escaping. Gas release is only
ensured at “injured” sections of wood, making it necessary to
split the wood.
If the temperatures required for gas release and clean
combustion are not reached, this will interfere with combustion.
The unburned substances will negatively impact the
environment and will adhere to the stove system as deposits
(e.g. soot, tar). These deposits increase the effort required for
cleaning and may damage the stove system.
Hardwood is particularly suitable as firewood. It burns slowly
with a calm flame and turns into embers that glow for a long
time.
Softwood is rich in resin, burns faster and has an increased
tendency to generate sparks.
We recommend beech wood as the ideal fuel.
§ According to DIN EN 13240 a combustion period of
45 min in a time-limited fireplace requires a fuel volume of
1.4 kg of wood.
3.1 / 1
170 - 250
~ 80
~ 80
1.4 kg of wood corresponds to two average logs (length
170 – 250 mm, width/height approx. 80 mm).
1 kg of beech wood generates an output of approx. 4 kW.
Compressed wood pieces have an approx. 20 % higher output.

15
Assembly and operating manual | Senso & Sino | 12.2022 | EN
3.2 Permissible types of fuel
Only the following types of fuel are approved for use:
•Natural, air-dried split logs (residual moisture max. 20 %).
•Compressed wood pieces
§ Compressed wood pieces according to
DIN EN ISO 17225-3.
The following fuel types are not permissible:
•Chemically treated wood
•Painted or varnished wood
•Synthetically coated wood
•Damp wood (residual moisture higher than 20 %)
•Chipboards
•Wood of Euro pallets
•Trimmings
•Bark waste
•Pellets
•Coal
•Coke
•Household waste
•Plastics
•Waste paper
•Old clothes
§ Burning non-permissible types of fuel is punishable by law
in many countries e.g.:
•In Germany as a violation of the Federal Immission
Control Act (BImSchG).
•In Switzerland as a violation of the Clean Air Act (LRV).
3.3 Permissible igniters
The following igniters are permissible:
•Igniter cube
•Igniter pad
•Wood wool igniter
•Igniter wood
Other igniter types are not permitted.
Never use:
•Flammable fluids and fire accelerants (e.g. ethyl alcohol or
kerosene) – there is a risk of deflagration!
•Paper – burns fast and results in flying ash!
3.4 Fuel storage
Storage outside of buildings:
•If possible, store the fuel on the sunny side of a building.
•Ensure that the storage location is ventilated and protected
against precipitation.
•Stack logs loosely along a wall and support them on at
least one side.
•Ensure that there is a gap between logs so that the air
flowing through them can carry off the moisture escaping
from the wood surface.
Storage in buildings:
•In a dry and well-ventilated room.
Storage of freshly cut (green) wood in film or in closed rooms
without sufficient air exchange prevents drying and causes the
wood to become mouldy.
Storage period:
•At least one year for soft wood (e.g. coniferous wood,
poplar).
•At least two years for hard wood (e.g. beech, oak).
We recommend a drying period of 2 – 3 years.
3.5 Size of the fuel pieces
•Small logs (width/height approx. 60 mm) for fast burning
and briefly high output.
•Large logs (width/height approx. 100 mm) for slow, even
burning.
Ideal log size:
•Length ideally approx. 180 mm.
•Maximum length 250 mm.
•Width/height approx. 80 mm.

16
Assembly
Assembly and operating manual | Senso & Sino | 12.2022 | EN
4. Assembly
4.1 Safety information for assembly
DWARNING!
Danger due to non-adherence to assembly instructions!
Incorrect assembly of the unit may lead to severe injuries. This
chapter contains important information for safe assembly of
the unit.
ACarefully read this chapter prior to assembly.
AAdhere to the the safety information.
APerform the assembly work as described.
Only qualified personnel may assemble the unit.
Electrical work may only be performed by qualified
electricians.
D“1.2.3 Qualified personnel” (page 4).
The owner is responsible for meeting the requirements for the
installation site.
D“1.2.2 Owner” (page 4).
To prevent danger, always adhere to the following
requirements:
•Do not store or deposit flammable materials or fluids on or
near the unit.
•Do not position flammable objects (e.g. furniture, carpets,
flowers) in front of the firebox opening.
•Ensure that the unit is undamaged and in perfect condition
prior to assembly.
•Before assembling the unit, ensure that the prerequisites for
assembly and the requirements for the installation site are
met, in particular the legal requirements for fireplaces.
4.2 Requirements for assembly
The stove system must be installed and operated according
to the valid standards and directives. Note the following
documents and/or regulations prior to assembly:
•Technical documents of the product.
•Local fire safety regulations issued by the responsible
authorities.
•Provisions under building law.
•Relevant state building and firing installation regulations.
•Local construction regulations regarding the installation
conditions (e.g. firing installation regulations).
As an example, the following applies in Germany:
§ Stoves fired by solid fuel according to DIN EN 13240.
§ Chimney and flue gas connection according to DIN 18160.
§ Chimney dimensions according to DIN EN 13384-1,
DIN EN 13384-2.
§ BlmSchV Second directive for implementation of the
German Federal Immission Control Act
§ TROL Professional regulations of the tiled stove and air
heater construction trade (ZVSHK).
✔The general technical approval has been given by the
building authorities or the manufacturer has applied for it.
4.3 Requirements for the installation site
4.3.1 Installation room
•The installation room must be suitable for safe use.
•The installation room must be dry and protected against
freezing.
•The unit must be protected against freezing and weather
factors.
•The installation surface must have a suitable load-bearing
capacity, keeping the weight of the unit in mind.
¨“2.8 Technical data” (page 10).
•The installation surface must be level and horizontal.
•If the floor in front of the firebox door is flammable, it must
be protected by a spark guard plate.
•A sufficient fresh air supply must be ensured by means of
a ventilation opening to the outdoors (cross section at least
150 cm2) or by a combustion air network with other rooms.
•If air extracting units are used at the same time (e.g.
extraction hoods, hot-air system, ventilating or exhaust
air systems), a safety device must be installed or a unit
certified for room air sealed use and connected accordingly
must be installed. The safety device must monitor the
permissible underpressure in the installation room (deviation
max. 8 Pa from outdoor) and prevent gases from entering
the room. A general technical approval must have been
given by the responsible authorities.
We recommend installing the unit on a fireproof surface
(e.g. glass plate, steel plate or ceramic tiles).

17
Assembly and operating manual | Senso & Sino | 12.2022 | EN
4.3.2 Installation dimensions
Non-rotatable models
4.3.2 / 1
H3
A1
H2
H1
A3
H5
ø A
ø A
ø V
H4
A2
A4
A5
4.3.2 / 2
F3
F2
F1
Dimensions
(mm)
Senso L Senso L klassik Senso L fashion Sino L Sino City
H1 1282 1321 1282 1266 1266
H2 1200 1200 1200 1200 1200
H3 1085 1085 1085 1085 1085
H4 312 312 312 312 312
H5 106 106 106 106 106
A1 80 120 80 65 65
A2 42 50 42 65 65
A3 122 122 122 122 122
A4 175 175 175 180 160
A5 175 175 175 187 187
ø A 150 150 150 150 150
ø V 100 100 100 100 100
F1 610 610 610 620 620
F2 800 800 800 810 810
F3 40 40 40 30 30
H1 Total height
H2 Height of flue gas connection, top
H3 Height of flue gas connection, rear
H4 Height of combustion air connection, bottom
H5 Height of combustion air connection, rear
A1 Spacing of flue gas connection, top
A2 Spacing of flue gas connection, rear
A3 Spacing of combustion air connection
A4 Spacing of flue gas connection, unit rear
A5 Spacing passage of combustion air line
in the base plate
ø A Diameter of flue gas connection
ø V Diameter of combustion air connection
F1 Total width with an open firebox door
F2 Total depth with an open firebox door
F3 Additional space requirement when opening the
firebox door
Unit dimensions:
¨“2.10 Dimensions” (page 13).

18
Assembly
Assembly and operating manual | Senso & Sino | 12.2022 | EN
Rotatable models
4.3.2 / 3
A1
H2
H1
ø A
A2
H3
ø V
A4
A3
4.3.2 / 4
F3
F2
F1
Dimensions
(mm)
Senso L rotatable Senso L klassik rotatable Senso L fashion rotatable Sino L rotatable
H1 1320 1357 1320 1320
H2 1265 1265 1265 1265
H3 350 350 350 350
A1 80 120 80 65
A2 175 175 175 180
A3 122 122 122 122
A4 175 175 175 187
øA 150 150 150 150
øV 100 100 100 100
F1 610 610 610 620
F2 800 800 800 810
F3 40 40 40 30
H1 Total height
H2 Height of flue gas connection, top
H3 Height of combustion air connection, bottom
A1 Spacing of flue gas connection, top
A2 Spacing of flue gas connection, unit rear
A3 Spacing of combustion air connection
A4 Spacing passage of combustion air line
in the base plate
ø A Diameter of flue gas connection
ø V Diameter of combustion air connection
F1 Total width with an open firebox door
F2 Total depth with an open firebox door
F3 Additional space requirement when opening the
firebox door
Unit dimensions:
¨“2.10 Dimensions” (page 13).

19
Assembly and operating manual | Senso & Sino | 12.2022 | EN
4.3.3 Safety distances
DWARNING!
Risk of fire resulting from non-adherence to safety
distances!
Using the unit creates very high temperatures. Smoke and
sparks may escape when opening the firebox door. Sensitive
items near the unit may become damaged or deformed, may
melt or catch fire.
AEnsure that the necessary safety distances are observed at
all times.
AEnsure that flammable objects and materials (e.g. furniture,
textiles) are located at a sufficient distance from the unit.
AOn rotatable models, take all possible positions of the
firebox opening and the open firebox door into account.
4.3.3 / 1
200
400
200
200
•Area around the connection opening to the chimney:
200 mm.
•Distance of the connection pipe from walls or ceilings:
400 mm
If the connection pipe is guided through ceilings or flammable
walls, suitable construction material must be installed:
•Non-flammable.
•Low heat conductivity.
•200 mm around the connection pipe.
•With building authority usability certificate.
Complete systems for routing pipes through walls and
ceilings with building authority usability certificates are
commercially available.

20
Assembly
Assembly and operating manual | Senso & Sino | 12.2022 | EN
4.3.3 / 3
100°
250 X3
X4
500
A
B
300
C
X2
4.3.3 / 4
250 X3
X5
500
100°
A
B
C
300
X2
A Wall
B Protective surface
C Flammable object (e.g. armchair)
X2 Radiation area (approx. 100°) – minimum distance
from flammable objects and materials
X3 Distance of unit from wall
X4 Distance unit to side – short wall outside of radiation
area angle
X5 Distance unit to side – continuous wall inside radiation
area angle
4.3.3 / 2
100°
C
500
250
X2
X1
A
B
300
A Wall
B Protective surface
C Flammable object (e.g. armchair)
X1 Distance of unit from wall
X2 Radiation area (approx. 100°) – minimum distance
from flammable objects and materials
