Installation and Operating Manual
ebios fire - Solitär

GB 2
FOREWORD / QUALITY PHILOSOPHY
You have chosen a SPARTHERM ebios-fire. Thank you for your confidence in
our technology.
In a world characterised by excess and mass production, the good name of our
firm is inextricably linked to the credo of our owner, Gerhard Manfred Rokossa:
„High technical quality combined with modern design and on-site customer
service carried out to the latter’s full satisfaction, in the expectation that the
customer will then recommend us to others.”
Together with our partners at specialist dealerships, we offer first-class prod-
ucts that stir the emotions, evoking feelings of security and comfort. However,
to ensure that we achieve this, we recommend that you read the operating
manual carefully to quickly familiarise yourself with your decorative fire in all
its details.
In addition to information on how to use it, this manual also contains important
maintenance and operating instructions for your safety and to ensure your
ebios-fire retains its value, as well as useful tips..
If you have any further questions, please contact your dealer.
A beautiful fire at all times.
Your SPARTHERM Team
G.M. Rokossa

GB
GB 3
CONTENTS
1. General Information 4
1.1 Scope of delivery 5
2. Installation Instructions 5
2.2 Burner mat CERAMAT FN 11
2.3 General Requirements for Installation 11
2.4 Installation location 11
2.5 Assembly / installation 12
2.5.1 Assembly / Installation – Models Quadra and Elipse 12
2.6 Fire protection 13
2.7 Combustion air supply 13
3. Operating instructions 13
3.1 General information on operation 13
3.2 Fire protection 15
3.3 Fuel 15
3.4 Startup 15
3.4.1 Startup of the models Elipse, Quadra and Quadra-Elipse 16
3.5 Refilling the burner 18
3.6 Taking out of operation safely 19
4. Cleaning and care 19
4.1 Cleaning cladding parts 19
5. Maintenance/troubleshooting 19
5.1 Furniture and glass (depending on the design) becomes
sooted heavily, rapidly and unevenly 19
5.2 Fire is difficult to ignite 19
5.3 Unpleasant odour 20
5.4 Appearance of flames changes 20
5.5 Spilt ethanol ignites 20
6. General warranty conditions 20
6.1. Scope of application 20
6.2. General information 20
6.3. Warranty period 20
6.4. Requirements for this warranty to be effective 21
6.5. Exclusion of warranty 21
6.6. Elimination of defects / repair 21
6.7. Extension of the warranty period 21
6.8. Spare parts 21
6.9. Liability 22
6.10. Final comments 22
7. Declaration from the builder of a custom-made piece of
furniture/fireplace with the Solitaire series 22

GB 4
IMPORTANT NOTE
Pursuant to the German Equipment and Product Safety Act (GPSG) and
our statutory duty to draw attention to the heat generated by this product,
please note the following:
Based on fuel consumption of 0.5 l/h the combustion heat generated by the
bioethanol fire is approx. 3,300 W.
The calorific value of 96% ethanol is approx. 29,600 kJ/kg. With a fuel
throughput of 0.5 l/h (approx. 0.4 kg/h) the heat released is approx. 3,300
W.
However, please note that a generous fresh air supply is necessary when
operating the decorative fireplace, as otherwise the carbon dioxide gen-
erated will exceed the permissible concentration in the ambient air. The
incoming fresh air is usually cooler than the ambient air to be heated,
resulting in a loss of energy. The effective heat output from a bioethanol
fire is thus very low, and so decorative fireplaces burning bioethanol are not
considered to be heating systems.
Your ebios-fire is a decorative fireplace not designed for heating and not
intended for continuous operation. It should nevertheless be noted that heat
is produced as a by-product of combustion. That can increase the heat in
the room where the fire is used. Please read through the safety information
and rear ventilation information carefully.
Please note the information and warnings given in this operating
manual.
1. GENERAL INFORMATION
Small children, the old or infirm: as with all open flames it is sensible to fit a
protective device for these groups of people - Burn risk! Never allow these
people near the burning or just extinguished ebios-fire unsupervised! The
ebios-fire may only be operated under supervision!
All the respective national and local regulations and directives, particularly
the fire safety regulations of the Federal State and the merchandising fire
protection regulations where applicable, must be observed when installing
and operating your ebios-fire.
All ebios-fires are tested to DIN 4734 and are state of the art.
Please ensure sufficiently stable installation and select a location where
the burner cannot be shifted through impact or similar when in operation.
All models may only be operated with the enclosure cover closed.
Please note that the fuel may not be filled into a warm or burning unit. It may
NOT be filled via the burner channel but ONLY via the filler opening (see Ill.
1). We recommend allowing the ebios-fire to burn until the tank is empty.
The cover plates must be on the burner when it is not in operation.
Only allow persons who are familiar with the unit and the safety regulations
and who have been instructed in its operation to fill the tank.

GB
GB 5
The ebios-fire is not a heater – it is a decorative fire.
Bio-ethanol is a hazardous material and may only be stored in quantities
allowed by the regulations:
Storage in basement: max. 20 litres
Storage in living area: max. 5 litres
1.1 SCOPE OF DELIVERY
ebios-fire including the following:
• Standing or hanging fire feature
• 1 stainless steel burner
• 1 burner mat of Ceramat FN
• Safety pan for each burner, of stainless steel
• Cover sheet (with mesh for the handle), of stainless steel
• Bottle to soak the burner mat
• Tank cap with seal
• Fill level eyeglass
• Key to open and close the tank cap
• Handling rod to lift or position the cover plate
• Funnel to fill the burner
• Stick lighter
• Nameplate (on the front of the burner)
• Ethanol 3l canister with outlet valve for first operation
• Delivery pre assembled in transport friendly onw-way cardboard
packaging
Item Designation
ACover plate
BFill level eyeglass
CFiller opening
DBurner channel
ESafety pan
FTank

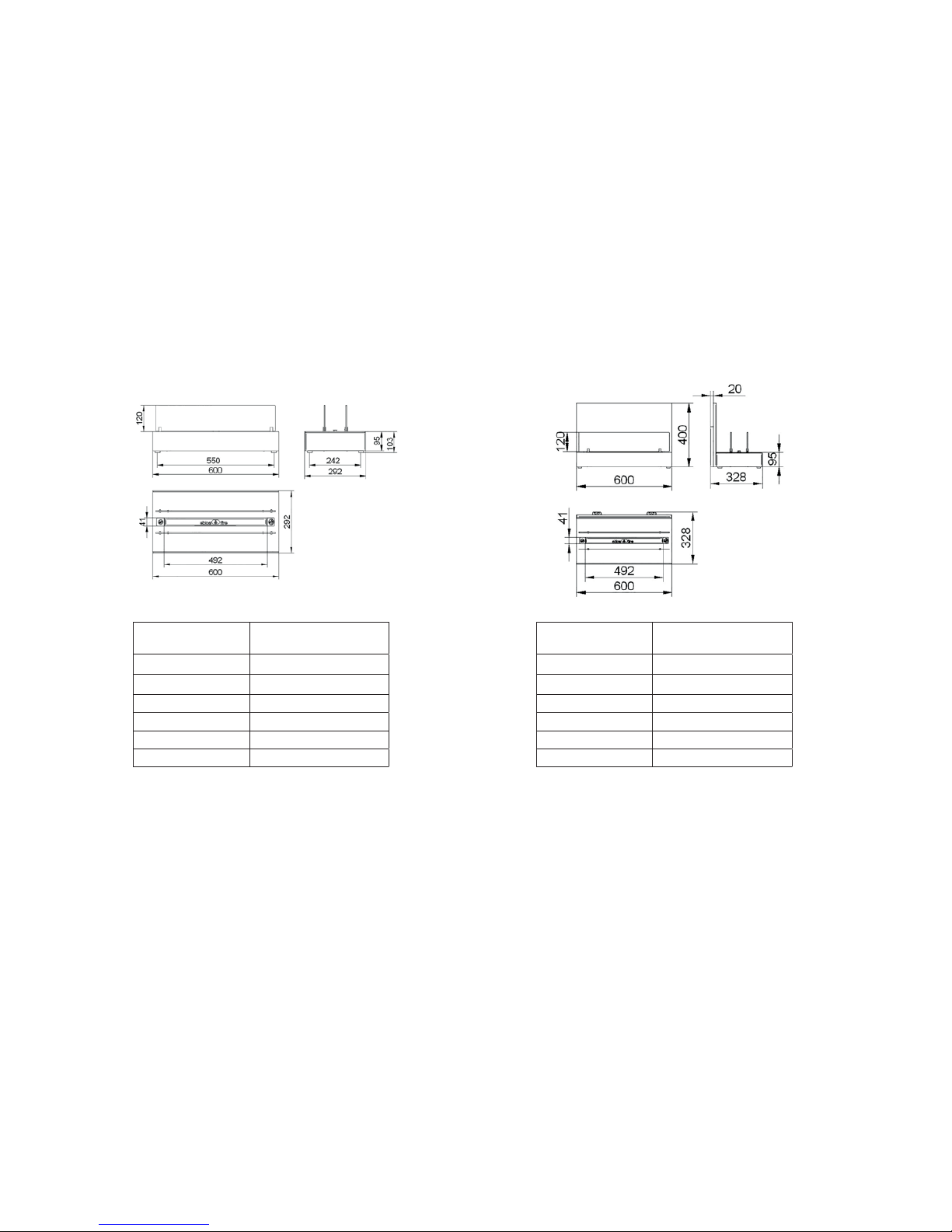

2. INSTALLATION INSTRUCTIONS
The device may not tilt and must be installed horizontal. For your own safety,
fix both the wall unit and the standing unit to the wall or the floor.

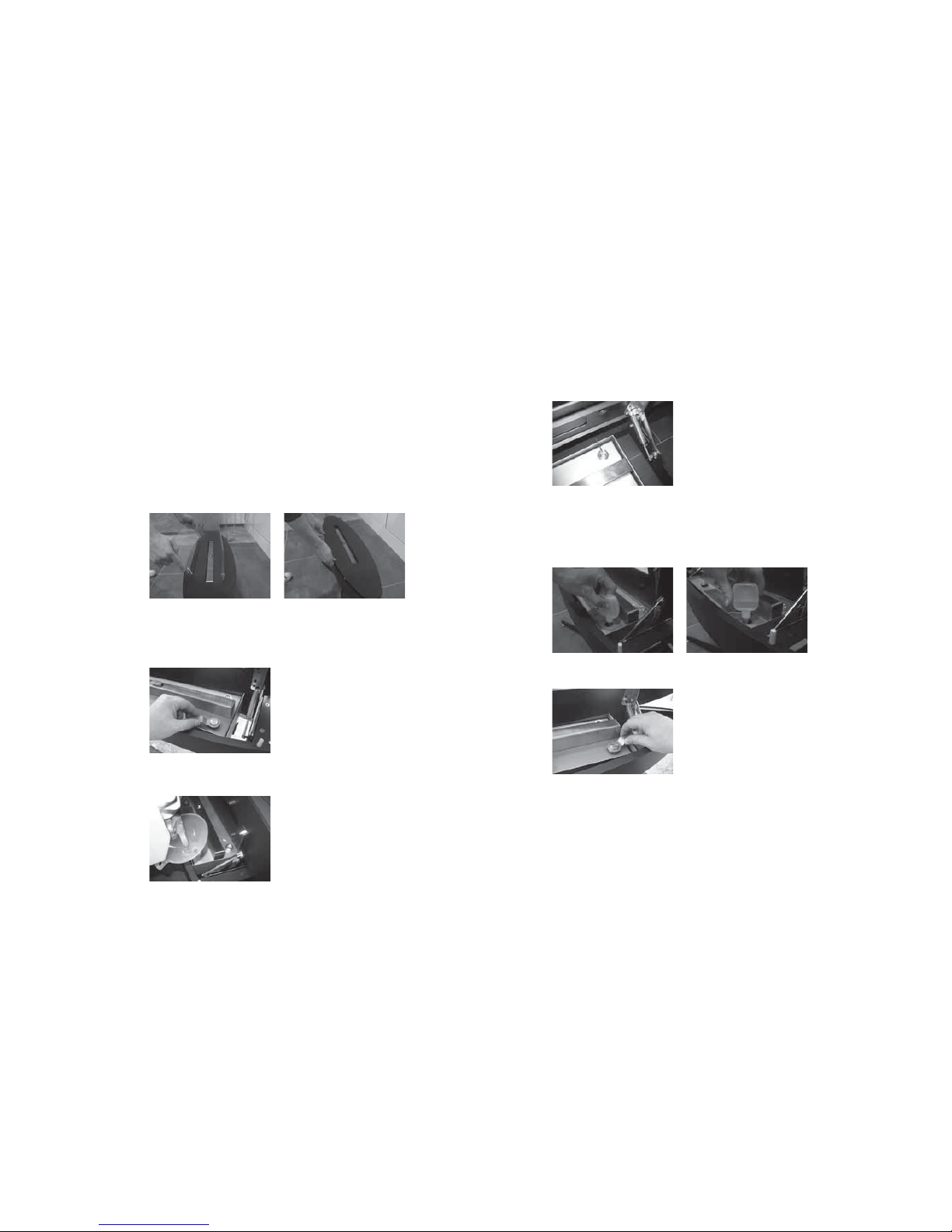

Fig.1
