SpeakerCraft MODE 3.1 User manual

INSTALLATION INSTRUCTIONS
MODE 3.1
Keypad
MODE FREE
RF Wireless Keypad

2
Read all of these instructions before operating and save instructions for later use.
1. Read Instructions – All the safety and operating instructions should be read before the appliance is operated.
2. Retain Instructions – The safety and operating instructions should be retained for future reference.
3. Heed Warnings – All warnings on the appliance and in the instructions should be adhered to.
4. Follow Instructions – All operating and use instructions should be followed.
5. Water and Moisture – The appliance should not be used near water – for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement
or near a swimming pool.
PORTABLE CART
WARNING
6. Carts and Stands – The appliance should be used only with a cart or stand that is recommended by the manufacturer. An appliance and cart combination
should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.
7. Wall or Ceiling Mounting – The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer.
8. Ventilation – The appliance should be situated so that its location or position does not interfere with its proper ventilation. For example, the appliance
should not be situated on a bed, sofa, rug, or similar surface that may block the ventilation openings; or, placed in a built-in installation, such as a bookcase
or cabinet that may impede the flow of air through the ventilation openings.
9. Heat – The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that
produce heat.
10. Power Sources – The appliance should be connected to a power supply only of the type described in the operating instructions or as marked on the appli-
ance.
11. Grounding or Polarization – Precautions should be taken so that the grounding or polarization means of an appliance is not defeated.
12. Power-Cord Protection – Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against
them, paying particular attention to cords at plugs, convenience receptacles, and at the point where they exit from the appliance.
13. Cleaning – The appliance should be cleaned only as recommended by the manufacturer.
14. Power Lines – An outdoor antenna should be located away from the power lines.
15. Nonuse Periods – The power cord of the appliance should be unplugged from the outlet when left unused for a long period of time.
16. Object and Liquid Entry – Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.
17. Damage Requiring Service – The appliance should be serviced by qualified service personnel when:
A. The power-supply cord or the plug has been damage; or
B. Objects have fallen, or liquid has spilled into the appliance; or
C.The appliance has been exposed to rain; or
D. The appliance does not appear to operate normally or exhibits a marked change in performance; or
E. The appliance has been dropped or the enclosure damaged.
18. Servicing – The user should not attempt to service the appliance beyond that described in the operating instructions. All other servicing should be referred
to qualified service personnel.
SAFETY INSTRUCTIONS
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
CAUTION: To reduce the risk of electric shock, do
not remove cover, (or back).
No user serviceable parts inside.
Refer servicing to qualified service personnel.
The lightning flash with arrowhead symbol, when in an equilateral
triangle, is intended to alert the user to the presence of in-insulated
"dangerous voltage" within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point, within an equilateral triangle, is intended to
alert the user to the presence of important operating and mainte-
nance (servicing) instructions in the literature accompanying
the appliance.
APPLICABLE FOR USA, CANADA OR
WHERE APPROVED FOR USAGE
CAUTION: TO PREVENT ELECTRIC SHOCK,
MATCH WIDE BLADE PLUG TO WIDE SLOT,
INSERT FULLY
ATTENTION: POUR EVITIER LES CHOCS
ELECTRIQUES, INTRODUIRE LA LAME LA PLUS
LARGE DE LA FICHE DANS LA BORNE
CORRESPONDANTE DE LA PRISE ET POUSSER
JUSQU AU FOND

3
SAFETY INSTRUCTIONS........................................................................................................................................................................... 2
LIMITED 2-YEAR WARRANTY.................................................................................................................................................................. 3
INTRODUCTION...................................................................................................................................................................................... 4
WHAT’S INCLUDED................................................................................................................................................................................. 5
ACCESSORIES AND EXTRAS (not included) ........................................................................................................................................ 5
WHAT YOU WILL NEED........................................................................................................................................................................... 5
MODE FEATURES ...............................................................................................................................................................................6
FRONT PANEL....................................................................................................................................................................................6
MODE 3.1 REAR PANEL ....................................................................................................................................................................7
MODE FREE REAR PANEL..................................................................................................................................................................7
MODE ADAPTER FEATURES ..............................................................................................................................................................8
MODE BASE FEATURES......................................................................................................................................................................9
MODE FREE COORDINATOR FEATURES.........................................................................................................................................11
MODE FREE COORDINATOR FEATURES (cont).............................................................................................................................12

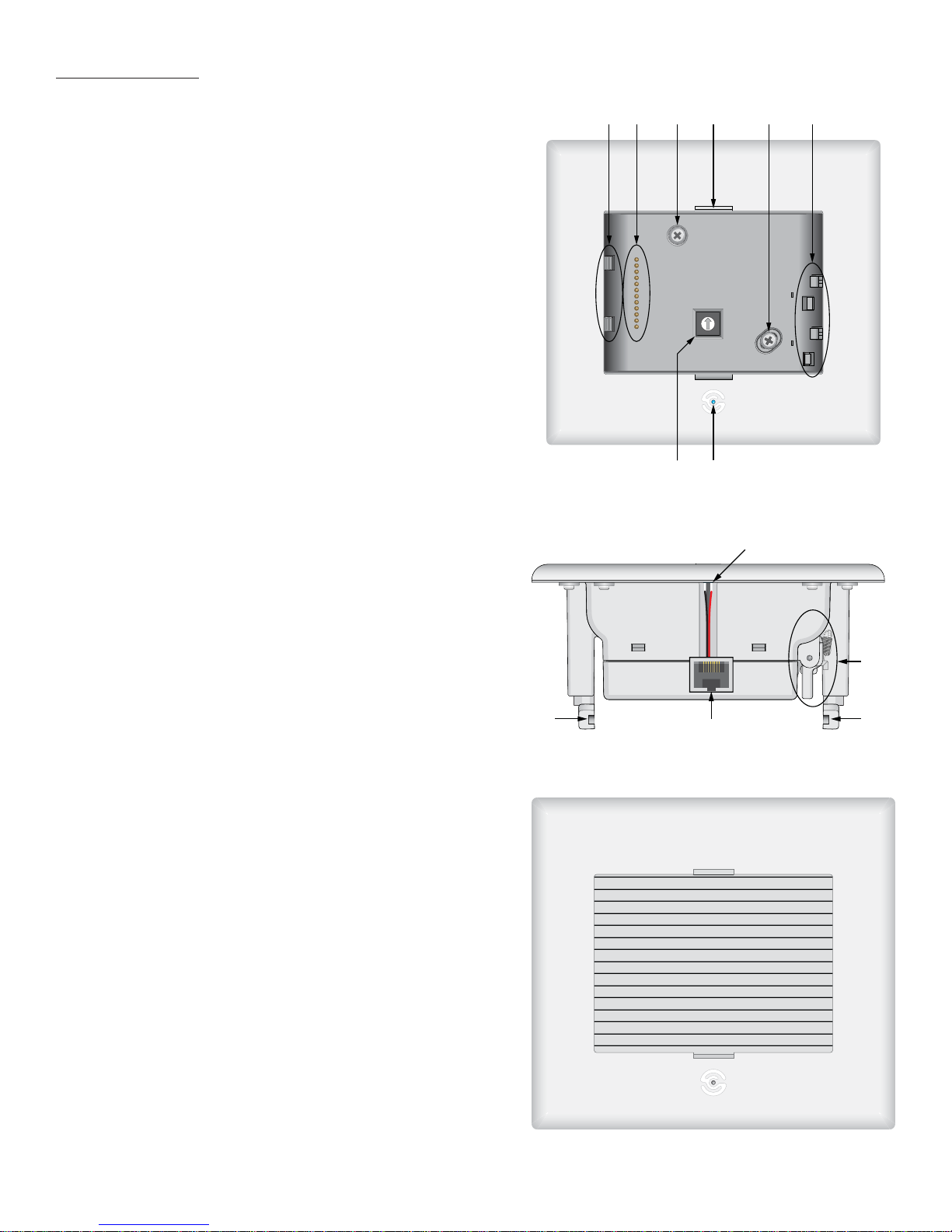

MODE FREE WALL DOCK FEATURES ..............................................................................................................................................13
WIRING (Pre-wire)............................................................................................................................................................................... 16
MODE 3.1 KEYPAD..........................................................................................................................................................................16
MODE FREE WALL DOCK ...............................................................................................................................................................16
MODE FREE COORDINATOR..........................................................................................................................................................16
MODE ADAPTER .............................................................................................................................................................................16
MODE BASE.....................................................................................................................................................................................16
MODE 3.1 HARD BUTTON CONFIGURATION ................................................................................................................................18
INSTALLATION...................................................................................................................................................................................... 19
MODE ADAPTER .............................................................................................................................................................................19
MODE BASE.....................................................................................................................................................................................19
MODE FREE COORDINATOR..........................................................................................................................................................19
MODE 3.1 KEYPAD..........................................................................................................................................................................20
MODE 3.1 RETRO BRACKET INSTALLATION....................................................................................................................................22
MODE FREE WALL DOCK INSTALLATION .......................................................................................................................................23
CONNECTIONS.................................................................................................................................................................................... 25
MODE ADAPTER (Single)................................................................................................................................................................25
MODE ADAPTER (Stacked)...........................................................................................................................................................26
MODE BASE.....................................................................................................................................................................................27
MODE 3.1 KEYPAD..........................................................................................................................................................................27
MODE FREE WALL DOCK ...............................................................................................................................................................29
MODE FREE COORDINATOR..........................................................................................................................................................29
PROGRAMMING WITH EZ-TOOLS ....................................................................................................................................................... 30
DOWNLOAD EZ-TOOLS..................................................................................................................................................................30
QUICK START GUIDE FOR SIMPLE MODE KEYPAD EZ-TOOLS PROGRAMMING .........................................................................30
ADDING AN IPOD, MODE BASE AND MODE ADAPTER TO AN EXISTING PROJECT .................................................................31
ADDING A MODE KEYPAD TO AN EXISTING MZC PROJECT.......................................................................................................34
PROGRAMMING SOURCE CONTROL...........................................................................................................................................38
PROGRAMMING HARD KEYS.........................................................................................................................................................38
PROGRAMMING VIRTUAL BUTTONS..............................................................................................................................................38
OPERATING MODE.............................................................................................................................................................................. 40
ZONE SETTINGS (Treble and Bass).................................................................................................................................................42
KEYPAD SETTINGS............................................................................................................................................................................43
KEYPAD RESET .................................................................................................................................................................................44
OPERATING MODE FREE...................................................................................................................................................................... 45
NETWORK SETTINGS........................................................................................................................................................................46
DOCKING THE MODE FREE (WALL DOCK AND TABLE DOCK)....................................................................................................46
SPECIFICATIONS.................................................................................................................................................................................. 49
CE DECLARATION OF CONFORMITY.................................................................................................................................................. 50
FCC COMPLIANCE.............................................................................................................................................................................. 51
FAQ...................................................................................................................................................................................................... 52
LIMITED 2-YEAR WARRANTY................................................................................................................................................................ 56
TABLE OF CONTENTS

4
INTRODUCTION
MODE is the Music On Demand Experience. The SpeakerCraft MODE 3.1 Keypad creates the ultimate media control experi-
ence by providing real-time system status, menu-driven control options and source metadata with its 3.1” vertically mount-
ed high-resolution color LCD. Menu options include system source selection, MZC Internal Tuner Presets with frequency, iPod
menus and metadata as well as a variety of Keypad Setup options.
MODE Free takes media control to a whole new level. MODE Free is a convertible wireless hand-held controller, an in-wall
keypad and table-top controller in one very special package that features all of the capabilities of a wireless MODE 3.1.
With its powerful and reliable Zigbee based technology and rechargeable lithium-ion battery, MODE Free is an RF hand-
held controller that can move anywhere in the house or outdoors giving the user complete control, system status and
source metadata from wherever they are. The MODE Free Table Dock turns the MODE Free into a convenient table-top
controller while doubling as a battery charger. Table Docks can be placed anywhere MODE Free may want to travel such
as night stands, end tables, garages, etc. When docked in the MODE Free Wall Dock, MODE Free is an in-wall keypad that
takes on the specific profile of the programming for the zone in which it is connected. That is, if the MODE Free/Wall Dock is
in the Dining Room, MODE Free will assume the control programming for the Dining Room. If the MODE Free is moved, it will
retain the Dining Room profile and controls until it is docked in another Wall Dock, say the Master Bedroom, at which point
it becomes the Master Bedroom Controller. In addition, MODE Free features a zone selection menu that allows the MODE
Free to take control of any zone, as the user moves it around the house in wireless mode. No other control product allows
this incredible flexibility, and when teamed up with a SpeakerCraft MZC Controller and SpeakerCraft Speakers, whole-
house entertainment has just taken on a whole new meaning.
The real beauty of the MODE Keypads is that they are so easy to operate. A Scroll Wheel and Select Button allow naviga-
tion through and selection of the displayed menu options. Once a source has been selected, 8 back-lit programmable
hard keys provide source control and on-screen menu navigation for sources such as DVD players, media servers, satellite
receivers, cable boxes, etc. These buttons have all of the programmability expected of a SpeakerCraft Keypad, with each
button being able to initiate single IR commands, RS232 commands, SpeakerCraft MZC Internal commands and macros in
each of up to three tiers of functionality.
Volume is controlled with a back-lit control knob that features a series of LEDs that give a visual indication of the volume
setting.
MODE 3.1 and MODE Free are designed specifically for use with SpeakerCraft MZC Series Multi-Zone A/V Amplifier Con-
trollers. They can be mixed and matched with SpeakerCraft EZ-Pad Keypads and run on the same CAT5 used for EZ-Pads
(MODE 3.1 can also run on 5-conductor wire). The MODE 3.1 includes a J-box Mounting Bracket that allows installation in
most standard 2-gang low-voltage new construction and some retro-fit electrical boxes. MODE Free Table Docks can be
placed anywhere and Wall Docks can be installed in any of the same locations that might be used by EZ-Pads or MODE
3.1’s. This design philosophy allows MODE Keypads to be retrofit to upgrade existing MZC Systems when the user is incorpo-
rating an iPod or a media server or wants to add the flexibility of MODE Free...anywhere.
Though parts of this manual cover the SpeakerCraft MODE Adapter and MODE Base for incorporating iPod and additional
sources, the MODE Keypads do not require these components for installation and operation. MODE 3.1 and MODE Free
can be installed without the MODE Adapter and Base and used purely as an upgrade to EZ-Pads in MZC Systems.
MODE Keypads are programmed with SpeakerCraft’s EZ-Tools Programming Software and follows procedures similar to
those used with EZ-Pad Keypads. All MZC System commands, IR Library commands and RS232 commands previously saved
in EZ-Tools can be used to program MODE 3.1 and MODE Free for what they are: The Music On Demand Experience.

5
WHAT’S INCLUDED
MODE 3.1 Keypad
1 - MODE 3.1 Keypad
1 - MODE 3.1 Keypad Mounting Bracket
1 - MODE 3.1 Keypad Bezel
1 - Bag of Replacement Buttons
1 - Wire Retainer
1 - Quick Reference Guide
MODE Free Keypad
1 - MODE Free Keypad
1 - Lithium Ion Rechargeable Battery
1 - Bag of Replacement Buttons
1 - Quick Reference Guide
MODE Free Coordinator
1 - MODE Free Coordinator
1 - Quick Reference Guide
MODE Free Wall Dock
1 - MODE Free Wall Dock
1 - MODE Free Wall Dock Back Box
1 - Quick Reference Guide
MODE Free Table Dock
1 - MODE Free Table Dock
1 - Power Supply
1 - Quick Refeence Guide
MODE Adapter
1 - MODE Adapter
1 - 10’ Stereo mini to RCA interconnect cable
1 - Quick Reference Guide
MODE Base
1 - MODE Base
7 - iPod inserts
1 - Quick Reference Guide
ACCESSORIES AND EXTRAS (not included)
PS-3.0 - 24V DC Power Supply for MODE Adapter. (One PS-3.0 can power up to 6 ‘stacked’ MODE Adapters.)
BKT14331 - MODE 3.1 Retro Bracket Kit (Retro Install Bracket for MODE 3.1)
CTL14420 - MODE Free Wall Dock Installation Kit
CTL14421 - MODE Free Back Box 10 Pack. (Includes: Metal Back Boxes, Mounting Screws, Mounting Clips. NOTE: Does not
include Wall Docks)
WHAT YOU WILL NEED
Punch-Down Tool
Screw Driver
Wire Cutters
CAT5 Crimp Tool
RJ45 Connectors

6
MODE FEATURES
FRONT PANEL
1. 3.1” HIGH RESOLUTION COLOR LCD - High Resolution color
LCD displays ‘Virtual Buttons’ for Source Selection, menu
navigation, control, metadata from iPods, MODE Juke-
box, MZC Tuner Presets and MODE Setup Menu.
2. VOLUME CONTROL KNOB - Volume control knob adjusts
volume when turned, mutes the local zone speak-
ers when pushed and executes a keypad reset when
pressed and held for 5 seconds. The knob can be
programmed for any function, but should typically be
programmed for volume and mute.
3. VOLUME LEVEL LEDs - 8 blue LEDs to provide visual confir-
mation of volume setting.
4. CONFIGURABLE HARD KEYS - 7 back-lit programmable
and configurable hard keys allow control of common
source components. These keys are programmed using
SpeakerCraft EZ-Tools Programming Software and can be
configured to send single IR commands, IR macros, RS232
commands and MZC internal commands. Three tiers of
functionality per key provide a wide range of program-
ming options for any system configuration or user de-
mands. Each keypad also includes a variety of additional
SEL
MENU
45678
12
3
9
keycaps for added flexibility.
NOTE: The Arrow Up or “Menu Button” is not configurable or programmable. It only provides Menu navigation to return
to the MODE Main Menu when using non iPod Sources and functions the same as the iPod Menu Button when iPod is
selected, to navigate iPod Menus. A press and hold of the Menu Button in iPod mode will return the MODE to the MODE
Main Menu.
5. CLICK BUTTON - The cosmetic trim surrounding the Scroll Wheel is actually a function select key. When a source, menu
item or function has been highlighted on the LCD with the Scroll Wheel, a press of the Click Button will select the source
or menu item or initiate an associated command. This button is not programmable.
6. SCROLL WHEEL - Provides easy and intuitive navigation of menus and ‘Virtual Buttons’ displayed on the LCD. This button
is not programmable.
7. IR SENSOR (MODE 3.1 Only)- The MODE 3.1 includes SpeakerCraft’s exclusive ANS (Ambient Noise Suppressor) IR Receiv-
er. The IR receiver allows use of a handheld remote for control of the system and IR controlled source components.
8. KEYPAD BEZEL (MODE 3.1 Only)- The keypad bezel is a screwless trim plate made of a plyable material that conforms
to the surrounding wall contour. The back of the bezel has form fitting tabs that friction fit to the MODE 3.1 Mounting
Bracket to provide a clean finished look.
9. KEYPAD RELEASE BUTTON (MODE FREE Only) - This button releases the MODE FREE from a MODE FREE Wall Dock or Table
Dock for use as a wireless hand-held controller.
Figure 1
MODE 3.1 Front Panel Features

7
IR
IR
+12
+12
GND
GND
485 A
485B
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
+ RELAY
- RELAY
ADDRESS
MODE 3.1
Riverside, CA www.speakercraft.com
MADE IN CHINA
10 11 12 10
13
14
13 15
15
MODE FEATURES
MODE 3.1 REAR PANEL
10. KEYPAD LOCKING TABS - Fit into the upper Mounting
Bracket Tab Slots to secure the keypad to the bracket.
11. SPEAKER RELAY MUTE TERMINAL - Connects to a Speak-
erCraft EPR-1.0 Relay Muting Module for individual
room mute when using multi-channel amplifiers for sub-
zone expansion.
12. KEYPAD PUNCH-DOWN BLOCK - 110 style punch-down
terminal connects to the Zone Keypad Terminals on
a SpeakerCraft MZC-64, 66 or KCM-1.0 when using a
MZC-88.
13. KEYPAD ANGLE TAB - Fits into the channeled lower
Mounting Bracket Tab Slots to allow flush installation
(flat to wall surface) or with the lower portion of the
keypad sloping away from the wall at about a 15°
angle. The angle mount creates a special cosmetic
appeal and provides an improved LCD viewing angle.
14. ADDRESS SWITCH - A unique hex address must be set
for each MODE Keypad when connected on a com-
mon bus within a single zone. Unique addresses are
not required zone-to-zone (One keypad per zone). The
switch provides up to 16 addresses (0 to F).
15. FACEPLATE RELEASE TABS - Carefully push these re-
cessed tabs to remove the MODE faceplate to
change keycaps. It is typically only necessary to press
the tabs on the bottom of the keypad and then care-
fully pull the bottom of the faceplate away from the
MODE body.
Figure 2
MODE 3.1 Rear Panel Features
16
17 18 19
20
Figure 3
MODE Free Rear Panel Features
MODE FREE REAR PANEL
16. WALL MOUNT/TABLE DOCK LOCK MECHANISM SLOTS
- Snap to Wall Dock or Table Dock Lock Mechanism Tabs
to secure the keypad to a Wall Dock or Table Dock.
Keypad releases when the Keypad Release Button is
pressed.
17. KEYPAD RELEASE TAB SLOTS - Fit over Keypad Release
Tabs on MODE FREE Wall Dock or Table Dock. Releases
Lock Mechanism Tabs and MODE Free when the Keypad
Release Button is pressed.
18. LITHIUM-ION BATTERY COMPARTMENT - Secure compart-
ment for the rechargeable Lithium-Ion Battery. Battery
automatically recharges when MODE FREE is docked to
either a Wall Dock or Table Dock.
19. CONTACT TERMINAL - 12 Point Contact Terminal provides
connections for power/recharge, metadata and control when the MODE FREE is docked to a Wall Dock and power/re-
charge when docked to a Table Dock.
20. WALL DOCK/TABLE DOCK LOCK TAB SLOTS - Two slots fit over the stationary Mounting Tabs on a Wall Dock or Table Dock
to secure a MODE FREE Keypad.

8
Line Out
Expansion
Aux. Input
iPod Base
24V DC
MODE Adaptor
Riverside, CA www.speakercraft.com
MADE IN CHINA
21 22 21
2323
21 25 24 21
26 27 28 29
30
31 32 33 6
2323
26 22 26
MODE FEATURES
MODE ADAPTER FEATURES
21. ADAPTER POST SOCKETS - Four recessed sockets used to
align Adapter Posts, to secure multiple Adapters and pre-
vent damage to Adapter Bus Pins.
22. DIN RAIL SLOT AND CLIPS - Allows the MODE Adapter to be
wall mounted using standard DIN Rail (not included). Red
clips slide over the rail section to hold the Adapter in place.
‘Stacked’ Adapters can also be mounted on DIN Rail.
23. WALL MOUNT SCREW HOLES - These holes allow the MODE
Adapter to be mounted flat against a wall or cabinet side.
24. 12 PIN INTERCONNECT - Connect to the 12 pin socket on
the bottom of a stacked Adapter. This connection creates
a power, metadata and control bus that allows stacking
multiple MODE Adapters.
25. LOCKING PIN SLOT - Round opening on the top of the
Adapter used to receive and lock Locking Pins when stack-
ing multiple Adapters.
26. ADAPTER POSTS - Four round posts on the bottom of the
Adapter protect the 12 Pin Interconnect when single
Adapters are used and fit into the Adapter Post Sockets
when stacking multiple Adapters to hold Adapters in place
and prevent damage to the interconnects.
27. LINE OUT - 3.5mm stereo mini jack outputs stereo line level
audio. Connects to MZC Source Input via the included 10
foot stereo mini-plug to RCA interconnect cable. When
stacking multiple Adapters, each Adapter must be con-
nected to a dedicated Source Input on the MZC.
28. EXPANSION PORT - RJ45 Jack connects to the Expansion
Port on the MZC Rear Panel to Rx/Tx control and metadata
between the MZC and MODE Adapter.
29. AUX INPUT - 3.5mm stereo mini jack provides a stereo line
Figure 4
MODE Adapter Features
level input for an additional source. This could be anything from a cable/satellite receiver, to an XM or Sirius Tuner or
a DVD player allowing up to 12 Sources on an MZC-64, 66 or 14 Sources on an MZC-88 (including on-board tuners).
Switching to and controlling the sources connected to this input must be configured during setup in EZ-Tools. Only
MODE Keypads have access and control of the devices connected to the Aux Inputs. EZ-Pads do not have access to
or control of these devices.
30. 12 PIN INTERCONNECT SOCKET - 12 pin socket connects to the 12 Pin Interconnect on the top of a stacked Adapter. This
connection creates a power, metadata and control bus that allows stacking multiple MODE Adapters.
31. LOCKING PIN - Metal post on the Adapter bottom fits into the Locking Pin Slot when stacking Adapters. Use a medium
size flat head screwdriver to turn the post and lock the stacked Adapters together.
32. iPOD BASE RJ45 TERMINAL - RJ45 jack connects to the Adapter Port on a MODE Base via CAT5. This connec-
tion provides power and control to the iPod/Base and receives digital audio data and metadata from a
connected iPod.
33. 24V DC - 2.1mm coaxial jack connects to a SpeakerCraft PS-3.0 24V Power Supply (Required/Not includ-
ed). When stacking Adapters, one PS-3.0 will power up to 6 MODE Adapters.

9
12V DC 1 AMP Adaptor Port Aux. Input USB
34 35 36 37 38 34
39 40
42
3441 40
1
MODE FEATURES
MODE BASE FEATURES

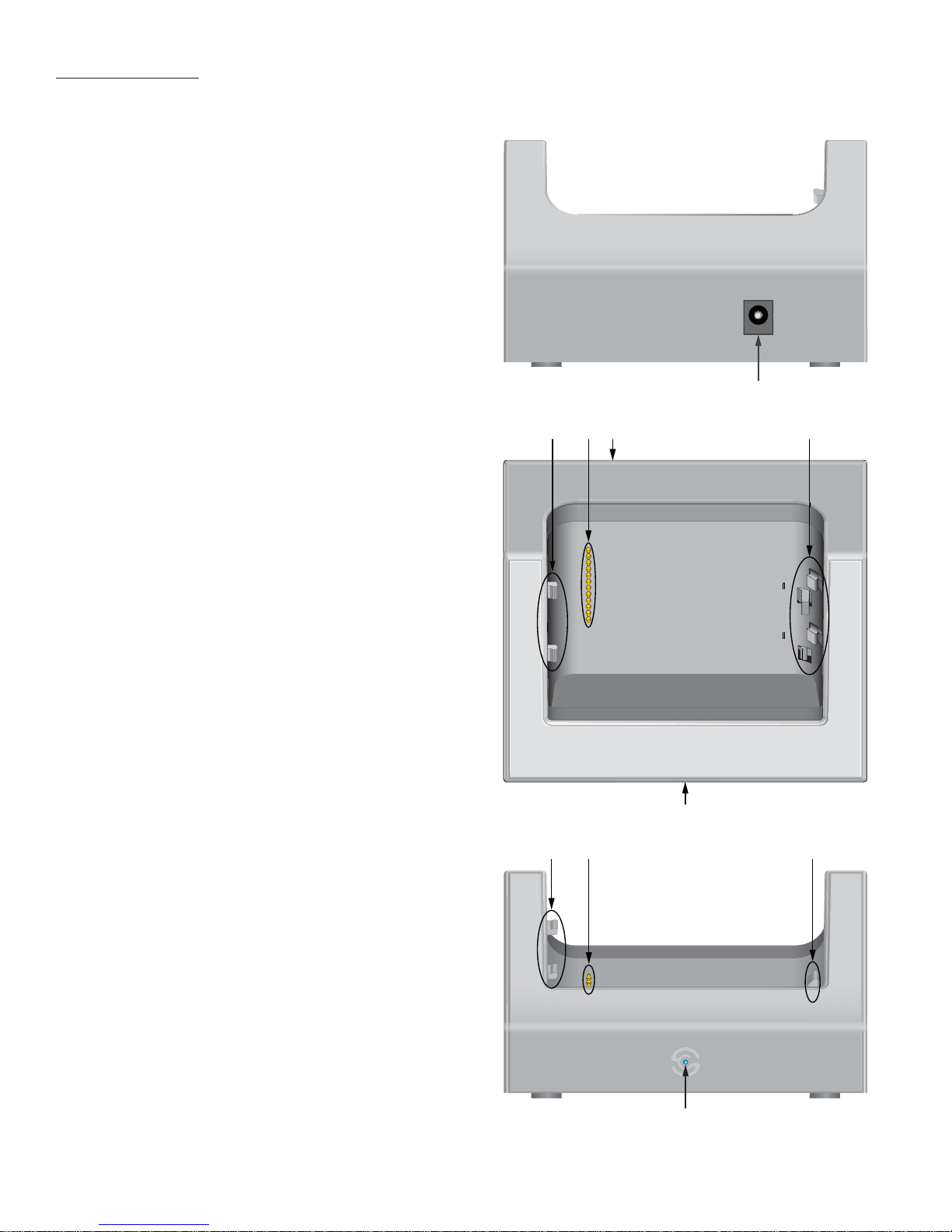

34. BASE ALIGNMENT TAB - Two small tabs on the right side of the
Base fit into two small indents on the left side of an adjoining
Base when using multiple Bases. The Bases are magnetically
charged and lock together for convenience.
CAUTION: MODE Base magnets are fairly strong and should not
be mounted directly on or near CRTs or Plasma displays. Care
should also be taken to keep magnetic media such as audio
and video tapes, credit cards, etc. away from the MODE Base
units as important media may be lost!!!
35. POWER JACK - 2.1mm coaxial jack. The MODE Base is powered
directly from the MODE Adapter in applications where the Base
is less than 250’ from the Adapter. For wire runs over 250’, the
Base can be up to 500’ from the Adapter with a SpeakerCraft
PS-2.0 Power Supply connected directly to the Base.
36. ADAPTER PORT - RJ45 jack connects to the iPod Base Termi-
nal on the MODE Adapter via CAT5. This connection provides
power and control to the iPod/Base and sends digital audio
and metadata from the Base to the Adapter.
37. AUX INPUT - 3.5mm mini jack provides a stereo line level input
for an additional source. This could be anything from a cable/
satellite receiver, to an XM or Sirius Tuner or a DVD player al-
lowing up to 12 Sources on an MZC-64, 66 or 14 Sources on an
MZC-88 (including on-board tuners). This connection will allow
the local source audio to be played through the MZC amplifier
and zone speakers. Switching to and controlling the sources
connected to this input must be configured during setup in EZ-
Tools.
38. USB PORT - USB mini B jack allows connection directly to a com-
puter for downloading content to an iPod seated in the MODE
Base. Downloading content would follow normal procedures.
See iPod instructions for additional information.
39. BASE DOCK - This opening in the Base is where an iPod gets
connected to an MZC system. Different sized inserts allow
Figure 5
MODE Base Features
adapting the various different models of iPods to the Base. NOTE: Never connect an iPod without an insert in place.
Without an insert, the iPod may not connect properly and there is potential for damage to the iPod, the Base or both.
40. INSERT CAPTURE SLOTS - Each of the inserts has two T-shaped posts that slide into these slots to secure the insert for the
specific iPod being used. If it becomes necessary to change inserts, carefully push the T-shaped posts of another insert
up through the bottom of the Base and pull the seated insert out from the top.
41. iPOD CONNECTOR - This multi-pin connector connects to the iPod Dock Connector on the bottom of an iPod. Carefully
push the iPod down on this connector to send power and control to the iPod and have the iPod send digital audio
and metadata to the system.
42. MZC SOURCE INDICATOR - This blue LED displays the MZC Source Input for the MODE Base being used. An iPod can be
moved from room to room and will identify to the system which room it is in. The Base will be dedicated to a specific
MZC Source Input. The Source Indicator is configured by pressing the Source ID Button on the bottom of the Base to
match the MZC Source Input.

10
MODE Base
Riverside, CA www.speakercraft.com
MADE IN CHINA
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
SOURCE ID
ADDRESS
43
44
Figure 6
MODE Base Bottom Features
MODE FEATURES
MODE BASE FEATURES (cont)
43. SOURCE ID SWITCH - Carefully press with a pencil or
other non-conductive probe to set the MODE Base to
match the MZC Source Input to which it will be con-
nected. Source ID is displayed on the MODE Base LED.
44. ADDRESS SWITCH - A unique hex address must be set
for each MODE Base within a given system. The switch
provides up to 16 addresses (0 to F).
IMPORTANT NOTICE REGARDING ESD (Electrostatic Dis-
charge): The MODE Base can be susceptible to ESD. Under
certain conditions when reaching for and just prior to
touching the Base or the iPod connected to it, certain lev-
els of ESD can cause the MODE Base to temporarily loose
its communication link with the MZC. Typically no action
is required by the user to restore communication and nor-
mal operation. This notice pertains only to the MODE Base.
Please refer to iPod documentation or contact Apple for
additional information regarding iPod and ESD.

11
45 46
47
48
49505152
Figure 7
MODE Free Coordinator Communication Features
53 54 55
Figure 8
MODE Free Coordinator Connection Features
MODE FEATURES
MODE FREE COORDINATOR FEATURES
Performing a Network Reset is recommended before setting
up a new wireless network.
45. ANTENNA - The antenna transmits/receives RF signals
for control and metadata to/from the MODE Free. The
antenna can be rotated and angled for optimum recep-
tion.
46. JOIN NETWORK SWITCH - One, recessed switch, is pressed
to initiate wireless network communication between a
Coordinator and MODE Free. This switch is used in con-
junction with the ‘Join Network’ function in the MODE
Free Network Settings Menu.
47. RESET NETWORK SWITCH - One, recessed switch, is pressed
for 2 seconds to delete wireless network settings. Typically
used when the Coordinator and MODE Free are expe-
riencing communication problems, to reset the wireless
network. Pressing this switch will break RF communication
with all MODE Frees in the system. To remove a single
MODE Free, use the ‘Leave Network’ function in the
MODE Free Network Settings Menu.
48. RESET SWITCH - One, recessed switch, is pressed to per-
form a power or hardware reset.
49. POWER LED - One, blue LED flashes when the Coordina-
tor is receiving DC power from the MZC via one of the
Expansion Ports (typical) or when connected to a Speak-
erCraft PS-1.0 Power Supply.
50. ACTIVITY LED - One, blue LED flashes to indicate wireless
network activity.
51. RESET NETWORK LED - One, blue LED flashes during network reset, until current settings have been deleted.
52. JOIN NETWORK LED - One, blue LED flashes during Network Join process until the MODE Free being joined has been
added to the RF Network.
53. CONTROL PORT - One, 3.5mm three-circuit mini jack connects to a PC running EZ-Tools for upgrading Coordinator Firm-
ware.
54. EXPANSION PORTS - Two, RJ45 jacks, are primarily used to connect the Coordinator to an Expansion Port on a Speaker-
Craft MZC Controller. This connection powers the Coordinator and provides all communication between the MODE Free
and the MZC for system and source control and transmission of source metadata to the MODE Free, when the MODE
Free is in wireless mode. These jacks can also be used for connection of specialized RS485 controlled devices such as
the SpeakerCraft MODE Base for adding iPods and additional sources (see sections: Connections MODE Adapter and
MODE Base) and the SpeakerCraft RSA-1.0 for control of up to 16 additional RS232 devices. (See RSA-1.0 Installation
Instructions for additional information.)
55. 12VDC JACK - One, 2.1mm coaxial jack, connects to a SpeakerCraft PS-1.0 Power Supply when the CAT5 cable be-
tween the Coordinator and MZC is longer than 500’ (152m).
IMPORTANT NOTICE REGARDING ESD (Electrostatic Discharge): The MODE Free Coordinator can be susceptible to ESD.
Under certain conditions when reaching for and just prior to touching the Coordinator, certain levels of ESD can cause the
Coordinator to temporarily loose its communication link with the MZC. Typically no action is required by the user to restore
communication and normal operation. If normal communication does not restore within 60 seconds, turn the main power
on the MZC OFF then back ON. Normal communication should restore automatically.
A power/hardware reset will not remove the wireless net-
work settings.

12
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
56
Figure 9
MODE Free Coordinator Address Switch
MODE FREE COORDINATOR FEATURES (cont)
56. ADDRESS SWITCH - Reserved for additional features.
Leave in default ‘0’ position.
MODE FEATURES

13
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
57 58 59 60 59 61
6263
MODE FEATURES
MODE FREE WALL DOCK FEATURES
57. LOCK TABS - Two non-moving tabs insert into matching
slots on the MODE Free to secure the keypad to the Wall
Dock. The Lock Tabs should be inserted into the MODE
Free Lock Tab Slots before pressing the keypad down
over the Locking Mechanism (Item 61).
58. CONTACT TERMINAL - Twelve, spring loaded conduc-
tive pins convert a docked MODE Free to a hard wired
keypad, connected to the MZC via a CAT5 cable con-
nected between the Wall Dock and MZC. When docked,
RF communication between the MODE Free and Coordi-
nator is disabled, the MODE Free assumes the ‘identity’ of
the programming configuration for the MZC Zone the Wall
Dock is connected to and the keypad is powered from
the Wall Dock while the battery automatically re-charges.
59. WALL DOCK MOUNTING SCREWS - Two screws secure the
Wall Dock to the MODE Free Back Box.
60. DOOR HANDLE - Molded Tab allows opening and closing
the Wall Dock Door. The door can be closed when the
MODE Free is undocked. (Figure 10 shows in door open
position; Figure 12 shows closed position.)
61. LOCK MECHANISM - Four mechanical tabs insert into
matching slots on the MODE Free to secure the keypad to
the Wall Dock. The Lock Tabs (Item 57) should be inserted
into the MODE Free Lock Tab Slots before pressing the
keypad down over the Locking Mechanism. To release
the MODE Free, press the Keypad Release Button (Item 9)
on the front of the keypad.
62. CHARGING LED - One, blue LED illuminates when the re-
chargeable lithium-ion battery in a docked MODE Free
is charging. The LED turns off when the battery is fully
charged.
63. ADDRESS SWITCH - A unique HEX address must be set for
each MODE Free (Wall Dock), MODE 3.1 Keypad or EZ-
Pad when connected on a common bus within a single
zone. Unique addresses are not required zone-to-zone
(One Wall Dock or keypad per zone). The switch provides
up to 16 HEX addresses (0 to F).
64. DOOR TRACK - Slotted track protects the retracting door
when rolled back into the wall cavity while in the open
position.
65. RJ45 CONNECTION PORT - One, RJ45 jack connects the
Wall Dock/MODE Free to a Zone Keypad Port on a MZC
Controller via CAT5 or better cable. (CAT5 should be con-
figured in a pass-through, pin to pin, configuration.)
Figure 10
MODE Free Wall Dock (Door Open)
Figure 12
MODE Free Wall Dock (Door Closed)
62
61
6464 65
Figure 11
MODE Free Wall Dock (Side View)

14
66 67 68 69
70
MODE FREE TABLE DOCK FEATURES
66. LOCK TABS - Two non-moving tabs insert into matching
slots on the MODE Free to secure the keypad to the Table
Dock. The Lock Tabs should be inserted into the MODE
Free Lock Tab Slots before pressing the keypad down
over the Locking Mechanism (Item 69).
67. CONTACT TERMINAL - Twelve, spring loaded conductive
pins connect a docked MODE Free to the Table Dock
Power Supply. When docked, the keypad is powered
from the Table Dock while the battery automatically re-
charges.
68. 12VDC JACK (rear) - One, 2.1mm coaxial jack, connects
to a SpeakerCraft PS-2.0 Power Supply to provide power
to the MODE Free when docked and recharging the
lithium-ion battery.
69. LOCK MECHANISM - Four mechanical tabs insert into
matching slots on a docked MODE Free to secure the
keypad to the Table Dock. The Lock Tabs (Item 66) should
be inserted into the MODE Free Lock Tab Slots before
pressing the keypad down over the Locking Mechanism.
To release the MODE Free, press the Keypad Release But-
ton (Item 9) on the front of the keypad.
70. CHARGING LED (front) - One, blue LED illuminates when
the re-chargeable lithium-ion battery in a docked MODE
Free is charging. The LED turns off when the battery is fully
charged.
Figure 12
MODE Free Table Dock
MODE FEATURES
12V DC 1 AMP
68
66 67 69
70
Top View
Rear View
Front View

15
SEL
MENU
J1
ASW1
D4 D5
J4
J5
J6
J2 J3
U2 U5
U1
U7
SW1:1
U6
U3
RSA-1.0
RS232 Interface Adapter
CONTROL
PORT
EXPANSION
PORT LOOP
RS232
DATA I/O
IR
IN
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
ADDRESS
12VDC
HI LO
PROGRAMMING
IR
*DB9 / RS232
Straight Modem Cable
NOTE: The RSA-1.0
is powered through the
Expansion Port from
the MZC
RSA-1.0
RS232 Interface
Adapter
MODE Base
(Up to 6)
*PS-2.0
12V DC Power Supply
(Optional for each MODE
Base used over 250 ft.)
NOTE: The Coordinator
is powered through the
Expansion Port from
the MZC
MODE Free
Coordinator
R Zone SpeakerL Zone Speaker
R Zone Speaker
L Zone Speaker
MODE 3.1
Keypad
MODE Free
RF Keypad
Inter-Room
Speaker Wiring
Cat.5* 500FT MAX
Line Out
Expansion
Aux. Input
iPod Base
24V DC
MODE Base Adapter
(Up to 6)
PS-3.0
24V DC
Power Supply
(REQUIRED)
Powers up to
6 Adapters
Cat.5*
250FT
MODE Free
Wall Dock
MODE Free
Table Dock
RF
Transmit/Receive
SOURCE 1
OUT
IR
LOOP
LRV
LOOP INPUTS
SOURCE 2
OUT
IR
LOOP
LRV
LOOP INPUTS
SOURCE 3
OUT
IR
LOOP
LRV
LOOP INPUTS
SOURCE 4
OUT
IR
LOOP
LRV
LOOP INPUTS
SOURCE 5
OUT
IR
LOOP
LRV
LOOP INPUTS
SOURCE 6
OUT
IR
LOOP
LRV
LOOP INPUTS
LRPRE-OUT
VC
NVC
IR OUT
IR IN
485B
485A
GND
+12V
EZ-PAD
++
LR
SPEAKERS
ZONE 1
LRPRE-OUT
VC
NVC
IR OUT
IR IN
485B
485A
GND
+12V
EZ-PAD
++
LR
SPEAKERS
ZONE 2
LRPRE-OUT
VC
NVC
IR OUT
IR IN
485B
485A
GND
+12V
EZ-PAD
++
LR
SPEAKERS
ZONE 3
LRPRE-OUT
VC
NVC
IR OUT
IR IN
485B
485A
GND
+12V
EZ-PAD
++
LR
SPEAKERS
ZONE 4
LRPRE-OUT
VC
NVC
IR OUT
IR IN
485B
485A
GND
+12V
EZ-PAD
++
LR
SPEAKERS
ZONE 5
LRPRE-OUT
VC
NVC
IR OUT
IR IN
485B
485A
GND
+12V
EZ-PAD
++
LR
SPEAKERS
ZONE 6
120V
60Hz
2A
~
FUSE: T8AL 250V
CONTACT CLOSURE
EXPANSION
PORT LOOP PHONE VIDEO
PAGE
IN
MZC-66
DOORBELL/STATUS IN
21
CONTROL
PORT
FIRMWARE
UPGRADE
OFF ON
COMMON
IR OUT
LO HI
COMMON
STATUS OUT
(0 to +12 V)
VIDEO OUTPUTS
ZONE 1 ZONE 2 ZONE 3 ZONE 4 ZONE 5 ZONE 6
Cat.5*
50FT
RF
Transmit/Receive
Cat.5* 50FT
Cat.5* 250FT
PS-2.0
12V DC
Power Supply
(REQUIRED)
SEL
MENU
MODE Free Zone MODE 3.1 Zone
1
Playlists
Artists
Albums
Songs
Genres
Composers
>
>
>
>
>
>
Music
Podcasts >
STT 2.0
Dual AM/FM Tuner
RCA-to-Mini
Stereo
Interconnect
To Desired
MZC Source Inputs
Inter-Room
Speaker Wiring Cat.5* 500FT MAX
Cat.5*
The MODE Free Keypad
operates and recharges in both
Wall and Table Docks.
*REFER TO RELATED SECTIONS IN THIS MANUAL Figure 13
Typical System

16
WIRING (Pre-wire)
The MODE 3.1 Keypad requires connection to a SpeakerCraft MZC-64, 66 or 88 to operate. The MODE Free Keypad requires
either a MODE Free Wall Dock (hardwire) or MODE Free Coordinator (RF), to communicate with a SpeakerCraft MZC-64, 66
or 88. All system wiring considerations for a MZC system should be followed as described in the MZC-64, 66 and 88 Installa-
tion Instructions. The information below will only detail those parts of a MZC System that pertain to the wiring requirements
for connecting a MODE 3.1 or MODE Free Keypad, MODE Free Wall Dock, MODE Free Coordinator, MODE Adapter and
MODE Base.
NOTE: The following wires should be installed during system pre-wire. Other connections will be made at the time of installa-
tion and are described in section: Connections.
MODE 3.1 KEYPAD
Control/Metadata
CAT5 - Pull home-runs of CAT5 from each MODE 3.1 location to the system head-end. MAXIMUM LENGTH: 500’
NOTE: All eight conductors of the CAT5 must be connected for proper signal strength on 500’ of cable.
Speaker Relay Mute (MODE 3.1 only)
STANDARD WIRE - Pull two-conductor 24AWG or heavier, stranded, non-shielded wire from any MODE 3.1 location to
where a SpeakerCraft EPR-1.0 Speaker Relay Muting Module will be installed. MAXIMUM LENGTH: 1000’
MODE ADAPTER
Expansion Port
CAT5 - Pull CAT5 from the MZC to where the MODE Adapter(s) will be installed. For installations where the Adapter
will be at the system head-end, a CAT5 patch cable can be used at time of installation and hook-up. For installations
where the Adapter will be in a remote location, pull CAT5 during pre-wire and terminate with a proper wall plate.
MAXIMUM LENGTH: 50’.
NOTE: When stacking Adapters, only one run of CAT5 is required between the Adapters and the MZC. See section: Con-
nections/MODE Adapter (Stacked) for additional information.
iPod Base
CAT5 - Pull CAT5 from the MODE Adapter(s) to the MODE Base(s). For installations where the Base(s) will be at the
system head-end, a CAT5 patch cable can be used at time of installation and hook-up. For installations where the
Base will be in a remote location, pull CAT5 during pre-wire and terminate with a proper wall plate. The Base will then
connect to the wall-plate during installation. MAXIMUM LENGTH: 250’ when powered from Adapter; 500’ when Base is
powered locally with a SpeakerCraft PS-2.0 power supply (not included).
MODE BASE
12V DC 1AMP
STANDARD WIRE - For installations where the Base will be connected to the MODE Adapter via a wall-plate, pull 16AWG
two-conductor stranded non-shielded wire from the PS-2.0 power supply location, typically the head-end, to the Base
location, as shown in Figure 6. MAXIMUM LENGTH: 500’ on 16AWG wire.
Adapter Port
CAT5 - Pull CAT5 from the MODE Adapter(s) to the MODE Base(s). For installations where the Base(s) will be at the sys-
tem head-end, a CAT5 patch cable can be used at time of installation and hook-up. For installations where the Base
will be in a remote location, pull CAT5 during pre-wire and terminate with a proper wall plate. The Base will then con-
nect to the wall-plate during installation. MAXIMUM LENGTH: 250’ (When powered from Adapter); 500’ when Base is
powered with a SpeakerCraft PS-2.0 power supply (not included).

17
MODE FREE WALL DOCK
Control/Metadata
CAT5 - Pull home-runs of CAT5 from each MODE Free Wall Dock location to the system head-end. MAXIMUM LENGTH:
500’
NOTE: All eight conductors of the CAT5 must be connected for proper signal strength on 500’ of cable.
MODE FREE COORDINATOR
Expansion Port
CAT5 - Pull CAT5 from the MZC to where the MODE Free Coordinator will be installed. For installations where the Coordi-
nator will be at the system head-end, a CAT5 patch cable can be used at time of installation and hook-up. For installa-
tions where the Coordinator will be in a remote location, pull CAT5 during pre-wire and terminate with a proper wall
plate. MAXIMUM LENGTH: 50’.
WIRING (Pre-wire)
TV
TV
MODE Free
Coordinator
MODE Free
Keypad &
Table Dock
WIRELESS COVERAGE AREA 100’ RADIUS
MODE Free
Keypad &
Table Dock
Bedroom 1
Bedroom 2 Full
Bath
Den
Living
Room
Patio
Dining Room Kitchen
Entry
Master Suite Master
Bath
Deck
Half
Bath
Pantry
Closet
Garage
OUT OF
RANGE
Back Yard
Area
Fornt Yard
Area
MODE Free Coordinator Wireless Coverage Area
WIRELESS COVERAGE AREA 100’ RADIUS MAY VARY GIVEN
RF ENVIRONMENT, BUILDING CONSTRUCTION MATERIALS
AND THE PRESENCE OF LARGE METAL OBJECTS SUCH AS
REFRIGERATORS.

18
Figure 14
Faceplate Release Tabs
Figure 15
Removing The Faceplate
Figure 16
Changing Keycaps
MODE 3.1 HARD BUTTON CONFIGURATION
As received from the factory, MODE Keypads have a pre-
installed set of buttons that match the default button con-
figuration in EZ-Tools. This default may not match the system
being installed. MODE Keypads come with a set of alter-
nate buttons. The hard button keycaps can be changed
on the keypads and in EZ-Tools to match the product being
installed. To change the hard button keycaps:
1. With the keypad disconnected from the system, care-
fully insert a small flat head screwdriver into the Face-
plate Release Tabs Slots (1) as shown in Figure 14.
With the screwdriver inserted, slowly twist the screw-
driver and pull down in the direction shown (2) until the
Faceplate Tabs release from the body.
2. With both tabs released, carefully pull the bottom of
the faceplate up and away from the keypad as shown
in Figure 15 until it stops moving freely. Carefully pull the
top of the faceplate clear of the keypad to remove.
Do not touch, pinch, poke or otherwise contact the
flex board circuit connected to the top of the LCD.
Damage to the flex board will disable the LCD.
3. With the faceplate fully removed, the hard button
keycaps cans be changed. Carefully pinch the top
of the keycap and slowly pull it straight up and off the
rubber membrane as shown in Figure 16. Try not to pull
the membrane off the green circuit board. If the mem-
brane does come loose, be sure to replace it to its nor-
mal position, seated flat on the green circuit board. If
the membrane is not properly seated, the keycaps will
not fit properly through the openings in the faceplate
and the keypad will not function.
4. Using the included alternate set of keycaps, make
changes as needed.
5. With all keycaps in place, replace the faceplate in
reverse process to step 2. Carefully align the top of
the faceplate with the keypad body as they appear
in Figure 15. Slowly press the bottom of the faceplate
until the keycaps begin to push through their open-
ings. Visually inspect the keycaps to confirm that they
are properly centered in the faceplate openings. With
the keycaps in place, press the bottom corners of the
faceplate until it snaps into place.
6. Press all buttons to confirm free play.

19
INSTALLATION
MODE ADAPTER
Though the MODE Adapter is a small plastic box that can be set on a shelf and left free-standing, it is recommended that it
be secured to a shelf, wall surface or DIN Rail to assure it will not be accidentally moved, in a way that could cause discon-
nections or damage to the unit.
Wall Mount
The MODE Adapter can be mounted directly to a wall surface using the Wall-Mount Screw Holes in the top of the
Adapter Chassis. The Adapter should be mounted SpeakerCraft label side out.
1. Hold Adapter in mounting position.
2. Carefully, at slow speed, drill starter holes for mounting screws.
3. Using minimum 1.5” screws, secure Adapter to wall surface. Do not overtighten to avoid cracking the Adapter
case.
4. If using multiple Adapters, printing a small adhesive label identifying the source number and sticking it on the
Adapter is suggested to assist in making connections and troubleshooting.
Shelf Mount
Follow the instructions above for Wall Mount. When positioning the Adapter, set it on the shelf, with the SpeakerCraft
label side up and the red connection panel facing out for convenience in making connections. If using multiple Adapt-
ers, printing a small adhesive label identifying the source number and sticking it on the Adapter is suggested to assist in
making connections and troubleshooting.
DIN Rail
The MODE Adapter can also be mounted to a wall using standard 3.5mm DIN Rail. (DIN Rail can be found at Custom
A/V Products Distributors, Electrical Distributors and better Hardware Stores.) Be sure to have a rail section long enough
for the number of Adapters being mounted. A single Adapter can be mounted on a rail as short as 3 inches. A stack of
six Adapters would require a rail approximately 10-12 inches long.
1. Hold DIN Rail in mounting position, with the ‘U’ channel facing away from the wall. Try to mount the rail over wall
studs for added security.
2. Carefully, at slow speed, drill starter holes for mounting screws.
3. Using minimum 1” screws, secure DIN Rail to wall surface.
4. Slide the Adapter onto the DIN Rail, with the DIN Rail Clips on the Adapter holding the unit to the rail. If mounting
multiple Adapters to the DIN Rail, it is recommended that the Adapters be slid on to the rail individually. (It’s easier
to slide the units onto the rail one at a time.)
5. Carefully press the Adapters together to secure the 12-Pin Interconnects. Secure the Locking Pin(s).
6. If using multiple Adapters printing a small adhesive label identifying the source and sticking it on each Adapter is
suggested to assist in making connections and troubleshooting.
MODE BASE
If connecting iPod(s) as permanent sources, the MODE Base(s) can be installed at the head-end with the rest of the system
components. The Base does not require any special installation, but the Base is magnetically charged so when multiple
Bases are being installed, they will ‘stick’ to each other to help create a more solid footing and will be less likely to acciden-
tally be moved or knocked over.
CAUTION: Because the MODE Base is magnetically charged, it should not be placed directly on top of or near CRTs or
Plasma Displays. Magnetic fields will adversely affect the performance of these displays and could in time permanently
damage the display. (LCD Displays are not affected by magnetic fields.) Additionally, care should be taken to avoid close
encounters with magnetic media such as audio and video tapes or Credit Cards. The magnets in the Base could erase
important information on these media.
MODE FREE COORDINATOR
Though the MODE Coordinator is a small plastic box that can be set on a shelf and left free-standing, it is recommended
that it be secured to a shelf or wall surface to assure it will not be accidentally moved, in a way that could cause discon-
nections or damage to the unit.
Wall Mount
The MODE Coordinator can be mounted directly to a wall surface using the Keyhole on the bottom of the Coordinator
Chassis. The Coordinator should be mounted in a position that allows free movement of the antenna and access for
connecting CAT5 cables.
1. Drive a 1x6 screw, into the wall surface, leaving approximately 1/8” protruding from the wall surface.
2. Slide Coordinator keyhole over the protruding screwhead. Coordinator should fit firmly over the screwhead, if loose,
remove Coordinator and slightly tighten screw until Coordinator fits so it will not easily fall off.
3. Check movement of antenna. (Antenna will be positioned in a later step.)

20
2-Gang
New Construction Box
MODE 3.1
Mounting Bracket
MODE 3.1
MODE 3.1
Bezel
Bezel Tab Clips
Keypad Angle
Tab Slots
Keypad
Angle Tabs
Bezel Tabs
Keypad
Locking Tabs
INSTALLATION
MODE 3.1 KEYPAD
Figure 17
Mounting The MODE 3.1
J-BOX
NOTE: It is highly recommended that the MODE 3.1 Keypad be installed at a height of 56” on center. This provides the best
overall position for optimum LCD viewing angle. This should be discussed with the homeowner prior to installation to avoid
rework, should the homeowner find this undesirable.
New Construction
The MODE 3.1 Keypad should be mounted in a standard 2-gang new construction box whenever possible. The keypad
itself has a thin profile, but the Bezel Tabs and the Mounting Bracket Bezel Tab Clips require some additional clearance.
Some new construction and many retro-fit boxes do not provide adequate clearance. Checking the fit of an as-
sembled keypad, (bezel, keypad and mounting bracket), is recommended prior to installation of the J-boxes to avoid
problems after the wall board has been installed.
Retro-fit
SpeakerCraft provides a retro Bracket Kit (SpeakerCraft Part Number BKT14331) that is recommended for retro instal-
lations. Although use of retro boxes is not recommended, they can be used in some cases. If using a retro box, it will
probably be necessary to hone out part of the box to provide height and depth clearance for the Mounting Bracket
Bezel Tab Clips and Bezel Tabs. Do not modify the clips or the tabs as this may adversely affect how well the bezel stays
in place.
Mounting Bracket
The MODE 3.1 Keypad cannot be installed without the Mounting Bracket. The keypad is held in place with the Keypad
Locking Tabs and Keypad Angle Tabs. The Bracket should be mounted to a standard 2-gang new construction box as
shown in Figure 10. When installing the Mounting Bracket, be sure the bracket is positioned as shown in Figure 10. The
keypad cannot be mounted if the bracket is upside down. If using a retro box, see section: Retro-fit, above.
When necessary, and not recommended, the Mounting Bracket can be used without a J-box. When installing a key-
pad without a J-box, be sure to use drywall anchors to provide a more durable and secure mount for the bracket.
MODE 3.1 KEYPAD
Keypad Address
Before installing the MODE 3.1 Keypad, set the Keypad Address Switch. If only one keypad (MODE 3.1, MODE Free or
EZ-Pad) is going to be installed in a zone, then any of the 16 addresses can be used as long as the same address is
configured in EZ-Tools for that zone. For simplicity and to help avoid setup errors, if a zone only has one keypad, leave
the address set to ‘0’. If a zone has multiple keypads, set each to a different address and configure the zone in EZ-Tools
for the same number and type of keypads and addresses.
Other manuals for MODE 3.1
1
This manual suits for next models
1
Table of contents
Other SpeakerCraft Keypad manuals
