SpeakerCraft MODE 3.1 User manual

INSTALLATION INSTRUCTIONS
MODE 3.1
Keypad
IPOD 1: 30G VIDEO
IPOD 2: NANO
DVD CHANGER
CD CHANGER
TUNER 1
TUNER 2
TUNER 1
IP
O
D 1:
30G
VIDE
O
I
P
O
D
2
: NAN
O
DVD
C
HAN
G
ER
CD CHANGER
TU
NER
2
REV 1

MODE 3.1 Installation Instructions Page 2
Read all of these instructions before operating and save instructions for later use.
1. Read Instructions – All the safety and operating instructions should be read before the appliance is operated.
2. Retain Instructions – The safety and operating instructions should be retained for future reference.
3. Heed Warnings – All warnings on the appliance and in the instructions should be adhered to.
4. Follow Instructions – All operating and use instructions should be followed.
5. Water and Moisture – The appliance should not be used near water – for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement or near a
swimming pool.
PORTABLE CART
WARNING
6. Carts and Stands – The appliance should be used only with a cart or stand that is recommended by the manufacturer. An appliance and cart combination should be moved
with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.
7. Wall or Ceiling Mounting – The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer.
8. Ventilation – The appliance should be situated so that its location or position does not interfere with its proper ventilation. For example, the appliance should not be situated
on a bed, sofa, rug, or similar surface that may block the ventilation openings; or, placed in a built-in installation, such as a bookcase or cabinet that may impede the flow of
air through the ventilation openings.
9. Heat – The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat.
10. Power Sources – The appliance should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance.
11. Grounding or Polarization – Precautions should be taken so that the grounding or polarization means of an appliance is not defeated.
12. Power-Cord Protection – Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular
attention to cords at plugs, convenience receptacles, and at the point where they exit from the appliance.
13. Cleaning – The appliance should be cleaned only as recommended by the manufacturer.
14. Power Lines – An outdoor antenna should be located away from the power lines.
15. Nonuse Periods – The power cord of the appliance should be unplugged from the outlet when left unused for a long period of time.
16. Object and Liquid Entry – Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.
17. Damage Requiring Service – The appliance should be serviced by qualified service personnel when:
A. The power-supply cord or the plug has been damage; or
B. Objects have fallen, or liquid has spilled into the appliance; or
C. The appliance has been exposed to rain; or
D. The appliance does not appear to operate normally or exhibits a marked change in performance; or
E. The appliance has been dropped or the enclosure damaged.
18. Servicing – The user should not attempt to service the appliance beyond that described in the operating instructions. All other servicing should be referred to qualified service
personnel.

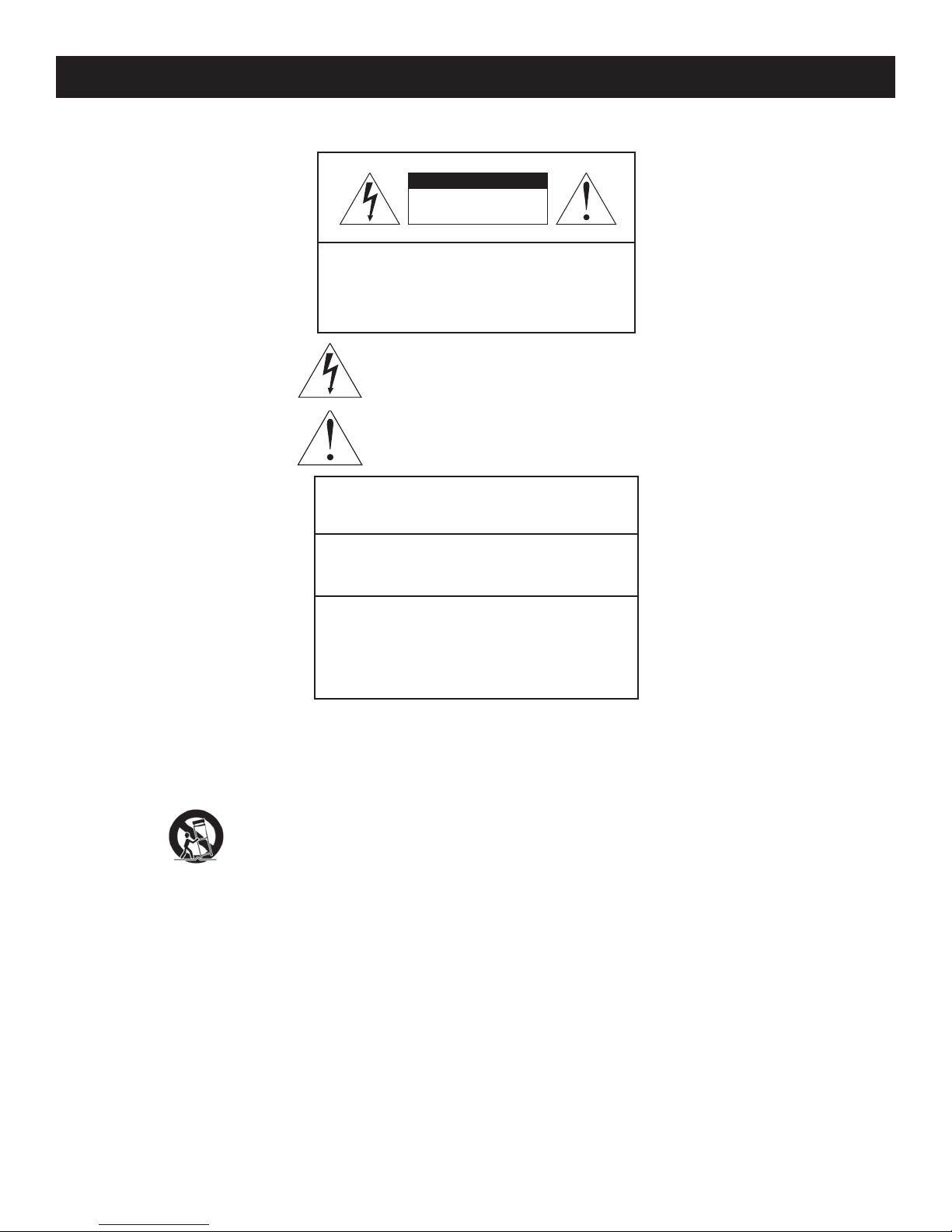

SAFETY INSTRUCTIONS
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
CAUTION: To reduce the risk of electric
shock, do not remove cover, (or back).
No user serviceable parts inside.
Refer servicing to qualified service personnel.
The lightning flash with arrowhead symbol, when in an equilateral
triangle, is intended to alert the user to the presence of in-insulated
"dangerous voltage" within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point, within an equilateral triangle, is intended to
alert the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying
the appliance.
APPLICABLE FOR USA, CANADA OR
WHERE APPROVED FOR USAGE
CAUTION: TO PREVENT ELECTRIC SHOCK,
MATCH WIDE BLADE PLUG TO WIDE SLOT,
INSERT FULLY
ATTENTION: POUR EVITIER LES CHOCS
ELECTRIQUES, INTRODUIRE LA LAME LA PLUS
LARGE DE LA FICHE DANS LA BORNE
CORRESPONDANTE DE LA PRISE ET POUSSER
JUSQU AU FOND

MODE 3.1 Installation Instructions Page 3
Contents
SAFETY INSTRUCTIONS..................................................................................................................................... 2
INTRODUCTION ............................................................................................................................................... 4
WHAT’S INCLUDED..................................................................................................................................... 4
ACCESSORIES AND EXTRAS (not included) .................................................................................................. 4
WHAT YOU WILL NEED.............................................................................................................................. 4
MODE 3.1 FEATURES ....................................................................................................................................... 5
FRONT PANEL ............................................................................................................................................ 5
REAR PANEL............................................................................................................................................... 6
MODE ADAPTER FEATURES ........................................................................................................................ 7
MODE BASE FEATURES............................................................................................................................... 8
WIRING (Pre-wire) .......................................................................................................................................... 11
MODE 3.1 KEYPAD................................................................................................................................... 11
MODE ADAPTER....................................................................................................................................... 11
MODE BASE ............................................................................................................................................. 11
MODE 3.1 HARD BUTTON CONFIGURATION .................................................................................................. 12
INSTALLATION ............................................................................................................................................... 13
HEAD-END ............................................................................................................................................... 13
MODE ADAPTER....................................................................................................................................... 13
MODE BASE ............................................................................................................................................. 13
MODE 3.1 KEYPAD................................................................................................................................... 14
CONNECTIONS .............................................................................................................................................. 16
MODE ADAPTER (Single) .......................................................................................................................... 16
MODE ADAPTER (Stacked)........................................................................................................................ 17
MODE BASE ............................................................................................................................................. 18
MODE 3.1 KEYPAD................................................................................................................................... 18
PROGRAMMING WITH EZ-TOOLS ................................................................................................................... 21
DOWNLOAD EZ-TOOLS ............................................................................................................................ 21
QUICK START GUIDE FOR SIMPLE MODE 3.1 EZ-TOOLS PROGRAMMING................................................... 21
ADDING AN IPOD, MODE BASE AND MODE ADAPTER TO AN EXISTING PROJECT..................................... 22
ADDING A MODE 3.1 KEYPAD TO AN EXISTING MZC PROJECT ................................................................. 25
PROGRAMMING SOURCE CONTROL ......................................................................................................... 29
PROGRAMMING HARD KEYS..................................................................................................................... 29
PROGRAMMING VIRTUAL BUTTONS ......................................................................................................... 29
OPERATING THE MODE 3.1 ........................................................................................................................... 31
ZONE SETTINGS (Treble and Bass) ............................................................................................................ 33
KEYPAD SETTINGS .................................................................................................................................... 33
KEYPAD RESET ......................................................................................................................................... 34
SPECIFICATIONS............................................................................................................................................. 35
LIMITED 2-YEAR WARRANTY........................................................................................................................... 36

MODE 3.1 Installation Instructions Page 4
INTRODUCTION
MODE is the Music On Demand Experience. The SpeakerCraft MODE 3.1 Keypad creates the ultimate media control experi-
ence by providing real-time system status, menu-driven control options and source metadata with its 3.1” vertically mounted
high-resolution color LCD. Menu options include system source selection, MZC Internal Tuner Presets with frequency, iPod
menus and metadata as well as a variety of Keypad Setup options.
The real beauty of the MODE 3.1 is that it is so easy to operate. A Scroll Wheel and Select Button allow navigation through
and selection of the displayed menu options. Once a source has been selected, 8 back-lit programmable hard keys provide
source control and on-screen menu navigation for sources such as DVD players, media servers, satellite receivers, cable
boxes, etc. These buttons have all of the programmability expected of a SpeakerCraft Keypad, with each button being able to
initiate single IR commands, RS232 commands, SpeakerCraft MZC Internal commands and macros in each of up to three tiers
of functionality.
Volume is controlled with a back-lit control knob that features a series of LEDs that give a visual indication of the volume set-
ting.
MODE 3.1 is designed specifically for use with SpeakerCraft MZC Series Multi-Zone A/V Amplifier Controllers. They can be
mixed and matched with SpeakerCraft EZ-Pad Keypads and run on the same CAT5 or 5-conductor wire used for EZ-Pads.
The MODE 3.1 includes a J-box Mounting Bracket that allows installation in most standard 2-gang low-voltage new construc-
tion and some retro-fit electrical boxes. This design philosophy allows MODE Keypads to be retrofit to upgrade existing MZC
Systems when the user is incorporating an iPod or a media server.
Though parts of this manual cover the SpeakerCraft MODE Adapter and MODE Base for incorporating iPod and additional
sources, the MODE 3.1 Keypad does not require these components for installation and operation. MODE 3.1 can be installed
without the MODE Adapter and Base and used purely as an upgrade to EZ-Pads in MZC Systems.
MODE 3.1 is programmed with SpeakerCraft’s EZ-Tools Programming Software and follows procedures similar to those used
with EZ-Pad Keypads. All MZC System commands, IR Library commands and RS232 commands previously saved in EZ-Tools
can be used to program MODE 3.1 for what it is: The Music On Demand Experience.
WHAT’S INCLUDED
MODE 3.1 Keypad
1 - MODE 3.1 Keypad
1 - MODE 3.1 Keypad Mounting Bracket
1 - MODE 3.1 Keypad Bezel
1 - Bag of Replacement Buttons
1 - Wire Retainer
1 - Quick Reference Guide
MODE Adapter
1 - MODE Adapter
1 - 10’ Stereo mini to RCA interconnect cable
1 - Quick Reference Guide
MODE Base
1 - MODE Base
7 - iPod inserts
1 - Quick Reference Guide
ACCESSORIES AND EXTRAS (not included)
1 - PS-3.0 24V DC Power Supply for MODE Adapter. (One PS-3.0 can power up to 6 ‘stacked’ MODE Adapters.
WHAT YOU WILL NEED
Punch-Down Tool
Screw Driver
Wire Cutters

MODE 3.1 Installation Instructions Page 5
MODE 3.1 FEATURES
FRONT PANEL
1. 3.1” HIGH RESOLUTION COLOR LCD - High Resolu-
tion color LCD displays ‘Virtual Buttons’ for Source Selec-
tion, menu navigation, control, metadata from iPods,
MODE Jukebox, MZC Tuner Presets and MODE Setup
Menu.
2. VOLUME CONTROL KNOB - Volume control knob ad-
justs volume when turned, mutes the local zone speakers
when pushed and executes a keypad reset when pressed
and held for 5 seconds. The knob can be programmed
for any function, but should typically be programmed for
volume and mute.
3. VOLUME LEVEL LEDs - 8 blue LEDs to provide visual
confirmation of volume setting.
MENU
SEL
1 2 3
45678
4. CONFIGURABLE HARD KEYS - 7 back-lit programmable and configurable hard keys allow control of common source
components. These keys are programmed using SpeakerCraft’s EZ-Tools Programming Software and can be configured to
send single IR commands, IR macros, RS232 commands and MZC internal commands. Three tiers of functionality per key
provide a wide range of programming options for any system configuration or user demands. Each keypad also includes
a variety of additional keycaps for added flexibility.
NOTE: The Arrow Up or “Menu Button” is not configurable or programmable. It only provides Menu navigation to
return to the MODE Main Menu when using non iPod Sources and functions the same as the iPod Menu Button when
iPod is selected, to navigate iPod Menus. A press and hold of the Menu Button in iPod mode will return the MODE 3.1 to
the MODE Main Menu.
5. CLICK BUTTON - The cosmetic trim surrounding the Scroll Wheel is actually a function select key. When a source, menu
item or function has been highlighted on the LCD with the Scroll Wheel, a press of the Click Button will select the source
or menu item or initiate an associated command. This button is not programmable.
6. SCROLL WHEEL - Provides easy and intuitive navigation of menus and ‘Virtual Buttons’ displayed on the LCD. This but-
ton is not programmable.
7. IR SENSOR - The MODE 3.1 includes SpeakerCraft’s exclusive ANS (Ambient Noise Suppressor) IR Receiver. The IR receiver
allows use of a handheld remote for control of the system and IR controlled source components.
8. KEYPAD BEZEL - The keypad bezel is a screwless trim plate made of a plyable material that conforms to the surround-
ing wall contour. The back of the bezel has form fitting tabs that friction fit the MODE 3.1 Mounting Bracket to provide a
clean finished look.
Figure 1
MODE 3.1 Front Panel Features

MODE 3.1 Installation Instructions Page 6
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
IR
IR
+12
+12
GND
GND
485 A
485B
+ REL AY
- REL AY
ADDRESS
MODE 3.1
Riverside, CA www.speakercraft.com
MADE IN CHINA
1 2 3 1
454 66

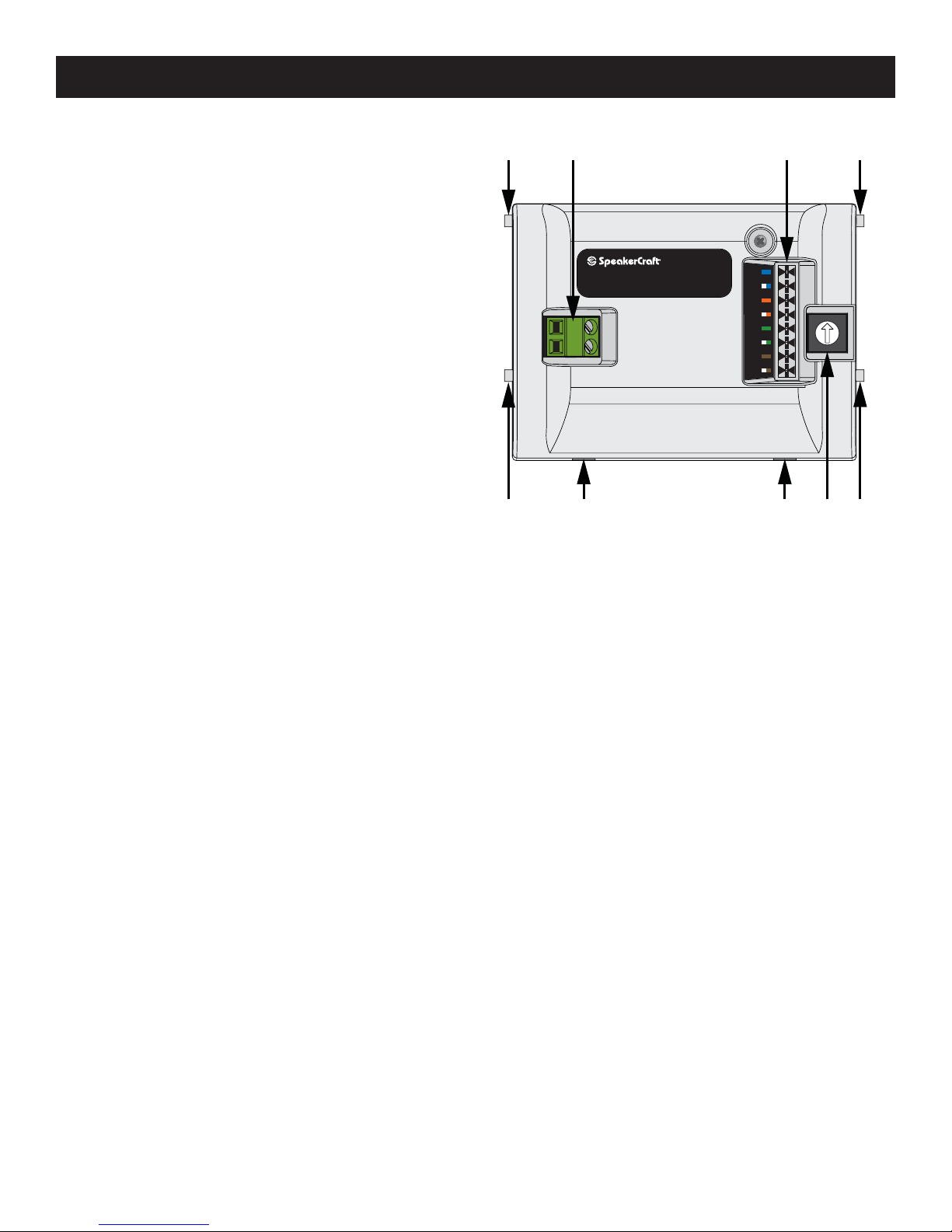

MODE 3.1 FEATURES
REAR PANEL
1. KEYPAD LOCKING TABS - Fit into the upper Mounting
Bracket Tab Slots to secure the keypad to the bracket.
2. SPEAKER RELAY MUTE TERMINAL - Connects to a
SpeakerCraft EPR-1.0 Relay Muting Module for individual
room mute when using multi-channel amplifiers for sub-
zone expansion.
3. KEYPAD PUNCH-DOWN BLOCK - 110 style punch-
down terminal connects to the Zone Keypad Terminals on
a SpeakerCraft MZC-66 or a KCM-1.0 when using MZC-88.
4. KEYPAD ANGLE TAB - Fits into the channeled lower
Mounting Bracket Tab Slots to allow flush installation (flat
to wall surface) or with the lower portion of the keypad
sloping away from the wall at about a 15° angle. The
angle mount creates a special cosmetic appeal and pro-
vides an improved LCD viewing angle.
Figure 2
MODE 3.1 Rear Panel Features
5. ADDRESS SWITCH - A unique hex address must be set for each MODE Keypad when connected on a common bus
within a single zone. Unique addresses are not required zone-to-zone (One keypad per zone). The switch provides up to
16 addresses (0 to F).
6. FACEPLATE RELEASE TABS - Carefully push these recessed tabs to remove the MODE faceplate to change keycaps. It is
typically only necessary to press the tabs on the bottom of the keypad and then carefully pull the bottom of the faceplate
away from the MODE body.

MODE 3.1 Installation Instructions Page 7
MODE Adaptor
Riverside, CA www.speakercraft.com
MADE IN CHINA
Line Out
Expansion
Aux. Input
iPod Base
24V DC
1 2 1
33
1 5 4 1
6 7 8 9
1011 12 13 6
33
6 2 6
MODE ADAPTER FEATURES
1. ADAPTER POST SOCKETS - Four recessed sockets used to align
Adapter Posts, to secure multiple Adapters and prevent damage to
Adapter Bus Pins.
2. DIN RAIL SLOT AND CLIPS - Allows the MODE Adapter to be wall
mounted using standard DIN Rail (not included). Red clips slide over
the rail section to hold the Adapter in place. ‘Stacked’ Adapters can
also be mounted on DIN Rail.
3. WALL MOUNT SCREW HOLES - These holes allow the MODE
Adapter to be mounted flat against a wall or cabinet side.
4. 12 PIN INTERCONNECT - Connect to the 12 pin socket on the bot-
tom of a stacked Adapter. This connection creates a power, metadata
and control bus that allows stacking multiple MODE Adapters.
5. LOCKING PIN SLOT - Round opening on the top of the Adapter
used to receive and lock Locking Pins when stacking multiple Adapt-
ers.
6. ADAPTER POSTS - Four round posts on the bottom of the Adapter
protect the 12 Pin Interconnect when single Adapters are used and
fit into the Adapter Post Sockets when stacking multiple Adapters to
hold Adapters in place and prevent damage to the interconnects.
7. LINE OUT - 3.5mm mini jack outputs stereo line level audio. Con-
nects to MZC Source Input via the included 10 foot stereo mini-plug
to RCA interconnect cable. When stacking multiple Adapters, each
Adapter must be connected to a dedicated Source Input on the MZC.
8. EXPANSION PORT - RJ45 Jack connects to the Expansion Port on
the MZC Rear Panel to Rx/Tx control and metadata between the MZC
and MODE Adapter.
9. AUX INPUT - 3.5mm mini jack provides a stereo line level input for
Figure 3
MODE Adapter Features
an additional source. This could be anything from a cable/satellite receiver, to an XM or Sirius Tuner or a DVD player
allowing up to 12 Sources on an MZC-66 or 14 Sources on an MZC-88 (including on-board tuners). Switching to and
controlling the sources connected to this input must be configured during setup in EZ-Tools. Only MODE Keypads have
access and control of the devices connected to the Aux Inputs. EZ-Pads do not have access to or control of these devices.
10. 12 PIN INTERCONNECT SOCKET - 12 pin socket connects to the 12 Pin Interconnect on the top of a stacked Adapter.
This connection creates a power, metadata and control bus that allows stacking multiple MODE Adapters.
11. LOCKING PIN - Metal post on the Adapter bottom fits into the Locking Pin Slot when stacking Adapters. Use a medium
size flat head screwdriver to turn the post and lock the stacked Adapters together.
12. iPOD BASE RJ45 TERMINAL - RJ45 jack connects to the Adapter Port on a MODE Base via CAT5. This connection pro-
vides power and control to the iPod/Base and receives digital audio data and metadata from a connected iPod.
13. 24V DC - 2.1mm coaxial jack connects to a SpeakerCraft PS-3.0 24V Power Supply (Required/Not included). When stack-
ing Adapters, one PS-3.0 will power up to 6 MODE Adapters.

MODE 3.1 Installation Instructions Page 8
12V DC 1 AMP Adaptor Port Aux. Input USB
1
1 2 3 4 5 1
67
9
187
MODE BASE FEATURES
1. BASE ALIGNMENT TAB - Two small tabs on the right side of
the Base fit into two small indents on the left side of an adjoin-
ing Base when using multiple Bases. The Bases are magnetically
charged and lock together for convenience.

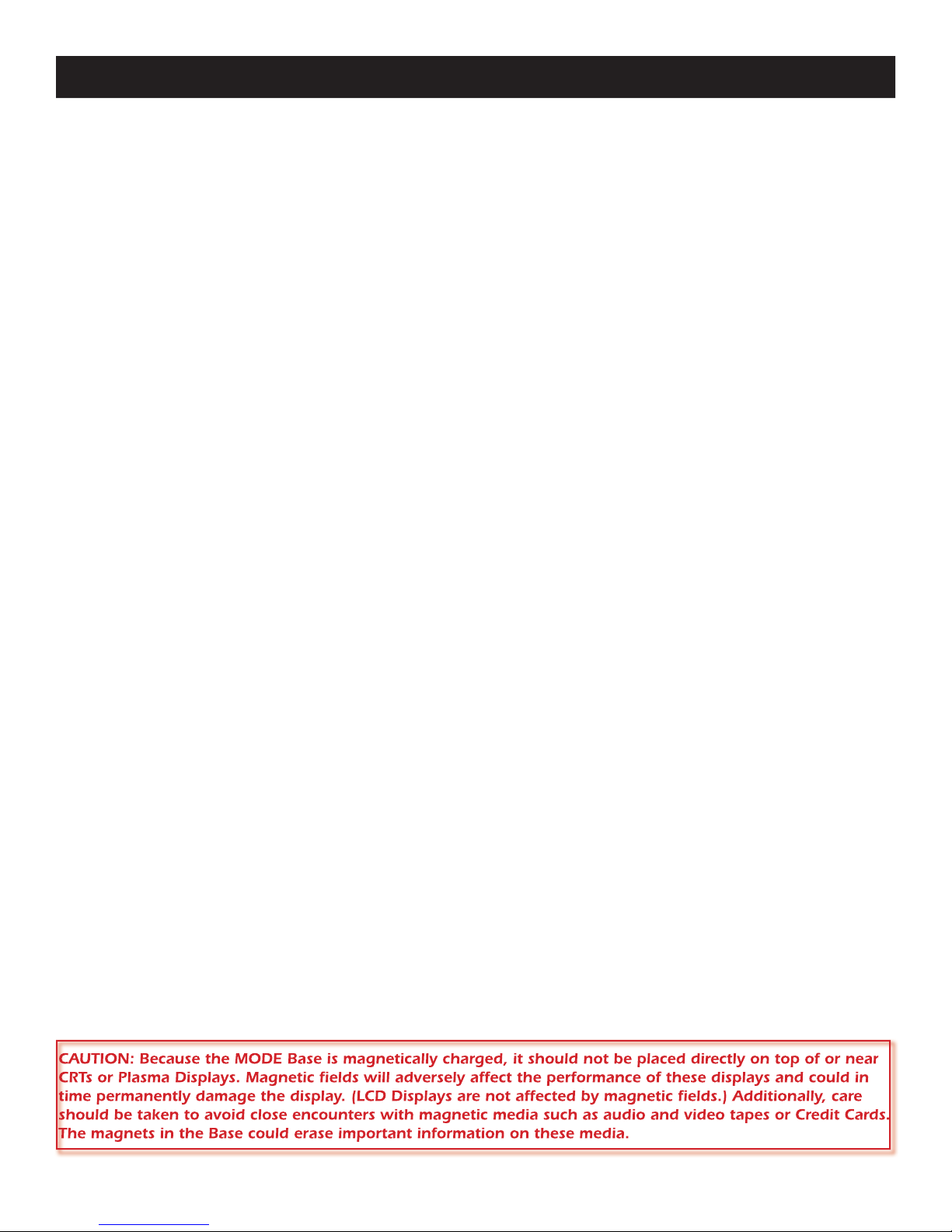

CAUTION: MODE Base magnets are fairly strong and
should not be mounted directly on or near CRTs or Plas-
ma displays. Care should also be taken to keep magnetic
media such as audio and video tapes, credit cards, etc.
away from the MODE Base units as important media may
be lost!!!
2. POWER JACK - 2.1mm coaxial jack. The MODE Base is pow-
ered directly from the MODE Adapter in applications where the
Base is less than 250’ from the Adapter. For wire runs over 250’,
the Base can be up to 500’ from the Adapter with a Speaker-
Craft PS-2.0 Power Supply connected directly to the Base.
3. ADAPTER PORT - RJ45 jack connects to the iPod Base Termi-
nal on the MODE Adapter via CAT5. This connection provides
power and control to the iPod/Base and sends digital audio and
metadata from the Base to the Adapter.
4. AUX INPUT - 3.5mm mini jack provides a stereo line level
input for an additional source. This could be anything from a
cable/satellite receiver, to an XM or Sirius Tuner or a DVD player
allowing up to 12 Sources on an MZC-66 or 14 Sources on an
MZC-88 (including on-board tuners). This connection will allow
the local source audio to be played through the MZC amplifier
and zone speakers. Switching to and controlling the sources
connected to this input must be configured during setup in EZ-
Tools.
5. USB PORT - USB mini B jack allows connection directly to a
computer for downloading content to an iPod seated in the
MODE Base. Downloading content would follow normal proce-
dures. See iPod instructions for additional information.

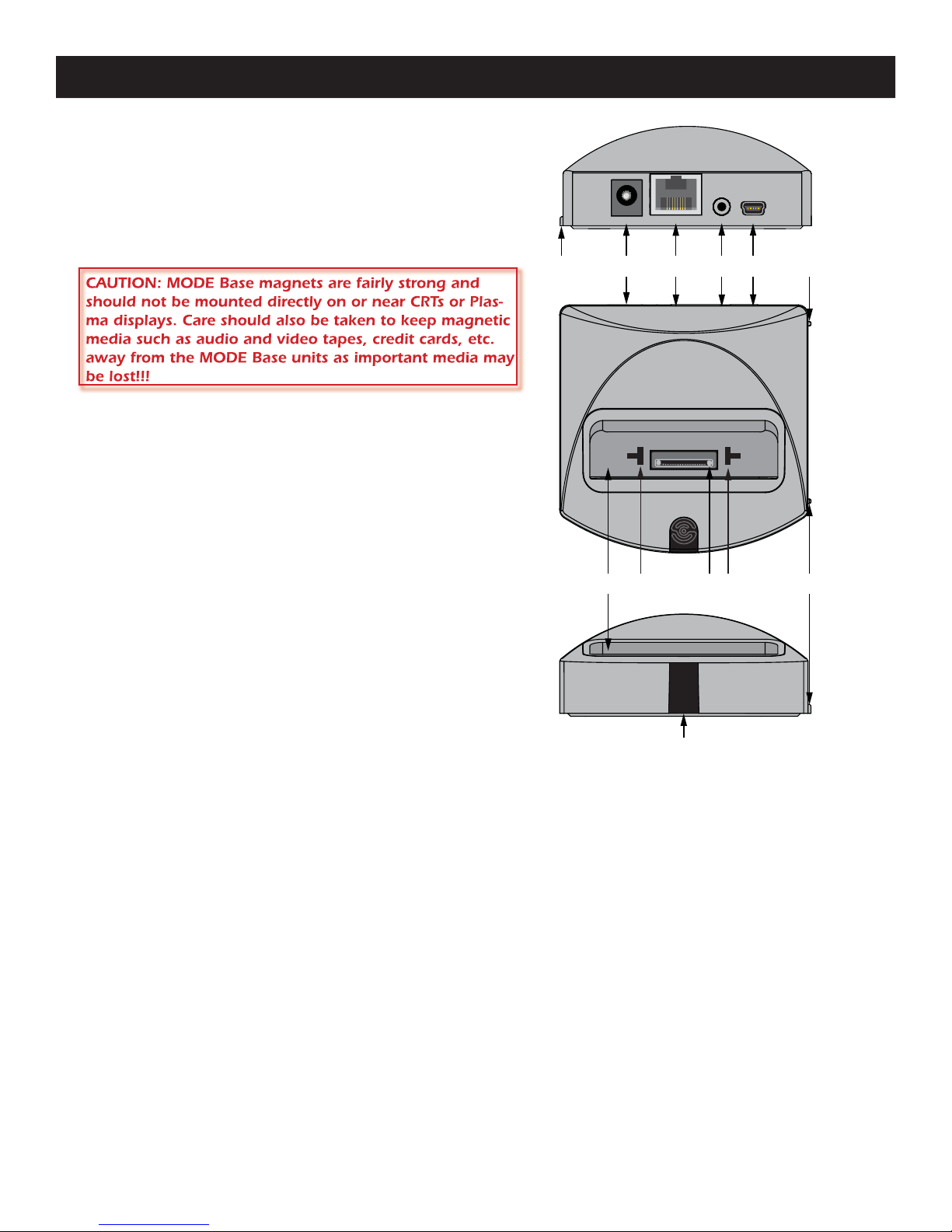

Figure 4
MODE Base Features
6. BASE DOCK - This opening in the Base is where an iPod gets connected to an MZC system. Different sized inserts allow
adapting the various different models of iPods to the Base. NOTE: Never connect an iPod without an insert in place.
Without an insert, the iPod may not connect properly and there is potential for damage to the iPod, the Base or both.
7. INSERT CAPTURE SLOTS - Each of the inserts has two T-shaped posts that slide into these slots to secure the insert
for the specific iPod being used. If it becomes necessary to change inserts, carefully push the T-shaped posts of another
insert up through the bottom of the Base and pull the seated insert out from the top.
8. iPOD CONNECTOR - This multi-pin connector connects to the iPod Dock Connector on the bottom of an iPod. Care-
fully push the iPod down on this connector to send power and control to the iPod and have the iPod send digital audio
and metadata to the system.
9. MZC SOURCE INDICATOR - This blue LED displays the MZC Source Input for the MODE Base being used. An iPod can
be moved from room to room and will identify to the system which room it is in. The Base will be dedicated to a specific
MZC Source Input. The Source Indicator is configured by pressing the Source ID Button on the bottom of the Base to
match the MZC Source Input.

MODE 3.1 Installation Instructions Page 9
MODE Base
Riverside, CA www.speakercraft.com
MADE IN CHINA
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
SOURCE ID
ADDRESS
1
0
11
Figure 5
MODE Base Bottom Features
10. SOURCE ID SWITCH - Carefully press with a pencil or
other non-conductive probe to set the MODE Base to
match the MZC Source Input to which it will be connect-
ed. Source ID is displayed on the MODE Base LED.
11. ADDRESS SWITCH - A unique hex address must be set
for each MODE Base within a given system. The switch
provides up to 16 addresses (0 to F).
IMPORTANT NOTICE REGARDING ESD (Electrostatic
Discharge): The MODE Base can be susceptible to
ESD. Under certain conditions when reaching for and
just prior to touching the Base or the iPod connected
to it, certain levels of ESD can cause the MODE Base
to temporarily loose its communication link with the
MZC. Typically no action is required by the user to
restore communication and normal operation. This
notice pertains only to the MODE Base. Please refer to
iPod documentation or contact Apple for additional
information regarding iPod and ESD.

MODE 3.1 Installation Instructions Page 10
Zone 3
Remote Room
SPEAKERS
ZONE 1
EZ-PAD
SPEAKERS
ZONE 2
EZ-PAD
MZC-66
EXPANSION
PORT LOOP
SOURCE 1 SOURCE 2 SOURCE 3 SOURCE 4 SOURCE 5 SOURCE 6
Cat.5*
SPEAKERS
ZONE 3
EZ-PAD
SPEAKERS
ZONE 4
EZ-PAD
SPEAKERS
ZONE 5
EZ-PAD
SPEAKERS
ZONE 6
EZ-PAD
Cat.5*
Cat.5*
Inter-Room
Speaker Wiring
R Zone SpeakerL Zone Speaker
MODE Base
(Up to 6)
EZ-Pad
Zone 4
Remote Room
RCA-to-Mini
Stereo
Interconnect
DVD
MUTE
SAT CD
PWR
BASS TREB
TNR
iPod
AUX
PLAY
ESC INFO
MENUGUIDE
SEL
MODE 3.1
Keypad
MODE Base
Adapter
(Up to 6)
PS-3.0
Cat.5*
*DB9 / RS232
Null Modem Interface Cable
DB9
J1
ASW1
D4 D5
J4
J5
J6
J2 J3
U2 U5
U1
U7
SW1:
U6
U3
RSA-1.0
RS232 Interface Adapter
CONTROL
PORT
EXPANSION
PORT LOOP
RS232
DATA I/O
IR
IN
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
ADDRESS
12VDC
HI LO
PROGRAMMING
IR
MODE Jukebox
Cat.5*
RCA Interconnects
To Desired Source Inputs
NOTE: The RSA-1.0
is powered through the
Expansion Port from
the MZC-66
RSA-1.0
To Broadband
Modem for
Internet
Connection
Cat.5*
L R VL R VL R VL R VL R VL R V
LRV
R Zone SpeakerL Zone Speaker
*Refer to related sections in this manual.
OFF ON
*PS-2.0
12V DC Power Supply
(Optional for each MODE
Base used over 250 ft.)

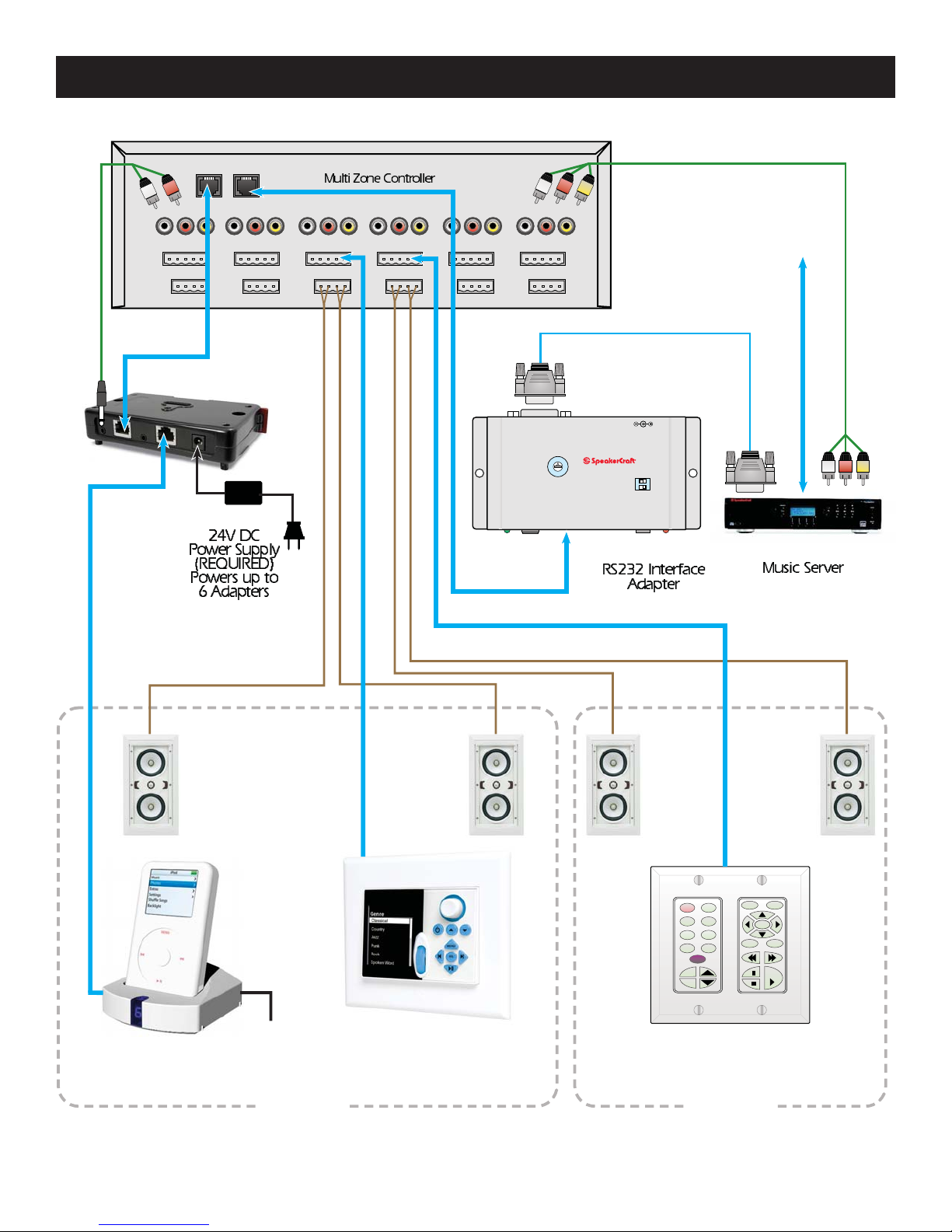

Figure 6
Typical System

MODE 3.1 Installation Instructions Page 11
WIRING (Pre-wire)
The MODE 3.1 Keypad requires connection to a SpeakerCraft MZC-66 or 88 to operate. All system wiring considerations for
an MZC system should be followed as described in the MZC-66 and 88 Installation Instructions. The information below will
only detail those parts of an MZC System that pertain to the wiring requirements for connecting a MODE 3.1 Keypad, MODE
Adapter and MODE Base.
NOTE: The following wires should be installed during system pre-wire. Other connections will be made at the time of instal-
lation and are described in section: Connections.
MODE 3.1 KEYPAD
Control

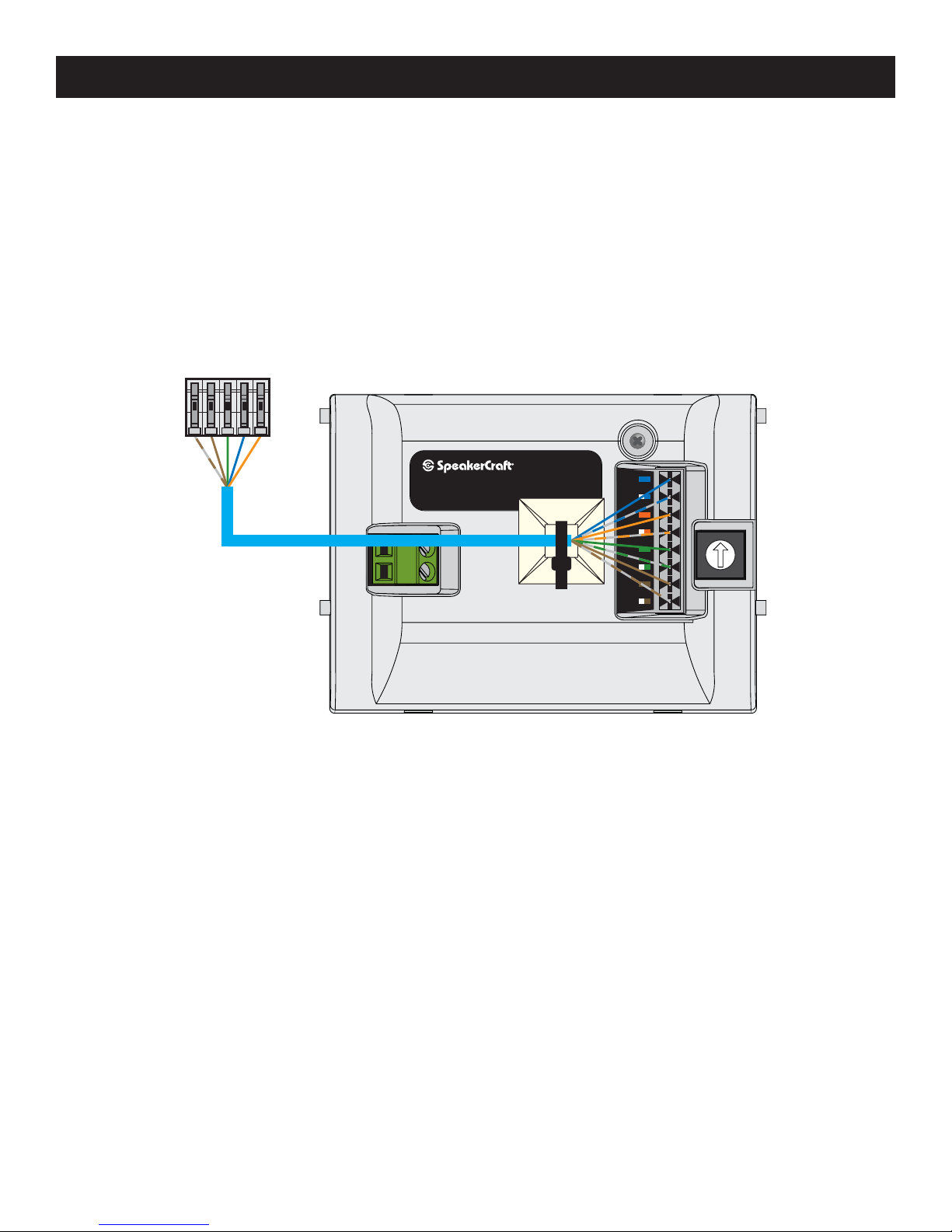

CAT5 - Pull home-runs of CAT5 from each MODE 3.1 to the system head-end. MAXIMUM LENGTH: 500’
NOTE: All eight conductors of the CAT5 must be connected for proper signal strength on 500’ of cable.
Speaker Relay Mute
STANDARD WIRE - Pull two-conductor 24AWG or heavier, stranded, non-shielded wire from any MODE 3.1 location to
where a SpeakerCraft EPR-1.0 Speaker Relay Muting Module will be installed. MAXIMUM LENGTH: 1000’
MODE ADAPTER
Expansion Port
CAT5 - Pull CAT5 from the MZC to where the MODE Adapter(s) will be installed. For installations where the Adapter will
be at the system head-end, a CAT5 patch cable can be used at time of installation and hook-up. For installations where
the Adapter will be in a remote location, pull CAT5 during pre-wire and terminate with a proper wall plate. MAXIMUM
LENGTH: 100’.

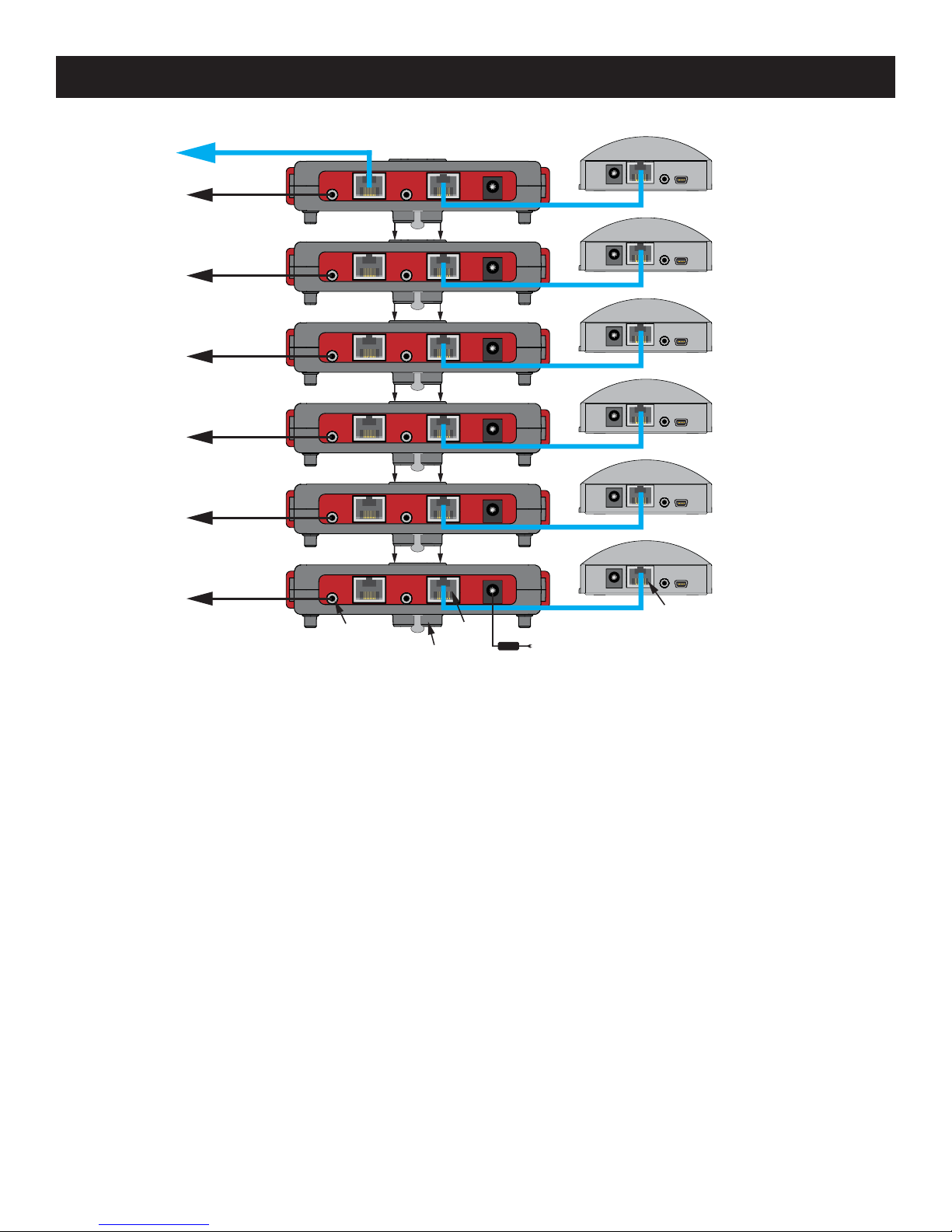

NOTE: When stacking Adapters, only one run of CAT5 is required between the Adapters and the MZC. See section:
Connections/MODE Adapter (Stacked) for additional information.
iPod Base
CAT5 - Pull CAT5 from the MODE Adapter(s) to the MODE Base(s). For installations where the Base(s) will be at the sys-
tem head-end, a CAT5 patch cable can be used at time of installation and hook-up. For installations where the Base will
be in a remote location, pull CAT5 during pre-wire and terminate with a proper wall plate. The Base will then connect to
the wall-plate during installation. MAXIMUM LENGTH: 250’ when powered from Adapter; 500’ when Base is pow-
ered locally with a SpeakerCraft PS-2.0 power supply (not included).
MODE BASE
12V DC 1AMP
STANDARD WIRE - For installations where the Base will be connected to the MODE Adapter via a wall-plate, pull
16AWG two-conductor stranded non-shielded wire from the PS-2.0 power supply location, typically the head-end, to the
Base location, as shown in Figure 6. MAXIMUM LENGTH: 500’ on 16AWG wire.
Adapter Port
CAT5 - Pull CAT5 from the MODE Adapter(s) to the MODE Base(s). For installations where the Base(s) will be at the
system head-end, a CAT5 patch cable can be used at time of installation and hook-up. For installations where the Base
will be in a remote location, pull CAT5 during pre-wire and terminate with a proper wall plate. The Base will then con-
nect to the wall-plate during installation. MAXIMUM LENGTH: 250’ (When powered from Adapter); 500’ when Base is
powered with a SpeakerCraft PS-2.0 power supply (not included).

MODE 3.1 Installation Instructions Page 12

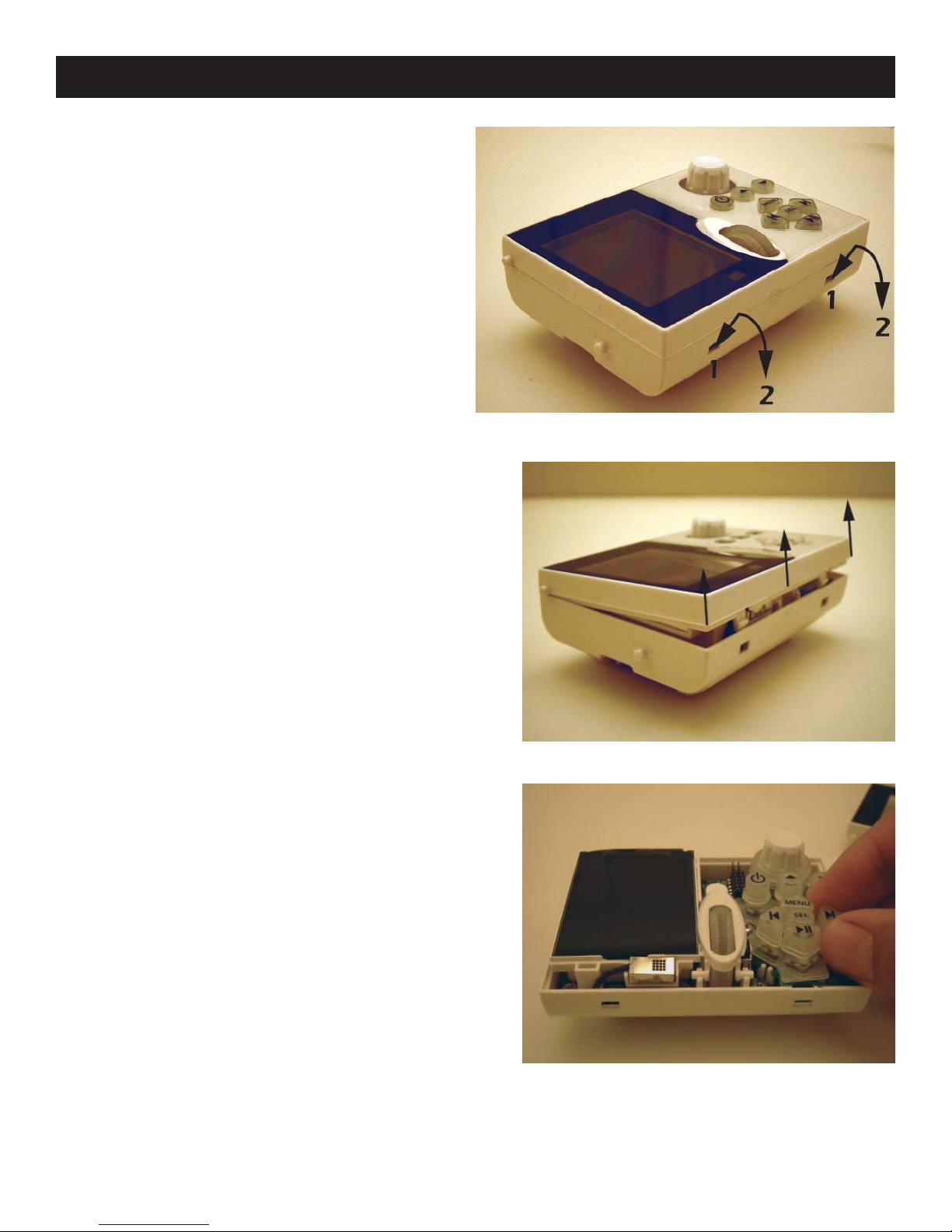

Figure 7
Faceplate Release Tabs
Figure 8
Removing The Faceplate
Figure 9
Changing Keycaps
MODE 3.1 HARD BUTTON
CONFIGURATION
As received from the factory, MODE 3.1 Keypads have a pre-
installed set of buttons that match the default button configu-
ration in EZ-Tools. This default may not match the system be-
ing installed. MODE 3.1 comes with a set of alternate buttons.
The hard button keycaps can be changed on the keypads and
in EZ-Tools to match the product being installed. To change
the hard button keycaps:
1. With the keypad disconnected from the system, carefully
insert a small flat head screwdriver into the Faceplate
Release Tabs Slots (1) as shown in Figure 7.
With the screwdriver inserted, slowly twist the screwdriver
and pull down in the direction shown (2) until the Face-
plate Tabs release from the body.
2. With both tabs released, carefully pull the bottom of
the faceplate up and away from the keypad as shown in
Figure 8 until it stops moving freely. Carefully pull the top
of the faceplate clear of the keypad to remove. Do not
touch, pinch, poke or otherwise contact the flex board
circuit connected to the top of the LCD. Damage to the
flex board will disable the LCD.
3. With the faceplate fully removed, the hard button keycaps
cans be changed. Carefully pinch the top of the keycap
and slowly pull it straight up and off the rubber mem-
brane as shown in Figure 9. Try not to pull the mem-
brane off the green circuit board. If the membrane does
come loose, be sure to replace it to its normal position,
seated flat on the green circuit board. If the membrane
is not properly seated, the keycaps will not fit properly
through the openings in the faceplate and the keypad
will not function.
4. Using the included alternate set of keycaps, make chang-
es as needed.
5. With all keycaps in place, replace the faceplate in reverse
process to step 2. Carefully align the top of the faceplate
with the keypad body as they appear in Figure 8. Slowly
press the bottom of the faceplate until the keycaps begin
to push through their openings. Visually inspect the
keycaps to confirm that they are properly centered in the
faceplate openings. With the keycaps in place, press the
bottom corners of the faceplate until it snaps into place.
6. Press all buttons to confirm free play.

MODE 3.1 Installation Instructions Page 13
INSTALLATION
Installation of the MODE components is a simple process that requires only a few steps.
HEAD-END
MODE ADAPTER
Though the MODE Adapter is a small plastic box that can be set on a shelf and left free-standing, it is recommended that it
be secured to a shelf, wall surface or DIN Rail to assure it will not be accidentally moved, in a way that could cause discon-
nections or damage to the unit.
Wall Mount
The MODE Adapter can be mounted directly to a wall surface using the Wall-Mount Screw Holes in the top of the Adapter
Chassis. The Adapter should be mounted SpeakerCraft label side out.
1. Hold Adapter in mounting position.
2. Carefully, at slow speed, drill starter holes for mounting screws.
3. Using minimum 1.5” screws, secure Adapter to wall surface. Do not overtighten to avoid cracking the Adapter case.
4. If using multiple Adapters, printing a small adhesive label identifying the source number and sticking it on the Adapter is
suggested to assist in making connections and troubleshooting.
Shelf Mount
Follow the instructions above for Wall Mount. When positioning the Adapter, set it on the shelf, with the SpeakerCraft label
side up and the red connection panel facing out for convenience in making connections. If using multiple Adapters, printing
a small adhesive label identifying the source number and sticking it on the Adapter is suggested to assist in making connec-
tions and troubleshooting.
DIN Rail
The MODE Adapter can also be mounted to a wall using standard 3.5mm DIN Rail. (DIN Rail can be found at Custom A/V
Products Distributors, Electrical Distributors and better Hardware Stores.) Be sure to have a rail section long enough for the
number of Adapters being mounted. A single Adapter can be mounted on a rail as short as 3 inches. A stack of six Adapters
would require a rail approximately 10-12 inches long.
1. Hold DIN Rail in mounting position, with the ‘U’ channel facing away from the wall. Try to mount the rail over wall studs
for added security.
2. Carefully, at slow speed, drill starter holes for mounting screws.
3. Using minimum 1” screws, secure DIN Rail to wall surface.
4. Slide the Adapter onto the DIN Rail, with the DIN Rail Clips on the Adapter holding the unit to the rail. If mounting mul-
tiple Adapters to the DIN Rail, it is recommended that the Adapters be slid on to the rail individually. (It’s easier to slide the
units onto the rail one at a time.)
5. Carefully press the Adapters together to secure the 12-pin interconnects. Secure the Locking Pin(s).
4. If using multiple Adapters printing a small adhesive label identifying the source and sticking it on each Adapter is sug-
gested to assist in making connections and troubleshooting.
MODE BASE
If connecting iPod(s) as permanent sources, the MODE Base(s) can be installed at the head-end with the rest of the system
components. The Base does not require any special installation, but the Base is magnetically charged so when multiple Bases
are being installed, they will ‘stick’ to each other to help create a more solid footing and will be less likely to accidentally be
moved or knocked over.
CAUTION: Because the MODE Base is magnetically charged, it should not be placed directly on top of or near
CRTs or Plasma Displays. Magnetic fields will adversely affect the performance of these displays and could in
time permanently damage the display. (LCD Displays are not affected by magnetic fields.) Additionally, care
should be taken to avoid close encounters with magnetic media such as audio and video tapes or Credit Cards.
The magnets in the Base could erase important information on these media.

MODE 3.1 Installation Instructions Page 14
INSTALLATION (cont)
MODE 3.1 KEYPAD
2-Gang
New Construction Box
MODE 3.1
Mounting Bracket
MODE 3.1
MODE 3.1
Bezel
Bezel Tab Clips
Keypad Angle
Tab Slots
Keypad
Angle Tabs
Bezel Tabs
Keypad
Locking Tabs
Figure 10
Mounting The MODE 3.1
J-BOX
NOTE: It is highly recommended that the MODE 3.1 Keypad be installed at a height of 56” on center. This provides the best
overall position for optimum LCD viewing angle. This should be discussed with the homeowner prior to installation to avoid
rework, should the homeowner find this undesirable.
New Construction
The MODE 3.1 Keypad should be mounted in a standard 2-gang new construction box whenever possible. The keypad
itself has a thin profile, but the Bezel Tabs and the Mounting Bracket Bezel Tab Clips require some additional clearance.
Some new construction and many retro-fit boxes do not provide adequate clearance. Checking the fit of an assembled key-
pad, (bezel, keypad and mounting bracket), is recommended prior to installation of the J-boxes to avoid problems after the
wall board has been installed.
Retro-fit
Although use of retro boxes is not recommended, they can be used in some cases. If using a retro box, it will probably be
necessary to hone out part of the box to provide height and depth clearance for the Mounting Bracket Bezel Tab Clips and
Bezel Tabs. Do not modify the clips or the tabs as this may adversely affect how well the bezel stays in place.
Mounting Bracket
The MODE 3.1 Keypad cannot be installed without the Mounting Bracket. The keypad is held in place with the Keypad
Locking Tabs and Keypad Angle Tabs. The Bracket should be mounted to a standard 2-gang new construction box as
shown in Figure 10. When installing the Mounting Bracket, be sure the bracket is positioned as shown in Figure 10. The
keypad cannot be mounted if the bracket is upside down. If using a retro box, see section: Retro-fit, above.
When necessary, and not recommended, the Mounting Bracket can be used without a J-box. When installing a keypad with-
out a J-box, be sure to use drywall anchors to provide a more durable and secure mount for the bracket.
MODE 3.1 KEYPAD
With the Mounting Bracket installed, the MODE 3.1 can be mounted. (Make and secure wire connections as described in the
section: Connections, prior to mounting the keypad.)

MODE 3.1 Installation Instructions Page 15
Keypad Angle
There are two options for mounting the MODE 3.1. One is a flush installation with the keypad flat to the wall surface, and
the other is with the lower portion of the keypad sloping away from the wall at about a 15° angle. The angle mount creates
a special cosmetic appeal and provides an improved LCD viewing angle.
Flush Mount
To install the MODE 3.1 Keypad flush (flat) to the wall surface:
1. Slide the lower part of the keypad into the mounting bracket and position the Keypad Angle Tabs into the rear chan-
nel of the Keypad Angle Tab Slots.
2. Carefully press the upper corners of the keypad with both thumbs until the Keypad Locking Tabs snap into place.
Angle Mount
To install the MODE 3.1 Keypad with lower portion angled away from the wall surface at approximately 15º:
1. Slide the lower part of the keypad into the mounting bracket and position the Keypad Angle Tabs into the forward
channel of the Keypad Angle Tab Slots.
2. Carefully press the upper corners of the keypad with both thumbs until the Keypad Locking Tabs slide into place. (The
keypad will ‘lift’ slightly in the bracket when positioning the Locking Tabs.
NOTE: In an angle mount, the keypad is not secure until the bezel has been installed. The bezel will hold the Locking Tabs in
place and secure the keypad to the bracket. Prior to installing the bezel in an angle mount, be careful if operating the keypad
and avoid incidental contact to prevent the keypad from falling out of the bracket and possibly damaging the keypad, the
wires or the wall.
BEZEL
Installation
With the keypad in place, carefully align the Bezel Tabs with the Bezel Tab Clips on the Mounting Bracket. Apply even
pressure around the bezel to slide it into place. The bezel is made of a plyable material that will ‘form fit’ to the wall surface
for a clean finish.
Removal
Take care when removing the bezel to not scratch custom wall surfaces or tear wall paper. Use a very small, thin tool or fin-
gernails, to carefully pull the sides of the bezel away from the wall surface.

MODE 3.1 Installation Instructions Page 16
CONNECTIONS
HEAD-END
MODE ADAPTER (Single)
1. Using a CAT5 patch cable with a pass-through configuration, connect the Expansion Port on the MODE Adapter to
the Expansion Port on a MZC-66/88.
2. Using the included Stereo mini to RCA interconnect cable, connect the 3.5mm Line Out Jack on the MODE
Adapter to the appropriate Source Input on the MZC-66/88.
3. Using a CAT5 patch cable with a pass-through configuration, connect the iPod Base Port on the MODE Adapter to
the Adapter Port on the MODE Base. If CAT5 cable was pulled during pre-wire and terminated with a wall plate in the
remote zone, connect the cable to the iPod Base Port on the MODE Adapter. Connect the RJ45 jack on the wall plate to
the Adapter Port on the MODE Base using a CAT5 cable with a pass-through configuration.
4. Aux Input (optional) - Using a Stereo mini to RCA interconnect cable, connect the L&R line level audio output of
a source to be added as an additional input such as a video game, XM or SIRIUS Tuner, Cable or Satellite receiver, etc.
to the 3.5mm AUX Input Jack. This will allow adding a local source to a MZC Zone and being able to play the audio
through the MZC amplifier and Zone speakers. This input must be configured in EZ-Tools and is only selectable from
MODE Keypads.
5. When all connections have been made and confirmed and the system is ready for operation, connect a SpeakerCraft
PS-3.0 power supply (not included) to the 24V DC jack on the MODE Adapter. Plug the PS-3.0 into an unswitched
120VAC outlet.
Line Out
Expansion
Aux. Input
iPod Base
24V DC
12V DC 1 AMP Adaptor Port Aux. Input USB
Adapter
Port
iPod Base
Port
Line Out
CAT5
CAT5 To MZC Expansion Port
Stereo Mini
to RCA
To MZC
Source In
SpeakerCraft
PS-3.0 24VDC
Power Supply
Figure 11
Single MODE Adapter/Base Connections

MODE 3.1 Installation Instructions Page 17
Line Out
Expansion
Aux. Input
iPod Base
24V DC
Line Out
Expansion
Aux. Input
iPod Base
24V DC
Line Out
Expansion
Aux. Input
iPod Base
24V DC
Line Out
Expansion
Aux. Input
iPod Base
24V DC
Line Out
Expansion
Aux. Input
iPod Base
24V DC
Line Out
Expansion
Aux. Input
iPod Base
24V DC
12V DC 1 AMP AdaptorPort Aux. Input USB
12V DC 1 AMP AdaptorPort Aux. Input USB
12V DC 1 AMP AdaptorPort Aux. Input USB
12V DC 1 AMP AdaptorPort Aux. Input USB
12V DC 1 AMP AdaptorPort Aux. Input USB
12V DC 1 AMP AdaptorPort Aux. Input USB
MODE ADAPTER #1
MODE ADAPTER #2
MODE ADAPTER #3
MODE ADAPTER #4
MODE ADAPTER #5
MODE ADAPTER #6
MODE BASE #1
MODE BASE #2
MODE BASE #3
MODE BASE #4
MODE BASE #5
MODE BASE #6
Adapter
Port
iPod Base
Port
Line Out
Adaptor
Interconnect
CAT5
CAT5
CAT5
CAT5
CAT5
CAT5
CAT5 To MZC Expansion Port
One Connection for all Adapters
Stereo Mini
to RCA
To MZC
Source In
Stereo Mini
to RCA
To MZC
Source In
Stereo Mini
to RCA
To MZC
Source In
Stereo Mini
to RCA
To MZC
Source In
Stereo Mini
to RCA
To MZC
Source In
Stereo Mini
to RCA
To MZC
Source In
SpeakerCraft
PS-3.0 24VDC
Power Supply
One Powers all Adapters
MODE ADAPTER (Stacked)
1. Stack the Adapters and confirm connection of the 12-pin interconnects as described in section: Installation.
2. Using a CAT5 patch cable with a pass-through configuration, connect the Expansion Port on one of the MODE
Adapters to the Expansion Port on a MZC-66/88. (The 12-pin interconnects create a bus for power, control and
metadata to the additional units.)
3. Using the included Stereo mini to RCA interconnect cables, connect the 3.5mm Line Out Jack on each Adapter
to the appropriate Source Input on the MZC-66/88.
4. Using a CAT5 patch cable with a pass-through configuration, connect the iPod Base Port on each MODE Adapter to
the Adapter Port on its specifically matched MODE Base. Repeat until all Adapters and Bases are connected. If CAT5
cable was pulled during pre-wire and terminated with a wall plate in the remote zone, connect the cable to the iPod
Base Port on the MODE Adapter. Connect the RJ45 jack on the wall plate to the Adapter Port on the MODE Base using a
CAT5 patch cable with a pass-through configuration.
5. Aux Input (optional) - Using a Stereo mini to RCA interconnect cable, connect the L&R line level audio output
of a source to be added as an additional input such as an XM or Sirius Tuner, Cable or Satellite receiver, etc. to the Aux
Input on the appropriate Adapter as configured in Source Setup in EZ-Tools. This will allow adding up to six additional
sources to the MZC. These inputs must be configured in EZ-Tools and are only selectable from MODE Keypads.
6. When all connections have been made and confirmed and the system is ready for operation, connect a SpeakerCraft PS-
3.0 Power Supply to the 24V DC Jack on one MODE Adapter. This will provide power for up to six MODE Adapters.
Plug the PS-3.0 into an unswitched 120VAC outlet.
Figure 12
Multiple MODE Adapter/Base Connections

MODE 3.1 Installation Instructions Page 18
MODE 3.1 KEYPAD
Punch-Down Block
The MODE 3.1 features a four pair punch-down block that allows flexibility in wire options. CAT5 is recommended for typical
use. The punch-down is color coded for CAT5 to assist in making connections. When making direct connections to the MZC,
be sure to confirm color coding of each wire before making connections. (Refer to Figures 13)
For convenience, SpeakerCraft RJA-1.1 RJ45 to MZC Adapters can be used. The RJA-1.1 will convert the Zone screw-
down terminals on the MZC, (or KCM-1.0 if using MZC-88) to RJ45 for ease of installation. Refer to Figure 14 below for the
RJ45 pin-out and configuration. Do not use pre-configured 110 plug to RJ45 patch cables wired for T-568A Stan-
dard. They do not have the proper pin-out on the RJ45 connector and will cause serious damage to the MODE 3.1.
NOTE: The pin-out must be followed as shown to prevent serious damage to the MODE System:
12345678
IR
IR
+12
+12
GND
GND
485 A
485B
To RJA-1.1
CAT5 to MZC Adaptor
MODE 3.1
Punch-Down Block
NOTE: When making connections
to the MODE 3.1 punch-down block
ALWAYS pull the wire toward the
middle of the 3.1. Pulling the wires
toward the outside will create difficulty
when installing the keypad into the Mounting Bracket
and will probably cause wires to become disconnected.
CAT5
IR
IR
+12
+12
GND
GND
485 A
485B
MZC-66 or
KCM-1.0 Zone Terminal
MODE 3.1
Punch-Down Block
NOTE: When making connections
to the MODE 3.1 punch-down block
ALWAYS pull the wire toward the
middle of the 3.1. Pulling the wires
toward the outside will create difficulty
when installing the keypad into the Mounting Bracket
and will probably cause wires to become disconnected.
CAT5
NOTE: When connecting
GND, IR IN and +12V, connect
both of the same color
solid and striped wires.
Figure 13
MODE to MZC Connections
Figure 14
MODE to RJA-1.1 Connections
MODE BASE
Adapter Port
1. Using a CAT5 patch cable with a pass-through configuration, connect the Adapter Port on the MODE Base to the iPod
Base Jack on the MODE Adapter. When using multiple Bases and Adapters, be sure to properly match Bases to Adapt-
ers to MZC Inputs.
2. Set each Base Source ID to the matching Source Input number on the MZC using the Source ID Button on the bottom of
the Base and the Source ID LED.
3. Set each Base to a different Address using the Address Switch on the bottom of the Base and set each Base to the proper
Address when configuring Source Setup in EZ-Tools.
Aux Input (optional)
1. Using a Stereo mini to RCA interconnect cable, connect the L&R line level audio output of a source to be added
as an additional input such as a video game, XM or SIRIUS Tuner, Cable or Satellite receiver, etc. to the Aux Input on the
appropriate Base as configured in Source Setup in EZ-Tools. This will allow adding a local source to an MZC Zone and
being able to play the audio through the MZC amplifier and Zone speakers. These inputs must be configured in EZ-Tools
and are only selectable from MODE Keypads.
USB (optional)
1. Using an appropriate USB mini B cable, connect the USB port on the MODE Base to a USB port on a computer to enable
updating a connected iPod. See iPod instructions for additional information.
12V DC 1 AMP
1. When all connections have been made and confirmed, connect a SpeakerCraft PS-2.0 Power Supply and plug it into
an unswitched 120VAC outlet.

MODE 3.1 Installation Instructions Page 19
MODE 3.1 Connections
1. Strip approximately 1” to 1.5” from the outer jacket of the cable being connected to the MODE 3.1. DO NOT strip the
individual conductors.
2. Using a proper punch-down tool, connect each of the wires to the matching color terminals on the MODE 3.1 punch-
down block. When making connections to the MODE 3.1 punch-down block ALWAYS pull the wire toward the middle
of the 3.1. Pulling the wires toward the outside will create difficulty when installing the keypad into the Mounting
Bracket and will probably cause wires to become disconnected.
3. Prior to installing the keypad, attach the included Wire Retainer to the back of the MODE 3.1 as shown in Figure 15.
Remove the adhesive backing from the wire retainer and attach with the wire tie oriented vertically as shown, with the
retainer lock at the bottom. Pull the retainer over the wire and down through the lock as shown. This will help prevent
the wires from becoming disconnected during installation.
3. Terminate and connect the head-end connection as appropriate. If connecting directly to an MZC or KCM-1.0, Refer to
Figure 13. If terminating in RJ45 Connectors and using RJA-1.1s Refer to Figure 14. Confirm all connections prior to
powering up the system.
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
IR
IR
+12
+12
GND
GND
485 A
485B
+ RE LAY
- RE LAY
ADDRESS
MODE 3.1
Riverside, CA www.speakercraft.com
MADE IN CHINA
IR
IR
+12
+12
GND
GND
485 A
485B
Figure 15
MODE Wire Retainer

MODE 3.1 Installation Instructions Page 20
Speaker Mute Relay
The Speaker Mute Relay is typically used in situations where a multi-channel amplifier has been added to an MZC Zone
Pre-out for additional rooms or ‘sub-zone expansion’. The MODE 3.1 Speaker Mute Relay gets connected to a SpeakerCraft
EPR-1.0 Speaker Muting Relay. This allows the individual room keypads to mute their corresponding speaker pairs and
not the zone, which would mute all of the rooms in the ‘sub-zones’. The following describes the connections for the Speaker
Relay Mute and sub-zone speaker connections.
1. Connect ZONE SPEAKERS L+,L-/R-,R+ OUTPUTS from the MZC-88 or an external amplifier to the EPR-1.0 AMPLI-
FIER Terminal L+,L-/R-,R+ INPUTS.
2. Strip approximately 1⁄4inch of each lead and twist the stripped ends so there are no loose strands that can cause shorts.
3. Connect the EPR-1.0 SPEAKERS L+,L-/R-,R+ OUTPUTS to the L+,L-/R-,R+ terminals on each speaker pair as appro-
priate.
4. Connect the WHITE STRIPE LEAD from the EPR-1.0 to the +RELAY Terminal on the MODE 3.1.
5. Connect the BLACK LEAD from the EPR-1.0 to the -RELAY Terminal on the MODE 3.1.
6. Visually check for loose ends. Lightly pull the wire to confirm connection.
7. Install speakers into dry-wall cut-outs or SpeakerCraft InstaLLock™ New Construction Brackets (if used) as appropriate.
NOTE: EPR-1.0 Relay mute will not function without proper configuration in EZ-Tools.
