INSTRUCTIONS FOR MODELS
92-SE-4400-R1
NEED HELP?
TOOLS AND SUPPLIES IMPORTANT
SE-4400
GRAVITYFLO®
Portable Eyewash
REQUIRED
ANSI Z358.1 requires that all self-contained eyewash
units shall be visually inspected weekly, unless the
product is placed in environments with extreme
conditions that may affect the form, fit, or function of
the unit (temperature, dirt, etc.). If this is the case, then
the inspection should be conducted more often as the
end user deems necessary. Speakman Company
furnishes a testing record tag (91-0635) with each unit.
On this tag, the date of inspection and the inspectors’
initials should be noted. ANSI Z358.1 specifies that the
height of the spray heads is to be between 33”-45”
from the floor. The SE-4400 weighs approximately 100
lbs when filled. Ensure the mounting surface and
mounting hardware (not supplied) can safely hold a
minimum vertical load of 150 lbs. Be sure to read
instructions thoroughly before beginning installation.
Do not overtighten any connections or damage may
occur. The unit should be full at all times, to achieve the
minimum 15 minute run time as stated by ANSI, in
case of an emergency. Refill the tank to full level after
each activation.
HELPFUL
SAFETY TIPS
MAINTENANCE
Be sure to always wear proper eye protection. Wear
proper skin protect on when cleaning and disinfecting
unit.
Occasional cleaning and disinfection is recommended.
To clean the inside of unit, add 1/4 cup (2 fluid oz.) of
Clorox Liquid Bleach to a full tank of potable water.
Allow the mixture to penetrate for 15 minutes. Drain
tank, and rinse thoroughly several times with potable
water. For further information about Clorox Liquid
Bleach, call toll-free at 1-800-292-2200. Follow
refilling instructions in this manual and place tank back
in service. Should any repair part be required, use only
genuine SPEAKMAN parts for repair or replacement.
See available replacement parts on the final page of
this manual. To order replacement parts, please call
toll-free at 1-800-537-2107
WARRANTY
Additional warranty information can be found at:
www.speakmancompany.com
For additional assistance or service please contact:
SPEAKMAN®Company
400 Anchor Mill Road
New Castle, DE 19720
800-537-2107
[e-mail]
www.speakmancompany.com

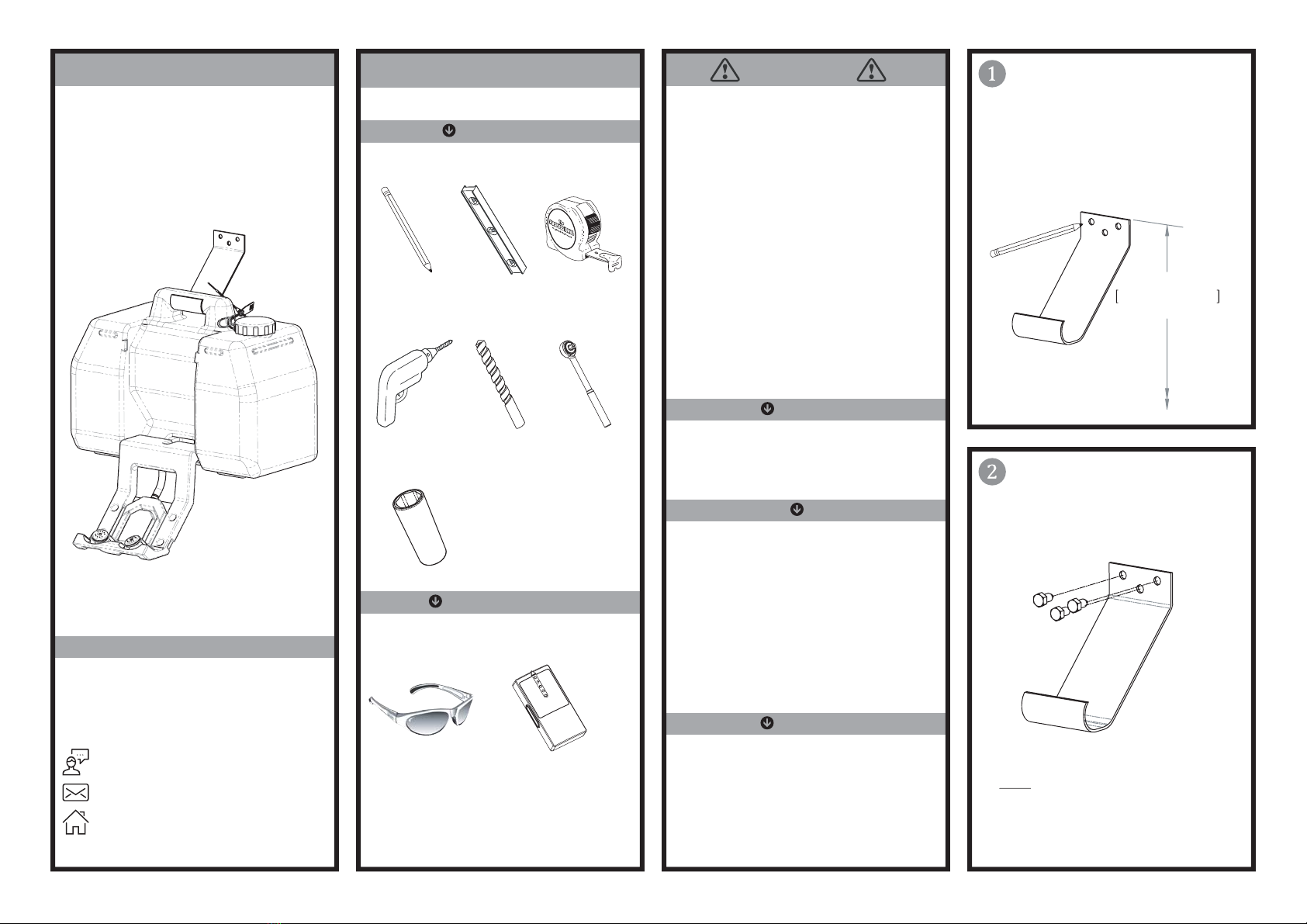

Drill necessary holes into mounting surface and
secure Mounting Bracket to surface using
appropriate hardware, being sure to torque to
manufacturer’s specifications.
Select a suitable mounting location for the
SE-4400 capable of supporting 150 lbs. The
location should protect the unit from freezing
and potential scalding conditions. Place
mounting bracket on surface so the top of the
mounting bracket is located between 58 3/8”-
69 3/8” from the floor. Making sure the bracket
is level, mark the mounting locations onto the
structure.
Pencil Level
Drill Drill Bit
Measuring
Tape
Socket
Wrench
Deep Well
Socket
Safety
Glasses
Stud Finder
58-3/8” - 69-3/8”
1483mm - 1762mm
TO FLOOR
NOTE: Mounting hardware not included.
Ensure the mounting surface (wall, etc.) and
mounting hardware can safely hold a minimum
vertical load of 150 lbs.

REPAIR PART GROUPS
ROUGH IN DIMENSIONS
FLOW DATA
RPG07-0021 QTY: 1
RPG38-0434 QTY: 2
RPG05-0935 QTY: 6
Install empty tank onto Mounting Bracket (if
wall mounting) or table top surface.
Remove Fill Cap and fill tank to line with
potable water (approximately 9 gallons).
Failure to use potable water can result in
emergency units producing impure or
contaminated water, possible causing further
injury.
Reinstall Fill Cap and secure it with the
tamper-evident Seal Tie. Secure the included
Maintenance Tag to the tank in a location
where it can be easily checked.
To activate the flow of water, rotate activation
tray downward.
"
4
21 1
"
540mm
15 1
2
395mm
20 1
4
"
514mm
11 1
8
"
283mm
18 3
4
"
477mm
27 1
8
"
688mm
22 3
8
"
569mm
25 3
8
"
646mm
33" - 45”
838mm - 1143mm
TO FLOOR
FILL LINE
Run Time (Full Tank): 15 minutes (minimum)
Flow Rate: .4 gpm (1.5 L/min) (minimum)
