SE-4400
GRAVITYFLO®
Portable Eyewash
TOOLS AND SUPPLIES
Pencil Level Measuring
Tape
Drill Drill Bit Socket
Wrench
Deep Well
Socket
IMPORTANT
SAFETY TIPS
The SE-4400 Portable Eyewash should be installed in
close proximity to potential accident areas. It should be
clearly identified, free from obstructions and easily
accessible.
The SE-4400 shall be protected from freezing, direct
sunlight, and shall not be exposed to ambient
temperatures exceeding 380C (1000F).
MAINTENANCE
Occasional cleaning and disinfection is recommended.
To clean the inside of unit, add 1/4 cup (2 fluid oz.) of
Clorox Liquid Bleach to a full tank of potable water.
Allow the mixture to penetrate for 15 minutes. Drain
tank, and rinse thoroughly several times with potable
water. For further information about Clorox Liquid
Bleach, call toll-free at 1-800-292-2200. Follow refilling
instructions in this manual and place tank back in
service. Should any repair part be required, use only
genuine SPEAKMAN parts for repair or replacement.
See available replacement parts on the final page of this
manual. To order replacement parts, please call toll-free
at 1-800-537-2107
WARRANTY
3 Year Limited Warranty: Speakman Safety products
are warranted to be free of defects in material and
workmanship for 3 years from date of installation.
(“Warranty Period”) Speakman warrants to its purchases
(“Buyer”) that goods are sold free from defects in
materials and workmanship and conform to Speakman’s
specifications at the time of manufacturing, provided the
goods are properly installed and maintained. Buyer’s
sole and exclusive remedy for any goods that may prove
to have had a non-‐conformance within the Warranty
Period shall be, at Speakman’s sole option, the repair or
replacement of the non-‐conforming goods
ANSI Z358.1 requires that all self-contained eyewash
units shall be visually inspected weekly, unless the
product is placed in environments with extreme
conditions that may affect the form, fit, or function of the
unit (temperature, dirt, etc.). If this is the case, then the
inspection should be conducted more often as the end
user deems necessary. Speakman Company furnishes a
testing record tag (91-0635) with each unit. On this tag,
the date of inspection and the inspectors’ initials should
be noted. ANSI Z358.1 specifies that the height of the
spray heads is to be between 33”-45” from the floor.
The SE-4400 weighs approximately 100 lbs when filled.
Ensure the mounting surface and mounting hardware
(not supplied) can safely hold a minimum vertical load
of 150 lbs. Be sure to read instructions thoroughly
before beginning installation. Do not overtighten any
connections or damage may occur. The unit should be
full at all times, to achieve the minimum 15 minute run
time as stated by ANSI, in case of an emergency. Refill
the tank to full level after each activation.

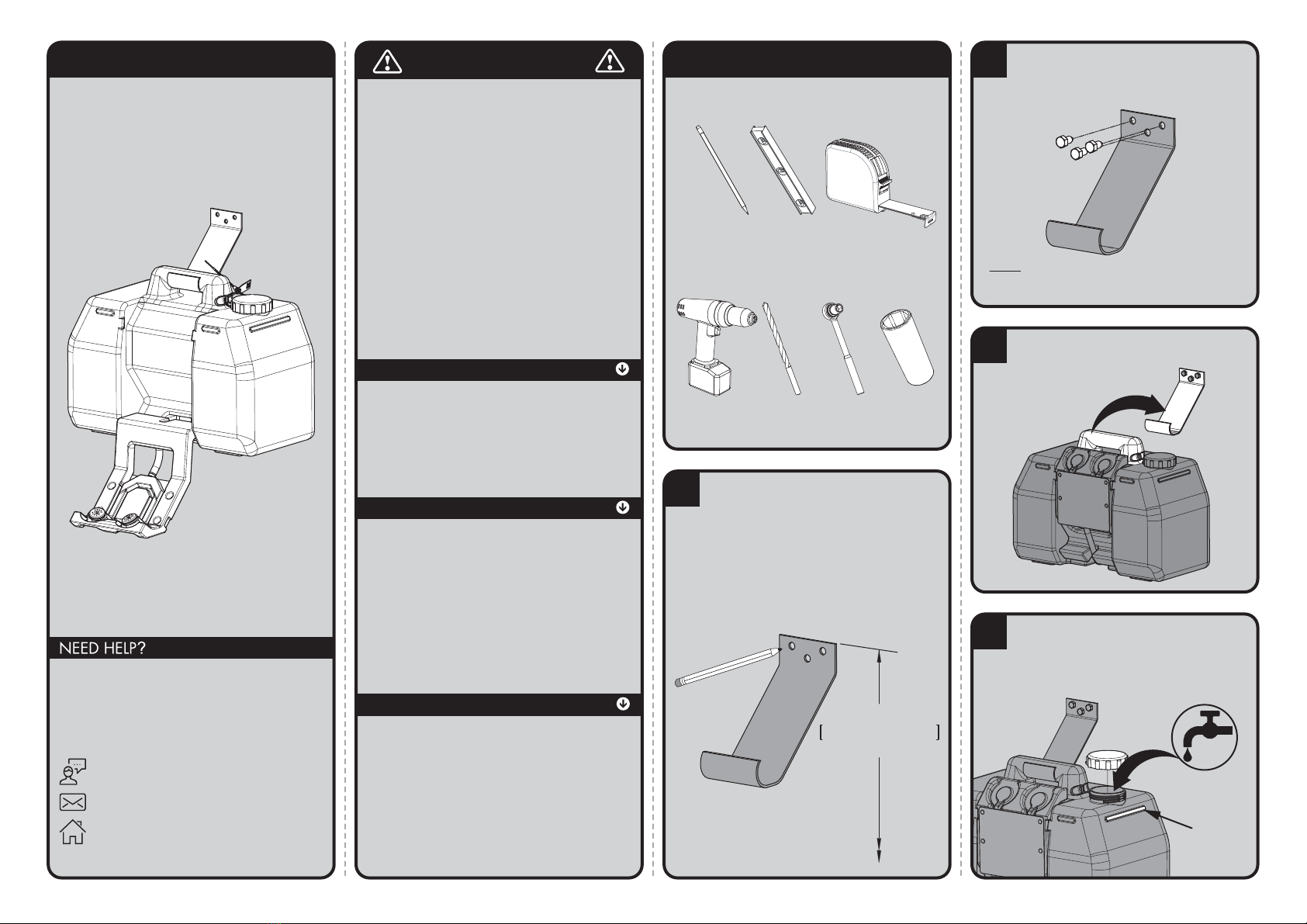

1Select a suitable mounting location for the
SE-4400 capable of supporting 150 lbs. The
location should protect the unit from freezing
and potential scalding conditions. Place
mounting bracket on surface so the top of the
mounting bracket is located between 58 3/8”-
69 3/8” from the floor. Making sure the bracket
is level, mark the mounting locations onto the
structure.
58-3/8” - 69-3/8”
1483mm - 1762mm
TO FLOOR
2Drill necessary holes into mounting surface and
secure Mounting Bracket to surface using
appropriate hardware, being sure to torque to
manufacturer’s specifications.
NOTE: Mounting hardware not included. Ensure the
mounting surface (wall, etc.) and mounting hardware
can safely hold a minimum vertical load of 150 lbs.
3Install empty tank onto Mounting Bracket (if
wall mounting) or table top surface.
4Remove Fill Cap and fill tank to line with potable
water (approximately 9 gallons). Failure to use
potable water can result in emergency units
producing impure or contaminated water,
possible causing further injury.
FILL LINE

5Reinstall Fill Cap and secure it with the
tamper-evident Seal Tie. Secure the included
Maintenance Tag to the tank in a location where
it can be easily checked.
ACTIVATION
To activate the flow of water, rotate activation tray
downward.
FLOW DATA:
Run Time (Full Tank): 15 minutes (minimum)
Flow Rate: .4 gpm (1.5 L/min) (minimum)
SE-4400 REPAIR PARTS SPEAKMAN®
ITEM NO. PART NO. DESCRIPTION
RPG07-0021 REPLACEMENT FILL CAP -QTY:1
RPG38-0434 REPLACEMENT SPRAY OUTLETS - QTY:2
RPG05-0935 TAMPER EVIDENT SEAL TIE - QTY:6
SE-4400 ROUGH IN DIAGRAM SPEAKMAN®
18 3
4
"
477mm
27 1
8
"
688mm
22 3
8
"
569mm
25 3
8
"
646mm
33" - 45”
838mm - 1143mm
TO FLOOR
"
4
21 1
"
540mm
15 1
2
395mm
20 1
4
"
514mm
11 1
8
"
283mm
