Spear & Jackson HTEG48C-510 User guide

ORIGINAL
INSTRUCTION
MANUAL
Important - Please read these instructions
fully before starting assembly
These instructions contain important information that will help
you get the best from your trimmer, ensuring it is assembled correctly
and safely. If you need help or have damaged or missing parts,
call the Customer Helpline on 0345 605 2067
AFTER SALES SUPPORT
0345 605 2067
550W
Electric
Hedge Trimmer
HTEG48C-510

2AFTER SALES SUPPORT 0345 605 2067
SPEAR & JACKSON SINCE 1760
For more than 250 years gardeners have enjoyed high quality performance and
great results using Spear & Jackson tools.
Our garden power tools combine continuous innovation and the latest in
manufacturing technologies with a proud heritage.
Each product is carefully designed with performance, comfort and durability
rmly in mind, which has earned Spear & Jackson an enviable reputation as a
maker of tools to trust.
As a testament to the quality of our products, we offer a 3 year manufacturers war-
ranty and a comprehensive after sales service.
The warranty covers manufacturing faults, however in the event that the item has
been deliberately damaged, used in a commercial environment or disassembled then
the warranty will be null and void.
Please retain proof of purchase.
We want you to get the best out of your products. Our easy-to-read instruction manu-
al guides you with best practice use and maintenance tips. Please call 0345 605 2067
for technical support, we can solve around 80% of questions directly over the phone.
We hope you enjoy your product and we look forward to any feedback, as this allows
us to develop even better products for the future.
3 YEARS GUARANTEE
7 DAYS A WEEK TECHNICAL SUPPORT

3AFTER SALES SUPPORT 0345 605 2067
CONTENTS
Safety Information 04
Description of symbols 04
General safety 05
Personal safety 07
Operational safety 08
Maintenance and storage safety 10
Intended use 11
In The Box 12
Assemble 12
Unpacking 13
Blade sheath 13
Connection to the power supply 14
Operate 15
General operate 15
Remove the blade sheath 15
Switching on/off 16
Trimming times 16
Trimming 16
Maintenance 18
General cleaning 18
Cleaning the blades 19
Repair 19
Storage 20
Transportation 20
Recycling and disposal 20
Technical Data 21
Troubleshooting 22
Warranty 23

AFTER SALES SUPPORT 0345 605 2067
Please read these instructions fully before operating or maintaining your machine
4
SAFETY INFORMATION
The following warning symbols appear throughout this manual and indicate the appropriate
safety measures you should take when operating and maintaining the hedge trimmer.
Warning! Switch the product off
and disconnect it from the power
supply before assembly, cleaning,
adjustments, maintenance, storage
and transportation.
Guaranteed sound power level.
Keep fingers away from moving
blades.
Do not expose the product to rain
or wet conditions (moisture).
Double insulations, Class II appliance.
Waste Disposal and Environmental
Protection!
Be environmentally friendly. Return
the tool, accessories and packaging
to a recycling centre when you have
finished with them.
Electrical machines do not belong in
domestic waste.
Take the equipment to a waste
disposal site. The plastic and
metal parts that are used can be
separated out into pure grade,
which allows recycling.
IMPORTANT!
Please read all of the safety and
operating instructions carefully
before using this tool.
WARNING!
This is a warning symbol. This
symbol is used throughout the user
guide whenever there is a risk of
personal injury. Ensure that these
warnings are read and understood
at all times.
Wear ear protection
Wear eye protection
Wear protect mask
Wear proper safety shoes.
Disconnect the mains plug
immediately if the cable is
damaged, has been badly twisted
or is completely cut through and
in the event that the device is left
unattended for a short time.
Objects thrown by the product could
hit the user or other bystanders.
Always ensure that other people and
pets remain at a safe distance from
the product when it is in operation.
In general, children must not come
near the area where the product is.
DESCRIPTION OF SYMBOLS
102

AFTER SALES SUPPORT 0345 605 2067
Please read these instructions fully before operating or maintaining your machine
5
SAFETY INFORMATION
IMPORTANT!
■Keep this instruction
manual in a safe
place for future reference.
■Read the instructions
carefully. Be familiar
with the controls and
the proper use of the
equipment.
■Never allow children or
people unfamiliar with
these instructions to use
the hedge trimmer. Local
regulations can restrict the
age of the operator.
■Never use the machine
while people, especially
children, or pets are
nearby. Keep in mind that
the operator or user is
responsible for accidents
or hazards occurring
to other people or their
property.
■This appliance is not
intended for use by
persons (including
children) with reduced
physical, sensory or
mental capabilities,
or lack of experience
and knowledge, unless
they have been given
supervision or instruction
concerning use of the
appliance by a person
responsible for their safety.
■Don’t use the appliance
without reading the
instruction manual.
■Children should be
supervised to ensure that
they do not play with the
appliance.
Work area safety
■Keep the work area clean
and well lit. Cluttered or
dark areas invite accidents.
■Do not operate power
tools in explosive
atmospheres, such as in
the presence of flammable
liquids, gases or dust.
Power tools create sparks
which may ignite the dust
or fumes.
GENERAL SAFETY

6AFTER SALES SUPPORT 0345 605 2067
Please read these instructions fully before operating or maintaining your machine
SAFETY INFORMATION
■Keep children and
bystanders away while
operating a power tool.
Distractions can cause you
to lose control.
Electrical safety
■Power tool plugs must
match the outlet. Never
modify the plug in any
way. Do not use any
adapter plugs with earthed
(grounded) power tools.
Unmodified plugs and
matching outlets will
reduce the risk of electric
shock.
■Avoid body contact with
earthed or grounded
surfaces, such as pipes,
radiators, ranges and
refrigerators. There is an
increased risk of electric
shock if your body is
earthed or grounded.
■Do not expose power tools
to rain or wet conditions.
Water entering a power
tool will increase the risk of
electric shock.
■Do not abuse the cord.
Never use the cord
for carrying, pulling or
unplugging the power tool.
Keep the cord away from
heat, oil, sharp edges or
moving parts. Damaged or
entangled cords increase
the risk of electric shock.
■When operating a power
tool outdoors, use an
extension cord suitable for
outdoor use. Use of a cord
suitable for outdoor use
reduces the risk of electric
shock.
■If operating a power tool
in a damp location is
unavoidable, use a residual
current device (RCD)
protected supply. Use of
an RCD reduces the risk
of electric shock. The
maximum operating current
of the RCD must be less
than 30mA.
Power tool use and care
■Do not force the power
tool. Use the correct power
tool for your application.

7AFTER SALES SUPPORT 0345 605 2067
Please read these instructions fully before operating or maintaining your machine
SAFETY INFORMATION
The correct power tool will
do the job better and more
safely when operated at
the rate for which it was
designed.
■Do not use the power
tool if the switch does
not turn it on and off. Any
power tool that cannot be
controlled with the switch
is dangerous and must be
repaired.
■Disconnect the plug from
the power source and/
or the battery pack from
the power tool before
making any adjustments,
changing accessories, or
storing power tools. Such
preventive safety measures
reduce the risk of starting
the power tool accidentally.
■Store idle power tools out
of the reach of children
and do not allow persons
unfamiliar with the power
tool or these instructions
to operate the power tool.
Power tools are dangerous
in the hands of untrained
users.
■Stay alert, watch what
you are doing and use
common sense when
operating a power tool. Do
not use a power tool while
you are tired or under the
influence of drugs, alcohol
or medication. A moment
of inattention while
operating power tools may
result in serious personal
injury.
■Use personal protective
equipment. Always wear
eye protection. Protective
equipment such as dust
mask, non-skid safety
shoes, hard hat, or hearing
protection used for
appropriate conditions will
reduce the risk of personal
injuries.
■Prevent unintentional
starting. Ensure the switch
is in the off-position before
connecting to the power
source and/or battery
pack, picking up or
carrying the tool. Carrying
PERSONAL SAFETY

AFTER SALES SUPPORT 0345 605 20678
SAFETY INFORMATION
Please read these instructions fully before operating or maintaining your machine
power tools with your finger
on the switch or energising
power tools that have the
switch on invites accidents.
■Remove any adjusting
key or wrench before
turning the power tool
on. A wrench or a key left
attached to a rotating part
of the power tool may
result in personal injury.
■Do not overreach. Keep
proper footing and balance
at all times. This enables
better control of the
power tool in unexpected
situations.
■Dress properly. Do not
wear loose clothing or
jewellery. Keep your hair,
clothing and gloves away
from moving parts. Loose
clothes, jewellery or long
hair can be caught in
moving parts.
■If devices are provided
for the connection of dust
extraction and collection
facilities, ensure these
are connected and
properly used. Use of dust
collection can reduce dust-
related hazards.
Training
■Read the instructions
carefully. Be familiar with the
controls and the proper use
of the product.
■Never allow people
unfamiliar with these
instructions or children
to use the product. Local
regulations can restrict the
age of the operator.
■Keep in mind that the
operator or user is
responsible for accidents or
hazards occurring to other
people or their property.
Operation
■Use the product only in
daylight or good artificial
light.
■Never operate the product
with damaged guards or
shields or without guards or
OPERATIONAL SAFETY

9AFTER SALES SUPPORT 0345 605 2067
Please read these instructions fully before operating or maintaining your machine
SAFETY INFORMATION
shields in place.
■Keep hands and feet away
from the cutting attachment
at all times and especially
when switching on the
motor.
■Before use check the
controls and correct
operation of the product.
■Before using the product or
after any impact, check for
signs of wear or damage
and repair as necessary.
■Always disconnect the
product from the power
supply (i.e. remove the plug
from the power supply or
the battery pack):
– whenever leaving the
product unattended;
– before clearing a
blockage;
– before checking, cleaning
or working on the product
– after striking a foreign
object;
– whenever the product
starts vibrating abnormally.
■Take care against injury to
feet and hands from the
cutting attachment.
■Always ensure that the
air vents are kept clear of
debris.
■Never use replacement
parts or accessories not
provided or recommended
by the manufacturer.
■The product should be
supplied via a residual
current device (RCD) with a
tripping current of not more
than 30 mA.
■Avoid using the product
in bad weather conditions
especially when there is a
risk of lightning.
■Position the cord so that it
will not be caught by the
cutting attachment during
operation.
■Disconnect from the power
supply when the cord
becomes damaged or
tangled.
■If the cord becomes
damaged during use,
disconnect the cord from
the supply immediately. DO

10 AFTER SALES SUPPORT 0345 605 2067
SAFETY INFORMATION
Please read these instructions fully before operating or maintaining your machine
NOT TOUCH THE CORD
BEFORE DISCONNECTING
THE SUPPLY.
■Do not use the product if
the cord is damaged or
worn.
■Warning! The cutting
elements continue to
move after the product is
switched off.
■Keep the extension cord
away from the blades at all
times.
■Only use an extension cord
with conductors of not less
than 1.5mm² or 2.0mm²
and:
- If rubber insulated,
ordinary tough rubber
sheathed flexible cord
(code designation 60245
IEC 53);
- If polyvinyl chloride
insulated, ordinary
polyvinyl chloride sheathed
flexible cord (code
designation 60227 IEC
53).
■Do not expose the product
to rain.instructions is
considered unauthorized
use and relieves the
manufacturer from his or
her legal liability.
■Disconnect the product
from the power supply
(i.e. remove the plug from
the power supply or the
battery pack) and check for
damage after use.
■Disconnect the product
from the power supply (i.e.
remove the plug from the
power supply or the battery
pack) before carrying out
maintenance or cleaning
work.
■Use only the manufacturer’s
recommended replacement
parts and accessories.
■Inspect and maintain the
product regularly. Have the
product repaired only by an
authorised service centre or
similar qualified specialist.
■When not in use, store the
MAINTENANCE AND STORAGE
SAFETY

11AFTER SALES SUPPORT 0345 605 2067
Please read these instructions fully before operating or maintaining your machine
SAFETY INFORMATION
product out of the reach of
children.
■Maintain power tools.
Check for misalignment or
binding of moving parts,
breakage of parts and any
other condition that may
affect the power tool’s
operation. If damaged,
have the power tool
repaired before use. Many
accidents are caused by
poorly maintained power
tools.
■Keep cutting tools sharp
and clean. Properly
maintained cutting tools
with sharp cutting edges
are less likely to bind and
are easier to control.
■Use the power tool,
accessories and tool bits
etc. in accordance with
these instructions, taking
into account the working
conditions and the work to
be performed. Use of the
power tool for operations
different from those
intended could result in a
hazardous situation.
Service
■Have your power tools
serviced by a qualified
repair person using only
identical replacement parts.
This will ensure that the
safety of the power tool is
maintained.
This hedge trimmer is
designed for domestic use
only:
■to cut and trim hedges,
bushes and ornamental
shrubs. Any other use that
is not explicitly approved
in these instructions may
result in damage to the
equipment and represent a
serious danger to the user.
■to use with accessories
and replacement
parts approved by Spear &
Jackson.
Any use of the machine that
deviates from its intended
use and is not included in
these.
INTENDED USE

12 AFTER SALES SUPPORT 0345 605 2067

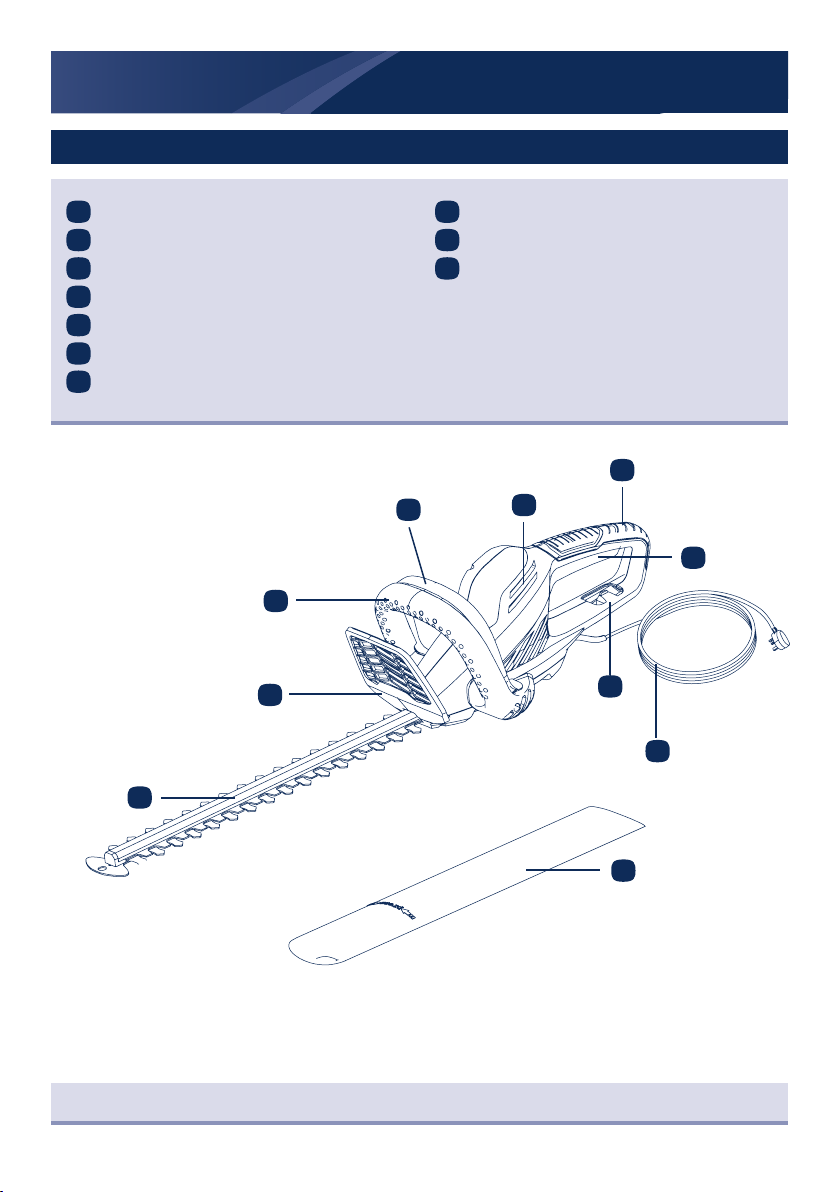

IN THE BOX
Cutting blades
Front guard
Front handle
Safety switch
Air vent
Rear handle
On/off switch
Power cord with plug
Cord strain relief
Blade sheath
1 8
2 9
3 10
4
5
6
7
PARTS
If there are any parts missing, please call the customer helpline on 0345 605 2067
6
7
9
10
8
5
4
3
2
1

13AFTER SALES SUPPORT 0345 605 2067
ASSEMBLE
Unpacking
i. Unpack all parts and lay them on a flat, stable surface.
ii. Make sure all parts and accessories are included and
undamaged. If you find that parts are missing or show
damage please contact the after sales service at 0345
605 2067. Use of an incomplete or damaged product
represents a hazard to people and property.
iii. Ensure that you have all the accessories and tools
needed for assembly and operation. This also includes
suitable personal protective equipment (PPE).
Blade sheath
i. Remove the blade sheath (10) from the cutting
blades (1) before operation .
ii. After use align the blade sheath (10) to the cutting
blades (1) and push it onto it to attach. Ensure the
sheath engages properly, check by pulling. It may not
be possible to simply pull off the sheath.
1
2
NOTE: Always attach the blade sheath (10) when the product is
not in use, for storage and transportation.
1
10

14 AFTER SALES SUPPORT 0345 605 2067
ASSEMBLE

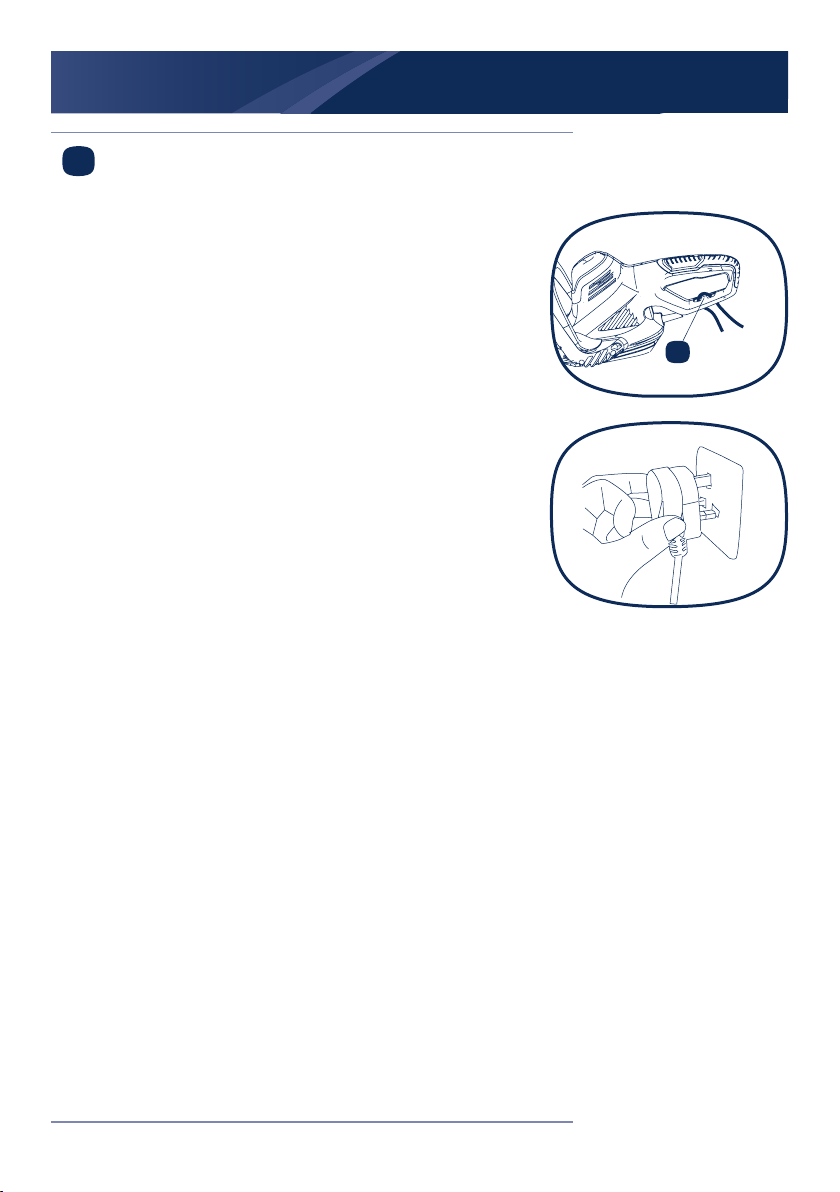

Connection to the power supply
3
i. Double the cord, about a foot from the end. Lead the loop
through the hole on the rear safe guard and hook the loop
over the cord strain relief (9). Gently pull on the cord to
ensure that it is firmly attached.
ii. Connect the plug of the cable to the mains
socket.
9

15AFTER SALES SUPPORT 0345 605 2067
WARNING - Wear suitable clothing, ears
and eyes protecting when working with the
equipment. Ensure that the mains voltage value
matches the label on the equipment.
OPERATE
Remove the blade sheath
Remove the blade sheath (10) from the blade (1)
of appliance carefully .
GENERAL OPERATE
■Check the product, its power cord and plug as well as
accessories for damage before each use. Do not use the
product if it is damaged or shows wear.
■Double check that accessories or cutting device are properly
fixed.
■Always hold the product by its handles. Keep the handles dry to
ensure safe support.
■Ensure that the air vents are always unobstructed and clear.
Clean them if necessary with a soft brush. Blocked air vents
may lead to overheating and damage the product.
■Switch the product off immediately if you are disturbed while
working by other people entering the working area. Always let
the product come to complete stop before putting it down.
■Do not overwork yourself. Take regular breaks to ensure you can
concentrate on the work and have full control over the product.
10
1

16 AFTER SALES SUPPORT 0345 605 2067
OPERATE
NOTE: Only operate the product during reasonable hours - not
early in the morning, late at night or on weekends/public holidays
when people might be disturbed. Please check local restrictions.
Trimming times
Green leaf hedges June to October
Evergreens April and August
Conifers and other fast growing shrubs every 6 - 8 weeks
Trimming
i. Cut and remove branches exceeding the cutting capacity of this
product using a proper pruner before operation.
ii. Move the cutting device lightly through the surface to be cut in a
sweeping motion following the shape of the hedge or shrub.
iii. A slight tilt downwards of the cutting device in the direction of
motion is recommended for optimum cutting performance.
iv. Do not to rush and do not attempt to cut too much with one stroke
of the cutting device.
Switching on/off
i. Hold the product with one hand at the rear handle (6) and
with the other at the front handle (3).
ii. Press the on/off switch (7) and the safety switch (4) at the
same time to switch the product on.
iii. Release either the on/off switch (7) or the safety switch (4) to
switch the product off.
6
7
4
3

17AFTER SALES SUPPORT 0345 605 2067
OPERATE
v. First cut both sides from the bottom cutting upwards to the
top. This will prevent any of the trimmings falling into the
path of the area still to be cut.
vi. After cutting the sides proceed to the top. Try to keep the
cutting device angled at approximately 15° to the cutting
surface.
vii. Cut in a number of stages if the area being cut is particularly
long to achieve a better result; smaller trimmings will allow
for easy composting.
NOTE: When shaping it is advisable to achieve a trapezoidal
shape. A trapezoidal cut corresponds to the natural growth of
plants and results in optimal hedge growth, as it will expose
more light to the lower end of the hedge.
15°

18 AFTER SALES SUPPORT 0345 605 2067
MAINTENANCE
WARNING! Always switch the product off,
disconnect it from the power supply and let
the product cool down before performing
inspection, maintenance and cleaning work!
■Regular and proper cleaning will help ensure safe use and
prolong the life of the product.
■Inspect the product before each use for worn and damaged
parts. Do not operate it if you find broken and worn parts.
■Lubricate the internal surfaces of the blades with gear grease
after each use.
General cleaning
i. Switch the product off, disconnect it from the power supply
and let it cool down.
ii. Check, clean and store the product as described below.
iii. Clean the product with a damp cloth and pH-neutral soap.
Use a brush for areas that are hard to reach.
iv. In particular clean the air vents after every use with a cloth
and brush.
v. Remove stubborn dirt with high pressure air (max. 3 bar).
NOTE: Do not use chemical, alkaline, abrasive or other
aggressive detergents or disinfectants to clean this product as
they might be harmful to its surfaces.

19AFTER SALES SUPPORT 0345 605 2067
MAINTENANCE

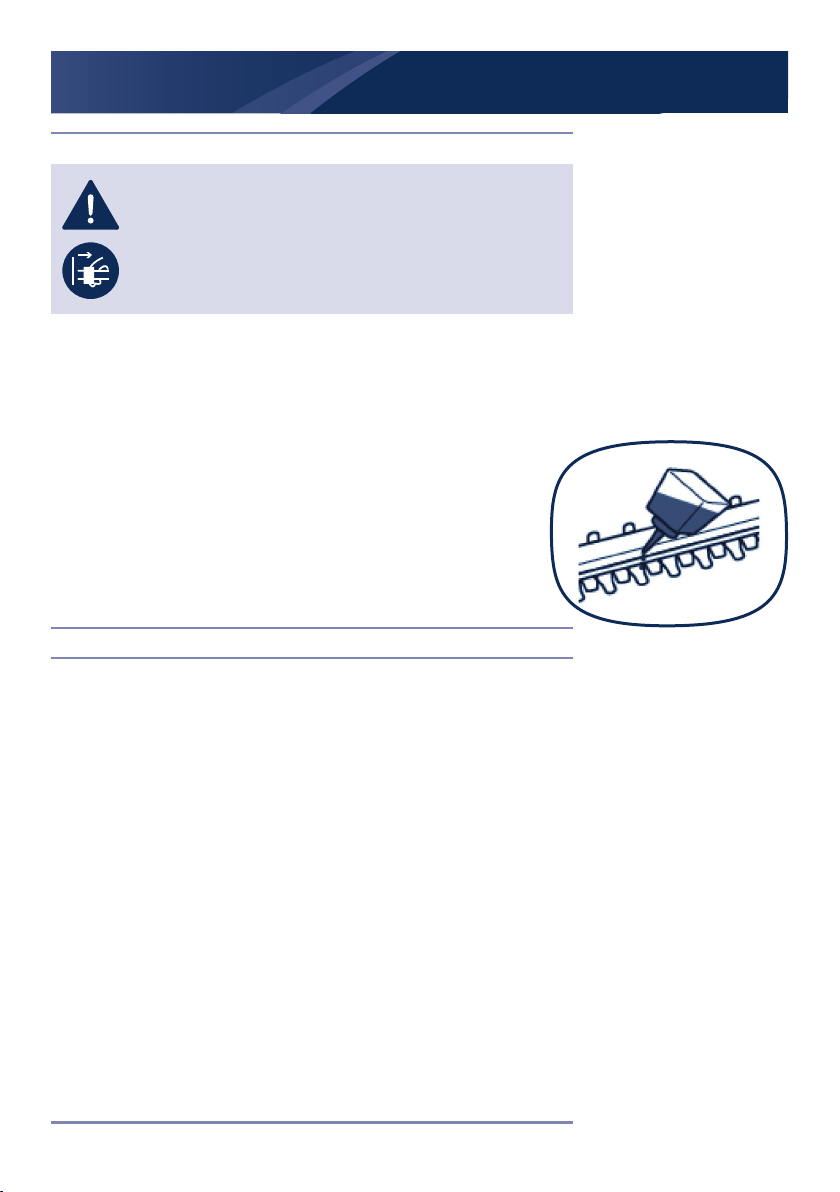

Cleaning the blades
WARNING! Wear safety gloves when working on
blades and close to it! Use appropriate tools to
remove debris, e.g. a brush or wooden stick! Never
use your bare hands!
Always use original spare parts for replacement.
i. Keep the blades (1) clean and free of debris. Remove trimmings.
ii. Apply a small amount of suitable lubricant, like gear grease, on
the cutting device (1) to retain a good cutting performance.
Repair
This product does not contain any parts that can be repaired by
the consumer. Contact the after sales support if you have any
queries.

20 AFTER SALES SUPPORT 0345 605 2067
MAINTENANCE
Storage
i. Clean the product as described above.
ii. Attach the blade sheath.
iii. Store the product and its accessories in a dry, frost-free place.
iv. Always store the product in a place that is inaccessible to
children. The ideal storage temperature is between 10 - 30°C.
v. We recommend using the original package for storage or
covering the product with a suitable cloth or enclosure to
protect it against dust.
Transportation
i. Switch the product off and disconnect from power supply.
ii. Attach the blade sheath.
iii. Always carry the product by its handles/gripping surfaces.
iv. Protect the product from any heavy impact or strong vibrations
which may occur during transportation in vehicles.
v. Secure the product to prevent it from slipping or falling over.
Recycling and disposal
■The product comes in a package that protects it against
damage during shipping. Keep the packaging until you are sure
that all parts have been delivered and the product is functioning
properly. Recycle the packaging afterwards.
■Old products are potentially recyclable and do not, therefore,
belong in your household waste. You are requested to assist
us and our contribution to saving resources and protecting the
environment by handing in this product at an equipped collection
centre.
