Speco CVC-5815DNV User manual

INSTRUCTION
MANUAL
Intense-IR Camera
Speco Technologies is constantly developing product improvements.
We reserve the right to modify product design and specifications without notice and without incurring any obligation. Rev. 6/20/2012
CVC5815DNV / CVC5815DNVW
CVC5915DNV / CVC5915DNVW

- 1 -
◑
Contents...................................................... 1
◑
Precautions ................................................. 2, 3
◑
Safety Instructions ...................................... 4
◑
Package Contents....................................... 5
◑
Camera Installation ..................................... 6-8
◑
Specications.............................................. 9, 10
◑
Camera Dimension ..................................... 11
◑
OSD Menu Details ...................................... 12- 36
◑
Trouble Shooting......................................... 37
Contents

- 2 -
Precautions
Do not install the camera in
extreme temperature conditions.
Do not touch the front lens of the
camera.
Never keep the camera pointed
directly at strong light.
Do not expose the camera to
radioactivity.
Do not install the camera under
unstable lighting conditions.
Do not drop the camera or subject
it to physical shocks.
Only use the camera under conditions
where temperatures are between
-10°C and +50°C. Be especially careful to provide
ventilation when operating under high
temperatures.
This is one of the most important parts of the
camera. Be careful not to leave
fingerprints on the lens cover.
It can cause malfunctions to occur. If exposed to radioactivity the CCD
will fail.
Severe lighting change or flicker can
cause the camera to work improperly.
Housing damage can compromise
wheatherproof ratings.
NOTE
* If the camera is exposed to spotlight or object reflecting strong light,
smear or blooming may occur.
* please check that the power satisfies the normal specification before
connecting the camera.

- 3 -
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER(OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
ISO14001
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER(OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
ISO14001
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER(OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
ISO14001
The lightning flash with an arrowhead symbol, within an equilateral
triangle is intended to alert the user to the presence of uninsulated
dangerous voltage within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
INFORMATION - This equipment has been tested and found to comply with
limits for a Class A digital device, pursuant to part 15 of the FCC Rules & CE Rules.
These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at
his own expense.
WARNING - Changes or modifications not expressly approved by the
manufacturer could void the user’s authority to operate the equipment.
This installation should be made by a qualified service person and
should conform to all local codes.
CAUTION : To prevent electric shock and risk of fire hazards:
☞Do NOT use power sources other than those specified.

- 4 -
Safety Instructions
Precautions for use
Please handle this camera carefully :
◑ This camera should be installed by qualied personnel only
◑There are no user serviceable parts inside
◑Do not disassemble this camera other than to make initial adjustments
◑Use a UL approved regulated 24 volt AC or 12 volt DC power supply
◑
Use appropriate low voltage power cable to prevent re or electrical shock
◑
Please insure that your installation area can support the weight of the camera
◑Do not use a strong or abrasive detergent when cleaning the camera
◑Do not install near cooling or heating device

- 5 -
Package Contents
Please make sure that the following items are included in the Package:
1) CVC5815DNV, CVC5815DNVW, CVC5915DNV, CVC5915DNVW
• 1 Video Test Connector, Power Jack
• 1 3Axis Bracket Round Base Adaptor
• 2 Wrenches
• Set Screw
- 4 Tapping Screws 4x25
- 4 Hexagon Socket Screws M5x10

- 6 -

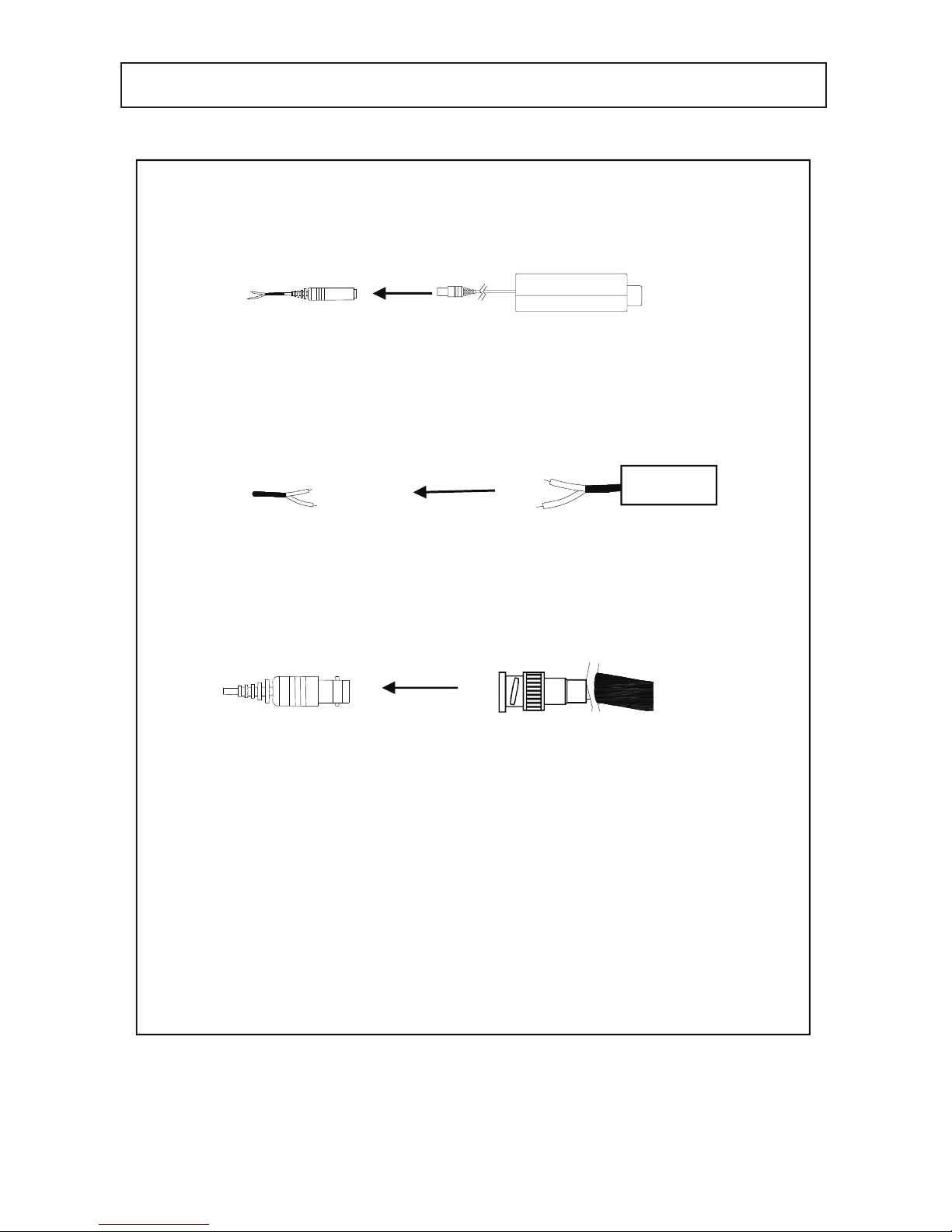

CAMERA INSTALLATION
jvuulj{Gwv~lyGjhislG
XUG~oluG|zpunGXYG}vs{zGkjGOGG\WWGhPG
YUG~oluG|zpunGY[G}vs{zGhjGO[WG}GhP
ZUGjvuulj{G}pklvGjhislG
Tjvuulj{GiujGjhislG{vG{olGiujGqhjrUG
kjGXY}GwGz
wGpGaylk
jGaGORP
ishjraOTP
ylkORP
wGz
hjGY[}

- 7 -
CAMERA INSTALLATION
Compatibility
1) CVC5815DNV, CVC5815DNVW, CVC5915DNV, CVC5915DNVW
CVCJBB INTJBS INTCM

- 8 -
CAMERA INSTALLATION
1. CVC5815DNV, CVC5815DNVW, CVC5915DNV, CVC5915DNVW
WALL
CAMERA ASSEMBLY
TAPPING SCREW 4x25, 4EA
3AXIS BRACKET ROUND BASE ADAPTOR
HEXAGON SOCKET SCREW M5x10, 4EA

- 9 -

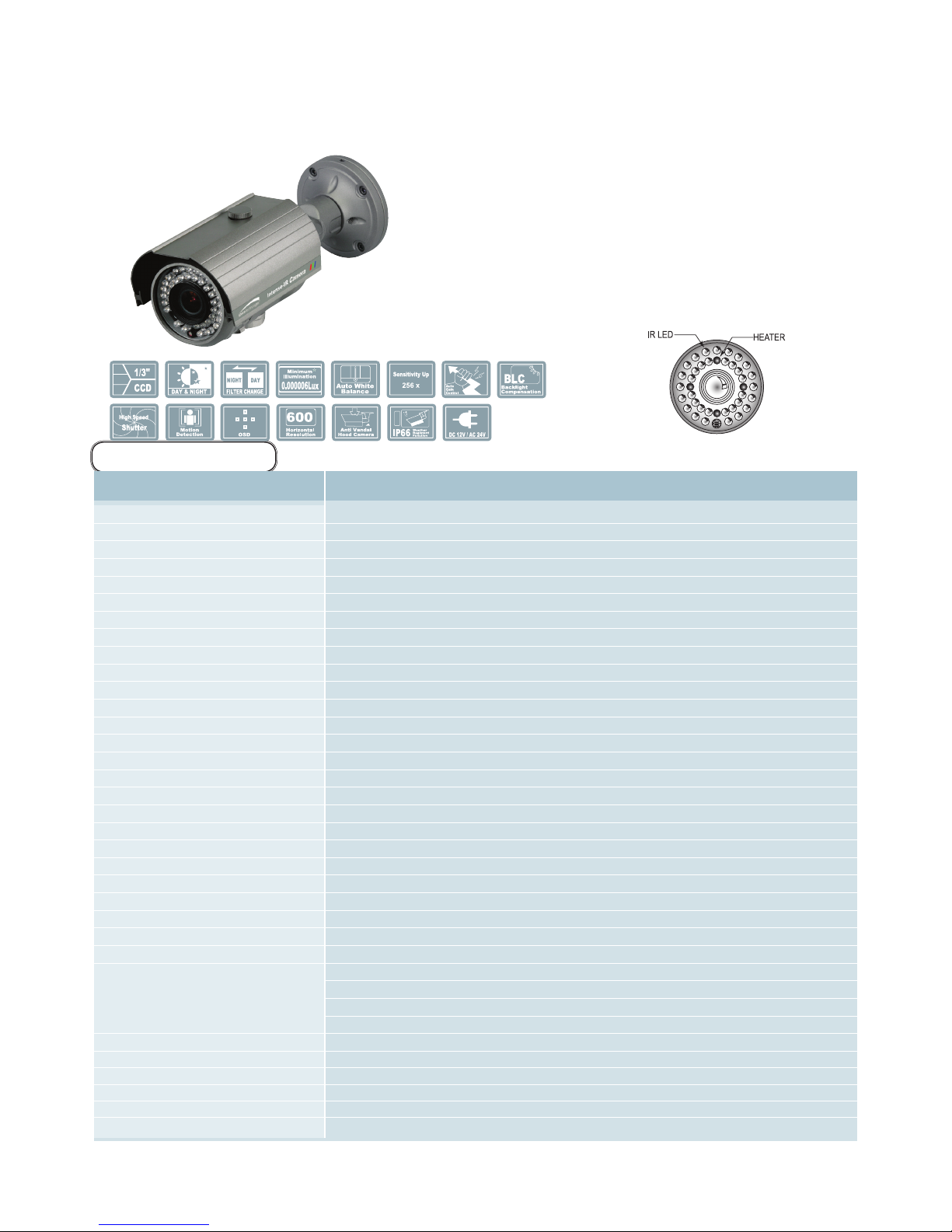

CVC5815DNV
CVC5815DNVW
600TV Lines
DC Auto Iris Varifocal
Lens(2.8mm-12mm)
True Day/Night Capability
ICR-IR Cut Filter Removable
850nm IR LEDs * 35pcs
Heater 4EA
■
■
IR LED's 35EA & Heater's 4EA
SPECIFICATIONS
Intense - IR Bullet Camera
DC Auto Iris Varifocal Lens(2.8mm-12mm) / IR LED Built-in 35pcs
1/3" SONY Super HAD ll CCD
NTSC=811(H) * 508(V) / PAL=795(H) * 595(V)
NTSC=768(H) * 494(V) / PAL=752(H) * 582(V)
2:1 Interlace
Internal / Line Lock(Option)
Available
OFF / HSBLC / BLC Selectable
600TV Lines
52dB (AGC Off, Weight On)
0.000006 Lux(IR LED ON)
ATW / AWB / Manual / AWC →SET
AUTO (1/50sec, 1/60sec ~ 1/100,000sec)
Off / Auto(Selectable limit *2 ~ *256)
High, Middle, Low, Off Selectable
Off/On (1~50 Level Adjustable)
Indoor / Outdoor / Off
On/Off (4 Zone)
On/Off (8 Zone)
Off / Mirror / V-Rev / Rotate
On/Off
0~31’(Level Adjustable)
Color /BW/ Auto/ EXT
On(*32) / Off
Auto:128 Point / Manual:4 Point
4EA
DC 12V / AC24V(Dual Voltage)
DC 12V 450mA(CDS OFF,Heater ON) / 950mA(CDS ON,Heater ON)
Heater ON Adj:500~950mA
AC 24V 170mA(CDS OFF,Heater ON) / 330mA(CDS ON,Heater ON)
Heater ON Adj:200~330mA
DC Auto Iris Varifocal Lens(2.8mm-12mm)
65 ft
-4˚F ~ +140˚F RH 95% Max.
-4˚F ~ +140˚F RH 95% Max.
3.70"(W) * 4.05"(H) * 11.22"(D)
3.52 lbs
Sensor
Total Pixels
Effective Pixels
Scanning System
Synchronization
O.S.D
Backlight
Resolution
S/N (Y signal)
Min. Illumination
White Balance
Electronic Shutter Speed
Sense-Up
Gain Control
3 DNR
D-WDR
Motion Detection
Privacy
Mirror
Freeze
Sharpness
D&N Selection
Digital Zoom
Blemish Compensation
Heater
Power
Power Consumption
Lens
IR Distance
Operating Temperature/Humidity
Storage Temperature/Humidity
Dimension
Weight
MODEL CVC5815DNV / CVC5815DNVW

- 10 -
CVC5915DNV
CVC5915DNVW
600TV Lines
DC Auto Iris Varifocal
Lens(5mm-50mm)
True Day/Night Capability
ICR-IR Cut Filter Removable
850nm IR LEDs * 35pcs
Heater 4EA
■
■
IR LED's 35EA & Heater's 4EA
Intense - IR Bullet Camera
DC Auto Iris Varifocal Lens(5mm-50mm) / IR LED Built-in 35pcs
SPECIFICATIONS
1/3" SONY Super HAD ll CCD
NTSC=811(H) * 508(V) / PAL=795(H) * 595(V)
NTSC=768(H) * 494(V) / PAL=752(H) * 582(V)
2:1 Interlace
Internal / Line Lock(Option)
Available
OFF / HSBLC / BLC Selectable
600TV Lines
52dB (AGC Off, Weight On)
0.000006 Lux(IR LED ON)
ATW / AWB / Manual / AWC →SET
AUTO (1/50sec, 1/60sec ~ 1/100,000sec)
Off / Auto(Selectable limit *2 ~ *256)
High, Middle, Low, Off Selectable
Off/On (1~50 Level Adjustable)
Indoor / Outdoor / Off
On/Off (4 Zone)
On/Off (8 Zone)
Off / Mirror / V-Rev / Rotate
On/Off
0~31’(Level Adjustable)
Color /BW/ Auto/ EXT
On(*32) / Off
Auto:128 Point / Manual:4 Point
4EA
DC 12V / AC24V(Dual Voltage)
DC 12V 450mA(CDS OFF,Heater ON) / 950mA(CDS ON,Heater ON)
Heater ON Adj:500~950mA
AC 24V 170mA(CDS OFF,Heater ON) / 330mA(CDS ON,Heater ON)
Heater ON Adj:200~330mA
DC Auto Iris Varifocal Lens(5mm-50mm)
65 ft
-4˚F ~ +140˚F RH 95% Max.
-4˚F ~ +140˚F RH 95% Max.
3.70"(W) * 4.05"(H) * 11.22"(D)
3.52 lbs
Sensor
Total Pixels
Effective Pixels
Scanning System
Synchronization
O.S.D
Backlight
Resolution
S/N (Y signal)
Min. Illumination
White Balance
Electronic Shutter Speed
Sense-Up
Gain Control
3 DNR
D-WDR
Motion Detection
Privacy
Mirror
Freeze
Sharpness
D&N Selection
Digital Zoom
Blemish Compensation
Heater
Power
Power Consumption
Lens
IR Distance
Operating Temperature/Humidity
Storage Temperature/Humidity
Dimension
Weight
MODEL CVC5915DNV / CVC5915DNVW

- 11 -
CAMERA DIMENSION
1) CVC5815DNV, CVC5815DNVW, CVC5915DNV, CVC5915DNVW
3.70”
11.22”
5.90”
5.31”
10.62”
4.05”
3.54”
3.89” dia

- 12 -
OSD Control Button
1. Type A, Type B, Type C of OSD button could be used when it needs to
OSD control.
2. Type D is extra Option (wired Remote controller)

- 13 -
●
Setup Menu
How to Set Up the camera menu
΄Ͷ΅Ά΁;ͶͿΆ ͵ͶͷͲΆͽ΅΄Ͷ΅
΃Ͷ΅
ͶͿ͵
;ͲͿΆͲͽ
΄͹Ά΅΅Ͷ΃
΀ͷͷ
ͽ΀Έ
;ͺ͵͵ͽͶ
͹ͺ͸͹
΀ͷͷ
΃Ͷ΅
ͶͿ͵
΀ͷͷ
ͽ΀Έ
;ͺ͵͵ͽͶ
͹ͺ͸͹
΁΀΄ͺ΅ͺ΀Ϳ
΄ͺ΋Ͷ
Ͳ͸ͲͺͿ
͵ͶͷͲΆͽ΅
΃Ͷ΅
ͶͿ͵
ͽͶ·Ͷͽ ί΄ΖΝΖΔΥΒΓΝΖ
Ͳͽͽ͵ͲΊ
Ϳͺ͸͹΅΀ͿͽΊ
΁΀΄ͺ΅ͺ΀Ϳ
΄ͺ΋Ͷ
Ͳ͸ͲͺͿ
͵ͶͷͲΆͽ΅
΃Ͷ΅
ͶͿ͵
͹ͺ͸͹ͽͶ·ͶͽίͲΕΛΦΤΥΒΓΝΖ
΃Ͷ΅
ͶͿ͵
΃Ͷ΅
ͶͿ͵
΀ͷͷ
΃Ͷ΅
ͶͿ͵
Ͳ΅Έ
ͲΈͳ
ͲΈʹ΄Ͷ΅
΃Ͷ΅
ͶͿ͵
ͺͿ͵΀΀΃
΀Ά΅͵΀΀΃
΃Ͷ΅Ά΃Ϳ
΃Ͷ΅Ά΃Ϳ
ͲΆ΅΀ͷͽͼ
ΩΩΩΩΩΩΩΩ
΄ͶͿ΄ͶΆ΁ΩίΩͽΖΧΖΝ΄ΖΝΖΔΥΒΓΝΖ
ͽ΀ΈͽͶ·ͶͽίͲΕΛΦΤΥΒΓΝΖ
ͽ΀ΈͽͶ·ͶͽίͲΕΛΦΤΥΒΓΝΖ
ͲΆ΅΀
΃Ͷ΅Ά΃Ϳ
΃Ͷ΅Ά΃Ϳ
΃Ͷ΅Ά΃Ϳ
Ͳ΃ͶͲ
Ͳ΃ͶͲ
͸ͲͺͿ
΃Ͷ΅Ά΃Ϳ
΃Ͷ΅Ά΃Ϳ
;ͲͿΆͲͽ
ͳ΃ͺ͸͹΅ͿͶ΄΄ίͲΕΛΦΤΥΒΓΝΖ
Έ͹ͺ΅ͶͳͲͽ
ͳͽʹ
͹΄ͳͽʹ
ͺͿ͵΀΀΃
΀Ά΅͵΀΀΃
΃Ͷ΅Ά΃Ϳ
;΀͵Ͷ
ͽͶͿ΄
ͶΉ΁΀΄Ά΃Ͷ
Ͳ͸ʹ
΄ͶͿ΄ͶΆ΁
͵Έ͵΃
ͳͽʹ
͵ʹ
;ͶͿΆ
͹ͺ͸͹ͽͶ·ͶͽίͲΕΛΦΤΥΒΓΝΖ
ͳͽΆͶίͽΖΧΖΝ΄ΖΝΖΔΥΒΓΝΖ
΃Ͷ͵ίͽΖΧΖΝ΄ΖΝΖΔΥΒΓΝΖ

- 14 -
΃Ͷ΅
ͶͿ͵
ͶΉ΅
ͳΆ΃΄΅΀Ϳ΀ͷͷ
͸ͲͺͿ
΀ͷͷ
΃Ͷ΅
ͶͿ͵
΀ͷͷ
ʹͲ;΅ͺ΅ͽͶ΀Ϳ΀ͷͷ
ͷ΃ͶͶ΋Ͷ΀Ϳ΀ͷͷ
;ͺ΃΃΀΃
·ͷͽͺ΁
΃΀΅Ͳ΅Ͷ
΀ͷͷ
͵΋΀΀;ΩίΩ
΁ͲͿί
΅ͺͽ΅ί
΃Ͷ΅Ά΃Ϳ΃Ͷ΅ͶͿ͵
ͿͶ͸ͺ;Ͳ͸Ͷ ΀Ϳ΀ͷͷ
΃Ͷ΅
ͶͿ͵
ʹͲ;ͺ͵
ͺ͵͵ͺ΄΁ͽͲΊ ΀Ϳ΀ͷͷ
ͳͲΆ͵΃Ͳ΅Ͷ
΃Ͷ΅Ά΃Ϳ ΃Ͷ΅
ͶͿ͵
΁΀΄ͺ΅ͺ΀Ϳ
΄ͺ΋Ͷ
Ͳ͸ͲͺͿ
;΀΅ͺ΀Ϳ·ͺͶΈ ΀Ϳ΀ͷͷ
΃Ͷ΅Ά΃Ϳ ΃Ͷ΅
ͶͿ͵
΀ͷͷ
Ͳ΃ͶͲ΄ͶͽͶʹ΅
Ͳ΃ͶͲ͵ͺ΄΁ͽͲΊ ΁΀΄ͺ΅ͺ΀Ϳ
΄ͺ΋Ͷ
Ͳ͸ͲͺͿ
ʹ΀ͽ΀΃
΃Ͷ΅Ά΃Ϳ ΃Ͷ΅
ͶͿ͵
΀ͷͷ
ͺͿ΅
ͽͽ
΀Ϳ
;ͺ΃΃΀΃
͵΋΀΀; ΀Ϳ
΀Ϳ
΀Ϳ Ͳ΃ͶͲ
΃Ͷ΅Ά΃Ϳ΃Ͷ΅ͶͿ͵
΃Ͷ΅Ά΃Ϳ
ͽͶ·Ͷͽ΃ͲͿ͸ͶίͽΖΧΖΝ΄ΖΝΖΔΥΒΓΝΖ
ͲΆ΅΀
΃Ͷ΅Ά΃Ϳ
ͳΈ ͺ΃΄;Ͳ΃΅
΄΁ͶʹͺͲͽ
΀Ϳ
͵ͲΊͿͺ͸͹΅
͵Ϳ΃
;΀΅ͺ΀Ϳ
΁΃ͺ·ͲʹΊ
΄ΊͿʹ
΀΁΅ͺ΀Ϳ
΃Ͷ΅Ά΃Ϳ
Ͳ΃ͶͲ΄ͶͽͶʹ΅Ͳ΃ͶͲίͲ΃ͶͲ
Ͳ΃ͶͲ͵ͺ΄΁ͽͲΊ
΄ͶͿ΄ͺ΅ͺ·ͺ΅Ίί
΃΄
΀΁΅ͺ΀Ϳ
͵ͶͷͷͶʹ΅
͵ͿͲ͸ʹίͲΕΛΦΤΥΒΓΝΖ
Ϳ͵Ͳ͸ʹίͲΕΛΦΤΥΒΓΝΖ
ʹ΀ͽ΀΃
͵ͶͽͲΊίͲΕΛΦΤΥΒΓΝΖ

- 15 -
΃Ͷ΅
ͶͿ͵
΃Ͷ΅
ͶͿ͵
΄͹Ͳ΃΁ͿͶ΄΄
΃Ͷ΅
ͶͿ͵
΃Ͷ΅
ͶͿ͵
΃Ͷ΅
ͶͿ͵
΃Ͷ΅
ͶͿ͵
ͷͲʹ΅΀΃Ί ΃Ͷ΄Ͷ΅
΃Ͷ΅
ͶͿ͵
ͶΉͺ΅
΃Ͷ΅Ά΃Ϳ
΃Ͷ΅Ά΃Ϳ
΃Ͷ΅Ά΃Ϳ
;΀Ϳͺ΅΀΃
΃Ͷ΅Ά΃Ϳ
ʹ΃΅
ͽʹ͵
΃Ͷ΅Ά΃Ϳ
Ͳ͵ͻΆ΄΅
΃Ͷ΄Ͷ΅
΃Ͷ΅Ά΃Ϳ
΃Ͷ΅Ά΃Ϳ
ͽͶ·Ͷͽί
ͳͽΆͶ͸ͲͺͿί
΃Ͷ͵͸ͲͺͿί
ίͽΖΧΖΝͲΕΛΦΤΥΒΓΝΖ
ͽͶ·Ͷͽί
ͳͽΆͶ͸ͲͺͿί
΃Ͷ͵͸ͲͺͿί
͸Ͳ;;ͲΆ΄Ͷ΃ί
ͽͶ·Ͷͽί
Ά΄Ͷ΃
ͳͽΆͶ͸ͲͺͿί
΃Ͷ͵͸ͲͺͿί
͸Ͳ;;ͲΆ΄Ͷ΃ί
΄΅Ͳ΃΅
͵ͶͷͶʹ΅
΄ͶͿ΄ͶΆ΁ΩίΩ
͵ͺͷͷͶ΃ͶͿʹͶί

- 16 -
Menu items can be selected by using the OSD buttons of the camera
1. Press the Set Up button.
* The Set Up menu will be displayed on the monitor.
2. Move and select the required function using the Up and Down button.
* Move the arrow indicator Up or Down to select the desired feature by pressing
the Up or Down button.
Menu Set Up
SETUP
1.LENS
2.EXPOSURE
3.WHITE BAL
4.DAY / NIGHT
5.3DNR
6.SPECIAL
7.ADJUST
8.RESET
9.EXIT
DC
ATW
COLOR
ON
SETUP
1.LENS
2.EXPOSURE
3.WHITE BAL
4.DAY / NIGHT
5.3DNR
6.SPECIAL
7.ADJUST
8.RESET
9.EXIT
DC
ATW
COLOR
ON

- 17 -
3. Change menu settings using the Left or Right button.
* Available values or Status are displayed by pressing the Left or Right buttons.
Press the button until desired value / status is displayed.
4. After Changing the setting move the arrow indicator to EXIT and press the
SET button to EXIT.
1. Move the arrow indicator to LENS using the Up and Down buttons on the Set Up menu screen.
2. Select the desired lens type by pressing the Left or Right button.
NOTE
* Move to the available submenu by moving arrow to desired feature.
* Submenu is not available when this symbol is display "- - - -"
Lens
DC:DC Auto Iris Lens
SETUP
1.LENS
2.EXPOSURE
3.WHITE BAL
4.DAY / NIGHT
5.3DNR
6.SPECIAL
7.ADJUST
8.RESET
9.EXIT
DC
ATW
COLOR
ON

- 18 -
3. Press the RETURN to return to the SETUP menu.
NOTE
* When DC is selected, the brightness can be adjusted. The brightness control
range is 1 ~ 100.
Lens
BRIGHTNESS
RETURN
100
This function is used to select Automatic or Manual shutter speed control.
1. On the Set Up menu screen select EXPOSURE by using the Up or Down button.
2. Select the desired shutter mode by pressing the Left or Right button.
* FLK : Select FLK mode when flickering occurs; caused by the unmatched frequency of electric lights.
Exposure
SETUP
1.LENS
2.EXPOSURE
3.WHITE BAL
4.DAY / NIGHT
5.3DNR
6.SPECIAL
7.ADJUST
8.RESET
9.EXIT
DC
ATW
COLOR
ON

- 19 -

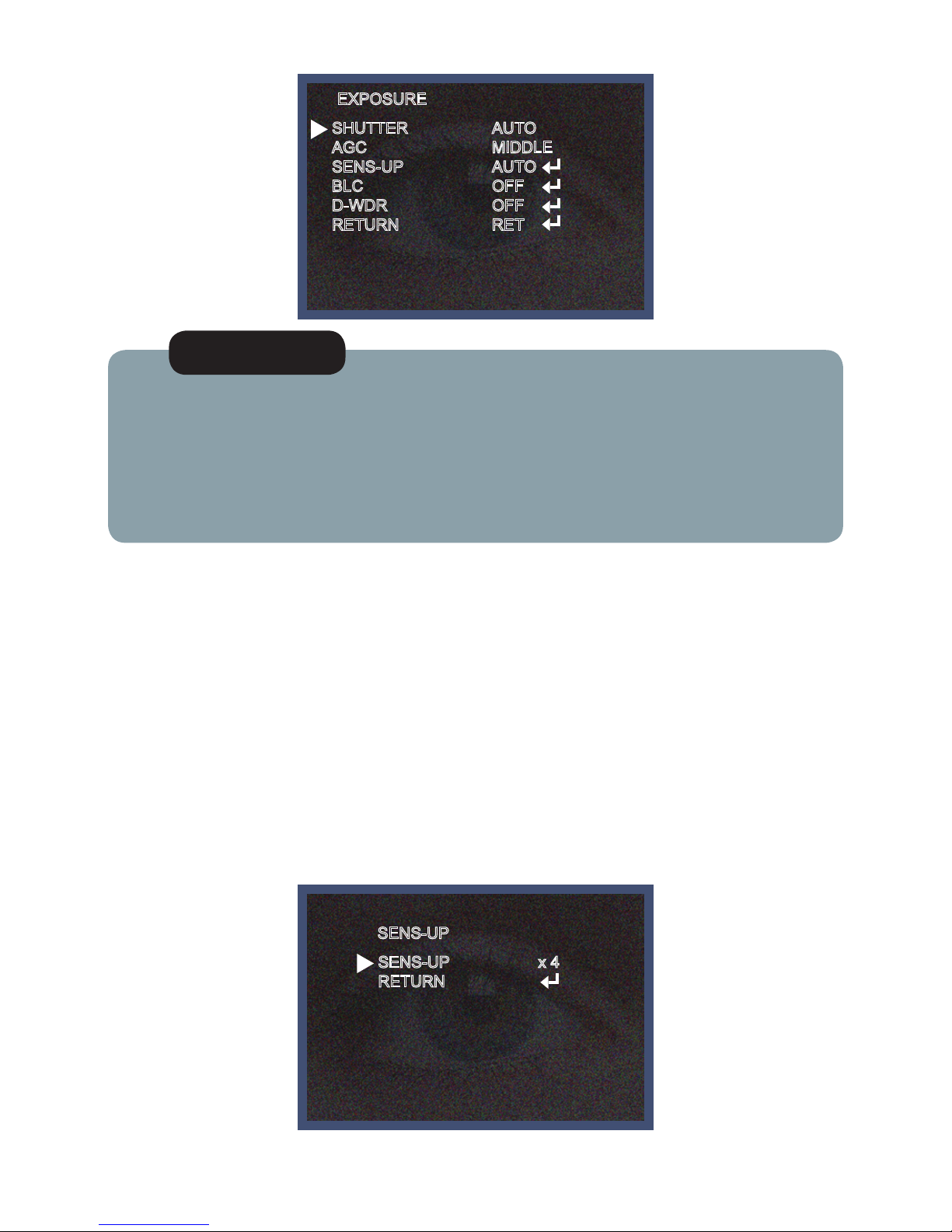

EXPOSURE
SENS-UP
SHUTTER
AGC
SENS-UP
BLC
D-WDR
RETURN
SENS-UP
RETURN
AUTO
MIDDLE
AUTO
OFF
OFF
RET
x 4
NOTE
*Shutter: Select Shutter using the Up or Down button, you can adjust the shutter speed
from 1/60, FLK, 1/250~1/100,000.
→FLK: Select FLK mode if flickering occurs; caused by the unmatched frequency of electric
light. If select FLK mode, sense-up does not operate.
* AGC(AUTO GAIN CONTROL):
A higher gain increases brightness but also increases any noise.
OFF : Deactivates the AGC function
LOW : Sets automatic gain control to LOW.
MIDDLE : Sets automatic gain control to MIDDLE.
HIGH : Sets automatic gain control to HIGH
* SENS - UP:
At night and/or in dark conditions, the Sens-Up mode can be selected to desired value from x2 ~ x256.
