SPI Lasers redPOWER QUBE User manual

redPOWER QUBE
3kW – 8kW
Fiber Lasers
Instructions for Use

© 2018 SPI Lasers UK Ltd.
Commercial in Confidence
SM-S00521 Revision C 20 September 2018
redPOWER QUBE 3kW –8kW Fiber Lasers
Instructions for Use
2
Safety Notes
These safety notes indicate potential hazards associated with this QUBE Fiber Laser and the
probable consequences of not avoiding them. Directions on the safe use of this Laser are
provided in the remainder of these Instructions for Use, particularly Sections 3 Health and
Safety, 7 Installation, and 8 Operating Instructions.
Throughout these Instructions for Use warning messages are given in contexts in which a
hazard may occur.

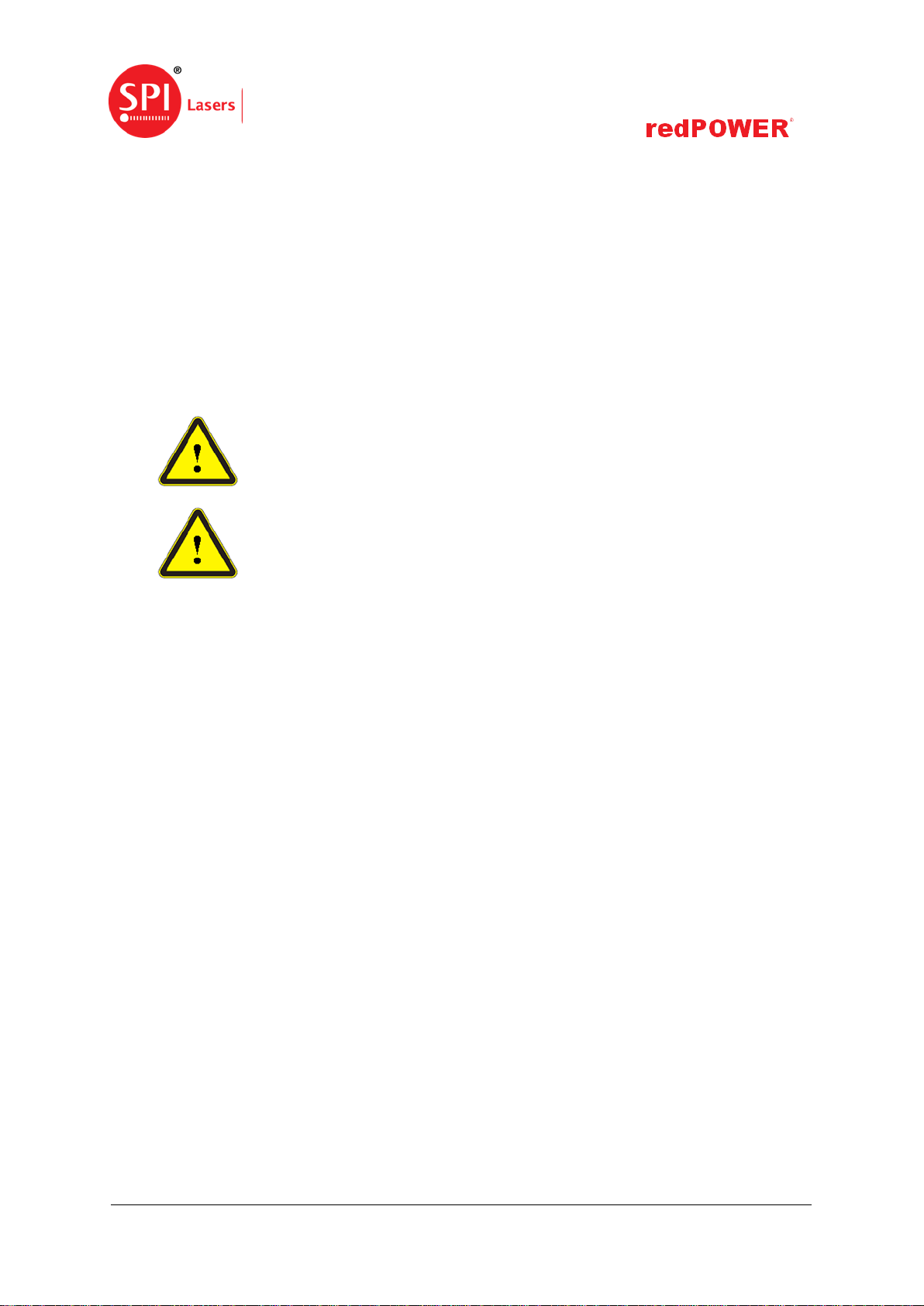

General Hazard Information
WARNING: Ensure that all Users are fully aware of all safety
implications identified in these Instructions for Use before
attempting to install, operate or maintain this QUBE Fiber Laser.
WARNING: Attempts to modify or alter this QUBE Fiber Laser or
the use of controls or adjustments or performance of procedures
other than those specified in these Instructions for Use may render
this QUBE Fiber Laser unsafe.
Attempts to modify or alter this QUBE Fiber Laser or the use of controls or adjustments or
performance of procedures other than those specified in these Instructions for Use additionally
will invalidate the warranty and may result in patent infringement.
Laser Integrators are not authorised to modify this QUBE Fiber Laser.

© 2018 SPI Lasers UK Ltd.
Commercial in Confidence
SM-S00521 Revision C 20 September 2018
redPOWER QUBE 3kW –8kW Fiber Lasers
Instructions for Use
3

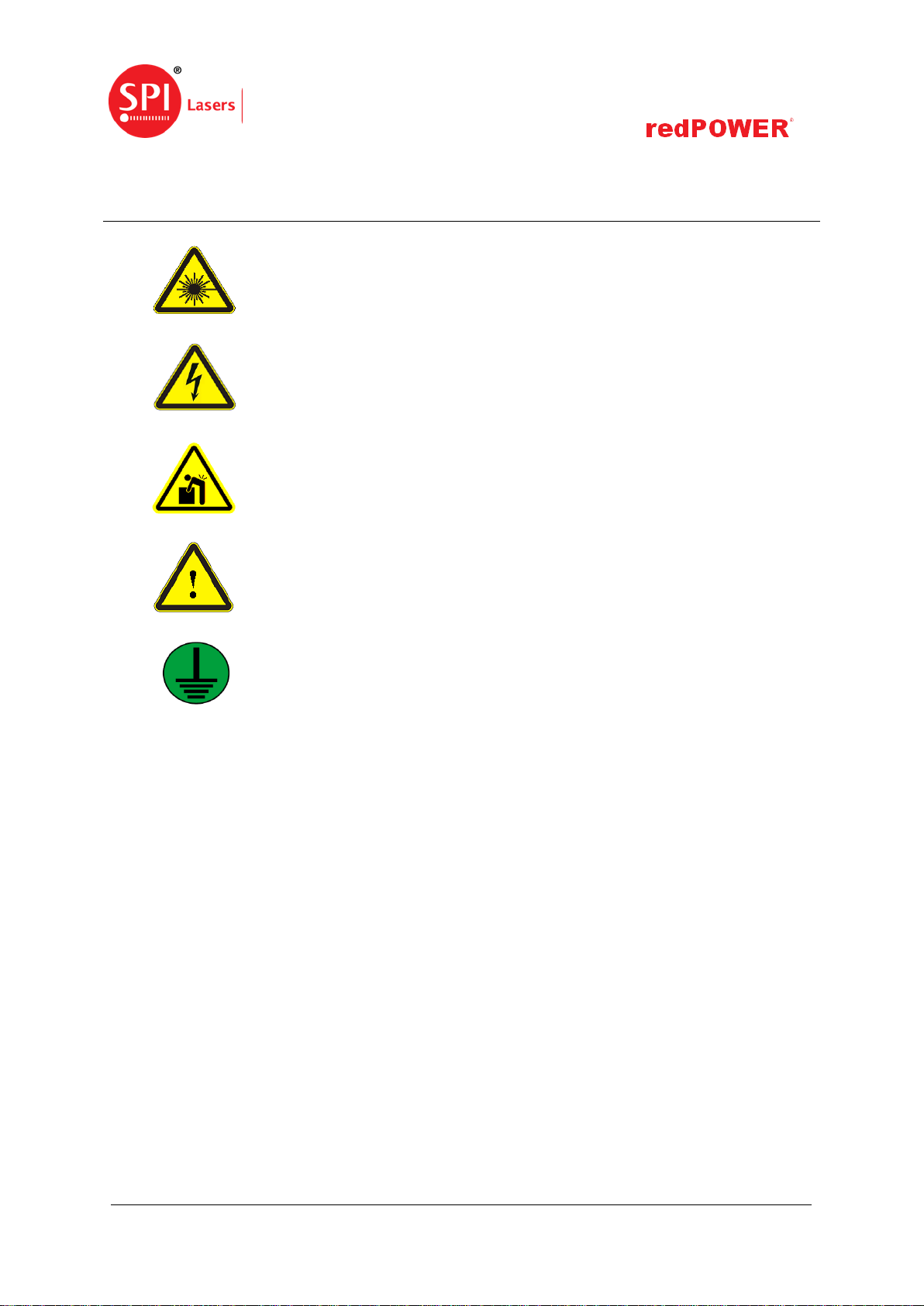

Laser Hazard Information
WARNING: The output aperture of this QUBE Fiber Laser may
emit both invisible and visible laser radiation.
The invisible laser radiation will be Class 4 laser radiation. The
invisible radiation can be up to approximately 115% of rated power
CW in normal operation and 150% with a single fault. The
wavelength of this invisible radiation is in the range 1050-1250nm.
Additionally, this QUBE Fiber Laser contains embedded lasers that
emit invisible laser radiation up to approximately 170% of rated
power CW in normal operation and 250% CW with a single fault.
The wavelength of this invisible radiation is in the range 900-
1000nm.
AVOID EYE OR SKIN EXPOSURE TO DIRECT OR SCATTERED
RADIATION.
Contact with direct or scattered laser radiation can cause damage
to the eyes, burn human tissue and start fires.
The optical connector shall be mounted in a protective housing
which prevents human access to laser radiation (including errant
radiation) in excess of the AEL for class 1, for example a housing
meeting the requirements of EN 60825-4.
WARNING: The output aperture of this QUBE Fiber Laser may
emit both invisible and visible laser radiation.
The visible laser radiation is below the Accessible Emission Limit
(AEL) for a Class 2 laser. The wavelength of the visible laser
radiation is in the range 630 –680nm.
DO NOT STARE INTO BEAM.
WARNING: This QUBE Fiber Laser must only be operated when
the optical connector is mounted in an appropriate receiver.
Care must be taken to prevent the electrical contacts on the optical
connector being accidentally connected. Do not place the optical
connector on a metal surface.
The protective cap must be placed over the connector whenever
the connector is not in a receiver.
WARNING: Before carrying out any maintenance task detailed in
these Instructions for Use ensure that power to the QUBE Fiber
Laser is disconnected. Failure to do so may lead to serious
personal injury.

© 2018 SPI Lasers UK Ltd.
Commercial in Confidence
SM-S00521 Revision C 20 September 2018
redPOWER QUBE 3kW –8kW Fiber Lasers
Instructions for Use
4
Electrical Hazard Information
WARNING: This QUBE Fiber Laser contains hazardous AC
voltages up to 480V. These may still be present even when the
power is disconnected.
Contact may cause electrical shock and injury.
CAUTION: This QUBE Fiber Laser is designed to BS EN 60204-
1:2006+A1:2009 and must be grounded for safety and to comply
with regional electrical codes.
Failure to do so may result in electric shock and incorrect operation
of the QUBE Fiber Laser.
Weight Hazard Information
CAUTION: This QUBE Fiber Laser is heavy and so precautions
must be taken when lifting and moving.
Failure to do so may cause serious injury.
Pressure Hazard Information
CAUTION: Ensure an approved overpressure safety device
compliant with ISO4126-1 (or equivalent) is installed when
connecting this QUBE Fiber Laser to an external chiller or factory
water supply.
Failure to do so may result in water leaks and damage to the QUBE
Fiber Laser and auxiliary equipment.
Laser for Incorporation
CAUTION: This QUBE Fiber Laser is specifically designed to be a
laser for incorporation or integration into other equipment. As such,
it is not required to, and does not, meet the requirements for a
stand-alone laser system as defined by IEC/EN 60825-1.

© 2018 SPI Lasers UK Ltd.
Commercial in Confidence
SM-S00521 Revision C 20 September 2018
redPOWER QUBE 3kW –8kW Fiber Lasers
Instructions for Use
5
CONTENTS
1Structure and Scope of Instructions for Use 9
2Definition of Symbols and Terms 10
3Health and Safety 12
3.1 General 12
3.2 Intended Use of the QUBE Fiber Laser 12
3.3 Hazards 13
3.4 Compliance 14
3.5 Labelling 16
4Document References 19
5redPOWER QUBE Tour 20
5.1 Key Parts 20
5.2 Key Features 24
5.3 FiberView Graphical User Interface 29
5.4 Control System Safety Functions 30
5.5 Auxiliary Equipment 33
5.6 Explanation of Order Codes 34
6Getting Started 36
6.1 Receiving and Inspection 36
6.2 Unpacking and Handling 36
6.3 Unpacking the Beam Delivery Optic 36
7Installation 37
7.1 Safety and Compliance during Installation 37
7.2 Location and Environment 37
7.3 Cooling Water Connections 38
7.4 Air Conditioning Unit 40
7.5 Electrical Connections 40
7.6 Routing the Beam Delivery Optic 55
7.7 Connecting and Disconnecting the PIPA-Q Optical Connector 57
8Operating Instructions 61
8.1 Before Operation 61
8.2 Powering the QUBE Fiber Laser On and Off 62
8.3 Alarms and Warnings 62
8.4 Basic Control using Serial Communication 63
9Maintenance 64
9.1 Periodic Inspection 64
9.2 General Cleaning 64
9.3 Maintenance of Optics 65

© 2018 SPI Lasers UK Ltd.
Commercial in Confidence
SM-S00521 Revision C 20 September 2018
redPOWER QUBE 3kW –8kW Fiber Lasers
Instructions for Use
6
10 Transport 70
10.1 Making Safe 70
10.2 Removing from Integrated Laser System 70
10.3 Disconnecting from the AC supply 70
10.4 Draining the Cooling Water 70
10.5 Packing and Moving 71
11 Disposal 72
12 Specifications 73
12.1 Operating Conditions 73
12.2 Non-Operating Conditions 74
12.3 Utility Requirements 75
12.4 Optical Specifications 78
12.5 Mechanical Specifications 80
13 General Information 84
13.1 Trade Marks 84
13.2 Licensing 84
13.3 Software 84
13.4 Warranties 84
13.5 Copyright 84
13.6 Changes 84
14 Contact Information 85
15 Customer Service 86
FIGURES
Figure 1 WEEE Symbol........................................................................................................................... 14
Figure 2 QUBE Fiber Laser Key Parts (Front) ........................................................................................ 21
Figure 3 QUBE Fiber Laser Key Parts (Rear)......................................................................................... 22
Figure 4 QUBE Fiber Laser Key Parts (PIPA-Q) .................................................................................... 23
Figure 5 QUBE Fiber Laser Key Features .............................................................................................. 24
Figure 6 redPOWER PRISM FL Module Key Features........................................................................ 25
Figure 7 PIPA-Q Optical Connector with Protection against Back-Reflection ........................................ 27
Figure 8 A Process Cycle Built from Steps (Parameter Sets with Control Attributes) and Shapes ........ 30
Figure 9 QUBE Fiber Laser with Auxiliary Equipment ............................................................................ 33
Figure 10 Hose for Main Connection....................................................................................................... 39
Figure 11 Hoses Connected and Secured .............................................................................................. 39
Figure 12 Interface Connectors............................................................................................................... 41
Figure 13 Routing of AC Power Cable .................................................................................................... 43

© 2018 SPI Lasers UK Ltd.
Commercial in Confidence
SM-S00521 Revision C 20 September 2018
redPOWER QUBE 3kW –8kW Fiber Lasers
Instructions for Use
7
Figure 14 Internal Connections for AC Power Supply............................................................................. 44
Figure 15 Connections to PL81............................................................................................................... 47
Figure 16 Typical Connections to PL82 (Control Contact and Indicator Lamps).................................... 49
Figure 17 Typical Connections to PL82 (PLC)........................................................................................ 50
Figure 18 Timing Diagram....................................................................................................................... 51
Figure 19 Typical Connections to PL91 .................................................................................................. 52
Figure 20 A Typical Connection to PL96................................................................................................. 53
Figure 21 A Typical Connection to PL98................................................................................................. 54
Figure 22 PIPA-Q with Protective Cap.................................................................................................... 58
Figure 23 Connector before Removal of Protective Tape....................................................................... 58
Figure 24 Red Dots Aligned .................................................................................................................... 58
Figure 25 Connector Inserted into Receiver............................................................................................ 59
Figure 26 PIPA-Q Window Assembly...................................................................................................... 66
Figure 27 Removing Sleeve.................................................................................................................... 67
Figure 28 Placing Lens Cleaning Paper on top of the Window............................................................... 67
Figure 29 Wetting the Lens Paper........................................................................................................... 68
Figure 30 Cleaning the Window .............................................................................................................. 68
Figure 31 Removing Window .................................................................................................................. 69
Figure 32 Drain Vent Point...................................................................................................................... 70
Figure 33 Environmental Conditions for Non-Condensing Operation..................................................... 74
Figure 34 Minimum Flow Rate against Inlet Water Temperature............................................................ 77
Figure 35 Small Cabinet: Overall Dimensions......................................................................................... 81
Figure 36 Large Cabinet: Overall Dimensions ........................................................................................ 81
Figure 37 Tall Cabinet: Overall Dimensions............................................................................................ 82
Figure 38 PIPA-Q Optical Connector ...................................................................................................... 82
Figure 39 Outline Drawing –PIPA-Q Beam Delivery Optic .................................................................... 83
TABLES
Table 1 Labels......................................................................................................................................... 17
Table 2 Performance Levels of the Safety Functions ............................................................................. 32
Table 3 Explanation of Order Code......................................................................................................... 34
Table 4 Water Tubing.............................................................................................................................. 39
Table 5 Interface Connectors.................................................................................................................. 41
Table 6 Electrical Supply Cable Wire Sizes............................................................................................ 42

© 2018 SPI Lasers UK Ltd.
Commercial in Confidence
SM-S00521 Revision C 20 September 2018
redPOWER QUBE 3kW –8kW Fiber Lasers
Instructions for Use
8
Table 7 Strip Lengths and Torque Settings............................................................................................. 43
Table 8 Serial Port Connections.............................................................................................................. 45
Table 9 MCIF Default Configuration........................................................................................................ 45
Table 10 Minimum Interface Connection................................................................................................. 55
Table 11 Replacement Window Kit and Replacement Window.............................................................. 65
Table 12 Environmental Operating Conditions........................................................................................ 73
Table 13 Non-Operating Conditions........................................................................................................ 74
Table 14 Electrical Requirements ........................................................................................................... 75
Table 15 Power Consumption................................................................................................................. 75
Table 16 Cooling Water Requirements ................................................................................................... 76
Table 17 Cooling Requirements (Cabinet).............................................................................................. 77
Table 18 Cooling Requirements for Different Rated Powers (Cabinet) .................................................. 77
Table 19 Cooling Requirements (PIPA-Q Optical Connector)................................................................ 78
Table 20 General Optical Specifications ................................................................................................. 78
Table 21 Multimode Optical Specifications: 50µm Fiber......................................................................... 79
Table 22 Multimode Optical Specifications: 100µm Fiber....................................................................... 79
Table 23 300µm Multimode Optical Specifications ................................................................................. 80
Table 24 Cabinet Overall Dimensions and Masses ................................................................................ 80
Table 25 Mechanical Specifications –PIPA-Q Optical Connector.......................................................... 83
Table 26 Contact Information.................................................................................................................. 85

© 2018 SPI Lasers UK Ltd.
Commercial in Confidence
SM-S00521 Revision C 20 September 2018
redPOWER QUBE 3kW –8kW Fiber Lasers
Instructions for Use
9
1 Structure and Scope of Instructions for Use
These Instructions for Use for SPI Lasers’ redPOWER®QUBE 3kW to 8kW Fiber Lasers
contain all the information that Users need to know for their safe and efficient use. This
information is important. These Instructions for Use must be read before installing and using the
Laser and madeavailable for reference at the location where the Laseris being used. Additional
or replacement copies are available from SPI Lasers.
These Instructions for Use are divided into the sections below which provide Users with health
and safety information before introducing the Laser and then guiding them through its
installation, operation, maintenance and disposal. Lastly it provides other useful information and
the Lasers’specifications.
1
Structure and Scope of Instructions for Use
2
Definition of Symbols and Terms
3
Health and Safety
4
Document References
5
redPOWER QUBE Tour
6
Getting Started
7
Installation
8
Operating Instructions
9
Maintenance
10
Transport
11
Disposal
12
Specifications
13
General Information
14
Contact Information
15
Customer Service
The QUBE Fiber Lasers covered by these Instructions for Use have order codes:
SP
-
3000
4000
4500
6000
8000
-
F
-
W
-
050
100
300
-
05
10
15
20
-
PIQ
-
B
D
E
1
3
4
-
0
1
01
-
000
The order code can be found on a label on the rear panel of the Laser.
Details of the options shown in bold are expanded in Section 5.6 below.

© 2018 SPI Lasers UK Ltd.
Commercial in Confidence
SM-S00521 Revision C 20 September 2018
redPOWER QUBE 3kW –8kW Fiber Lasers
Instructions for Use
10
2 Definition of Symbols and Terms
This symbol alerts the user to the hazard of exposure to laser
radiation.
This symbol alerts the user to the hazard of exposure to electricity.
This symbol alerts the user to the hazard caused by the weight of
this Laser.
This general warning symbol emphasises important information
needed during installation and operation.
This symbol identifies the protective conductor terminal (ground
point).
WARNING:
Indicates a hazard with a medium level of risk which, if not avoided,
could result in death or serious injury.
Warnings must be observed to prevent personal injury to yourself
and others.
CAUTION:
Indicates a hazard with a low level of risk which, if not avoided,
could result in minor or moderate injury.
Cautions must be observed to prevent personal injury and damage
to or destruction of equipment or loss of operational effectiveness.

© 2018 SPI Lasers UK Ltd.
Commercial in Confidence
SM-S00521 Revision C 20 September 2018
redPOWER QUBE 3kW –8kW Fiber Lasers
Instructions for Use
11
QUBE Fiber
Laser or
Laser:
QUBE Fiber Laser or Laser as used herein means the item that
was procured from SPI Lasers.
This QUBE Fiber Laser is a complete fiber laser system. By
‘complete’ it is meant a laser system as sold and ready for use for
its intended purpose without modifications to the specification of
the product.
This QUBE Fiber Laser is specifically designed to be a laser for
incorporation or integration into other equipment. As such, it does
not meet the full requirements for a stand-alone laser system as
defined by 21 CFR 1040.10 and IEC/EN 60825-1.
This QUBE Fiber Laser is not a consumer product and is not to be
sold on or made available as such.
Laser
Integrator:
Any person, company or organisation who integrates this QUBE
Fiber Laser into equipment, or any person, company or
organisation who uses this QUBE Fiber Laser in the form as
supplied by SPI Lasers.
A Laser Integrator is skilled in and understands the integration
issues surrounding the use, design and supply of laser products to
end users in the end markets which it supplies.
User:
Individuals or organizations that use this QUBE Fiber Laser. User
includes the Laser Integrator and the end user.
Authorised
Personnel:
Those who have attended official Training Courses and have been
certified as competent.
SPI Lasers:
SPI Lasers UK Ltd.

© 2018 SPI Lasers UK Ltd.
Commercial in Confidence
SM-S00521 Revision C 20 September 2018
redPOWER QUBE 3kW –8kW Fiber Lasers
Instructions for Use
12
3 Health and Safety
3.1 General
This section gives information on the hazards which may be encountered during installation,
operation and maintenance of this QUBE Fiber Laser and steps to reduce the risk. Also included
is information on laser and electrical safety compliance. All safety instructions, including those
in the Safety Notes and those in other sections of these Instructions for Use, must be followed.
Not following safety instructions may constitute a hazard to Users and third parties or cause
damage to property and the Laser.
Only Authorised Personnel who have been instructed in, and fully understand, the necessary
safety procedures should operate this Laser. Access must be restricted to Authorised
Personnel.
Any local safety requirements for the operation of this equipment must be complied with.
Throughout the documentation, ‘WARNING’, and ‘CAUTION’ paragraphs appear. It is the
responsibility and duty of all Users who operate and maintain this equipment to fully understand
the WARNING and CAUTION and act in order to reduce or eliminate hazards.
3.2 Intended Use of the QUBE Fiber Laser
This Laser has been designed exclusively for incorporation or integration into other equipment
for processing:
•solid metals, including metal alloys and metal powders
•ceramics in both solid and powder form
•composite materials
Operating the device within the limits of its designated use requires the user to:
•observe the instructions set out in this operating manual
•install and use this Laser in compliance with international, national and local regulations
regarding laser safety, for example IEC/EN 60825-1 and 21 CFR 1040.10
•install and use this Laser in compliance with international, national and local regulations
regarding the safety of electrical equipment, for example BS EN 60204
•wire and connect the electrical lines to this Laser in compliance with international,
national and local regulations regarding electromagnetic compatibility (EMC), for
example the relevant sections of IEC/EN 61000 and FCC CFR47
•not move this Laser when it is switched on (except that the optical connector may be
moved provided that the bending limits of the conduit are observed)
•carry out necessary inspection and maintenance work
This Laser is not intended:

© 2018 SPI Lasers UK Ltd.
Commercial in Confidence
SM-S00521 Revision C 20 September 2018
redPOWER QUBE 3kW –8kW Fiber Lasers
Instructions for Use
13
•for processing in connection with flammable or explosive materials
•for use in an explosion prone environment
SPI Lasers cannot be held liable for any damage resulting from such use. The risk lies entirely
with the User.
3.3 Hazards
3.3.1 Laser Hazards
All Warnings, including those in the Safety Notes and those in other sections of these
Instructions for Use, must be heeded.
Laser emissions from the housing of the Laser and the conduit of the beam delivery optic are
less than the AEL for Class 1 of IEC/EN 60825-1 with a single fault.
WARNING: Care must be taken especially when controlling this
Laser remotely across a network.
Failure to do so could result in another User being exposed to
hazardous levels of radiation.
It is the responsibility of the Laser Integrator to ensure that when
controlled remotely no hazardous levels of radiation are emitted
when unsafe to do so.
3.3.2 Electrical Hazard
CAUTION: This Laser is designed to BS EN 60204-
1:2006+A1:2009 and must be grounded for safety and to comply
with regional electrical codes.
Failure to do so may result in electric shock and incorrect operation
of the Laser.
This Laser is not provided with any electrical supply cable (cord, flex or lead).
Only qualified technical personnel who are familiar with the equipment should open the cabinet
doors. No electrical hazard exists if the system is operated normally.
3.3.3 Materials Processing Hazards
Materials processing can generate vapour, fumes, solid particulates and other air contaminants
that may irritate, be toxic, or even fatal. It is the responsibility of the user to ensure that all
relevant safety precautions are followed and that any legal requirements are adhered to in
accordance with local legislation. It is advised that Material Safety Data Sheets (MSDS) for any
material to be processed are evaluated and that adequate measures for fume extraction and
venting are considered. Interaction of the beam with certain materials can cause potentially
harmful levels of visible and invisible radiation to be emitted. Appropriate protective measures
must be taken.

© 2018 SPI Lasers UK Ltd.
Commercial in Confidence
SM-S00521 Revision C 20 September 2018
redPOWER QUBE 3kW –8kW Fiber Lasers
Instructions for Use
14
CAUTION: It is essential that any debris associated with laser
processing is removed and cleaned away on a regular basis.
Failure to do so may result in fire.
3.3.4 Other Hazards
While most of the hazard comes from laser radiation, there are certain non-beam hazards that
are often associated with use of laser systems. The Laser requires AC power and is water-
cooled. Electricity and water, individually or in combination, may create hazards.
Mechanical hazards may include moving parts in cutting, welding and material handling
systems.
High temperatures and fire hazards may also result from the operation of Class 4 lasers.
3.4 Compliance
Within the EU, the Laser is CE marked and is supplied with a Declaration of Conformity. The
standards which SPI Lasers declares that the Laser is in conformity with, and the directives
which SPI Lasers declares that the Laser complies with the requirements of are listed in the
Declaration of Conformity.
Within the USA, the Laser is shipped with an appropriately completed FDA 2877 form.
It is the responsibility of the Laser Integratorto ensure that the integrated laser system conforms
with the appropriate standards and complies with the appropriate directives. Nonetheless, many
of the electronic and labelling requirements have been incorporated into the Laser to facilitate
compliance.
3.4.1 Europe: WEEE Directive
Figure 1 WEEE Symbol
This symbol indicates that, at end of life, this Laser should be separately collected from unsorted
waste.
3.4.2 Europe: RoHS Directive
This Laser is in conformity with European RoHS Directive. Compliance is demonstrated through
conformance with this standard which is harmonised to the RoHS directive:
•BS EN 50581:2012

© 2018 SPI Lasers UK Ltd.
Commercial in Confidence
SM-S00521 Revision C 20 September 2018
redPOWER QUBE 3kW –8kW Fiber Lasers
Instructions for Use
15
3.4.3 Europe: Machinery Directive
This Laser does not fall within the meaning of ‘machinery’ given in the Machinery Directive,
2006/42/EC, and therefore SPI Lasers cannot declare conformity with the Directive. However,
SPI Lasers recognises that Laser Integrators may require the integrated laser system to comply
with the Directive. SPI Lasers has therefore designed for compliance to parts of the standards
listed below which are harmonised to the Machinery Directive:
•EN11252:2013
•EN13849-1:2015
•EN13849-2:2012
•EN11554:2008
•EN12100:2010
•EN12198-1:2000+A1:2008, EN12198-2:2002+A1:2008, EN12198-3:2002+A1:2008
•EN 60204-1:2006+A1:2009
3.4.4 Europe: Low Voltage Directive
This Laserfalls within thescope of theLow Voltage Directive as the Directive applies to electrical
equipment designed for use with a voltage rating of greater than 75V. SPI Lasers has therefore
demonstrated compliance to parts of the standards given below which are harmonised to the
Low Voltage Directive:
•EN 60204-1:2006+A1:2009
•IEC/EN 60825-1
This Laser is specifically designed to be a laser for incorporation or integration into other
equipment. As such, it is not required to, and does not, meet the requirements for a stand-
alone laser system as defined by IEC/EN 60825-1.
During installation it is vital that the laser hazard is fully managed. In particular, the Laser
Integrator is required to provision the engineering requirements detailed in IEC/EN 60825-1.
These include, but are not limited to:
•Provision of an additional protective housing which prevents human access or
exposure to laser radiation in excess of the AEL for Class 1 laser systems from the
output aperture. (IEC/EN 60825-1 section 4.2).
•Provision of a remote interlock connector which when open-circuit prevents access
to laser radiation in excess of Class 1M (IEC/EN 60825-1 section 4.4).
•Provision of a fail-safe or redundant audible or visible emission indicator at the laser
aperture if it is located more than 2m from the original emission indicator (IEC/EN
60825-1 section 4.7).
Note that the visible alignment laser carries a Class 2 laser rating as defined by IEC/EN
60825-1.

© 2018 SPI Lasers UK Ltd.
Commercial in Confidence
SM-S00521 Revision C 20 September 2018
redPOWER QUBE 3kW –8kW Fiber Lasers
Instructions for Use
16
3.4.5 Europe: EMC Directive
This Laser falls outside the scope of the EMC Directive as it is intended exclusively for an
industrial assembly operation for incorporation into other apparatus. However, SPI Lasers
recognises that Laser Integrators may require the integrated laser system to comply with the
directive. SPI Lasers has therefore designed for compliance to parts of the standards listed
below which are harmonised to the EMC Directive:
•BS EN 55011:2009+A1:2010.
3.4.6 USA: CFR Title 21 Part 1040, Food and Drug Administration
This Laser falls outside the scope of 21 CFR part 1040 as 21 CFR part 1040 does not apply to
laser products which are sold to a manufacturer for use as components. However, SPI Lasers
recognises that Laser Integrators may require the integrated laser system to comply with the
regulation. SPI Lasers has therefore demonstrated compliance to parts of the European
standard:
•IEC/EN 60825-1
Under Laser Notice 50, CDRH will not object to conformance with many sections of IEC 60825-
1, as amended, as alternatives to comparable sections of 21 CFR §1040.10.
3.4.7 USA: CFR Title 47, Federal Communications Commission
This Laser is designed for compliance with:
•FCC CFR47: §15.107 Conducted emission limits
•FCC CFR47: §15.109 Radiated emission limits.
3.5 Labelling
Labels are placed on the top and rear panels of the Laser to warn of potential hazards and to
provide other useful information.
Table 1 below shows the labels and gives their locations.

© 2018 SPI Lasers UK Ltd.
Commercial in Confidence
SM-S00521 Revision C 20 September 2018
redPOWER QUBE 3kW –8kW Fiber Lasers
Instructions for Use
17
Table 1 Labels
Laser, Address, WEEE, CE and Patent label (rear panel)

© 2018 SPI Lasers UK Ltd.
Commercial in Confidence
SM-S00521 Revision C 20 September 2018
redPOWER QUBE 3kW –8kW Fiber Lasers
Instructions for Use
18
Rating plate label (Information may vary) (rear panel)
Laser hazard (optical connector)
QUBE Fiber Laser identification (rear panel)
Water Flow and Return Labels (rear panel)

© 2018 SPI Lasers UK Ltd.
Commercial in Confidence
SM-S00521 Revision C 20 September 2018
redPOWER QUBE 3kW –8kW Fiber Lasers
Instructions for Use
19
4 Document References
Document number
Description
FS-S00154
redPOWER QUBE Cabinet Fiber Lasers Installation Drawing
SM-S00499
redPOWER Fiber Laser Serial Communications Protocol
SM-S00537
FiberView and Machine Control Interface Instructions for use
These documents may be downloaded by going to 'Customer Login' at the top right of SPI
Lasers’ home page: www.spilasers.com.

© 2018 SPI Lasers UK Ltd.
Commercial in Confidence
SM-S00521 Revision C 20 September 2018
redPOWER QUBE 3kW –8kW Fiber Lasers
Instructions for Use
20
5 redPOWER QUBE Tour
The range of redPOWER QUBE Cabinet Fiber Lasers builds on many years of experience of
SPI Lasers in designing, developing and supplying fiber lasers into a wide range of industrial
laser processing applications. It gives laser integrators the capability to manufacture industrial
laser machines with maximum output power levels from 3kW to 8kW. QUBE Fiber Lasers can
be operated in continuous wave (CW) or modulated (CWM) modes for applications enabled by
fiber lasers and applications traditionally served by lamp pumped and diode pumped solid-state
lasers. A flexible control architecture has been implemented using a combination of analogue,
digital and logic user interfaces.
The optical power is generated by two or more PRISM Fiber Laser (FL) Modules which use SPI
Lasers’ proprietary
1
GTWave®active fiber technology and reliable pump diodes to produce a
high power, high brightness output. The output from the PRISM Fiber Laser Modules is coupled
together in a PRISM High Power Combiner (HPC) Module and is guided to the Laser Integrator’s
optics by a multimode (MM) delivery fiber supplied with an industry standard PIPA-Q connector.
A ruggedised conduit including SPI Lasers’ Fiber Continuity Monitoring System (FCMS) protects
the delivery fiber.
The PRISM FL Modules together with the pump diode PSU and power distribution and control
systems are enclosed in a cabinet. There are two sizes of cabinet, of different heights, capable
of holding up to two and up to four PRISM FL Modules respectively.
5.1 Key Parts
The QUBE Fiber Laser has many key parts. These are identified in Figure 2, Figure 3 and Figure
4. The names given in these Figures are used throughout these Instructions for Use.
1
US 6,826,335, US 7,221,822, US 7,660,034, US 8,270,070, US 8,743,454 and granted patents in
other territories
