CE800 ELLIPTICAL TRAINER
OWNER’S MANUAL

Spirit Fitness

www.spirittness.com

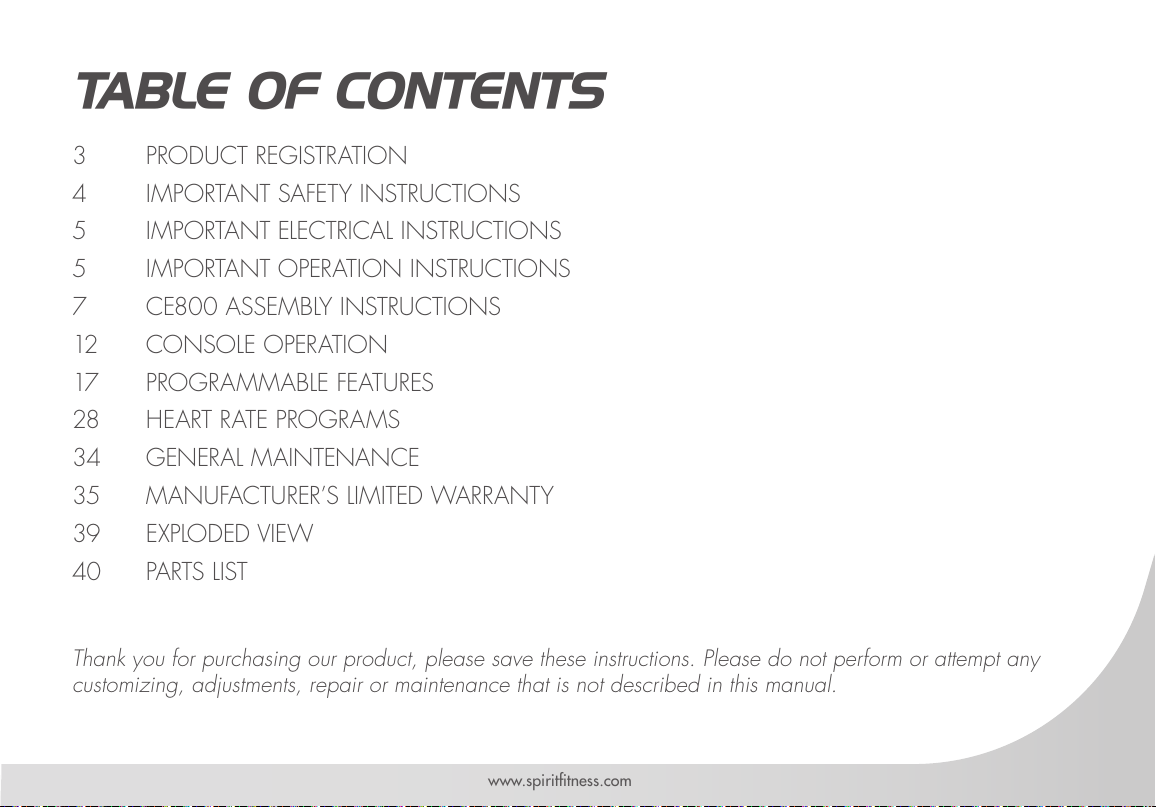

TABLE OF CONTENTS
3 PRODUCT REGISTRATION
4 IMPORTANT SAFETY INSTRUCTIONS
5 IMPORTANT ELECTRICAL INSTRUCTIONS
5 IMPORTANT OPERATION INSTRUCTIONS
7 CE800 ASSEMBLY INSTRUCTIONS
12 CONSOLE OPERATION
17 PROGRAMMABLE FEATURES
28 HEART RATE PROGRAMS
34 GENERAL MAINTENANCE
35 MANUFACTURER’S LIMITED WARRANTY
39 EXPLODED VIEW
40 PARTS LIST
Thank you for purchasing our product, please save these instructions. Please do not perform or attempt any
customizing, adjustments, repair or maintenance that is not described in this manual.

2
Spirit Fitness
Congratulations on your new elliptical trainer and welcome to the Spirit Fitness family!
Thank you for your purchase of this quality elliptical trainer from Spirit Fitness. Your new
elliptical trainer was manufactured by one of the leading tness manufacturers in the world
and is backed by one of the most comprehensive warranties available. Through your dealer,
Spirit Fitness will do all we can to make your ownership experience as pleasant as possible
for many years to come. If not purchased direct from Spirit Fitness, the local dealership where
you purchased this elliptical trainer is your administrator for all Spirit Fitness warranty and
service needs. Their responsibility is to provide you with the technical knowledge and service
personnel to make your experience more informed and any difculties easier to remedy.
Please take a moment at this time to record the name of the dealer, their telephone number,
and the date of purchase below to make any future, needed contact easy. We appreciate your
support and we will always remember that you are the reason that we are in business.
Yours in Health,
Spirit Fitness
NAME OF DEALER _____________________________________
DEALER PHONE # _____________________________________
PURCHASE DATE _____________________________________

3
www.spirittness.com
RECORD YOUR SERIAL NUMBER
Please record the serial number of this tness product in the space
provided below.
Serial Number:
REGISTER YOUR PURCHASE
The self-addressed product registration card must be completed in full and returned to Spirit Fitness. You
can also go to http://www.spirittness.com/commercialwarrantyregistration.html under the Support tab to
register online.

4
Spirit Fitness
IMPORTANT SAFETY
INSTRUCTIONS
DANGER - To reduce the risk of electric shock:
Always unplug this appliance from the electrical
outlet immediately after using and before cleaning.
WARNING
• Read all instructions before using this appliance.
• Do not operate elliptical trainer on deeply padded,
plush or shag carpet. Damage to both carpet and
elliptical trainer may result.
• Keep children away from the elliptical trainer. There
are obvious pinch points and other caution areas that
can cause harm.
• Keep hands away from all moving parts.
• Never operate the elliptical trainer if any of the parts
are damaged. If the elliptical trainer is not working
properly, call your dealer.
• Do not operate where aerosol spray products are
being used or where oxygen is being administered.
Sparks from the motor may ignite a highly gaseous
environment.
• Never drop or insert any object into any openings.
• Do not use outdoors.
• Do not attempt to use your elliptical trainer for any
purpose other than for the purpose it is intended.
• The hand pulse sensors are not medical devices.
Their purpose is to provide you with an approximate
measurement in relation to your target heart rate.
Use of a chest transmitter strap is a much more
accurate method of heart rate analysis . Various
factors, including the user’s movement, may affect the
accuracy of heart rate readings. The pulse sensors
are intended only as exercise aids in determining
heart rate trends in general.
• Wear proper shoes. High heels, dress shoes, sandals
or bare feet are not suitable for use on your elliptical
trainer. Quality athletic shoes are recommended to
avoid leg fatigue.
• Maximum User Weight: 450 lbs
• This appliance is not intended for use by persons with
reduced physical, sensory or metal capabilities, or
lack of experience and knowledge, unless they have
been given supervision or instruction concerning use
of the appliance by a person responsible for their
safety.
• Keep children under the age of 13 away from this
machine.
SAVE THESE INSTRUCTIONS - THINK SAFETY!

5
www.spirittness.com
IMPORTANT ELECTRICAL
INSTRUCTIONS
WARNING
Be aware that the generator is producing A.C.
power while the elliptical trainer is being used.
Do not service the elliptical trainer while the
generator is spinning; serious electric shock could
occur. NEVER expose this elliptical trainer to rain
or moisture. This product is NOT designed for use
outdoors, near a pool or spa, or in any other high
humidity environment. The operating temperature
specication is 40 to 120 degrees Fahrenheit, and
humidity is 95% non-condensing (no water drops
forming on surfaces).
IMPORTANT OPERATION
INSTRUCTIONS
• NEVER operate this elliptical trainer without reading
and completely understanding the results of any
operational change you request from the computer.
• Understand that changes in resistance do not occur
immediately. Set your desired resistance level on the
computer console and release the adjustment button.
The computer will obey the command gradually.
• Use caution while participating in other activities
while pedaling on your elliptical trainer; such as
watching television, reading, etc. These distractions
may cause you to lose balance which may result in
serious injury.
• Do not use excessive pressure on console control
buttons. They are precision set to function properly
with little
nger pressure.
WARNING
This product can expose you to chemicals including
Toluene and Acrylamide which are known to the
State of California to cause Cancer and birth
defects or other reproductive harm. For more
information, go to www.P65Warnings.ca.gov

6
Spirit Fitness

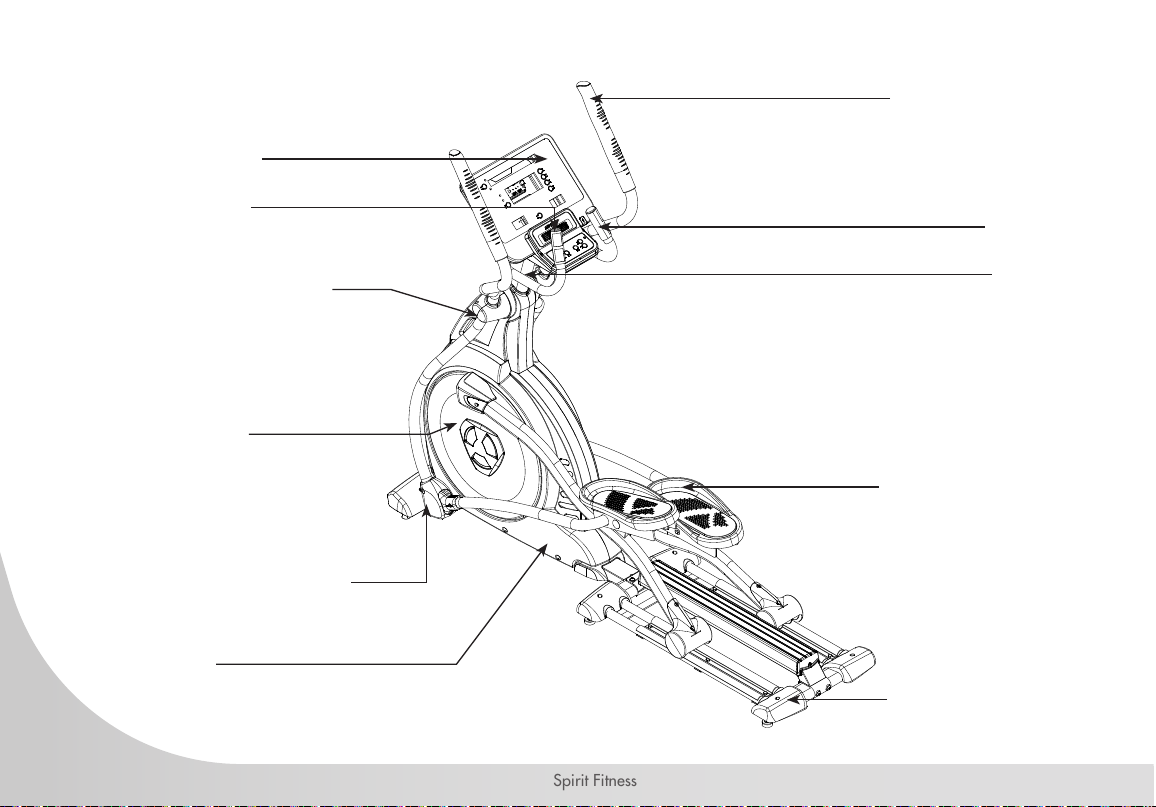

CONSOLE FAN
CONSOLE
FRONT STABILIZER
FLYWHEEL
PEDALS
CONSOLE MAST COVER
MAIN FRAME
PULSE GRIPS
REAR STABILIZER
CONSOLE MAST
SWING ARMS

7
www.spirittness.com
CE800 PRE-ASSEMBLY
UNPACKING
1. Cut the straps, then along the dotted line on the bottom of the box; lift the
box over the unit and unpack.
2. Locate the hardware package. The hardware is separated into four steps.
Remove the tools rst. Remove the hardware for each step as needed to
avoid confusion. The numbers in the instructions that are in parenthesis (#)
are the item number from the assembly drawing for reference.
TOOLS INCLUDED:
12mm Wrench
13/14mm Wrench
17mm Wrench
Combination M6 Allen/Screwdriver
Phillips Screwdriver
M12 Allen Wrench
PARTS INCLUDED:
1 Main Frame
1 Rail Assembly
1 Center Aluminum Rail
1 Console Mast
1 Console Mast Cover
1 Front Stabilizer Cover
2 Swing Arms
2 Connecting Arms
1 Console
2 Foot Pedals
1 Hardware Kit

8
Spirit Fitness

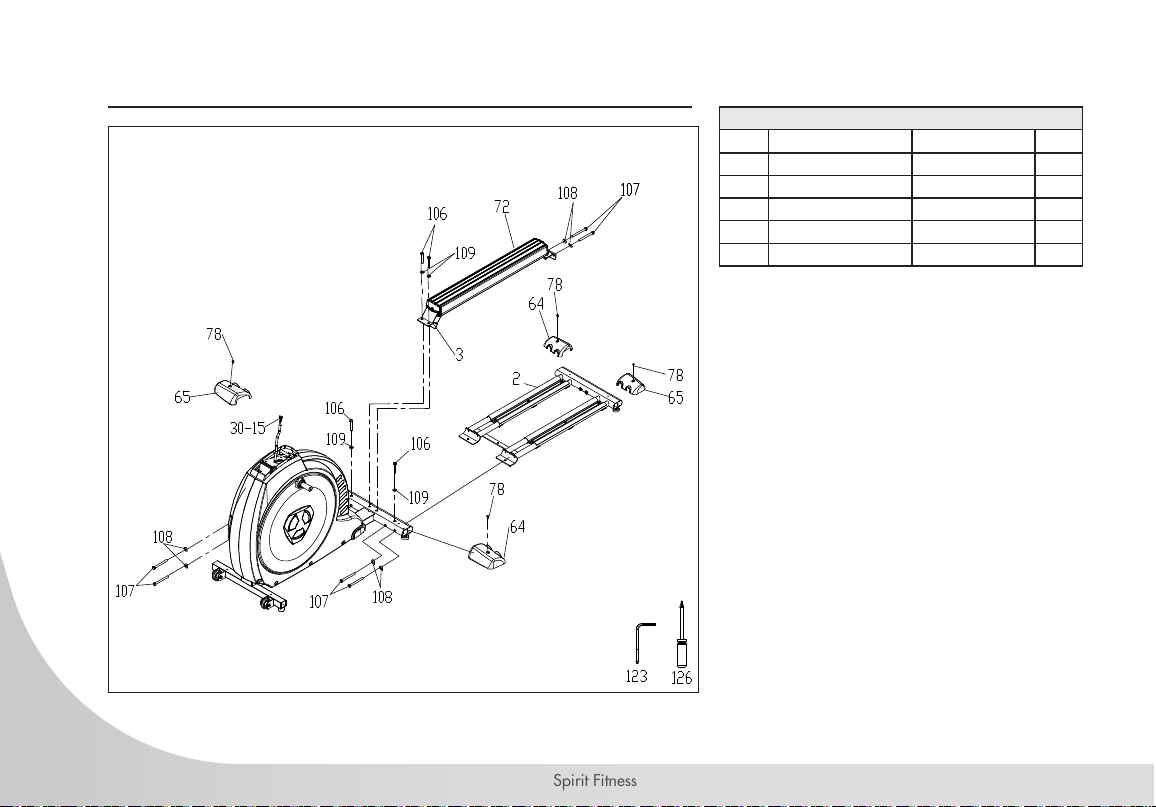

CE800 STEP ONE
HARDWARE FOR STEP 1
PART TYPE DESCRIPTION QTY
78 SCREW M5X12M/M 4
106 BOLT 3/8”X2-1/4” 4
107 BOLT 3/8”X3-3/4” 6
108 CURVED WASHER 3/8” 6
109 FLAT WASHER 3/8” 4
1. Slide the Rail Assembly (No.2) under
the rear oval stabilizer tube of the main
frame. Secure together with 2 Bolts
(No.106) and 2 Flat Washers (No.109)
from the top of the tube and 4 Bolts
(No.107) and 4 Curved Washers
(No.108) from the front of the tube. Make
sure all 6 Bolts are tightened securely.
2. Install the Center Aluminum Rail (No.72)
with 2 Bolts (No.107) and 2 Curved
Washers (No.108) at the rear and 2 Bolts
(No.106) and 2 Flat Washers (No.109)
at the front.
3. Install the 2 Tube Stabilizer Covers
(No.64 L & 65 R) with 2 Screws (No.78)
to the middle Stabilizer Tube and the 2
Stabilizer Covers (No.64 L & 65 R) with
2 Screws (No.78) to the rear stabilizer
tube.

9
www.spirittness.com

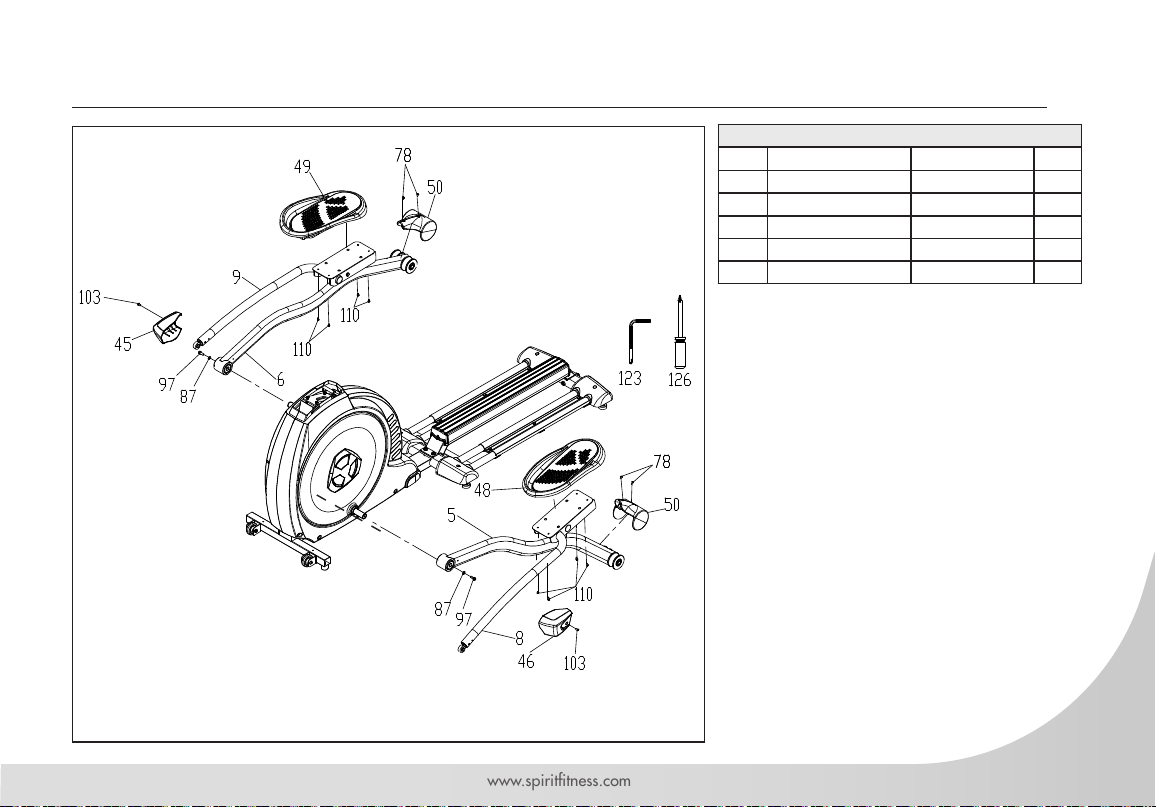

CE800 STEP TWO
HARDWARE FOR STEP 2
PART TYPE DESCRIPTION QTY
78 SCREW M5X12MM 4
87 FLAT WASHER 5/16” 2
97 BOLT 5/16”X15MM 2
103 SCREW M6X15MM 2
110 SCREW M5X10MM 8
1. Attach Footplates (No. L 48) to the
pedal mounting plate with 4 Screws
(No.110).
2. Slide the Pedal Arm Assembly (No.5)
onto the crank axle of the main body.
Be careful not to force it because
damage to the bearings can occur.
Secure with a Bolt (No.97) and Flat
Washer (No.87).
3. Install the Cover (No.46) over the pedal
arm connection at the rotation axle with
a Screw (No.103).
4. Install the Roller Wheel Cover (No.50)
with 2 Screws (No.78).
5. Repeat all steps with the opposite Pedal
Arm Assembly (No.6).

10
Spirit Fitness
CE800 STEP THREE
HARDWARE FOR STEP 3
PART TYPE DESCRIPTION QTY
75 SCREW M8X25MM 4
88 FLAT WASHER 5/16” 1
148 WASHER 25MM 2
113 SCREW 3.5X12MM 4
117 BOLT 3/8”X3/4” 2
118 NUT M10 2
119 BOLT M10 X 28MM 2
120 WASHER 3/8” 2
1. Mount the Console Mast Covers (No. 61L & 62R)
with 4 Screws (No.113).
2. Install 2 Wave Washers (No.148) onto the Console
Mast Axle then install the Swing Arms (No.10L &11R)
onto the axles. Do not force them or use a hammer
as damage to the bearings can occur. Secure with a
Bolt (No.117) and Washer (No.120) on each arm.
3. Attach the bottom of the swing arms to the rod ends
of the pedal arms using 2 Shoulder Bolts (No.119)
and 2 Nylon Nuts (No.118).

11
www.spirittness.com

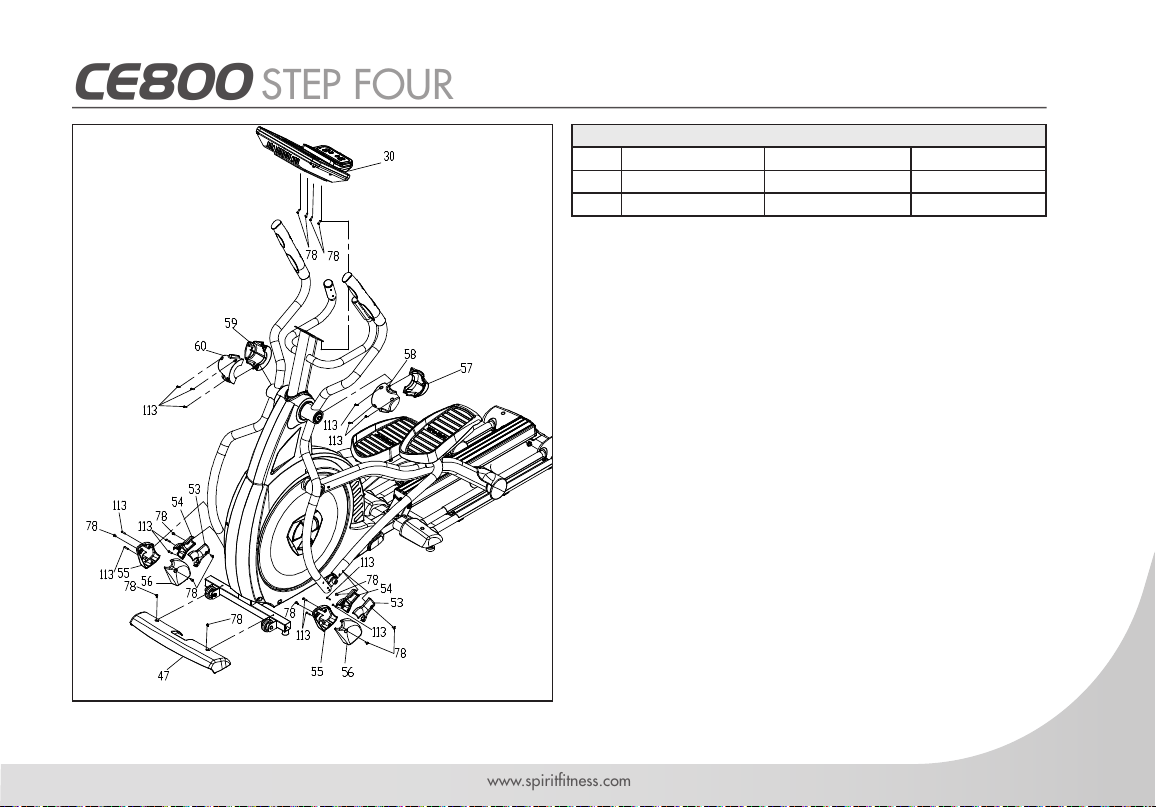

CE800 STEP FOUR
HARDWARE FOR STEP 4
PART TYPE DESCRIPTION QTY
78 SCREW M5X12MM 14
113 SCREW 3.5MMX12MM 14
1. Plug the Computer Cable (No.30-15) and Heart Rate
Cables (No.35x2) into the corresponding connectors
on the back of the Console (No.30). Mount the
Console (No.30) to the Mast with 4 Screws (78).
2. Install 4 Swing Arm Covers (No.57/58L & 59/60R)
with 6 Screws (No.113).
3. Install 4 Covers (No.53x2 & 54x2) to the end of
the Right Pedal Arm with 4 Screws (No.78) and
4 Screws (No.113). Be careful not to install these
covers upside down! There is an arrow on the inside
of each cover to indicate the correct installation
direction.
4. Install the 4 Covers (No.55x2 & 56x2) to the
connection point at the bottom of the Left Pedal Arm
using 4 Screws (No.113) and 4 Screws (No.78).
5. Install the Front Stabilizer Cover (No.47) with 2
Screws (No.78).

12
Spirit Fitness
CE800 CONSOLE OPERATION

13
www.spirittness.com
Fan
Scan Button for
LED Windows
Scan Button for
Dot Matrix
Dot Matrix
Message Center
Start, Stop, Level
Controls
Up, Down,
Program Controls
LED Data Display
Windows
USB
Charger

14
Spirit Fitness
POWER
Spirit Fitness commercial elliptical trainers have a built-in generator for power and do not need to be
plugged into an AC outlet. To power up the elliptical trainer simply start to pedal, the console will turn
on automatically.
When initially powered on, the console will perform an internal self-test. During this time the display may
not light up for a few seconds. Continue pedaling and the display will light up. Once powered on, the Dot
Matrix Message Center will be scrolling the start-up message. You may now begin your workout program.

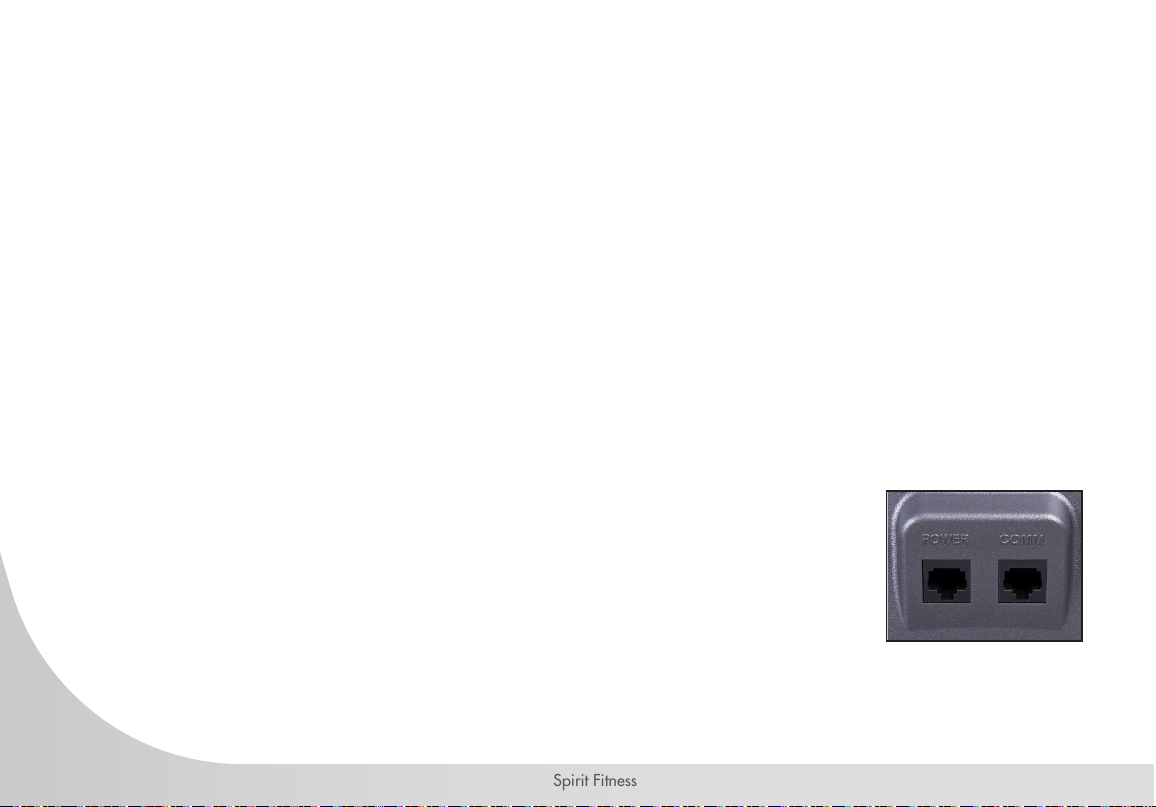

CSAFE FEATURE
Your console is equipped with a CSAFE feature. The Power (POWER) port can be used for powering a re-
mote controlled audio-visual system by connecting a cable from the remote to the Power port at the back of
the console. The Communication port (COMM) can be used to interact with tness software applications.

15
www.spirittness.com
QUICK START
This is the quickest way to start a workout. After the console powers up you just press the Start button to begin.
This will initiate the Quick Start mode. In Quick Start the Time will count up from zero, all workout data will
start to accrue and the workload may be adjusted manually by pressing the Level Up and Down buttons. The
Dot Matrix Message Center display will show just the bottom row lit. As you increase the workload more rows
will light indicating a harder workout. The elliptical trainer will get harder to pedal as the rows increase. The
Dot Matrix Message Center has 24 columns of lights and each column represents 1 minute. At the end of the
24th column (or 24 minutes of work) the display will wrap around and start at the rst column again.
There are 40 levels of resistance – displayed as 10 rows of lights - available for plenty of variety. The rst 10
levels are very easy workloads, and the changes between levels are set to a good progression for
de-conditioned users. Levels 10-20 are more challenging but the increases from one level to the next remain
small. Levels 20-30 start getting tough as the levels jump more dramatically. Levels 30-40 are extremely hard
and are good for short interval peaks and elite athletic training.
BASIC INFORMATION
The Dot Matrix Message Center, or Prole Window, will display the workout Prole. The LED Data Display
Windows display pertinent exercise data. There is a RPM window for pedal speed and a Level window
indicating machine resistance.
The LED Data Display Window will initially be displaying Distance, Calories, Pulse, and Time Elapsed
information. When the Up/Down Scan button is pressed the next set of information will appear: Speed,
Watts, METs, Time Remaining. Pressing the Up/Down Scan button, the Scan mode is activated and the LED
Data Display Window will show each set of data for four seconds then switch to the next set of data in a
continuous loop. Pressing the Up/Down Scan button again will bring you back to the beginning.

16
Spirit Fitness
The Stop/Reset button actually has several functions. Pressing the Stop button once during a program will
pause the program for 5 minutes. If you need to get a drink, answer the phone, or any of the many things
that could interrupt your workout, this is a great feature. To resume your workout during Pause just press the
Start button. If the Stop button is pressed twice during a workout, the program will end and the console
will return to the start-up screen. If the Stop button is held down for 3 seconds, the console will perform a
complete Reset. During data entry for a program the Stop performs a Previous Screen function. This allows
you to go back one step in the programming each time you press the Stop button.
The Program button is used to preview each program. When you rst turn the console on, you may press
program key to preview what the program prole looks like. If you decide that you want to try a program,
press the Enter key to select the program and enter into the data set-up mode.
1/4 MILE TRACK
The 1/4-mile track (0.4 km) will be displayed around the dot matrix window. The ashing dot indicates your
progress. In the center of the track there is a lap counter for reference.
HEART RATE WINDOW
The Pulse (Heart Rate) window will display your current heart rate in beats per minute during the workout.
You must use both left and right stainless steel sensors to pick up your pulse. Pulse values are displayed
anytime the computer is receiving a Grip Pulse signal. You may use the Grip Pulse feature while in Heart
Rate Control. The CE800 will also pick up wireless heart rate transmitters that are Polar compatible,
including coded transmissions.

17
www.spirittness.com
PROGRAMMABLE FEATURES
Each of the programs can be customized with your personal information and changed to suit your needs.
Some of the information asked for is necessary to ensure the readouts are correct. You will be asked for your
Age and Weight. Your Age is necessary during the Heart Rate control program to ensure the correct settings
are in the program for your Age. Otherwise the work settings could be too high or low for you; entering your
Weight aides in calculating a more correct Calorie reading. Although we cannot provide an exact calorie
count we do want to be as close as possible.
CALORIE NOTE: Calorie readings on every piece of exercise equipment, whether it is in a gym or at home,
are not accurate and tend to vary widely. They are meant only as a guide to monitor your progress from
workout to workout. The only way to measure your calorie burn accurately is in a clinical setting connected
to a host of machines. This is because every person is different and burns calories at a different rate. Some
good news is that you will continue to burn calories at an accelerated rate for at least an hour after you have
nished exercising!

18
Spirit Fitness
ENTERING A PROGRAM & CHANGING SETTINGS
When you enter a program you have the option of entering your own personal settings. If you want to
workout without entering new settings then just press the Start button. This will bypass the programming
of data and take you directly to the start of your workout. If you want to change the personal settings then
just follow the instructions in the Dot Matrix Message Center. If you start a program without changing the
settings the default – or pre-saved – settings will be used.
MANUAL
The Manual program works as the name implies, manually. This means that you control the workload
yourself and not the computer. To start the Manual program follow the instructions below.
1. Using the Program button choose Manual then press the Enter button.
2. The Dot Matrix Message Center will ask you to enter your Age. You may enter your Age, using the Up and Down
buttons, then press the Enter button to accept the new number and proceed on to the next screen.
3. You are now asked to enter your Weight. You may adjust the Weight number using the Up and Down buttons,
then press enter to continue.
4. The next setting is Time. You may adjust the Time and press Enter to continue.
5. Now you are nished editing the settings and can begin your workout by pressing the Start button. You can also
go back and modify your settings by pressing the Enter button.
NOTE: At any time during the editing of data you can press the Stop button to go back one level, or screen.
6. The program automatically starts you at level one. This is the easiest level and it is a good idea to stay at level
one for a while to warm up. If you want to increase the work load at any time press the Level Up button; the Level
Down button will decrease the workload.
7. When the program ends you may press Start to begin the same program again or Stop to exit the program.
