Spirit Commercial CE900 User manual

CE900 ELLIPTICAL TRAINER
OWNER’S MANUAL

Spirit Fitness

www.spirittness.com

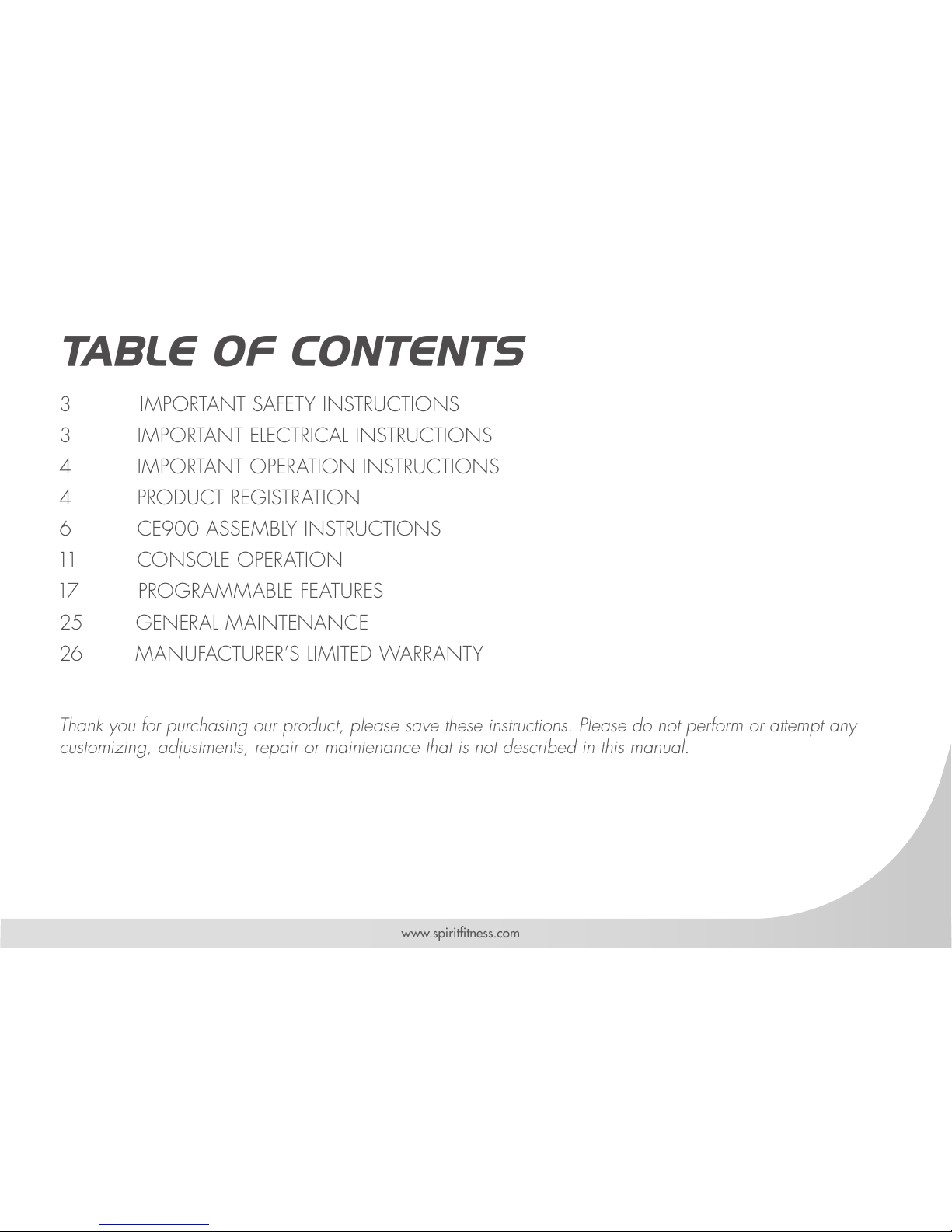

TABLE OF CONTENTS
3 IMPORTANT SAFETY INSTRUCTIONS
3 IMPORTANT ELECTRICAL INSTRUCTIONS
4 IMPORTANT OPERATION INSTRUCTIONS
4 PRODUCT REGISTRATION
6 CE900 ASSEMBLY INSTRUCTIONS
11 CONSOLE OPERATION
17 PROGRAMMABLE FEATURES
25 GENERAL MAINTENANCE
26 MANUFACTURER’S LIMITED WARRANTY
Thank you for purchasing our product, please save these instructions. Please do not perform or attempt any
customizing, adjustments, repair or maintenance that is not described in this manual.

2
Spirit Fitness
Congratulations on your new elliptical trainer and welcome to the Spirit Fitness family!
Thank you for your purchase of this quality elliptical trainer from Spirit Fitness. Your new elliptical
trainer was manufactured by one of the leading tness manufacturers in the world and is backed by
one of the most comprehensive warranties available. Through your dealer, Spirit Fitness will do all
we can to make your ownership experience as pleasant as possible for many years to come. If not
purchased direct from Spirit Fitness, the local dealership where you purchased this elliptical trainer is
your administrator for all Spirit Fitness warranty and service needs. Their responsibility is to provide
you with the technical knowledge and service personnel to make your experience more informed and
any difculties easier to remedy.
Please take a moment at this time to record the name of the dealer, their telephone number, and the
date of purchase below to make any future, needed contact easy. We appreciate your support and we
will always remember that you are the reason that we are in business.
Yours in Health,
Spirit Fitness
NAME OF DEALER _____________________________________
DEALER PHONE # _____________________________________
PURCHASE DATE _____________________________________

3
www.spirittness.com
IMPORTANT SAFETY
INSTRUCTIONS
WARNING
• Before beginning this or any exercise program,
consult a physician. This is especially important for
persons over the age of 35 or persons with pre-
existing health conditions.
• Keep children away from the elliptical trainer. There
are obvious pinch points and other caution areas
that can cause harm.
• Keep hands away from all moving parts.
• Never drop or insert any object into any openings.
• Do not use outdoors.
• Do not attempt to use your elliptical trainer for any
purpose other than for the purpose it is intended.
• The hand pulse sensors are not medical devices.
Various factors, including the user’s movement, may
affect the accuracy of heart rate readings. The
pulse sensors are intended only as exercise aids in
determining heart rate trends in general.
• Wear proper shoes. High heels, dress shoes,
sandals or bare feet are not suitable for use on your
elliptical. Quality athletic shoes are recommended to
avoid leg fatigue.
• Maximum User Weight: 450 lbs,
• This appliance is not intended for use by persons with
reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have
been given supervision or instruction concerning use of
the appliance by a person responsible for their safety.
• Keep children under the age of 13 away from
this machine.
SAVE THESE INSTRUCTIONS - THINK SAFETY!
IMPORTANT ELECTRICAL
INSTRUCTIONS
WARNING
Be aware that the generator is producing AC power
while the elliptical trainer is being used. Do not
service the elliptical trainer while the generator is
spinning; serious electric shock could occur.
NEVER expose this elliptical trainer to rain or moisture.
This product is NOT designed for use outdoors,
near a pool or spa, or in any other high humidity

4
Spirit Fitness
environment. The operating temperature specication is 40 to 120 degrees Fahrenheit, and humidity is 95%
non-condensing (no water drops forming on surfaces).
IMPORTANT OPERATION INSTRUCTIONS
• NEVER operate this elliptical trainer without reading and completely understanding the results of any operational
change you request from the computer console.
• Understand that changes in resistance do not occur immediately. Set your desired resistance level on the computer
console and release the adjustment button. The computer will obey the command gradually.
• Use caution while participating in other activities while pedaling on your elliptical trainer; such as watching
television, reading, etc. These distractions may cause you to lose balance which
may result in serious injury.
• Do not use excessive pressure on console control buttons. They are precision set to function properly with little
nger pressure.
WARNING:
This product may contain a chemical known to the state of California to cause cancer, birth defects, or
other reproductive harm.

5
www.spirittness.com
RECORD YOUR SERIAL NUMBER
Please record the serial number of this tness product in the space provided below. The serial number is
located on the front of the elliptical trainer.
SERIAL NUMBER:
REGISTER YOUR PURCHASE
The self-addressed product registration card must be completed in full and returned to Spirit Fitness. You can
also go to www.spirittness.com/commercialwarrantyregistration.html under the Support tab to register online.

6
Spirit Fitness
CE900 PRE-ASSEMBLY
TOOLS INCLUDED:
17mm Wrench (2)
Phillips Screwdriver
5mm Allen Wrench
6mm Allen Wrench
8mm Allen Wrench
PARTS INCLUDED:
1 Main Frame
1 Console
1 Console Mast
1 Center Handle Bar
2 Side Handle Bars
1 Handle Bar Bracket
1 Cup Holder
2 Console Mast Covers
2 Console Bracket Covers
1 Hardware Kit
2 Swing Arm Hinge
Covers
UNPACKING
1. Cut the straps, then along the dotted line on the bottom of the box; lift the box over
the unit and unpack.
2. Locate the hardware package. The hardware is separated into four steps. Remove
the tools rst. Remove the hardware for each step as needed to avoid confusion.
The numbers in the instructions that are in parenthesis (#) are the item number from
the assembly drawing for reference.

7
www.spirittness.com
CE900 STEP ONE
HARDWARE FOR STEP 1
PART TYPE DESCRIPTION QTY
46 SELF-TAPPING SCREW 3.5X12L 2
54 BOLT M10Xp1.5X20L 12
57 LOCK WASHER Ø10XØ16.5X2T 4
58 WASHER Ø4XØ14X1.0T 2
65 WASHER Ø10.2XØ19X1.5T 4
1. Unwind wiring harness and run wires up through
CONSOLE MAST (9). Bolt CONSOLE MAST (9)
to MAIN FRAME (1) using 4 BOLTS (54), 4 LOCK
WASHERS (57), and 4 WASHERS (65). Do not
pinch wires.
2. Run wires from CENTER HANDLEBARS (11)
through HANDLEBAR BRACKET (10), into
CONSOLE MAST (9) and out the top.
3. Install CENTER HANDLEBARS (11) to
HANDLEBAR BRACKET (10) using 4 BOLTS (52).
4. Install HANDLEBAR BRACKET (10) to CONSOLE
MAST (9) using 4 BOLTS (54).
5. Attach CUP HOLDER (99) to HANDLEBAR
BRACKET (10) using 2 SELF-TAPPING SCREWS
(46) and 2 WASHERS (58).
11
10
9
99

8
Spirit Fitness
CE900 STEP TWO
HARDWARE FOR STEP 2
PART TYPE DESCRIPTION QTY
47 SELF-TAPPING SCREW 5X16L 2
49 SCREW M5X12L 6
78 U-NUT M5 2
1. Install 2 U-NUTS (78) to LEFT CONSOLE MAST
COVER (100).
2. Attach CONSOLE MAST COVERS (100 & 101) to
MAIN FRAME (1) using 2 SELF-TAPPING SCREWS
(47). Use 2 SCREWS (49) to connect covers to
each other.
3. Plug in all wires from wiring harness to CONSOLE
(111).
4. Install CONSOLE (111) to CONSOLE MAST (9)
using 4 SCREWS (49). Be careful not to pinch any
wires.
100
101
111
9

9
www.spirittness.com
CE900 STEP THREE
HARDWARE FOR STEP 3
PART TYPE DESCRIPTION QTY
43 BOLT M10X55L 2
44 BOLT M10X60 4
63 WASHER Ø10X25X1.5T 10
68 CURVED WASHER Ø10XØ23X1.5T 2
71 NUT M10X8T 6
1. Install LEFT SIDE HANDLEBAR (2) to SWING ARM
(12).
a) First install 2 longer BOLTS (44) with a WASHER
(63) on both sides of SWING ARM (12) and a
NUT (71). Do not tighten yet.
b) Then install 1 SHORTER BOLT (43) with a
WASHER (63) through the SWING ARM (12)
and CROSSTRAINING HANDLEBAR (2), using
a CURVED WASHER (68) and a NUT (71) on
the back side.
c) Tighten after all hardware is installed.
2. Repeat process for RIGHT SIDE HANDLEBAR (3).
2
3

10
Spirit Fitness
CE900 STEP FOUR
HARDWARE FOR STEP 4
PART TYPE DESCRIPTION QTY
46 SELF-TAPPING SCREW 3.5X12L 2
49 SCREW M5X12L 6

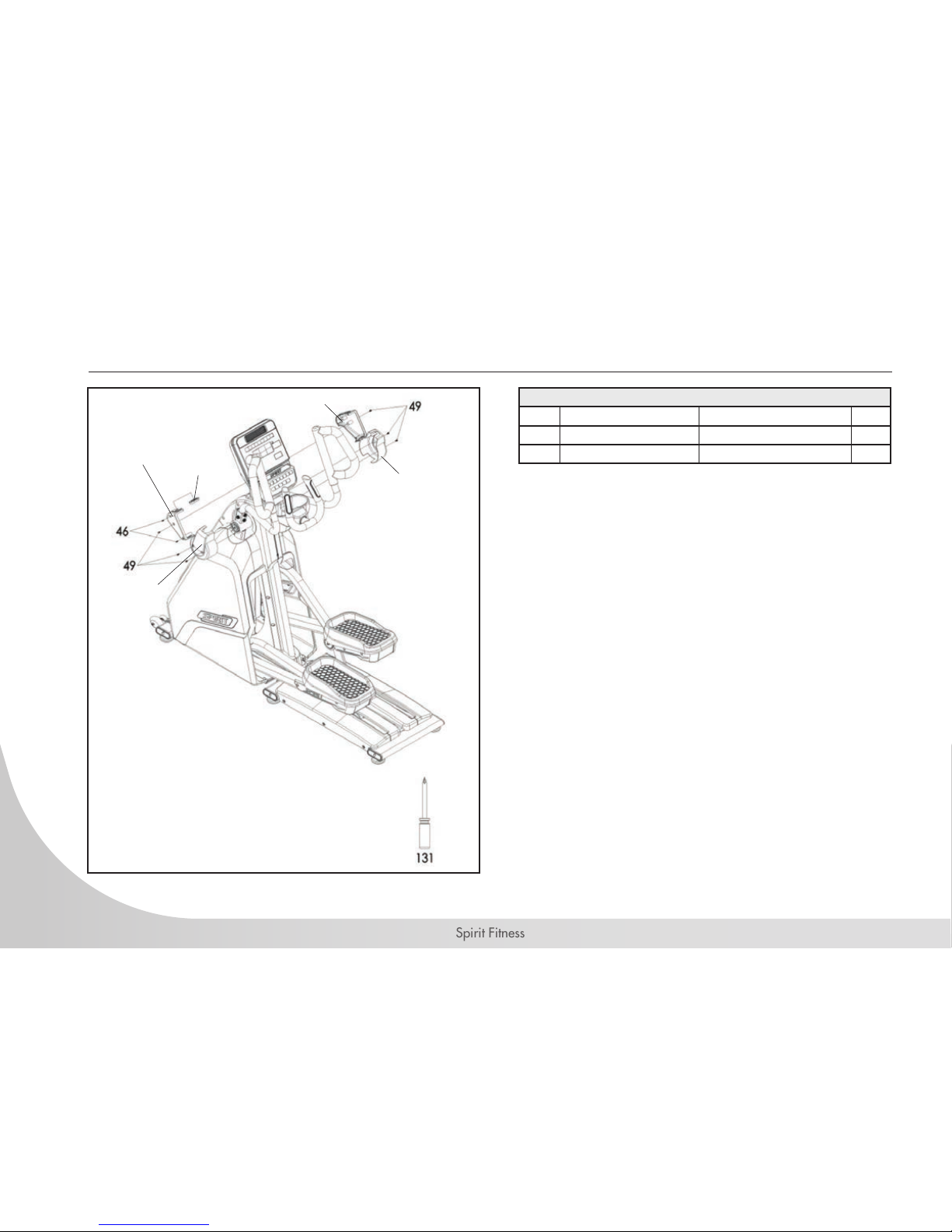

1. Attach CONSOLE BRACKET COVERS (91 & 92)
to CONSOLE MAST (9) using 2 SCREWS (49).
Connect covers together using 2 SELF-TAPPING
SCREWS (46).
2. Attach left SWING ARM HINGE COVER (93) to
SWING ARM (12) using 2 SCREWS (49). Repeat
for right side.
91
93
93
98
92

11
www.spirittness.com
CE900 CONSOLE OPERATION

12
Spirit Fitness

13
www.spirittness.com
POWER
Spirit Fitness commercial elliptical trainers have a built-in generator for power and do not need to be
plugged into an AC outlet. To power up the elliptical trainer simply start to pedal, the console will turn on
automatically.
When initially powered on, the console will perform an internal self-test. During this time the display may
not light up for a few seconds. Continue pedaling and the display will light up. Once powered on, the
Message Window will be scrolling the start-up message. You may now begin your
workout program.
C-SAFE FEATURE

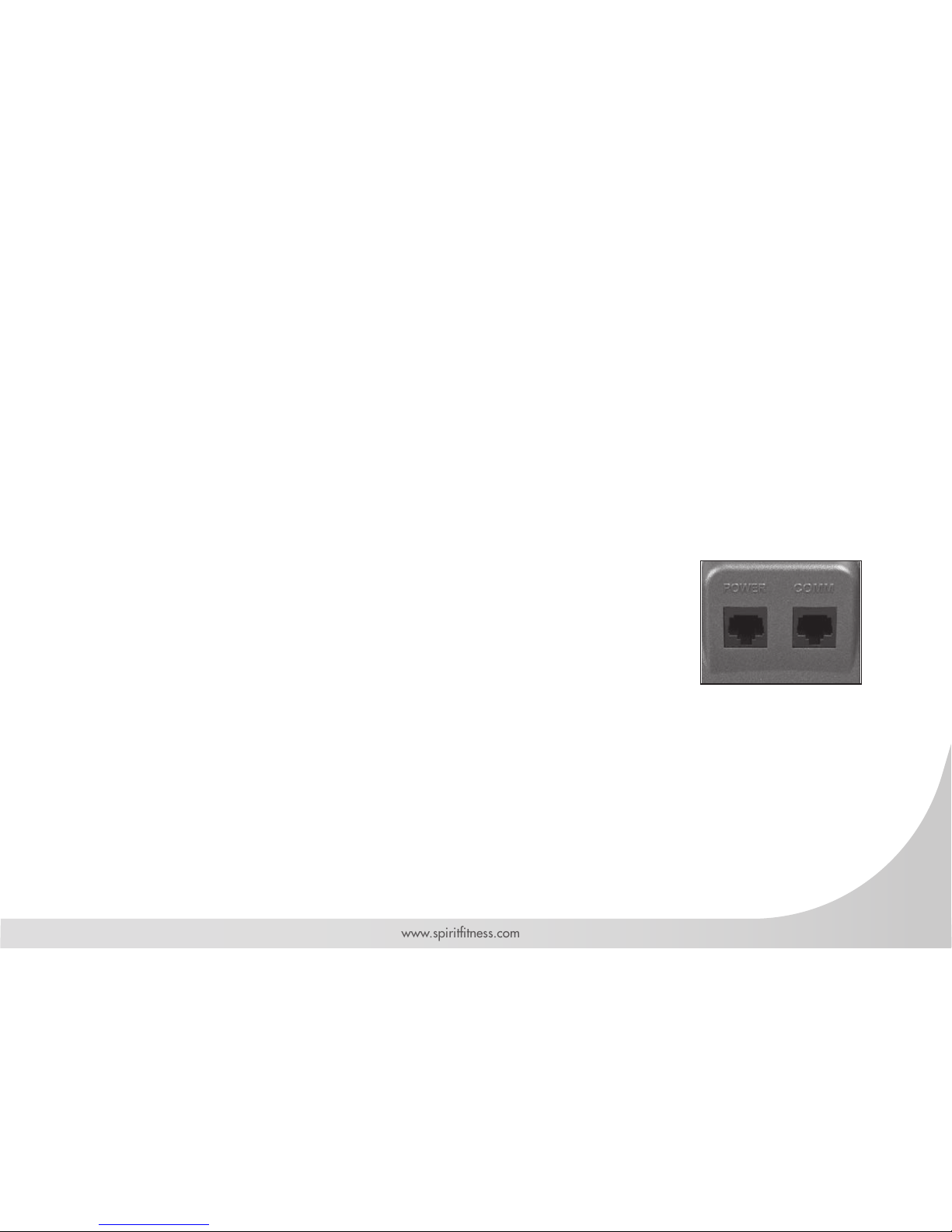

Your console is equipped with a C-SAFE feature. The Power (POWER) port can be
used for powering a remote controlled audio-visual system by connecting a cable
from the remote to the Power port at the back of the console. The Communication
port (COMM) can be used to interact with tness software applications.

14
Spirit Fitness
QUICK START
This is the quickest way to start a workout. After the console powers up you just press the Start button
to begin. This will initiate the Quick Start mode. In Quick Start the Time will count up from zero, all
workout data will start to accrue and the workload may be adjusted manually by pressing the Up and
Down buttons. The dot matrix display will show just the bottom row lit. As you increase the workload
more rows will light indicating a harder workout. The elliptical trainer will get harder to pedal as the
rows increase. The dot matrix has 24 columns of lights and each column represents 1 minute. At the
end of the 24th column (or 24 minutes of work) the display will wrap around and start at the rst
column again.
There are 40 levels of resistance – displayed as 10 rows of lights – available for plenty of variety.
The rst 10 levels are very easy workloads, and the changes between levels are set to a good
progression for de-conditioned users. Levels 10-20 are more challenging but the increases from one
level to the next remain small. Levels 20-30 start getting tough as the levels jump more dramatically.
Levels 30-40 are extremely hard and are good for short interval peaks and elite athletic training.
BASIC INFORMATION

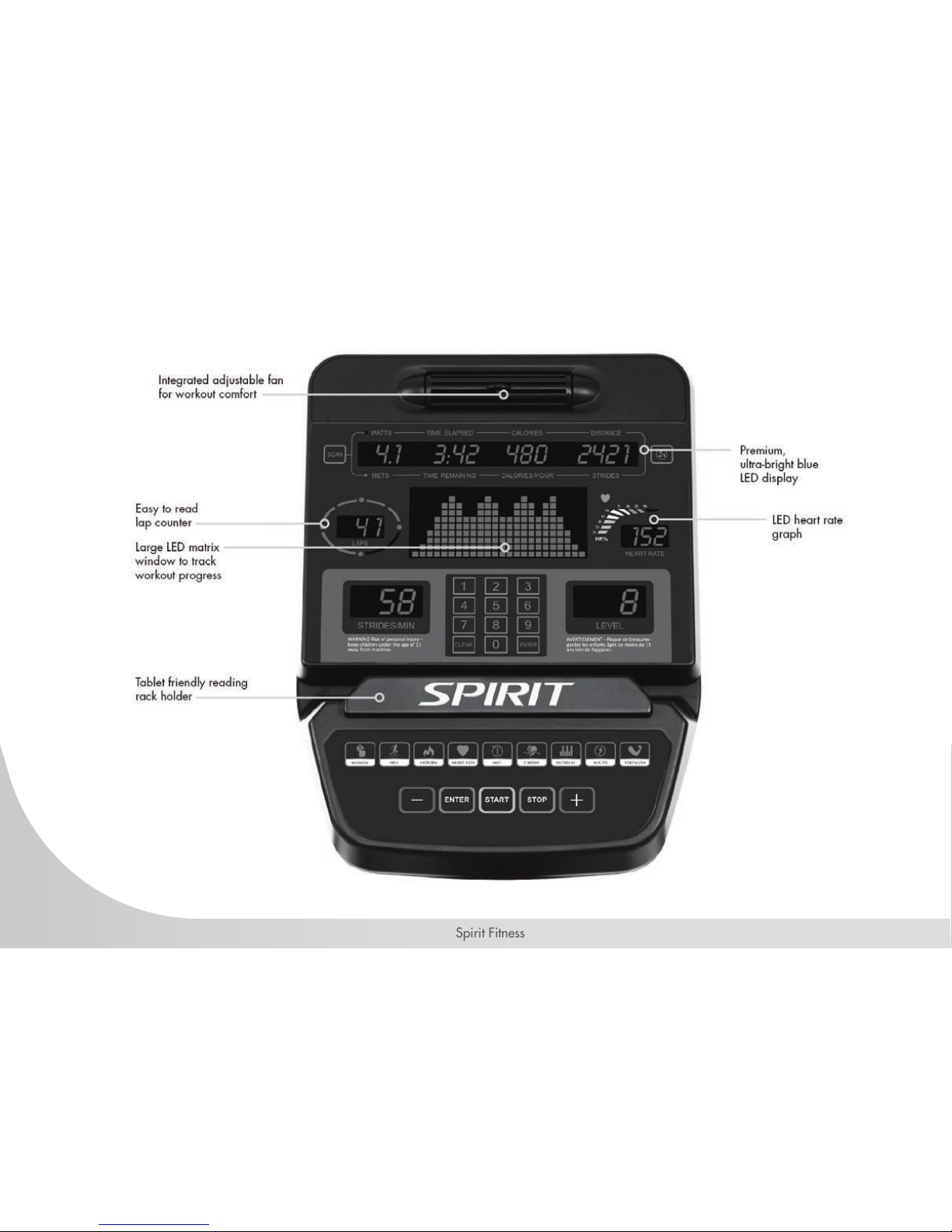

The Dot Matrix, or Prole Window, will display the workout Prole. The Message window displays
pertinent exercise data. There is a Strides Per Minute window for pedal speed and a Level window
indicating machine resistance. A Heart Rate data window and bar graph show how hard you are
working and a lap counter provides distance information.
The Message Window will initially be displaying Watts, Time Elapsed, Calories and Distance
information. On the left of the Message Window is a button labeled Scan. When the Scan button is
pressed the next set of information will appear: METs, Time Remaining, Calories/Hour and Strides

15
www.spirittness.com
(total stride count). Pressing the Scan button, the Scan mode is activated and the Message Window will
show each set of data for four seconds then switch to the next set of data in a continuous loop. Pressing
the Scan button again will bring you back to the beginning.
To the right of the Prole Window is a Heart Icon, Heart Rate number display and a Bar Graph. The
elliptical trainer has a built-in heart rate monitoring system. Simply grasping the hand pulse sensors,
or wearing a heart rate chest belt transmitter, will start the Heart Icon blinking (this may take a few
seconds). The Heart Rate window will display your heart rate, or Pulse, in beats per minute. The Bar
Graph represents the percentage of your maximum heart rate you are currently achieving.
NOTE: You must enter your age during program setup for the Bar Graph to be accurate..

16
Spirit Fitness
The Stop button button actually has several functions. Pressing the Stop button once during a program
will pause the program for 5 minutes (when you stop pedaling without AC power the display will turn
off but the memory will be saved for 5 minutes just like the pause mode). If you need to get a drink,
answer the phone, or any of the many things that could interrupt your workout, this is a great feature.
To resume your workout during Pause just press the Start button or start pedaling. If the Stop button
is pressed twice during a workout, the program will end and the console will return to the start-up
screen. If the Stop button button is held down for 3 seconds, the console will perform a complete
Reset. During data entry for a program the Stop button performs a Previous Screen function. This
allows you to go back one step in the programming each time you press the Stop button button.
The Program Buttons are used to preview each program. When you rst turn the console on, you may
press each program button to preview what the program prole looks like. If you decide that you want
to try a program, press the corresponding program button and then press the Enter button to select the
program and enter into the data set-up mode.

17
www.spirittness.com
NUMBER KEY PAD
When you are in the data set-up mode setting new data such as age, weight etc., you can use these
buttons to enter the numbers quickly.
The console includes a built-in fan to help keep you cool. To turn the fan on, press the button on the upper
right side of the console. This is a 3-speed fan and each time you press the button the airow will increase
accordingly. After the third setting the fan will turn off when the button is pressed again.
PROGRAMMING THE CONSOLE
Each of the programs can be customized with your personal information and changed to suit your needs.
Some of the information asked for is necessary to ensure the readouts are correct. You will be asked for
your Age and Weight. Entering your Age ensures that the Heart Rate bar graph shows the correct number.
Your Age is also necessary during the Heart Rate control program to ensure the correct settings are in the
program for your Age. Otherwise the work settings could be too high or low for you; entering your Weight
aides in calculating a more correct Calorie reading. Although we cannot provide an exact calorie count we
do want to be as close as possible.
CALORIE NOTE: Calorie readings on every piece of exercise equipment, whether it is in a gym or at home,
are not accurate and tend to vary widely. They are meant only as a guide to monitor your progress from
workout to workout. The only way to measure your calorie burn accurately is in a clinical setting connected
to a host of machines. This is because every person is different and burns calories at a different rate. Some
good news is that you will continue to burn calories at an accelerated rate for at least an hour after you
have nished exercising!

18
Spirit Fitness
ENTERING A PROGRAM & CHANGING SETTINGS
When you enter a program (by pressing a program button then Enter button) you have the option of
entering your own personal settings. If you want to work out without entering new settings, then just
press the Start button. This will bypass the programming of data and take you directly to the start
of your workout. If you want to change the personal settings, then just follow the instructions in the
Message Window. If you start a program without changing the settings, the default, or pre-saved
settings will be used.
MANUAL
The Manual program works as the name implies, manually. This means that you control the workload
yourself and not the computer. To start the Manual program, follow the instructions below or just press the
Manual button then the Enter button and follow the directions in the Message Window.
1. Press the Manual button then press the Enter button.
2. The Message Window will ask you to enter your Age. You may enter your Age, using the Up and Down buttons or
the numeric button pad, then press the Enter button to accept the new number and proceed on to the next screen.
3. You are now asked to enter your Weight. You may adjust the Weight number using the Up and Down buttons, or
the numeric button pad, then press enter to continue.
4. The next setting is Time. You may adjust the Time and press enter to continue.
5. Now you are nished editing the settings and can begin your workout by pressing the Start button. You can also
go back and modify your settings by pressing the Enter button. NOTE: At any time during the editing of data you
can press the Stop button to go back one level, or screen.
6. The program automatically starts you at level one. This is the easiest level and it is a good idea to stay at level one
for a while to warm up. If you want to increase the work load at any time press the Up button; the Down button
will decrease the workload.
7. When the program ends you may press Start to begin the same program again or Stop to exit the program.
Table of contents
Other Spirit Commercial Elliptical Trainer manuals
