Spirit CT 800 User manual

Z100 / Z300 Z500 Z700
C
T
8
0
0
!
!!
! T r e a d m i l l
OW N E R ’ S M AN UAL
Please carefully read this entire manual before operating your ! new treadmill "
SPT0061

-1-
Important Safety Instructions……………………………………………………………………… 3
Important Electrical Information…………………………………………………………………… 4
Important Operation Instructions………………………………………………………………….. 5
Assembly instructions………………………………………………………………………………. 6
Operation of Your New Treadmill…………………………………………………………………..11
Programmable Features…………………………………………………………………………….14
Fitness Test…………….…………………………………………………………………………… 15
Target Heart Rate…………………………………………………………………………………... 19
Using a Heart Rate Transmitter…………………………………………………………………… 20
Heart Rate Control Operation……………………………………………………………………... 21
General Maintenance.……………….…………………………………………………………….. 22
Service Checklist - Diagnosis Guide……………………………………………………………... 24
Exploded View Diagram and Parts List………………………………………………..…………..26
Warranty…………………………….………………………………………………..………………30
Table of Contents

-2-
Congratulations on your new treadmill and welcome to the Spirit family!
Thank you for your purchase of this quality treadmill trainer. Your new treadmill was
manufactured by one of the leading fitness manufacturers in the world and is backed by
one of the most comprehensive warranties available.
Please take a moment at this time to record the name of the dealer and the date of
purchase below to make any future, needed contact easy. We appreciate your support
and we will always remember that you are the reason that we are in business.
Yours in Health,
BOYLES FITNESS Equipment Pty Ltd.
Name of Dealer______________________________________
Purchase Date_______________________________________
CT800 / SPT0061_ver. A

-3-
WARNING - Read all instructions before using this appliance.
DANGER - To reduce the risk of electric shock disconnect your SPIRIT treadmill from the
electrical outlet prior to cleaning and/or service work.
WARNING - To reduce the risk of burns, fire, electric shock, or injury to persons, install
the treadmill on a flat level surface with access to a 230-volt AC, 10-amp grounded outlet.
DO NOT USE AN EXTENSION CORD UNLESS IT IS 16AWG OR LARGER, WITH ONLY ONE
OUTLET ON THE END. The treadmill should be the only appliance in the electrical circuit.
DO NOT ATTEMPT TO DISABLE THE GROUNDED PLUG BY USING IMPROPER
ADAPTERS, OR IN ANY WAY MODIFY THE CORD SET. A serious shock or fire hazard may
result along with computer malfunctions.
■Do not operate treadmill on deeply padded, plush or shag carpet. Damage to both carpet and
treadmill may result.
■Do not block the rear of the treadmill. Provide a minimum of 1 meter clearance between the
rear of the treadmill and any fixed object.
■Keep children away from the treadmill. There are obvious pinch points and other caution
areas that can cause harm.
■Keep hands away from all moving parts.
■Never operate the treadmill if it has a damaged cord or plug. If the treadmill is not working
properly, call your dealer.
■Keepthemainscordawayfromheatedsurfaces.
■Donotoperatewhereaerosolsprayproductsarebeing used or where oxygen is being
administered. Sparks from the motor may ignite a highly gaseous environment.
■Neverdroporinsertanyobjectintoanyopenings.
■Donotuseoutdoors.
■Todisconnect,turnallcontrolstotheoffposition, remove tether cord, then remove the
plug from the outlet.
■Donotattempttouseyourtreadmillforanypurpose other than for the purpose it is intended.
■Thepulsesensorsarenotmedicaldevices.Various factors, including the user’s movement,
may affect the accuracy of heart rate readings. The pulse sensors are intended only as
exercise aids in determining heart rate trends in general.
■Usehandrailsprovided;theyareforyoursafety.
■Wearpropershoes.Highheels,dressshoes,sandals or bare feet are not suitable for use on
your treadmill. Quality athletic shoes are recommended to avoid leg fatigue.
Remove tether cord after use to prevent unauthorized treadmill operation. SAVE
THESE INSTRUCTIONS - THINK SAFETY!
Important Safety Instructions

-4-
WARNING!
NEVER use a RCD - Residual Current Device (U.S. ver.= GFCI) - wall outlet with this treadmill.
As with any appliance with a large motor, the RCD/GFCI will trip often. Route the power mains
cord away from any moving part of the treadmill including the elevation mechanism and
transport wheels.
NEVER remove any cover without first disconnecting AC power. If voltage varies by ten percent (10%)
or more, the performance of your treadmill may be affected. Such conditions are not covered
under your warranty. If you suspect the voltage is low, contact your local power company or a
licensed electrician for proper testing.
NEVER expose this treadmill to rain or moisture. This product is NOT designed for use outdoors,
near a pool or spa, or in any other high humidity environment. The temperature specification is 40
degrees c, and humidity is 95%, non-condensing (no water drops forming on surfaces).
Circuit breakers: Some circuit breakers used in homes are not rated for high inrush currents that can
occur when a treadmill is first turned on or even during normal use. If your treadmill is tripping the
circuit breaker (even though it is the proper current rating and the treadmill is the only appliance on
the circuit) but the circuit breaker on the treadmill itself does not trip, you will need to replace the
breaker with a high inrush type. This is not a warranty defect. This is a condition we as a
manufacturer have no ability to control. This part is available through most electrical supply stores.
This product must be grounded. If the treadmill’s electrical system should malfunction or
breakdown grounding provides a path of least resistance for electric current, reducing the risk of
electric shock. This product is equipped with a cord having an equipment-grounding plug. The plug
must be plugged into an appropriate outlet that is properly installed and grounded in accordance
with all local codes and ordinances.
DANGER - Improper connection of the equipment-grounding conductor can result in a risk
of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to
whether the product is properly grounded. Do not modify the plug provided with the
product if it will not fit the outlet; have a proper outlet installed by a qualified electrician.
Important Electrical Information
Grounding Instructions

-5-
● NEVER operate this treadmill without reading and completely understanding the results of any
operational change you request from the computer.
● Understand that changes in speed and incline do not occur immediately. Set your desired
speed on the computer console and release the adjustment key. The computer will obey the
command gradually.
● NEVER use your treadmill during an electrical storm. Surges may occur in your household
power supply that could damage treadmill components.
● Use caution while participating in other activities while walking on your treadmill; such as
watching television, reading, etc. These distractions may cause you to lose balance or stray
from walking in the center of the belt; which may result in serious injury.
● NEVER mount or dismount the treadmill while the belt is moving. SPIRIT treadmills start at a very
low speed and it is unnecessary to straddle the belt during start up. Simply standing on the belt
during slow acceleration is proper after you have learned to operate the unit. Always hold on to a
handrail or hand bar while making control changes (incline, speed, etc.).
● Do not use excessive pressure on console control keys. They are precision set to function
properly with little finger pressure. Pushing harder is not going to make the unit go faster or
slower. If you feel the buttons are not functioning properly with normal pressure or contact
your SPIRIT dealer.
A safety tether cord is provided with this unit. It is a simple magnetic design that should be used
at all times. It is for your safety should you fall or move too far back on the tread-belt.
Pulling this safety tether cord will stop tread-belt movement.
To Use:
1. Place the magnet into position on the console control head. Your treadmill will not start and
operate without this.
2. Fasten the plastic clip onto your clothing securely to assure good holding power. Note: The
magnet has strong enough power to minimize accidental, unexpected stopping. The clip should
be attached securely to make certain it does not come off. Be familiar with its function and
limitations. The treadmill will stop, depending on speed, with a one to two step coast anytime the
magnet is pulled off the console. Use the red Stop / Pause switch in normal operation.
Safety Tether Cord
Important Operation Instructions

-6-
Assembly Pack Check List
Step2
Step3
Step1
#110 - M5 x 10mm
Phillips Head Screw
(2 pcs)
#73 - M5 x 12mm
Phillips Head Screw
(1 pcs)
#112-M5x30mm
Phillips Head Screw
(2 pcs)
#125 - M5
Star Washer (1 pc)
#58 - 3/8"
Split Washer (6 pcs)
#104 – 3/8” x 3-3/4”
Button Head Socket Bolt (6 pcs)
#73 – M5 x 12mm
Phillips Head Screw (4 pcs)
#59 - 3/8"
Flat Washer (6 pcs)
#58-3/8"
Split Washer (6 pcs)
#59-3/8"
Flat Washer (6 pcs)
#105–3/8”x3/4”
Button Head Socket Bolt (6 pcs)
#108–M8x12mm
Socket Cap Bolt (6 pcs)

-7-

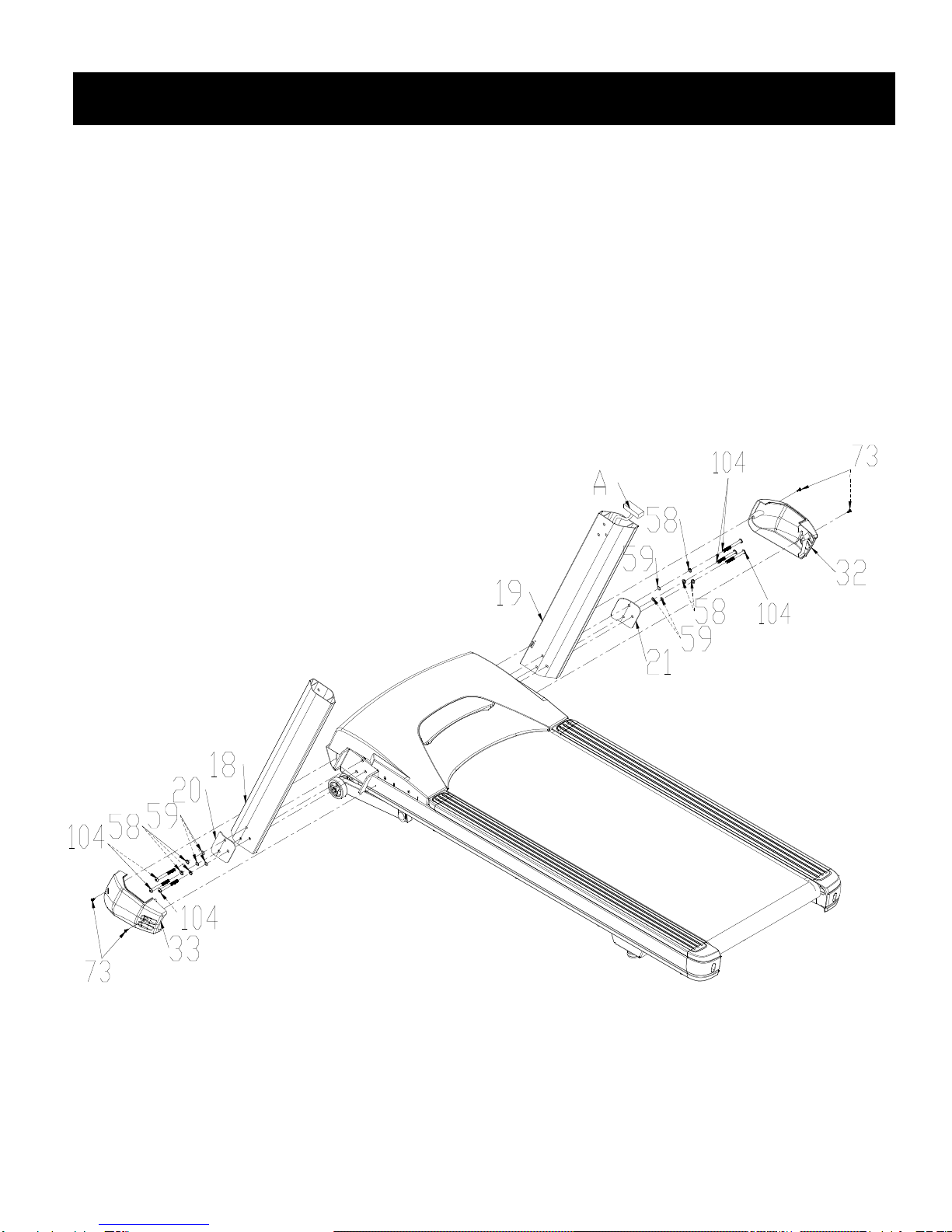

Step 1: Upright Tubes
•Therightsideuprighttube(19)hasthecomputercable (A)(87) pre-installed. Lift the tube off
the walking surface and attach it to the base frame. You need to gently pull on the computer
cable as you line up the upright tube, taking the slack out, so the cable does not get pinched
between the tube and the base frame. Assemble one 3/8” x 3-3/4” bolt (104), 3/8” split
washer (58) and 3/8” flat washer (59) through the top hole in the retaining plate (21), and
corresponding top hole in the upright tube, and screw into the base frame. Now install the
other two bolts (104) and washers (58 & 59) and tighten all three securely.
•Installtheleftupright(18)inthesamemanner.
•Installthelowersidecaps(32&33)withfourM5x 12mm screws (73).
Assembly Instructions

-8-
Step 2: Console Assembly
•Connecttogetherthematingcomputercables(G(86)& C(120)), hand pulse cables (D(122)
& F(88), right and B(28) & E(88), Left) and attach the ground cable (H)(121) to the hole (I) in
the steel frame with a M5 x 12 mm screw (73) and a M5 star washer (125) .
•Mounttheconsole(36)tothehandlebarframe(5)with two M5 x 30mm screws (112) and
two M5 x 10mm screws (110).

-9-
IMPORTANT ASSEMBLY INSTRUCTION

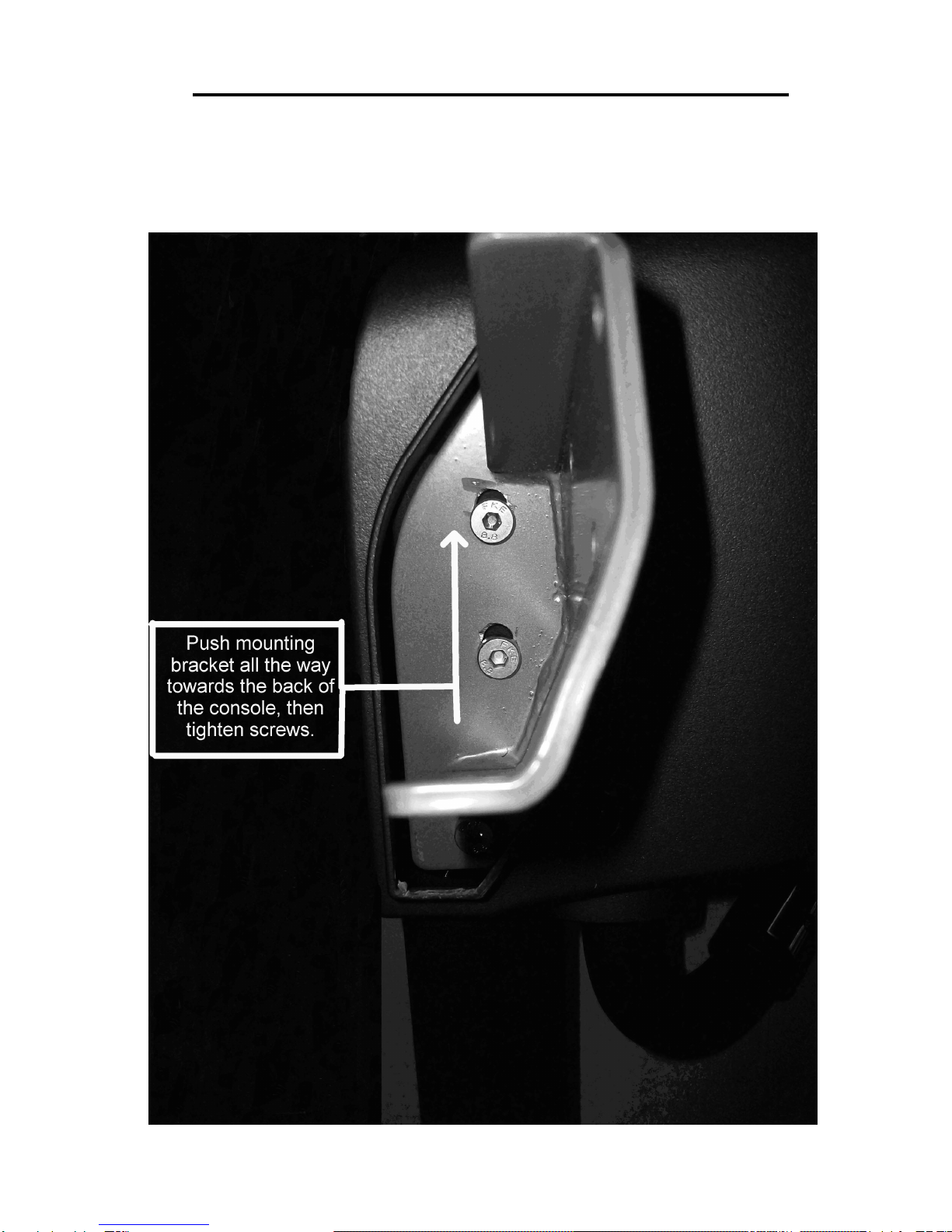

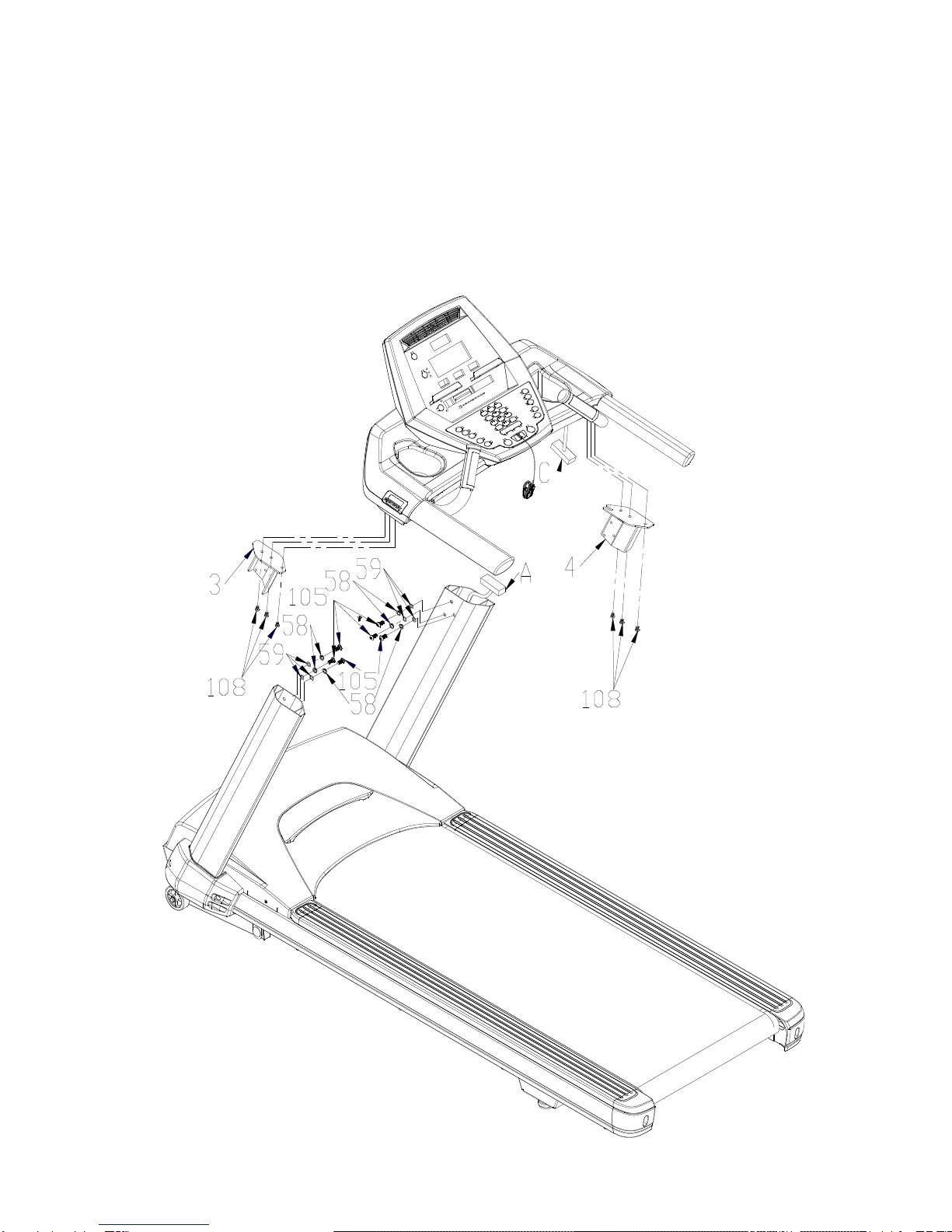

When assembling the console mounting interface brackets (Items 3&4) please be
sure to slide the brackets all the way towards the back of the console before
tightening the bolts.
