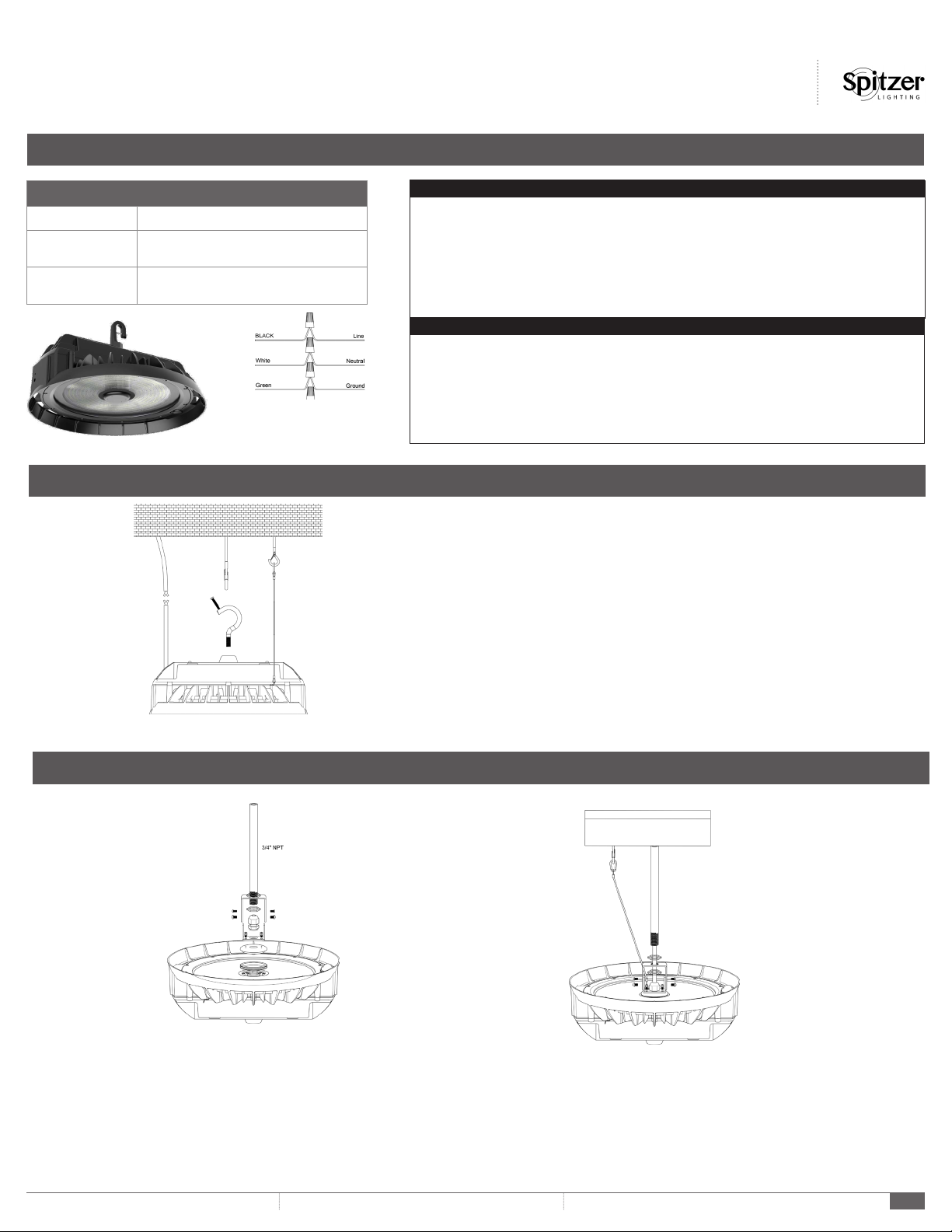

HIGH BAY SERIES
HIGH PERFORMANCE ROUND HIGH BAY
INSTALLATION MANUAL
SAFETY INFORMATION
BE SURE THE POWER IS OFF! RISK OF ELECTRICAL SHOCK: Always use the switch to power off. Do not perform any operations while
this unit is powered on. The electrical system you want to connect the device to must be grounded. Read the instructions before using
or powering this device. The safety instructions must remain with the unit in case of transfer. Any damage to the device linked to an
inappropriate use is excluded from support by the warranty. Before connecting, make sure that the current and voltage are compatible
with this device. We highly recommend that all installations are made by QUALIFIED ELECTRICIAN. We are NOT responsible by any
means for the use or misuse of the following information. We are NOT responsible in whole or part for any harm or damage that may
or may not be caused. We reserve the right to revise the components of any product, due to part availability or change ETL, CUL, UL
standards without assuming any obligation or liability to modify any products previously manufactured and without notice. These
instructions do not cover all details of variations in equipment, nor do they provide every possible contingency to be met. Turn off /
unplug power when installing or service device.
PRE - INSTALLATION
•Carefully remove the fixture from the carton.
•Before beginning assembly, installation, or operation of product, make sure all parts are present. Compare parts with package contents
list and diagram on previous page. If any part is missing or damaged, do not attempt to assemble, install or operate the product.
Contact customer service for replacement parts.
•Tools required for assembly (Not Included): screwdriver, phillips screwdriver, pliers, electrical tape, wire cutters, safety glasses, ladder,
wire stripper.
HOOK MOUNT INSTALLATION (Caution: Before beginning installation turn off the circuit breaker and light switch)
INDIRECT 3/4” STEM PENDANT INSTALLATION (Caution: Before beginning installation turn off the circuit breaker and light switch)
PRODUCT PARAMETER
INPUT VOLTAGE 120 - 277V, 347-480V
CONTROL BI- LEVEL MOTION SENSOR WITH DAYLIGHT
HARVESTING
BEAM ANGLE 120° GENERAL DISTRIBUTION / 90° MEDIUM
DISTRIBUTION / 60° NARROW DISTRIBUTION
1. Hook the safety cable
2. Fasten hook and hang to ceiling
3. Connect the Black (Live), White (neutral), and
Green (Ground) wires to the corresponding building
wires. Refer to Diagram.
1. Fasten stem with hex nuts on both side of upper bracket
2. Fixture cable goes through the lower & upper brackets and
all the way through the stem
3. Fasten the lower bracket to the xture and the upper in place
with the provided screws.
4. Hook the safety rope
5.Connect the Black (Live), White (neutral), and
Green (Ground) wires to the corresponding building
wires. Refer to Diagram.
www.spitzerlighting.com 702 Interchange Blvd., Newark, DE 19711 Specication is subject to change without notice 1/2
