Moda Light Moda Mini Cove Interior ELV User manual

MODA MINI COVE®INTERIOR ELV
INSTALLATION
955 White Drive Las Vegas, NV 89119 | T: 702 407 7775
F: 702 407 7773 | www.modalight.com | © 2019
1 / 12
Due to continuous improvements and innovations, specifications may change without notice.
Please refer to our website for current technical data. These figures are provided as a guideline
only and may vary with differing power supplies and installations. All rights reserved. E&OE.
VDC 09/13/2019
1 1/2” (38 MM)
1
DRY/DAMP LOCATION INSTALL
INSTALACIÓN DE LUGARES SECOS/HÚMEDOS
INSTALLATION EMPLACEMENT SEC/HUMIDE
Must be installed by a qualified electrician in accordance with all national and local electrical and construction codes and
regulations by a person familiar with the construction and operation of the product and the hazards involved. Failure to comply
with the following installation instructions will void the warranty and may result in serious injury or possible death. Ensure power
is off before installation, verify electrical plan first and read all installation instructions prior to installation. With the constant
development of our products please check our website (www.modalight.com) for any possible changes to the installation of this
product.
Debe ser instalado por un electricista calificado de acuerdo con todos los códigos y reglamentos eléctricos y de construcción nacionales y locales, por una
persona familiarizada con la construcción y el funcionamiento del producto y los riesgos involucrados. El incumplimiento de las siguientes instrucciones de
instalación anulará la garantía y puede provocar lesiones graves o la muerte. Asegúrese de que la energía esté apagada antes de la instalación, verifique
primero el plan eléctrico y lea todas las instrucciones de instalación antes de instalar. Con el constante desarrollo de nuestros productos, visite nuestro website
(www.modalight.com) para todos posibles cambios en la instalación de este producto.
Doit être installé par un électricien qualifié conformément à tous les codes et réglementations électriques et de construction nationaux et locaux par une
personne connaissant bien la construction et le fonctionnement du produit et les risques encourus. Le non-respect des instructions d’installation suivantes
annulera la garantie et pourrait entraîner des blessures graves ou la mort éventuelle. Assurez-vous que l’alimentation est coupée avant l’installation, vérifiez
d’abord le plan électrique et lisez toutes les instructions d’installation avant l’installation. Avec le développement constant de nos produits s’il vous plaît consulter
notre site web (www.modalight.com) pour toutes les modifications possibles à l’installation de ce produit.
2Verify electrical plan and ensure all hardware is present
Verificar plan electrico y verifique que todo el equipo esté presente
Vérifier le plan électrique et assurer que tout le matériel est présent
Max Continuous Run: See section 15
Continuidad Máxima: Vea sección 15
Run continue Max: Voir la section 15
!
Mounting Bracket can be moved to the left or right of the fixture
El soporte se puede mover hacia la izquierda o hacia la derecha del accesorio
Le support de montage peut être déplacé vers la gauche ou la droite de l’appareil
!
Overall fixture length
with connectors:
6in - 6 27/32” (174.18mm)
1ft - 1’ 15/32” (317.10mm)
4ft - 4’ 1/2” (1.23m)
8ft - 8’ 1/2” (2.45m)
2 11/16” (68.25mm)
7/32” (5.25mm)
3 5/32” (80mm)
Mounting Bracket
(Bottom View)
1/8”
(3.5mm)
1 7/32”
(31mm) 1 1/2” (38mm)
Dimmer
(Optional) Leader Cable
Moda Bridge
(Optional) Jumper Cable Fixture to Fixture
Connection
Terminator

MODA MINI COVE®INTERIOR ELV
INSTALLATION
955 White Drive Las Vegas, NV 89119 | T: 702 407 7775
F: 702 407 7773 | www.modalight.com | © 2019
2 / 12
Due to continuous improvements and innovations, specifications may change without notice.
Please refer to our website for current technical data. These figures are provided as a guideline
only and may vary with differing power supplies and installations. All rights reserved. E&OE.
VDC 09/13/2019
170º Rotation
4
3Mount to surface using the 4 screw holes on the bracket
Monte a superficie utilizando los 4 agujeros para tornillos en el soporte
Mont à la surface en utilisant les 4 trous de vis sur le support
Push down on bracket to rotate to desired angle, then release
Empuje hacia debajo sobre el soporte para rotar al ángulo deseado, y luego suelte
Appuyez sur le support pour le faire pivoter à l’angle souhaité, puis relâchez-le
Bracket is self locking, do not rotate like a conventional bracket. Place on a flat surface and push down
on bracket to release locking mechanism then release once desired position has been reached.
El soporte se autobloquea, no rote como un soporte convencional. Coloque en superficie plana y empuje hacia debajo sobre el soporte para
liberar el mechanismo de bloqueo, luego suelte cuando aya alcanzado la posición deseada.
Support est auto-bloquante , ne tournent pas comme un support classique. Placer sur une surface plane et pousser vers le bas sur le support
pour libérer le mécanisme de verrouillage puis relâcher une fois la position désirée est atteinte.
!
5For a straight run of fixtures, use Moda Mini Cove Interior Mounting Track
Para un tramo recto de los accesorios , utilice la canal de montaje Moda Mini Cove Interior
Pour une course rectiligne de luminaires , utiliser Moda Mini Cove Interior piste de montage

MODA MINI COVE®INTERIOR ELV
INSTALLATION
955 White Drive Las Vegas, NV 89119 | T: 702 407 7775
F: 702 407 7773 | www.modalight.com | © 2019
3 / 12
Due to continuous improvements and innovations, specifications may change without notice.
Please refer to our website for current technical data. These figures are provided as a guideline
only and may vary with differing power supplies and installations. All rights reserved. E&OE.
VDC 09/13/2019
7
6
8
Screw Moda Mini Cove Interior into the mounting track
Atornille Moda Mini Cove Interior al canal de montaje
Vissez Moda Mini Cove Interior dans la voie de montage
!
Use appropriate mounting screws suitable for each surface
Use tornillos de montaje adecuados para cada superficie
Utilisez des vis de montage appropriées pour chaque surface
Tight torque may damage bracket
Mucha torsión puede dañar el soporte
Un couple serré peut endommager le support
!
Wiring
Cablería
Cables
Snap Moda Mini Cove Interior into mounting track then slide to connect fixtures
Encaje Moda Mini Cove Interior en el canal de montaje y luego deslice para conectar accesorios
Accrochez Moda Mini Cove Interior dans la piste puis faites glisser pour connecter les appareils
Ceiling mounted
Instalación en techos
Plafond monté
Minimum end to end spacing is 9/64” (3.5mm)
Espacio minimo de extremo a extremo es 9/64” (3.5mm)
L’espacement minimal entre les extrémités est 9/64” (3.5mm)
UL / cUL Non-dimming UL / cUL ELV Dimming
LEADER CABLE100-277V AC LEADER CABLE100-277V AC
ELV DIMMER
UL/cUL CE/CCC*
Live 100-277V Black Brown
Neutral White Blue
Ground Green Green/Yellow
*Not illustrated

MODA MINI COVE®INTERIOR ELV
INSTALLATION
955 White Drive Las Vegas, NV 89119 | T: 702 407 7775
F: 702 407 7773 | www.modalight.com | © 2019
4 / 12
Due to continuous improvements and innovations, specifications may change without notice.
Please refer to our website for current technical data. These figures are provided as a guideline
only and may vary with differing power supplies and installations. All rights reserved. E&OE.
VDC 09/13/2019

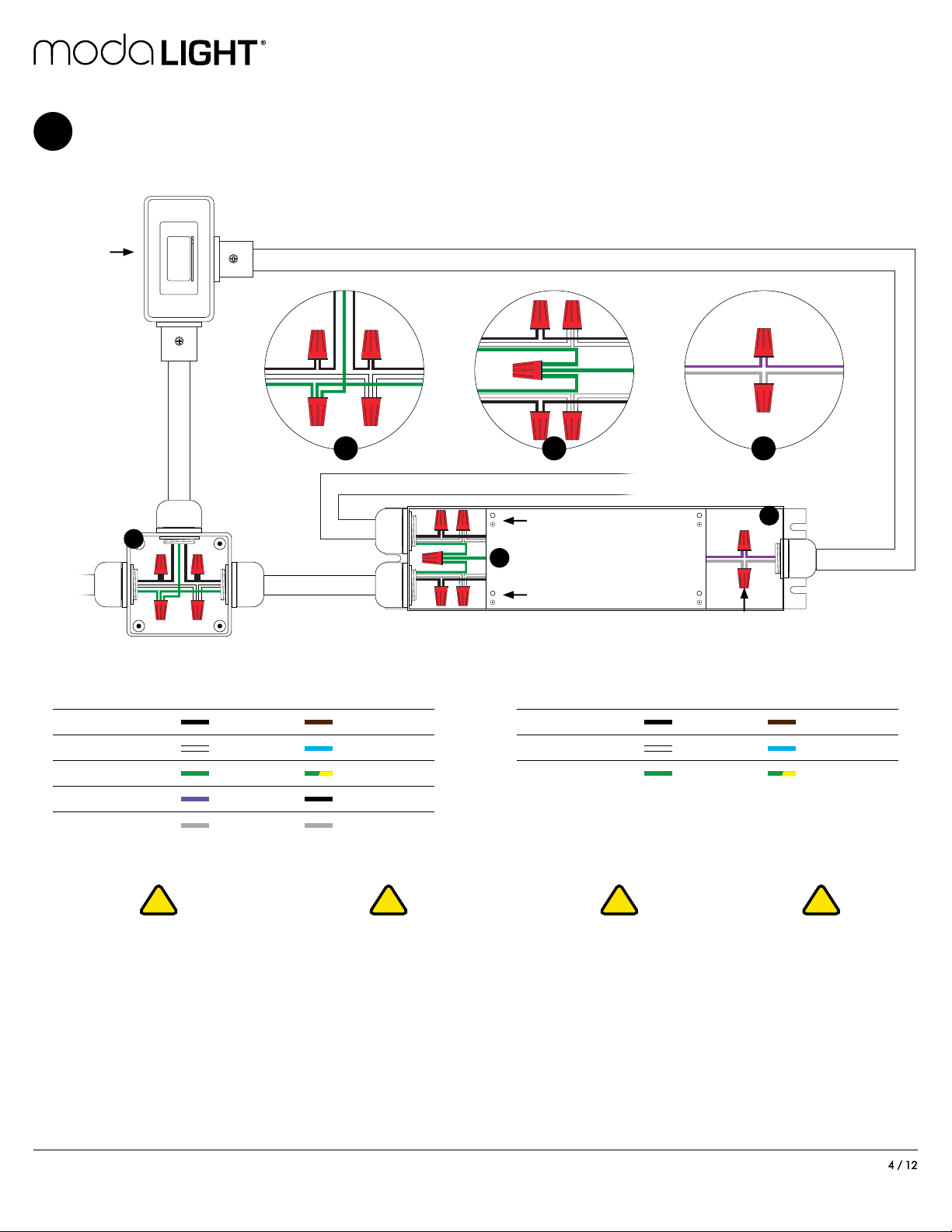

9Wiring Moda Bridge (Optional)
Cablería Moda Bridge (Opcional)
Cables Moda Bridge (Optionnel)
0-10V
Dimmer
100-
277V AC
ELV Output
Input
0-10V Input
A
A B
B
C
C
Output
UL/cUL CE/CCC*
Live 100-277V Black Brown
Neutral White Blue
Ground Green Green/Yellow
*Not illustrated
Input
UL/cUL CE/CCC*
Live 100-277V Black Brown
Neutral White Blue
Ground Green Green/Yellow
0-10V / Data + Purple Black
0-10V / Data - Grey Grey
*Not illustrated
!
IF MODA BRIDGE IS MOUNTED OUTSIDE
USE SUITABLE WET LOCATION WIRE NUTS
Si el MODA Bridge es montado en el exterior, utilize
sujetadores de cables a prueba de liquidos.
Si MODA BRIDGE est monté à l’extérieur, utiliser un
endroit humide approprié
!
AVOID DIRECT SUNLIGHT
Evite la luz solar directa
Évitez la lumière directe du soleil
!
NOT SUITABLE FOR AN IP67 AND IP68
INSTALLATION
No es adecuado para instalación de IP67 y de IP68
Ne convient pas pour l’installation IP67 et IP68
!
MODA BRIDGE NEEDS TO BE MOUNTED AT
LEAST 3 FEET HIGH FROM THE GROUND
Moda Bridge debe de estar montado al menos a 3ft
del suelo
Moda Bridge doit être monté à au moins 3ft du sol

MODA MINI COVE®INTERIOR ELV
INSTALLATION
955 White Drive Las Vegas, NV 89119 | T: 702 407 7775
F: 702 407 7773 | www.modalight.com | © 2019
5 / 12
Due to continuous improvements and innovations, specifications may change without notice.
Please refer to our website for current technical data. These figures are provided as a guideline
only and may vary with differing power supplies and installations. All rights reserved. E&OE.
VDC 09/13/2019
CLICK!
To release,
press down
on thumb
latch and
pull.
Connect
Terminator
CLICK!
10
11
Connect leader cable and connect terminator
Connectar el cable leader y conectar Terminador
Branchez le câble leader et connectez Terminateur
Terminator MUST be placed on final fixture!
Terminator DEBE ser colocado en el accesorio final!
Terminator DOIT être placé sur l’appareil final!
Do NOT mix SO with HO fixtures
NO combine accesorios SO con HO
Ne pas mélanger SO avec les luminaires HO
!
!
Ensure a positive click to avoid arcing
Asegúrese un clic positivo para evitar arco eléctrico
Assurez un clic positif pour éviter de cambrer
!
Connection types
Tipos de connexiones
Types de connexion
Sizes can be mixed, Do Not Exceed Max Continuous Run (see section 14)
Se pueden combinar tamaños, No Exeder Longitud Maxima (vea sección 14)
Vous pouvez combiner tailles, Dépasser Aucune Longueur Maximale (voir la section 14)
!
Maximum bend radius of
fixture to fixture connection is
90°
Jumper Cable
Fixture to Fixture
Terminator
Leader Cable
Jumper Cable

MODA MINI COVE®INTERIOR ELV
INSTALLATION
955 White Drive Las Vegas, NV 89119 | T: 702 407 7775
F: 702 407 7773 | www.modalight.com | © 2019
6 / 12
Due to continuous improvements and innovations, specifications may change without notice.
Please refer to our website for current technical data. These figures are provided as a guideline
only and may vary with differing power supplies and installations. All rights reserved. E&OE.
VDC 09/13/2019
12
Louvres Asymmetric
Louvres Asymmetric
4 foot
1 foot
CLICK!
CLICK!
CLICK!

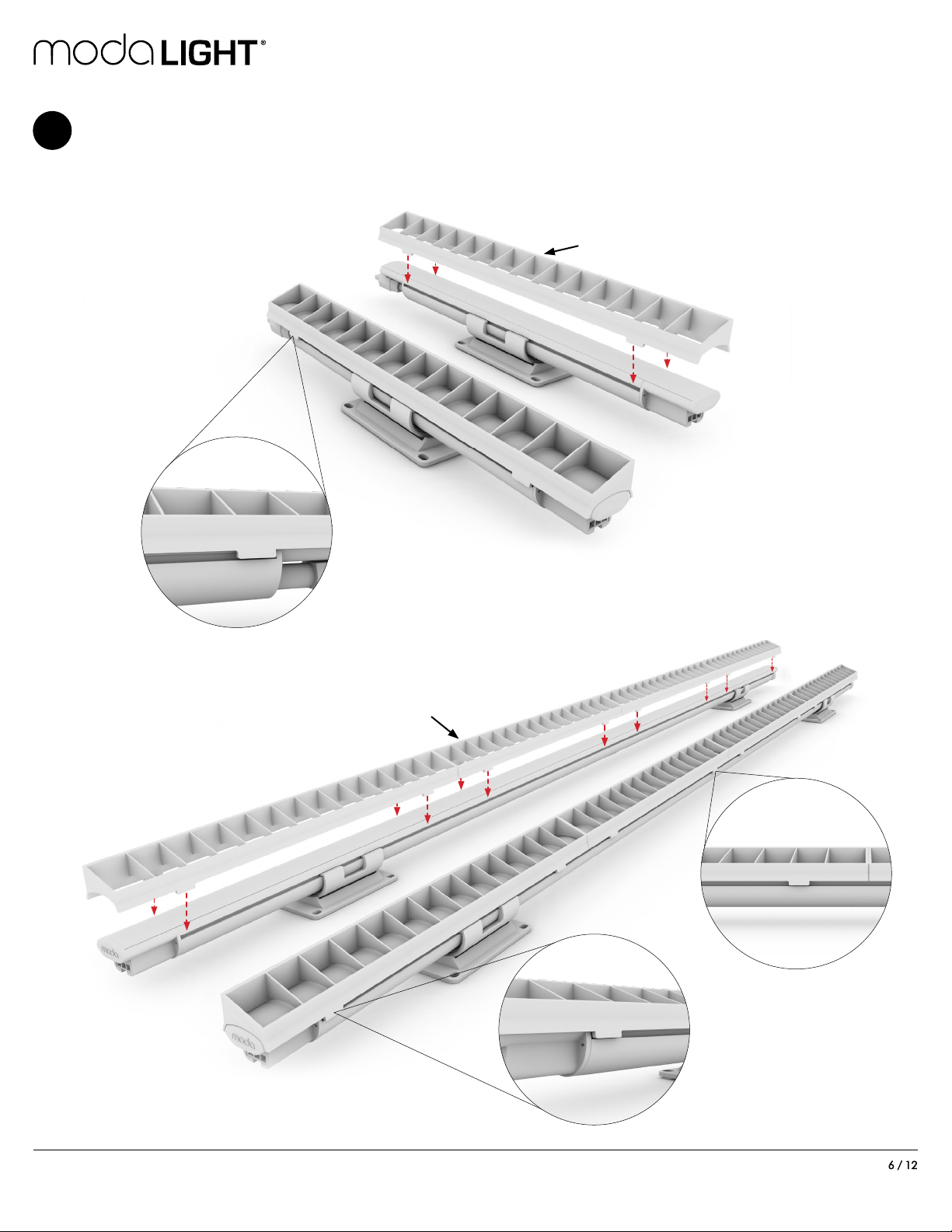

Attach optional louvre to the top of the fixture until it clicks into place. Use four of these louvres for four foot fixtures.
Coloque la lumbrera opcional en la parte superior del dispositivo hasta que encaje en su lugar. Use cuatro de estas rejillas para
accesorios de cuatro pies.
Fixez la grille optionnelle sur le dessus de l’appareil jusqu’à ce qu’un déclic indique qu’elle est bien en place. Utilisez quatre de
ces persiennes pour des installations de quatre pieds.

MODA MINI COVE®INTERIOR ELV
INSTALLATION
955 White Drive Las Vegas, NV 89119 | T: 702 407 7775
F: 702 407 7773 | www.modalight.com | © 2019
7 / 12
Due to continuous improvements and innovations, specifications may change without notice.
Please refer to our website for current technical data. These figures are provided as a guideline
only and may vary with differing power supplies and installations. All rights reserved. E&OE.
VDC 09/13/2019
13
14
15

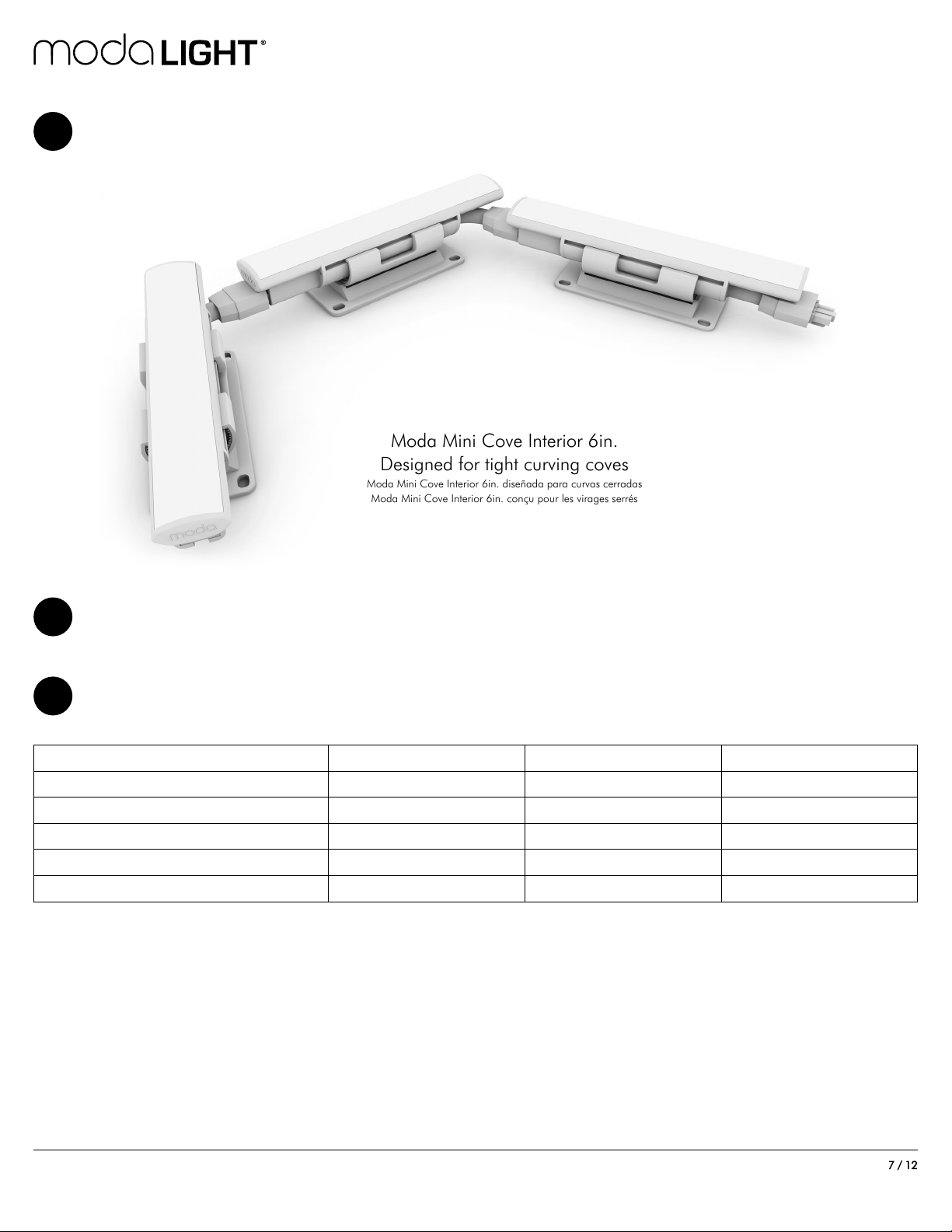

Moda Mini Cove Interior 6in.
Designed for tight curving coves
Moda Mini Cove Interior 6in. diseñada para curvas cerradas
Moda Mini Cove Interior 6in. conçu pour les virages serrés
Moda Mini Cove Interior 6 inch application
Applicacion de Moda Mini Cove Interior 6 pulgadas
Application Moda Mini Cove 6 Interior punces
Power on!
Encender!
Allumer!
Maximum continuous run
Longitud máxima continua
Longueur maximale continue
PRODUCT 120V AC 240V AC 277V AC
Moda Mini Cove Interior ELV SO 6in 120ft 240ft 240ft
Moda Mini Cove Interior ELV SO 1ft 120ft 240ft 240ft
Moda Mini Cove Interior ELV SO 4ft 120ft 240ft 240ft
Moda Mini Cove Interior ELV HO 1ft 50ft 100ft 100ft
Moda Mini Cove Interior ELV HO 4ft 50ft 100ft 100ft

MODA MINI COVE®INTERIOR ELV
INSTALLATION
955 White Drive Las Vegas, NV 89119 | T: 702 407 7775
F: 702 407 7773 | www.modalight.com | © 2019
8 / 12
Due to continuous improvements and innovations, specifications may change without notice.
Please refer to our website for current technical data. These figures are provided as a guideline
only and may vary with differing power supplies and installations. All rights reserved. E&OE.
VDC 09/13/2019
16 Compatible dimmers
Atenuadores de luz compatibles
Gradateurs compatibles
INPUT VOLTAGE: 120V AC, 60Hz
OUTPUT VOLTAGE: 41.5V (at non-dimming)
OUTPUT CURRENT: 95mA (at non-dimming)
Dimmer
Model Position
Output
Voltage
(V)
Output Current
(mA)
LED
Power
(W)
Current Ratio
(%)
LED Power
Ratio
(%)
Mini
Load Request Flicker
Vantage
STPERW101
100% 41.04 84.25 3.46 88.54% 85.18% No No
50% 38.78 37.50 1.45 39.06% 35.80% No No
0% 35.03 0.39 0.01 0.41% 0.96% No No
Grafik Eye QS
with Grafik
Eye PHPM-PA-
DV-WH
100% 40.81 85.00 3.45 88.54% 85.18% No No
50% 37.56 18.86 0.70 19.64% 20.00% No No
0% 34.89 0.35 0.12 0.36% 0.29% No No
Legrand
HDA-703-1
100% 40.92 84.50 3.46 88.02% 85.43% No No
50% 38.79 39.50 1.52 41.14% 37.53% No No
0% 34.92 0.30 0.01 0.31% 0.24% No No
Legrand
RH703PTUTC
100% 40.96 84.50 3.46 88.02% 85.43% No No
50% 38.78 39.00 1.52 40.39% 37.53% No No
0% 35.50 0.92 0.03 0.96% 0.74% No No
Lutron
MAELV-600
(600W)
100% 41.95 90.40 3.79 94.17% 93.65% No No
50% 38.84 29.25 1.15 30.73% 28.29 No No
0% 35.70 0.73 0.03 0.76% 0.64% No No
Lutron
Skylark
SELV-300P
(300W)
100% 41.73 87.20 3.64 90.83% 89.85% No No
50% 39.39 37.66 1.48 39.23% 36.63% No No
0% 35.21 0.70 0.02 0.73% 0.61% No No
Leviton
MNE04
(400W)
100% 41.60 85.40 3.55 88.96% 87.72% No No
50% 40.16 53.50 2.15 55.73% 53.05% No No
0% 35.77 0.84 0.03 0.88% 0.74% No No
Lutron
Diva
DVELV-300P
(300W)
100% 41.12 74.90 3.08 78.02% 76.05% No No
50% 38.60 29.12 1.12 30.33% 27.75% No No
0% 35.33 0.46 0.02 0.48% 0.40% No No

MODA MINI COVE®INTERIOR ELV
INSTALLATION
955 White Drive Las Vegas, NV 89119 | T: 702 407 7775
F: 702 407 7773 | www.modalight.com | © 2019
9 / 12
Due to continuous improvements and innovations, specifications may change without notice.
Please refer to our website for current technical data. These figures are provided as a guideline
only and may vary with differing power supplies and installations. All rights reserved. E&OE.
VDC 09/13/2019
INPUT VOLTAGE: 120V AC, 60Hz
OUTPUT VOLTAGE: 41.5V (at non-dimming)
OUTPUT CURRENT: 95mA (at non-dimming)
Dimmer
Model Position
Output
Voltage
(V)
Output Current
(mA)
LED
Power
(W)
Current Ratio
(%)
LED Power
Ratio
(%)
Mini
Load Request Flicker
Lutron
Diva
DVELV-300P
(300W)
Adjusted
100% 41.60 88.30 3.67 91.88% 90.70% No No
50% 39.00 35.32 1.38 36.79% 34.01% No No
0% 35.37 0.48 0.02 0.50% 0.42% No No
Lutron
Diva
DVCLA-153P
(150W)
100% 41.34 79.90 3.30 83.23% 81.56% Yes No
50% 37.54 12.20 0.46 12.7% 11.31% Yes No
0% 35.33 0.20 0.01 0.21% 0.17% Yes No
Dimmer
Model Position
Output
Voltage
(V)
Output Current
(mA)
LED
Power
(W)
Current Ratio
(%)
LED Power
Ratio
(%)
Mini
Load Request Flicker
No Dimmer 42.18 96 4.05

MODA MINI COVE®INTERIOR ELV
INSTALLATION
955 White Drive Las Vegas, NV 89119 | T: 702 407 7775
F: 702 407 7773 | www.modalight.com | © 2019
10 / 12
Due to continuous improvements and innovations, specifications may change without notice.
Please refer to our website for current technical data. These figures are provided as a guideline
only and may vary with differing power supplies and installations. All rights reserved. E&OE.
VDC 09/13/2019
FIXTURE SKU
ELV
SO
6IN
Moda Mini Cove Interior Standard Output Silver ELV Dimming 1800K HCRI 6IN 090-0001
Moda Mini Cove Interior Standard Output Silver ELV Dimming 2200K HCRI 6IN 090-0003
Moda Mini Cove Interior Standard Output Silver ELV Dimming 2700K HCRI 6IN 090-0005
Moda Mini Cove Interior Standard Output Silver ELV Dimming 3000K HCRI 6IN 090-0006
Moda Mini Cove Interior Standard Output Silver ELV Dimming 3500K HCRI 6IN 090-0008
Moda Mini Cove Interior Standard Output Silver ELV Dimming 4000K HCRI 6IN 090-0009
Moda Mini Cove Interior Standard Output Silver ELV Dimming 6500K HCRI 6IN 090-0014
ELV
SO
1FT
Moda Mini Cove Interior Standard Output Silver ELV Dimming 1800K HCRI 1FT 090-1001
Moda Mini Cove Interior Standard Output Silver ELV Dimming 2200K HCRI 1FT 090-1003
Moda Mini Cove Interior Standard Output Silver ELV Dimming 2700K HCRI 1FT 090-1005
Moda Mini Cove Interior Standard Output Silver ELV Dimming 3000K HCRI 1FT 090-1006
Moda Mini Cove Interior Standard Output Silver ELV Dimming 3500K HCRI 1FT 090-1008
Moda Mini Cove Interior Standard Output Silver ELV Dimming 4000K HCRI 1FT 090-1009
Moda Mini Cove Interior Standard Output Silver ELV Dimming 6500K HCRI 1FT 090-1014
ELV
HO
1FT
Moda Mini Cove Interior High Output Silver ELV Dimming 1800K HCRI 1FT 090-1201
Moda Mini Cove Interior High Output Silver ELV Dimming 2200K HCRI 1FT 090-1203
Moda Mini Cove Interior High Output Silver ELV Dimming 2700K HCRI 1FT 090-1205
Moda Mini Cove Interior High Output Silver ELV Dimming 3000K HCRI 1FT 090-1206
Moda Mini Cove Interior High Output Silver ELV Dimming 3500K HCRI 1FT 090-1208
Moda Mini Cove Interior High Output Silver ELV Dimming 4000K HCRI 1FT 090-1209
Moda Mini Cove Interior High Output Silver ELV Dimming 6500K HCRI 1FT 090-1214
ELV
SO
4FT
Moda Mini Cove Interior Standard Output Silver ELV Dimming 1800K HCRI 4FT 090-3001
Moda Mini Cove Interior Standard Output Silver ELV Dimming 2200K HCRI 4FT 090-3003
Moda Mini Cove Interior Standard Output Silver ELV Dimming 2700K HCRI 4FT 090-3005
Moda Mini Cove Interior Standard Output Silver ELV Dimming 3000K HCRI 4FT 090-3006
Moda Mini Cove Interior Standard Output Silver ELV Dimming 3500K HCRI 4FT 090-3008
Moda Mini Cove Interior Standard Output Silver ELV Dimming 4000K HCRI 4FT 090-3009
Moda Mini Cove Interior Standard Output Silver ELV Dimming 6500K HCRI 4FT 090-3014
ELV
HO
4FT
Moda Mini Cove Interior High Output Silver ELV Dimming 1800K HCRI 4FT 090-3201
Moda Mini Cove Interior High Output Silver ELV Dimming 2200K HCRI 4FT 090-3203
Moda Mini Cove Interior High Output Silver ELV Dimming 2700K HCRI 4FT 090-3205
Moda Mini Cove Interior High Output Silver ELV Dimming 3000K HCRI 4FT 090-3206
Moda Mini Cove Interior High Output Silver ELV Dimming 3500K HCRI 4FT 090-3208
Moda Mini Cove Interior High Output Silver ELV Dimming 4000K HCRI 4FT 090-3209
Moda Mini Cove Interior High Output Silver ELV Dimming 6500K HCRI 4FT 090-3214
