LUX LUMEN StarEye User manual

StarEye
350 mA version
No control electronics on board
Order code: 10643

StarEye 350 mA LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK - BELGIUM p.2/17
T: [phone] –www.lux-lumen.com
CONTENT
1PICTURE ..........................................................................................................................3
1.1 GENERAL .................................................................................................................................... 3
2DIMENSIONS...................................................................................................................4
3SAFETY INFORMATION.................................................................................................5
3.1 SYMBOLS.................................................................................................................................... 5
3.2 PROTECTION FROM ELECTRIC SHOCK ......................................................................................... 6
3.3 PROTECTIONS FROM FIRE AND BURNS ........................................................................................ 6
3.4 PROTECTION FROM INJURY......................................................................................................... 7
3.5 DISPOSING OF THIS PRODUCT ..................................................................................................... 7
4PHYSICAL INSTALLATION ............................................................................................8
4.1 UNPACKING ................................................................................................................................ 8
4.2 LOCATION AND ORIENTATION...................................................................................................... 8
4.3 MOUNTING ................................................................................................................................. 8
5EXTERNAL CONNECTIONS...........................................................................................9
5.1 CURRENT POWER INPUT ............................................................................................................. 9
5.2 SCHEMATICS ............................................................................................................................ 10
6EMC AND SAFETY REQUIREMENTS..........................................................................11
7INSTALLATION SETUP ................................................................................................12
7.1 SPECIFICATION ......................................................................................................................... 12
8SERVICE AND MAINTENANCE ...................................................................................13
8.1 SAFETY PRECAUTIONS .............................................................................................................. 13
8.2 CLEANING................................................................................................................................. 13
9WARRANTY ...................................................................................................................14
9.1 APPLICATION OF WARRANTY..................................................................................................... 14
9.2 RMA PROCEDURE..................................................................................................................... 16
10 USED LIST OF ABBREVIATIONS .................................................................................17

StarEye 350 mA LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK - BELGIUM p.3/17
T: [phone] –www.lux-lumen.com

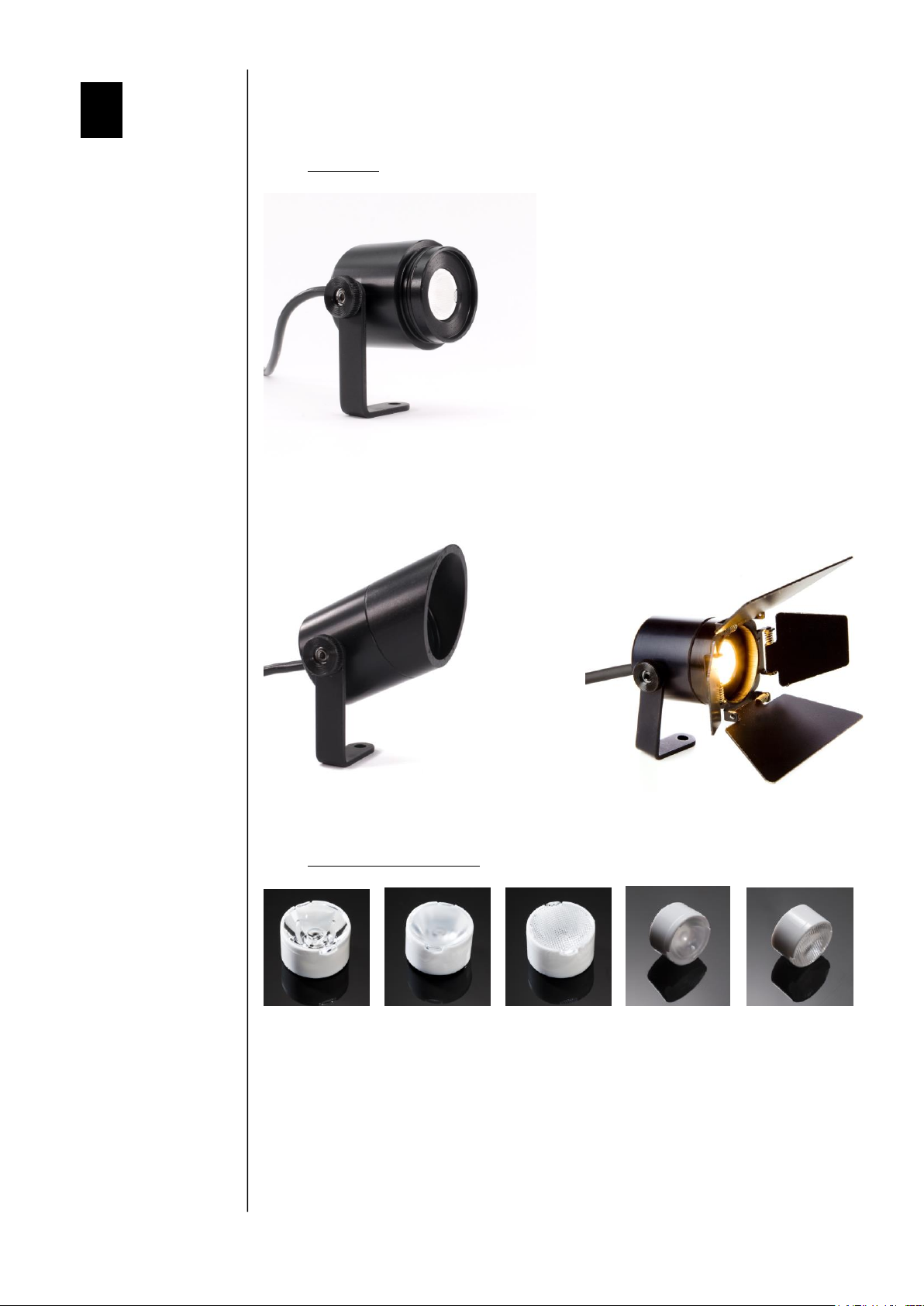

1Picture
1.1 General
StarEye on bracket (included)
…with snoot (optional) …with barndoorns (optional)
1.2 Range of lenses
11° 15° 30° 50° 34°x18°
Real Spot Spot Medium Wide Asymmetrical

StarEye 350 mA LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK - BELGIUM p.4/17
T: [phone] –www.lux-lumen.com

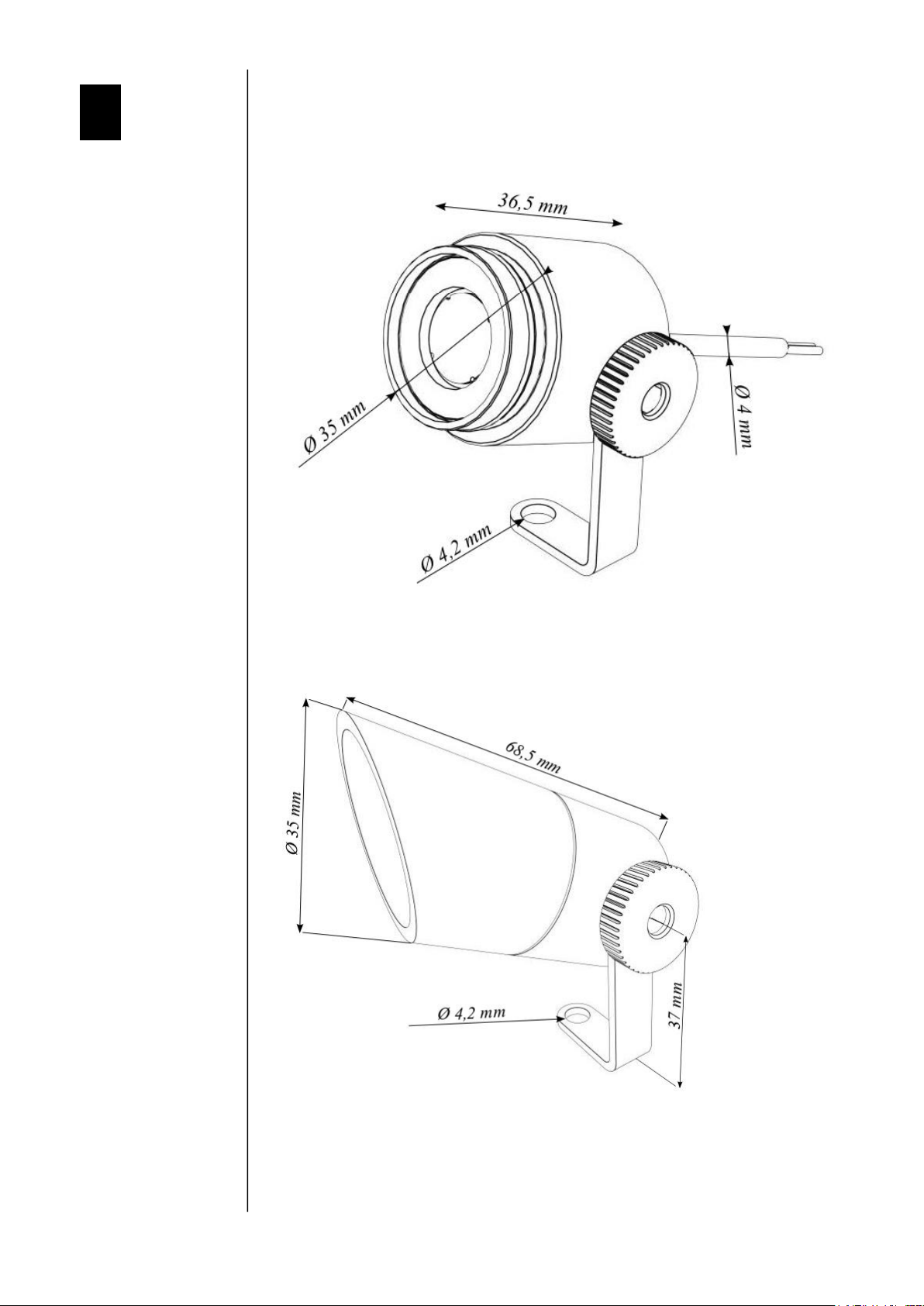

2Dimensions
The maximum height with bracket: 55 mm (accessories exclusive)
The StarEye with mounted snoot

StarEye 350 mA LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK - BELGIUM p.5/17
T: [phone] –www.lux-lumen.com
3Safety information
Before installing, powering up, or servicing the StarEye led-unit, it is highly
recommended that you read this manual and ensure yourself that you
completely understand its content. Observe the safety precautions in this
manual. Install and operate the led-unit only as described in this manual,
and in conformity with local regulations. If you have any questions how to
operate this product safely, please contact your point of sale.
3.1 Symbols
Following symbols are used to identify important safety information on the
product and in this manual.

StarEye 350 mA LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK - BELGIUM p.6/17
T: [phone] –www.lux-lumen.com
3.2 Protection from electric shock
Although this device itself does not operate with dangerous voltages, the
installation in which is intended to be used, can contain dangerous voltages.
Shut down the power of the complete installation before carrying out any
installation, or maintenance work.
Use only AC to DC power sources, suitable for the application, and conform
to local regulations. Please ensure yourself that the AC to DC power supply
is able to deliver the rated current requirements of the installation.
If any cable, seal or housing is damaged, cracked or reformed, disconnect
the power of the installation immediately.
For any additional servicing, not described in this manual, please contact
your point of sale.
3.3 Protections from fire and burns
Do not operate this led-unit if ambient temperatures is over 45 °C (113 °F).
Please ensure yourself that sufficient ventilation around the led module is
possible.
It might be necessary to allow the led-unit to cool down for 5 minutes,
before servicing.
Do not modify the led-fixture, in a way, not described in this manual.

StarEye 350 mA LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK - BELGIUM p.7/17
T: [phone] –www.lux-lumen.com
3.4 Protection from injury
Ensure yourself that the led-unit and all its accessories are securely
fastened. Verify that the led unit is firmly fixed to its supporting
underground.
3.5 Disposing of this product
This led-lighting device is manufactured in compliance with directive of the
European community: waste electrical and electronically equipment. Please
help to preserve our environment and ensure that this product will be
recycled properly at the end of its life.

StarEye 350 mA LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK - BELGIUM p.8/17
T: [phone] –www.lux-lumen.com
4Physical installation
Thank you for selecting this StarEye led-unit as best solution in your setup.
Warning! Read the safety precautions in this manual before integrating this
led-unit into your installation.
Installation must be carried out by qualified professionals only.
Assure yourself that there is sufficient and unrestricted air flow around the
StarEye led-unit.
4.1 Unpacking
The following items are included in your package:
•LED fixture with focussing bracket included
•Protective antistatic packaging, with short form manual
4.2 Mounting
Surface mounting
The StarEye led-unit can be mounted on all kind of non combustible
materials but take in consideration that the module can have a Tc of approx
30 °C higher as ambient temperature.
In case of problems, or doubts, please contact your point of sale.
Track mounting (on demand)
The StarEye can be equipped with a track adaptor in order to be installed
easily on track systems.
4.3 Location and orientation
This led-unit can be used in all directions.

StarEye 350 mA LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK - BELGIUM p.9/17
T: [phone] –www.lux-lumen.com
5External connections
5.1 Current power input
Safety precautions
Never connect the live power on the input terminals of the StarEye led-unit!
In case of doubts, contact your point of sale.
Polarity
The StarEye led-unit is polarity sensitive. So observe polarity and cabling:
•Red inner conductor = positive
•Black inner conductor = negative
Improper connection might damage the StarEye led-unit and power supply
permanently. In case of inversed polarity, the warranty is void.
Power supply: Rated current
The rated input Current range of the StarEye led spot is 350 mA. Please
note, never apply a 12 V or 24 V DC to the units. This will damage the units
permanently.
Preferred non-dimmable power supply:
➢Mean Well LPC-20-350
•Max. StarEye led spots: 10 pcs
•Ordercode: 24103
Preferred dimmable power supplies:
➢Lux Lumen 12 channel LEDdriver 350mA + powersupply
•Ordercode: 10084
➢Lumotech LO5021
•Max. StarEye led spots: 5 pcs
•Ordercode: 81037
➢Lumotech LO5011i
•Max. StarEye led spots: 10 pcs
•Ordercode: 81035

StarEye 350 mA LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK - BELGIUM p.10/17
T: [phone] –www.lux-lumen.com
➢Mean Well LCM-40
•Max. StarEye led spots: 20 pcs
➢Mean Well LCM-40 DA
•Max. StarEye led spots: 20 pcs
Applying power
Make sure to connect the StarEye led spot first, before applying power,
otherwise the StarEye led spot can be damaged.
5.2 Schematics: serial connection
Please only apply current sources up to 350 mA to the unit.

StarEye 350 mA LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK - BELGIUM p.11/17
T: [phone] –www.lux-lumen.com
6EMC and safety requirements
The StarEye led-unit is fully compliant to the LVD and EMC directive of the
European council, if used in a properly designed setup.
The StarEye led-unit is only intended to be used in lighting applications, and
as such, the complete assembly of led unit and power supply needs to be
fully compliant with following harmonized standards:
LVD requirements of the power supply
•EN 60598: general requirements of lighting equipment.
EMC requirements of the power supply
Immunity according to:
•EN 61547:2009 (General EMC immunity requirements lighting eq.)
•EN 61000-4-1:2006 (General immunity testing techniques)
•EN 61000-4-2:2008 (ESD immunity test)
•EN 61000-4-3:2006 + A1:2007 (Radiated immunity test)
•EN 61000-4-4:2004 (Fast transients and burst immunity)
•EN 61000-4-5:2005 (Surge immunity test)
•EN 61000-4-6:2008 (Conducted immunity test)
•EN 61000-4-8:1993 (Magnetic field immunity test)
•EN 61000-4-11:2004 (Voltage variations immunity test)
•EN 61000-6-1:2005 (Generic standards for immunity)
Emission according to:
•EN 61000-3-2:2005+A1:2008+A2:2009 (Harmonics emission
test<16A)
•EN 61000-3-3:2008 (Flicker+ voltage changes limits< 16A)
•EN 55015:2006+A2:2009 (Conducted + radiated emission lighting
equipment)
To achieve this compliance, a proper power supply must be supplied. In
case of doubts, contact your point of sale.

StarEye 350 mA LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK - BELGIUM p.12/17
T: [phone] –www.lux-lumen.com
7Installation setup
7.1 Specification
The StarEye led-unit is a small and efficient solution for detail lighting.
The ingress protection of this StarEye led-unit is IP20, and as such, the unit
can only be used in indoor applications.
The housing is made out of anodized aluminum in natural or black finish.
RAL color finish on demand.
It is possible to use accessories to manipulate the light, like barndoors,
glare-controllers (snoot).
It uses a current controlled power supply, able to supply 350 mA.
•Power consumption: max. 1,5 watt
•Power voltage: Do not apply voltage sources!
•Current: max. 350mA (full rated output)
•Weight: 85 gr
•Different lenses are possible:
oReal spot: 11°
oSpot: 15°
oMedium: 30°
oWide: 50°
oAsymmetrical: 34° x 18°
•Different light colors are possible:
oWarm white: 2700K CRI: 80 Efficacy: 80 lm/W
oWarm white: 3000K CRI: 80 Efficacy: 80 lm/W
oNeutral white: 4000K CRI: 75 Efficacy: 100 lm/W
oCold white: 6500K CRI: 75 Efficacy: 130 lm/W
oContact us for high CRI leds

StarEye 350 mA LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK - BELGIUM p.13/17
T: [phone] –www.lux-lumen.com
8Service and maintenance
8.1 Safety precautions
Read carefully the safety information in this manual. Disconnect the power
on the entire system and allow all electronic devices to discharge, and cool
down, before executing any service or maintenance.
8.2 Cleaning
The StarEye led-unit itself
Extensive dirt, and particle build-up degrades performance, may cause
overheating can result in damaged led-unit and power supplies. Damage by
inadequate cleaning or maintenance is not covered by the product
warranty.
Never use solvents to clean the outer housing of the unit.
Never use water, or wet cloth.

StarEye 350 mA LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK - BELGIUM p.14/17
T: [phone] –www.lux-lumen.com
9Warranty
9.1 Application of warranty
Warranty period
Warranty service is valid for one year from the date of purchase by the
consumer, as evidenced by invoice date given out by your point of sale.
Warranty service
Service under warranty can only be done by Lux Lumen.
Coordinates:
Lux Lumen
Kernenergiestraat 53 A
2610 Wilrijk
Belgium
Any cost of secure transportation of the product to and from Lux Lumen
service department, will be borne by the customer.
Limitations
Lux Lumen will not warrant the following:
•Periodic check-ups, maintenance and repair or replacement of parts
due to normal wear and tear.
•Consumables
•Any software
•Defects caused by modifications carried out without Lux Lumen’s
approval.
•Damage resulting from the fact that a product is not conforming to
country specific standards or specifications in another country than
the country of purchase.
Costs incurred by Lux Lumen’s service center in making any adoptions or
modifications of a product necessary for country specific technical or
safety standards or specifications, or any other cost to adjust the product
as a result of any specifications which have changed since the delivery of
the product.

StarEye 350 mA LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK - BELGIUM p.15/17
T: [phone] –www.lux-lumen.com
Warranty service is excluded if damage or defects have been caused by:
Improper use, extensive use, handling or operation of the product as
referred to in the user manual or operator manual and/or relevant user
documents, including without limitation, incorrect storage, dropping,
excessive shocks, corrosions, dirt, water, or sand damage, if the product is
not rated to be used in severe conditions, indicated by its IP and IK degree,
mentioned in the product specifications in this manual.
Repairs, modifications or cleaning carried out by a non Lux Lumen service
centre.
Use of spare parts, software or consumables, which are not compatible
with the product.
Connecting the product to equipment not intended to be used with this
product.
Defects caused by improper condition of the power supply network.
Inadequate packaging of the product when returning it under the RMA
procedure.
Accidents or disasters or any cause beyond the control of Lux Lumen,
including but not limited to lightning, water, fire, public disturbances,
improper ventilation, and acts of God.
Others
It is the responsibility of the customer to backup and save any software
files and programs before repair and to restore the same after such repair.
This warranty does not affect the consumer’s statutory rights under
applicable national legislation in force, nor the consumer’s rights against
the retailer arising from the sales/purchase contract. In the absence of
applicable national legislation, this warranty will be the consumer’s sole and
exclusive remedy, and Lux Lumen cannot be liable for any incidental or
consequential damages for breach of any express or implied warranty of
this product.
For full details of the warranty offered on this product, please contact Lux
Lumen’s service center.

StarEye 350 mA LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK - BELGIUM p.16/17
T: [phone] –www.lux-lumen.com
9.2 RMA procedure
To send material back to Lux Lumen, you need a RMA (Return Material
Authorization) document that you will receive from Lux Lumen.
Without the RMA document, we cannot accept the material.
The procedure to obtain a RMA:
Step 1:
Customer contacts Lux Lumen about warranty, defects if material has to be
returned.
Step 2:
Lux Lumen sends the customer a filled-out RMA document (using a unique
RMA number)
Step 3:
Customer sends material (include a copy of the RMA document with the
material)
Step 4:
Lux Lumen evaluates and informs the client if repair is under warranty, or –
if not - makes an offer for repair to the client.

StarEye 350 mA LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK - BELGIUM p.17/17
T: [phone] –www.lux-lumen.com
10 List of used abbreviations
•AC: Alternating current
•DC: Direct current
•°F: Temperature in degrees Fahrenheit
•°C: Temperature in degrees Celsius
•LED: Light Emitting Diode
•CRI: Color Rendering Index
•RMP: Return Material Authorization
