Spitzer LIGHTING STR-22-25W-CCT User manual
LED TUNABLE TROFFER
STR-22-25W-CCT / STR-24-40W-CCT

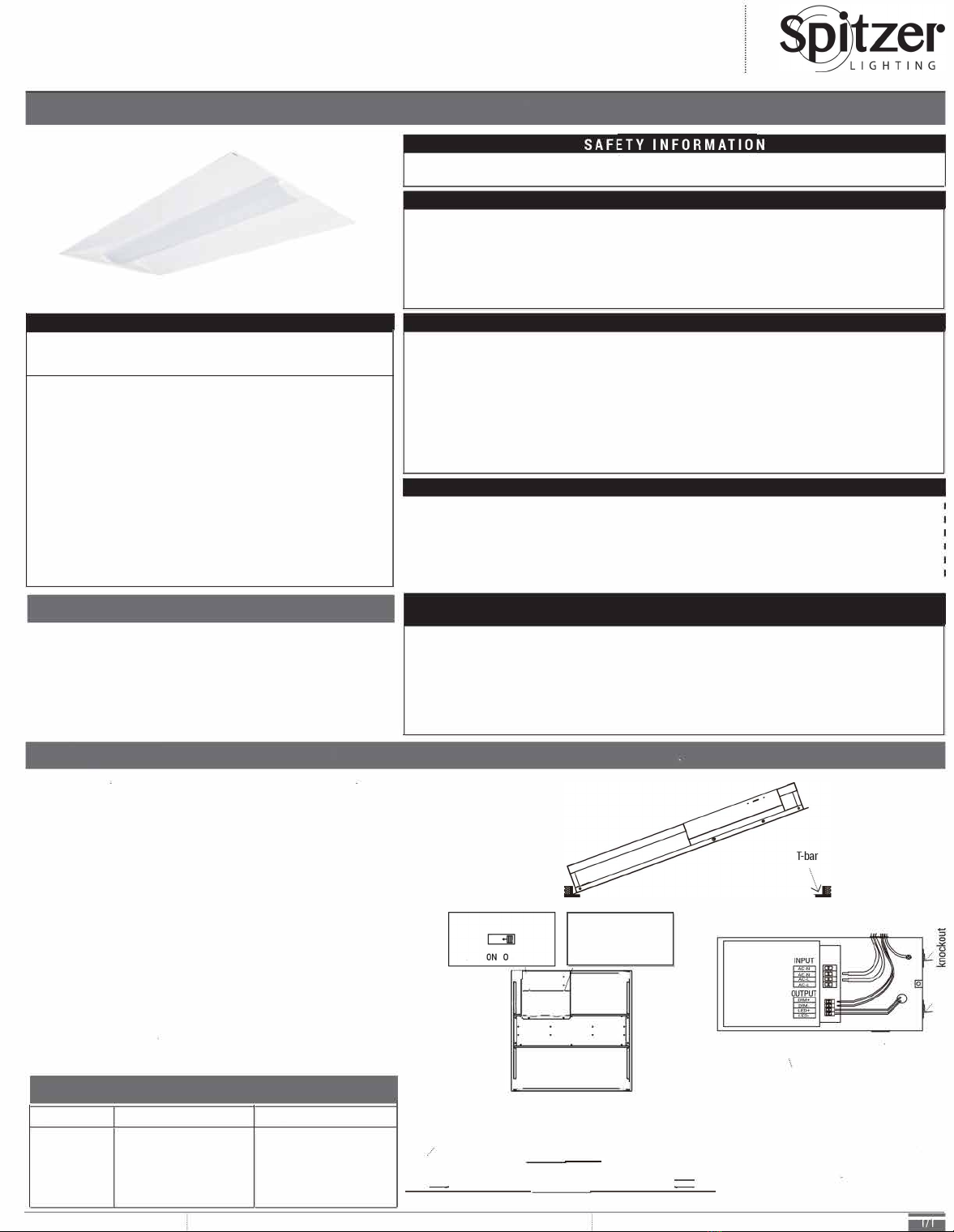

INSTALLATION MANUAL
FCC WARNING:
ASSEMB INSTRUCTIONS
WARNING
CAUTION :
°
PRE-INSTALLATION
CARE AND MAINTENANCE
CAUTION :
INSTALLATION
1·
�J
TROUBLE SHOOTING
i �-
844-312-4574
-�
✓
�
. "
0
;
ct
DD�
STR-SNSR
Color Changeable Troffer Motion Sensor
Type:
SKU No: Date:
DESCRIPTION
The motion sensor is designed based on the Doppler principle, it transmits the high frequency electromagnetic wave
through the antenna and receives the reected wave. Based on this principle it judges the movement of the object within
the coverage range, and control radar motion sensor.
It can turn on microwave induction function or turn off power supply automatically with sensitive function according to
the ambient brightness. Microwave induction function or turn off power supply automatically with sensitive function
according to the ambient brightness. Microwave can penetrate acrylic, glass or thin non-metal materials.
FEATURES
• The shell is made of ame retardant material, with re rating
of V-0
• Compared with PIR module, microwave motion sensor is
better, more wide detection range, no dead area, no lens aging
problem, no environment interference
• Strong anti-interference ability, it is not affected by
temperature, humidity, airow, dust, noise, brightness and
other factors
• Complying with environmental requirements
PRODUCT STR-SNSR
POWER SUPPLY 8 - 18V
WORKING CURRENT 27mA
WORKING TEMPERATURE 13°F ~185°F
ANTENNA GAIN 4dB
THRESHOLD 25 Lux
TECHNICAL DATA
DIMENSIONS
ACCESSORY FOR THE COLOR CHANGEABLE TROFFER
www.spitzerlighting.com 702 Interchange Blvd., Newark, DE 19711 Specication is subject to change without notice 2
BENEFITS
APPLICATIONS
It is widely applied in motion sensor lighting,
ventilating fan, security, socket. Other applications
include a garage, corridor, courtyard, balcony,
bathroom and many other environments that require a
radar motion sensor.
Various
Output Modes
Delay Time
Customize
Daylight
Optional
Distance
Customize
STR-SNSR
Color Changeable Troffer Motion Sensor
Type:
SKU No: Date:
LEAD WIRE DIAGRAM
ACCESSORY FOR THE COLOR CHANGEABLE TROFFER
www.spitzerlighting.com 702 Interchange Blvd., Newark, DE 19711 Specication is subject to change without notice 3
DIAL SWITCH SETTINGS
1: Distance Setting
1
100% ON
50% -
4: Working Mode Setting
5
20%-100% ON
0%-100% -
5: Photosensitive Threshold Setting
5
25Lux ON
Disable -
2/3: Time Setting
2 3
5s ON ON
5min ON -
10min - ON
20min - -
According to the different application,
the defect distance can be set to
100%, 50% by the dial switch.
Delay time refers to the time when the light is on after
the moving object leaves the sensing area. The gears
can be set as 5s, 1min, 3min, and 5min.
When the ambient illumination value is lower than the set valve,
there is an object moving in the sensing area, and the sensor
outputs a high level. Gear 25LUX
This manual suits for next models
