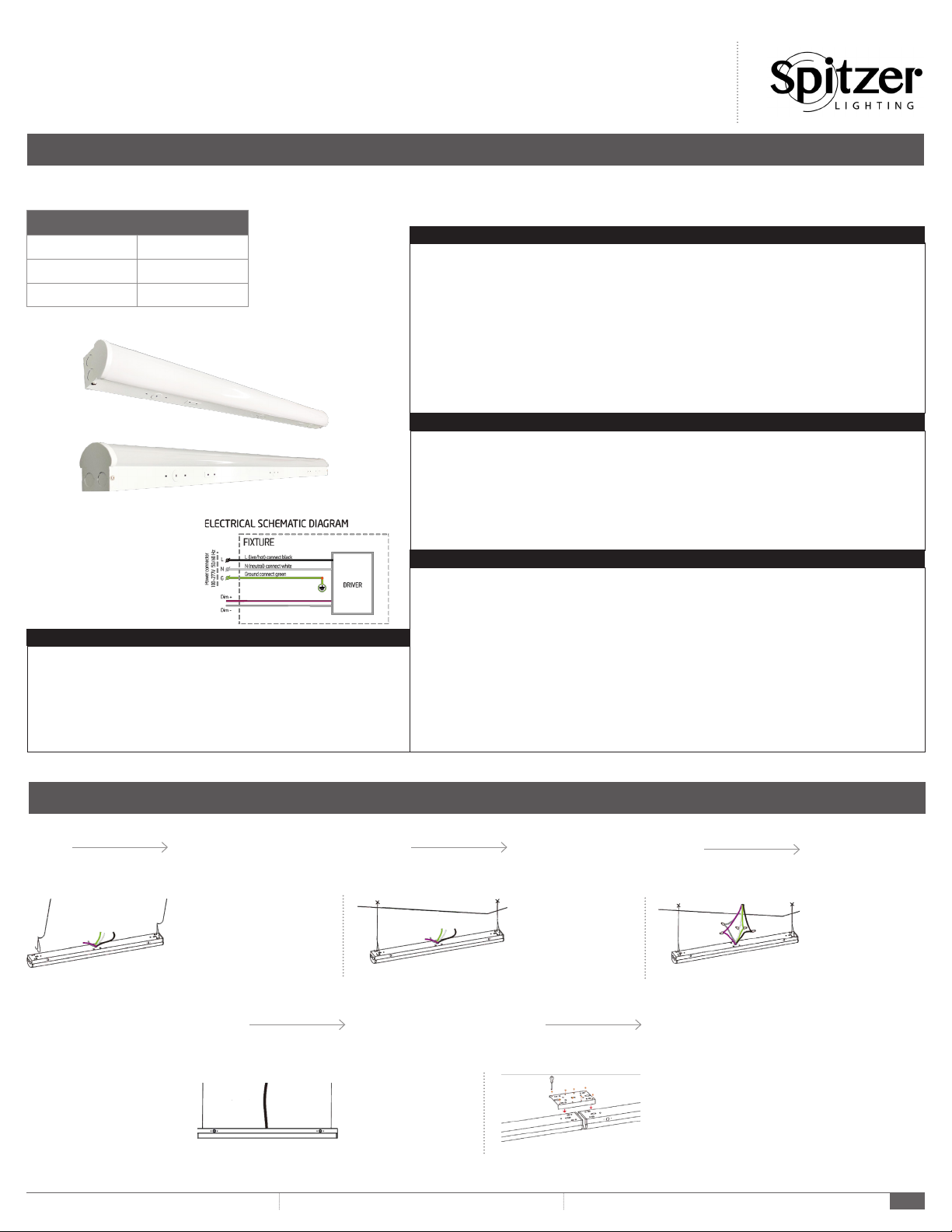

Spitzer LIGHTING STRIP LIGHT Series User manual

STRIP LIGHT SERIES
4’/8’ HIGH OUTPUT STRIP LIGHT
INSTALLATION MANUAL
SAFETY INFORMATION
BE SURE THE POWER IS OFF! RISK OF ELECTRICAL SHOCK: Always use the switch to power off. Do not perform
any operations while this unit is powered on. The electrical system you want to connect the device to must be
grounded. Read the instructions before using or powering this device. The safety instructions must remain with
the unit in case of transfer. Any damage to the device linked to an inappropriate use is excluded from support by
the warranty. Before connecting, make sure that the current and voltage are compatible with this device. We highly
recommend that all installations are made by QUALIFIED ELECTRICIAN. We are NOT responsible by any means for
the use or misuse of the following information. We are NOT responsible in whole or part for any harm or damage
that may or may not be caused. We reserve the right to revise the components of any product, due to part availability
or change ETL, CUL, UL standards without assuming any obligation or liability to modify any products previously
manufactured and without notice. These instructions do not cover all details of variations in equipment, nor do they
provide every possible contingency to be met. Turn off / unplug power when installing or service device.
WARNING: Read all safety precautions and installation instructions carefully before installing or servicing this
xture. Failure to comply with these instructions could result in a potentially fatal electric shock, re, and/or
property damage.
• Risk of Fire or electric shock. Fixture Installation requires knowledge of luminaires electrical systems. If not
qualified, do not attempt installation. Contact a qualified electrician
• Suitable for damp locations. Always turn off the power supply before installation
• Suitable for non-insulated surface and frame. Do not cover fixture with insulation liner or similar material
• Do not install fixture on unstable, loose or easily breakable surface. Do not exert force on the surface of the fixture
WARNING
FCC WARNING
WARNING: Changes or modications to this unit not expressly approved by the party responsible for compliance
could void the user authority to operate the equipment.
NOTES: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
PRE - INSTALLATION
•Carefully remove the fixture from the carton.
•Before beginning assembly, installation, or operation of product, make sure all parts
are present. Compare parts with package contents list and diagram on previous page.
If any part is missing or damaged, do not attempt to assemble, install or operate the
product. Contact customer service for replacement parts.
•Tools required for assembly (Not Included): screwdriver, phillips screwdriver, pliers,
electrical tape, wire cutters, safety glasses, ladder, wire stripper.
CHAIN INSTALLATION *METHOD 1 (Caution: Before beginning installation turn off the circuit breaker and light switch)
PRODUCT PARAMETER
INPUT VOLTAGE 100 - 277V
DIMMING 0 - 10V
MATERIAL STEEL
STEP 1 STEP 2
Insert a chain on each
hook and insert hooks into
the installation holes.
Take wires from the
shielded cables, connect
AC wires and dimming
wires, if needed.
Wrap the wires with the
metal materials.
Optional seamless innite
splicing.
Attach the chains to the
ceiling and adjust till
balanced and secured.
STEP 3
STEP 4 STEP 5
www.spitzerlighting.com 702 Interchange Blvd., Newark, DE 19711 Specication is subject to change without notice 1/2

STRIP LIGHT SERIES
4’/8’ HIGH OUTPUT STRIP LIGHT
INSTALLATION MANUAL
CHAIN INSTALLATION *METHOD 2 (Caution: Before beginning installation turn off the circuit breaker and light switch)
www.spitzerlighting.com 702 Interchange Blvd., Newark, DE 19711 Specication is subject to change without notice 2/2
CARE AND MAINTENANCE
CAUTION: Before attempting to clean the xture, disconnect the power to the xture by turning
the breaker off or removing the fuse from the fuse box. This LED light xture is made from quality
materials that will last many years with minimum care and maintenance. You may want to clean
the xture with a soft cloth periodically. To maintain the best appearance of the xture, do not use
cleaners with chemicals, solvents or harsh abrasives. Do not use liquid cleaner on the LEDs, LED
driver, or wiring inside the light xture.
TROUBLE SHOOTING
PROBLEM POSSIBLE CAUSE SOLUTION
Light will not come on A. Light switch is turned off
B. Fuse is blown or circuit breaker is
turned off
C. Incorrect circuit wiring
A. Turn light switch on
B. Replace fuse or turn circuit
breaker on
C. Verify that xture is wired
properly
STEP 1 STEP 2
Snap buckles into the lamp
body.
Hook the buckles with
pendant cord and suspend
the light to the desired
height.
Take wires from the
terminal caps, connect AC
wires and dimming wires
if needed.
Fix the buckles in parallel
by screws with 37.5”
distance between each
buckle.
Secure the strip with
buckles.
Insert the terminal blocks
and wires into the strip.
Optional seamless innite
splicing.
Take wires from the
terminal caps, connect AC
wires and dimming wires.
Installation is completed.
Attach the hooks at the
slotted holes of buckles.
STEP 3
STEP 4
STEP 1
STEP 3
STEP 5 STEP 6
STEP 2
STEP 4
SURFACE MOUNT INSTALLATION (Caution: Before beginning installation turn off the circuit breaker and light switch)
