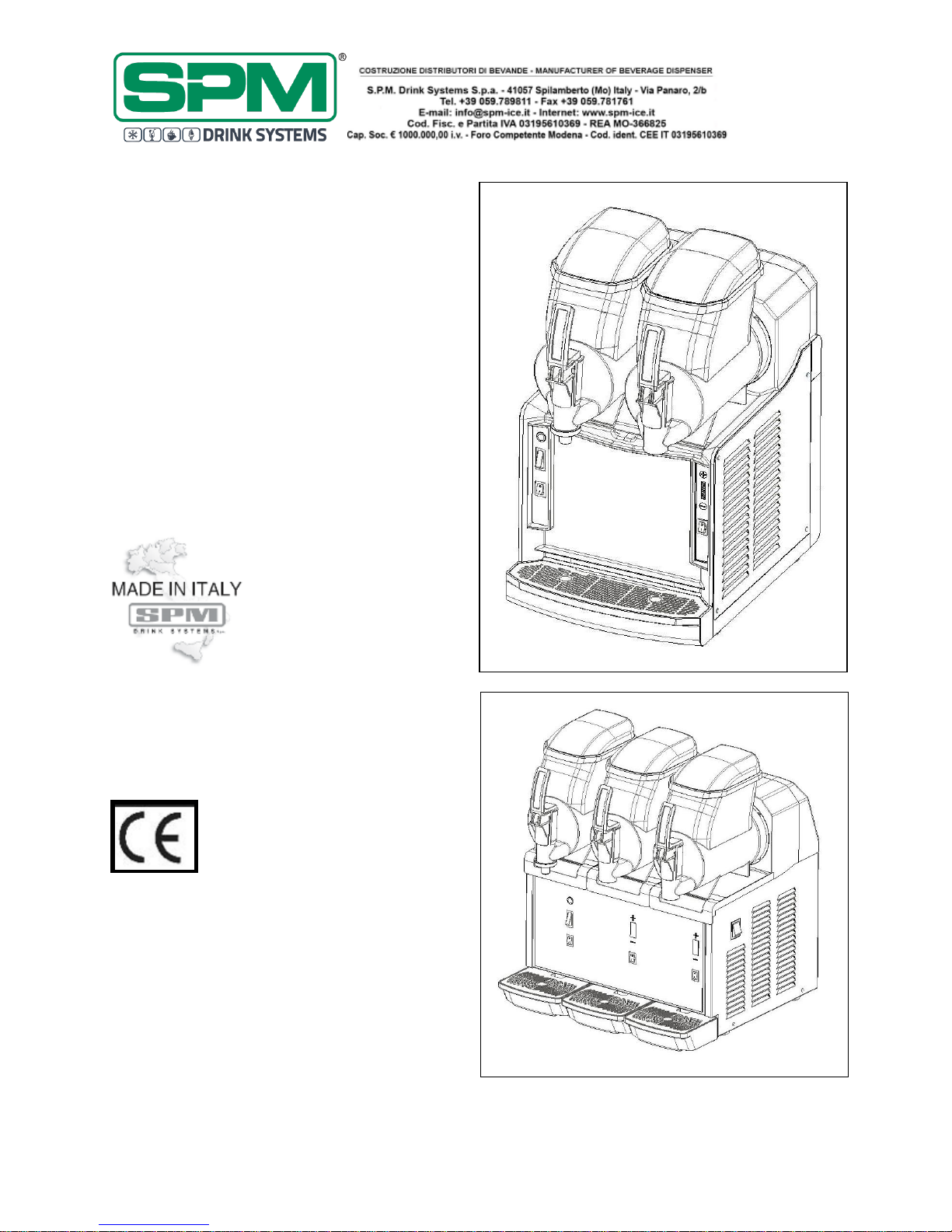

SPM NINA HOT & COLD Series User manual

Data di emissione: February, 2016 Revisione: 1 Pag. : 1/48
NINA HOT &
COLD
Operator’s manual Page 2
Betriebs- und Wartungsanleitung Seite 23

Data di emissione: February, 2016 Revisione: 1 Pag. : 2/48
Published by:
SPM DRINK SYSTEMS S.p.a.
Via Panaro n° 2
41057 Spilamberto (MO)
Edition: 02/2016
Revision: 01
© 2016 –SPM Drink Systems
All copying rights are reserved to SPM DRINK SYSTEMS; copying, even partial, is illegal.
The descriptions and illustrations refer to the specific machine at issue. SPM Drink Systems reserves the right to
modify at any time the equipment for mass production.
This manual:
- is integral part of the supply and must be carefully read, in order to be properly used, in compliance with
the essential safety requirements;
- has been drafted by following the dispositions 2006/42/CE and reports the technical information that
are necessary to correctly run all the procedures, under safety conditions;
- must be carefully kept (protected by a transparent, watertight wrapping, in order to avoid any damage)
and must go with the machine during its life, including potential changes of ownership. In case of loss or
damage, it’s possible to ask for a copy to SPM DRINK SYSTEMS, pointing out the information stated on
the identification label;
SPM DRINK SYSTEMS declines all responsibility for a wrong usage of the machine and/or damages caused by
operations not provided for in this manual..

Data di emissione: February, 2016 Revisione: 1 Pag. : 3/48
INDEX
1. IMPORTANT WARNINGS AND ADVICES4
2. EQUIPMENT KIT.........................................4
3. TRANPORT TIPS .........................................4
4. LIFTING TIPS...............................................4
5. TECHNICAL SPECIFICATIONS................5
6. POSITIONING..............................................6
7. CONNECTION TO THE POWER SUPPLY
MAINS.........................................................7

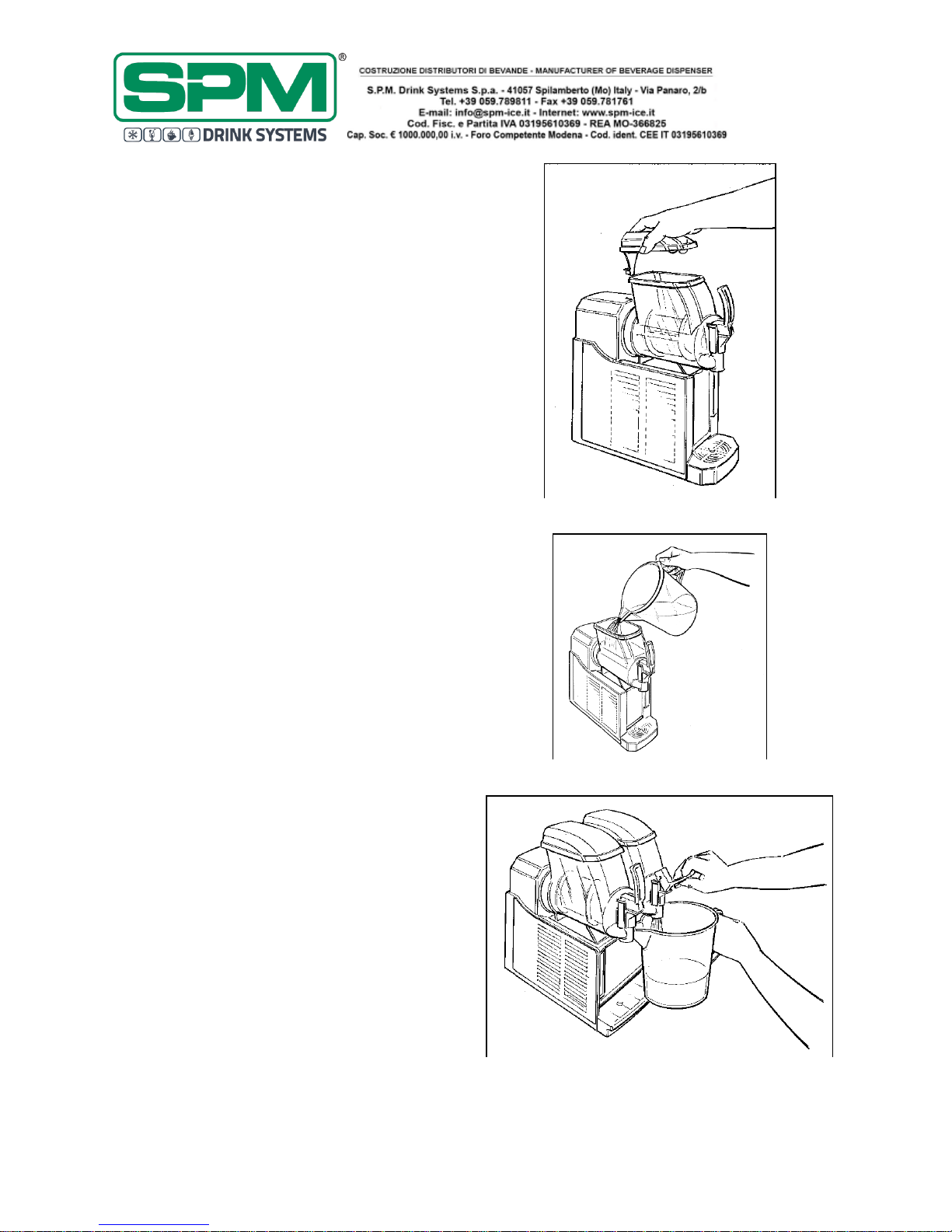

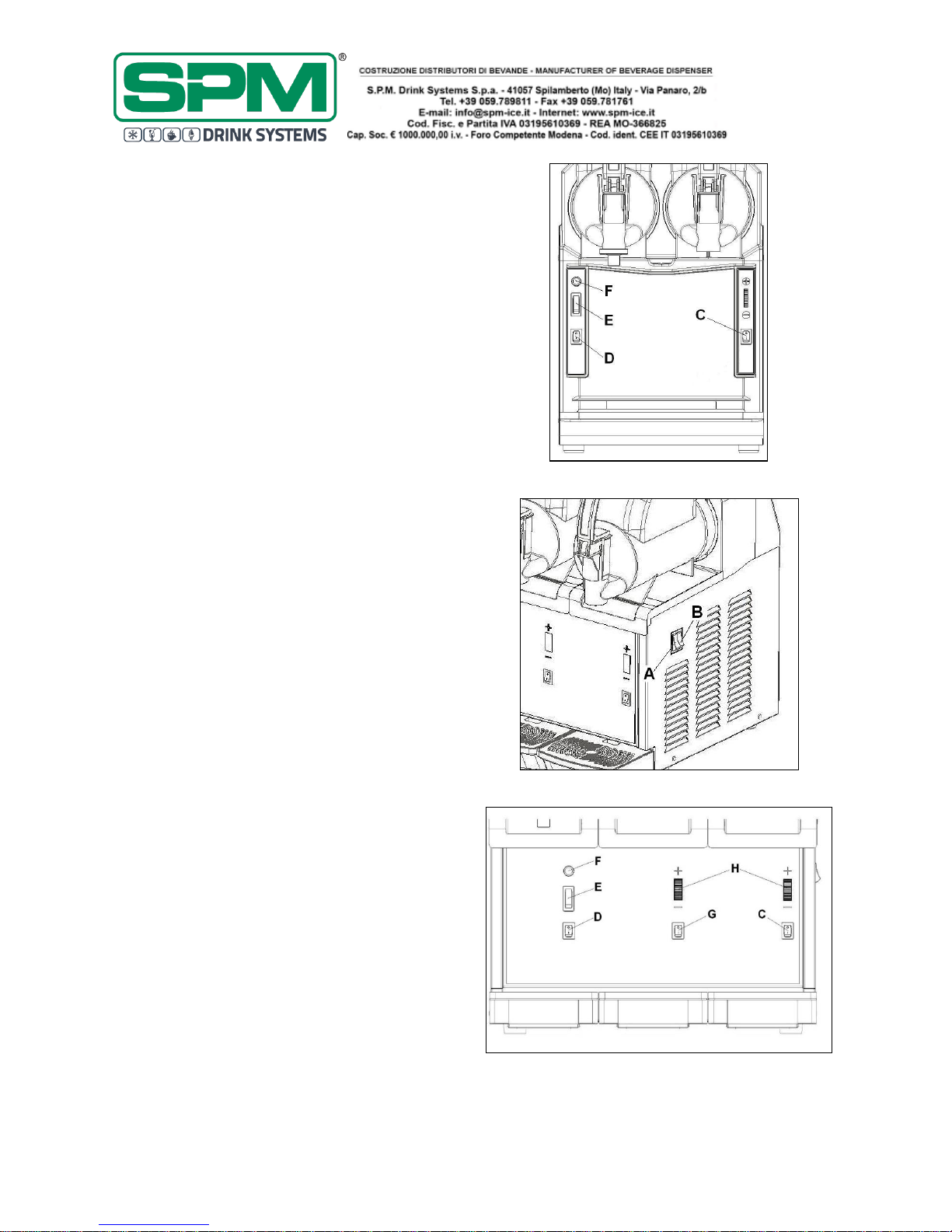

8. START-UP PROCEDURES AND
OPERATING INSTRUCTIONS.................8

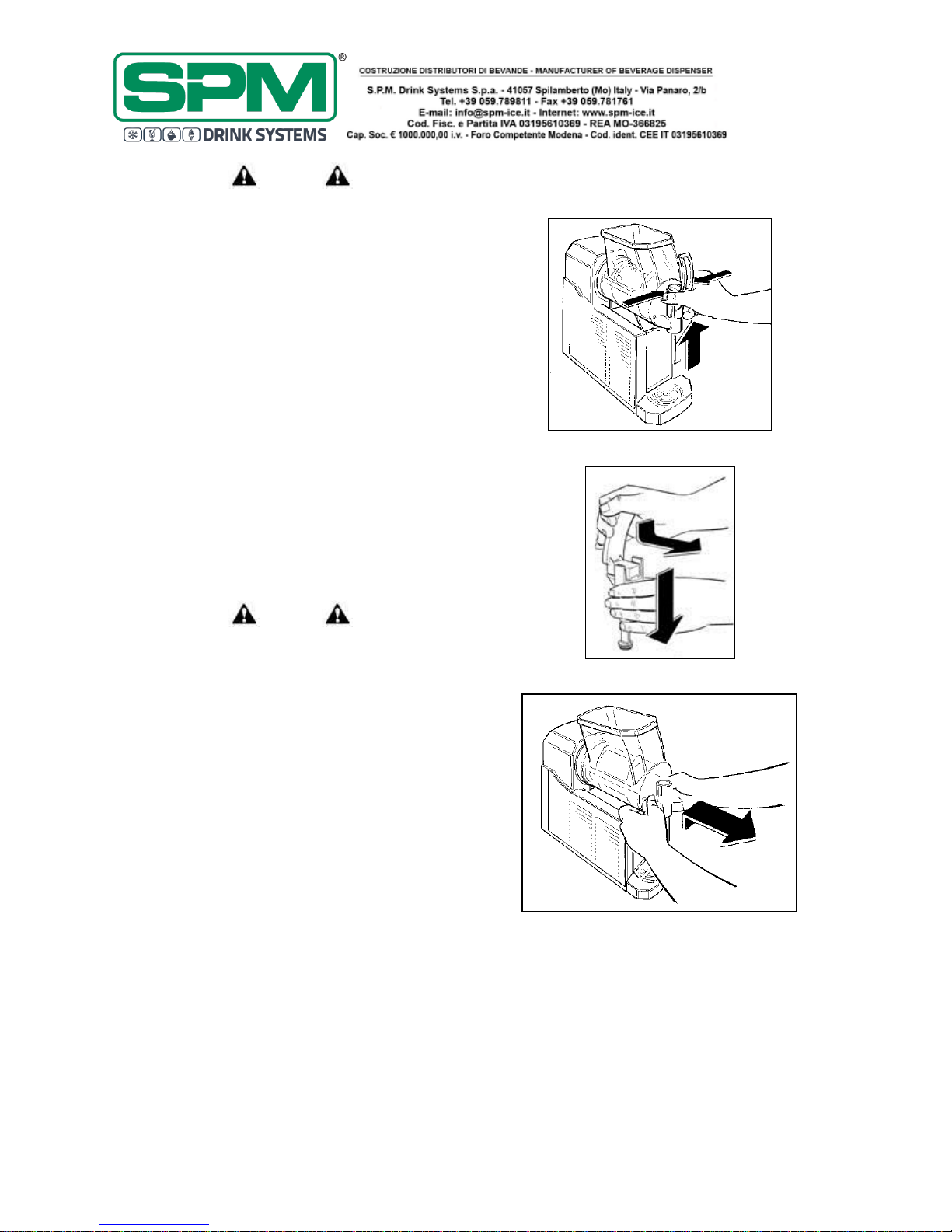

9. CLEANING AND DAILY SANITIZING
PROCEDURES..........................................11
10. SPECIAL MAINTENTANCE.....................18

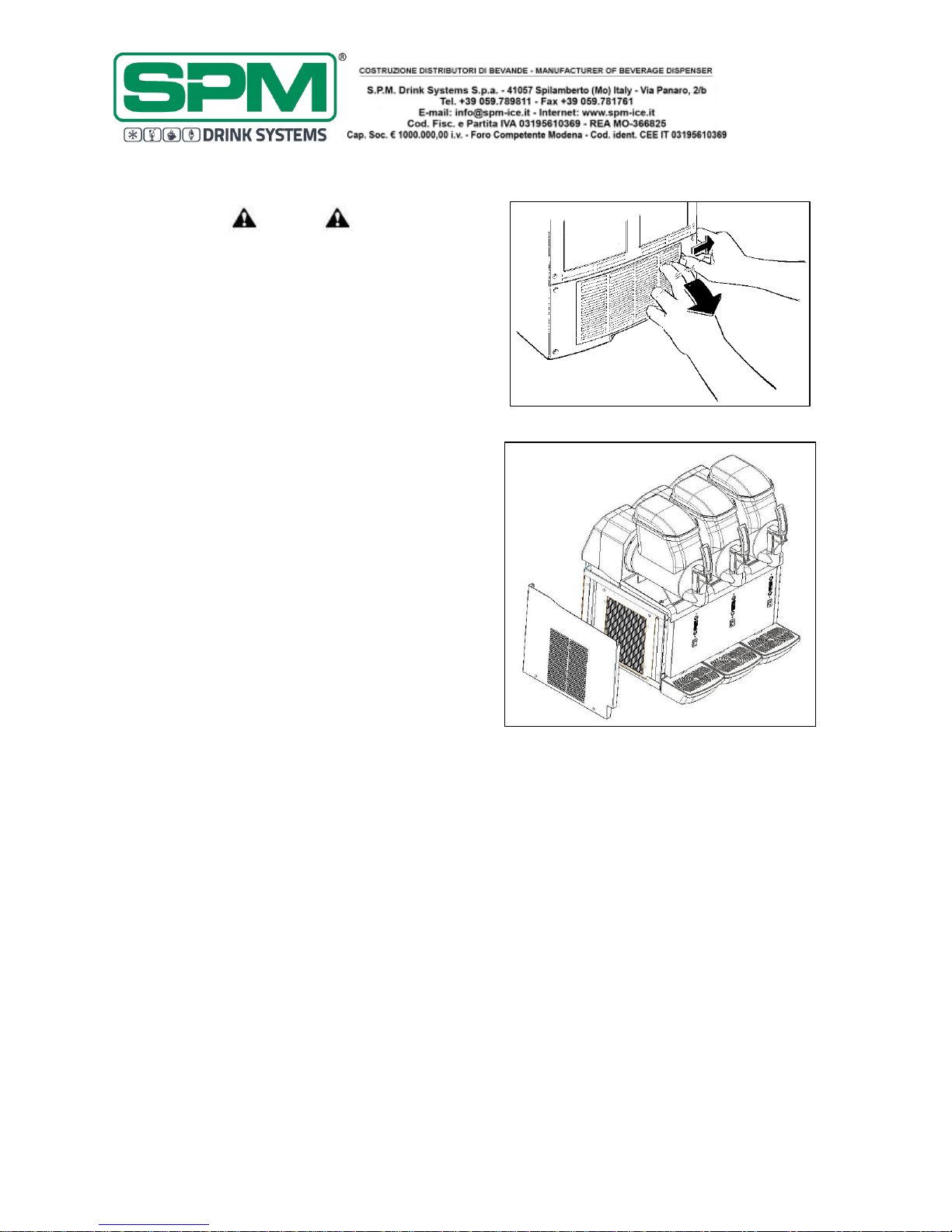

Condenser cleaning......................................... 18
Control and replacement of seals.................... 19
Winter storage................................................. 19
Product storage................................................ 19
11. SOFT SERVE ICE CREAM INFORMATION
....................................................................20
12. DISCLAIMER.............................................20
13. TROUBLESHOOTING GUIDE .................21
14. WIRING DIAGRAM...................................23

Data di emissione: February, 2016 Revisione: 1 Pag. : 4/48
1. IMPORTANT WARNINGS AND
ADVICES
This installation and operation manual is an
integral part of the equipment and must be
kept for future consultation.
Unless otherwise stated, this manual is
addressed to operators (staff members who
uses the equipment on a daily basis) and to
servicemen (staff members qualified to
carry out the installation and/or
maintenance). The parts of the manual
addressed only to servicemen are pointed
out accordingly. Please read carefully the
warnings listed here below before
installation and start-up of the equipment.
This equipment has been designed to
produce both frozen and hot products such
soft serve creamy product, sorbets, hot
chocolate custards and similar products.
Upon receipt of the equipment, make sure
that its part number matches the one
specified in the order, which can be found
on all the delivery documents.
This equipment is exclusively destined to
the purpose for which it was designed. The
manufacturer cannot be held responsible
for any damage due to improper use.
This appliance can be used by children
aged from 8 years and above and persons
with reduced physical, sensory or mental
capabilities or lack of experience and
knowledge if they have been given
supervision or instruction concerning use
of the appliance in a safe way and
understand the hazards involved. Children
shall not play with the appliance. Cleaning
and user maintenance shall not be made
by children without supervision.
This equipment is not suitable for outdoor
use. This machine is not suitable for
installation in locations where water jets
are used.
The appliance is only to be installed in
locations where its use and maintenance is
restricted to trained personnel.
Do not store explosive substances such as
aerosol cans with a flammable propellant
in this
appliance.
This appliance is intended to be used in
household and similar applications such as
–staff kitchen areas in shops, offices and
other working environments;
–farm houses and by clients in hotels,
motels and other residential type
environments;
–bed and breakfast type environments;
–catering and similar non-retail
applications.
2. EQUIPMENT KIT
In the packaging of this equipment you will find
also:
- operator’s manual,
- 1 tube of Vaseline grease lubricant to be used
for machine maintenance;
- EC declaration of conformity;
- drip trays.
3. TRANPORT TIPS
To prevent the oil held in the hermetic
compressor running into the cooling circuit, the
device must be carried, stored and handled in the
upright position, following the direction
instructions on the packing. If the device is
accidentally or intentionally (for transportation
reasons) kept in any other position, it must be
set again in the correct position at least twenty
minutes before start-up procedures, in order to
let the oil flow back into the compressor.
4. LIFTING TIPS
Each machine is equipped with a special wooden
pallet that allows the handling with standard
forklift trucks.
Caution
Never lift the machine alone, but always seek
the assistance of another operator.
To prevent and avoid any damage to the
machine, all loading and unloading operations
should be carried out with special care. The
equipment can be lifted, with either a manual or
engine-powered lifting truck, by positioning the
forks in the base section of the unit.

Data di emissione: February, 2016 Revisione: 1 Pag. : 5/48
The following operations should always be
avoided:
- to turn upside down the machine;
- to drag the machine with ropes or others;
- to lift the machine with slings or ropes
- to shake or rattle the machine and its
packaging.
The machine must be stored in a dry place with
temperatures from 0°C to 40 °C. No more than 2
machines should be stacked on top of each other,
taking care to maintain the vertical position, as
shown by the arrows on the carton.
5. TECHNICAL SPECIFICATIONS

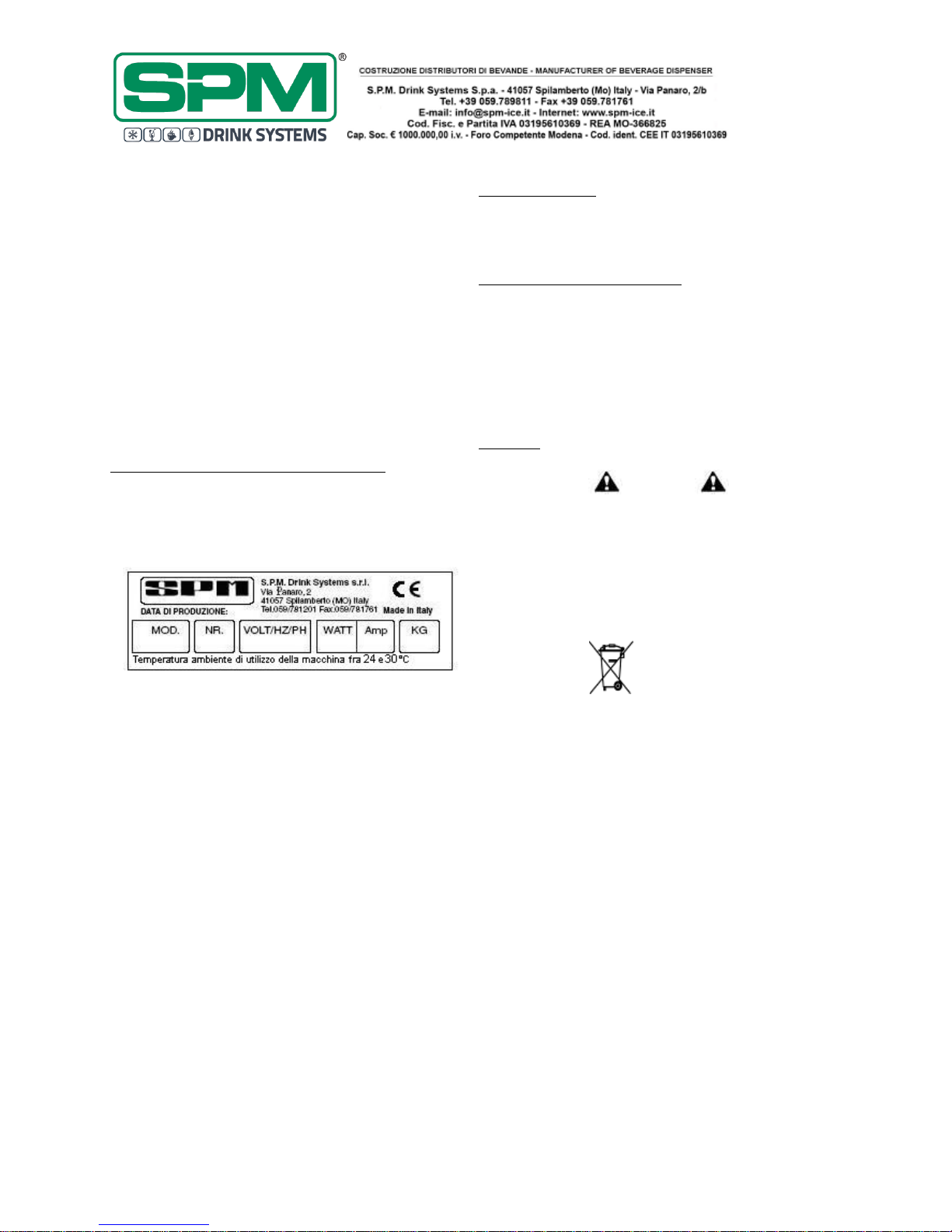

Technical and electrical specifications
All the machine’s technical and electrical
specifications are stated on the identification
plate, positioned in the internal part of the
equipment; a sample is shown here below.
The plate specifies:
Model: XX
n°: XX
Electrical specifications: Volt/ Hz
Max. absorption (Watt)
Max. current (Amp)
Machine ambient working temperatures
between 24°C and 30°C.
Dimensions and weight:
NINA2 HOT&COLD
Height: 487.5 mm.
Width: 280 mm.
Depth: 387.5 mm.
NINA3 HOT&COLD
Height: 520 mm.
Width: 420 mm.
Depth: 390 mm.
Noise emissions
The continuous, equivalent, weighted level of
acoustic pressure is below 70 dB.
In the event of breakdown:
In most cases, any technical problem can be
settled with slight interventions (please see the
troubleshooting guide at the end of this manual);
we therefore recommend you to carefully read
this handbook before contacting the
manufacturer or service centre.
Disposal
Caution
All the parts of the packaging must be kept
beyond the range of children, as they might
represent a potential safety/health risk.
Important
In respect of the environment, please dispose the
packaging as illustrated.
This symbol: means that the machine
cannot be disposed as common waste. It must be
handled in compliance with the provisions of
European directive 2003/108/EC (Waste
Electrical and Electronic Devices - WEEE) and the
resulting national legislation, in order to prevent
any potential damage to the environment and to
create health risks.
In order to correctly dispose of the device, please
contact the distributor from which you purchased
it or our after-sales service.

Data di emissione: February, 2016 Revisione: 1 Pag. : 6/48
6. POSITIONING
FOR MAINTENANCE WORKER ONLY
The installation and subsequent servicing
operations must be carried out by skilled
members who have been trained to use the
device and in compliance with the
regulations in force.
a) Remove the packing and preserve it in order
to reuse for winter storage.
Caution
All the parts of the packaging must be kept
beyond the range of children, as they might
represent a potential safety/health risk.
b) Make sure the machine is in perfect condition.

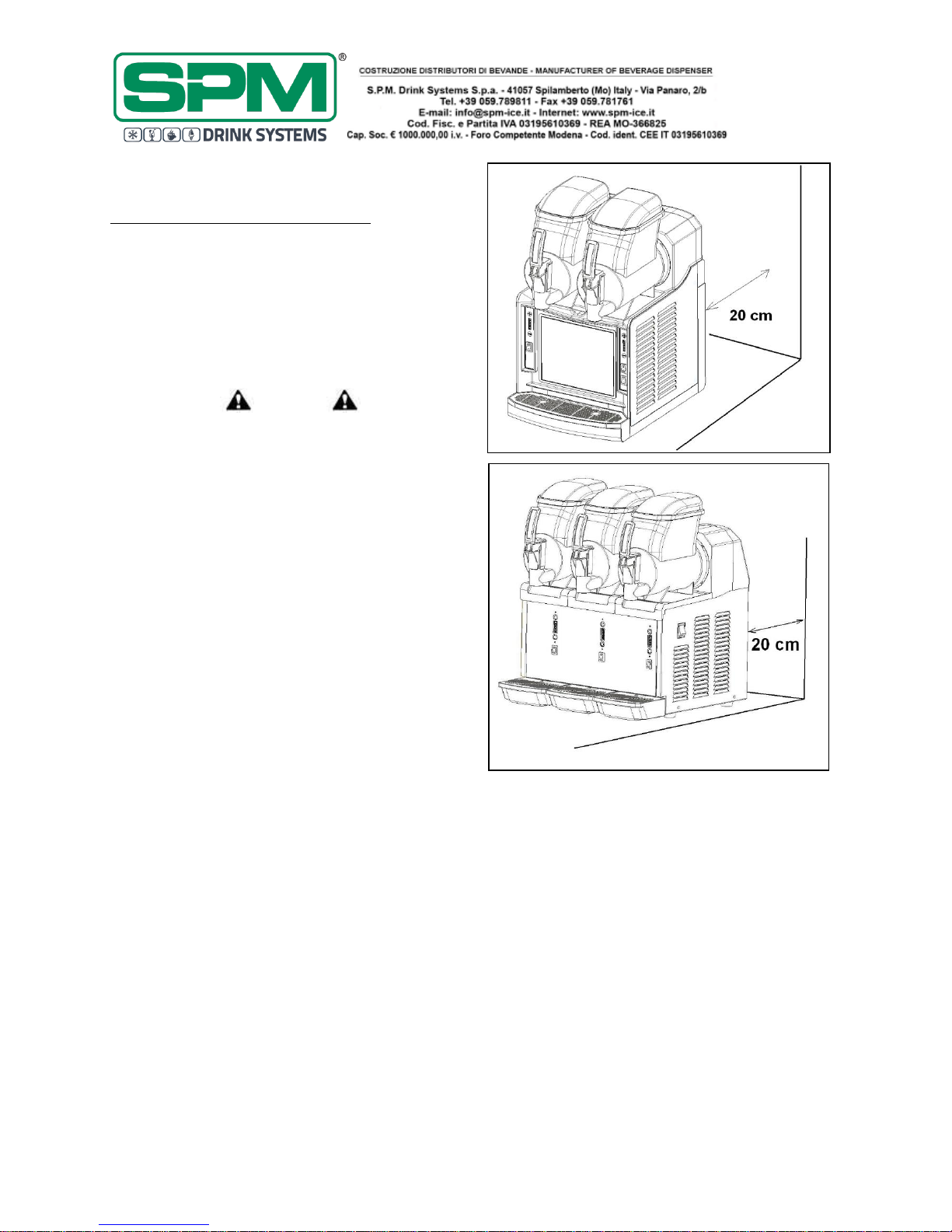

b) Rest the machine on a sturdy, horizontal
surface making sure it is well ventilated by
leaving a gap of 20 cm around it and do not install
it near heat sources (fig.1); we recommend
you to maintain a room temperature
between 24 and 30°C.
c) Check that the power mains voltage meets the
specifications on the equipment identification
plate and that the output available meets the
device’s power requirements.
Fit the plug into an earthed socket, removing all
multiple adaptors.
FOR FURTHER PRECAUTIONS, READ THE
SECTION “CONNECTION TO THE ELECTRICITY
MAINS” CAREFULLY.
d) The installation must be carried out in
accordance with the manufacturer’s instructions.
Failure to comply with the positioning and
installation instructions may impair the
machine’s operation.
Important
You are legally required to provide a suitable
grounding system for the equipment.
Before carrying out any cleaning and/or special
maintenance on the device, make sure it is
disconnected from the mains by unplugging it.
In the event of a breakdown or malfunctioning,
switch off the device and remove the plug.
Fig. 1

Data di emissione: February, 2016 Revisione: 1 Pag. : 7/48
7. CONNECTION TO THE POWER
SUPPLY MAINS
FOR SERVICEMAN ONLY
Before fitting the plug in the power supply socket,
for your own safety, as already mentioned in the
previous paragraph, please read the following
precautions.
- The machine’s electrical safety is only
guaranteed when it is connected to a suitable
earth system, structured as provided by the
national safety current regulations (fig.2).
Therefore, the manufacturer cannot be held
responsible for any damage due to failure of the
grounding system of the machine.
- Always verify electrical specifications on the
data plate of each machine. Data plate
specifications always replace the information of
this manual.
- For a safe and correct installation, it is essential
to provide a suitable socket controlled by a
thermal cut-out switch whose contacts are at
least 3 mm apart, in accordance with the current
national safety regulations (see fig.3).
- Never use extensions or multiple adaptors.
- Check the power lead along its entire length to
make sure it is not crushed in any way.
- To unplug the device, first disconnect the power
supply with the switch, then grip the plug and
gently pull it out.
Important
IF THE POWER CABLE IS DAMAGED, IT MUST
BE REPLACED BY THE MANUFACTURER, ITS
AFTER SALE SERVICE OR BY QUALIFIED
PERSONNEL, TO PREVENT ANY POSSIBLE RISK.
Fig. 2

Data di emissione: February, 2016 Revisione: 1 Pag. : 8/48
8. START-UP PROCEDURES AND
OPERATING INSTRUCTIONS
!IMPORTANT!
BEFORE STARTING THE MACHINE, CARRY OUT
THE CLEANING AND SANITISING PROCEDURES
DESCRIBED IN CHAPTER 9.

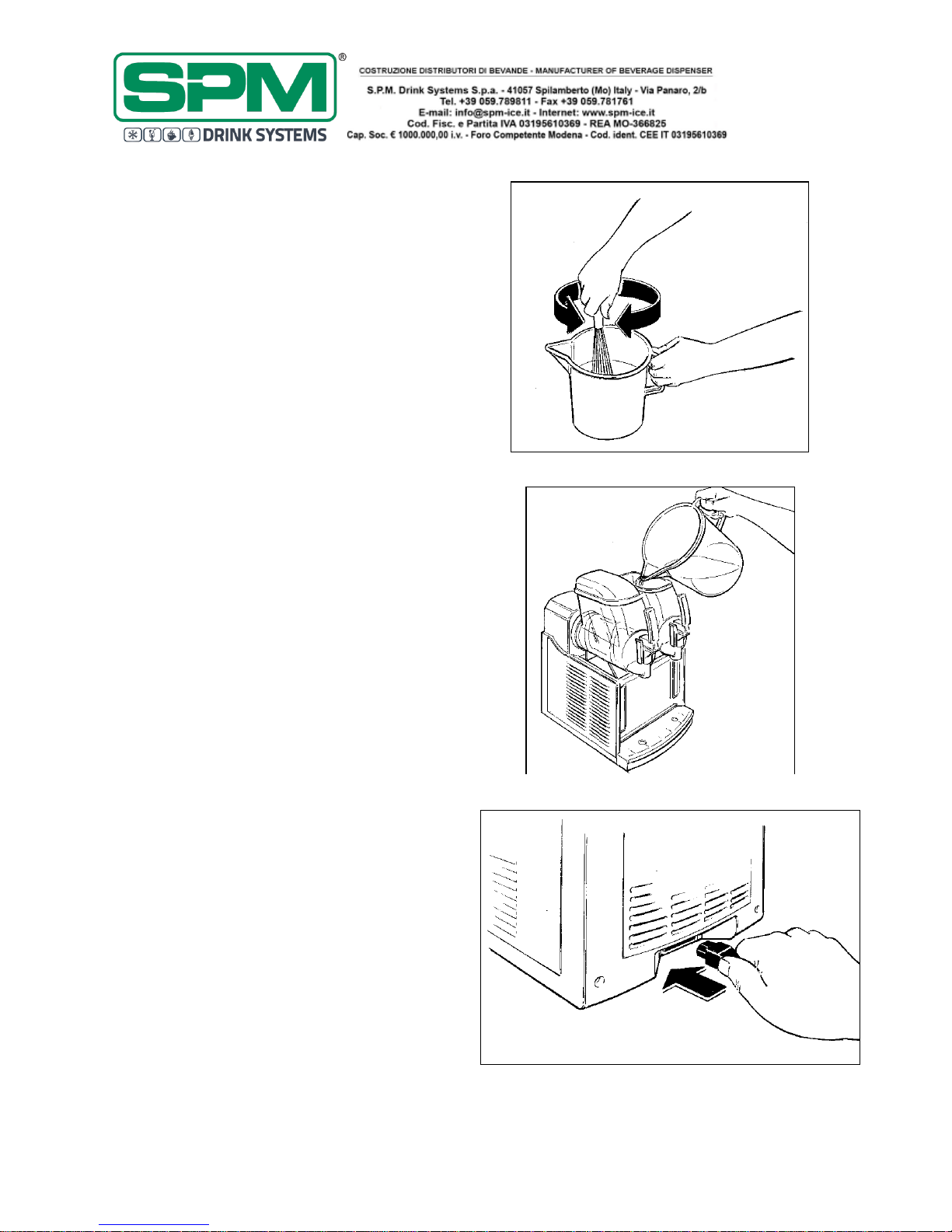

- Dilute and mix the product in a separate
container according to the manufacturer’s
instructions (see fig.3).
NOTE: “mix” is the result of the blending
between water or milk with the powder to
make soft serve creamy product, sorbets,
and similar products or hot creams or
chocolates.
While in the left hot barrel it is possible to
introduce maximum 2 litres of product, filling
the centre and right frozen ones it is better to
avoid introducing more than 1.5 litres of
mix inside the bowl. This kind of products
have a not negligible overrun during their
freezing process and for this reason it is
important to control it in order to avoid to go
over the bowl maximum level (please see the
chapter about the overrun calculation).
- Pour the mix obtained into the bowl (see
fig.4).
- Restore the transparent cover.
Note -----------------------------------------------
Each bowl is equipped with a very efficient
safety mechanism designed to protect the
operator; it is activated when cover is lifted.
This device automatically and immediately stops
all moving parts.
If the cover is not correctly positioned, the
correspondent mixing system will not
work.
------------------------------------------------------
- Insert, just in the NINA2 HOT&COLD case, the
female plug into the electrical power inlet (fig.5)
and then the male one into the power supply
socket.
Fig. 3
Fig. 4
Fig. 5

Data di emissione: February, 2016 Revisione: 1 Pag. : 9/48
- NINA2 HOT&COLD (fig.6):
C switch (fig.6) activates the right side
auger rotation designed to freeze the
product and enables its functioning.
D switch (fig.6) activates the left side
auger rotation designed to warm up the
product and enables its functioning.
- NINA3 HOT&COLD (fig.7):
Activate the main switch A on the right
side of the unit (fig.7) in order to enable
the heating of the product into the left
barrel.
Activate the main switch B on the right
side of the unit (fig.7) in order to enable
the freezing of the product into the
central and right barrel.
C switch activates the right side auger
rotation designed to freeze the product.
G switch activates the central side auger
rotation designed to freeze the product.
D switch activates the left side auger
rotation designed to warm up the
product.
!WARNING!
In case the corresponding auger will not start
rotating once one of the C, G or D switches are
activated, check for the corresponding lid
correct positioning, each bowl is equipped with a
very efficient safety mechanism, if the lid is not
correctly positioned, the machine will not work.
!WARNING!
Both the refrigerating and the heating system of
each bowl could be activated only if the
correspondent auger is rotating.
FREEZING SIDE FUNCTIONING

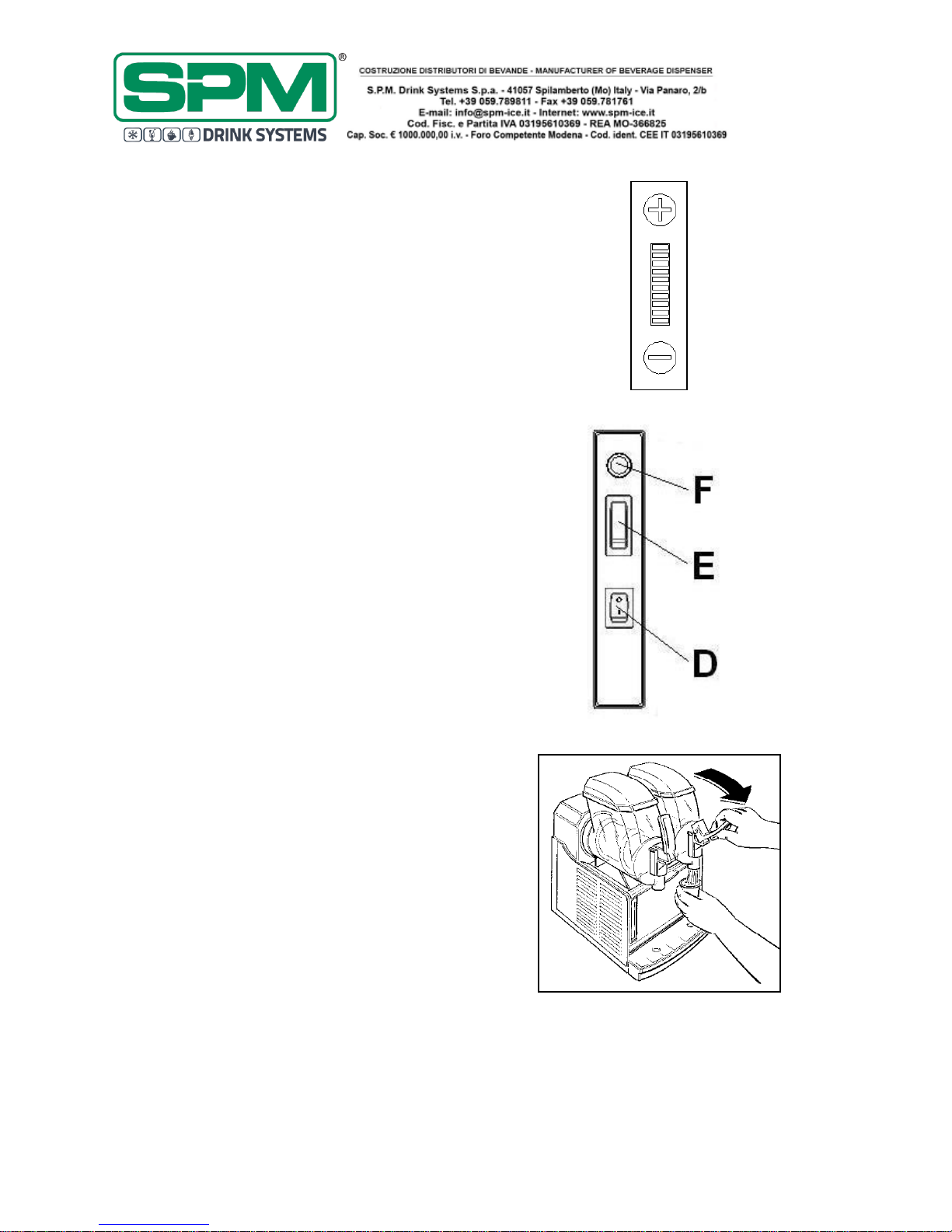

- In order to activate the refrigerating system
and to regulate the product consistency, it is
necessary to use the buttons + and -on the
control board (fig.9); operating on the + button,
the number of lighted LED will increase with the
product consistency; operating on the - button,
the number of lighted LED will decrease with the
product consistency (fig.9).
Fig. 6
Fig. 7
Fig. 8

Data di emissione: February, 2016 Revisione: 1 Pag. : 10/48
- In order to activate the refrigerating system in
defrost mode it is necessary to press the –
button an keep it pressed until the first and the
last LED of the scale will turn on.
In order to exit from the defrost mode it is
necessary to press the + button an keep it
pressed until the all the Led will be switched off.
NOTE: when all the LED are switched off the
refrigerating system is not working and the
product is not cooled.
NOTE: when the unit is switched off the
electronic board will keep in memory the last
setting, for this reason the unit will restart in
the same operating mode when switched on
again.
!WARNING!
The refrigerating system is activated when at
least one LED is switched on; in order to avoid
any damage, before activating it, is necessary
to fill up the bowl; failure to do so could damage
the unit.
Important
Do not use the unit with the refrigerating
system activated (this means in both freeze or
defrost mode) with water or sanitizer in the
bowl, the machine will be damaged.
HEATING SIDE FUNCTIONING
- In order to activate the heating system it is
necessary to activate the E switch (fig.10)
considering that if the correspondent auger is
not rotating the heating element will not work.
NOTE: when the heating element is working the
red light F is turned on (fig.10); the heating
system warms up the product until the desired
temperature and keep it at this value with
ON/OFF cycles; for this reason, during the
functioning the light will alternately turn on and
off.
NOTE: the machine is equipped with an internal
thermostat in order to regulate the product final
temperature, the maximum value that is
possible to be set is 80°C.
- Once the desired product consistency is
reached, to dispense product position a cup
under the tap and lower the lever as shown in
figure 11.
Fig. 9
Fig. 10
Fig. 11

Data di emissione: February, 2016 Revisione: 1 Pag. : 11/48
9. CLEANING AND DAILY SANITIZING
PROCEDURES
In order to maintain the unit in like-new
operating condition and to respect current
regulations, it’s absolutely necessary to
frequently and carefully perform the cleaning
and sanitizing operations as described below.
In case of prolonged shutdown (winter storage),
the machine must be disassembled, washed and
sanitized according to the instructions in this
manual before start-up to ensure the best
possible cleanliness.
Caution
Electric shock hazard. Do not splash water
on switches or allow water to flow onto
electrical components inside the machine.
Caution
To prevent bacteria growth, use only
sanitizers approved for plastic and rubber
objects, failure to do so could create a
health hazard.
NOTE: it is responsibility of the operator to be
aware of and conform to the requirements of
current local, state and federal laws concerning
the frequency of cleaning and conservation of
products used.
The cleaning instructions explained in this
section are essential procedures to remove
bacteria and maintain a sanitarily clean
machine.
We recommend to perform the cleaning
and sanitizing procedures every day and
anyway according to the local laws.
The machine and the mix manufacturers decline
all responsibility to damage that directly or
indirectly derives from people, animals, as
consequence of failure to comply with all
cleaning and sanitation instructions indicated in
this manual.

Data di emissione: February, 2016 Revisione: 1 Pag. : 12/48
- Stop the refrigerating (by switching off all the
LED acting on the –button or by pressing the
+button and keep it pressed to switch off the
defrost mode) and the heating system (E switch
in OFF position) and let the machine run with
the only auger activated for ten minutes.
- Remove all the residual product considering
that the hot product could still be at high
temperature.
- Provide yourself with a sanitizer suitable for
plastic, rubber and stainless steel objects
(AMUCHINA®).
IMPORTANT
Carefully follow the mix producer
prescriptions in terms of time and modes
of conservation.
- Remove the cover (fig.12).
- Pour lukewarm water into the bowl (fig.13)
and, after re-positioning the cover, make the
scraper auger rotating for some minutes (all
LED switched off).
NOTE
Each bowl is equipped with a very efficient
safety mechanism, activated when the cover is
lifted, designed to protect the operator. If the
cover is not correctly positioned, the
machine will not work.
- Empty the bowl and repeat the same
operations until the coming out water is clear
(fig.14).
Fig. 12
Fig. 13
Fig. 14

Data di emissione: February, 2016 Revisione: 1 Pag. : 13/48
Caution
To avoid electrical shock or contact with
moving parts, before proceeding with the
disassembling operations, make sure all
switches are in “OFF” position and that the
main power supply is disconnected.
- Switch off the machine and disconnect the
power cable.
- Remove the cover.
- Wash and sanitize your hands and forearms.

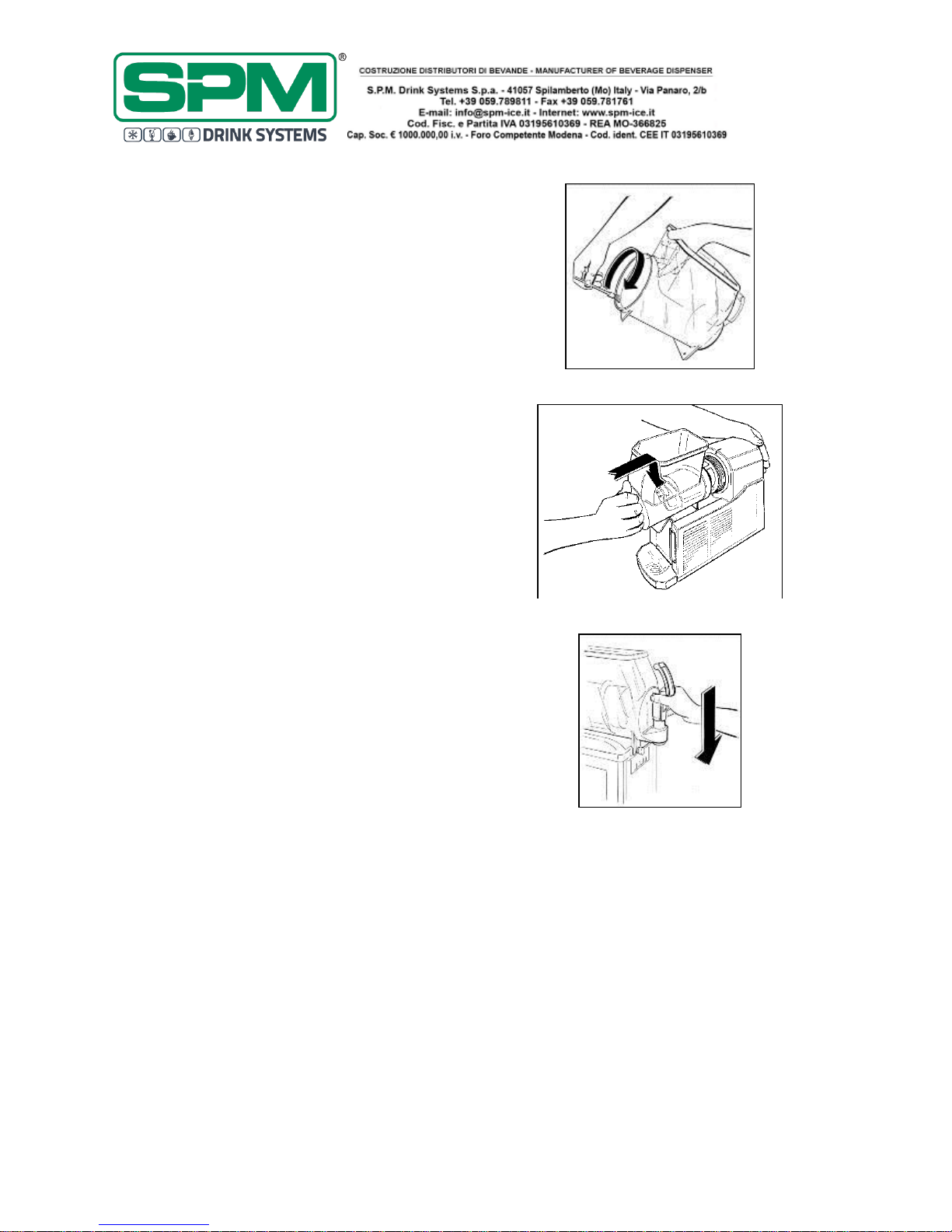

- Simultaneously press the two securing tabs
and lift the tap to extract it from its seat (see
fig.15).
- Disassemble the tap by keeping the body
pressed down and slipping the lever from its
seat (fig.16).
Caution
To prevent bacteria growth, remove all
O-rings when cleaning.
Failure to do so could create a health
hazard.
- Pull the tank upward and outward, as shown,
to completely remove it from its seat (fig.17).
Fig. 15
Fig. 16
Fig. 17

Data di emissione: February, 2016 Revisione: 1 Pag. : 14/48

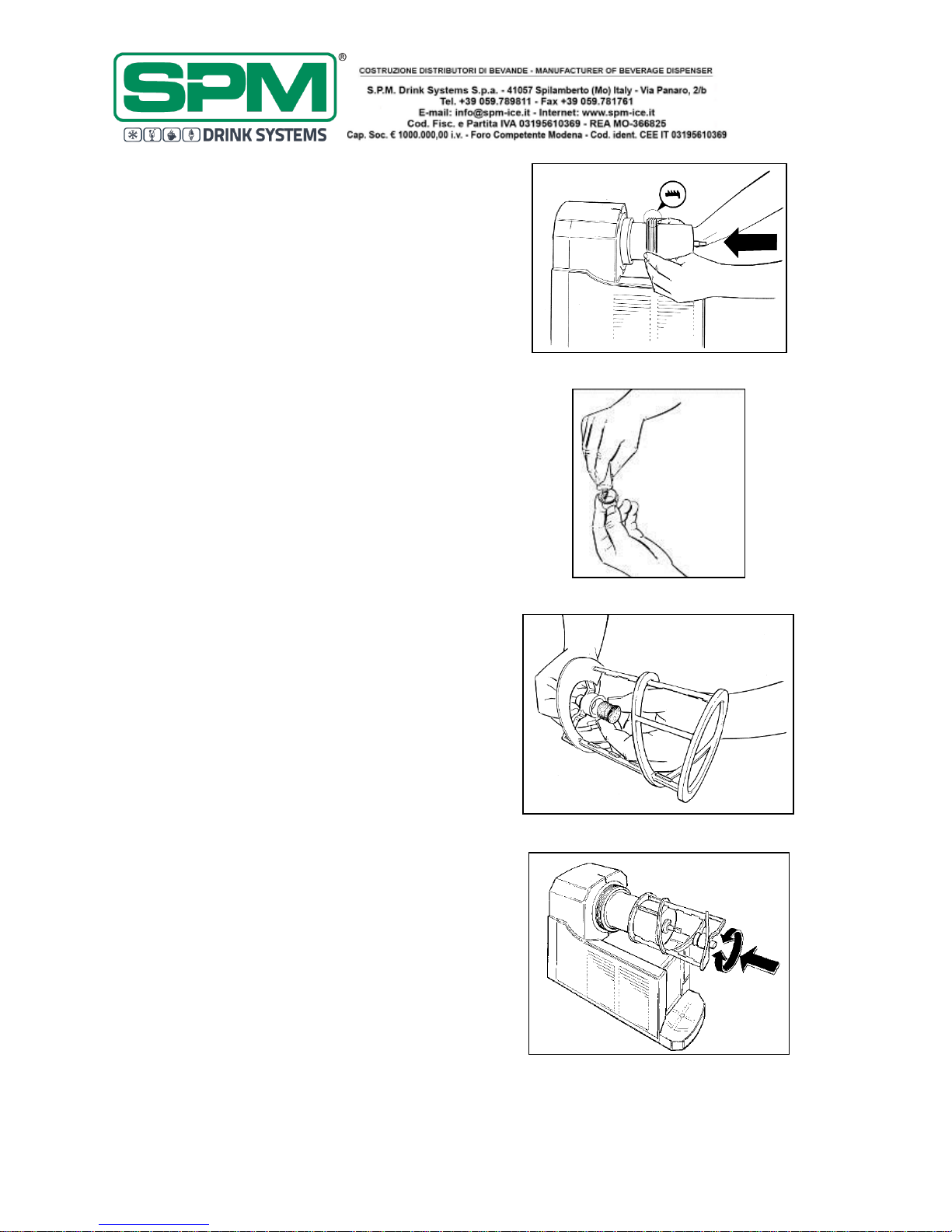

- Pull out the mixing unit, the bell shaped seal
and the bowl gasket on the back (fig.18 and
19).
- Remove the drip tray by moving it upward and
pulling it outward (fig.20).
- Thoroughly wash all the removed components
with hot water and dish washing, but do not use
abrasive detergents or powders that can
damage the bowl.
IMPORTANT
Do not use too aggressive sanitizers or
detergents, these kind of products could
damage the bowl and the other
components.
CAUTION
Never perform these washing operation
with a dish washing machine; failure to do
so could seriously damage the unit’s parts.
- Rinse well and then place all the components
in the sanitizer solution; for proper sanitizing
the parts must remain fully plunged for 15
minutes or as recommended by the sanitizer
manufacturer.
- After respecting the correct sanitizing period,
rinse well all the components with clean water
and dry them up with a clean cloth.
- Thoroughly wash the evaporator and the drip
tray surfaces with a sponge soaked with the
sanitizer (see fig.21).
- Repeat all these operations with a clean
sponge soaked with water and carefully dry up
all the surfaces with a clean cloth.
Fig. 18
Fig. 19
Fig. 20
Fig. 21

Data di emissione: February, 2016 Revisione: 1 Pag. : 15/48
Once performed all these cleaning and sanitizing
procedures, it’s possible to reassemble all the
components.
The correct assembly of the device is essential
to prevent leakage of product and damage of
the machine. To assemble the machine you will
need an approved lubricant (such as Vaseline).
Make sure all parts have been washed and
sanitized before assembling. Persons assembling
the machine must first wash and sanitize their
hands and forearms with an approved sanitizer.
- Reassemble the rear gasket respecting the
correct assembling direction as indicated in
figure 22.
- Spread Vaseline on the bell shaped seal
internal surface before reassembling it (fig.23).
- Insert the suction gasket into the auger by
carefully inserting it into its seat (fig. 24).
- Reassemble the mixing unit making sure that
the frontal cylinder perfectly fit inside its
rotating shaft seat (fig.25).
Fig. 22
Fig. 23
Fig. 24
Fig. 25

Data di emissione: February, 2016 Revisione: 1 Pag. : 16/48
- Moisten with water the rear of the tank where
it meets with the seal to facilitate the
reassembling procedures (see fig.26);
- Reassemble the bowl by positioning it back
into its seat until it gets blocked into it (see
fig.27).
- Re-insert the tap (fig.28) spreading Vaseline
on the O-rings to facilitate sliding the tap in its
seat until completely inserted.
!Warning!
If the tap does not perfectly slide into position,
the sealing hold will be endangered.
- Reassemble the drip tray.
Fig. 26
Fig. 27
Fig. 28

Data di emissione: February, 2016 Revisione: 1 Pag. : 17/48
SANITIZING
Whenever the machine has remained unused for
some days after been cleaned and sanitized as
described in the chapter 9, the sanitizing
procedures described below must be performed
just prior to start-up the machine.
- Remove the main cover and the secondary
one.
- Pour sanitizing solution (AMUCHINA®) into the
bowl carefully following the manufacturer
prescriptions.
- After restoring the main cover, switch on the
machine and let the auger rotating (all control
board LED switched off) leaving the sanitizing
solution for the time specified by its producer.
IMPORTANT
Never let the sanitizer inside the bowl for
more than 15 minutes.
- Drain the solution by opening the plunger to
allow the bowl to empty. Open and close the
plunger at least 10 times during draining to
sanitize the product way out area also.
- Thoroughly rinse repeating these operations
with clean water instead of sanitizer solution.
- Now the machine is ready to be used.

Data di emissione: February, 2016 Revisione: 1 Pag. : 18/48
10.SPECIAL MAINTENTANCE
Caution
Before proceeding with any maintenance
operation, it is compulsory to switch off the
machine and unplug it from the mains.
Condenser cleaning
In order to guarantee good cooling system
performance, the condenser must be well
cleaned every month or whenever
necessary.
How to reach it:
- Switch off the power supply and disconnect the
power cable;
- NINA2 HOT&COLD: remove the rear panel as
indicated in figure 29;
- NINA3 HOT&COLD: take away the left panel
(fig. 30) by removing the two fixing screws;
- Remove, if present, the condenser filter and
wash it carefully, otherwise clean carefully the
condenser fins with a vacuum cleaner;
- Place, if present, the filter back into its seat and
close the plastic panel before re-starting the unit.
IMPORTANT
Never use a screwdriver or sharp object to
clean between fins.
Fig. 29
Fig. 30

Data di emissione: February, 2016 Revisione: 1 Pag. : 19/48
Control and replacement of seals
BOWL GASKET (LOCATED AT THE REAR OF
BOWL)
Replace it every 12 months according to the
conditions of use and level of maintenance.
DISPENSE VALVE O-RING
The dispense valve O-rings should be replaced
as necessary when wear is evident. Lubricate
them each time they are replaced or the
dispense valve is removed for cleaning.
SUCTION GASKET
Replace every 3 months according to the
conditions of use and level of maintenance. This
part should be lubricated during the re-
assembly after every cleaning with Vaseline.
Winter storage
To protect the unit during seasonal shutdown,
it’s important to properly store the machine
using the following procedures:
- Disconnect all power to the freezer.
- Disassemble, wash and sanitize all parts that
come into contact with the mix as described in
chapter 9.
- Clean also all the exterior panels.
- Reassemble all these parts.
- Cover the machine with the original package
to protect it from dust or other contaminating
elements.
- Place the machine in dry location.
Product storage
Since the safety of the product used with this
unit depends upon the temperature and the
duration of storage, it is necessary to refer
directly to the food product producer instruction
and specifications in order to correctly manage
it and in order to avoid any possible safety
issue.

Data di emissione: February, 2016 Revisione: 1 Pag. : 20/48
11.SOFT SERVE ICE CREAM
INFORMATION
OVERRUN
While the product is frozen in the bowl, its
volume increase; to control overrun is important
as too much of it could go over the bowl
maximum level.
To correctly measure overrun carry out the
following steps:
- Place an empty container on the scale and
adjust your scale to zero;
- Remove the container from scale and fill it
with liquid product to the top. Weigh container
and record;
- Replace liquid product with frozen one, strike
off the excess of it so it is even with the top of
the container and measure the weight;
- Use the following formula to figure overrun
percentage:
“Weight of liquid mix minus weight of frozen
product divided by the frozen weight. Multiply
by 100””
Example:
Weight of half litre of mix: 530g;
Weight of half litre of frozen product: 380g;
Difference:150g;
150/380=0.4
0.4x100=40% overrun
12.DISCLAIMER
The manufacturer declines all responsibility for
any damage that directly or indirectly might be
brought on to people, things, animals, as a
consequence of failure to comply with all
instructions given in this manual with the
warnings concerning installation procedures, use
and maintenance of the machine.
The manufacturer cannot be held responsible for
possible mistakes due to printing, copying or
translating errors contained in this manual.
In addition, the manufacturer reserves the right
to modify what deemed necessary or useful for
the machine, as well as for the benefit of the
user, yet at the same time maintaining the
essential operative and safety characteristics of
said machine.
