Sportline DUO 1060 User manual

DUO 1060
SPEED AND DISTANCE HEART RATE MONITOR
DUO 1060
SP5296IS01ROD.indd 1SP5296IS01ROD.indd 1 6/11/10 12:38 PM6/11/10 12:38 PM

INTRODUCTION 1
HOW TO USE THIS MANUAL 1
WARNINGS & CAUTIONS 2
CARE & MAINTENANCE 3
CUSTOMER SUPPORT 3
WATCH FUNCTIONS 4
KEYS AND THEIR FUNCTIONS 5-6
ACQUIRING HEART RATE 7-8
HEART RATE LOCK 7
MAIN OPERATING MODES 9-10
SETTING THE WATCH FUNCTIONS 11
SETTING TIME & DATE 11
SETTING USER PROFILE & STRIDE LENGTH 11-12
SELECTING YOUR TARGET HEART RATE ZONE 13
SETTING YOUR TARGET HEART RATE ZONE 14
SETTING DAILY ALARM 15
SETTING DUAL TIME ZONE 16
OPERATING THE WATCH 17
DISPLAY ICONS AND THEIR MEANINGS 17
HEART RATE/EXERCISE TIMER SUB MODES 18
HEART RATE/EXERCISE TIMER DETAIL VIEW 19-20
TABLE OF CONTENTS
SP5296IS01ROD.indd 2SP5296IS01ROD.indd 2 6/11/10 12:38 PM6/11/10 12:38 PM

Duo 1060 Speed and Distance Heart Rate Monitor
OPERATING THE WATCH (CONT.)
OPERATING THE EXERCISE TIMER 21
FITNESS RECOVERY TRACKER 22
INTELLITRACK HEART RATE VISUAL DISPLAY 23
HEART RATE/EXERCISE MEMORY 24
SETTING INTERVAL TRAINING MODE 25
OPERATING INTERVAL TRAINING MODE 26
OPERATING THE CHRONOGRAPH 27
VIEWING CHRONOGRAPH MEMORY 28
SETTING & OPERATING THE COUNTDOWN TIMER 29
VIEWING THE EL BACKLIGHT SYSTEM 29
REPLACING THE WATCH BATTERY 30
REPLACING THE CHEST TRANSMITTER BATTERY 31
BATTERY SAFETY INFORMATION 32
TROUBLE SHOOTING 33
RANGES & SPECIFICATIONS 34
FCC COMPLIANCE 35
WARRANTY 36
TABLE OF CONTENTS
SP5296IS01ROD.indd 3SP5296IS01ROD.indd 3 6/11/10 12:38 PM6/11/10 12:38 PM

1
INTRODUCTION
Congratulations on your purchase of a Sportline Personal Fitness Monitor. Please keep in mind; your watch
is a sensitive technical instrument. With proper care and maintenance, it will last for many years. However,
improper care and handling can cause the various sensors to be damaged and to stop functioning.
HOW TO USE THIS MANUAL
Sportline Personal Fitness Monitors have many unique features and functions. Please read all sections of
this manual carefully and become fully familiar with the operation of the watch before using it in the field.
Proper setup and operation will greatly enhance the watches usefulness and your enjoyment.
The manual is divided into sections outlining each of the major functions of the watch. A drawing of the
watch screen that represents the starting point or other important screens for each operational process are
shown adjacent to the instructions for the process; important keys are shown indicating PRESS & HOLD and
PRESS.
The steps for the programming or operation are adjacent to the screen illustration. Key points and important
information are shown in highlighted blocks.
ACTIVATING THE WATCH FROM POWER DOWN MODE
PLEASE NOTE: Your watch was originally shipped in Power Down Mode to conserve battery life.
To deactivate Power Down mode: PRESS & HOLD ANY KEY for 5 seconds.
SP5296IS01ROD.indd Sec1:1SP5296IS01ROD.indd Sec1:1 6/11/10 12:38 PM6/11/10 12:38 PM

2
Duo 1060 Speed and Distance Heart Rate Monitor
WARNINGS & CAUTIONS
WARNING: Before starting any exercise program or performing any vigorous physical activity, we strongly
suggest you visit your doctor for a complete physical and to discuss your plans.
CAUTION: Your watch is designed to be water resistant and can be worn while showering and light
swimming. However, we recommend that extensive use of the unit in the water be avoided whenever
possible. Care should be taken not to press any keys while the unit is submerged as this can force moisture
past the key seals and damage the unit.
CAUTION: Avoid exposing your watch to extreme conditions for a prolonged period of time.
CAUTION: Avoid rough usage or severe impacts to your watch.
DO NOT use hand cream as it will insulate the signal between the skin and sensor contacts.
DO NOT use the fingertips where the skin is dry and thick. For those with extremely dry skin, moisten
fingers and wrist with tap water or a conductive gel.
CLEAN the Back Cover occasionally by using a damp cloth. Then wipe dry to remove any residual grease.
CLEAN your skin and fingers with soap and water for a better signal transmission.
AVOID doing awkward motions during measurement. It may create inaccurate heart rate readings.
SP5296IS01ROD.indd Sec1:2SP5296IS01ROD.indd Sec1:2 6/11/10 12:38 PM6/11/10 12:38 PM

3
• NEVER attempt to disassemble or service your unit.
• DO NOT expose the unit to extreme heat, shocks, magnetic fields, electrical noise, strong vibration or
long-term exposure to direct sunlight.
• DO NOT drop or step on the watch.
• TO CLEAN THE UNIT: wipe with a lightly moistened cloth. Apply mild soap to the area if there are
stubborn stains or marks. Do not expose the unit to strong chemicals such as gasoline, cleaning solvents,
acetone, alcohol or insect repellents as they may damage the unit’s seal, case and/or finish.
• STORE the unit in a dry place when you are not using it.
CUSTOMER SUPPORT
If you have questions, comments or need assistance with your Sportline DUO 1060 Speed and Distance
Heart Rate Monitor, you may contact Customer Support by calling 1-866-694-4575.
CARE & MAINTENANCE
SP5296IS01ROD.indd Sec1:3SP5296IS01ROD.indd Sec1:3 6/11/10 12:38 PM6/11/10 12:38 PM

4
Duo 1060 Speed and Distance Heart Rate Monitor
TIME
•Time/Day/Date/Month
•12- or 24-hour format
•Daily Alarm
•Dual Time Zone
HEART RATE
•Finger-Touch or Chest Strap Transmitter HR
acquisition
•4 user-selected HR Zones
•HR Zone Alert
•Calorie Consumption
•Fat Burn Measurement
•HR Zone Memory Recall
•Intellitrack HR Feature
•7 Workout Memory
TIMER
•1-second resolution
•Range: 23 hours, 59 minutes, 59 seconds
•Audible alarm
CHRONOGRAPH
•1/100 second resolution
•23 hours, 59 minutes, 59.99 seconds
•100 laps
•Lap/Split Memory Recall
PEDOMETER
•Strides
•Exercise Time
•Distance
•Speed
OTHER
•EL Backlight System
WATCH FUNCTIONS
SP5296IS01ROD.indd Sec1:4SP5296IS01ROD.indd Sec1:4 6/11/10 12:38 PM6/11/10 12:38 PM

5

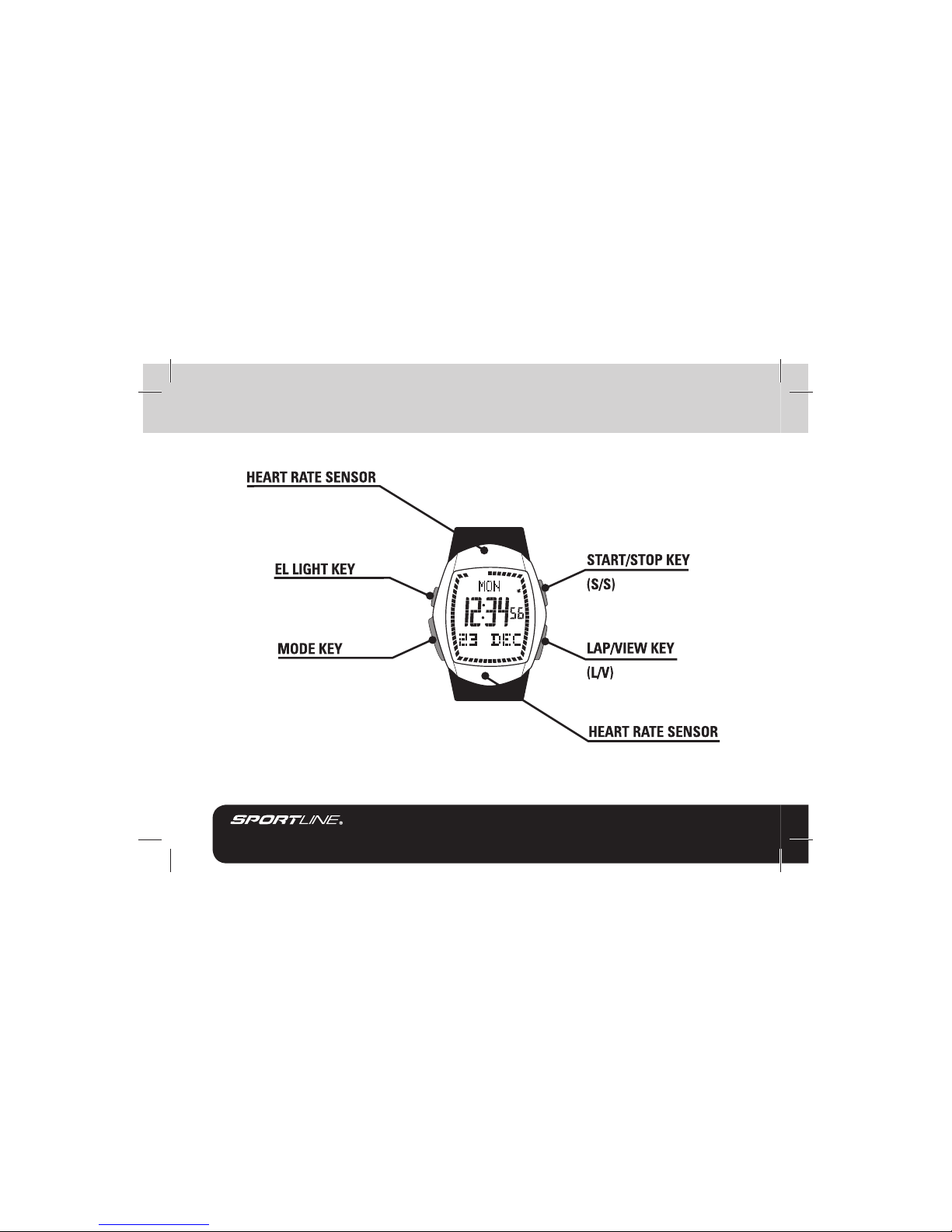

KEYS AND THEIR FUNCTIONS
SP5296IS01ROD.indd Sec1:5SP5296IS01ROD.indd Sec1:5 6/11/10 12:38 PM6/11/10 12:38 PM

6
Duo 1060 Speed and Distance Heart Rate Monitor
MODE KEY
•Scroll through operating modes
•PRESS & HOLD:Enter/Exit a programming
sequence
•Set values being adjusted in programming
sequence
•
PRESS & HOLD:Enter/Exit Memory Recall in
Exercise and Chronograph modes
START/STOP KEY (S/S)
•Turn Alarm ON or OFF in Alarm mode
•Start/Stop Exercise Timer
•Start/Stop Interval Training
•Start/Stop Countdown Timer
•Start/Stop Chronograph
•Increase setting values being adjusted in
programming sequence
•
PRESS & HOLD: Reset Exercise Timer,
Chronograph or Interval Training
•PRESS & HOLD: In Time of Day to activate
Heart Rate Lock
LAP/VIEW (L/V)
•Decrease setting values being adjusted in
programming sequence
•Start new Lap in Chronograph mode
•Reset Countdown Timer
•Scroll through current heart rate information in
Exercise mode
•
PRESS & HOLD: Activate Power Save mode from
Time of Day mode
LIGHT KEY
•Activates (EL) backlight system
HEART RATE SENSORS
•Acquires Finger Touch Heart Rate
KEYS AND THEIR FUNCTIONS
SP5296IS01ROD.indd Sec1:6SP5296IS01ROD.indd Sec1:6 6/11/10 12:38 PM6/11/10 12:38 PM

7
ACQUIRING HEART RATE
ACQUIRING HEART RATE: FINGER TOUCH
Heart rate may be acquired from any operating
mode (not in any Setting Sequence).
1. With the watch attached to your wrist, TOUCH
& HOLD the HEART RATE SENSOR (anywhere
on the metal top plate of the watch) with your
index finger.
NOTE: If Heart Rate Sensors are accidentally touched, the watch will
automatically attempt to acquire heart rate. If no heart rate is detected,
watch will resume operating mode in approximately 10 seconds. This
will not interfere with any timing functions in progress.
NOTE: You may exit Heart Rate mode at any time by Pressing the
Mode, Start/Stop or Reset key.
2. Continue TOUCHING & HOLDING until heart rate displays.
3. Once Heart Rate is acquired, RELEASE THE SENSOR. Heart Rate will continue to display for a period of
approximately 5 seconds.
HEART RATE LOCK
To deactivate Finger Touch Heart Rate (when you don’t want to accidentally acquire heart rate):
1. In Time mode, PRESS & HOLD the LAP/VIEW key. The lock icon ( ) will appear in the upper left of the
display.
2. To unlock, PRESS & HOLD the LAP/VIEW key for 2 seconds in Time mode. The lock icon will disappear.
OR
SP5296IS01ROD.indd Sec1:7SP5296IS01ROD.indd Sec1:7 6/11/10 12:38 PM6/11/10 12:38 PM

8
Duo 1060 Speed and Distance Heart Rate Monitor
ACQUIRING HEART RATE WEARING THE CHEST STRAP TRANSMITTER
The Chest Strap Transmitter provides constant heart rate information throughout the duration of your
workout. To ensure a proper heart rate display, the chest transmitter must be properly adjusted. Snap the
plastic tabs at the end of the elastic belt into the holes at the end of the transmitter and adjust the strap so
that the transmitter fits tightly below the pectoral muscles, as shown in the drawing.
NOTE: Users with significant chest hair may have a problem obtaining contact between the transmitter electrodes and their skin, resulting in poor
performance. It may be necessary for these individuals to shave the area of their chest beneath the transmitter.
NOTE: In dry and cold climates it may take a few minutes for a layer of perspiration to form between the chest strap and the skin. Moistening the electrodes
with saliva or ECG conductive gel can speed up this process.
NOTE: If Chest strap heart rate is captured, finger touch heart rate will be disabled.
ACQUIRING HEART RATE
ELECTRODES
SP5296IS01ROD.indd Sec1:8SP5296IS01ROD.indd Sec1:8 6/11/10 12:38 PM6/11/10 12:38 PM

9
MAIN OPERATING MODES
The Sportline Duo 1060 has 7 main operating modes: Time, Heart Rate/Exercise Timer, Interval, Chronograph,
Alarm, Countdown Timer and Dual Time. Scroll through modes by PRESSING the MODE key. You may acquire
Finger Touch Heart Rate by TOUCHING & HOLDING the Heart Rate Sensor in any operating mode.
PRESS
MODE
PRESS
MODE
PRESS
MODE
PRESS
MODE
PRESS
MODE
TIME HEART RATE/
EXERCISE TIMER
INTERVAL TRAINING
CHRONOGRAPHCOUNTDOWN
TIMER
DUAL TIME ALARM
SP5296IS01ROD.indd Sec1:9SP5296IS01ROD.indd Sec1:9 6/11/10 12:38 PM6/11/10 12:38 PM

10
Duo 1060 Speed and Distance Heart Rate Monitor

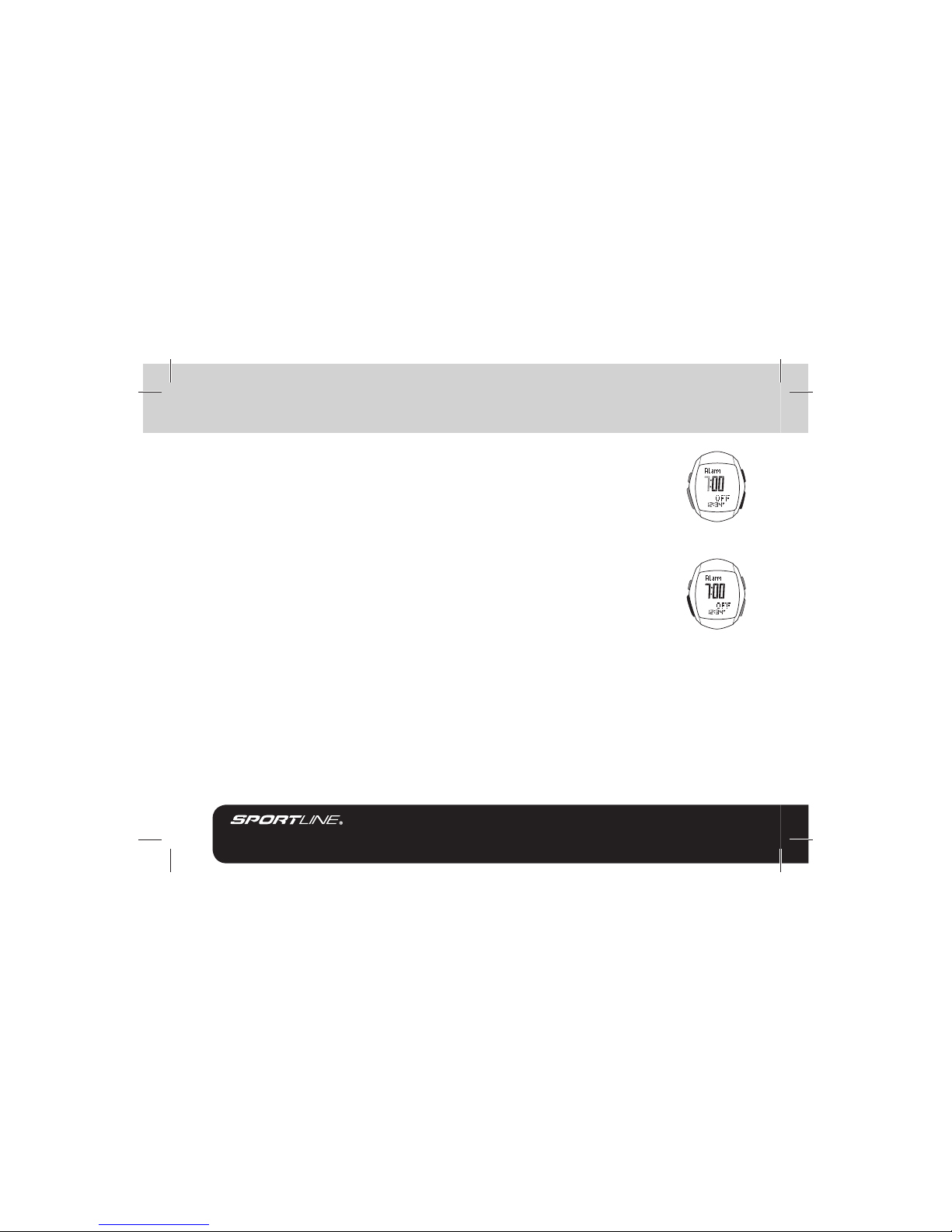

RESET
To RESET the watch and revert all settings to factory defaults:
1. In Time mode, PRESS & HOLD the MODE, START/STOP & LAP/VIEW keys for 5
seconds.
2. The watch will be restored to its factory default settings. All User Profiles and
Memory files will be lost.
POWER DOWN MODE
Power Down mode allows you to conserve battery life by deactivating the unit when
the monitor is not being used for long periods of time. To activate Power Down mode:
1. In Time mode, PRESS & HOLD the MODE & START/STOP keys for 5 seconds. The
display will go blank.
NOTE: Time/Date, User Profiles and Memory files will be preserved.
2. To deactivate Power Save mode and resume normal operation, PRESS & HOLD
ANY KEY for 3 seconds.
HEART RATE LOCK
To deactivate finger Touch Heart Rate (when you don’t want to accidentally acquire
heart rate):
1. PRESS & HOLD the START/STOP key in Time mode. The lock icon will appear in the
upper left of the display.
2. To unlock, PRESS & HOLD the START/STOP key for 2 seconds in Time mode.
MAIN OPERATING MODES
PRESS & HOLD
LAP/VIEW
PRESS ANY KEY
TO RESUME
OPERATION
PRESS & HOLD
START/STOP
SP5296IS01ROD.indd Sec1:10SP5296IS01ROD.indd Sec1:10 6/11/10 12:38 PM6/11/10 12:38 PM

11

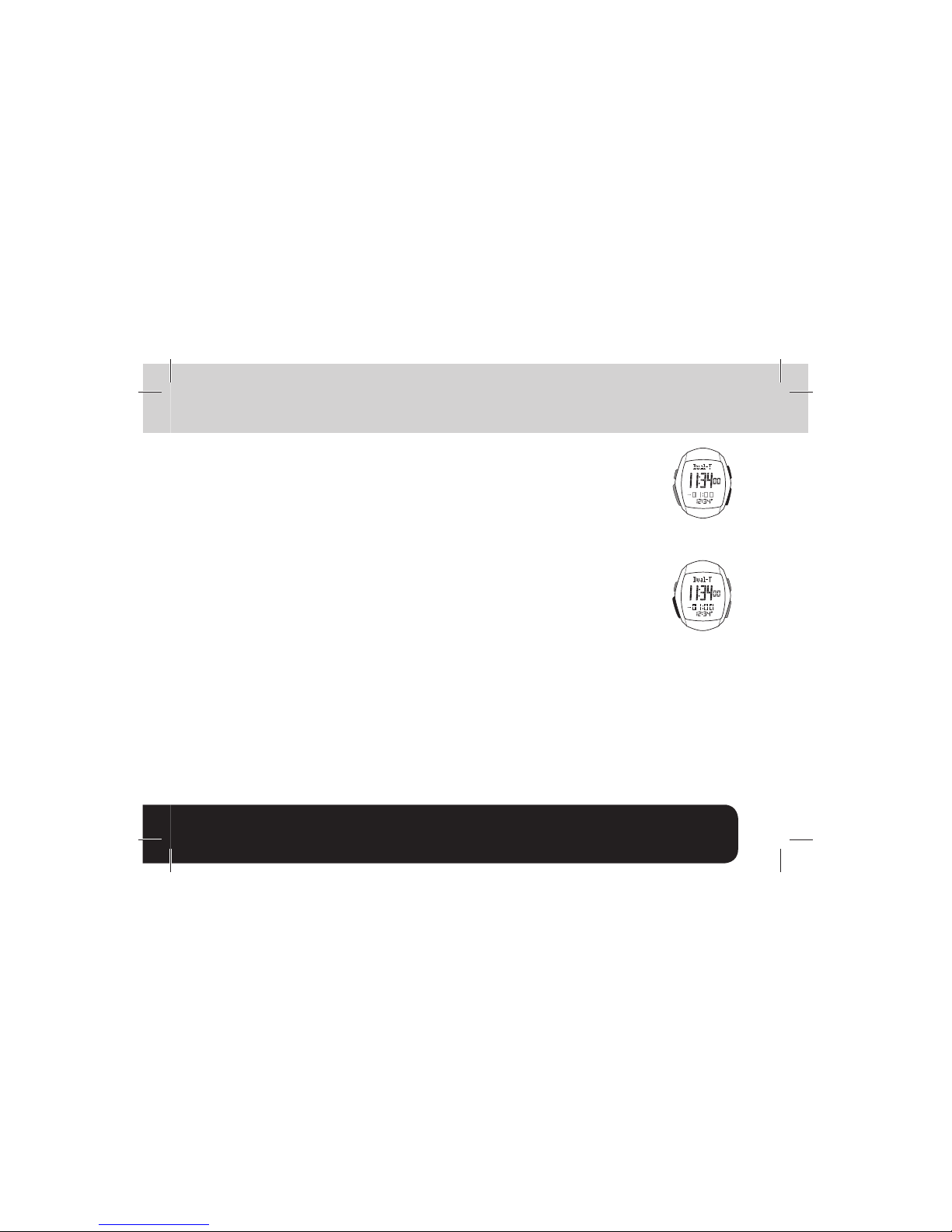

SETTING TIME AND USER PROFILE
The Sportline Duo 1060 uses an advanced algorithm based on your User Profile to
estimate your maximum heart rate and calculate other heart rate information. This
sequence must be completed to ensure accuracy of the watch’s functions.
SETTING TIME AND DATE
1. In Time mode, PRESS & HOLD the MODE key to enter the programming sequence. The
variable being adjusted will flash on and off.
2. Reset Seconds to zero (00) by PRESSING the START/STOP (S/S) or LAP/VIEW (L/V) key.
Advance to Set Minutes by PRESSING the MODE key.
3. Adjust Minutes by PRESSING START/STOP (to increase) or LAP/VIEW (to decrease). Set
Minutes and advance to Set Hour by PRESSING the MODE key.
4. Adjust Hour by PRESSING S/S or L/V. Set Hour and advance to Set Year by PRESSING
the MODE key.
5. Adjust Year by PRESSING S/S or L/V. Set by PRESSING MODE.
6. Adjust Month by PRESSING S/S or L/V. Set by PRESSING MODE.
7. Adjust Day by PRESSING S/S or L/V. Set by PRESSING MODE.
8. Adjust 12/24-hour format by PRESSING S/S or L/V. Set Format by PRESSING MODE.
10. Turn Hourly Chime ON or OFF by PRESSING S/S or L/V. Set by PRESSING MODE.
11. Turn Key Beep ON or OFF by PRESSING S/S or L/V. Set by PRESSING MODE.
12. Select Gender (M=male, F=female) by PRESSING the START/STOP (S/S) or LAP/VIEW
(L/V) key. Set Gender by PRESSING THE Mode key.
13. Adjust Year of Birth (BIRTH in upper line of display) by PRESSING the S/S or L/V key.
Set by pressing MODE. CONTINUED ON NEXT PAGE
SETTING THE WATCH FUNCTIONS
ADJUST: S/S
or L/V
SET: MODE
SP5296IS01ROD.indd Sec1:11SP5296IS01ROD.indd Sec1:11 6/11/10 12:38 PM6/11/10 12:38 PM

12
Duo 1060 Speed and Distance Heart Rate Monitor
14. Select Units (Metric or Imperial) by PRESSING S/S L/V. Set by PRESSING MODE.
15. Adjust Height by PRESSING S/S or l/v. Set by pressing Mode.
16. Select Weight Units (LB=pounds, KG=kilograms) by PRESSING S/S or L/V. Set by PRESSING MODE.
17. Adjust Weight by PRESSING S/S or L/V. Set by PRESSING MODE.
18. Select Activity Level (LOW, MEDIUM or HIGH) by PRESSING S/S or L/V. Set by PRESSING MODE.
19. Adjust Walking Stride by PRESSING S/S or L/V. Set by PRESSING MODE.
20. Adjust Running Stride by PRESSING S/S or L/V. Set by PRESSING MODE.
21. Adjust Display Contrast by PRESSING S/S or L/V. Set by PRESSING MODE.
22. PRESS & HOLD the MODE key to exit the Programming Sequence & resume Operating mode.
HOW TO MEASURE YOUR STRIDE LENGTH
1. Your stride is the distance between your back foot’s toe and your front foot’s toe (fig. 1). To find out what
your stride is, walk or run 10 steps and then measure the distance with a tape measure from the first
step’s toe to the 10th step’s toe (fig. 2). Divide your total distance by 10 to get your average stride length.
2. For a quick estimate, walk 3 steps, measure the distance, and divide by 3. The more steps you take, the
more accurate and realistic your stride will be. An average walking stride for a female is 2 feet (24in), a
male is 2.5 feet (30in).
SETTING THE WATCH FUNCTIONS
FIGURE 1 STRIDE START WALKING/RUNNINGFIGURE 2 DIVIDE TOTAL
DISTANCE BY 10
246810
SP5296IS01ROD.indd Sec1:12SP5296IS01ROD.indd Sec1:12 6/11/10 12:38 PM6/11/10 12:38 PM

13
SETTING THE WATCH FUNCTIONS
The Sportline Duo 1060 allows you to select from 3 preset Heart Rate Target Zones (ACTIVE, Fat Burn and
Endurance) and 1 user-defined Target Zone. The watch tracks time IN, ABOVE and BELOW Target Zone
during exercise.
SELECTING YOUR TARGET HEART RATE ZONE
Losing weight and managing to keep it off is a lot easier when you exercise in your target heart rate zone.
To get the most out of any exercise program, you should target 50% to 85% of your maximum heart rate
depending on your fitness level and objectives.
ACTIVE ZONE: 50% - 60% OF MAXIMUM HEART RATE.
This zone is ideal for fitness beginners on a low to moderate intensity program. Exercising in this zone
reduces blood pressure and cholesterol.
FAT BURNING ZONE: 60% - 75% OF MAXIMUM HEART RATE.
Exercising in this zone strengthens the cardiovascular system and nearly all the calories burned are from
fats.
ENDURANCE ZONE: 75% - 85% OF MAXIMUM HEART RATE.
Reaching this zone requires more intense aerobic activity and is perfect for fitness enthusiasts working to
burn maximum calories from fat and carbohydrates. Cardiovascular strengthening, increased metabolism and
elevated caloric burn are the primary benefits.
SP5296IS01ROD.indd Sec1:13SP5296IS01ROD.indd Sec1:13 6/11/10 12:38 PM6/11/10 12:38 PM

14
Duo 1060 Speed and Distance Heart Rate Monitor
SETTING HEART RATE TARGET ZONES
The Sportline Duo 1060 automatically calculates your Maximum Heart Rate from your
User Profile and uses this information to display Heart Rate Zones.
NOTE: This information must be programmed prior to selecting Target Zone. See page 12.
1. In Heart Rate mode, PRESS & HOLD the MODE key until SETTING appears in the
upper line of the display to enter the Programming Sequence.
NOTE: The watch will automatically scroll through Distance, Fitness, History and Setting.
2. Select Target Zone (Active, FatBurn, Endurance or MyZone=User Defined) by
PRESSING the START/STOP (S/S) or Lap/view (L/V). Set Target Zone by PRESSING
MODE.
3. Select Zone Alarms (Above Zone and Below Zone) ON or OFF by PRESSING S/S or L/V.
Set Zone Alarms by PRESSING MODE.
NOTE: Zone Alarm is an audible signal that sounds when you are above or below your selected Target Heart Rate Zone.
4. Adjust MyZone Lower Limit by PRESSING S/S or L/V. Set by PRESSING MODE.
5. Adjust MyZone Upper Limit by PRESSING S/S or L/V. Set by PRESSING MODE.
6. Adjust FITNESS Interval in minutes (see “Fitness/Recovery Tracker” on page 22) by
PRESSING S/S or L/V. Set by PRESSING MODE.
7. Adjust Pedometer Sensitivity Level (SENSE) by PRESSING S/S or L/V. Set by
PRESSING MODE.
8. Adjust Sleep Time (if no activity, the watch will automatically deactivate pedometer)
by PRESSING S/S or L/V. Set by PRESSING MODE.
9. PRESS & HOLD MODE to exit the Programming Sequence.
SETTING THE WATCH FUNCTIONS
ADJUST: S/S
or L/V
SET: MODE
SP5296IS01ROD.indd Sec1:14SP5296IS01ROD.indd Sec1:14 6/11/10 12:38 PM6/11/10 12:38 PM

15
SETTING THE WATCH FUNCTIONS
SETTING DAILY ALARM
The Sportline Duo 1060 features a Daily Alarm. To set Alarm:
1. In Alarm mode, PRESS & HOLD the MODE key to enter the programming sequence.
2. Adjust Hour by PRESSING S/S or L/V. Set by PRESSING MODE.
3. Adjust Minutes by PRESSING S/S or L/V. Set by PRESSING MODE.
4. PRESS & HOLD the MODE key to exit the Programming Sequence and return to Time
mode.
5. Turn Alarm ON or Off by PRESSING the START/STOP (S/S) key.
ADJUST: S/S
or L/V
SET: MODE
SP5296IS01ROD.indd Sec1:15SP5296IS01ROD.indd Sec1:15 6/11/10 12:38 PM6/11/10 12:38 PM

16
Duo 1060 Speed and Distance Heart Rate Monitor
SETTING THE WATCH FUNCTIONS
SETTING DUAL TIME ZONE
To set Dual Time:
1. In Dual Time mode, PRESS & HOLD the MODE key to enter the programming
sequence.
2. Adjust by PRESSING S/S or L/V. Set by PRESSING MODE.
NOTE: Dual Time is linked to the primary Time and is adjustable in 30-minute intervals.
3. PRESS & HOLD the MODE key to exit the Programming Sequence and return to Dual
Time mode.
ADJUST: S/S
or L/V
SET: MODE
SP5296IS01ROD.indd Sec1:16SP5296IS01ROD.indd Sec1:16 6/11/10 12:38 PM6/11/10 12:38 PM

17
OPERATING THE WATCH
DISPLAY ICONS AND THEIR MEANING
The following table shows the watch’s display icons and their meaning:
symbol what it means
Heart Rate is below selected
Target Zone
Heart Rate is above selected
Target Zone
Heart Rate is in selected Target
Zone
Maximum Heart Rate for
workout
Average Heart Rate for workout
symbol what it means
Pedometer is activated
Heart Rate is being detected
Exercise Timer is running
Heart Rate as a percentage
of calculated Maximum Heart
Rate
Hourly Chime is activated
Daily Alarm is activated
Low Battery warning
SP5296IS01ROD.indd Sec1:17SP5296IS01ROD.indd Sec1:17 6/11/10 12:38 PM6/11/10 12:38 PM
